cse capstone project

CSE Capstone Project

Final Presentation

honeywell avionics displays group
Honeywell Avionics Displays Group
  • Display Group
    • Located in Dear Valley
    • Program and support cockpit displays
    • Displays are responsible for reporting various important flight information
      • Altitude, Speed, Pitch, etc.
  • Project Managers
    • Malachi Nordine
    • Mohammed Islam
the hardware

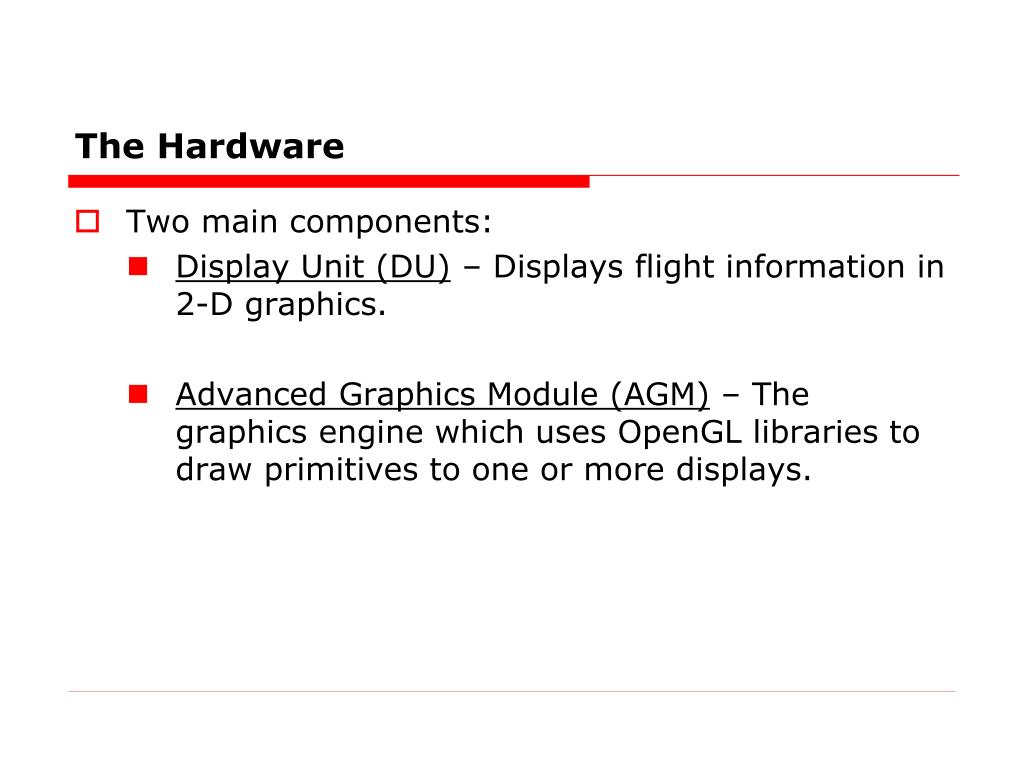

The Hardware
  • Two main components:
    • Display Unit (DU) – Displays flight information in 2-D graphics.
    • Advanced Graphics Module (AGM) – The graphics engine which uses OpenGL libraries to draw primitives to one or more displays.
project overview
Project Overview
  • The purpose
    • Create a remote testing tool for the new advanced graphics module (AGM-200).
    • Testing tool checks for consistency for all primitives drawn by AGM-200.
  • The approach
    • Set up a client-server network between a remote PC and the AGM-200.
    • Commands:
      • Draw an OpenGL primitive.
      • Retrieve corresponding CRC value.
documentation
Documentation
  • Honeywell’s protocol for doing documentation:
    • Requirements: SRS (System Requirement Specification)
    • Design: SRDD (System Requirement Design Document)
    • Testing: Test Plan
  • Goal:
    • Lower levels of documentation trace back to higher levels of documentation for requirement verification
      • Test Plan test cases -> SRDD requirements -> SRS requirements
srs overview
SRS - Overview
  • The SRS focuses on the system-level requirements (the “what”), non implementation specific.
    • System Overview
    • General System Requirements
    • Quality Requirements
    • System Interface Requirements
srs general system requirements
SRS – General System Requirements
  • Main focus of SRS: general system requirements
    • Provide abstract non implementation specific description of each requirement
    • Provide test cases for each requirement
      • Represented by “shall” statements, must be testable
      • Each “shall” statement has a trace tag
srdd overview
SRDD - Overview
  • SRDD focuses on the lower-level implementation -specific requirements (the “how”)
  • It is a list of methods and classes that will eventually be implemented
    • Specific enough to explain exactly what a function does
    • Abstract enough so the programmer can implement the code anyway they want
srdd example function
SRDD – Example Function
  • setPrimitive tells the AGM-200 which drawing mode to be in.
  • SRDD “shall” statements trace back to SRS
test plan
Test Plan
  • Test plan is the lowest level in the documentation hierarchy.
  • The document is organized as a listing of test cases which correspond to all of the “shall” statements in the SRDD.
  • Not actual code, but descriptions of code that you will write that gives the coder freedom of implementation.
client
Client
  • Layered Design
    • Client
    • Transactions / Requests
    • GUI / Test Runner
  • Network
    • Decided to use UDP, but left TCP functionality in as product switch
class structure
Class Structure
  • AGM_Client.jar:
    • package fit
    • package displayTool
      • DisplayFrame.java, DisplayTool.java
    • package tcpClient
      • NetClient.java, TCPClient.java, UDPClient.java
      • Request.java, Reply.java, Transaction.java
      • TestRunner.java
      • package fixtures
        • GenericRequestFixture.java
        • TransactionFixture.java
    • TCPApplet.java
server environment
Server Environment
  • Ran on the DEOS operating system
    • Proprietary real-time scheduling OS
  • Written in C++
    • Time consuming setting up server project in visual studio
  • Memory, scheduling, threads, mutexes, mailboxes, etc. all entered manually into registry
  • Binary file and registry uploaded to the AGM using ftpshell and then ran
  • Debugging done through logProcessEvents and checked through telnet
server processes
Server Processes
  • We use two processes:
    • CRC
    • aClient
  • aClient has multiple threads:
    • Handle UDP connection
    • Draw HGL primitives
    • Receive a message from CRC process when the value of the CRC has changed
client server communication
Client/Server Communication
  • Server waits for incoming UDP connection from client
  • Server receives string in following format using recvfrom():
    • Function|Param1|Param2|…|ParamN
  • Unpack() parses it and reads parameters into an array of strings
  • Switch used to either change what is drawn or get a CRC value
  • sendto() is used to send status or CRC back to client
crc operation
CRC Operation
  • CRC is calculated using a different process.
    • DEOS only allows “server” processes to interact with our process, and CRC calculation is not a “server” process (HGL is)
    • To get around this, we use a mailbox that is accessed by our main process.
    • CRC sends a new value to the mailbox each time it changes
  • Thread in main process keeps checking mailbox and stores value in global variable
opengl
OpenGL
  • Standard specification defining a cross-platform graphics API
  • Doesn’t provide the actual functionality; only an interface
  • Useful for abstraction and uniformity
  • Displays use OpenGL to convert geometric primitives (lines, shapes, etc) into pixels
slide21
HGL
  • Supported functions:
    • Draw Line
    • Draw Square
    • Draw Triangle
    • Draw Polygon
    • Clear Display
    • Set Color
conclusion

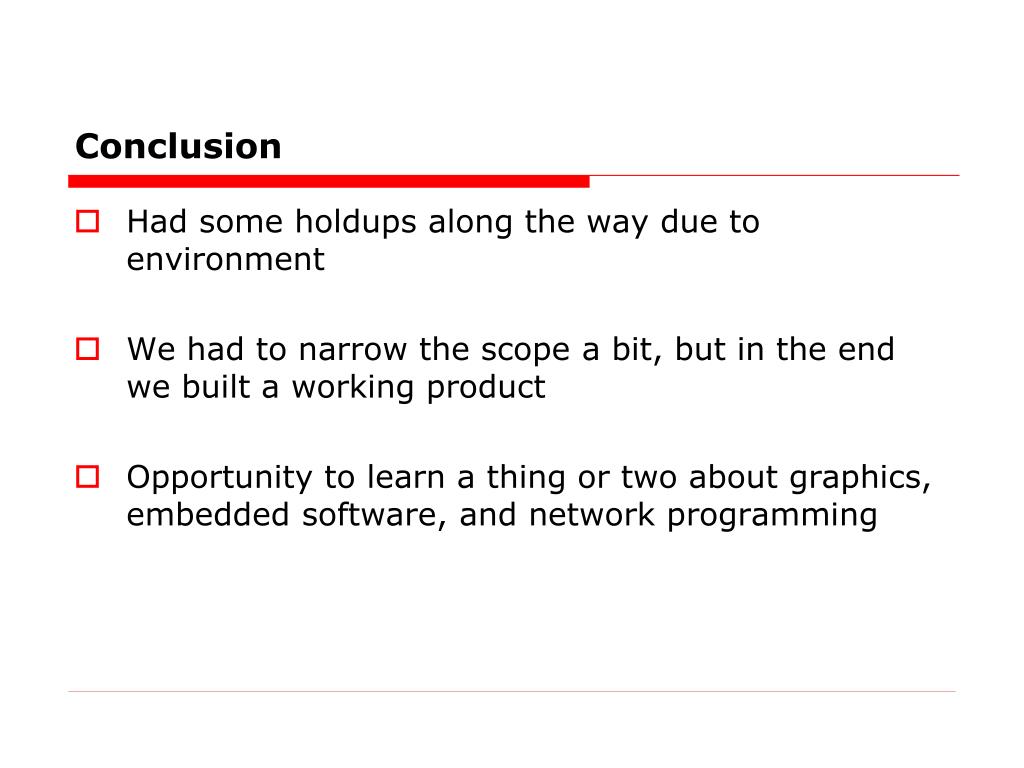

Conclusion
  • Had some holdups along the way due to environment
  • We had to narrow the scope a bit, but in the end we built a working product
  • Opportunity to learn a thing or two about graphics, embedded software, and network programming
