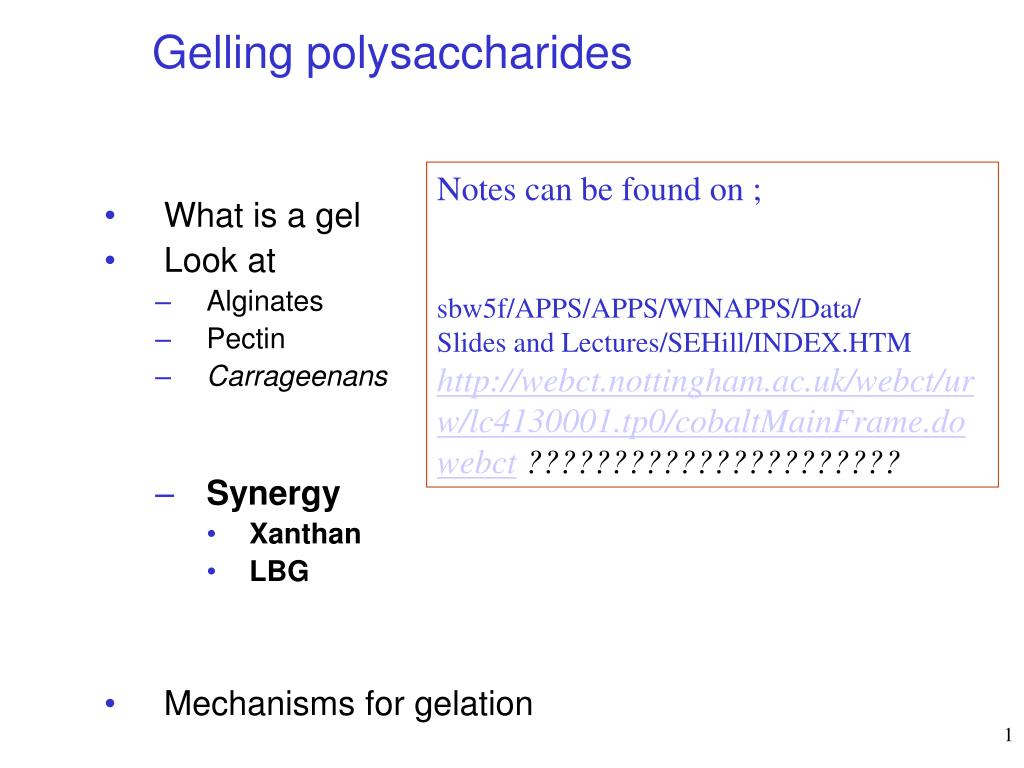

  1. Gelling polysaccharides What is a gel Look at Alginates Pectin Carrageenans Synergy Xanthan LBG Mechanisms for gelation Notes can be found on ; sbw5f/APPS/APPS/WINAPPS/Data/ Slides and Lectures/SEHill/INDEX.HTM http://webct.nottingham.ac.uk/webct/urw/lc4130001.tp0/cobaltMainFrame.dowebct ??????????????????????

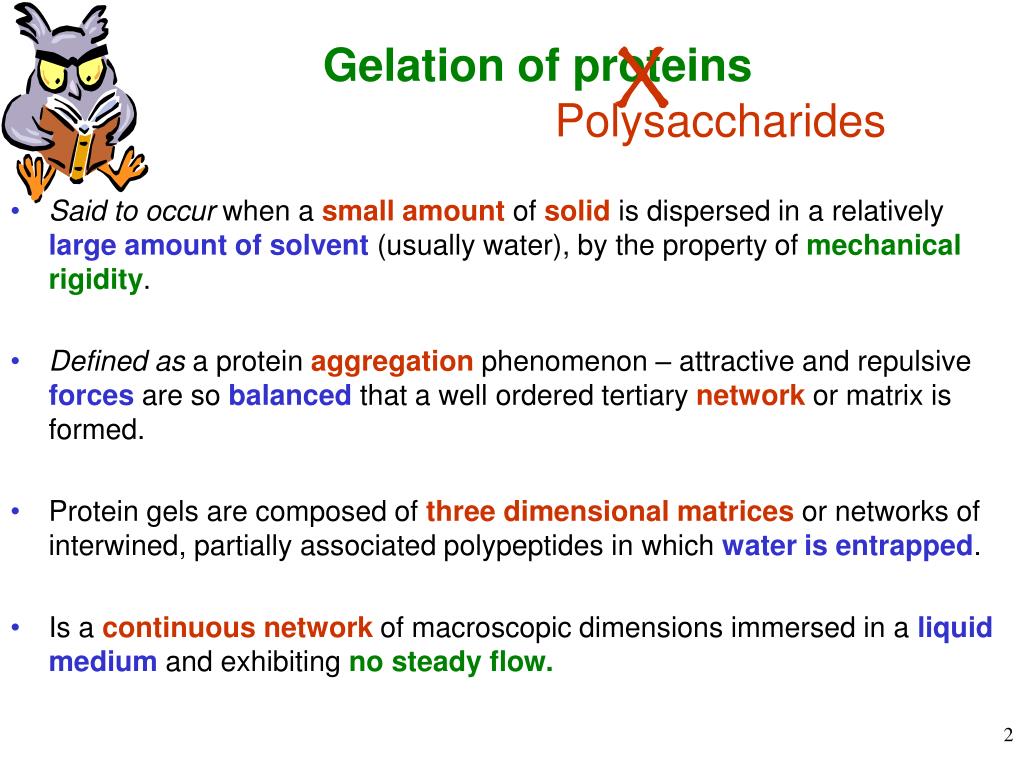

  2. Gelation of proteins Said to occur when a small amount of solid is dispersed in a relatively large amount of solvent (usually water), by the property of mechanical rigidity. Defined as a protein aggregation phenomenon – attractive and repulsive forces are so balanced that a well ordered tertiary network or matrix is formed. Protein gels are composed of three dimensional matrices or networks of interwined, partially associated polypeptides in which water is entrapped. Is a continuous network of macroscopic dimensions immersed in a liquid medium and exhibiting no steady flow. X Polysaccharides

  3. Gels X

  4. Structure and Gels Retorted gels 0.4% locust bean gum/0.4% carrageenan Total 0.8% polysaccharide Egg white ~12% protein

  5. Physical gel with crystalline junctions Chemical gel -covalent junctions Gel structures Aggregates of spherical particles Framework of Rod-like particles

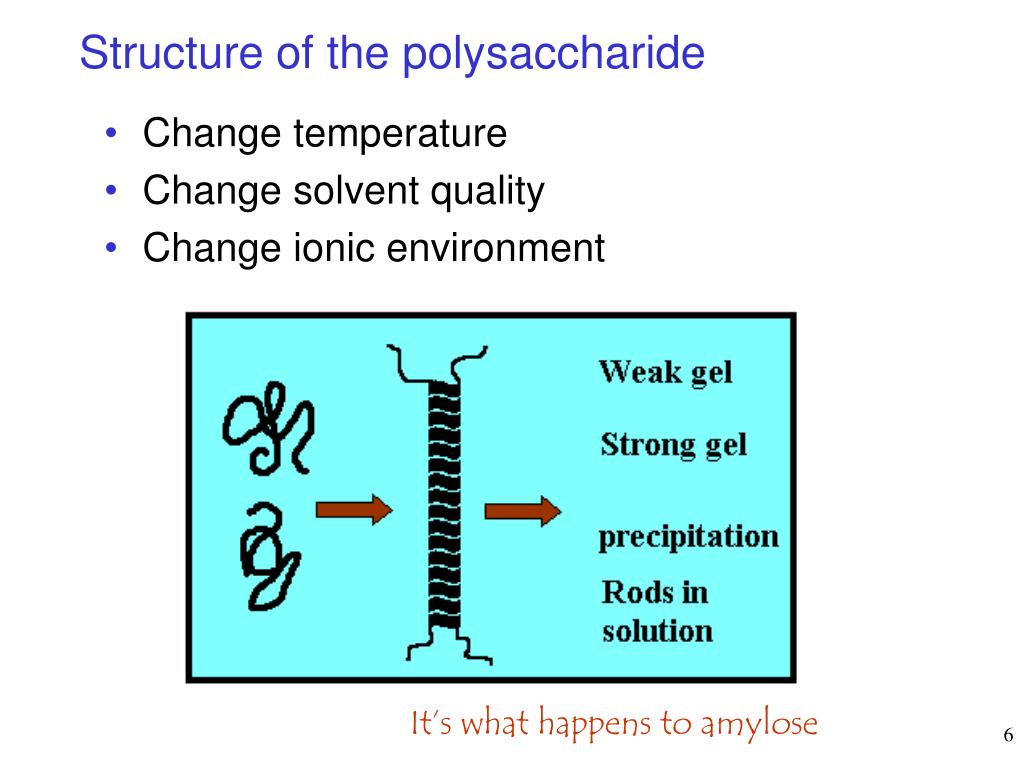

  6. Structure of the polysaccharide Change temperature Change solvent quality Change ionic environment It’s what happens to amylose

  7. Carrageenan (E407) Red seaweed extract (Rhodophyceae) iota carrageenan lambda carrageenan kappa carrageenan

  8. 1- 4-linked- -D-galactopyranose

  9. kappa lamda 1-3-linked-b-D-galactopyranose

  10. Thermoreversible gels Kappa better gel former than iota

  11. Agarose seaweed galactose residues sulfated more sulfate less well it gels

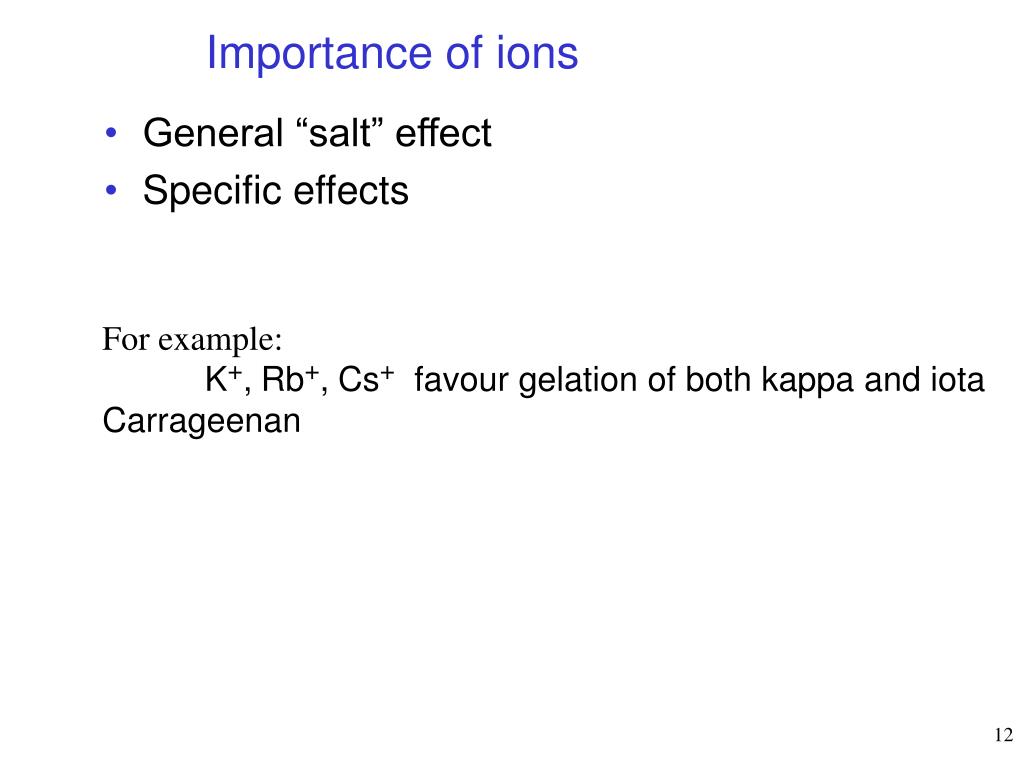

  12. Importance of ions General “salt” effect Specific effects For example: K+,Rb+,Cs+ favour gelation of both kappa and iota Carrageenan

  13. Ion

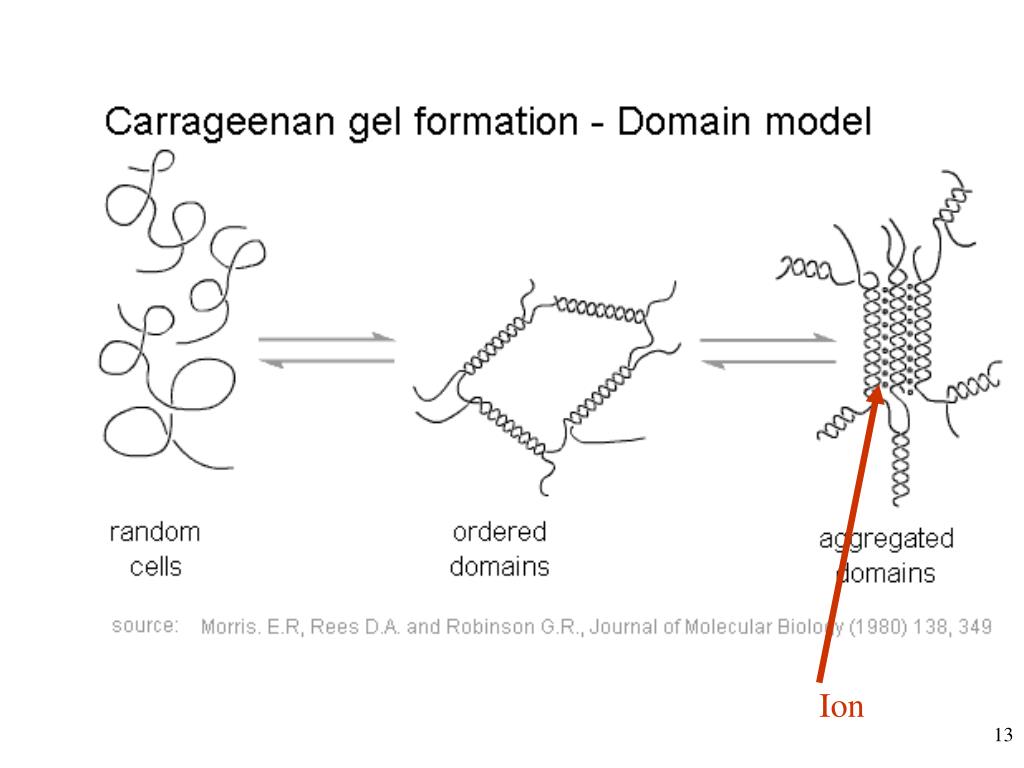

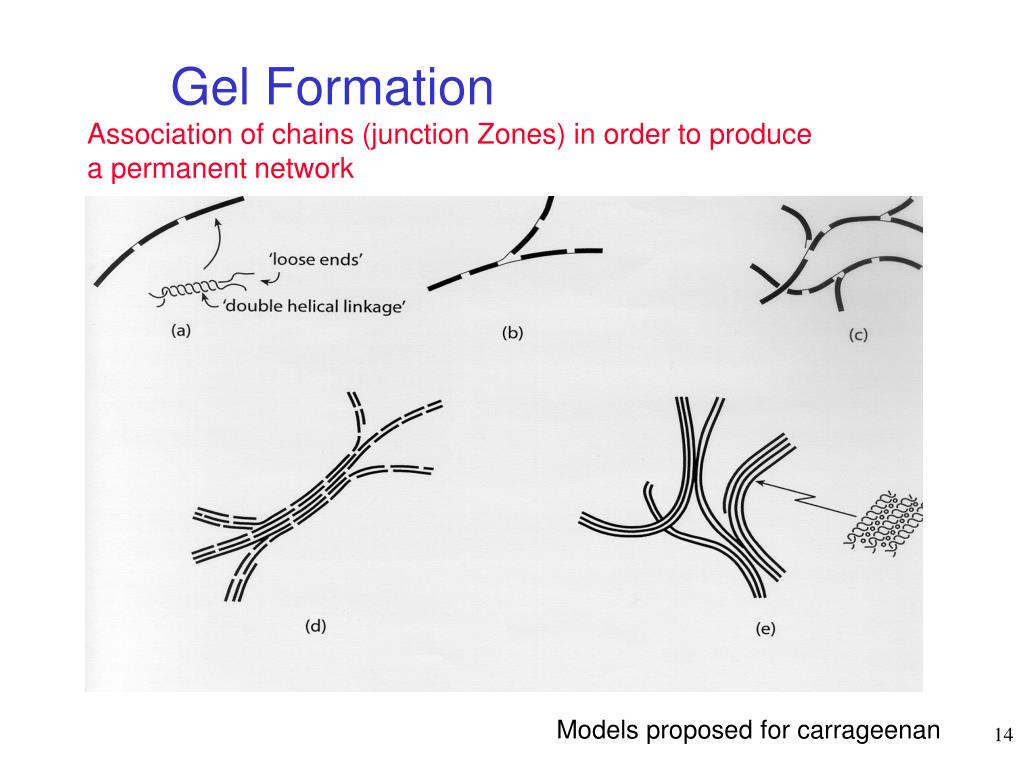

  14. Gel Formation Association of chains (junction Zones) in order to produce a permanent network Diverse models for gel formation: Models proposed for carrageenan

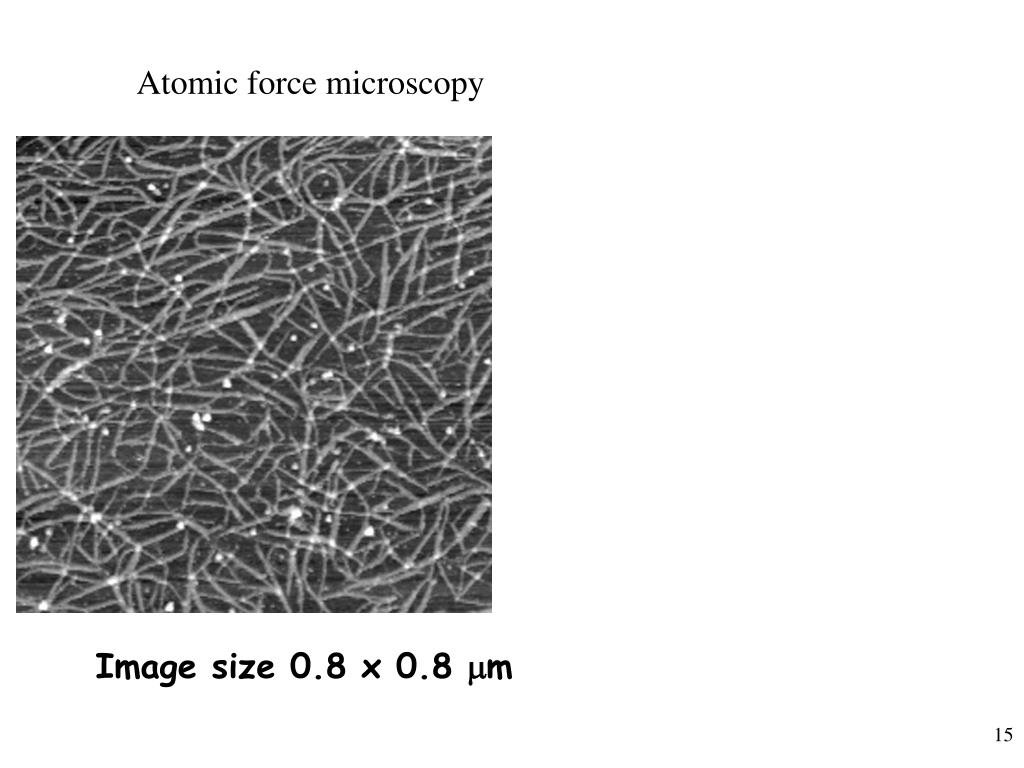

  15. Atomic force microscopy Image size 0.8 x 0.8 m

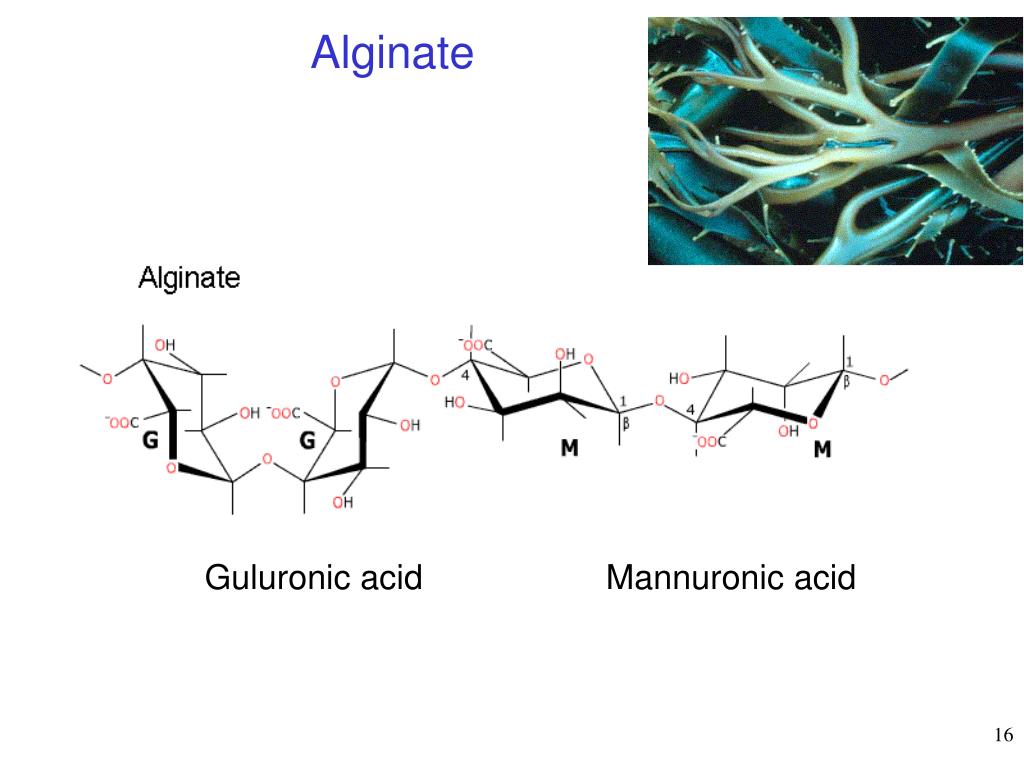

  16. Alginate Guluronic acid Mannuronic acid

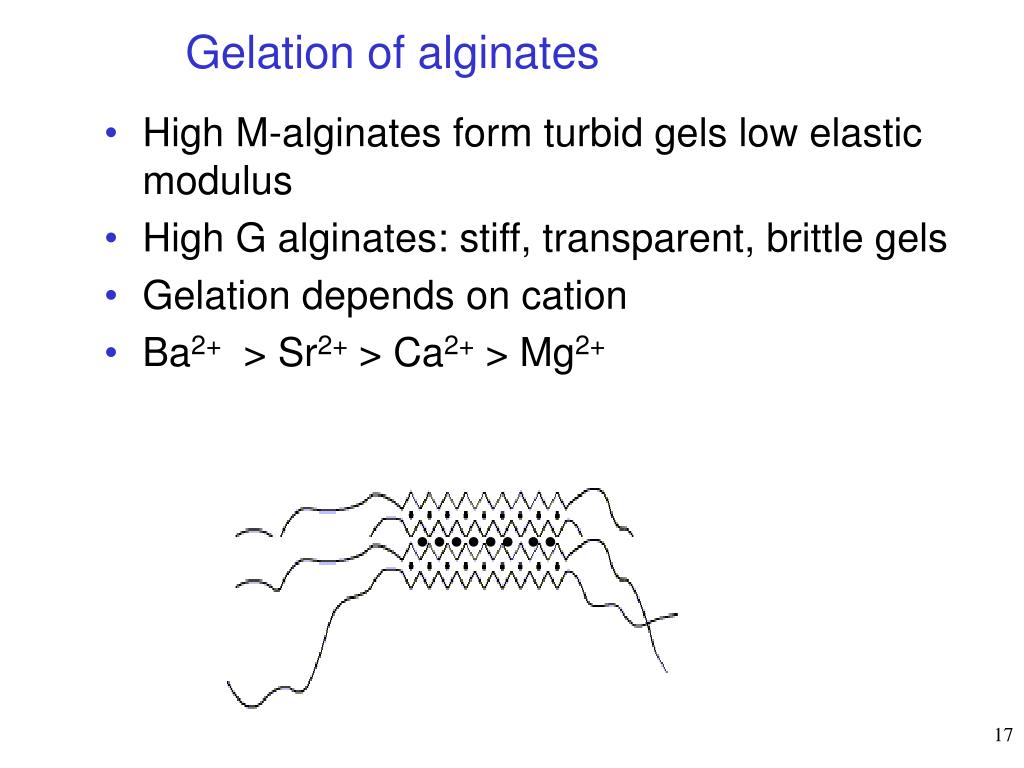

  17. Gelation of alginates High M-alginates form turbid gels low elastic modulus High G alginates: stiff, transparent, brittle gels Gelation depends on cation Ba2+ > Sr2+ > Ca2+ > Mg2+

  18. Pectin a core chain of alpha (1,4)-linked D-galacturonic acid units interspersed with some L-rhamnose R= rhamnose U= galacturonic acid Branched structure Neutral sugars alternate About 40-100

  19. galacturonic acid forming cells for cations

  20. Pectin stable at low pH

  21. Low ester pectin High ester pectin • Pectin with degree of esterification > 50% is referred to as high ester pectin. • High ester pectins gel in the presence of high concentrations of cosolutes (e.g. 60% sugar) and at pH values < 3.4. • Rapid set pectins have DE ~70% and slow set pectins have DE ~65%. • Gelation is believed to occur through association of the pectin chains by hydrophobic bonding. • Gels are thermally irreversible. • Low ester pectins have DE < 50%. • Low ester pectins gel in the presence of calcium ions. The reactivity increases as DE decreases. • Gelation occurs as a consequence of calciumion crosslinking.

  22. Mixed gels Often more than one polymer exists This can enhance to reduce gel quality

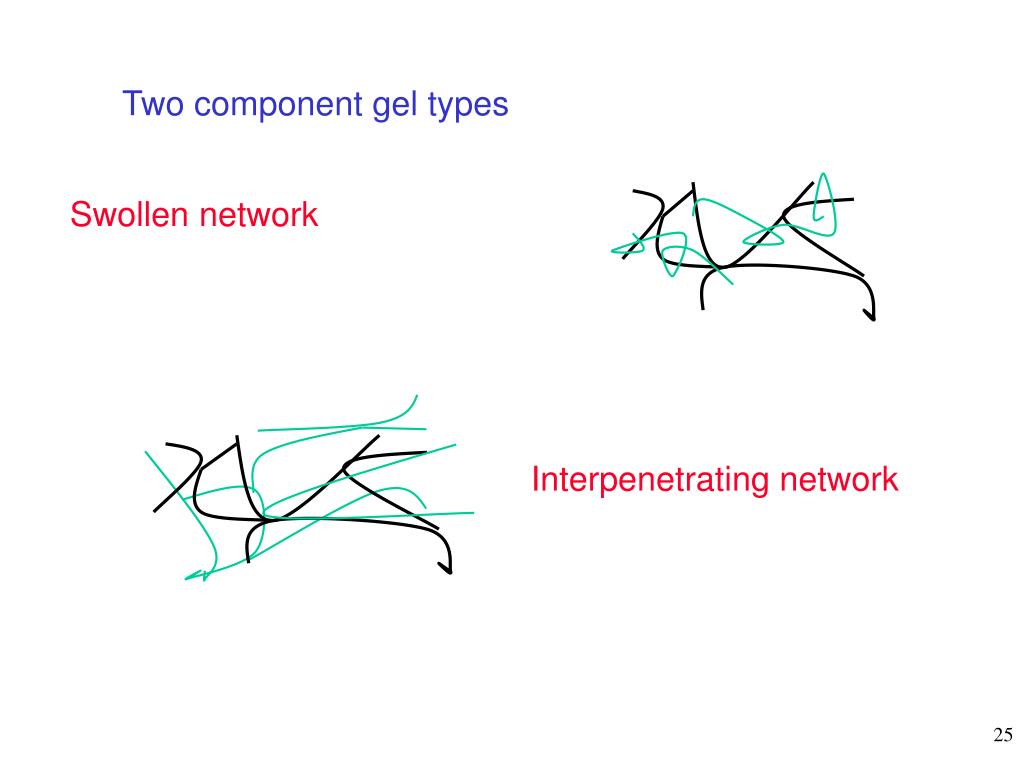

  23. Two component gel types Swollen network Interpenetrating network

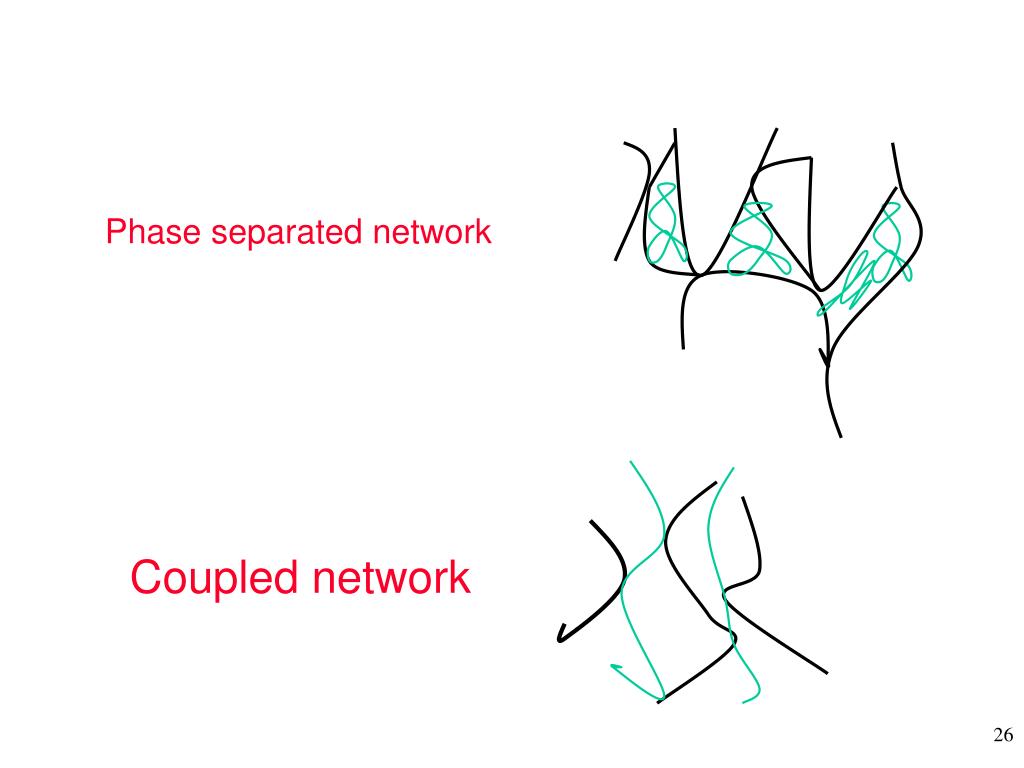

  24. Phase separated network Coupled network

  25. Gelation in Synergistic mixed polysaccharide gels Locust bean gum gelling with carrageenan

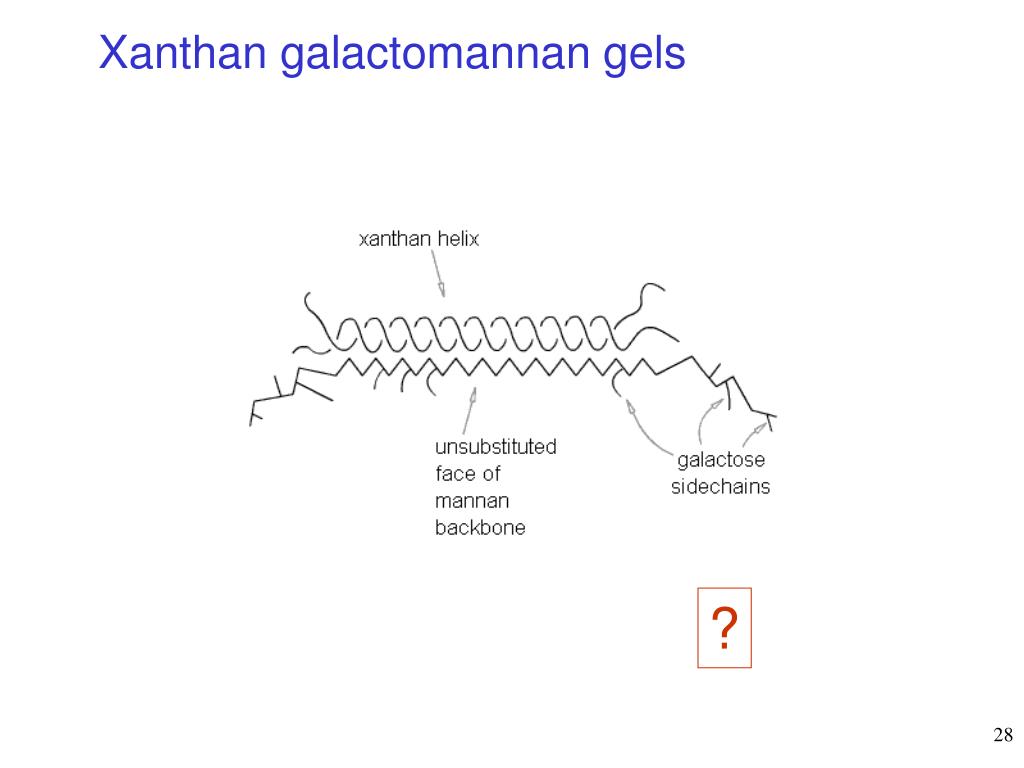

  26. Xanthan galactomannan gels ?

  27. Firm, Brittle Low Acyl Gellan Gum Agar k-Carrageenan High “G” Alginate Pectin Gel Textures High “M” Alginate Gelatin Xanthan/LBG High Acyl Gellan Gum Soft, Flexible

  28. Useful references http://www.lsbu.ac.uk/water/ E-learning hydrocolloid program on Blackboard Journals: Food Hydrocolloids and Carbohydrate Polymers Series of Books: Gums and Stabilisers for the Food Industry Book :Functional Properties of Food Macromolecules (Chapter by Morris on gelation) Anything in the TX55-, QD4--, QP7-- section of the library
