FC 29 function : “Check data and evaluate”

FC 29 function : “Check data and evaluate”. FC29 Select new motor/winding/data set with a starting edge. Fault, PLC stop for incorrect axis number. Incorrect data set ERROR=1. Check data. NOK. NOK. OK. Start function Set output “Func_act“.

fearghus
Download Presentation

FC 29 function : “Check data and evaluate”

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

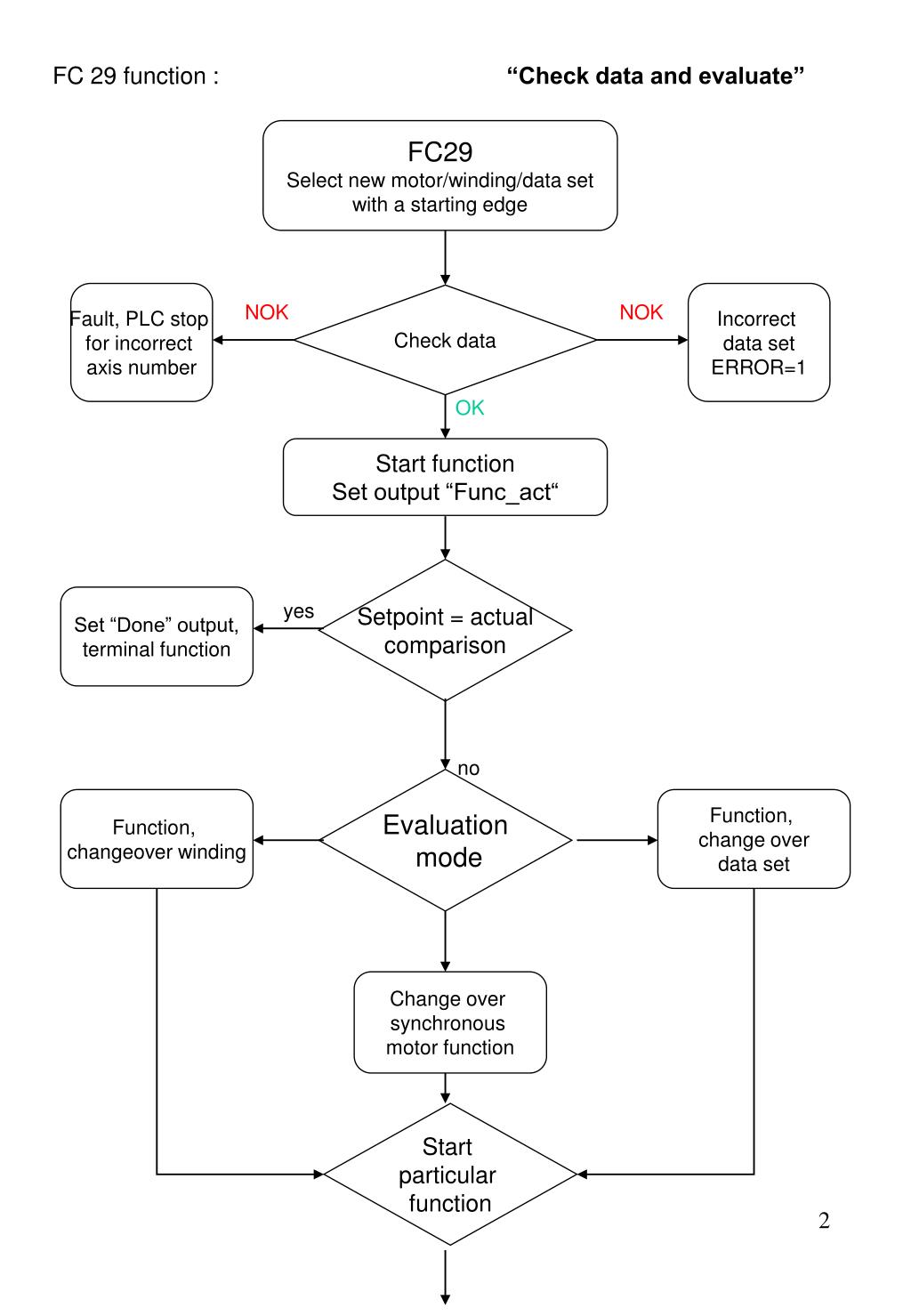

  1. FC 29 function : “Check data and evaluate” FC29 Select new motor/winding/data setwith a starting edge Fault, PLC stop for incorrect axis number Incorrect data set ERROR=1 Check data NOK NOK OK Start function Set output “Func_act“ Setpoint = actualcomparison Set “Done” output,terminal function yes no Evaluation mode Function, changeover winding Function, change overdata set Change over synchronous motor function Start particular function

  2. FC 29 function : “Change over synchronous motor” FC29 Select new motor New data -- drive DBX 21.3u. DBX 21.4 Check new NC and/or drive dataset Transfer new motor No. NC_ ParNo+DR_ParNo yes no Feedback signal, NC / drive changed over  Set output “Req_Imp_loe“ If DB3X.DBX21.7 =0 „ Reset DBX 21.5 Reset “brake” output Feedback signal, change over NC / drive Set output “Req_park” Feedback signal, parked DB3X.DBX1.5+DBX1.6 =0

  3. FC 29 function : “Change over synchronous motor” Reset all outputs “Mot_1 - Mot_4” HW control Feedback signal “HW-Feedback = 1“ no yes Start timer, Power-off delay Set new output “Mot_1- Mot_4“ Set new output “Mot_1- Mot_4“ Start timer power-on delay Feedback signal “HW-Feedback = 0“ Reset output “Req_park“ Feedback signal park, withdrawn DB3X.DBX1.5 or DB3X.DBX1.6 =1 Set DB3X.DBX 21.5 Reset “Req_Imp_loe“ output Check 611D drive DB3X.DBX21.7+ DB3X.DBX93.7=1 or DB3X.DBX21.7+ DB3X.DBX93.7=0 Set “Done“ output Terminate function

  4. FC 29 function : “Changeover winding” FC29 Select new winding New data -- drive DBX 21.3u. DBX 21.4 Check new NC and / or drive data set Transfer new winding No. NC_ ParNo+DR_ParNo yes no Feedback signal NC / drive changed over  Set “Req_Imp_loe“ output If DB3X.DBX21.7 =0 „ reset DBX 21.5 Feedback signal, NC / drive changed over Reset all outputs “Coil_1 - Coil_4”

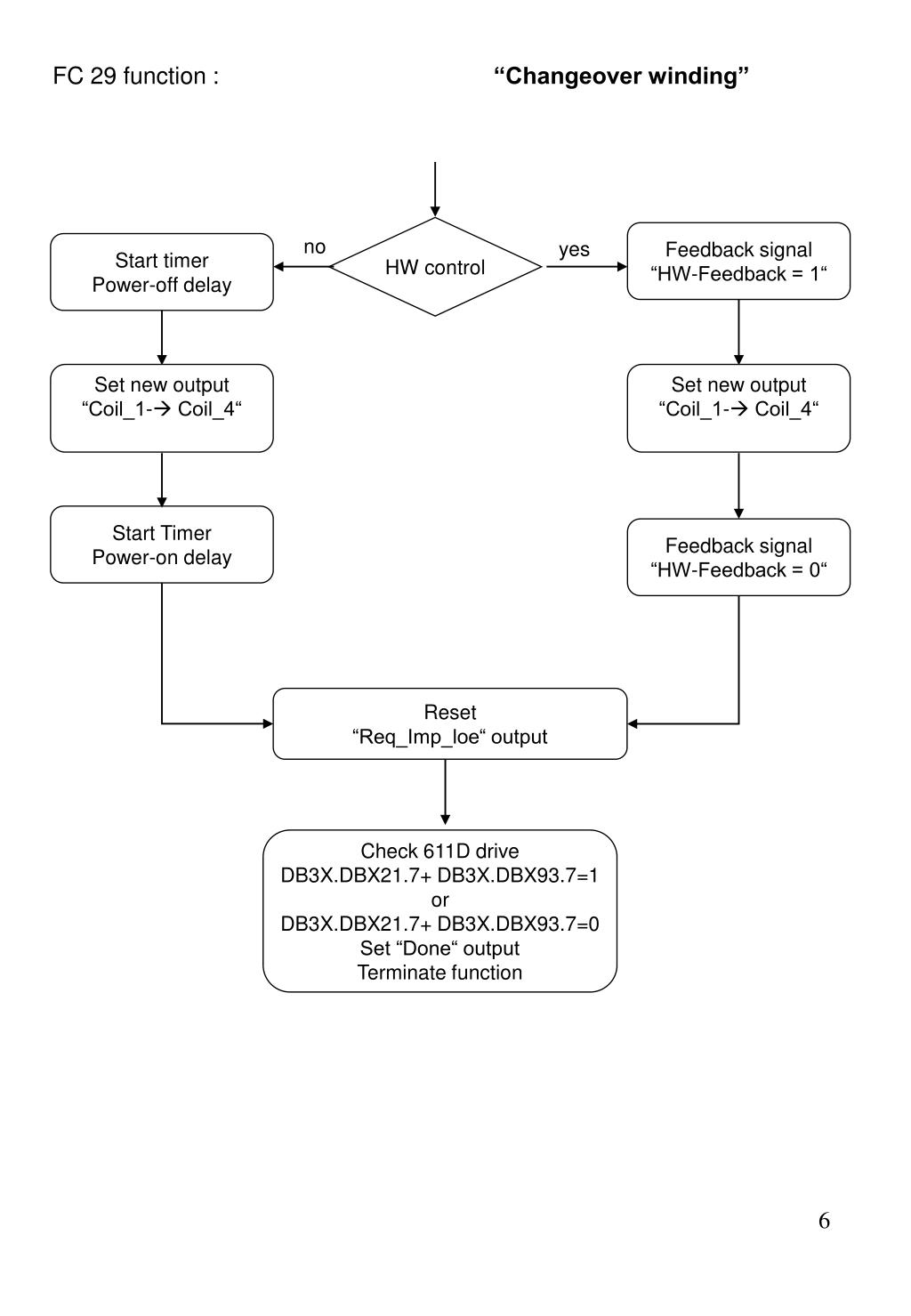

  5. FC 29 function : “Changeover winding” HW control Feedback signal “HW-Feedback = 1“ no yes Start timer Power-off delay Set new output “Coil_1- Coil_4“ Set new output “Coil_1- Coil_4“ Start Timer Power-on delay Feedback signal “HW-Feedback = 0“ Reset “Req_Imp_loe“ output Check 611D drive DB3X.DBX21.7+ DB3X.DBX93.7=1 or DB3X.DBX21.7+ DB3X.DBX93.7=0 Set “Done“ output Terminate function

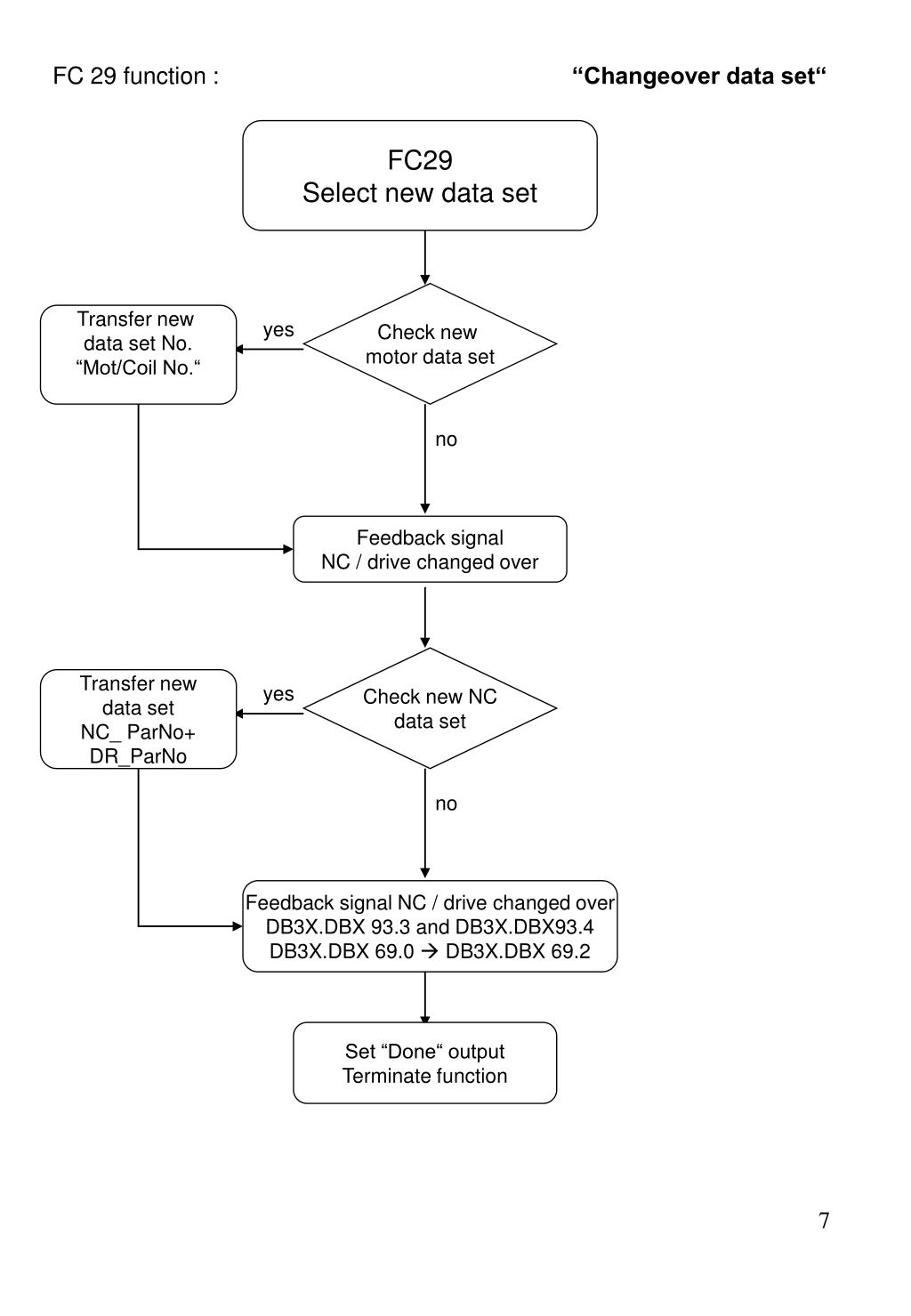

  6. FC 29 function : “Changeover data set“ FC29 Select new data set Check new motor data set Transfer new data set No. “Mot/Coil No.“ yes no Feedback signal NC / drive changed over Check new NCdata set Transfer newdata set NC_ ParNo+ DR_ParNo yes no Feedback signal NC / drive changed over DB3X.DBX 93.3 and DB3X.DBX93.4 DB3X.DBX 69.0  DB3X.DBX 69.2 Set “Done“ output Terminate function

  7. FC 29 function : “Flying winding changeover” FC29 Select new winding New data -- drive DBX 21.3u. DBX 21.4 Check new NC and / or drive Data set Transfer new data set No. NC_ ParNo+DR_ParNo yes no Reset DBX 21.5 Feedback signal NC / drive changed over Reset all outputs “Coil_1 - Coil_4”

  8. FC 29 function : “Flying winding changeover” HW control Feedback signal “HW-Feedback = 1“ no yes Start Timer Power-off delay Set new output “Coil_1- Coil_4“ Set new output “Coil_1- Coil_4“ Start Timer Power-on delay Feedback signal ”HW-Feedback = 0“ Reset “ Req_Imp_loe“ output Check 611D drive DB3X.DBX21.7+ DB3X.DBX93.7=1 Set “Done“ output Terminate function

  9. Interface description, FC 29

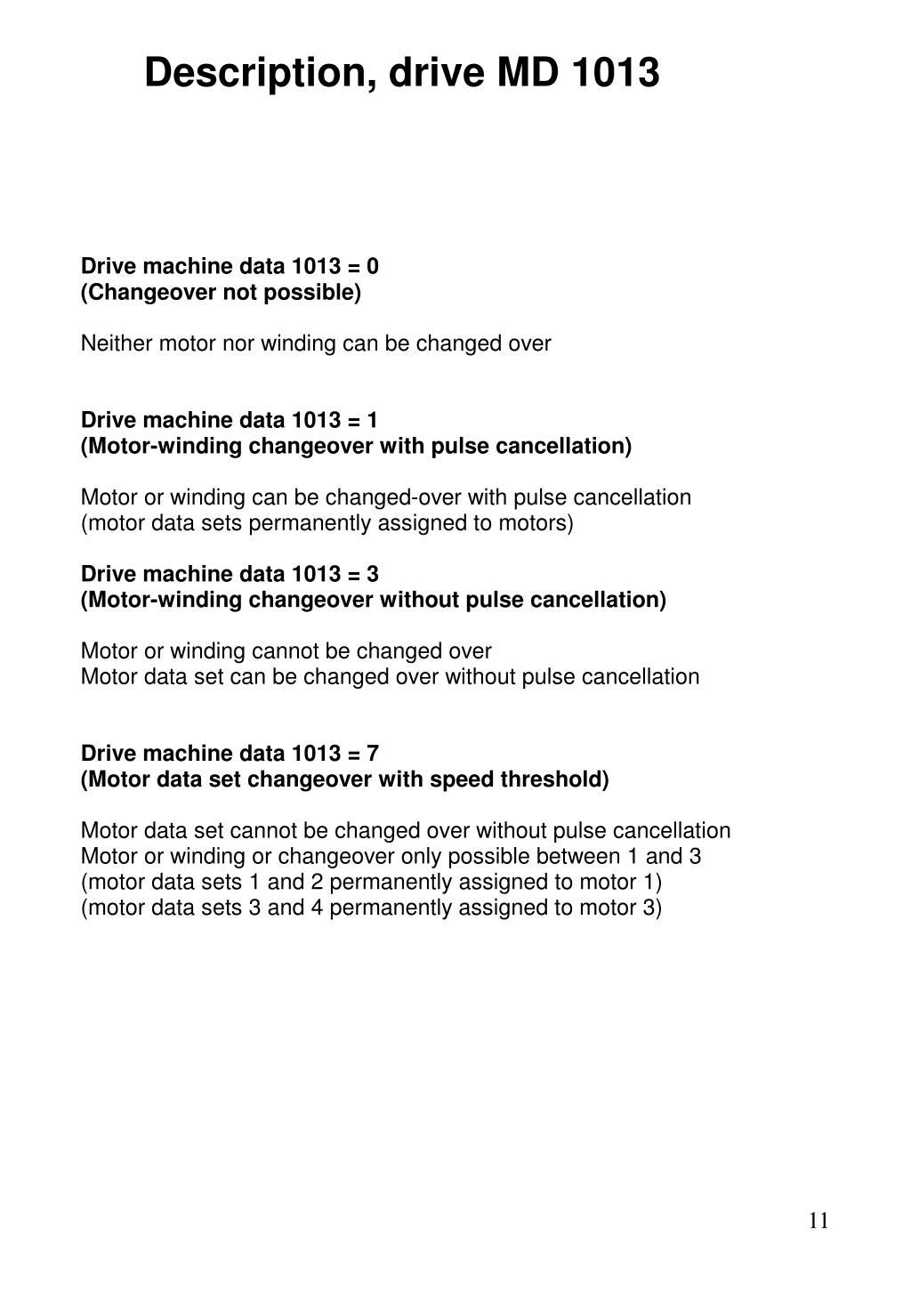

  10. Description, drive MD 1013

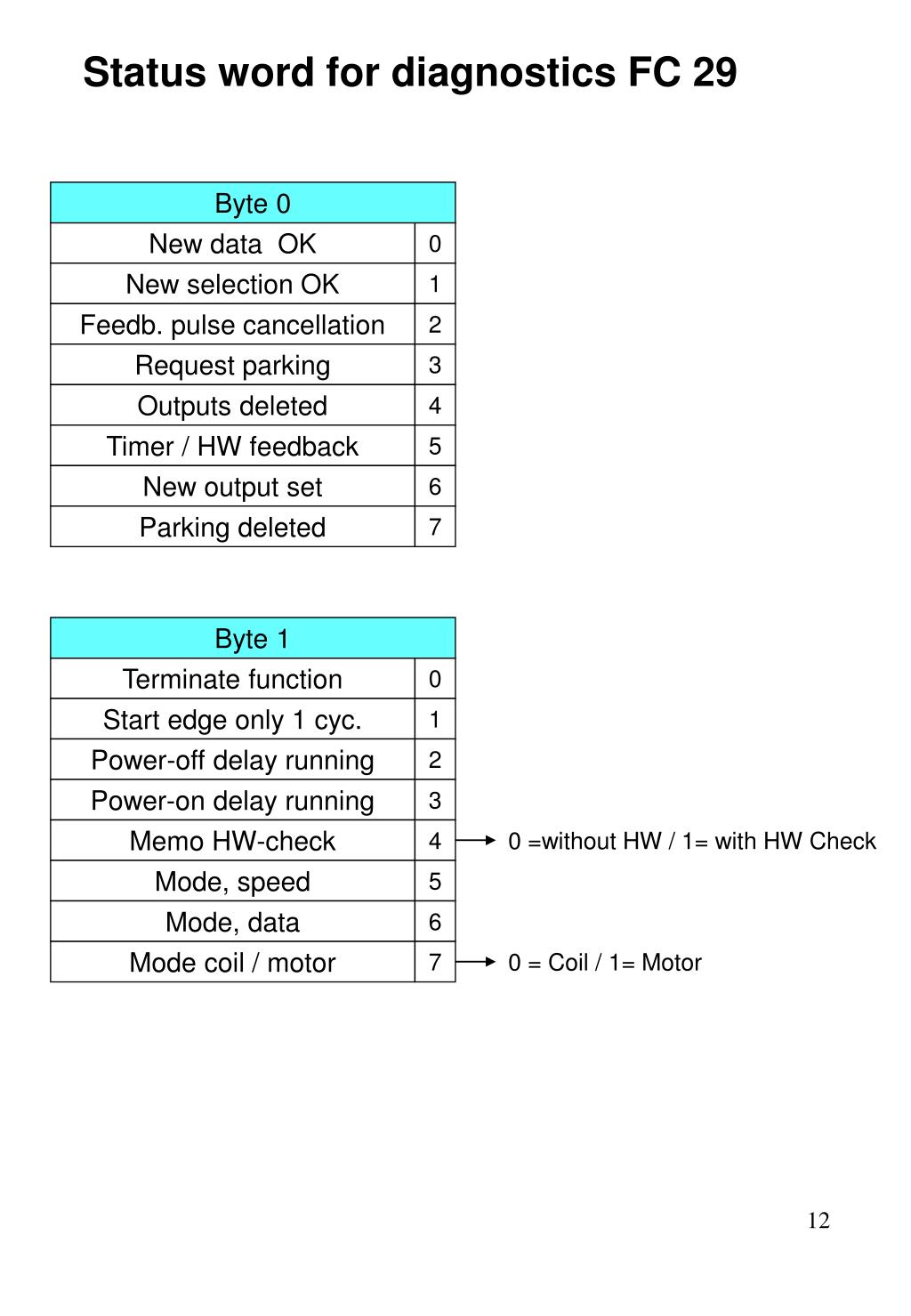

  11. Status word for diagnostics FC 29 Byte 0 New data OK 0 New selection OK 1 Feedb. pulse cancellation 2 Request parking 3 Outputs deleted 4 Timer / HW feedback 5 New output set 6 Parking deleted 7 Byte 1 Terminate function 0 Start edge only 1 cyc. 1 Power-off delay running 2 Power-on delay running 3 Memo HW-check 4 0 =without HW / 1= with HW Check Mode, speed 5 Mode, data 6 Mode coil / motor 7 0 = Coil / 1= Motor
