  1. Structured Hardware Design Ian Pratt University of Cambridge Computer Laboratory Ian.pratt@cl.cam.ac.uk

  2. Designing Hardware Systems • A good design should work first time • Simulation • Verification • Testing • Top-down methodology • Decompose into modules • Modules • Well-defined functions and interfaces • Often different technologies • Using pre-existing modules desirable

  3. Broadside components • Bus: • parallel signals carrying a binary number • Represented with thick lines • Broadside components: • Building block is instantiated once for each wire in the bus • Building block inputs and outputs connected to the corresponding members of the buses • Control connections are wired in parallel • Registers, buffers, multiplexors

  4. Read-Only Memories • Non-volatile, but typically slow • Mask programmable • Cheapest in mass production by far • One-time programmable (PROM) • UV Eraseable (EPROM) • Electrically re-programmable (e.g. FLASH) • Expensive, but many rewrite cycles possible • `Field upgrades’ possible • Choose technology based on #units required and #rewrite cycles expected

  5. DRAM • Each bit stored in a small capacitor (1T) • Needs refreshing periodically • ‘Recovery time’ required after reads • Bits arranged in a square array • Accessed by row, column (multiplexed address bus) • Typically 1,4,8 bits wide • E.g.: 8Mbx8 (64Mbit) 50ns access time • New parts have synchronous interface • SDRAM / DDR / RAMBUS (still same core) • Modules E.g.: 16Mbx64 100MHz SDRAM • Made from eight 8Mbx8 parts on a PCB (DIMM)

  6. SRAM • Transparent latch per bit (6T) • Not as dense as DRAM, more expensive • Fast (7-50ns) access times • Used in caches • Easy to use – no refresh to worry about • Non-multiplexed address bus • Modern parts have synchronous interfaces • Pipelined design • E.g.: 256Kbx32 (8Mb) 10ns

  7. Clock generation • RC oscillators rather inaccurate, but cheap • Quartz crystal oscillators commonplace • Require a little care to make work • Accurate to ~50ppm • Clock multiplication • Phase Locked Loop (PLL) • E.g.: 133MHz x 7.5 = 997.5Mhz (Pentium III) • Clock distribution trees • Buffers, or PLLs to get zero propagation delay

  8. Miscellaneous • Power-on reset • Release reset after power stable • Get all flip-flops into known state • (manual reset by shorting capacitor) • Relays can be used to switch large loads • (alternative is to use power transistors) • Must protect transistor with a diode • Mechanical switches ‘bounce’ when switching • Use a 2-pole switch and RS latch

  9. ALUs • Combinatorial logic implementation • Takes two N-bit inputs and function selector • Propagation delay typically determined by carry chain • Typically twos-complement representation • ADD, ADC, SUB, NOT, AND, OR, BIC,… • Flags: Carry-out, Negative, Overflow, Zero • Output will typically be latched, along with flag status results

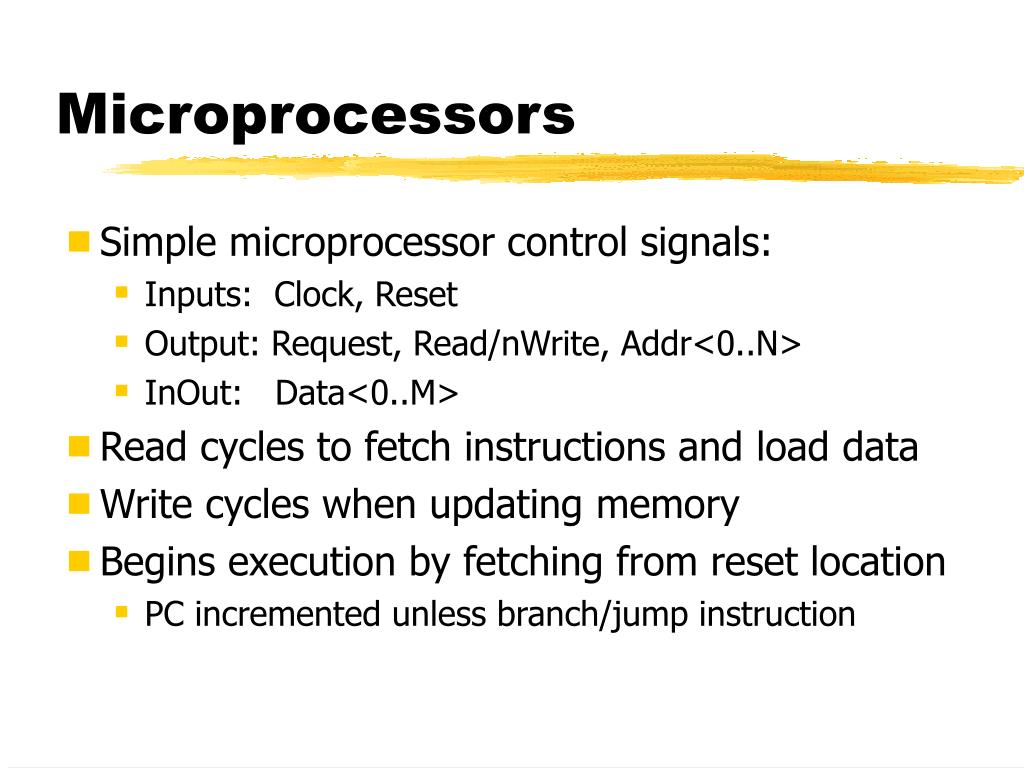

  10. Microprocessors • Simple microprocessor control signals: • Inputs: Clock, Reset • Output: Request, Read/nWrite, Addr<0..N> • InOut: Data<0..M> • Read cycles to fetch instructions and load data • Write cycles when updating memory • Begins execution by fetching from reset location • PC incremented unless branch/jump instruction

  11. Address decoding • Devising a memory map for a design • Address that memory/peripherals are available at • Non-volatile memory typically mapped at the reset location • Use combinatorial function of high-order address bits to generate enable signals • Devise memory map for decoding convenience

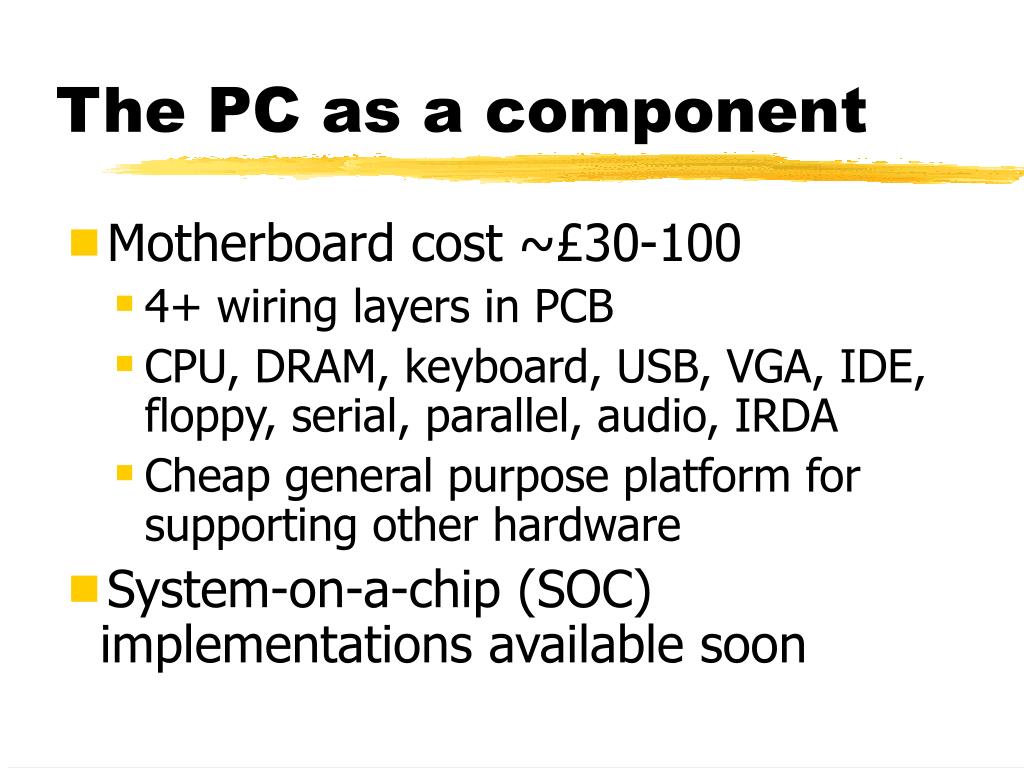

  12. The PC as a component • Motherboard cost ~£30-100 • 4+ wiring layers in PCB • CPU, DRAM, keyboard, USB, VGA, IDE, floppy, serial, parallel, audio, IRDA • Cheap general purpose platform for supporting other hardware • System-on-a-chip (SOC) implementations available soon

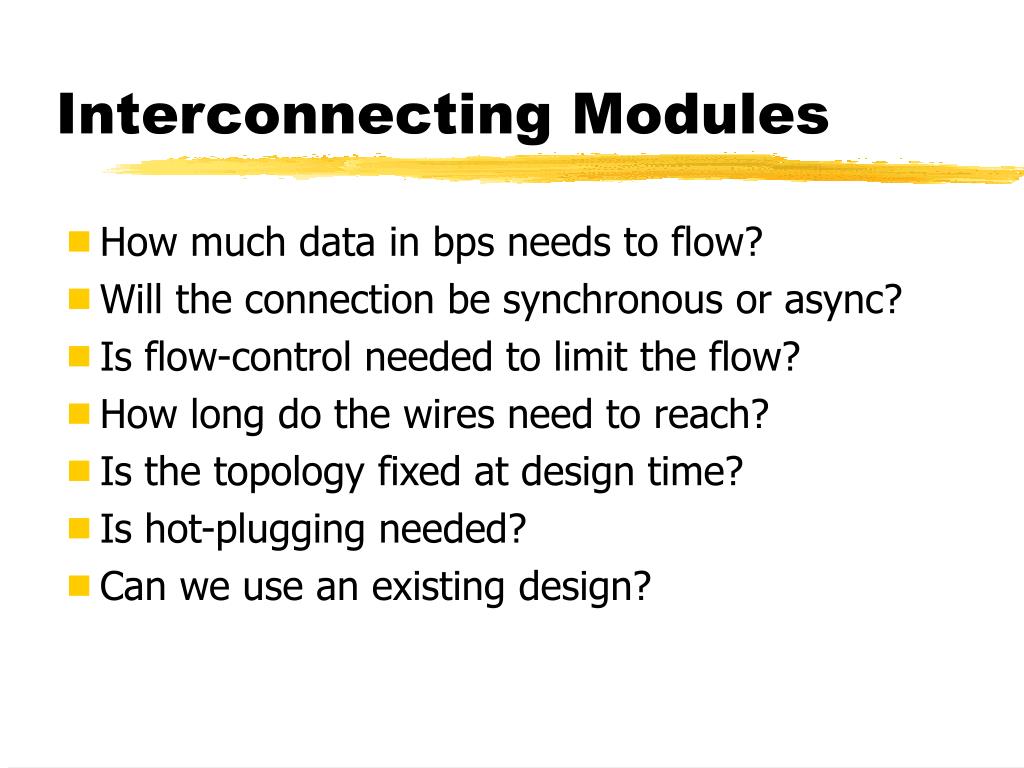

  13. Interconnecting Modules • How much data in bps needs to flow? • Will the connection be synchronous or async? • Is flow-control needed to limit the flow? • How long do the wires need to reach? • Is the topology fixed at design time? • Is hot-plugging needed? • Can we use an existing design?

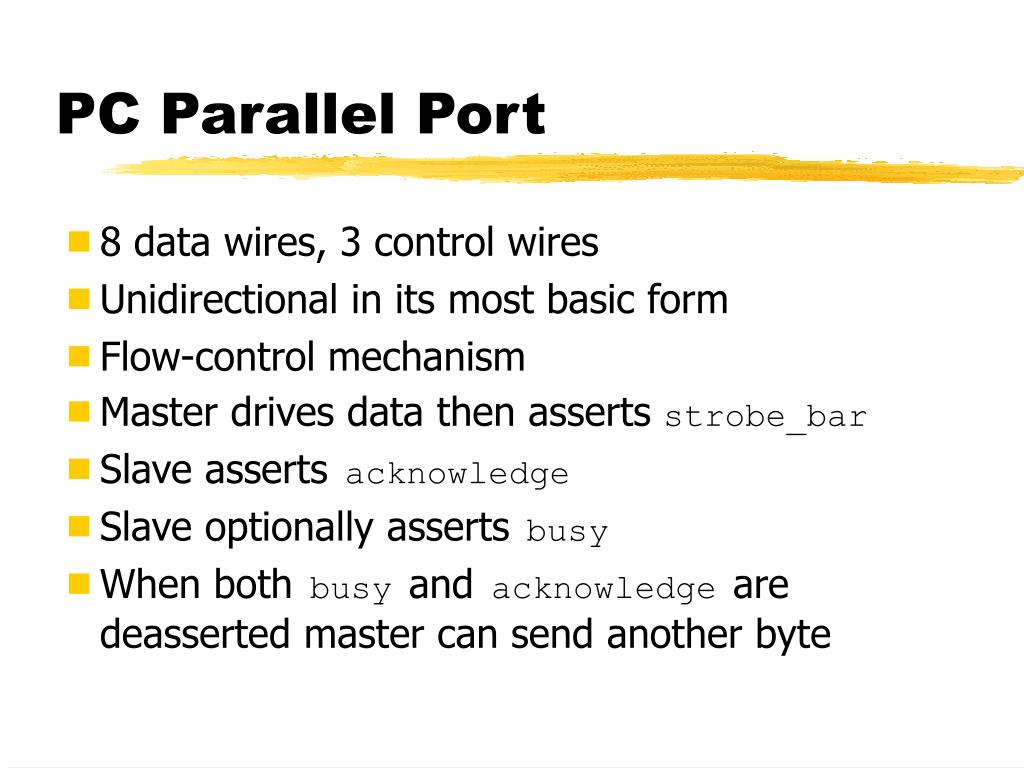

  14. PC Parallel Port • 8 data wires, 3 control wires • Unidirectional in its most basic form • Flow-control mechanism • Master drives data then asserts strobe_bar • Slave assertsacknowledge • Slave optionally assertsbusy • When bothbusyandacknowledgeare deasserted master can send another byte

  15. RS232 Serial Ports • Asynchronous bit stream • One wire for each direction plus ground • Start, data, parity, stop • Start bits assist clock recovery • Baud rate (e.g. 300, 1200, 9600, 115200) • Various flow-control schemes • s/w: XOn/XOff characters • h/w: CTS/RTS signals • Excellent for simple debugging support

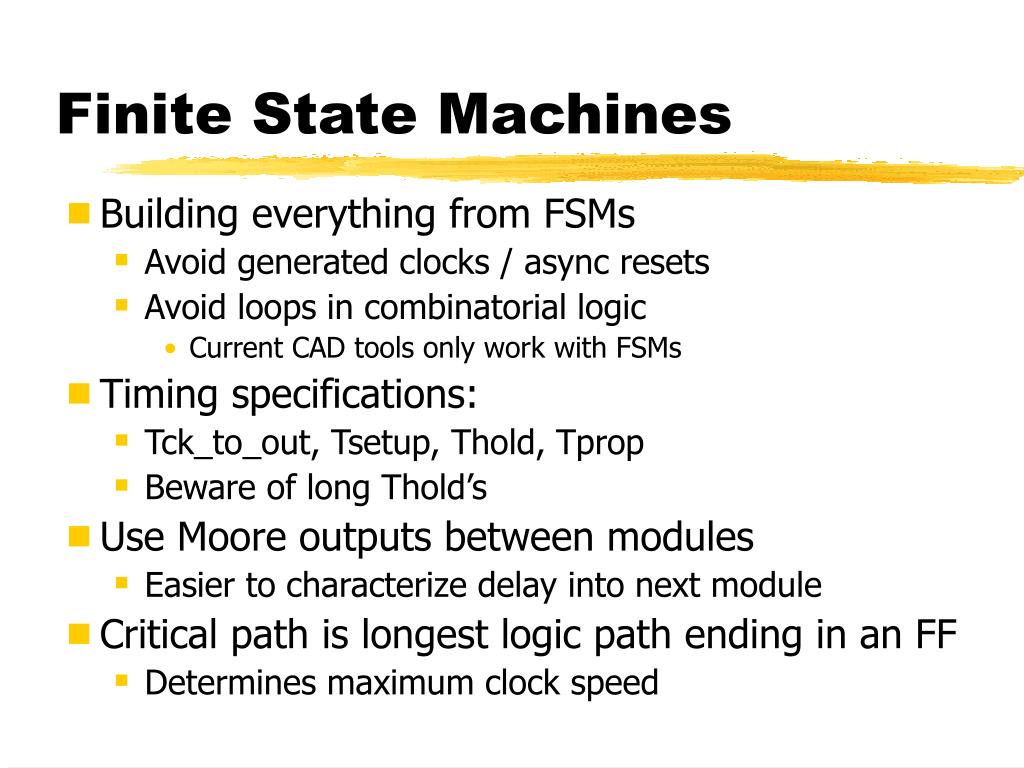

  16. Finite State Machines • Building everything from FSMs • Avoid generated clocks / async resets • Avoid loops in combinatorial logic • Current CAD tools only work with FSMs • Timing specifications: • Tck_to_out, Tsetup, Thold, Tprop • Beware of long Thold’s • Use Moore outputs between modules • Easier to characterize delay into next module • Critical path is longest logic path ending in an FF • Determines maximum clock speed

  17. Johnson Counters • Traditional binary counters require long logic paths for high-order bits • Limit clock frequency • Johnson counters are based on shift registers with feedback • E.g. using a NOR gate for a /5 with 3FFs • Clock prescalers – easy clock output • PRBS counter (XOR) 2n-1 with n FFs

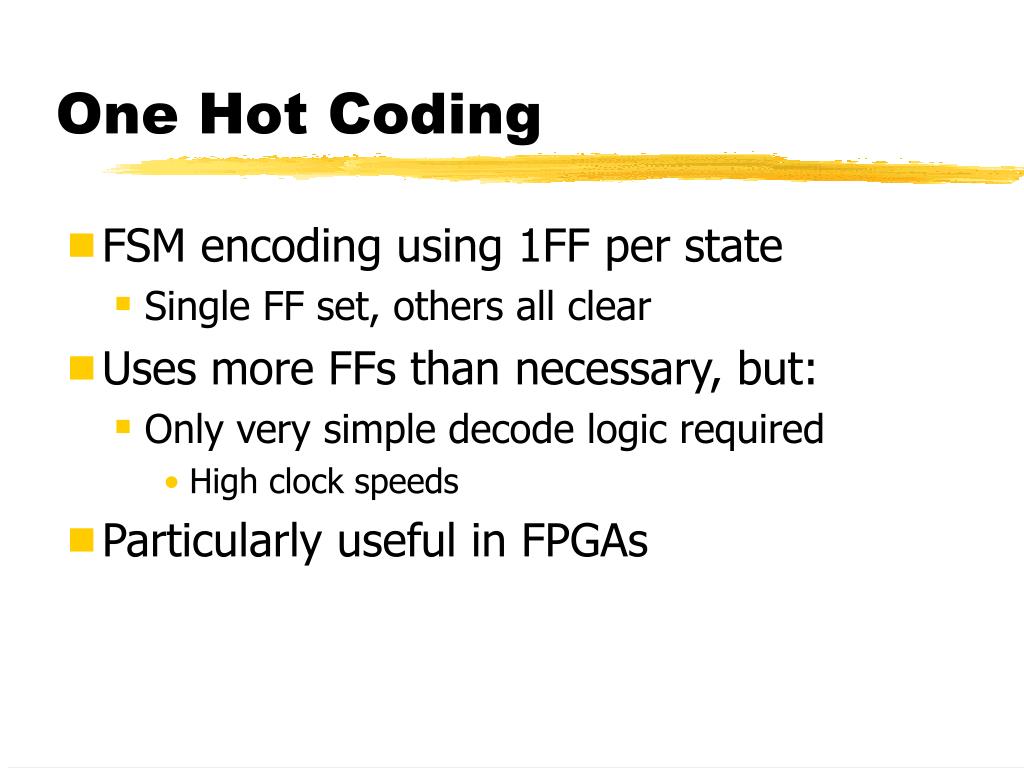

  18. One Hot Coding • FSM encoding using 1FF per state • Single FF set, others all clear • Uses more FFs than necessary, but: • Only very simple decode logic required • High clock speeds • Particularly useful in FPGAs

  19. Pipelining • Split combinatorial logic into stages separated by FFs • Enables increased clock speed • Improved throughput • but, increases delay: • Tsetup + Tclock_to_out of each FF • Unbalanced pipeline stages • Feedback paths can make life tricky… • CAD tools can help distribute FFs

  20. Gated & Guarded Clocks • Clock Enable ‘safer’ than derived clocks • Internal multiplexor selects between Din and Q • But, power is proportional to clock freq, so in some designs it is necessary to: • Gate lower frequency clocks • Turn off clocks to currently idle units • When necessary, create clock by OR’ing clock with synchronised enable_bar

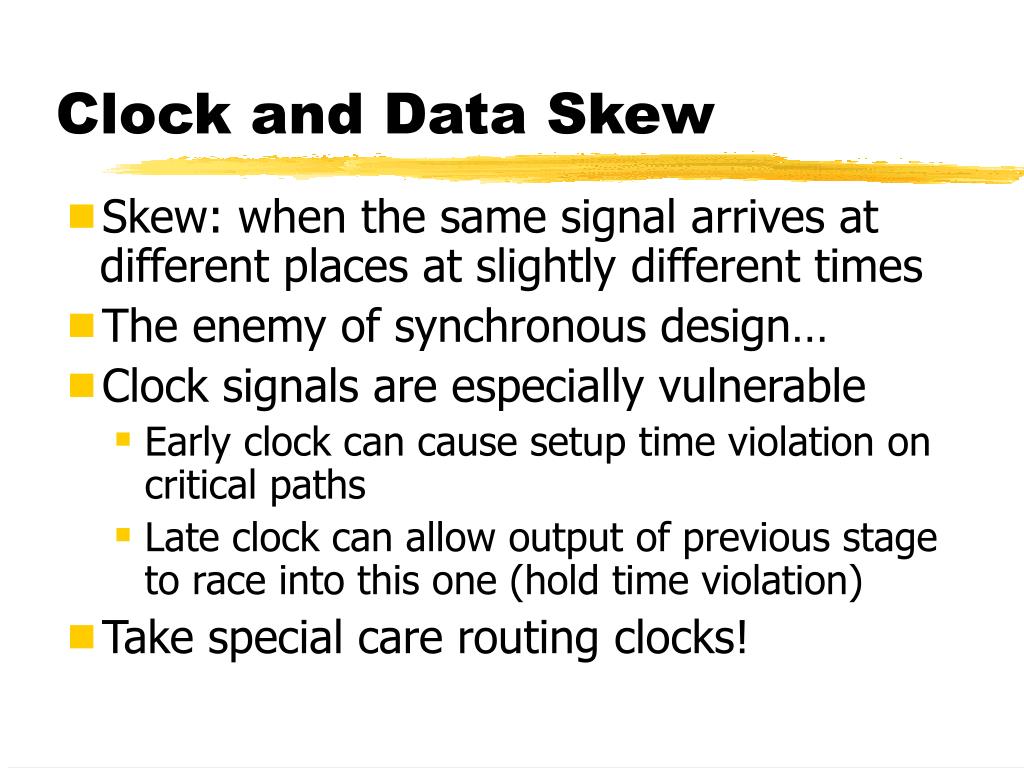

  21. Clock and Data Skew • Skew: when the same signal arrives at different places at slightly different times • The enemy of synchronous design… • Clock signals are especially vulnerable • Early clock can cause setup time violation on critical paths • Late clock can allow output of previous stage to race into this one (hold time violation) • Take special care routing clocks!

  22. Crossing Clock Domains • Setup/hold time violations unavoidable • Metastability can occur, but typically only briefly • Allow extra time for setup into next FF • Or, use 2FFs for safety • Synchronize each signal at a single point • Can use guard signal for buses • Guard indicates when bus is safe to sample • Or, FIFOs with separate read/write clocks

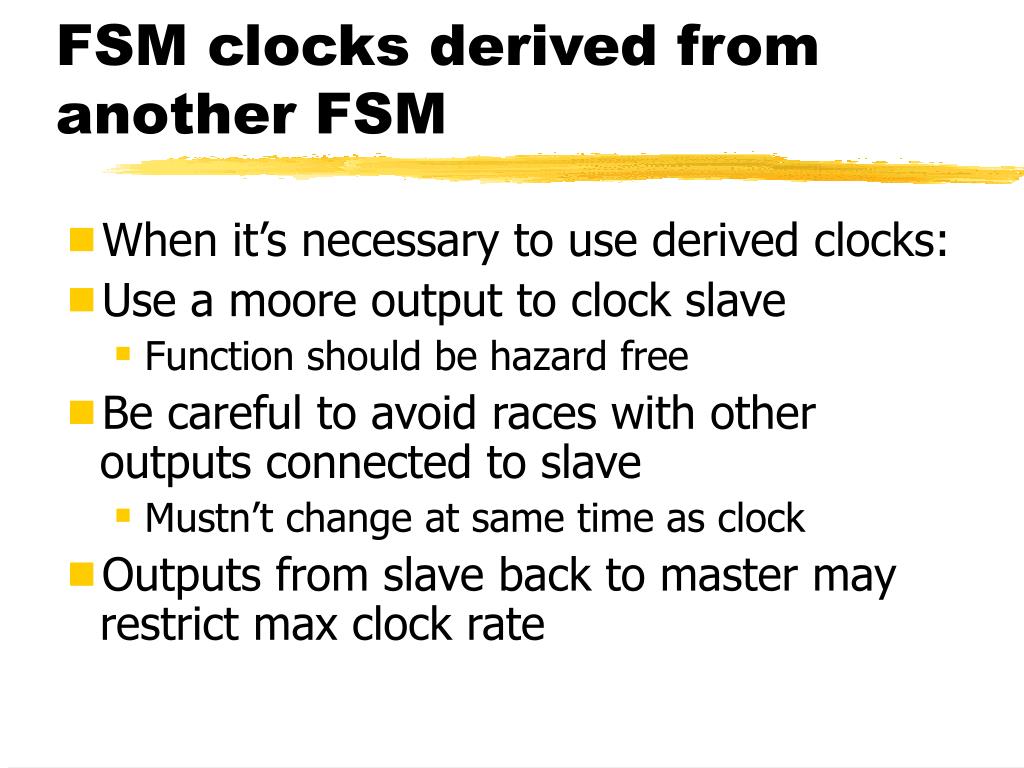

  23. FSM clocks derived from another FSM • When it’s necessary to use derived clocks: • Use a moore output to clock slave • Function should be hazard free • Be careful to avoid races with other outputs connected to slave • Mustn’t change at same time as clock • Outputs from slave back to master may restrict max clock rate

  24. Integrated Circuits • Si or GaAs substrate with implants • 200/300mm wafers, 0.3mm thick • Only the top few microns ‘active’ • Ion implant and etching steps, controlled via stencils created by exposing a photo-resistive coating to UV / X-rays via a mask generated by CAD tools • 7-30+ different masks used • Masks stepped over wafer for each die • 4-500mm2 die size

  25. CMOS Technology • nMOS, CMOS, ECL (Bipolar) • CMOS most popular (and best supported) • Feature size – reduces at 10-20% p.a. • Smaller  faster, lower power, higher density • 0.5, 0.35, 0.25, 0.18, 0.15, 0.13μm • Max die size increasing at 10-25% p.a. • Number of available T’s increasing at 60-80% p.a. • 2-7 metal wiring layers. Al (or now Cu) • Separate processes for DRAM, logic, analog

  26. Pads and IO • Pad ring around edge of die • Pads are typically 50 micron square • Contain high-power drive outputs and ESD protection circuitry • Power / ground ring around pads • Gold bond wires connect to package pins • Up to 1000+ pins (with expensive packaging) • Packaging eases handling and dissipates heat • Core bound vs. Pad bound designs

  27. Chip costs • Non Recurring Expenditure (NRE) • Design costs (labour, tools, overheads...) • Mask making costs • Per device costs • Raw wafer, Processing, Testing, Packaging • Influenced by yield • P(die defect free)  Kdie area • K is probability that any given mm2 is defect free

  28. Taxonomy of ICs • Standard parts (off-the-shelf, datasheet available) • Full-custom ASICs • For best performance, but greatest NRE • CPUs, memory, DSPs • Semi-custom standard cell ASICs • Designed from a library of standard gates/cores • Semi-custom gate array ASICs • Only a few masks required, but inefficient • Field programmable parts • FPGAs, PALs

  29. Field Programmable Gate Arrays • Volatile, re-programmable & OTP types • All programmable in situ • Array of Configurable Logic Blocks (CLBs) and switch matrices (configurable wiring with buffers) • IO Blocks (IOBs) around edge of die • CLB typically consists of LookUp Table (LUTs), 1-2 FFs and programmable MUXs • 16x1 LUT (SRAM) implements any fn of 4 variables • Allowing writes to LUT enables use as RAM • Switch matrices provide hierarchical routing

  30. Field Programmable Gate Arrays • Different families use different CLB sizes • Xilinx 4K series : 2x 4 input LUTs and 2x FFs • Others more or less fine grained • Very low NRE, rapid turnaround • Only requires a ‘place and route’ tool run • Great for prototypes, but parts typically cost 10x more than equivalent gate array • SRAM/Flash parts enable field upgrades • Switch to gate arrays in mature designs

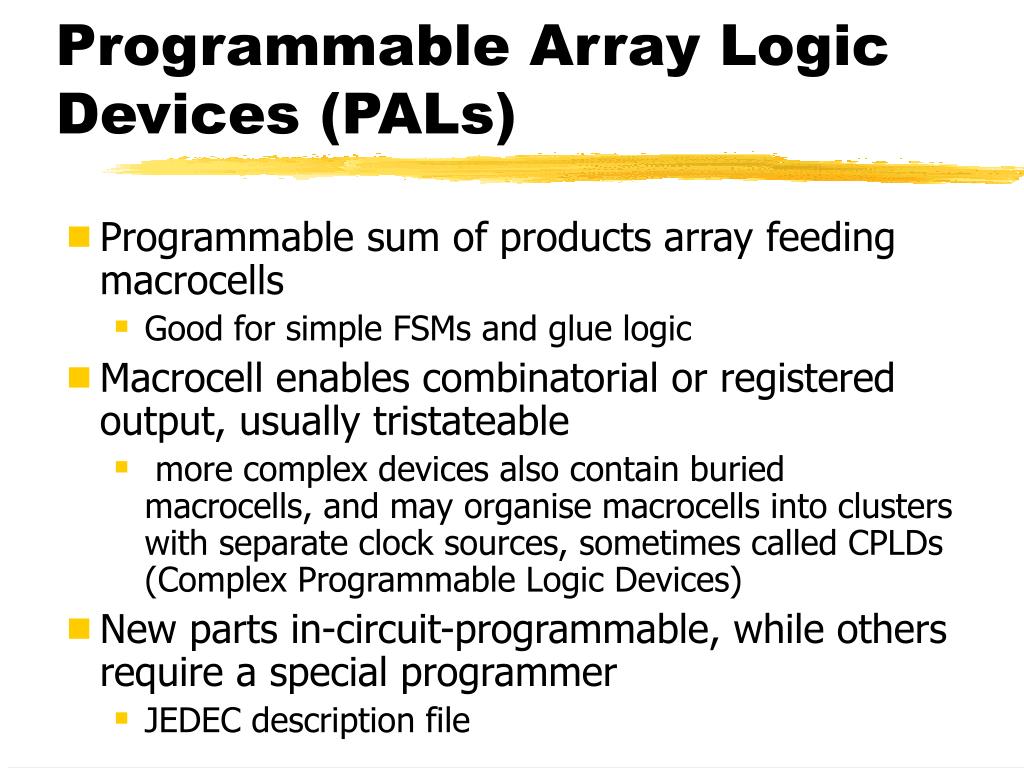

  31. Programmable Array Logic Devices (PALs) • Programmable sum of products array feeding macrocells • Good for simple FSMs and glue logic • Macrocell enables combinatorial or registered output, usually tristateable • more complex devices also contain buried macrocells, and may organise macrocells into clusters with separate clock sources, sometimes called CPLDs (Complex Programmable Logic Devices) • New parts in-circuit-programmable, while others require a special programmer • JEDEC description file

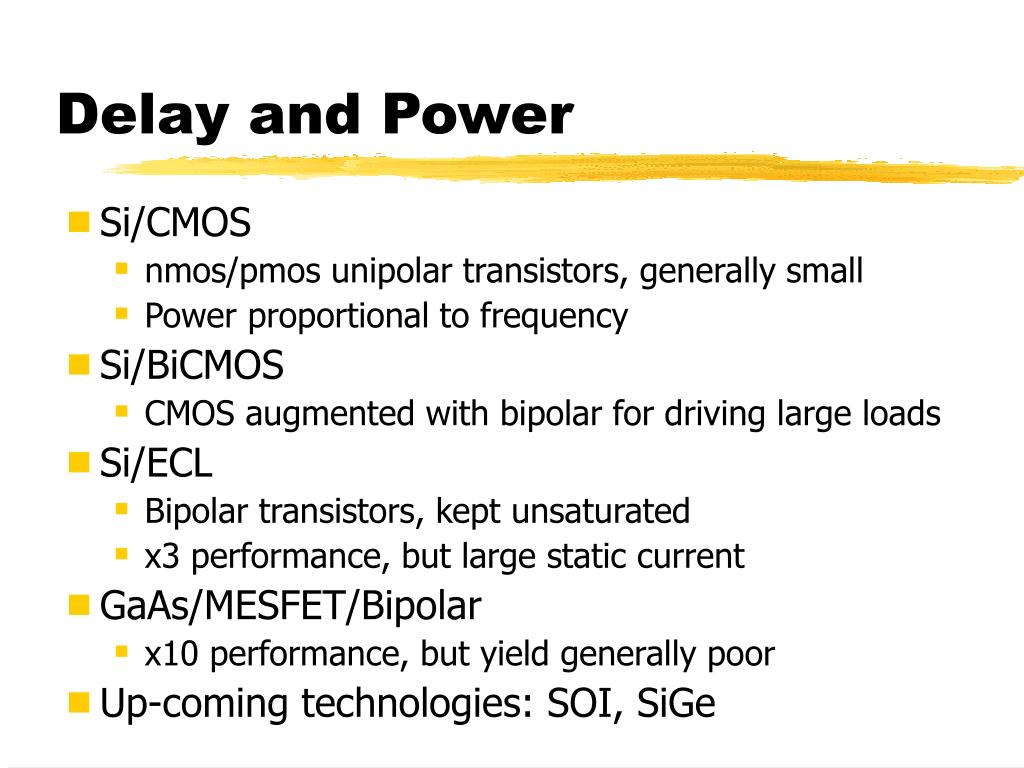

  32. Delay and Power • Si/CMOS • nmos/pmos unipolar transistors, generally small • Power proportional to frequency • Si/BiCMOS • CMOS augmented with bipolar for driving large loads • Si/ECL • Bipolar transistors, kept unsaturated • x3 performance, but large static current • GaAs/MESFET/Bipolar • x10 performance, but yield generally poor • Up-coming technologies: SOI, SiGe

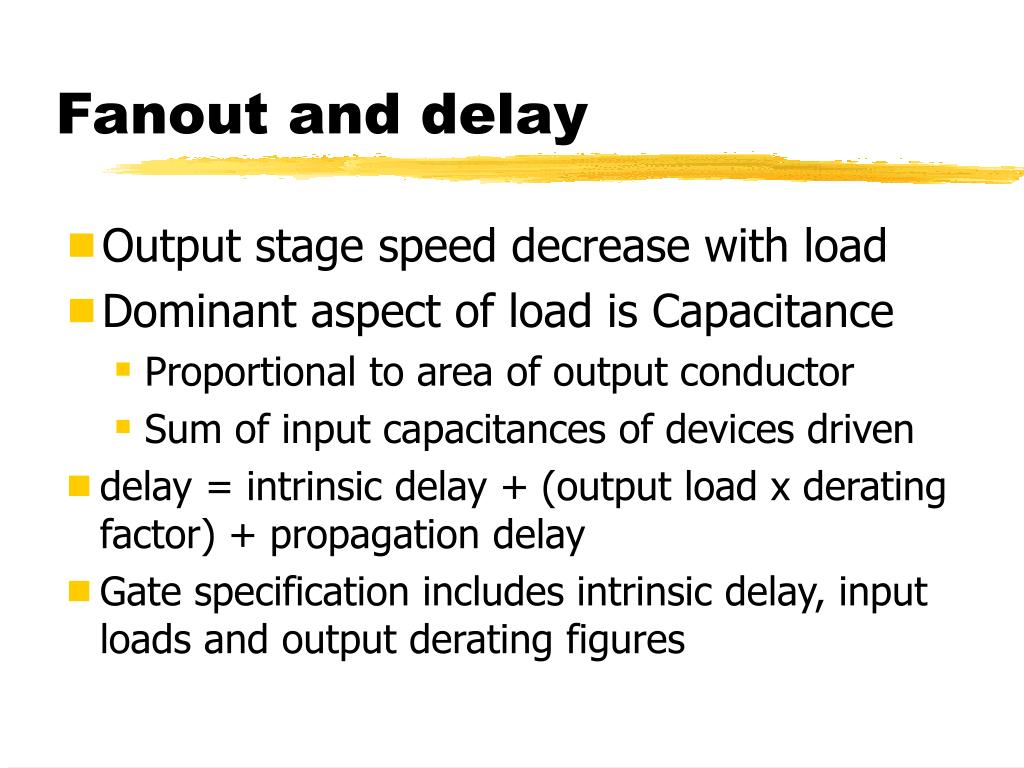

  33. Fanout and delay • Output stage speed decrease with load • Dominant aspect of load is Capacitance • Proportional to area of output conductor • Sum of input capacitances of devices driven • delay = intrinsic delay + (output load x derating factor) + propagation delay • Gate specification includes intrinsic delay, input loads and output derating figures

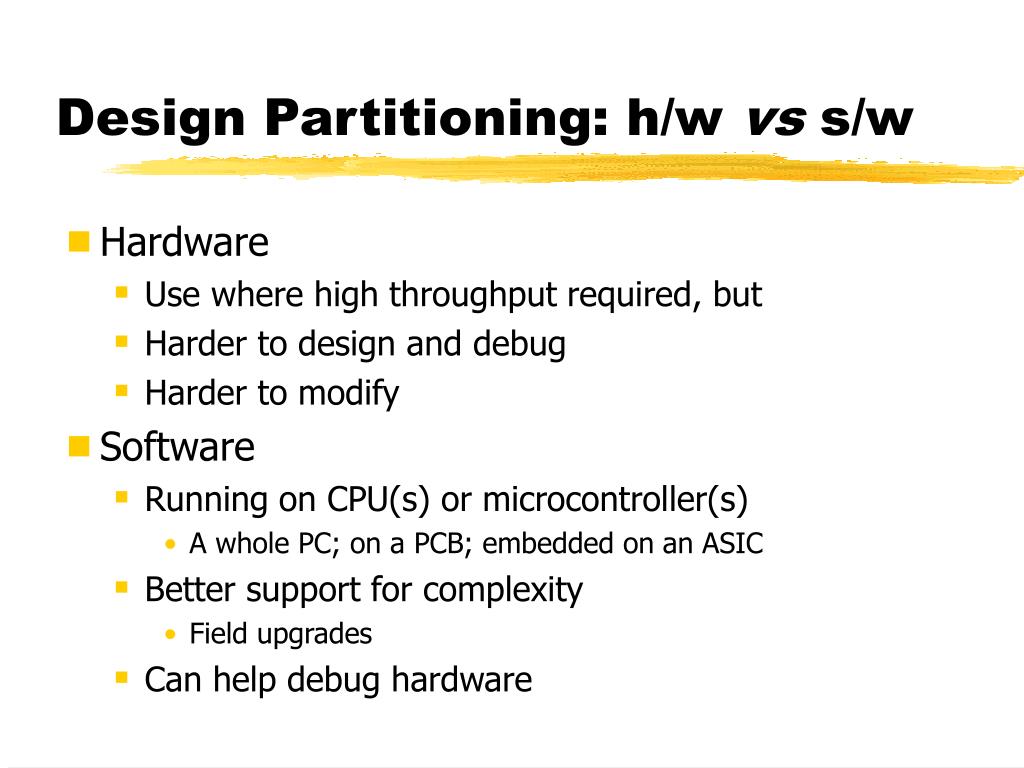

  34. Design Partitioning: h/w vs s/w • Hardware • Use where high throughput required, but • Harder to design and debug • Harder to modify • Software • Running on CPU(s) or microcontroller(s) • A whole PC; on a PCB; embedded on an ASIC • Better support for complexity • Field upgrades • Can help debug hardware

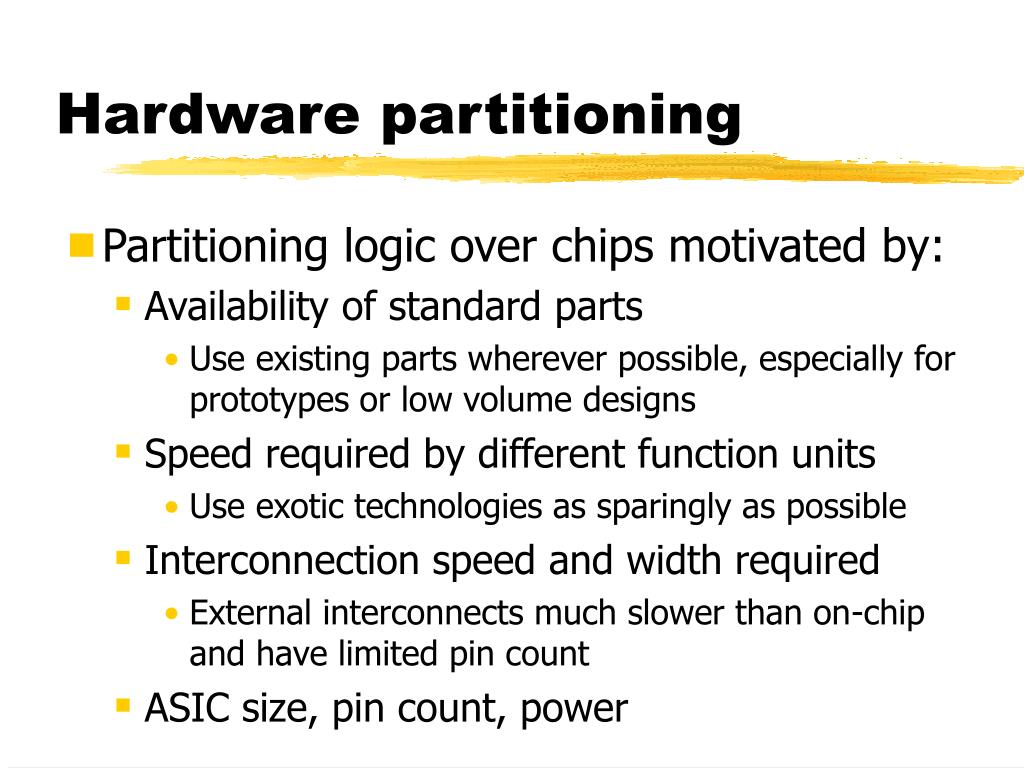

  35. Hardware partitioning • Partitioning logic over chips motivated by: • Availability of standard parts • Use existing parts wherever possible, especially for prototypes or low volume designs • Speed required by different function units • Use exotic technologies as sparingly as possible • Interconnection speed and width required • External interconnects much slower than on-chip and have limited pin count • ASIC size, pin count, power

  36. Logic Synthesis & Layout • Complex functions expressed algorithmically, then synthesized to gates • Good at ‘mechanical’ tasks on relatively small sections of a design • Critical sections of a design still done by hand • Place tool attempts to layout gates to minimize wiring paths • Route tool attempts to wire gates • Tools are continually improving • More feed back and integration between tools

  37. The Cambridge Fast Ring • 100MHz ECL chip implements: • Transceivers and serial de/modulator • ECL has good high-power line driving characteristics • Serial to parallel and parallel to serial • Byte alignment • CMOS chip, 50x more logic than ECL chip: • Media access control protocol / CRC generation • Small buffer memory / Host processor interface • Ring monitoring and maintenance • DRAM, VCO, PALs for glue logic to host iface

  38. External Modem • Analogue frontend to telephone line • Isolation, surge suppression, off-hook relay • Digital Signal Processor as Codec • Dedicated to a single task • Microcontroller for control • Talking to host, processing commands etc. • External NVRAM e.g. Flash to store state • RS232 Line drivers (+/- 12V) • Requires special fabrication process

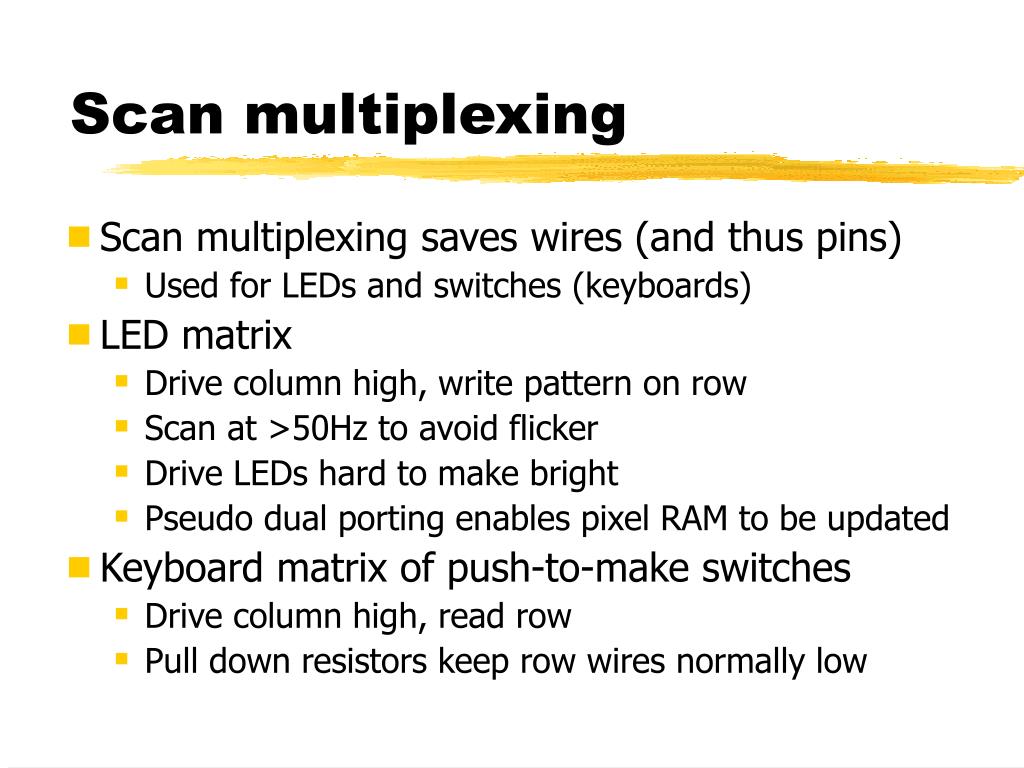

  39. Scan multiplexing • Scan multiplexing saves wires (and thus pins) • Used for LEDs and switches (keyboards) • LED matrix • Drive column high, write pattern on row • Scan at >50Hz to avoid flicker • Drive LEDs hard to make bright • Pseudo dual porting enables pixel RAM to be updated • Keyboard matrix of push-to-make switches • Drive column high, read row • Pull down resistors keep row wires normally low

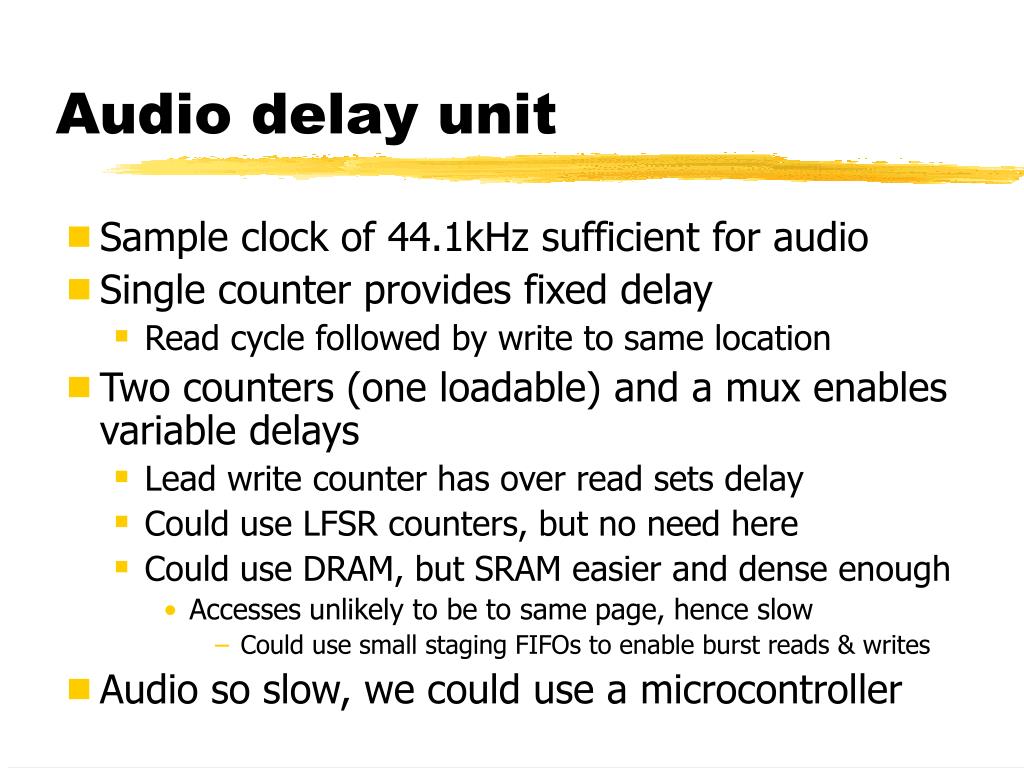

  40. Audio delay unit • Sample clock of 44.1kHz sufficient for audio • Single counter provides fixed delay • Read cycle followed by write to same location • Two counters (one loadable) and a mux enables variable delays • Lead write counter has over read sets delay • Could use LFSR counters, but no need here • Could use DRAM, but SRAM easier and dense enough • Accesses unlikely to be to same page, hence slow • Could use small staging FIFOs to enable burst reads & writes • Audio so slow, we could use a microcontroller

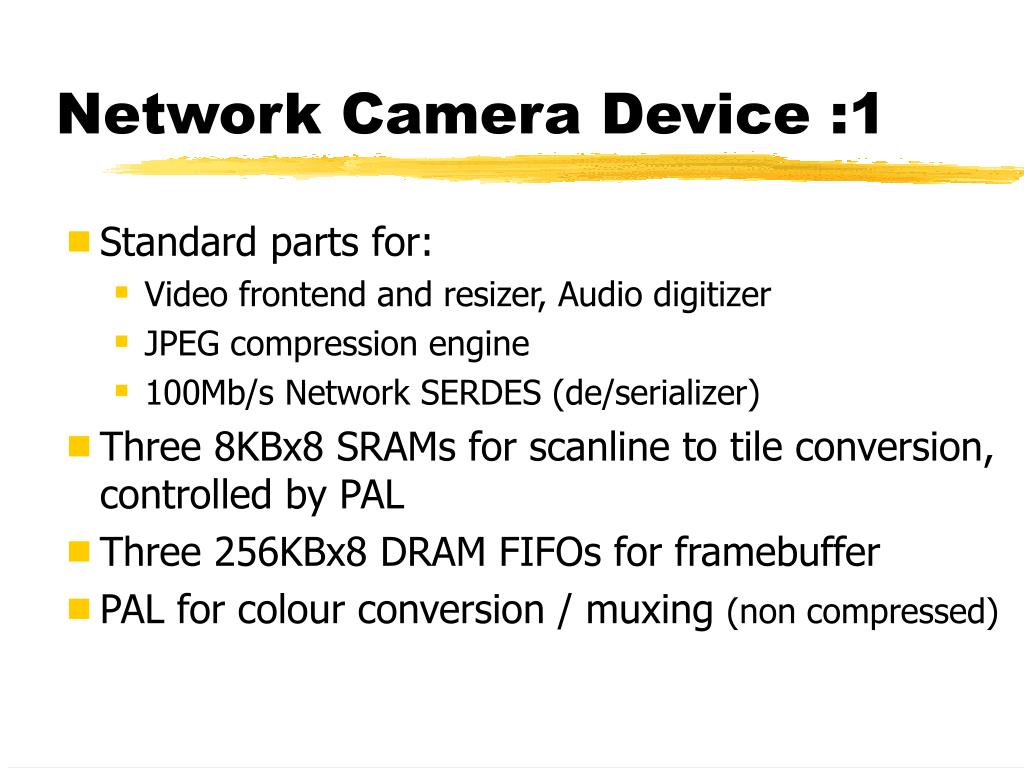

  41. Network Camera Device :1 • Standard parts for: • Video frontend and resizer, Audio digitizer • JPEG compression engine • 100Mb/s Network SERDES (de/serializer) • Three 8KBx8 SRAMs for scanline to tile conversion, controlled by PAL • Three 256KBx8 DRAM FIFOs for framebuffer • PAL for colour conversion / muxing (non compressed)

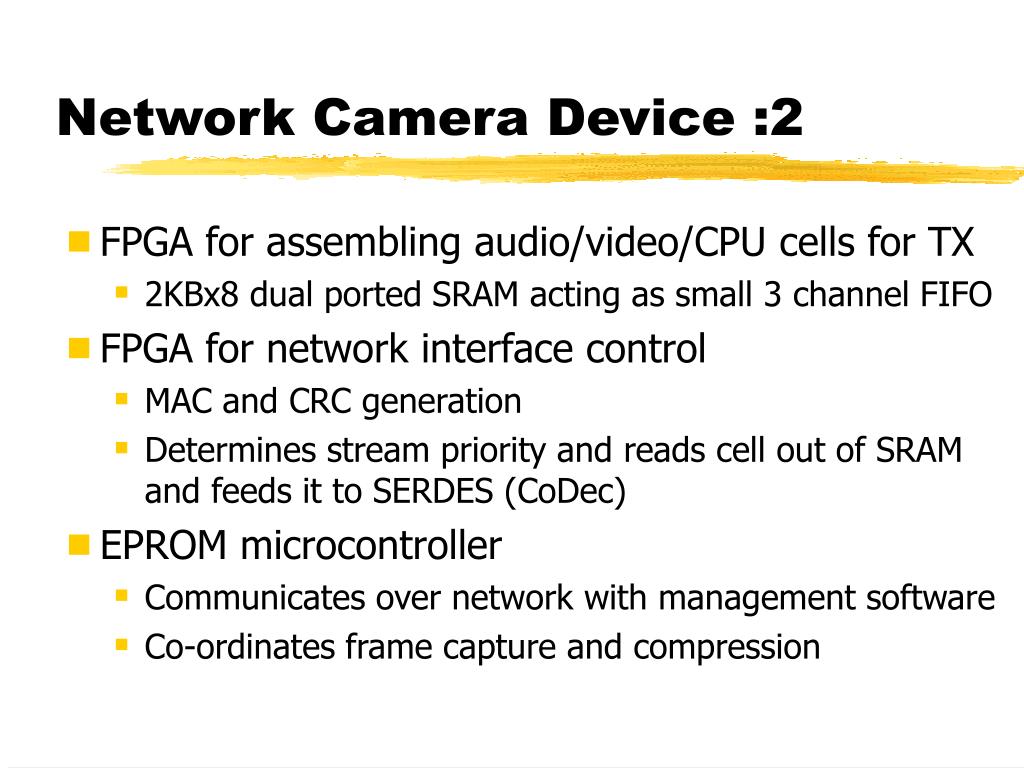

  42. Network Camera Device :2 • FPGA for assembling audio/video/CPU cells for TX • 2KBx8 dual ported SRAM acting as small 3 channel FIFO • FPGA for network interface control • MAC and CRC generation • Determines stream priority and reads cell out of SRAM and feeds it to SERDES (CoDec) • EPROM microcontroller • Communicates over network with management software • Co-ordinates frame capture and compression
