The shapes of cross correlation interferometers

The Shapes Of Cross Correlation Interferometers

Daniel Birman 034815654

Boaz Chen 024356560


Aperture synthesis

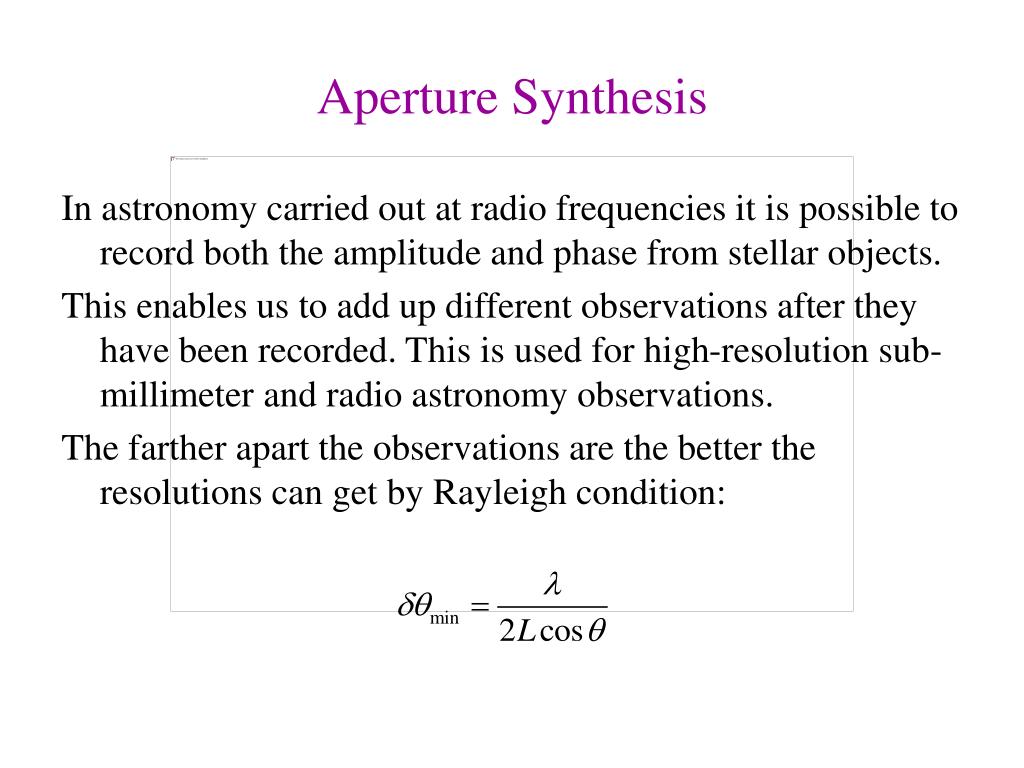

Aperture Synthesis

In astronomy carried out at radio frequencies it is possible to record both the amplitude and phase from stellar objects.

This enables us to add up different observations after they have been recorded. This is used for high-resolution sub-millimeter and radio astronomy observations.

The farther apart the observations are the better the resolutions can get by Rayleigh condition:


The shapes of cross correlation interferometers

In order to produce a high quality image, a large number of different separations between different telescopes are required in order to get a good quality image. [n*(n-1) baselines are produced from n telescopes]

Most aperture synthesis interferometers use the rotation of the Earth to increase the number of different baselines included in an observation.


The problem

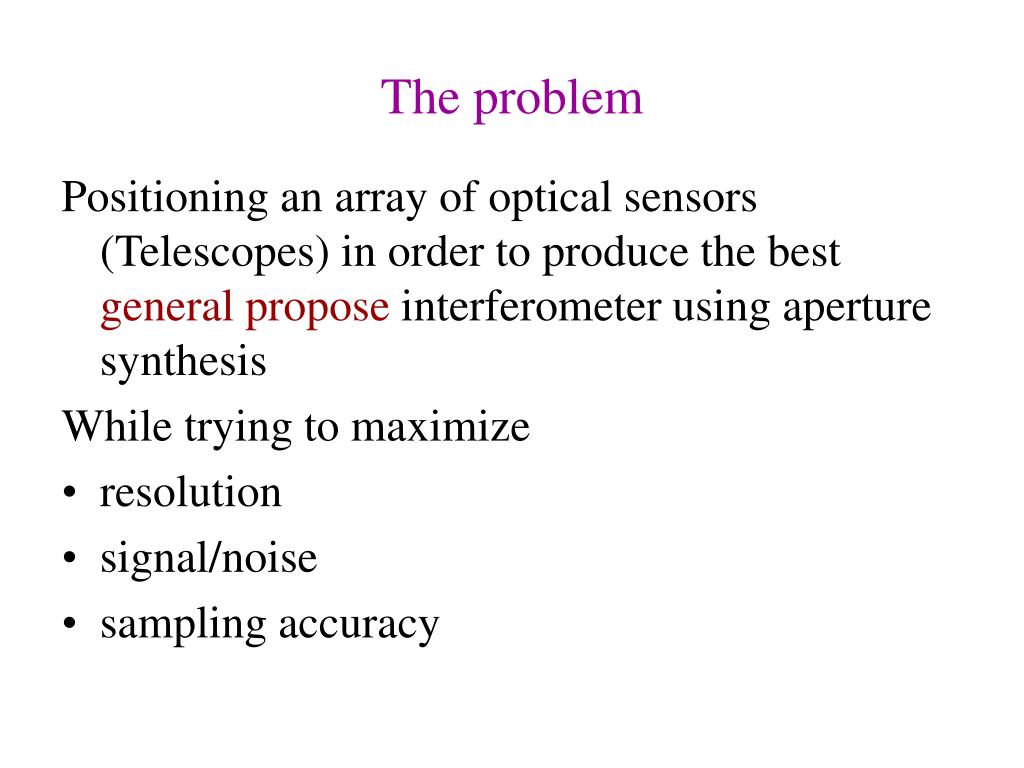

The problem

Positioning an array of optical sensors (Telescopes) in order to produce the best general propose interferometer using aperture synthesis

While trying to maximize

  • resolution

  • signal/noise

  • sampling accuracy


Analytic approach

Analytic approach

The best response is the one that provides the most complete sampling of the Fourier space of the image out to the limit of some best spatial resolution

The sampling should be invariant to measuring different directions

This implies that the response function should be circular symmetric confined in the boundaries of the best resolution


The shapes of cross correlation interferometers

If we want to maximize the signal to noise ratio and the accuracy of the measurement the Fourier plane ought to be sampled uniformly.

Signal to noise ratio decreases as we use nonuniform weighting (as result of uneven spread in the Fourier plane as well as using different weights for the measurements)

Uniform sampling will provide images least susceptible to errors arising from the unmeasured Fourier components


Analytic approach1

Analytic approach

  • Therefore the best positioning would be on a curve of constant width, (so that all the sampling would be done in a radius of that width)

  • More uniform sampling would be achieved by reducing the symmetry of the sampling pattern


The reuleaux triangle

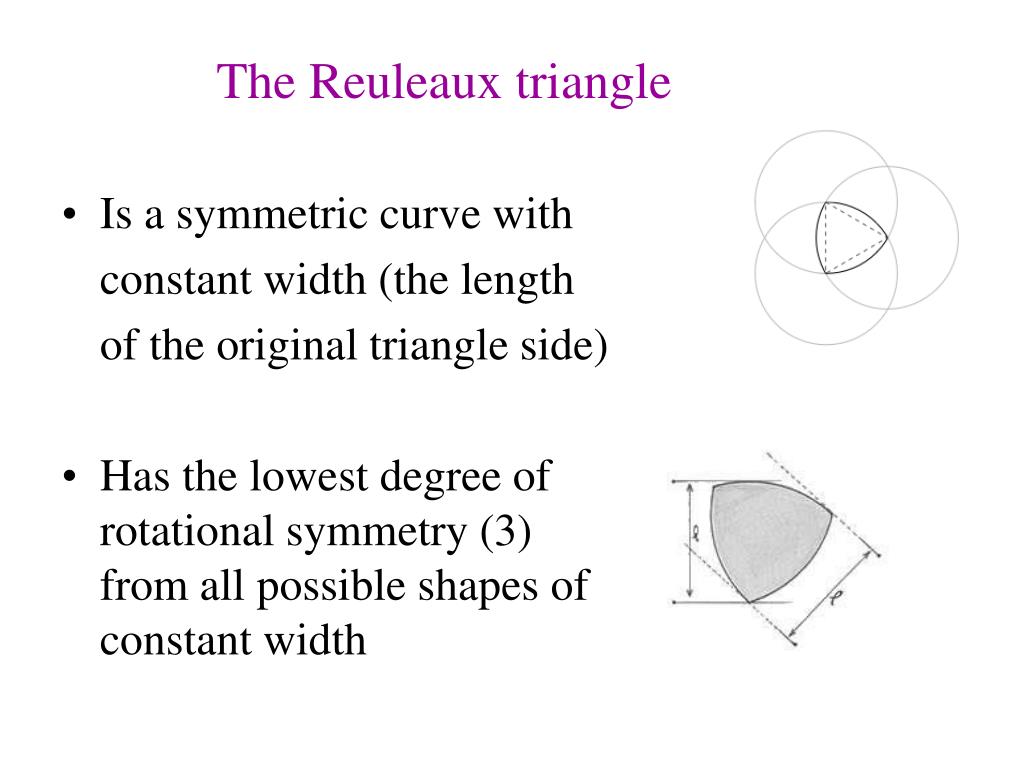

The Reuleaux triangle

  • Is a symmetric curve with

    constant width (the length

    of the original triangle side)

  • Has the lowest degree of rotational symmetry (3) from all possible shapes of constant width


The shapes of cross correlation interferometers

So we understand we should position our sensors on the curve of the Reuleaux triangle

However placing the sensors non-uniformly on that curve as well as small perturbation off that curve might further reduce symmetry and produce a more uniform sampling pattern


Numeric approach

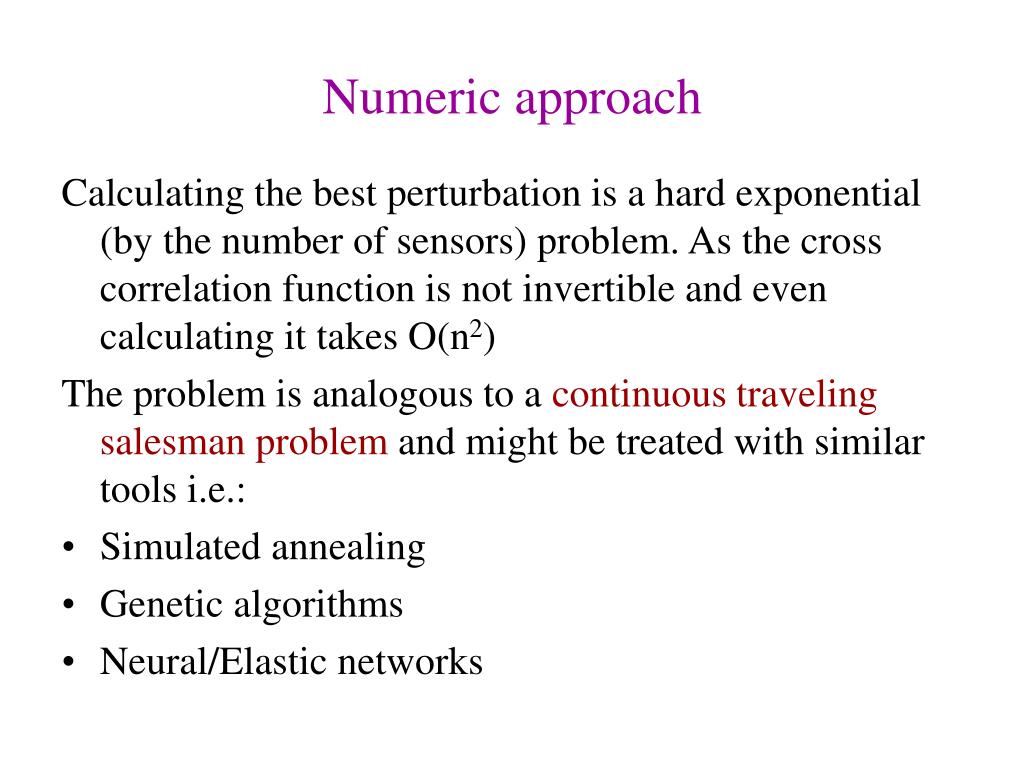

Numeric approach

Calculating the best perturbation is a hard exponential (by the number of sensors) problem. As the cross correlation function is not invertible and even calculating it takes O(n2)

The problem is analogous to a continuous traveling salesman problem and might be treated with similar tools i.e.:

  • Simulated annealing

  • Genetic algorithms

  • Neural/Elastic networks


The shapes of cross correlation interferometers

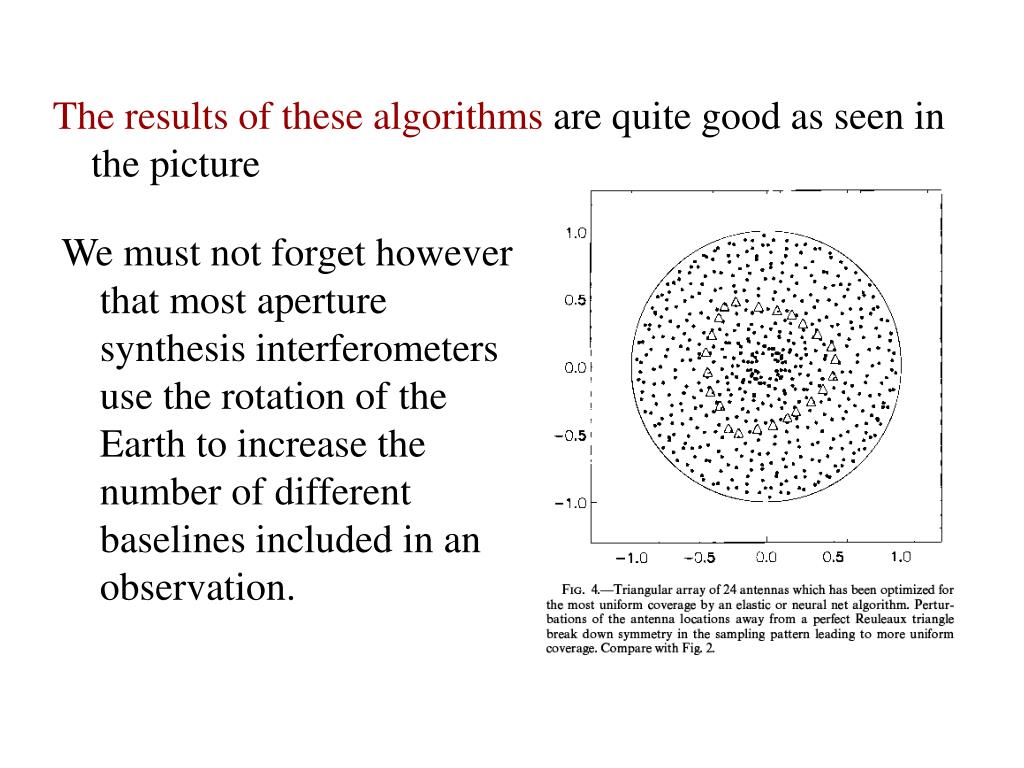

The results of these algorithms are quite good as seen in the picture

We must not forget however that most aperture synthesis interferometers use the rotation of the Earth to increase the number of different baselines included in an observation.


Different shapes under earth s rotation

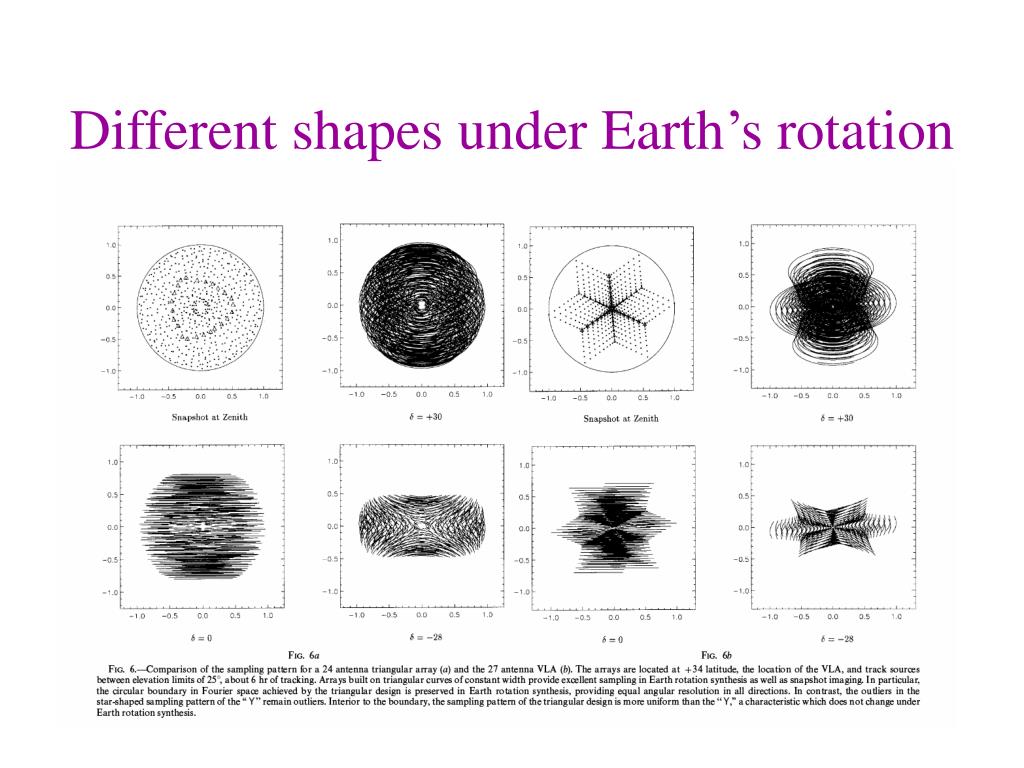

Different shapes under Earth’s rotation


According to this model the sma observatory was constructed

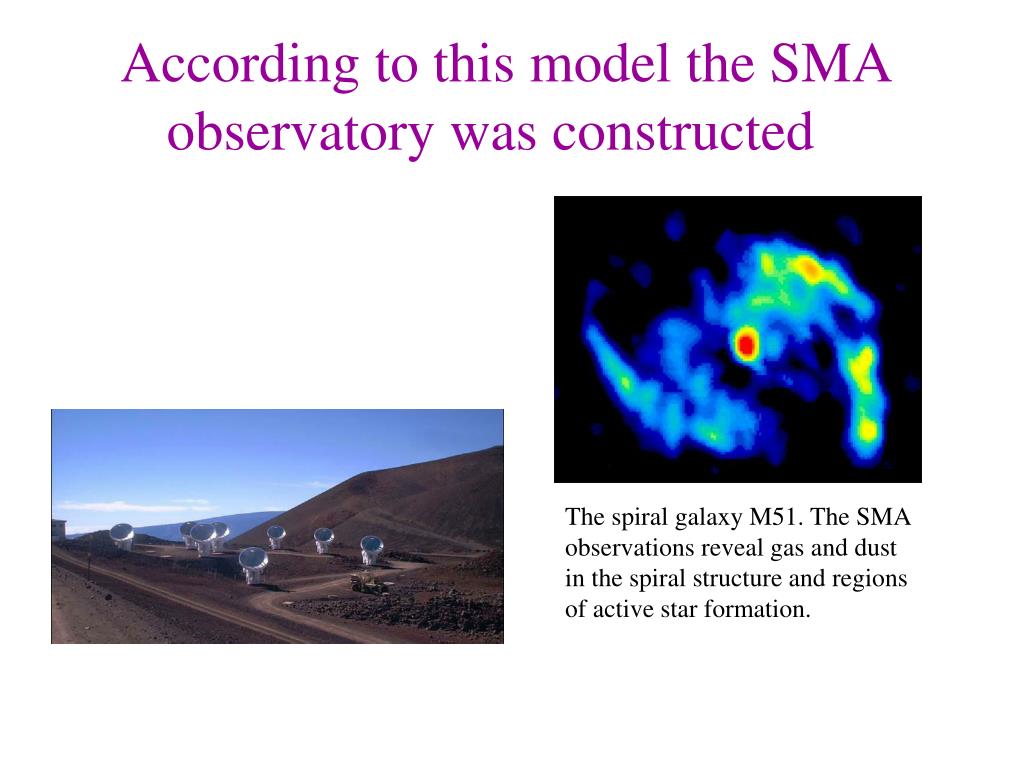

According to this model the SMA observatory was constructed

The spiral galaxy M51. The SMA observations reveal gas and dust in the spiral structure and regions of active star formation.


References

References

Keto, Eric, 1997, "The Shapes of Cross-Correlation Interferometers",

ApJ 475, p. 843.

Optical Physics. Third Edition. By S. G. Lipson and H. Lipson and D. S. Tannhauser
