One Compile to Rule them All:An elegant solution for OVM/UVM Testbench Topologies

and

Steve Chappell

Solutions Architect

by

Galen Blake

SMTS


System verilog topology

System Verilog Topology

  • Hey, you got software in my hardware.

  • No, you got hardware in my software.

  • How are we going to mix all this stuff together and configure the topology?

  • If you never saw this advertisement, visithttp://www.youtube.com/watch?v=DJLDF6qZUX0


Systemverilog topology

SystemVerilog Topology

  • Design

  • HW

  • Modules

  • Static

    • Fixed at Elab time

  • Testbench

  • SW

  • Classes

  • Dynamic

    • Created at Run time

Software

(HVL)

Hardware

(HDL)


Soc topology challenge

SOC Topology Challenge

  • Traditional SOC Design:

  • Many peripherals.

  • Not enough pins.

  • Users must choose some combination of peripherals to keep.

  • Each combination is effectively a new DUT.

  • Each new DUT needs a new testbench.

MPU

Periph

Periph

Periph

Periph

Periph

Periph

Switch

Fabric

Periph

Periph

Periph

Periph

Periph

Periph

Periph

Periph

Periph

Periph

Memory Controller

Periph

Periph


Oop sv topology challenge

OOP (SV) Topology Challenge

  • Polymorphic VIP’s create more topology options.

  • A polymorphic VIP could

    • Be held inactive

    • Monitor an internal bus

    • Drive an internal bus

  • The desired form of a polymorphic VIP must be selected.

  • Other topology controls are needed for driving an internal bus.

MPU

Driver

Driver

Switch

Fabric

Driver

Driver

Monitor or Driver

Memory Controller


Soc on fpga topology challenge

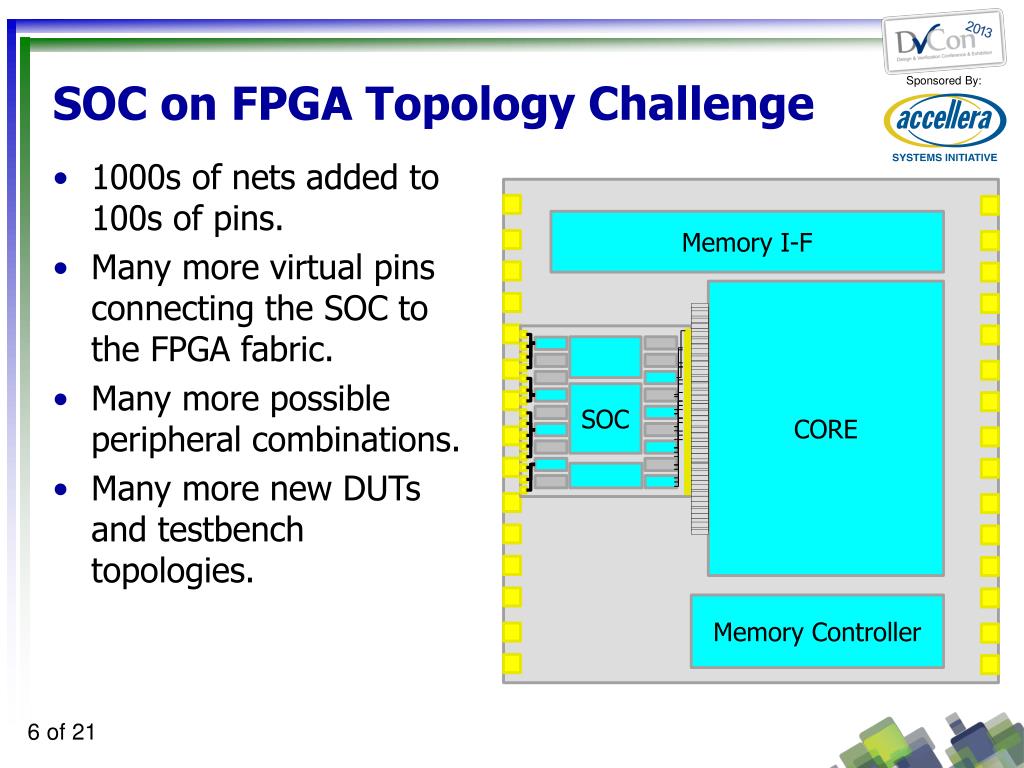

SOC on FPGA Topology Challenge

  • 1000s of nets added to 100s of pins.

  • Many more virtual pins connecting the SOC to the FPGA fabric.

  • Many more possible peripheral combinations.

  • Many more new DUTs and testbench topologies.

Memory I-F

CORE

SOC

Memory Controller


Testbench aceleration challenge

Testbench AcelerationChallenge

  • Testbench acceleration requires us to split up our OVM/UVM agents.

  • Time consuming tasks must be located in HDL context.

  • So we place our drivers and monitors into SV Interfaces.

HVL

HDL

driver

sequencer

monitor

analysis

  • Editorial:

  • SystemVerilog should not allow us to “mix our metaphors.”

  • We should not be putting hardware (HDL-TCTs) in our software (HVL-Classes).

  • Perhaps a topic for a future paper…


Invasion of sw test writers

Invasion of SW Test Writers

  • Need to simplify view of HW and HW flows

  • One shared known-good pre-compiled database is crucial

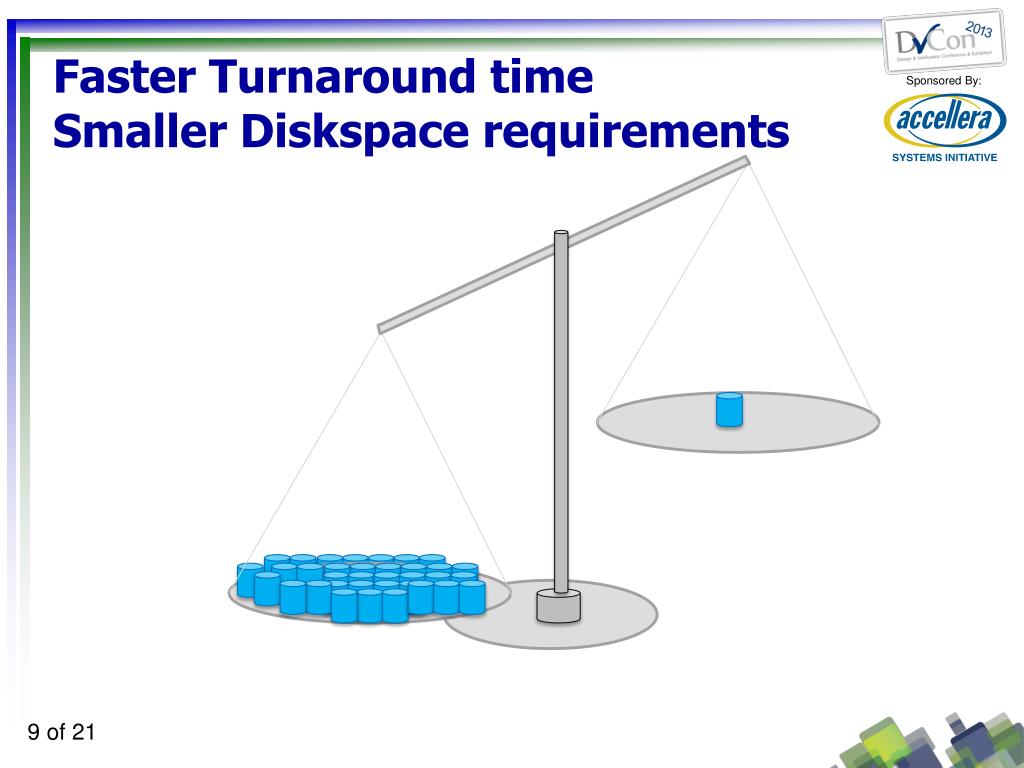

Faster turnaround time smaller diskspace requirements

Faster Turnaround timeSmaller Diskspace requirements


Testbench topology development

Testbench Topology Development

  • Normal topology development strategy.

  • It evolves slowly.

  • Many different developers and their ideas all get mixed together.

  • A single cohesive strategy is often lacking.


Approach 1 many netlists

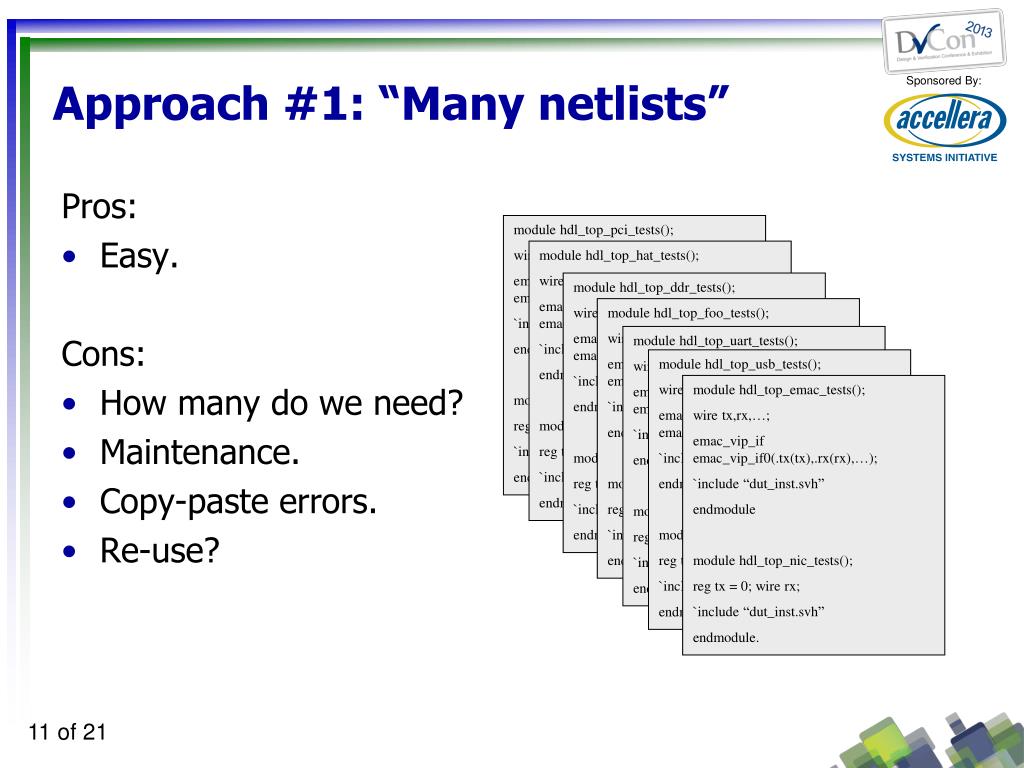

Approach #1: “Many netlists”

Pros:

  • Easy.

    Cons:

  • How many do we need?

  • Maintenance.

  • Copy-paste errors.

  • Re-use?

module hdl_top_pci_tests();

wire tx,rx,…;

emac_vip_if emac_vip_if0(.tx(tx),.rx(rx),…);

`include “dut_inst.svh”

endmodule

module hdl_top_nic_tests();

regtx = 0; wire rx;

`include “dut_inst.svh”

endmodule.

module hdl_top_hat_tests();

wire tx,rx,…;

emac_vip_if emac_vip_if0(.tx(tx),.rx(rx),…);

`include “dut_inst.svh”

endmodule

module hdl_top_nic_tests();

regtx = 0; wire rx;

`include “dut_inst.svh”

endmodule.

module hdl_top_ddr_tests();

wire tx,rx,…;

emac_vip_if emac_vip_if0(.tx(tx),.rx(rx),…);

`include “dut_inst.svh”

endmodule

module hdl_top_nic_tests();

regtx = 0; wire rx;

`include “dut_inst.svh”

endmodule.

module hdl_top_foo_tests();

wire tx,rx,…;

emac_vip_if emac_vip_if0(.tx(tx),.rx(rx),…);

`include “dut_inst.svh”

endmodule

module hdl_top_nic_tests();

regtx = 0; wire rx;

`include “dut_inst.svh”

endmodule.

module hdl_top_uart_tests();

wire tx,rx,…;

emac_vip_if emac_vip_if0(.tx(tx),.rx(rx),…);

`include “dut_inst.svh”

endmodule

module hdl_top_nic_tests();

regtx = 0; wire rx;

`include “dut_inst.svh”

endmodule.

module hdl_top_usb_tests();

wire tx,rx,…;

emac_vip_if emac_vip_if0(.tx(tx),.rx(rx),…);

`include “dut_inst.svh”

endmodule

module hdl_top_nic_tests();

regtx = 0; wire rx;

`include “dut_inst.svh”

endmodule.

module hdl_top_emac_tests();

wire tx,rx,…;

emac_vip_if emac_vip_if0(.tx(tx),.rx(rx),…);

`include “dut_inst.svh”

endmodule

module hdl_top_nic_tests();

regtx = 0; wire rx;

`include “dut_inst.svh”

endmodule.


Approach 2 macros ifdefs

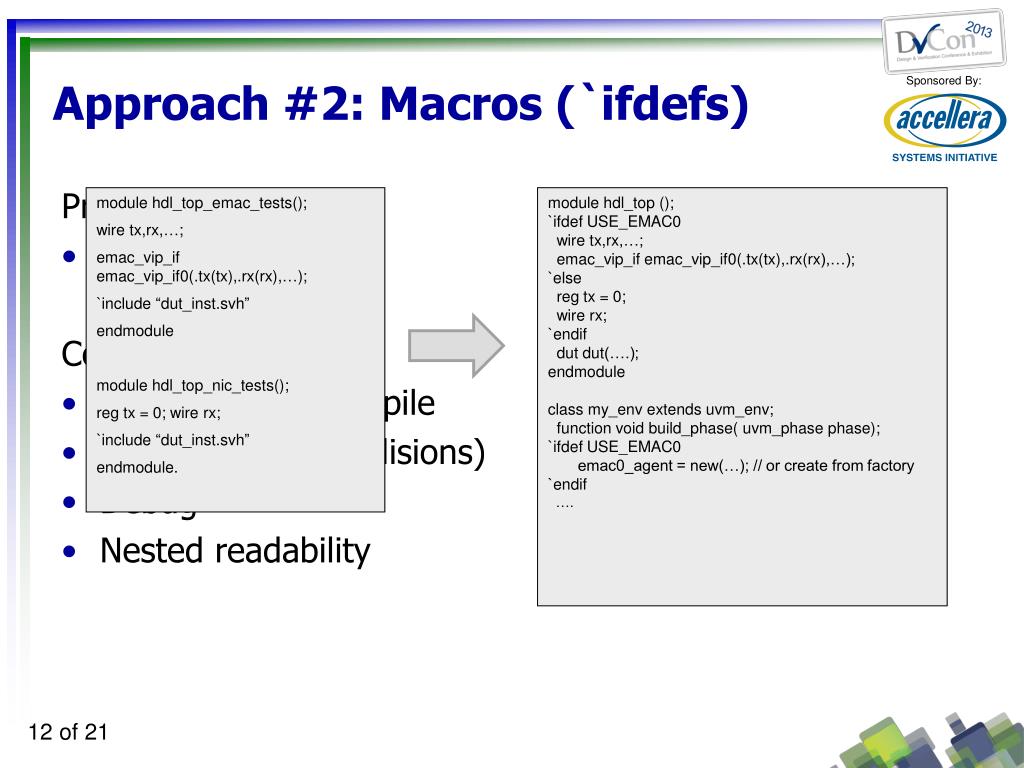

Approach #2: Macros (`ifdefs)

Pros:

  • Easy.

    Cons:

  • Expanded pre-compile

  • Scope? (Name collisions)

  • Debug

  • Nested readability

module hdl_top_emac_tests();

wire tx,rx,…;

emac_vip_if emac_vip_if0(.tx(tx),.rx(rx),…);

`include “dut_inst.svh”

endmodule

module hdl_top_nic_tests();

regtx = 0; wire rx;

`include “dut_inst.svh”

endmodule.

module hdl_top ();

`ifdef USE_EMAC0

wire tx,rx,…;

emac_vip_if emac_vip_if0(.tx(tx),.rx(rx),…);

`else

regtx = 0;

wire rx;

`endif

dutdut(….);

endmodule

class my_env extends uvm_env;

function void build_phase( uvm_phase phase);

`ifdef USE_EMAC0

emac0_agent = new(…); // or create from factory

`endif

….


Approach 3 parameters

Approach #3: Parameters

Pros:

  • Set at elaboration time

  • Well-defined scope

    Cons:

  • Type specializations

  • UVM factory considerations

HDL

module hdl_top ();

`ifdef USE_EMAC0

wire tx,rx,…;

emac_vip_if emac_vip_if0(.tx(tx),.rx(rx),…);

`else

regtx = 0;

wire rx;

`endif

dutdut(….);

endmodule

class my_env extends uvm_env;

function void build_phase( uvm_phase phase);

`ifdef USE_EMAC0

emac0_agent = new(…); // or create from factory

`endif

….

module hdl_top ();

parameter USE_EMAC0 = 1;

if (USE_EMAC0 == 1) begin

wire tx,rx,…;

emac_vip_if emac_vip_if0(.tx(tx),.rx(rx),…);

end else begin

regtx = 0;

wire rx;

end

dutdut(….);

endmodule

class my_env #(int USE_EMAC0=1) extends uvm_env;

`uvm_component_param_utils(my_env);

function void build_phase( uvm_phase phase);

if (USE_EMAC0)

emac0_agent = new(…); // or create from factory

….

HVL


Approach 4 plusargs

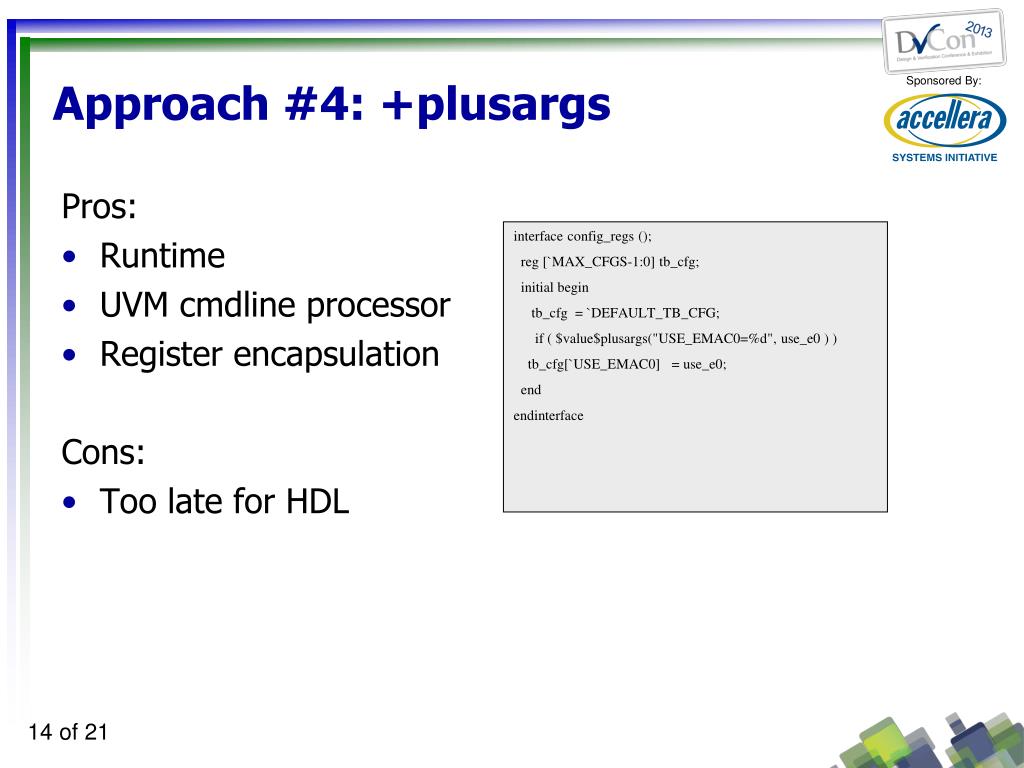

Approach #4: +plusargs

Pros:

  • Runtime

  • UVM cmdline processor

  • Register encapsulation

    Cons:

  • Too late for HDL

interface config_regs ();

reg [`MAX_CFGS-1:0] tb_cfg;

initial begin

tb_cfg = `DEFAULT_TB_CFG;

if ( $value$plusargs("USE_EMAC0=%d", use_e0 ) )

tb_cfg[`USE_EMAC0] = use_e0;

end

endinterface


The elegant topology solution

The Elegant Topology Solution.

  • Any solution for dealing with the configuring the topology of the testbench must consider both contexts:

    • HDL (module)

    • HVL (class).

  • HVL topology must match HDL topology.

  • One set of controls is best.

  • Parameters are good in HDL.

  • But how do we configure HVL?


Parameter transport

Parameter Transport

  • Parameters used to configure HDL are transported to HVL.

  • Parameters are tranported using a SV Interface to any HVL class object.

  • Hundreds of topology parameters are available without the burden of putting parameters in a class.

Parameters

Software

(HVL)

Hardware

(HDL)


Hdl example

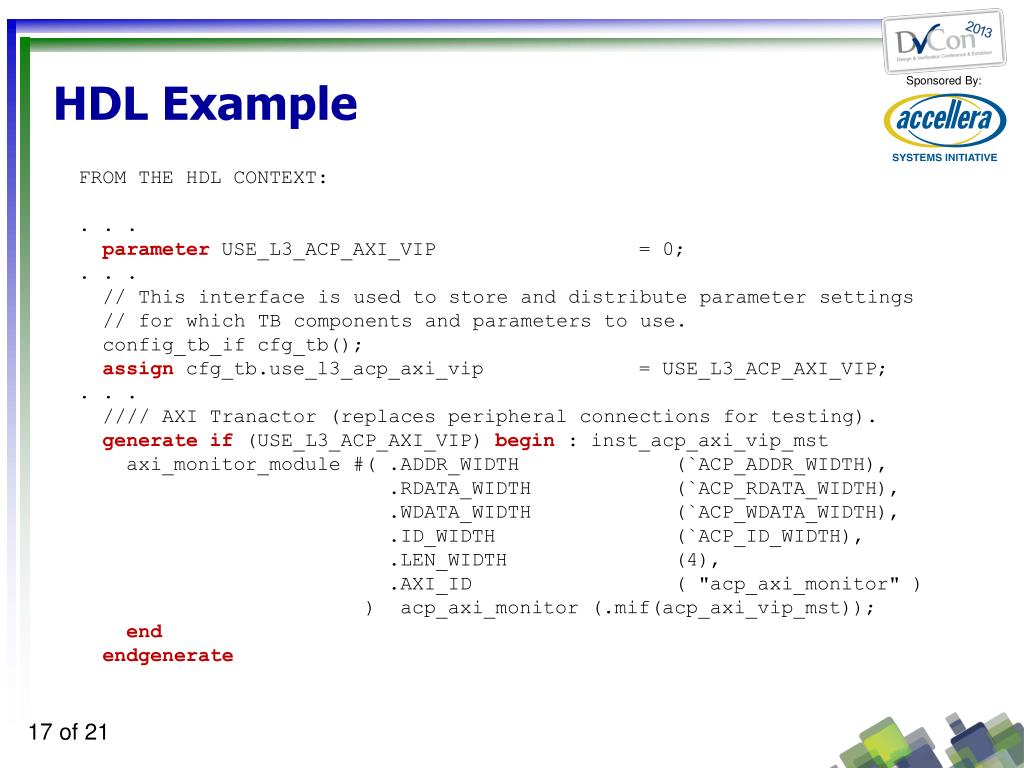

HDL Example

FROM THE HDL CONTEXT:

. . .

parameter USE_L3_ACP_AXI_VIP = 0;

. . .

// This interface is used to store and distribute parameter settings

// for which TB components and parameters to use.

config_tb_ifcfg_tb();

assign cfg_tb.use_l3_acp_axi_vip = USE_L3_ACP_AXI_VIP;

. . .

//// AXI Tranactor (replaces peripheral connections for testing).

generateif (USE_L3_ACP_AXI_VIP) begin : inst_acp_axi_vip_mst

axi_monitor_module #( .ADDR_WIDTH (`ACP_ADDR_WIDTH),

.RDATA_WIDTH (`ACP_RDATA_WIDTH),

.WDATA_WIDTH (`ACP_WDATA_WIDTH),

.ID_WIDTH (`ACP_ID_WIDTH),

.LEN_WIDTH (4),

.AXI_ID ( "acp_axi_monitor" )

) acp_axi_monitor (.mif(acp_axi_vip_mst));

end

endgenerate


Hvl example

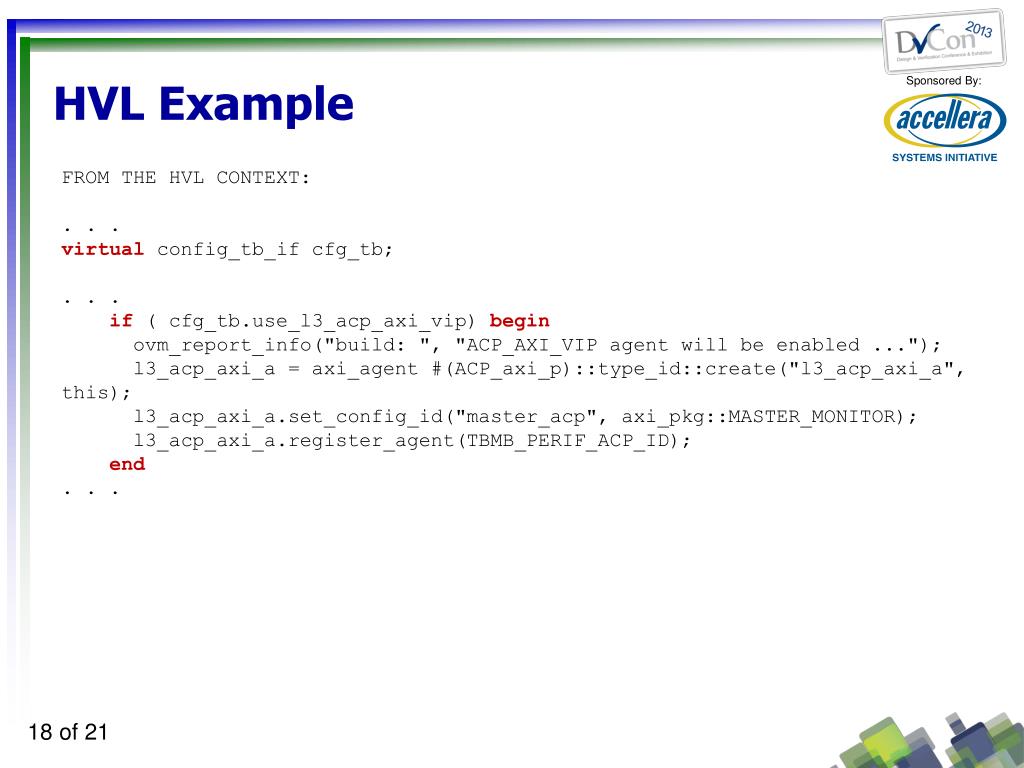

HVL Example

FROM THE HVL CONTEXT:

. . .

virtualconfig_tb_ifcfg_tb;

. . .

if ( cfg_tb.use_l3_acp_axi_vip) begin

ovm_report_info("build: ", "ACP_AXI_VIP agent will be enabled ...");

l3_acp_axi_a = axi_agent #(ACP_axi_p)::type_id::create("l3_acp_axi_a", this);

l3_acp_axi_a.set_config_id("master_acp", axi_pkg::MASTER_MONITOR);

l3_acp_axi_a.register_agent(TBMB_PERIF_ACP_ID);

end

. . .


The code from paper

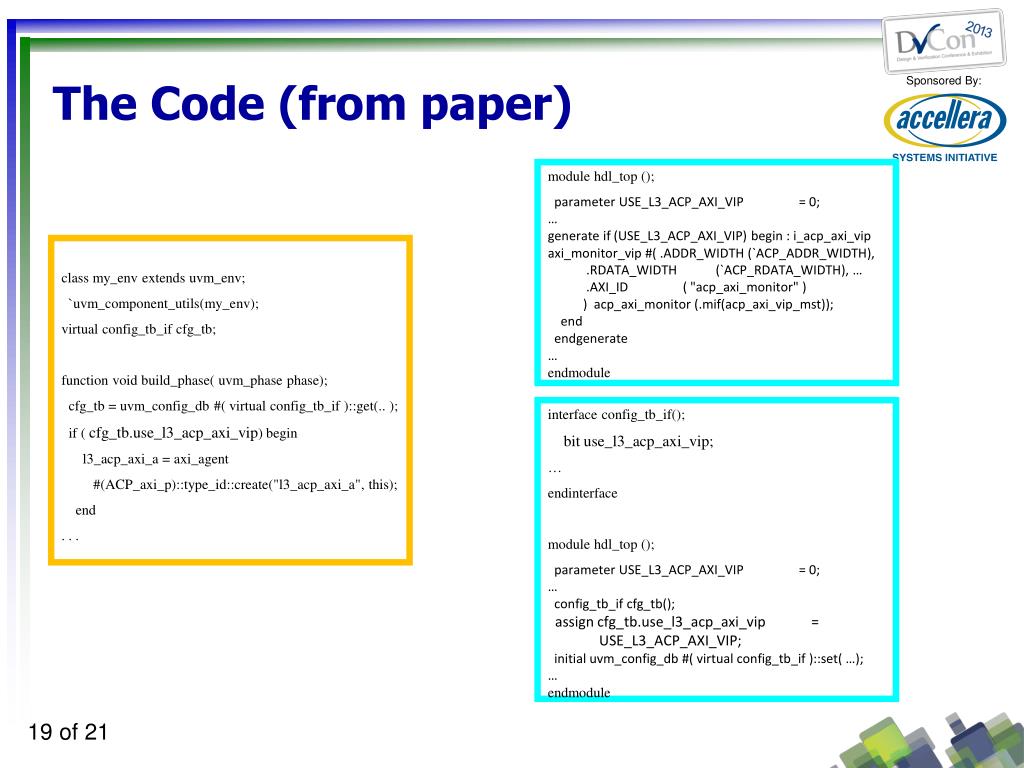

The Code (from paper)

module hdl_top ();

parameter USE_L3_ACP_AXI_VIP = 0;

generate if (USE_L3_ACP_AXI_VIP) begin : i_acp_axi_vipaxi_monitor_vip #( .ADDR_WIDTH (`ACP_ADDR_WIDTH),

.RDATA_WIDTH (`ACP_RDATA_WIDTH), …

.AXI_ID ( "acp_axi_monitor" )

) acp_axi_monitor (.mif(acp_axi_vip_mst));

end

endgenerate

endmodule

class my_env extends uvm_env;

`uvm_component_utils(my_env);

virtual config_tb_ifcfg_tb;

function void build_phase( uvm_phase phase);

cfg_tb = uvm_config_db #( virtual config_tb_if )::get(.. );

if ( cfg_tb.use_l3_acp_axi_vip) begin

l3_acp_axi_a = axi_agent

#(ACP_axi_p)::type_id::create("l3_acp_axi_a", this);

end

. . .

interface config_tb_if();

bit use_l3_acp_axi_vip;

endinterface

module hdl_top ();

parameter USE_L3_ACP_AXI_VIP = 0;

config_tb_ifcfg_tb();

assign cfg_tb.use_l3_acp_axi_vip =

USE_L3_ACP_AXI_VIP;

initial uvm_config_db #( virtual config_tb_if )::set( …);

endmodule


Comparison chart

Comparison Chart


Conclusion

Conclusion

  • Sprawling complexity and inconsistent hybrid solutions for defining the testbench topology create serious maintenance issues making it difficult to develop or enhance tests for HVL and complex SOC designs.

  • Consolidating topology definition of both HDL net-lists and HVL object hierarchies to a single point source simplifies maintenance while preserving significant flexibility with a very large variety of topologies available.
