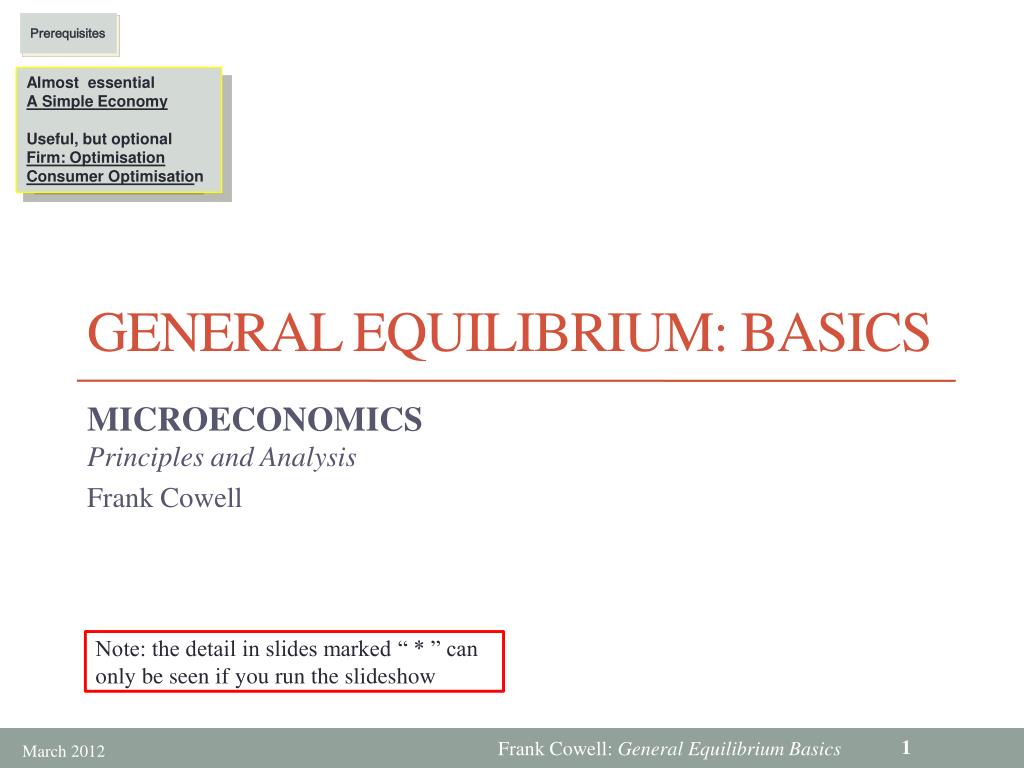

General equilibrium basics


Almost essential

A Simple Economy

Useful, but optional

Firm: Optimisation

Consumer Optimisation

General Equilibrium: Basics


Principles and Analysis

Frank Cowell

Note: the detail in slides marked “ * ” can only be seen if you run the slideshow

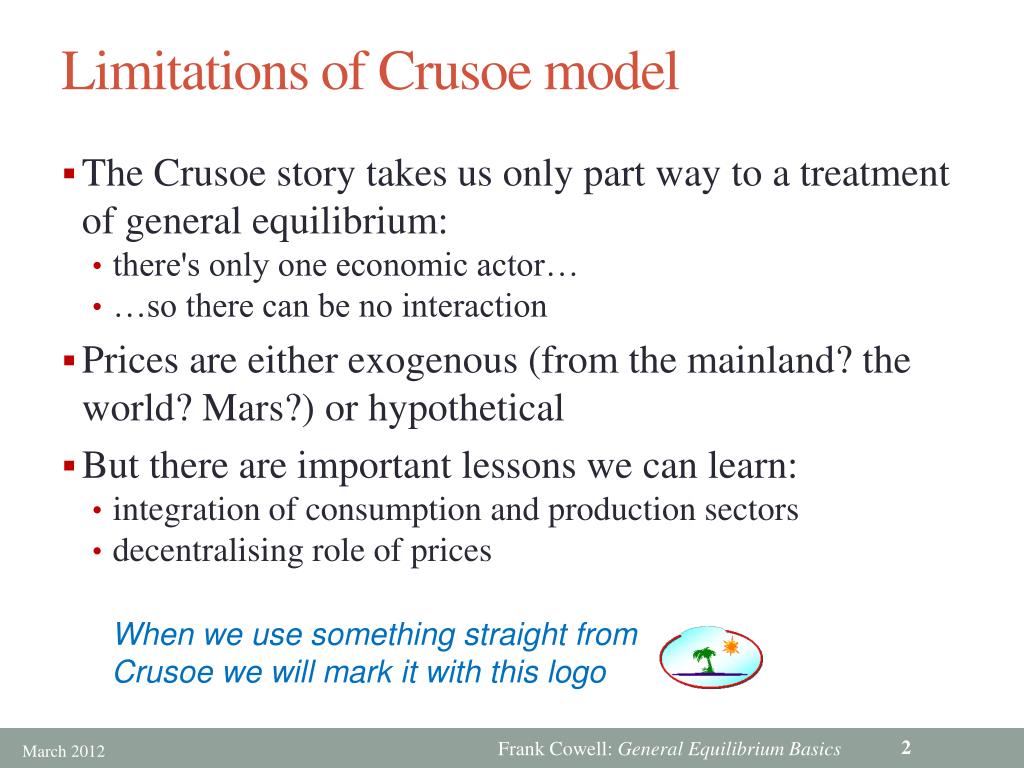

Limitations of crusoe model

Limitations of Crusoe model

  • The Crusoe story takes us only part way to a treatment of general equilibrium:

    • there's only one economic actor…

    • …so there can be no interaction

  • Prices are either exogenous (from the mainland? the world? Mars?) or hypothetical

  • But there are important lessons we can learn:

    • integration of consumption and production sectors

    • decentralising role of prices

When we use something straight from Crusoe we will mark it with this logo

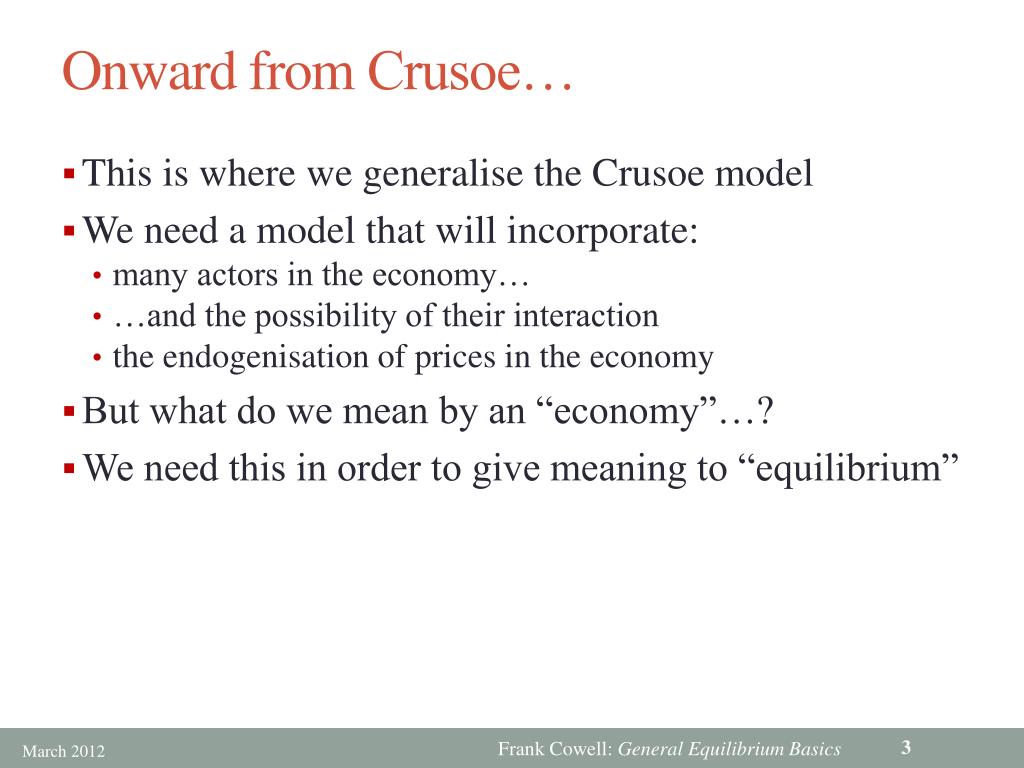

Onward from crusoe

Onward from Crusoe…

  • This is where we generalise the Crusoe model

  • We need a model that will incorporate:

    • many actors in the economy…

    • …and the possibility of their interaction

    • the endogenisation of prices in the economy

  • But what do we mean by an “economy”…?

  • We need this in order to give meaning to “equilibrium”



General Equilibrium: Basics

The economy and allocations

The components of the general equilibrium problem

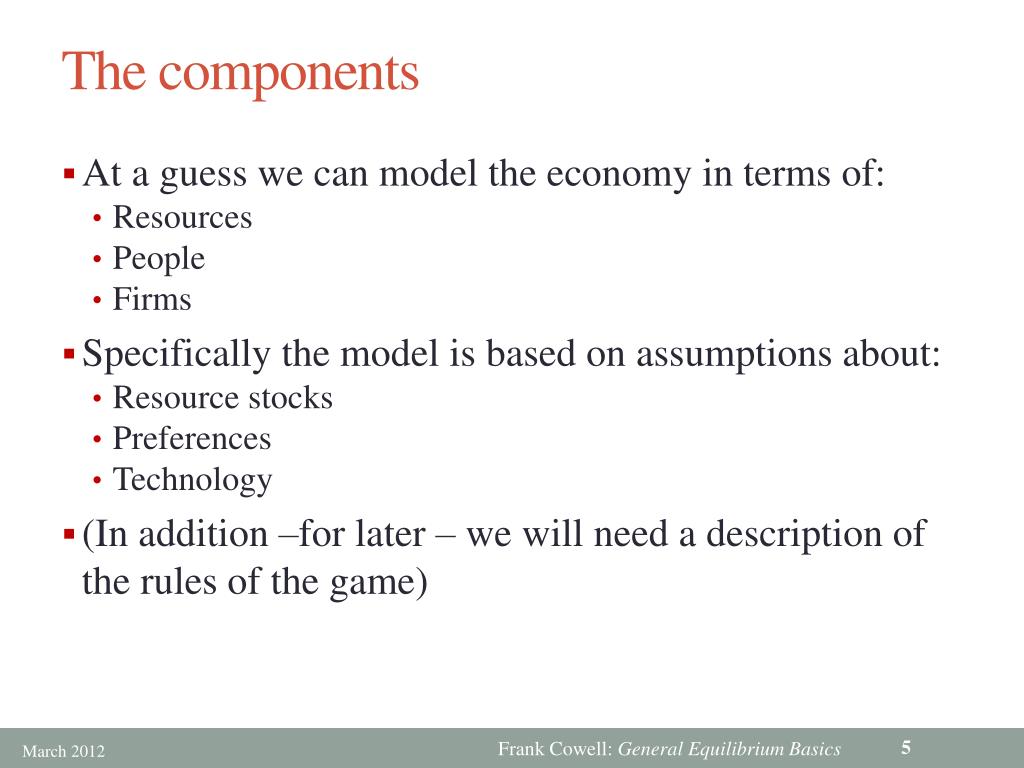

The components

The components

  • At a guess we can model the economy in terms of:

    • Resources

    • People

    • Firms

  • Specifically the model is based on assumptions about:

    • Resource stocks

    • Preferences

    • Technology

  • (In addition –for later – we will need a description of the rules of the game)

What is an economy

What is an economy?

  • Resources (stocks)

R1 , R2 ,…

n of these

  • Households (preferences)

nh of these

U1, U2 ,…

  • Firms (technologies)

nfof these

F1, F2,…

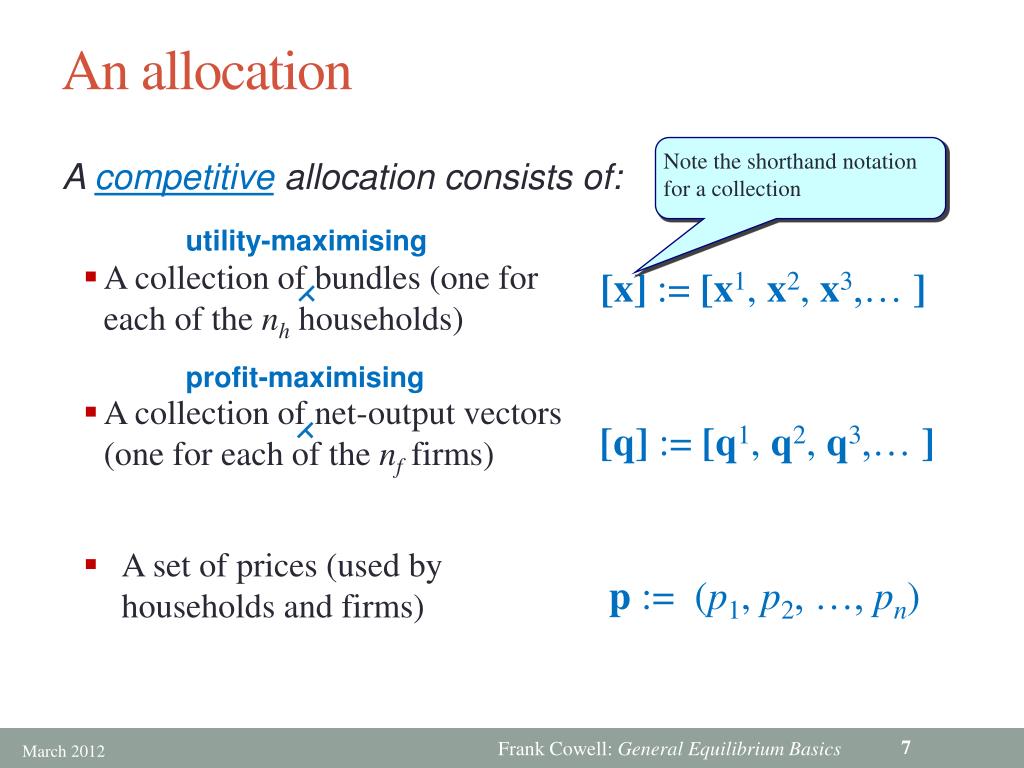

An allocation

An allocation

A competitive allocation consists of:

Note the shorthand notation for a collection

  • A collection of bundles (one for each of the nh households)

  • A collection of net-output vectors (one for each of the nf firms)


[x] := [x1, x2, x3,… ]


[q] := [q1, q2, q3,… ]

  • A set of prices (used by households and firms)

p := (p1, p2, …, pn)

How a competitive allocation works

How a competitive allocation works

  • Implication of firm f’s profit maximisation

  • Firms' behavioural responses map prices into net outputs

p qf(p)

{ , f=1,2,…,nf}

  • Implication of household's utility maximisation

  • Households’ behavioural responses map prices and incomes into demands

p, yhxh(p)

{ } { , h=1,2,…,nh}

  • The competitive allocation

just a minute! Where do these incomes come from??

An important model component

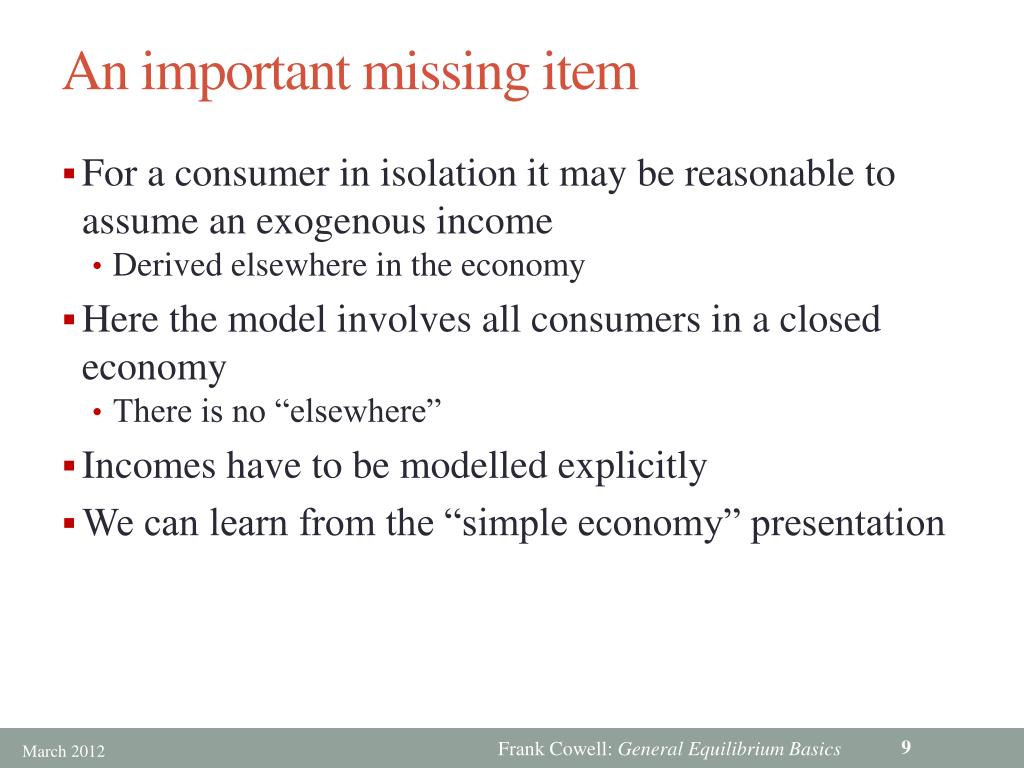

An important missing item

An important missing item

  • For a consumer in isolation it may be reasonable to assume an exogenous income

    • Derived elsewhere in the economy

  • Here the model involves all consumers in a closed economy

    • There is no “elsewhere”

  • Incomes have to be modelled explicitly

  • We can learn from the “simple economy” presentation

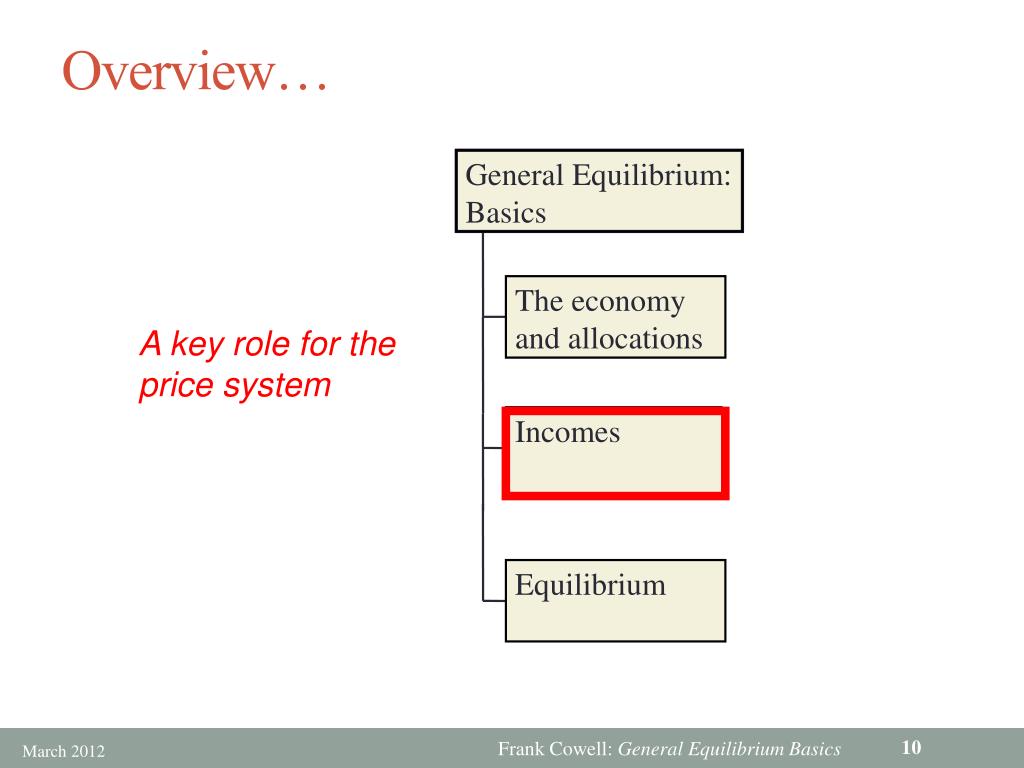

General Equilibrium: Basics

The economy and allocations

A key role for the price system



Modelling income

Modelling income

  • What can Crusoe teach us?

  • Consider where his “income” came from

    • Ownership rights of everything on the island

  • But here we have many persons and many firms

    • So we need to proceed carefully

    • We need to assume a system of ownership rights

What does household h possess

What does household h possess?

  • Resources

Rih 0,


R1h, R2h, …

0  Vfh 1,

f =1,…,nf

V1h, V2h, …

  • Shares in firms’ profits

introduce prices


The components of h’s income


  • Resources

  • Shares in firms


  • Net outputs

  • Prices

look more closely at the role of prices


The fundamental role of prices

The fundamental role of prices

  • Net output of i by firm f depends on prices p:

    • qif = qif(p)

  • Supply of net outputs

  • Thus profits depend on prices:

  • n

  • P f(p):= S piqif(p)

  • i=1

  • Again writing profits as price-weighted sum of net outputs



  • So incomes can be written as:

  • n nf

  • yh= S piRih+SVfhPf(p)

  • i=1 f=1

  • Income = resource rents + profits

Holding by h of shares in f

Holding by h of resource i

  • Income depends on prices:

  • yh= yh(p)

  • yh(•) depends on ownership rights thathpossesses

Prices in a competitive allocation

Prices in a competitive allocation

  • The allocation as a collection of responses

p qf(p)

{ , f=1,2,…,nf}

  • Put the price-income relation into household responses

  • Gives a simplified relationship for households

p, yhxh(p)

{ } { , h=1,2,…,nh}


  • Summarise the relationship

yh= yh(p)


Let's look at the whole process



The price mechanism

resource distribution

share ownership

R1a, R2a, …

V1a, V2a, …

R1b, R2b, …

V1b, V2b, …

The price mechanism*

  • System takes as given the property distribution

  • Property distribution consists of two collections

  • Prices then determine incomes

  • Prices and incomes determine net outputs and consumptions



  • Brief summary…









General Equilibrium: Basics

The economy and allocations

Specification and examples

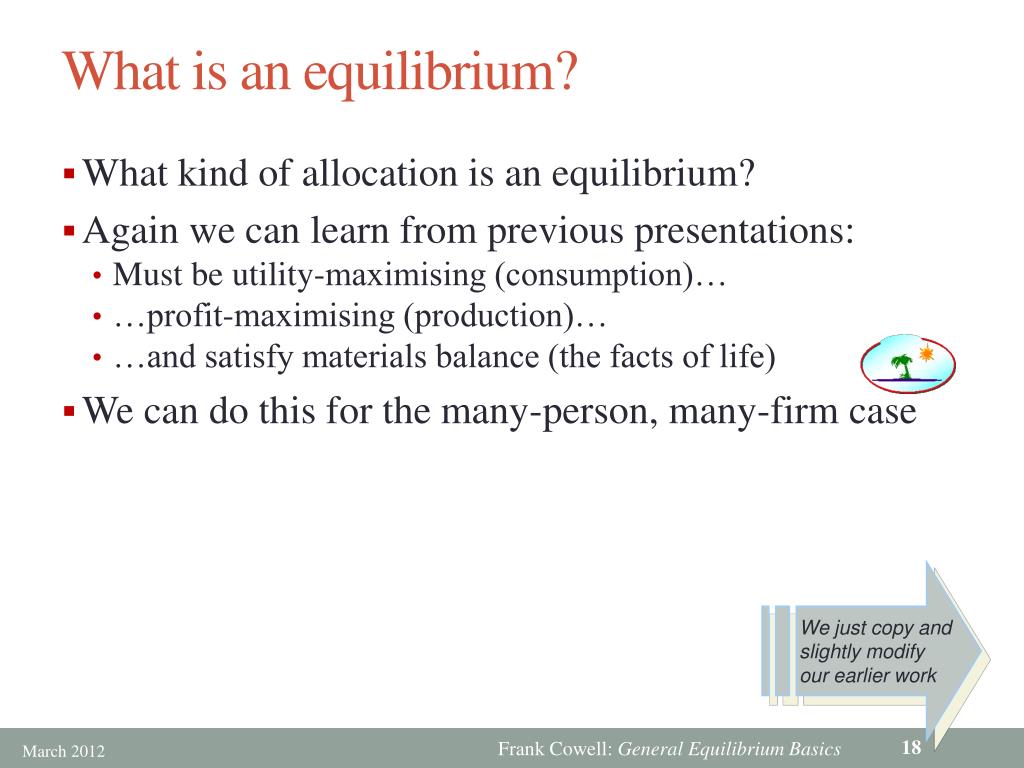

What is an equilibrium

What is an equilibrium?

We just copy and slightly modify our earlier work

  • What kind of allocation is an equilibrium?

  • Again we can learn from previous presentations:

    • Must be utility-maximising (consumption)…

    • …profit-maximising (production)…

    • …and satisfy materials balance (the facts of life)

  • We can do this for the many-person, many-firm case

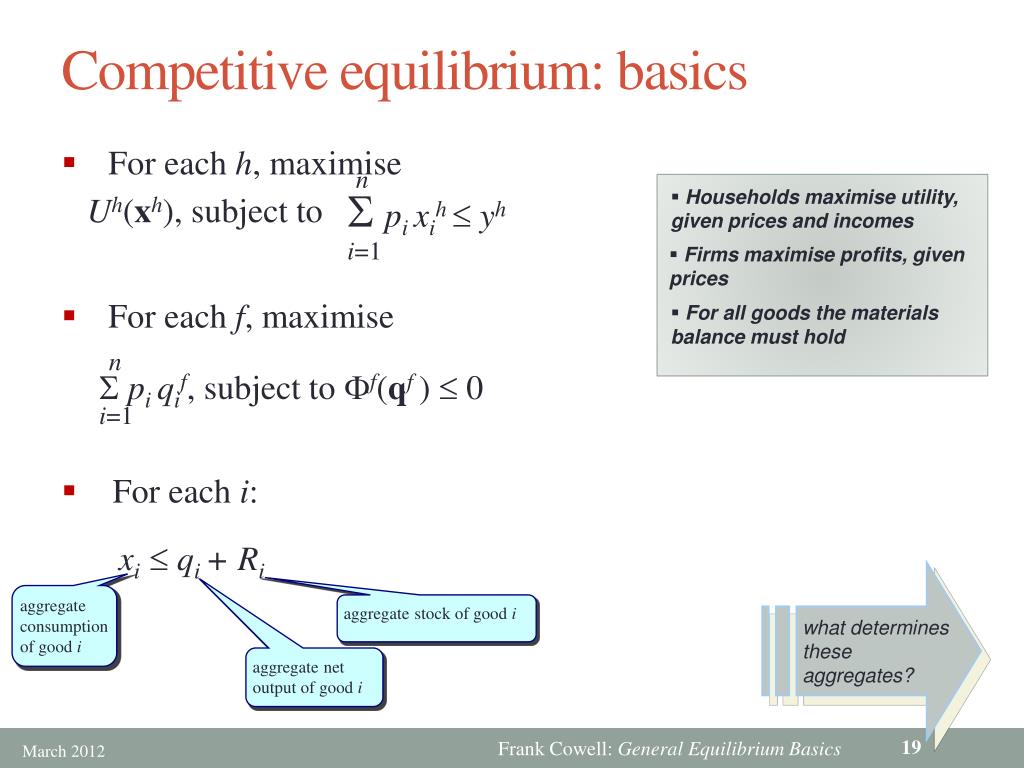

Competitive equilibrium basics

Competitive equilibrium: basics

  • For each h,maximise

  • Households maximise utility, given prices and incomes

Uh(xh), subject to


Spi xih  yh


  • Firms maximise profits, given prices

  • For each f,maximise

  • For all goods the materials balance must hold


S pi qif, subject toFf(qf ) 0


  • For each i:

xi£ qi + Ri

what determines these aggregates?

aggregate consumption of good i

aggregate stock of goodi

aggregate net output of good i

Consumption and net output

Consumption and net output

  • “Obvious” way to aggregate consumption of good i?

  • nh

  • xi=S xih

  • h=1

  • Appropriate if i is a rival good

  • Additional resources needed for each additional person consuming a unit of i

Sum over households

  • Opposite case: a nonrival good

  • Examples: TV, national defence…

  • An alternative way to aggregate:

  • xi= max {xih}

  • h

  • Aggregation of net output:

  • nf

  • qi:= Sqif

  • f=1

  • if all qf are feasible will q be feasible?

  • Yes if there are no externalities

  • Counterexample: production with congestion…

By definition

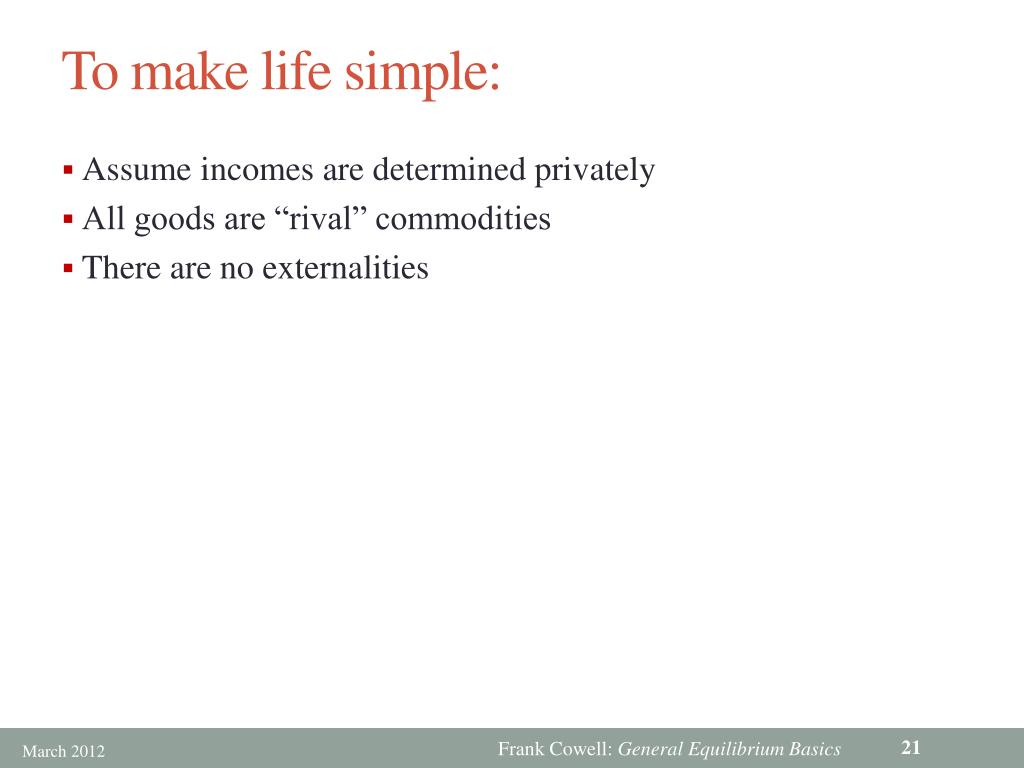

To make life simple

To make life simple:

  • Assume incomes are determined privately

  • All goods are “rival” commodities

  • There are no externalities

Competitive equilibrium summary

Competitive equilibrium: summary

  • It must be a competitive allocation

  • A set of prices p

  • Everyone maximises at those prices p

  • The materials balance condition must hold

  • Demand cannot exceed supply:

  • x ≤q + R

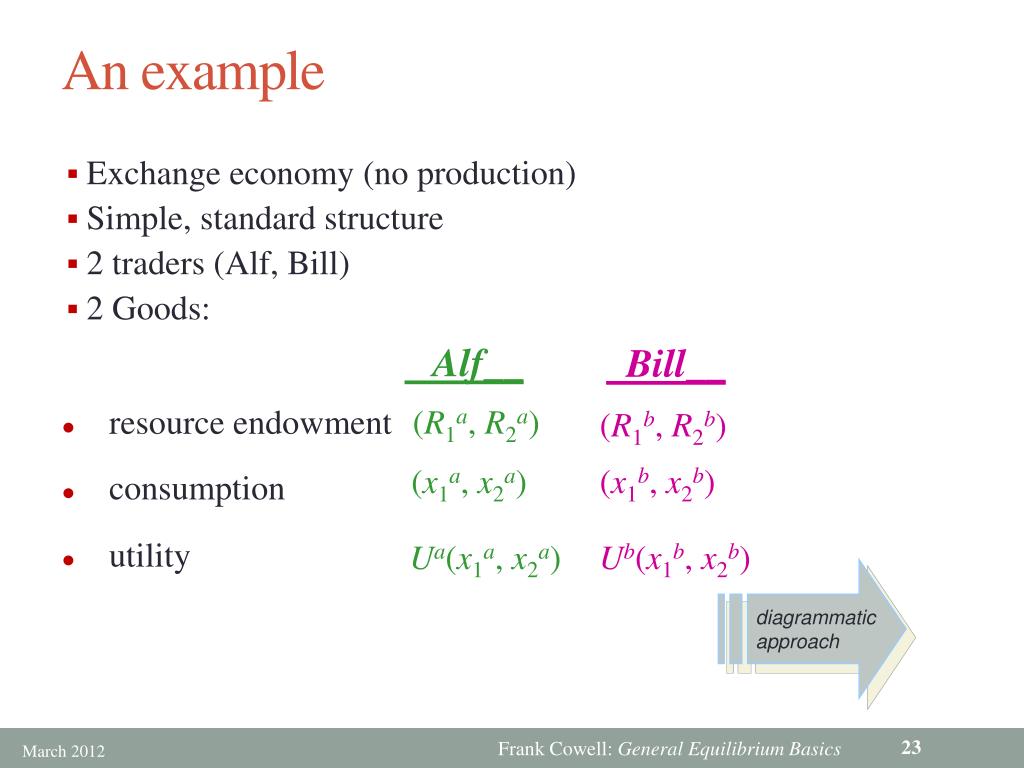

An example

An example

  • Exchange economy (no production)

  • Simple, standard structure

  • 2 traders (Alf, Bill)

  • 2 Goods:



  • resource endowment

(R1a, R2a)

(R1b, R2b)

  • consumption

(x1a, x2a)

(x1b, x2b)

  • utility

Ua(x1a, x2a)

Ub(x1b, x2b)

diagrammatic approach

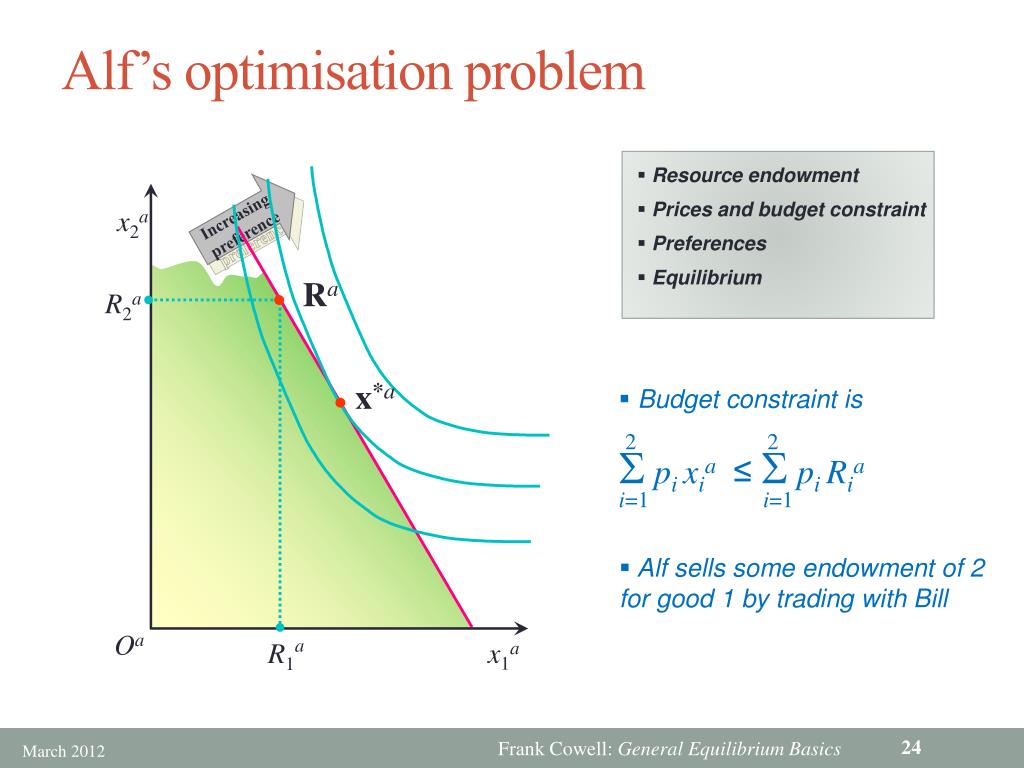

Alf s optimisation problem

Alf’s optimisation problem

  • Resource endowment

Increasing preference

  • Prices and budget constraint


  • Preferences

  • Equilibrium

  • Ra


  • x*a

  • Budget constraint is

  • 22

  • Spi xia≤Spi Ria

  • i=1i=1

  • Alf sells some endowment of 2 for good 1 by trading with Bill




Bill s optimisation problem

Bill’s optimisation problem

  • Resource endowment

Increasing preference

  • Prices and budget constraint


  • Preferences

  • Equilibrium

  • x*b

  • Budget constraint is

  • 22

  • Spi xib≤Spi Rib

  • i=1i=1

  • Rb


  • Bill, of course, sells good 1 in exchange for 2

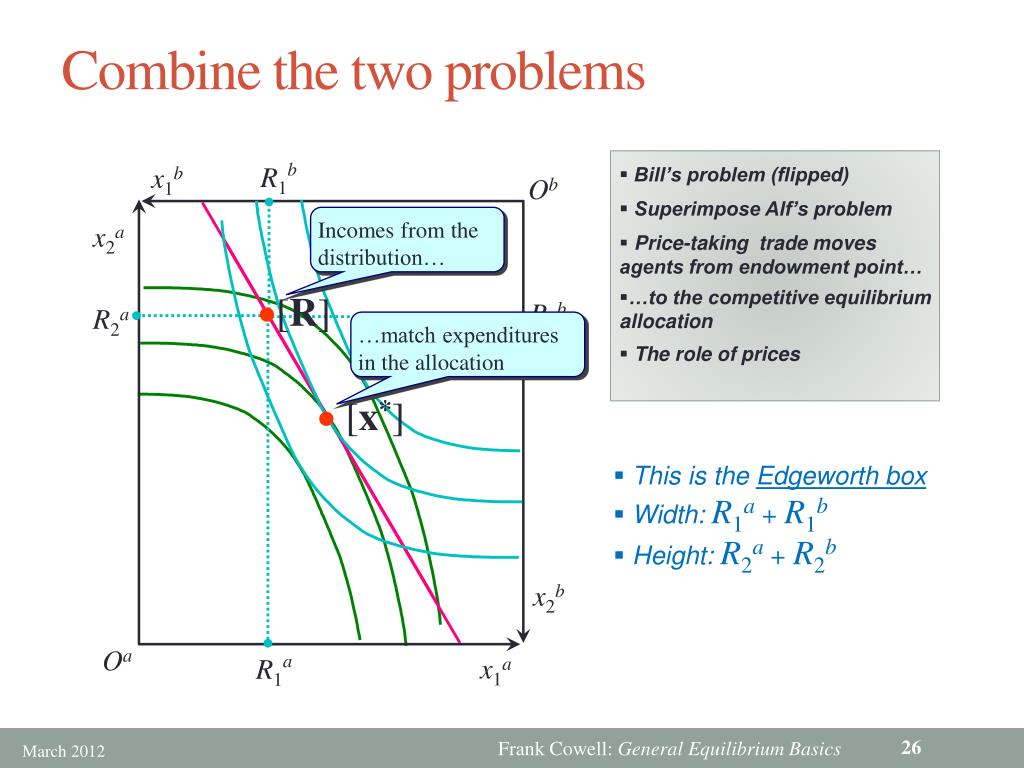

Combine the two problems











Combine the two problems

  • Bill’s problem (flipped)

  • Superimpose Alf’s problem

Incomes from the distribution…

  • Price-taking trade moves agents from endowment point…

  • …to the competitive equilibrium allocation

  • [R]

…match expenditures in the allocation

  • The role of prices

  • [x*]

  • This is the Edgeworth box

  • Width: R1a + R1b

  • Height: R2a + R2b

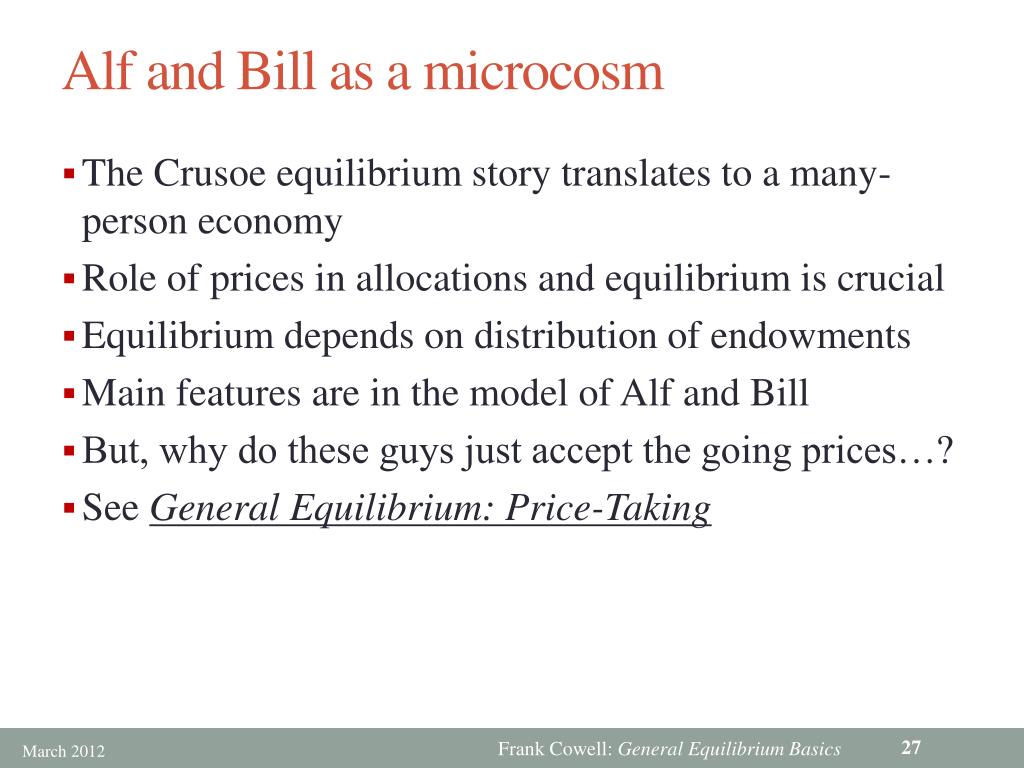

Alf and bill as a microcosm

Alf and Bill as a microcosm

The Crusoe equilibrium story translates to a many-person economy

Role of prices in allocations and equilibrium is crucial

Equilibrium depends on distribution of endowments

Main features are in the model of Alf and Bill

But, why do these guys just accept the going prices…?

See General Equilibrium: Price-Taking
