Presentation Transcript


H

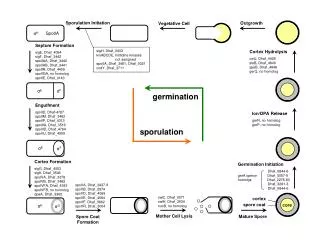

Sporulation Initiation

Outgrowth

Vegetative Cell

Spo0A

σH

Septum Formation

sigE, Dhaf_4054

sigF, Dhaf_3442

spoIIAA, Dhaf_3440

spoIIAB, Dhaf_3441

spoIIR, Dhaf_4409

spoIIGA, no homolog

spoIIE, Dhaf_0143

sigH, Dhaf_0402

kinABCDE, histidine kinases

not assigned

spo0A, Dhaf_3481, Dhaf_3021

codY, Dhaf_3711

Cortex Hydrolysis

cwlJ, Dhaf_4425

sleB, Dhaf_4849

ypeB, Dhaf_4848

gerQ, no homolog

σF

σE

germination

Engulfment

spoIID, Dhaf-4787

spoIIM, Dhaf_3462

spoIIP, Dhaf_4313

spoIIIA, Dhaf_3516

spoIIID, Dhaf_4764

spoIIIJ, Dhaf_4959

Ion/DPA Release

gerN, no homolog

gerP, no homolog

sporulation

σE

σF

Cortex Formation

sigG, Dhaf_4053

sigK, Dhaf_3546

spoIVA, Dhaf_3378

spoIVB, Dhaf_3482

spoIVFA, Dhaf_4343

spoIVFB, no homolog

dpaA, Dhaf_3362

Germination Initiation

Dhaf_0844-6

gerA operon Dhaf_0057-9

homolgs Dhaf_2278-80

Dhaf_3281-3

Dhaf_0844-6

spoVA, Dhaf_3437-9

spoVB, Dhaf_2974

spoVD, Dhaf_4069

spoVE, Dhaf_4064

spoVF, Dhaf_3662

spoVR, Dhaf_3004

cwlC, Dhaf_0071

cwlH, Dhaf_2934

nucB, no homolog

cortex

spore coat

core

σK

σG

Mother Cell Lysis

Mature Spore

Spore Coat

Formation
