Parallel Lines and Transversals

Parallel Lines and Transversals . Honors Geometry Chapter 3, Section 1. Notes . What does it mean for two lines to be parallel? Parallel lines: Lines that do not intersect and are coplanar . What about lines that don’t intersect and aren’t coplanar?

faustus
Download Presentation

Parallel Lines and Transversals

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Parallel Lines and Transversals Honors Geometry Chapter 3, Section 1

  2. Notes • What does it mean for two lines to be parallel? • Parallel lines: Lines that do not intersect and are coplanar. • What about lines that don’t intersect and aren’t coplanar? • Skew Lines: Lines that do not intersect and are not coplanar. • What does it mean for two planes to be parallel? • Parallel Planes:planes that do not intersect. • Example: the planes containing the ceiling and floor are parallel

  3. Notes • Transversal: a line that intersects two or more lines in a plane at different points. • E.g. Line c is a transversal to lines a and b. • Line b is a transversal to which two other lines? • a & c • How about line a? • b & c • When a transversal intersects two lines, how many angles are formed? • 8 angles are formed

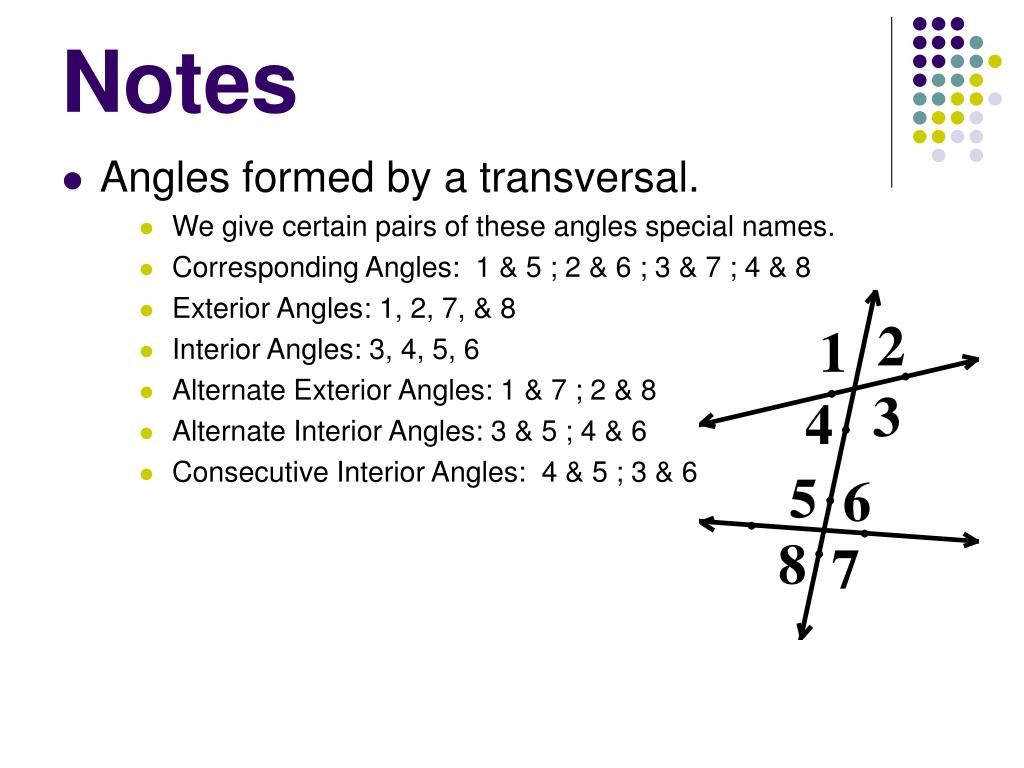

  4. Notes • Angles formed by a transversal. • We give certain pairs of these angles special names. • Corresponding Angles: 1 & 5 ; 2 & 6 ; 3 & 7 ; 4 & 8 • Exterior Angles: 1, 2, 7, & 8 • Interior Angles: 3, 4, 5, 6 • Alternate Exterior Angles: 1 & 7 ; 2 & 8 • Alternate Interior Angles: 3 & 5 ; 4 & 6 • Consecutive Interior Angles: 4 & 5 ; 3 & 6

  5. Notes • Symbols for parallel in statements and figures • The symbol ll means is parallel to • The pink arrows on lines PQ and RS indicate that they are parallel.

  6. Angle Pair Names Activity • Using about ¼ of a piece of binder paper, draw three lines so that one intersects two of the others. • Color the exterior angles all one color • Color the interior angles all one color • Label the exterior and interior angles • Using another ¼ of a piece of binder paper, draw three lines so that one intersects two of the others. • Color each pair of corresponding angles a different color. • Label this quarter sheet of paper “corresponding angles.” • Using another ¼ of a piece of binder paper, draw three lines so that one intersects two of the others. • Color each pair of alternate exterior angles a different color. • Color each pair of alternate interior angles a different color. • Label this quarter sheet “alternate exterior and interior angles.” • Using the final ¼ of a piece of binder paper, draw three lines so that one intersects two of the others. • Color each pair of consecutive interior angles a different color. • Label this quarter sheet “consecutive interior angles.
