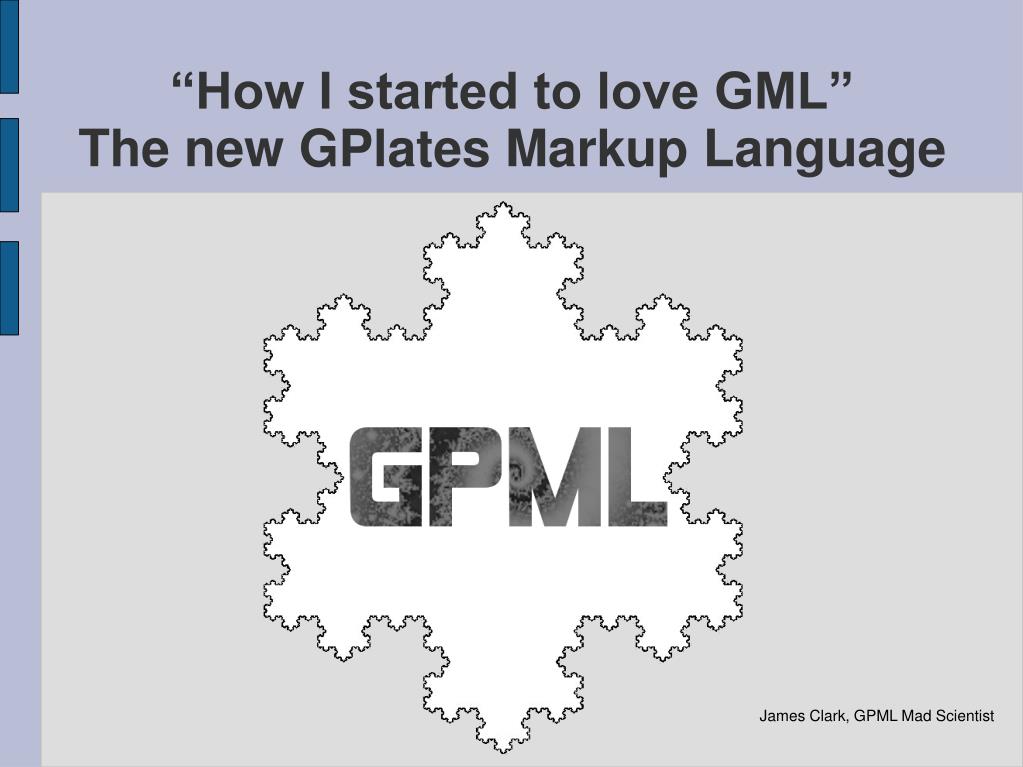

  1. “How I started to love GML”The new GPlates Markup Language James Clark, GPML Mad Scientist

  2. In today's exciting presentation • Reminder of what it is, and why we want to use it • Why things get so complicated • Brief brief brief overview of GPML structures because they're always changing • Examples

  3. GML • What is it? • The fun happy next generation GIS standard format • Why do we want to use it? • It's XML • Everyone else wants to • Why aren't we using it already!? • Because it's very, very, complicated • This isn't a bad thing

  4. GPML • What is it? • The part of GML that we carve out ourselves, for GPlates to use • Why should we have to do work? • GML provides a common framework of simple GIS primitives and structures that we can use as a base • It's not a magic bullet • As well as creating a data model for our plate tectonic stuff, we also need to make it use as much of these GML elements as possible, or there's no benefit

  5. Why so complicated? • GML makes us use objects for everything • Objects referring to objects referring to more objects with objects inside and a side order of objects • This is why my diagrams get so messy • These objects must be arranged logically, but need different properties • i.e. Features which are reconstructable vs features which aren't • It looks more confusing than it really is, just because one “thing” is represented with multiple elements in GML

  6. Example of objects with different properties • If we want to define a section of continental crust vs oceanic crust, we could use a simple polygon • But what about when the features that define that boundary move around? • What about overlapping features? • The “Crust Boundary” element becomes a separate feature to the “Crust Boundary Segment” feature • It's one single entity to us, but in GML and GPML, it needs to be split up

  7. Overlapping boundaries

  8. Overlapping boundaries

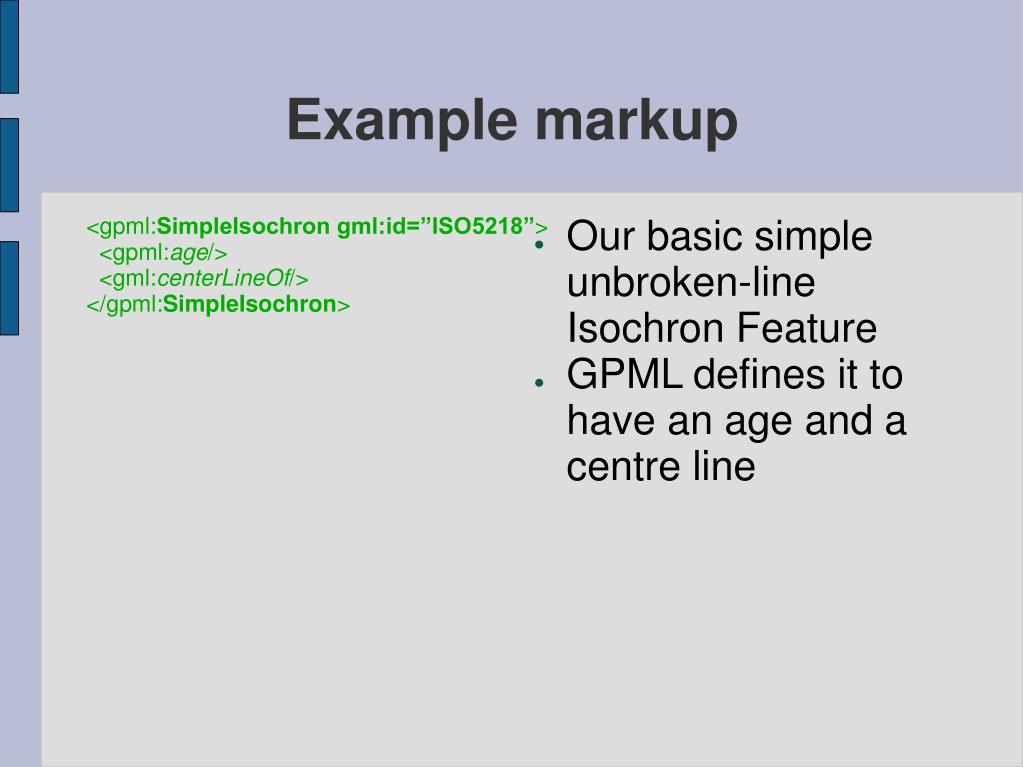

  9. Our basic simple unbroken-line Isochron Feature GPML defines it to have an age and a centre line Example markup <gpml:SimpleIsochron gml:id=”ISO5218”> <gpml:age/> <gml:centerLineOf/> </gpml:SimpleIsochron>

  10. Inside the age property is a TimeInstant Feature Inside the centerLineOf property is a LineString Feature These are both GML constructs Example markup <gpml:SimpleIsochron gml:id=”ISO5218”> <gpml:age> <gml:TimeInstant/> </gpml:age> <gml:centerLineOf> <gml:LineString/> </gml:centerLineOf> </gpml:SimpleIsochron>

  11. TimeInstant and LineString have their own properties Finally we can specify the actual age and geometry of the Isochron Example markup <gpml:SimpleIsochron gml:id=”ISO5218”> <gpml:age> <gml:TimeInstant> <gml:timePosition> 110 </gml:timePosition> </gml:TimeInstant> </gpml:age> <gml:centerLineOf> <gml:LineString> <gml:posList dimension=”2”> 180.34 90.76 180.35 90.60 180.35 90.51 </gml:posList> </gml:LineString> </gml:centerLineOf> </gpml:SimpleIsochron>

  12. Time values need a reference frame Lat,Long values also depend on what CRS was used Example markup <gpml:SimpleIsochron gml:id=”ISO5218”> <gpml:age> <gml:TimeInstant> <gml:timePosition frame=”#myGeoMA”> 110 </gml:timePosition> </gml:TimeInstant> </gpml:age> <gml:centerLineOf> <gml:LineString srsName=”#myGeographicCRS”> <gml:posList dimension=”2” uom=”#latlong”> 180.34 90.76 180.35 90.60 180.35 90.51 </gml:posList> </gml:LineString> </gml:centerLineOf> </gpml:SimpleIsochron>

  13. And that was a simple example • The SimpleIsochron element example has two properties defined by GPML • age, centerLineOf • It also inherits additional properties from higher up in the GPML model • validTime, rotationHistory, oldPlatesHeader • And inherits even more properties from the GML model • gml:name, gml:description, gml:boundedBy, ...

  14. Do not be afraid Be very, very frightened, Arthur Dent • You will not have to actually write this markup yourself. That's the software's job. • The multitude of objects and elements and features and properties and attributes may look scary and bloated... • But it's better to have the ability to keep track of this data rather than forget it
