Presentation Transcript


Chemical equations

Chemical Equations

The 5 main types


Quick review

Quick Review

Balance the following reaction:

(Remember you need the same number on both sides of the equation)

__ Al2S3 + __ HCl  __ AlCl3 + __ H2S

1

6

3

2


The 5 main types

The 5 main types

Look at your rainbow balancing ladder, the green sheet…

___ Br2 + ___ K  ___ KBr

___ Al + ___ O2 ___ Al2O3

Notice how on the left side there are two elements and on the right side there is only one product


The 5 main types1

The 5 main types

This type of reaction is called a Synthesis reaction

___ Br2 + ___ K  ___ KBr

A + B AB

Two things coming together to make one. (boy meets girl  couple)


Chemical equations

  • Ex 1:

  • Ex 2:

___ Al + ___ O2 ___ Al2O3

___ Fe + ___ S  ___ FeS


The 5 main types2

The 5 main types

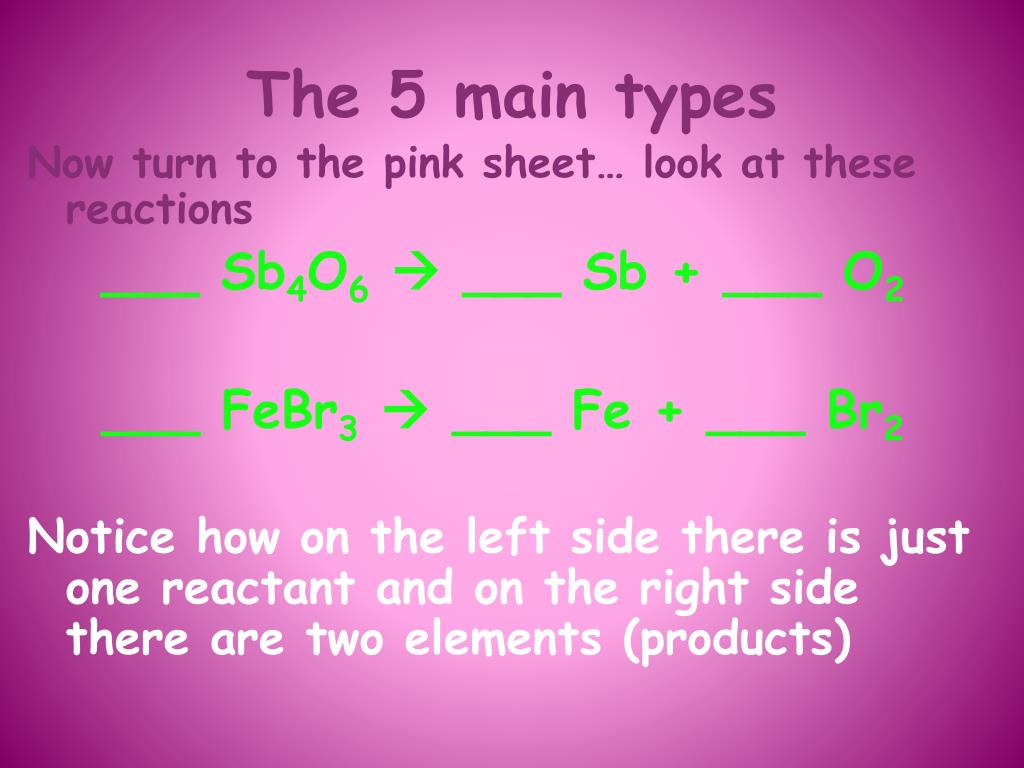

Now turn to the pink sheet… look at these reactions

___ Sb4O6 ___ Sb + ___ O2

___ FeBr3 ___ Fe + ___ Br2

Notice how on the left side there is just one reactant and on the right side there are two elements (products)


The 5 main types3

The 5 main types

This type of reaction is called a

Decomposition reaction

___ Sb4O6 ___ Sb + ___ O2

AB  A + B

One thing breaking up into smaller parts. (couple  boy and girl)


Chemical equations

  • Ex 1:

  • Ex 2:

___ FeBr3 ___ Fe + ___ Br2

____ H2O  ____ H2 + ____O2


The 5 main types4

The 5 main types

Now turn to the yellow sheet… look at these reactions

___ZnCl2 + ___ H2 ___ HCl + ___ Zn

___ Al + ___ FeO  ___ Al2O3 + ___ Fe

Notice how on the each side there is one compound and one element.


The 5 main types5

The 5 main types

This type of reaction is called a

Single replacement reaction

___ZnCl2 + ___ H2 ___ HCl + ___ Zn

AB + C  CB+ A

One element switching places with another.

(couple + outsider  new couple and new outsider)


Chemical equations

  • Ex 1:

  • Ex 2:

___ Al + ___ FeO  ___ Al2O3 + ___ Fe

___ Mg + ___ HBr  ___ MgBr2 + ___ H2


The 5 main types6

The 5 main types

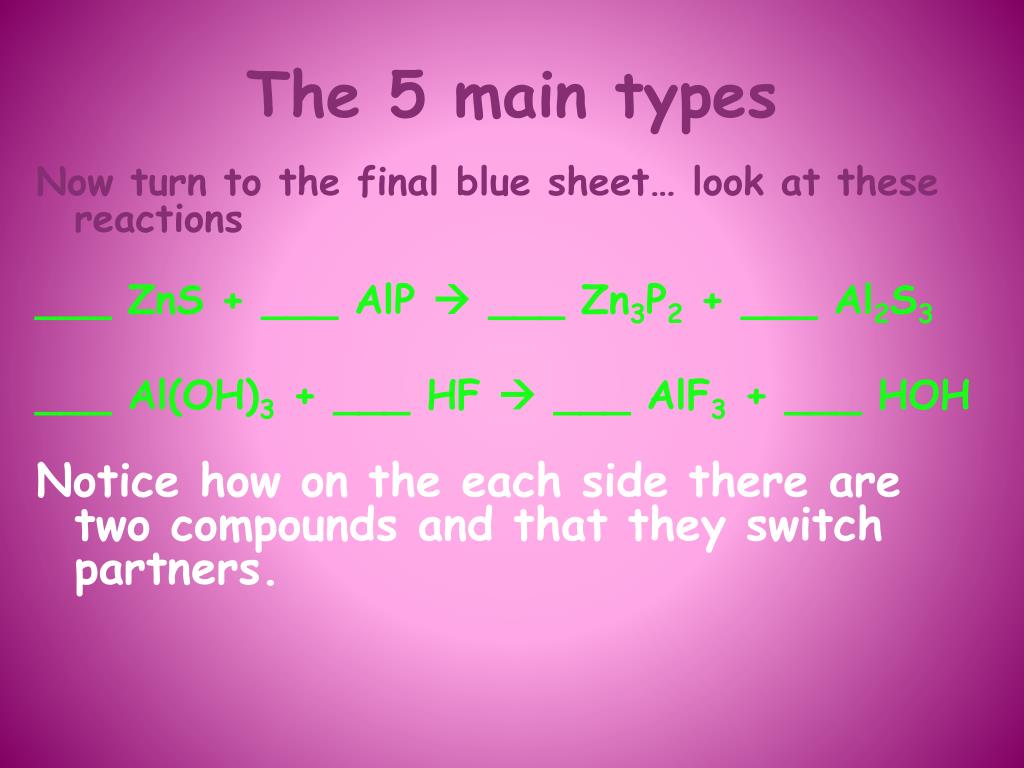

Now turn to the final blue sheet… look at these reactions

___ ZnS + ___ AlP  ___ Zn3P2 + ___ Al2S3

___ Al(OH)3 + ___ HF  ___ AlF3 + ___ HOH

Notice how on the each side there are two compounds and that they switch partners.


The 5 main types7

The 5 main types

This type of reaction is called a

Double replacement reaction

__ ZnS + __ AlP  __ Zn3P2 + __ Al2S3

AB + CD  AD + CB

Two elements switching places with another.

(A and C switching places… Zn & Al switched spots)


Chemical equations

  • Ex 1:

  • Ex 2:

___ Al(OH)3 + ___ HF  ___ AlF3 + ___ HOH

__ Mg(NO3)2 + __ KBr  __ MgBr2 + __ KNO3


The 5 main types8

The 5 main types

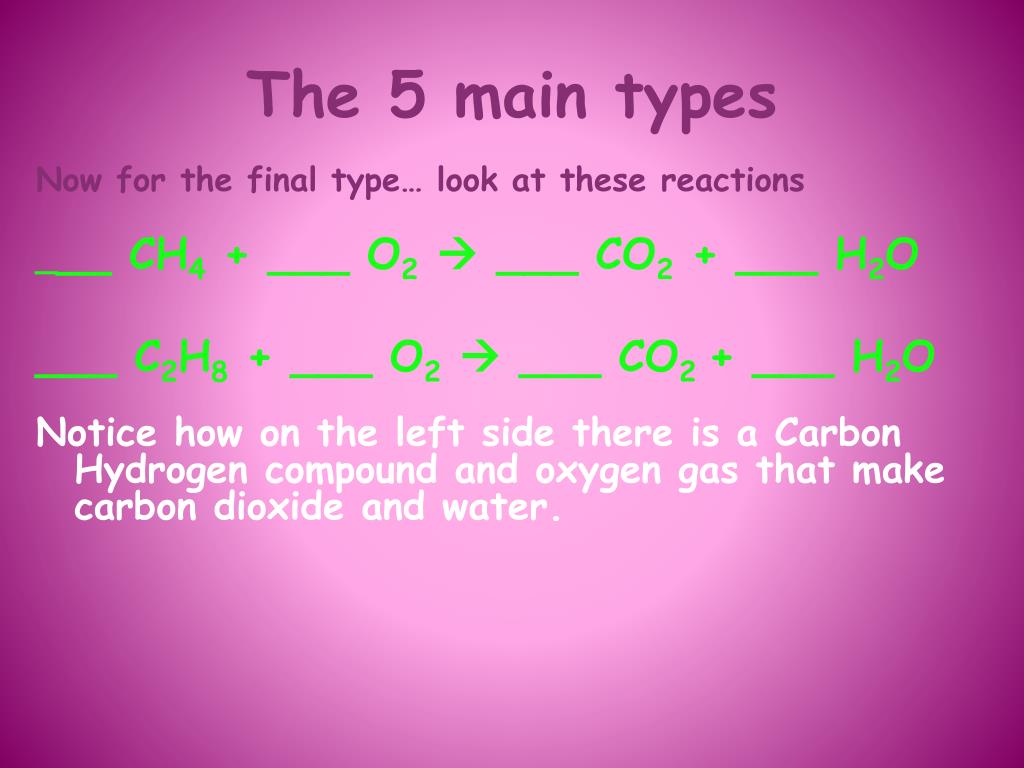

Now for the final type… look at these reactions

___ CH4 + ___ O2 ___ CO2 + ___ H2O

___ C2H8 + ___ O2 ___ CO2 + ___ H2O

Notice how on the left side there is a Carbon Hydrogen compound and oxygen gas that make carbon dioxide and water.


The 5 main types9

The 5 main types

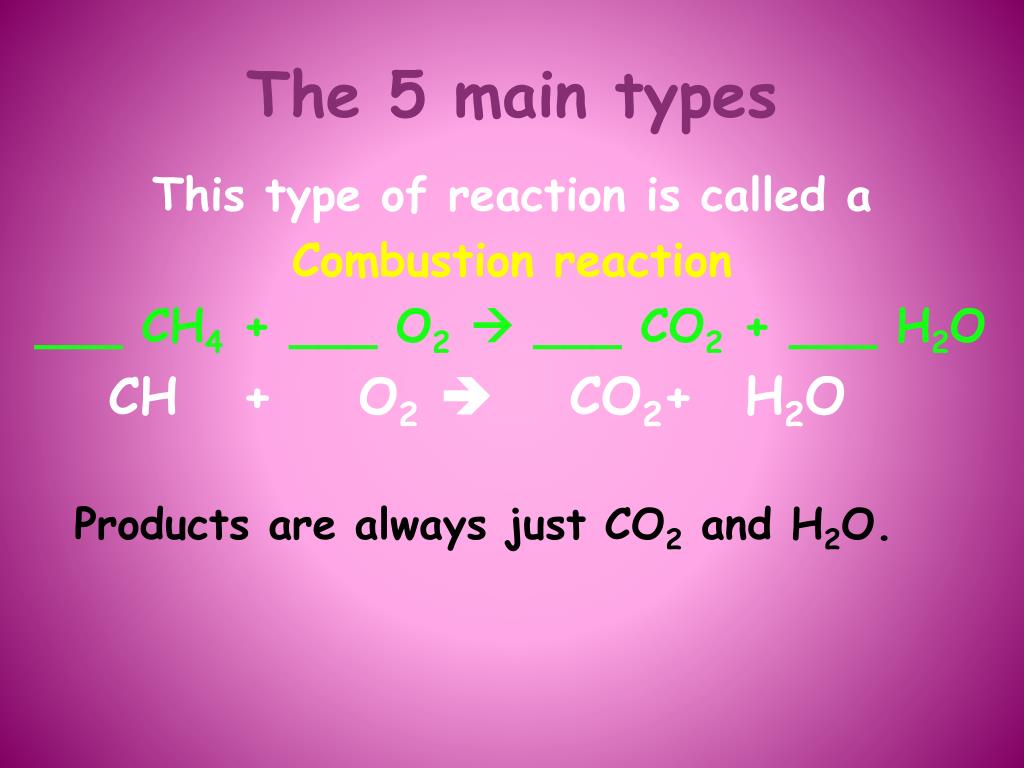

This type of reaction is called a

Combustion reaction

___ CH4 + ___ O2 ___ CO2 + ___ H2O

CH + O2 CO2+ H2O

Products are always just CO2 and H2O.


Chemical equations

  • Ex 1:

  • Ex 2:

___ C2H8 + ___ O2 ___ CO2 + ___ H2O

__ C6H12O6 + ___ O2 ___ CO2 + ___ H2O


The 5 main types synthesis decomposition single replacement double replacement and combustion

The 5 main types; synthesis, decomposition, single replacement, double replacement, and combustion

Classify the following reaction types:

SnO2 + H2  Sn + H2O

Single replacement

Al + O2  Al2O3

Synthesis

SiCl4 + H2O  SiO2 + HCl

Double replacement

C3H8 + O2  CO2 + H2O

Combustion

NO3  N2 + O2

Decomposition

Zn + HCl  ZnCl2 + H2

Single replacement
