Ir obstacle detection to actuate load

IR OBSTACLE DETECTION TO

ACTUATE LOAD


Ir obstacle detection to actuate load

Introduction

This system is used to turn on a load whenever the IR ray is blocked by

an object, person.

A 38 KHz signal is generated by 555 timer which is feed to the IR diode

which in turn produces an IR ray of 38Khz.This ray is received by tuned

IR receiver continuously.

Whenever there is an obstacle to the IR ray the receiver sends a signal

to the microcontroller which actuates a load, from its output.

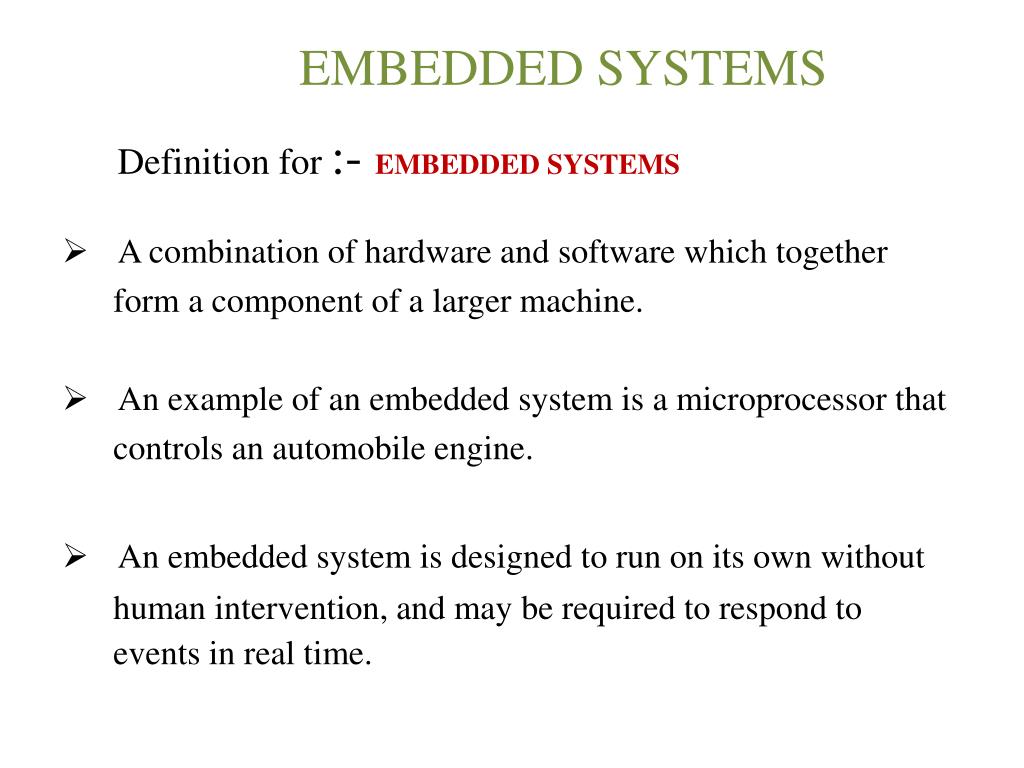

Embedded systems

EMBEDDED SYSTEMS

Definition for :- EMBEDDED SYSTEMS

  • A combination of hardware and software which together

    form a component of a larger machine.

  • An example of an embedded system is a microprocessor that

    controls an automobile engine.

  • An embedded system is designed to run on its own without

    human intervention, and may be required to respond to

    events in real time.

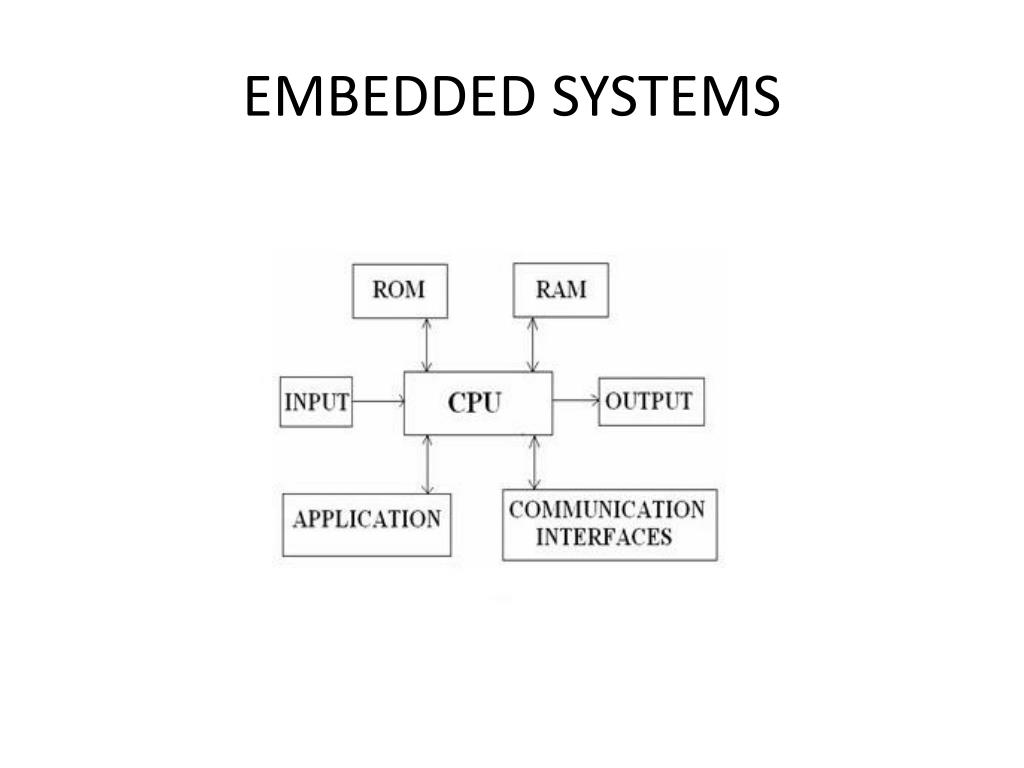

Embedded systems1

EMBEDDED SYSTEMS

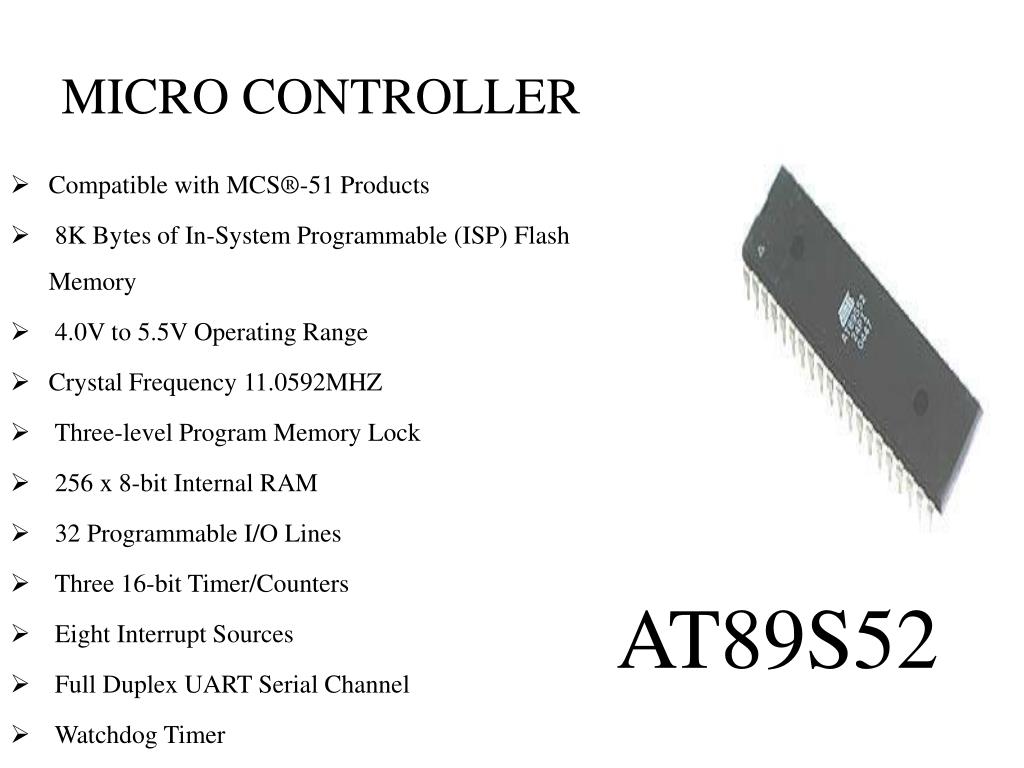

Micro controller

MICRO CONTROLLER

AT89S52

  • Compatible with MCS®-51 Products

  • 8K Bytes of In-System Programmable (ISP) Flash Memory

  • 4.0V to 5.5V Operating Range

  • Crystal Frequency 11.0592MHZ

  • Three-level Program Memory Lock

  • 256 x 8-bit Internal RAM

  • 32 Programmable I/O Lines

  • Three 16-bit Timer/Counters

  • Eight Interrupt Sources

  • Full Duplex UART Serial Channel

  • Watchdog Timer


Pin diagram of at89s52

PIN DIAGRAM OF AT89S52

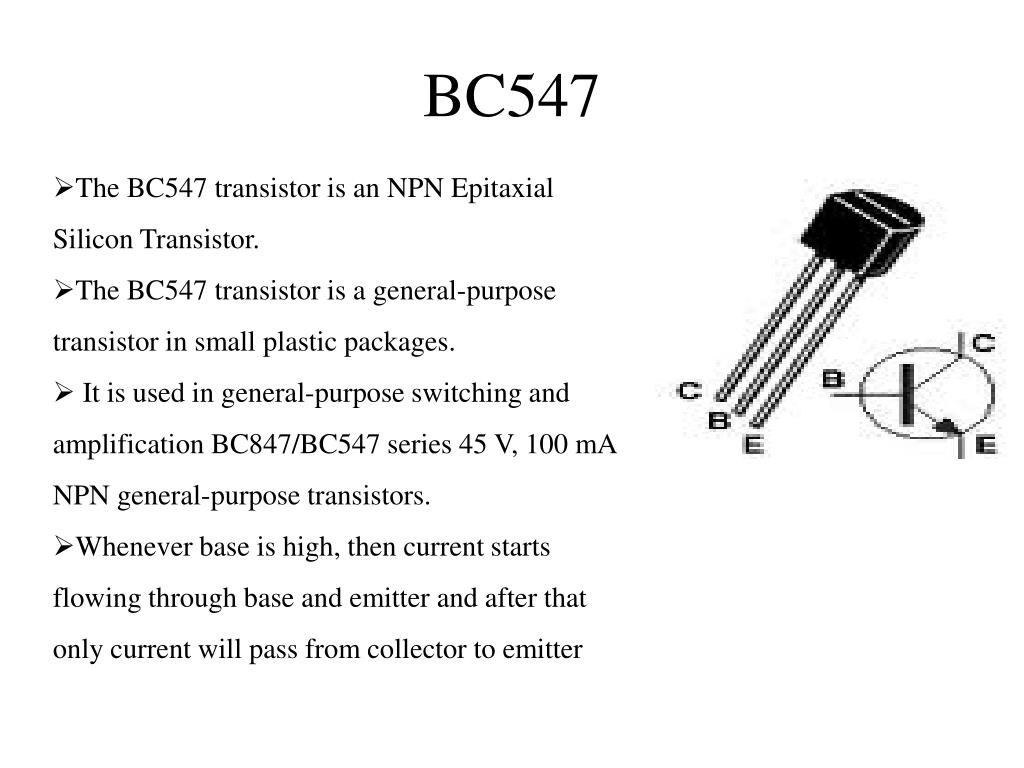

Bc547

BC547

  • The BC547 transistor is an NPN Epitaxial Silicon Transistor.

  • The BC547 transistor is a general-purpose transistor in small plastic packages.

  • It is used in general-purpose switching and amplification BC847/BC547 series 45 V, 100 mA NPN general-purpose transistors.

  • Whenever base is high, then current starts flowing through base and emitter and after that only current will pass from collector to emitter


Relay

RELAY

  • IT IS A ELECTRO MAGNETIC SWITCH

  • USED TO CONTROL THE ELECTRICAL DEVICES

  • COPPER CORE MAGNETIC FLUX PLAYS MAIN ROLE HERE

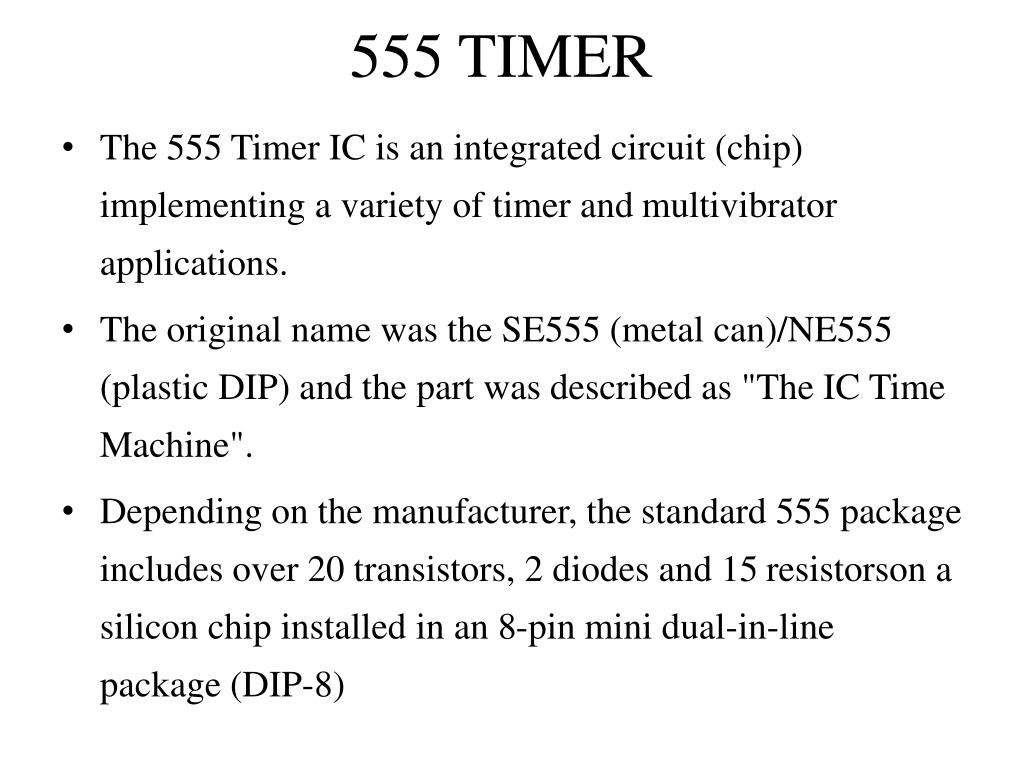

555 timer

555 TIMER

  • The 555 Timer IC is an integrated circuit (chip) implementing a variety of timer and multivibrator applications.

  • The original name was the SE555 (metal can)/NE555 (plastic DIP) and the part was described as "The IC Time Machine".

  • Depending on the manufacturer, the standard 555 package includes over 20 transistors, 2 diodes and 15 resistorson a silicon chip installed in an 8-pin mini dual-in-line package (DIP-8)


Pin diagram of 555

PIN DIAGRAM OF 555

  • The 555 timer IC is a simple 8 pin DIL package IC.

  • It can:

  • be used as a monostable

  • be used as an astable

  • source or sink 100mA

  • use supply voltages of 5v to 15v

  • disrupt the power supply - use a decoupling

  • capacitor!


Ir led

IR LED

An IR LED, also known as IR transmitter, is a special purpose LED that transmits infrared rays in the range of 760 nm wavelength.

Such LEDs are usually made of gallium arsenide or aluminum gallium arsenide. They, along with IR receivers, are commonly used as sensors.

The appearance is same as a common LED. Since the human eye cannot see the infrared radiations, it is not possible for a person to identify whether the IR LED is working or not, unlike a common LED.

To overcome this problem, the camera on a cell phone can be used. The camera can show us the IR rays being emanated from the IR LED in a circuit.

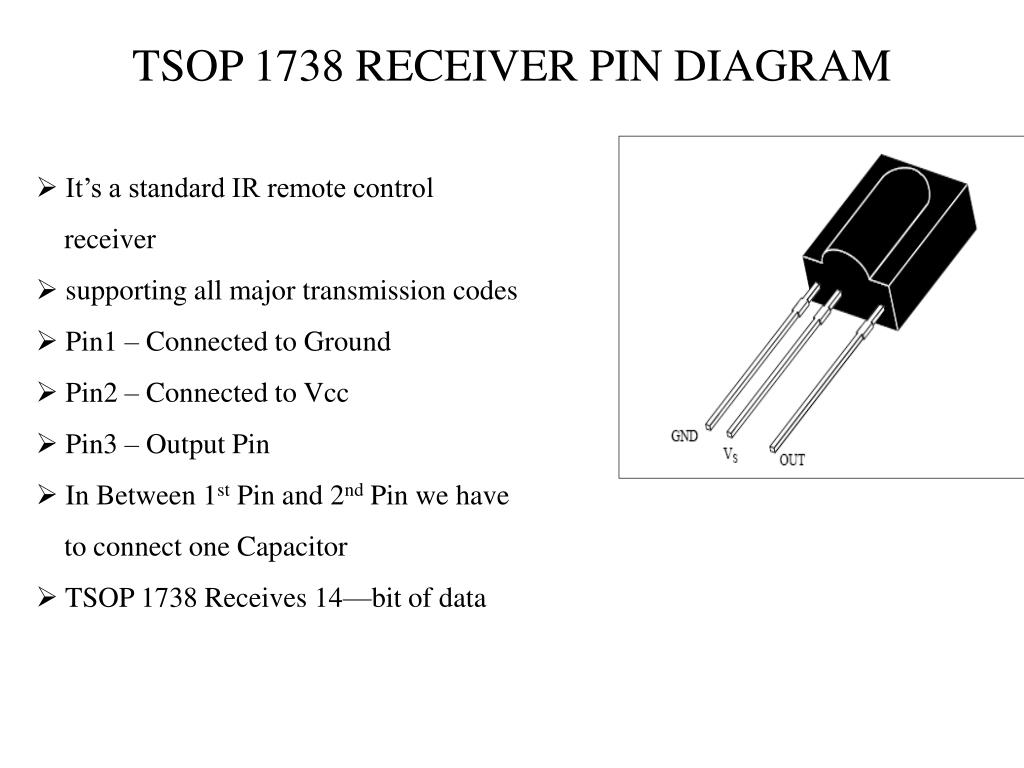

Tsop 1738 receiver pin diagram

TSOP 1738 RECEIVER PIN DIAGRAM

  • It’s a standard IR remote control

  • receiver

  • supporting all major transmission codes

  • Pin1 – Connected to Ground

  • Pin2 – Connected to Vcc

  • Pin3 – Output Pin

  • In Between 1st Pin and 2nd Pin we have

  • to connect one Capacitor

  • TSOP 1738 Receives 14—bit of data

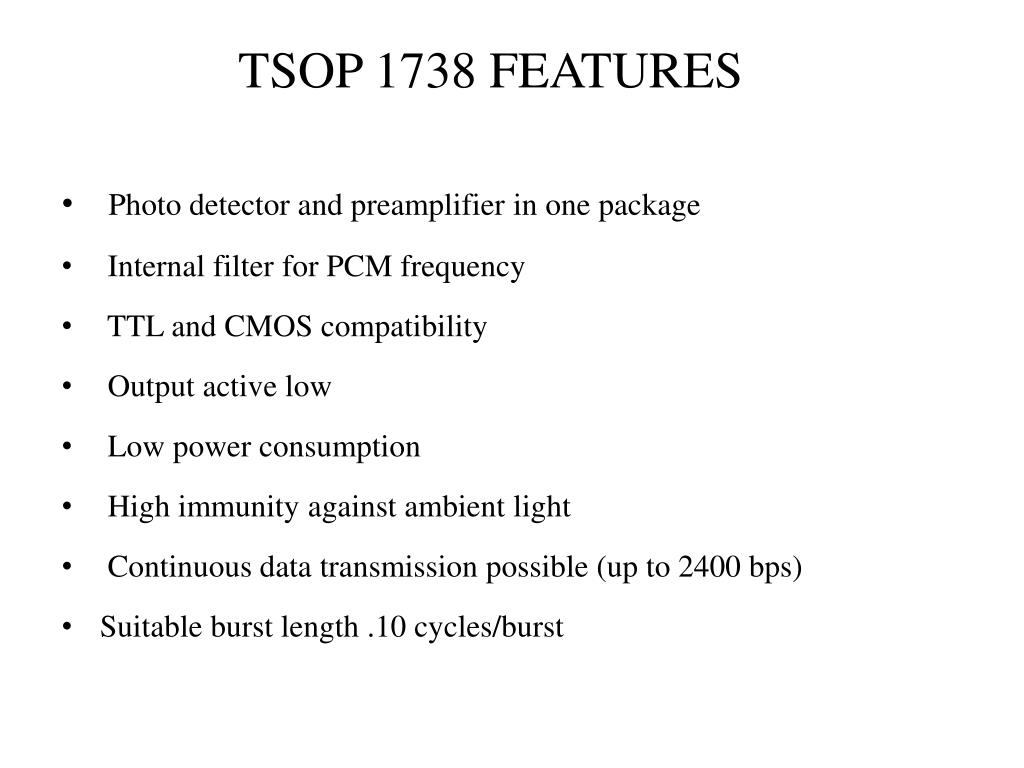

Tsop 1738 features

TSOP 1738 FEATURES

  • Photo detector and preamplifier in one package

  • Internal filter for PCM frequency

  • TTL and CMOS compatibility

  • Output active low

  • Low power consumption

  • High immunity against ambient light

  • Continuous data transmission possible (up to 2400 bps)

  • Suitable burst length .10 cycles/burst

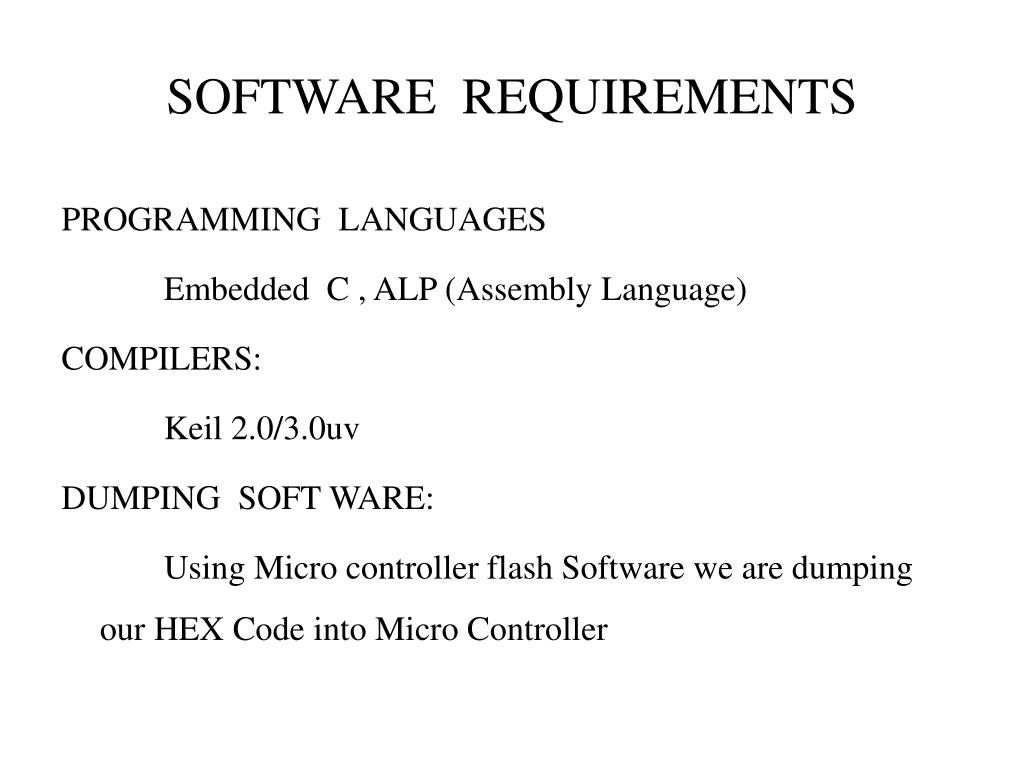

Software requirements

SOFTWARE REQUIREMENTS

PROGRAMMING LANGUAGES

Embedded C , ALP (Assembly Language)

COMPILERS:

Keil 2.0/3.0uv

DUMPING SOFT WARE:

Using Micro controller flash Software we are dumping our HEX Code into Micro Controller

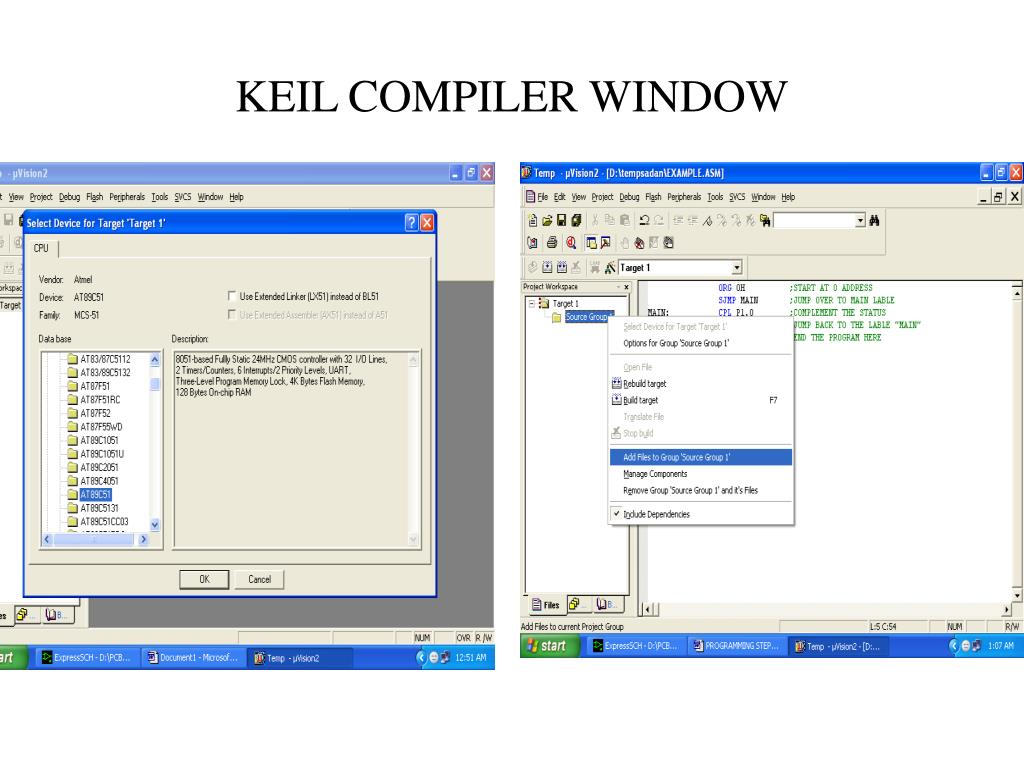

Keil compiler window

KEIL COMPILER WINDOW
