Don t forget

Don’t forget!

Terminal velocity experiment for HOMEWORK

Due Wednesday 17th October

Graph + conclusion


Do now

Do now!

On each table are a list of statements about gravity. In your groups can you decide which are true and which are false?


True or false

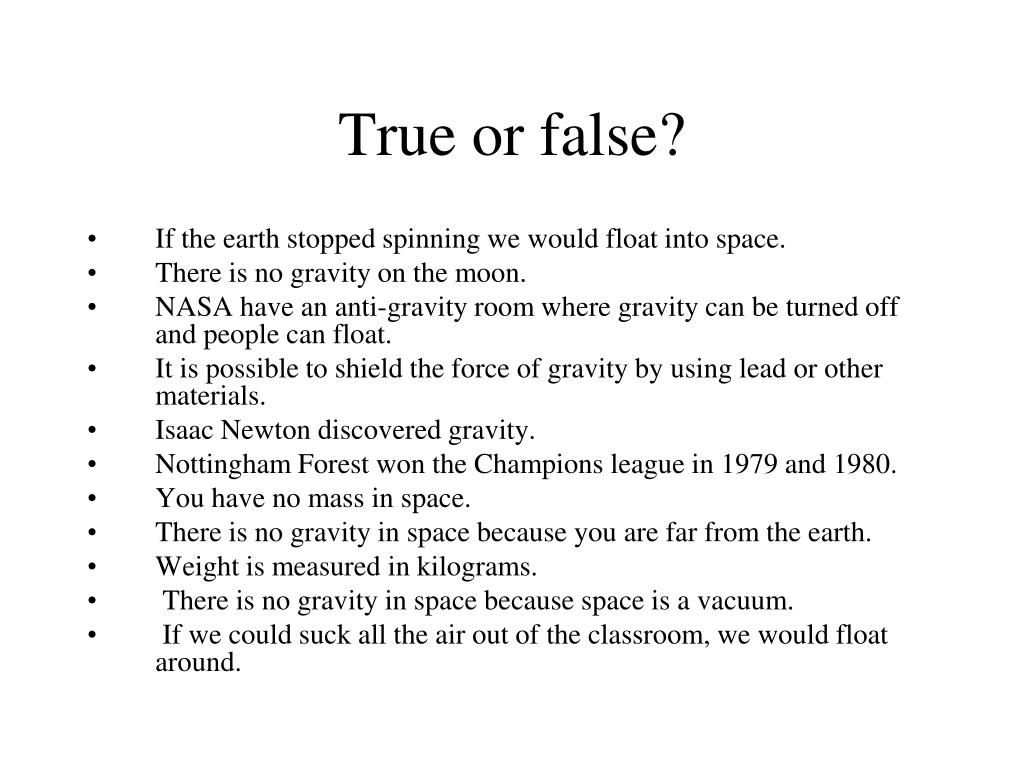

True or false?

  • If the earth stopped spinning we would float into space.

  • There is no gravity on the moon.

  • NASA have an anti-gravity room where gravity can be turned off and people can float.

  • It is possible to shield the force of gravity by using lead or other materials.

  • Isaac Newton discovered gravity.

  • Nottingham Forest won the Champions league in 1979 and 1980.

  • You have no mass in space.

  • There is no gravity in space because you are far from the earth.

  • Weight is measured in kilograms.

  • There is no gravity in space because space is a vacuum.

  • If we could suck all the air out of the classroom, we would float around.


All false

Only this one is true!

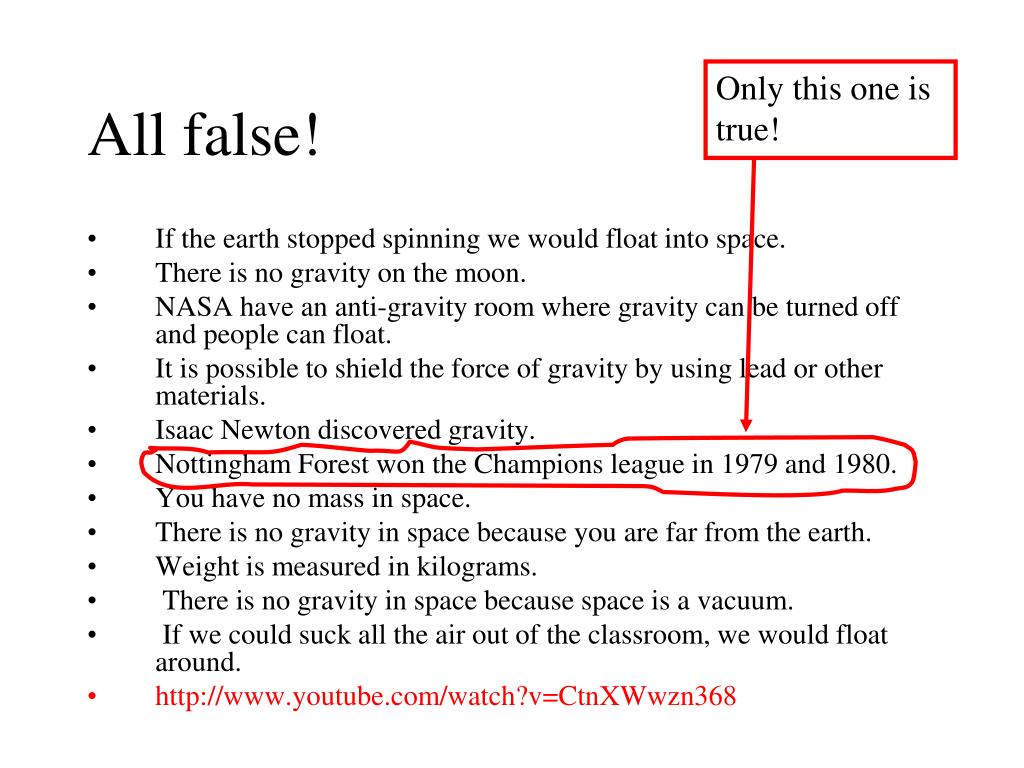

All false!

  • If the earth stopped spinning we would float into space.

  • There is no gravity on the moon.

  • NASA have an anti-gravity room where gravity can be turned off and people can float.

  • It is possible to shield the force of gravity by using lead or other materials.

  • Isaac Newton discovered gravity.

  • Nottingham Forest won the Champions league in 1979 and 1980.

  • You have no mass in space.

  • There is no gravity in space because you are far from the earth.

  • Weight is measured in kilograms.

  • There is no gravity in space because space is a vacuum.

  • If we could suck all the air out of the classroom, we would float around.

  • http://www.youtube.com/watch?v=CtnXWwzn368


Freefall dog

Freefall dog!


Water on the iss

Water on the ISS

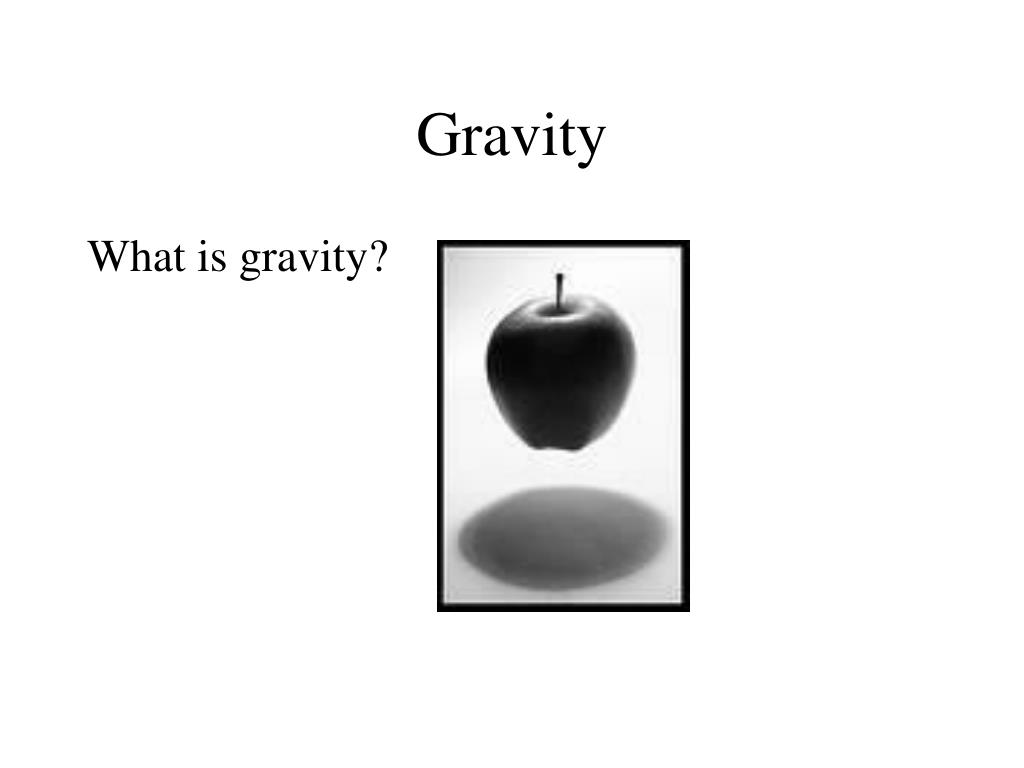

Gravity

Gravity

What is gravity?


Gravity1

Gravity

Gravity is a force between ALL objects!

http://www.youtube.com/watch?v=p_o4aY7xkXg&feature=relmfu

Gravity


Gravity2

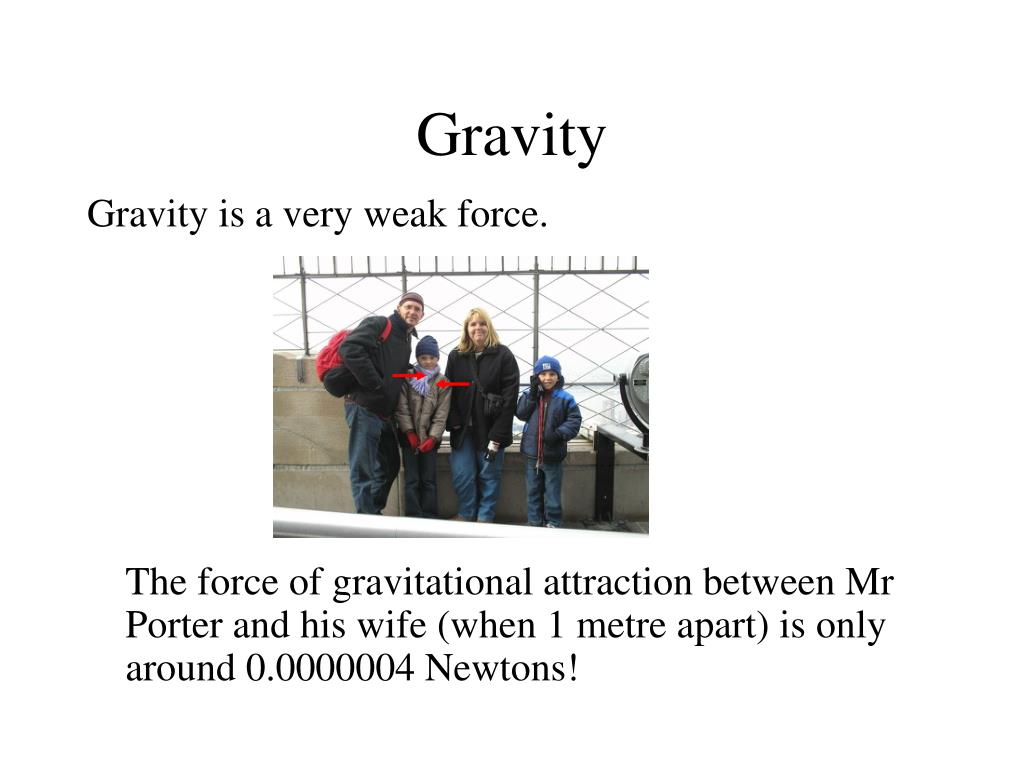

Gravity

Gravity is a very weak force.

The force of gravitational attraction between Mr Porter and his wife (when 1 metre apart) is only around 0.0000004 Newtons!


Gravity3

Gravity

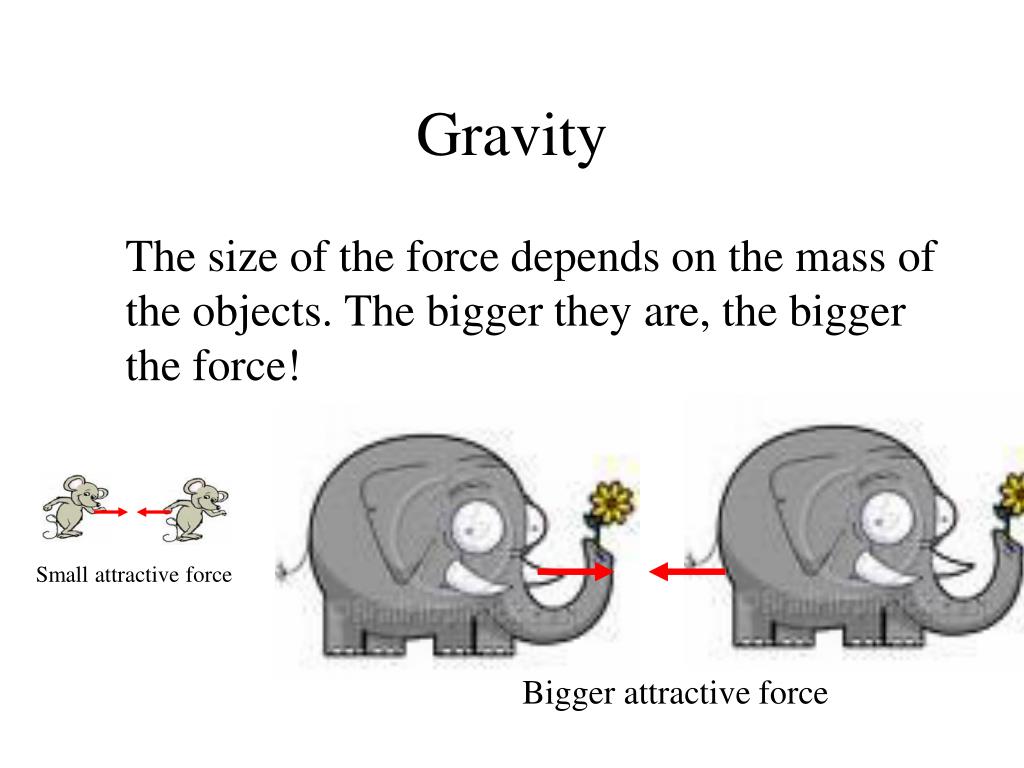

The size of the force depends on the mass of the objects. The bigger they are, the bigger the force!

Small attractive force

Bigger attractive force


Gravity4

Gravity

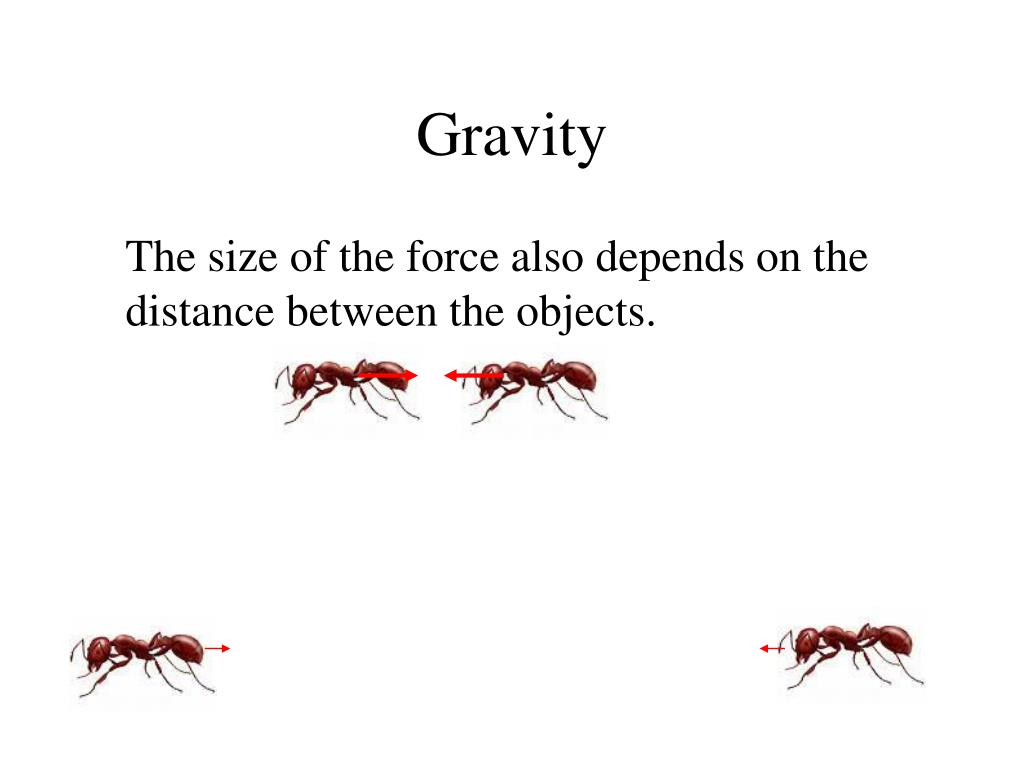

The size of the force also depends on the distance between the objects.


Gravity5

Gravity

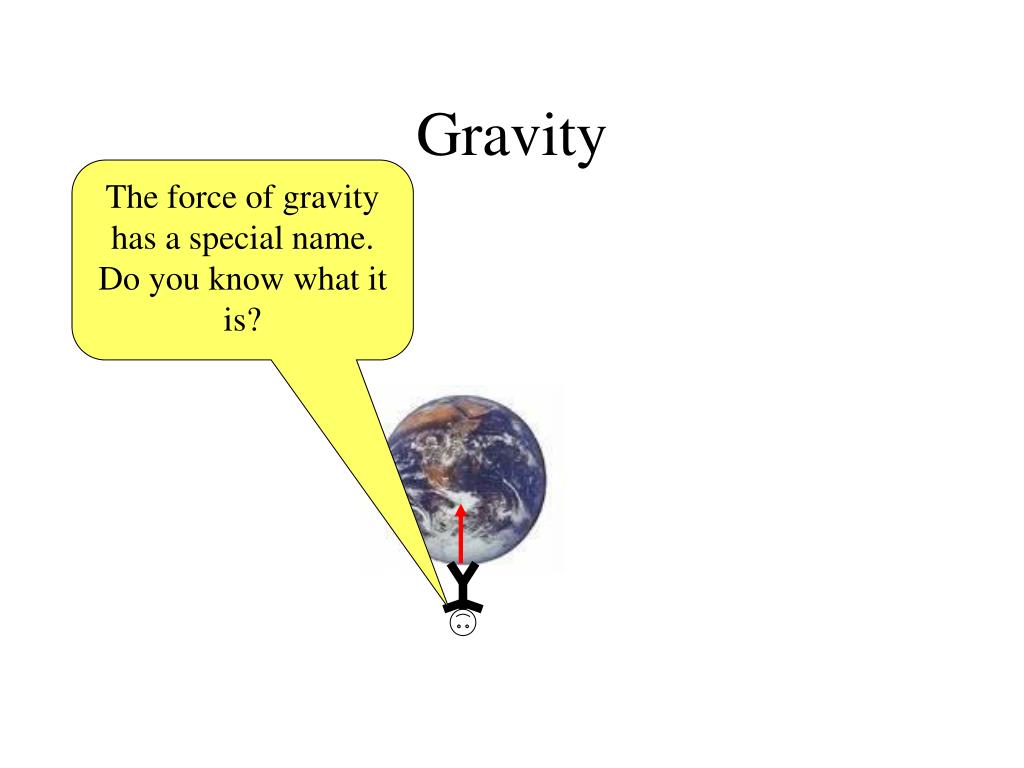

The force of gravity has a special name. Do you know what it is?


Gravity6

Gravity

We only really notice the gravitational attraction to big objects!

Hola! ¿Como estas?


Gravity7

Gravity

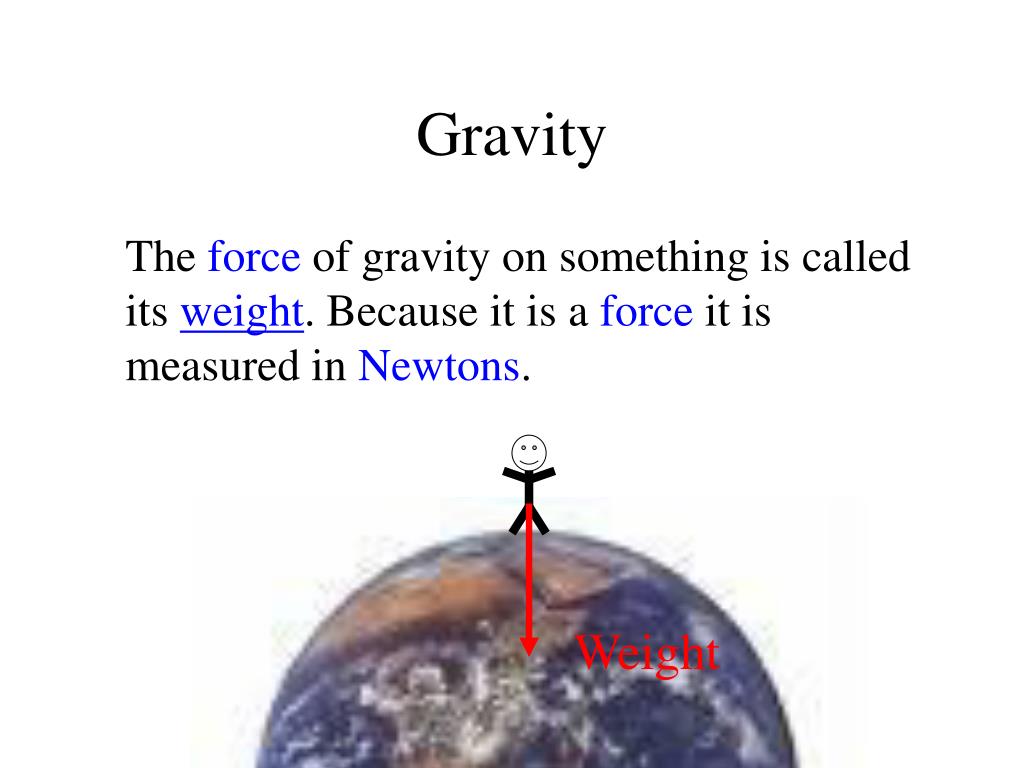

The force of gravity on something is called its weight. Because it is a force it is measured in Newtons.

Weight


Gravity8

800 N

Gravity

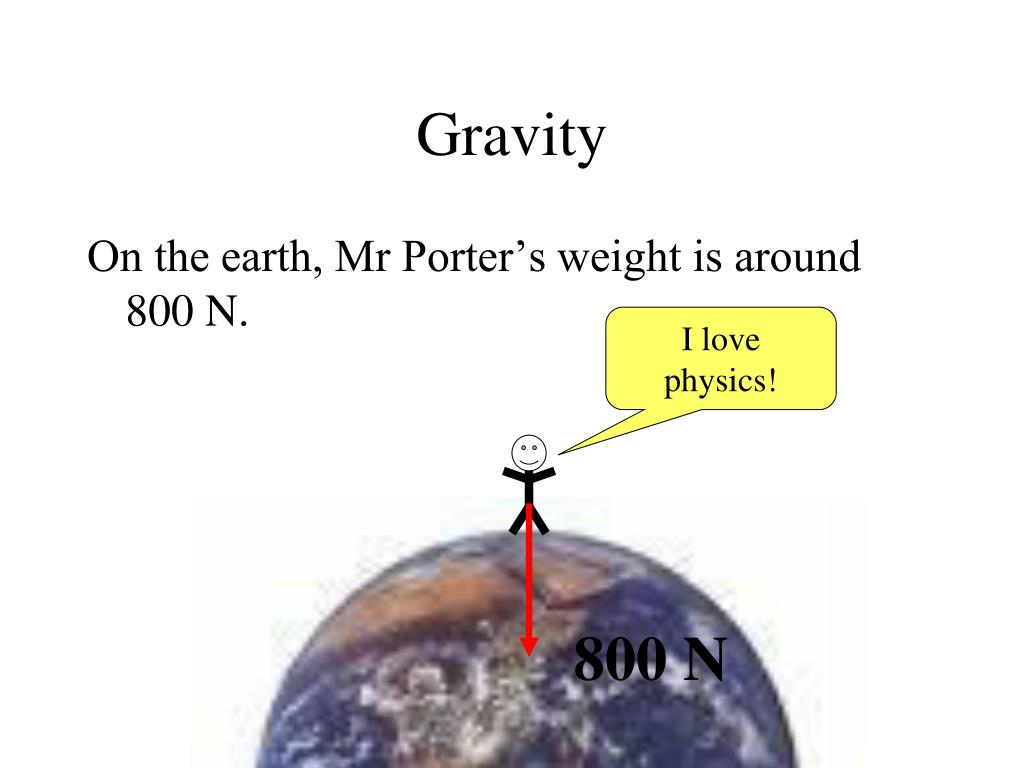

On the earth, Mr Porter’s weight is around 800 N.

I love physics!


Gravity9

Gravity

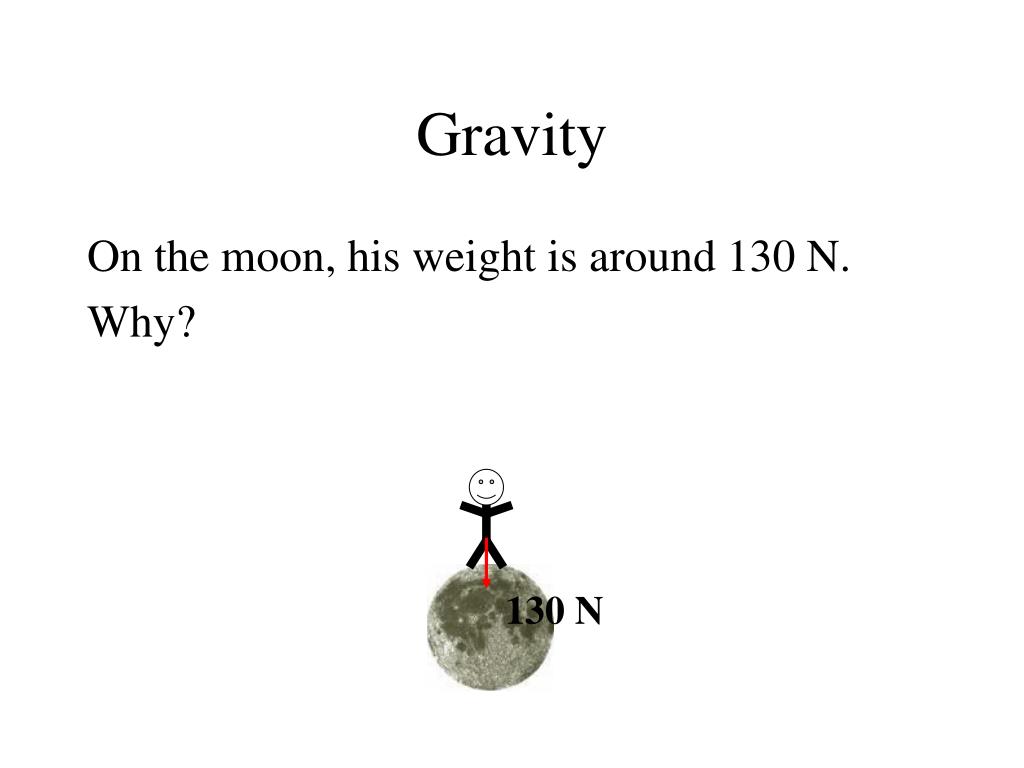

On the moon, his weight is around 130 N.

Why?

130 N

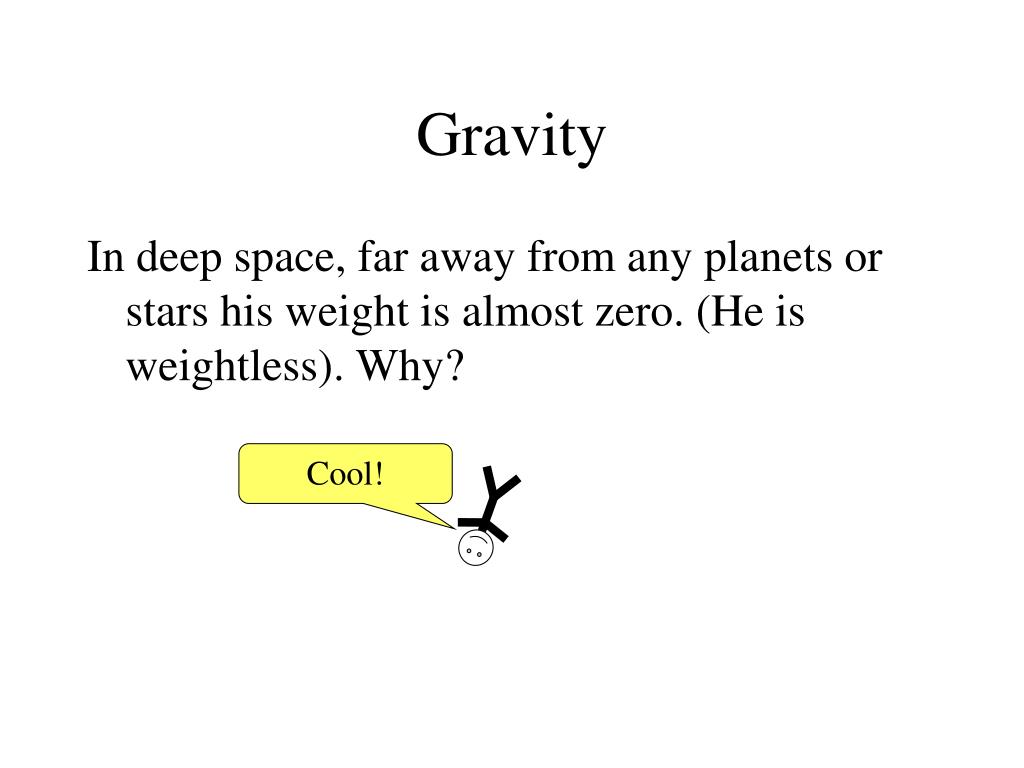

Gravity10

Gravity

In deep space, far away from any planets or stars his weight is almost zero. (He is weightless). Why?

Cool!


Don t forget

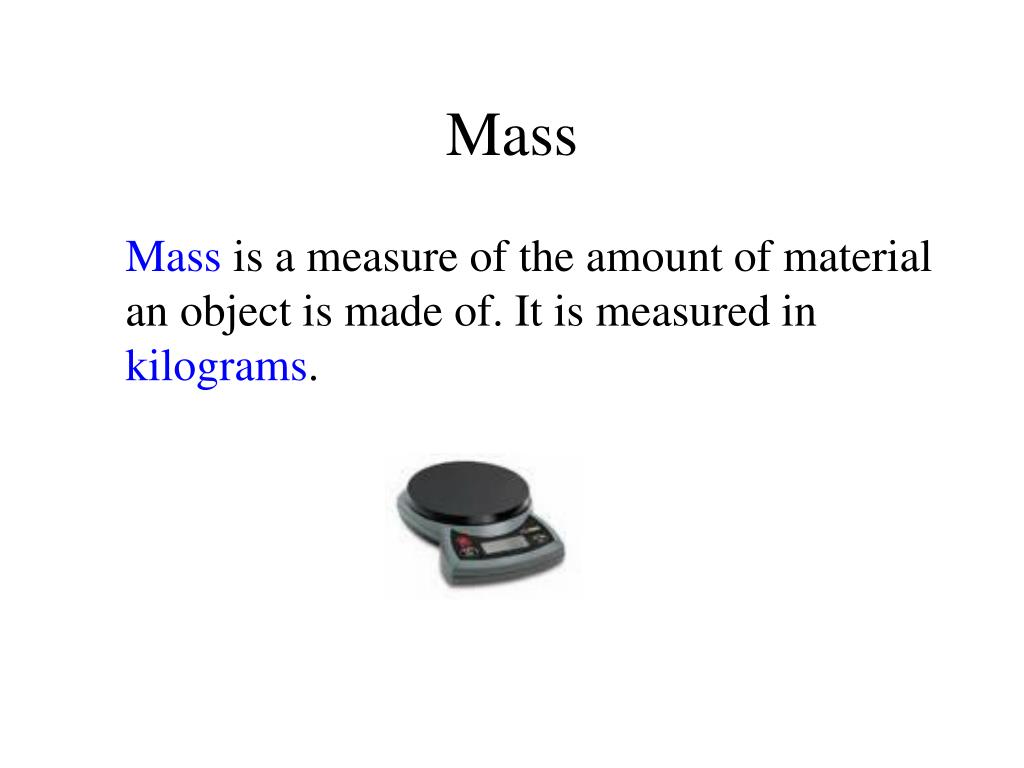

Mass

Mass is a measure of the amount of material an object is made of. It is measured in kilograms.


Don t forget

Mass

Mr Porter has a mass of around 80 kg. This means he is made of 80 kg of blood, bones, hair and poo!

80kg


Don t forget

Mass

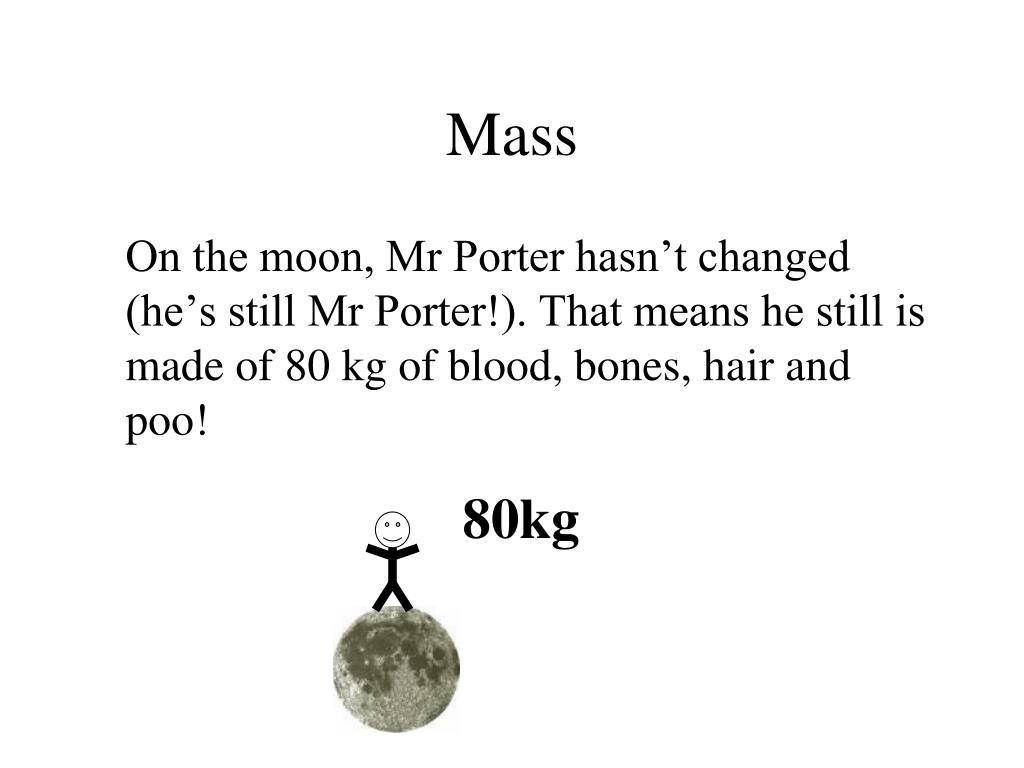

On the moon, Mr Porter hasn’t changed (he’s still Mr Porter!). That means he still is made of 80 kg of blood, bones, hair and poo!

80kg

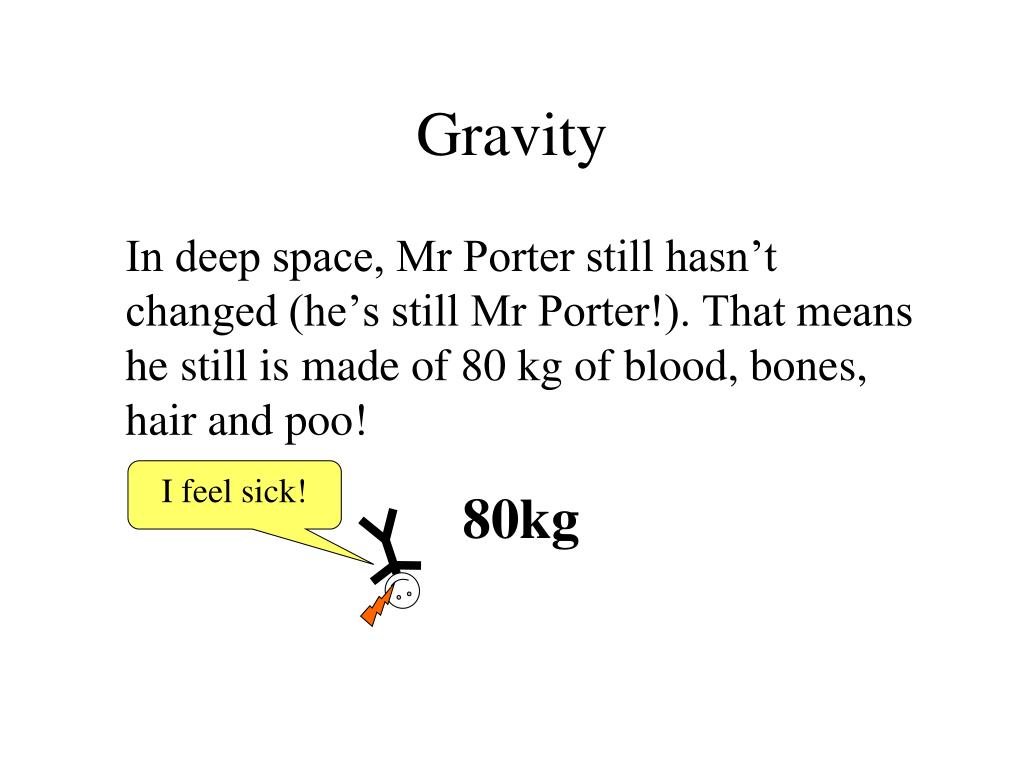

Gravity11

Gravity

In deep space, Mr Porter still hasn’t changed (he’s still Mr Porter!). That means he still is made of 80 kg of blood, bones, hair and poo!

I feel sick!

80kg

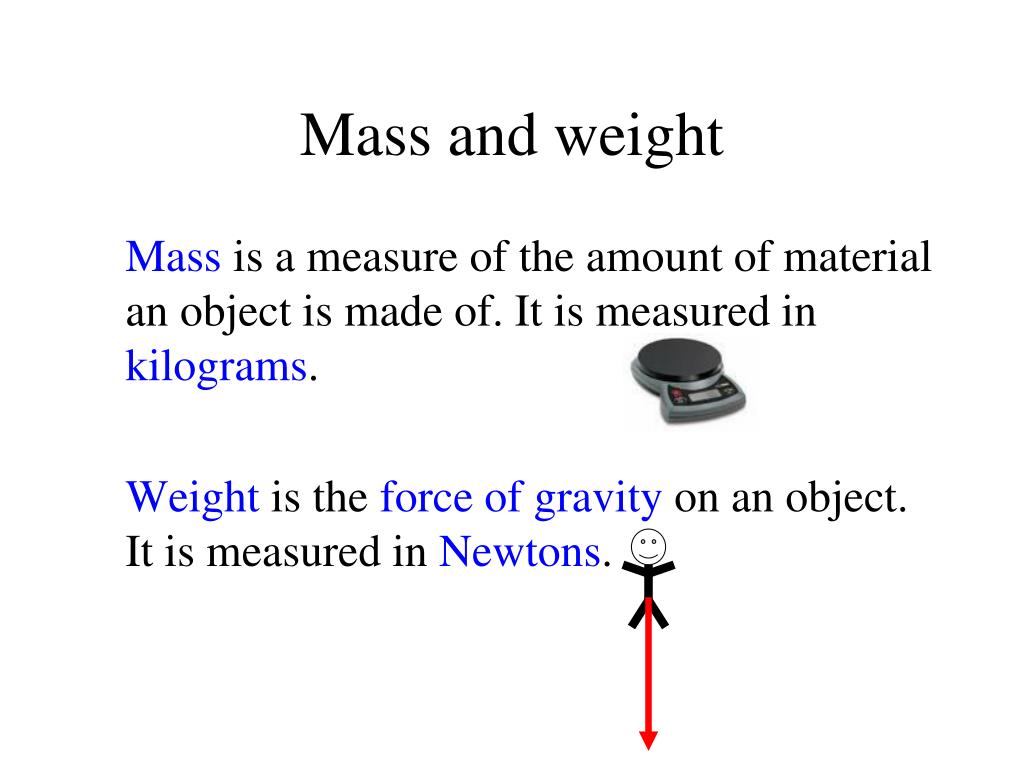

Mass and weight

Mass and weight

Mass is a measure of the amount of material an object is made of. It is measured in kilograms.

Weight is the force of gravity on an object. It is measured in Newtons.

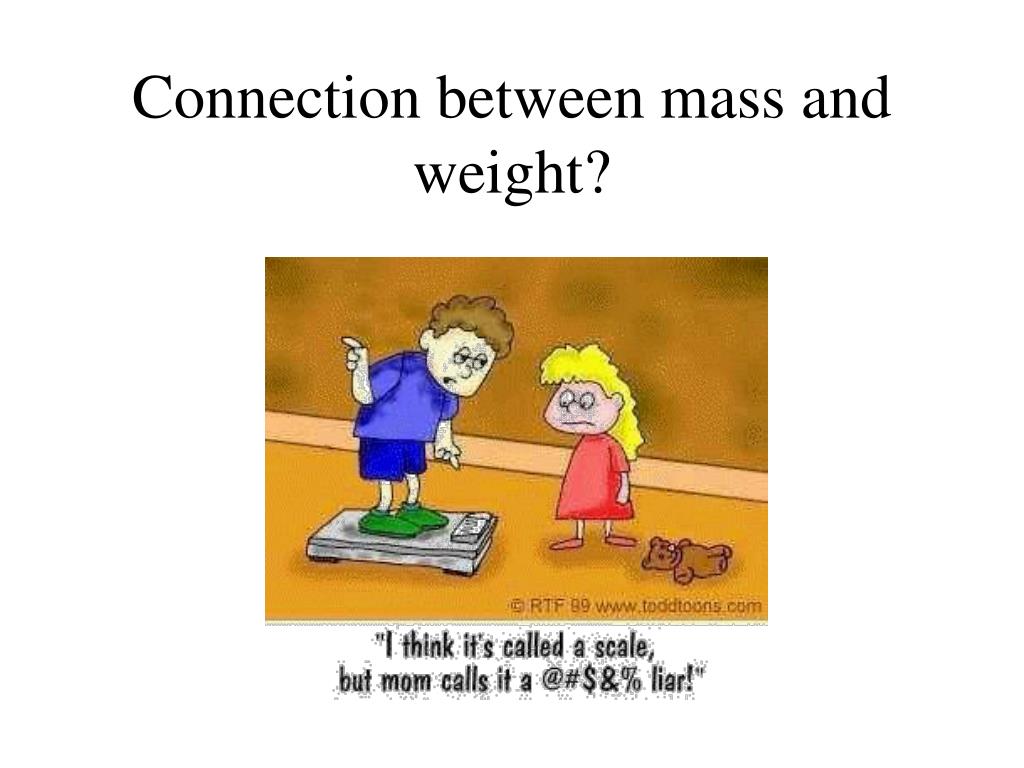

Connection between mass and weight

Connection between mass and weight?


Calculating weight

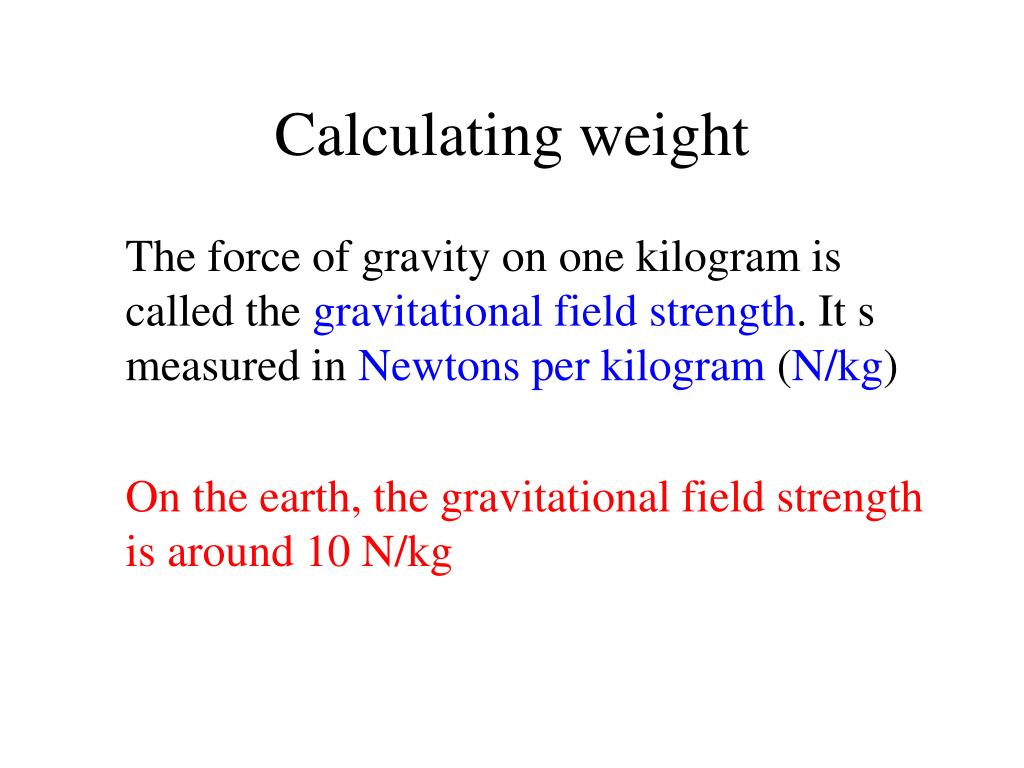

Calculating weight

The force of gravity on one kilogram is called the gravitational field strength. It s measured in Newtons per kilogram (N/kg)

On the earth, the gravitational field strength is around 10 N/kg

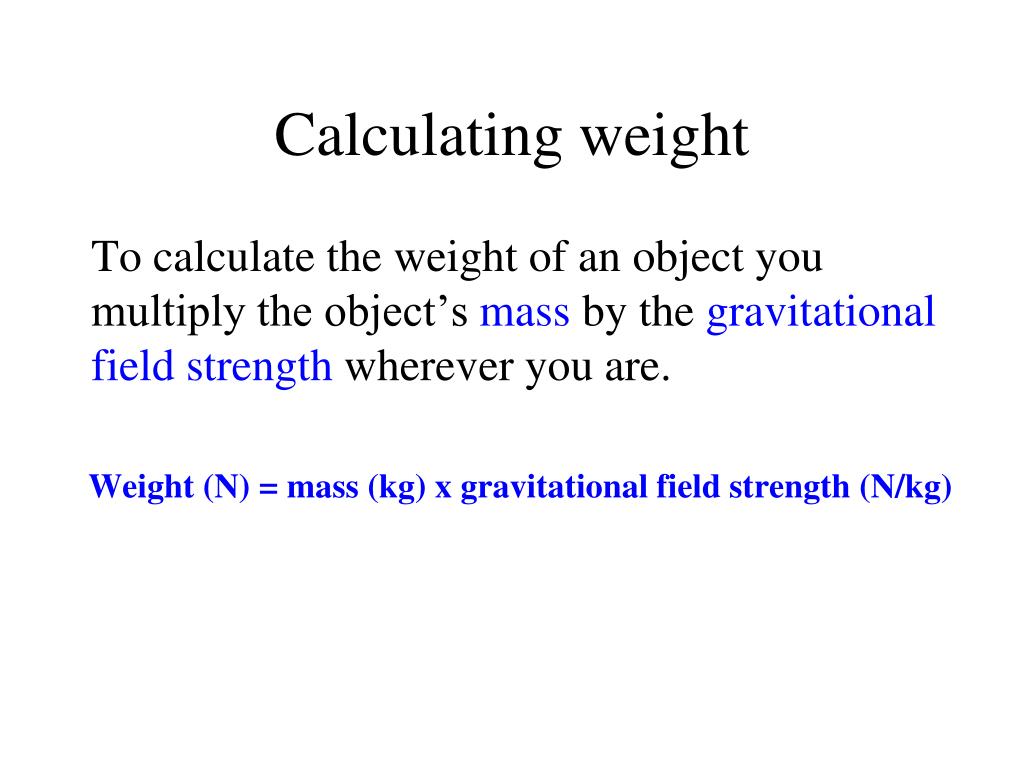

Calculating weight1

Calculating weight

To calculate the weight of an object you multiply the object’s mass by the gravitational field strength wherever you are.

Weight (N) = mass (kg) x gravitational field strength (N/kg)


Example

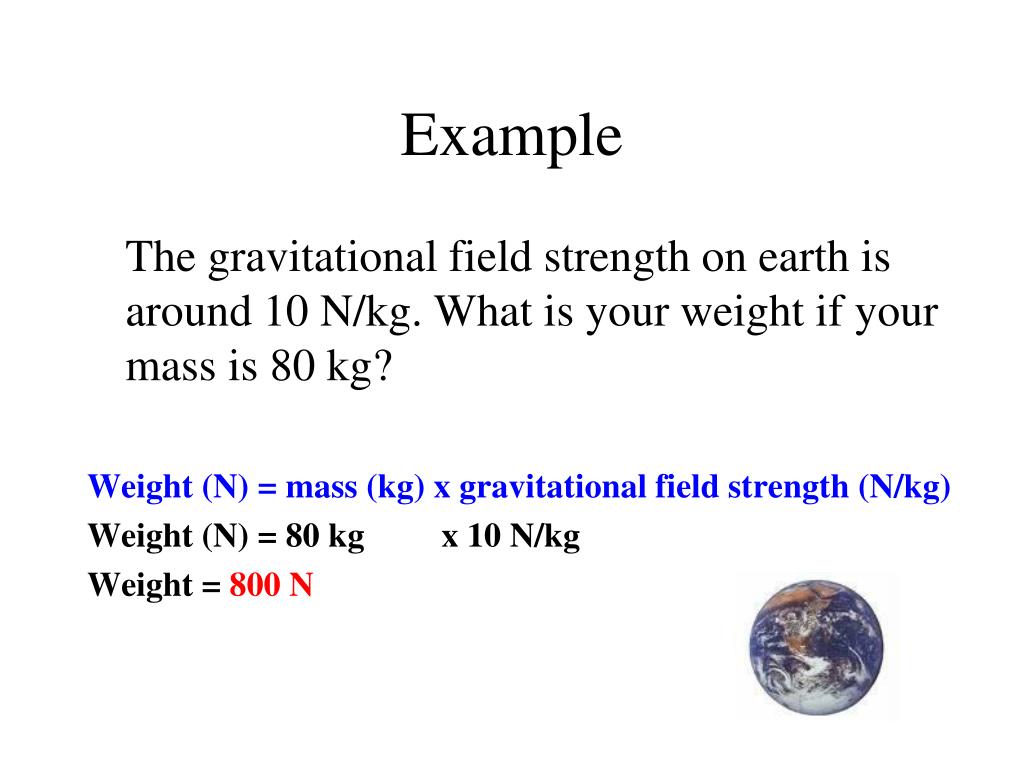

Example

The gravitational field strength on earth is around 10 N/kg. What is your weight if your mass is 80 kg?

Weight (N) = mass (kg) x gravitational field strength (N/kg)

Weight (N) = 80 kg x 10 N/kg

Weight =800 N

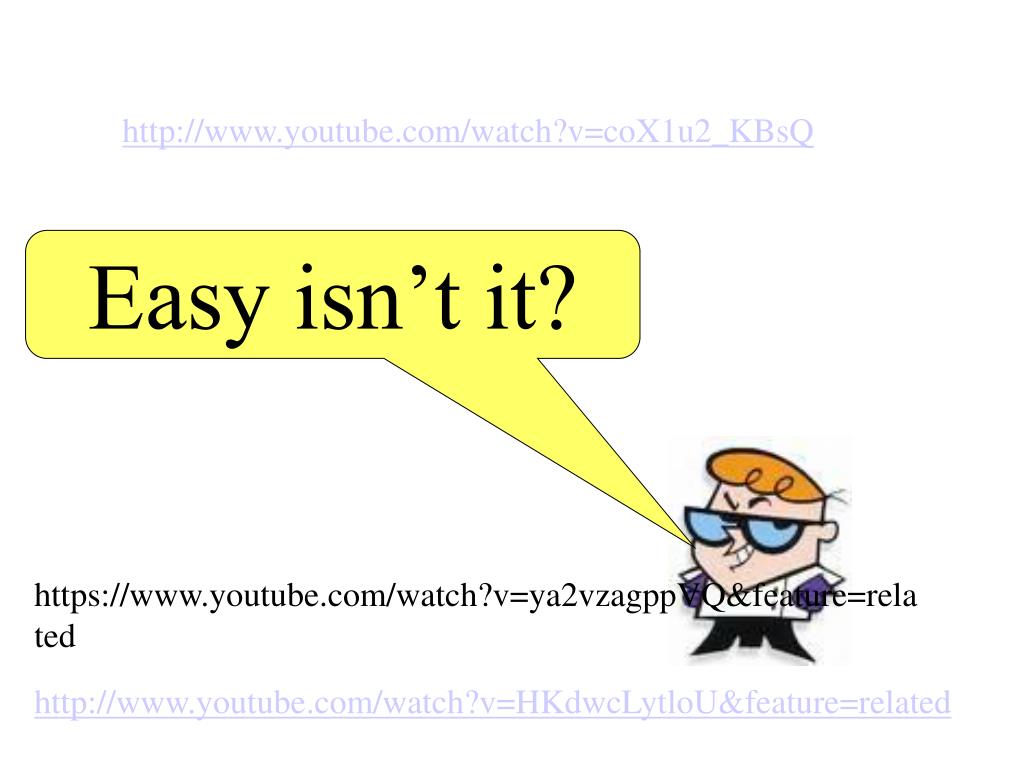

Easy isn t it

Easy isn’t it?

http://www.youtube.com/watch?v=coX1u2_KBsQ

https://www.youtube.com/watch?v=ya2vzagppVQ&feature=related

http://www.youtube.com/watch?v=HKdwcLytloU&feature=related

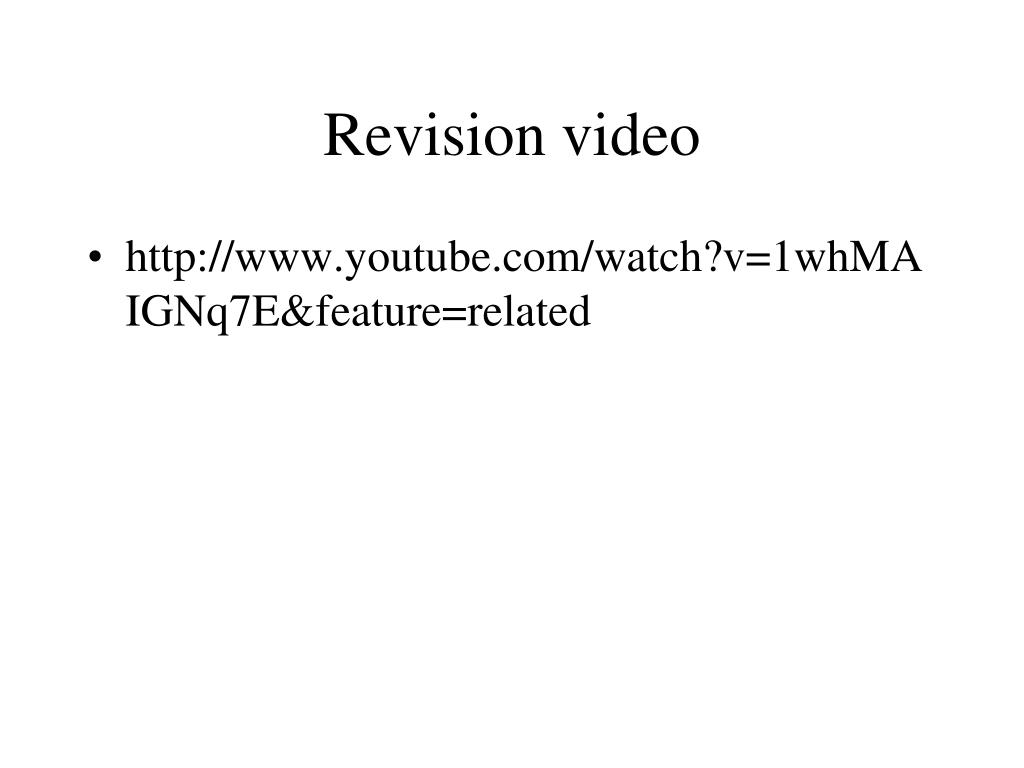

Revision video

Revision video

  • http://www.youtube.com/watch?v=1whMAIGNq7E&feature=related


When you finish

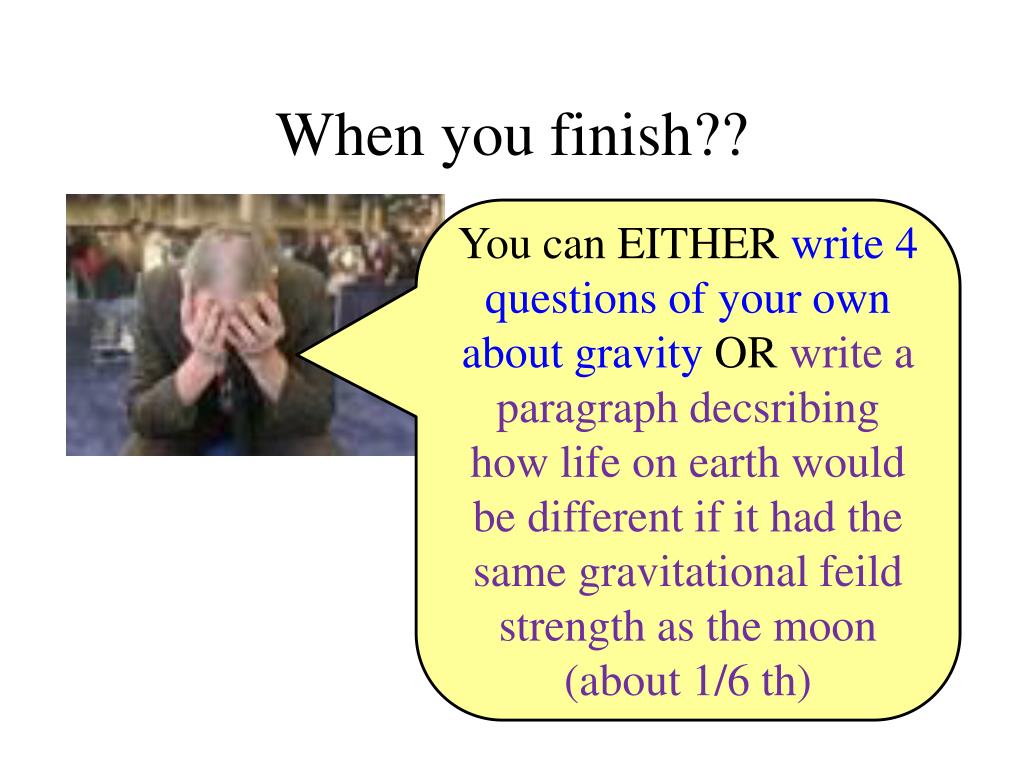

When you finish??

You can EITHER write 4 questions of your own about gravity OR write a paragraph decsribing how life on earth would be different if it had the same gravitational feild strength as the moon (about 1/6 th)


Now let s try some questions

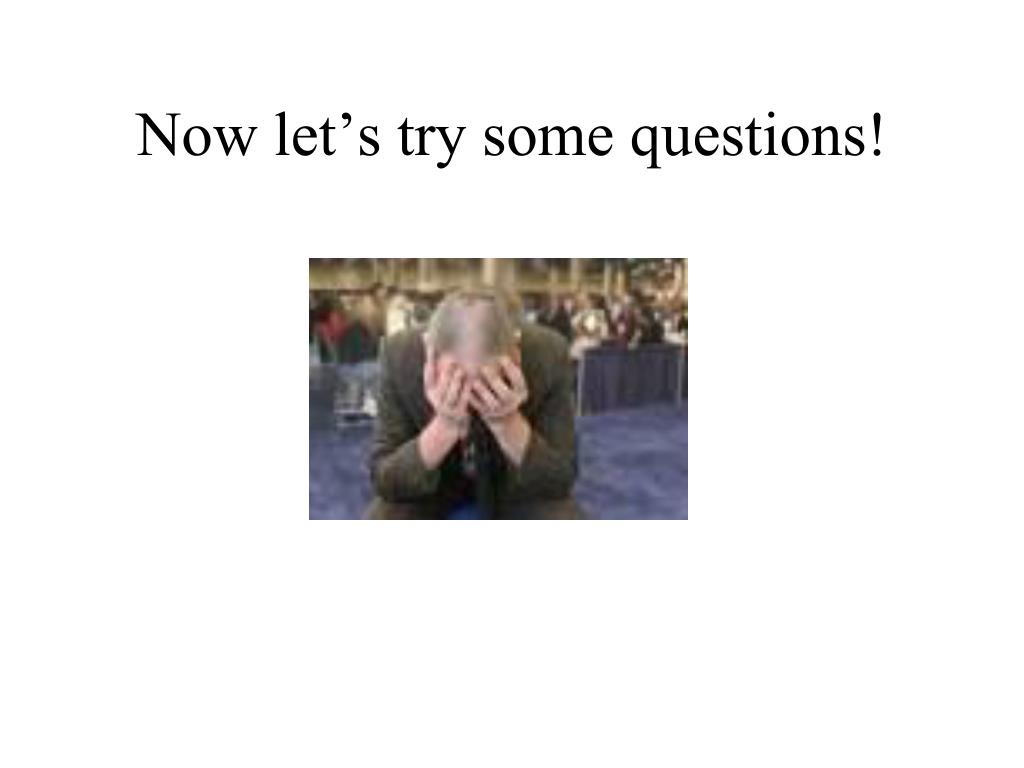

Now let’s try some questions!
