Presentation Transcript


Loss of mass by the symbiotic binary z and during its outburst at the end of 2002

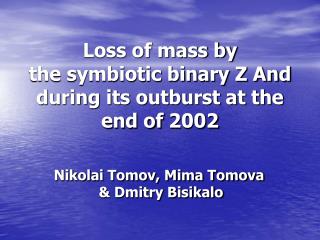

Loss of mass by the symbiotic binary Z And during its outburst at the end of 2002

Nikolai Tomov, Mima Tomova

& Dmitry Bisikalo


The symbiotic system z and

The Symbiotic System Z And

  • A normalM4.5 III giant

  • A white dwarf with Teff  105 K

  • A partly photoionized surrounding nebula

Components:

Active phases of Z And:

After 1915, 1939, 1960, 1984 and 2000.


Loss of mass by the symbiotic binary z and during its outburst at the end of 2002

The light curve of Z And

during its last active phase after 2000

The dots indicate the data of Skopal et al. 2002, 2004, Skopal & Pribulla 2006

and Skopal & Wolf 2006. The squares indicate our data.


Loss of mass by the symbiotic binary z and during its outburst at the end of 2002

The spectral energy distribution of Z And during quiescenceand at different epochs of its 2000 - 2003 active phase

The points indicate the observed fluxes. The thin lines represent the continua of the system’s components. The circles represent the UBVRI fluxes of the giant. The thick line represents the resulting continuum. In the region of the BVRI photometric bands the resulting continuum is represented by crosses, placed only at their positions, since the giant does not radiate as a blackbody in this region and its continuum has not been known at the other wavelengths. Flux units are erg cm-2 s-1 A-1.


Loss of mass by the symbiotic binary z and during its outburst at the end of 2002

Parameters of the hot stellar and the nebular

components

Parameters of the cool giant

R = 85(d/1.12 kpc)R ,Teff = 3400 K


The h and h lines in the quiescent state

The H and H lines in the quiescent state


The h line during the outburst in 2002

The H line during the outburst in 2002

Flux in units erg cm-2 s-1

292.098x10-12

255.255x10-12

173.494x10-12


The h line during the outburst in 20021

The H line during the outburst in 2002


The broad component of the h line during the outburst in 2002

The broad component of the H line during the outburst in 2002


The data of the h line during the outburst in 2002

The data of the H line during the outburst in 2002

The fluxes are in units of 10-12 erg cm-2 s-1. The other quantities are in units of km s-1.

The mass-loss rate on November 12, 2002:

Mdot = 1.9510-7 (d/1.12 kpc)3/2 M yr-1


The h and h lines

The H and H lines


The profile of the heii l 4686 line during the outburst in 2002

The profile of the HeII l 4686 line during the outburst in 2002


The data of the heii l 4686 line during the outburst in 2002

The data of the HeII l 4686 line during the outburst in 2002

The fluxes are in units of 10-12 erg cm-2 s-1. The other quantities are in units of km s-1.

The mass-loss rate on November 12, 2002:

Mdot = 1.7410-7 (d/1.12 kpc)3/2 M yr-1


The mass loss rate

The mass-loss rate

Mdot = 1.8  10-7 (d/1.12 kpc)3/2 M yr-1


Loss of mass by the symbiotic binary z and during its outburst at the end of 2002

Thank you for your attention!
