3.7 Diffraction

  • allows RF signals to propagate to obstructed (shadowed) regions

    • - over the horizon (around curved surface of earth)

    • - behind obstructions

  • received field strength rapidly decreases as receiver moves into

  • obstructed region

  • diffraction field often has sufficient strength to produce useful signal

Segments

3.7.1 Fresnel Zone Geometry


Slide2 l.jpg

slit

knife edge

  • Huygen’s Principal

  • all points on a wavefront can be considered as point sources for

  • producing 2ndry wavelets

  • 2ndry wavelets combine to produce new wavefront in the direction

  • of propagation

  • diffraction arises from propagation of 2ndry wavefront into

  • shadowed area

  • field strength of diffracted wave in shadow region =  electric field

  • components of all 2ndry wavelets in the space around the obstacle


Slide3 l.jpg

d = d1+ d2, where ,

di =

h

d

=

+

– (d1+d2)

TX

RX

d1

d2

ht

hobs

hr

Knife Edge Diffraction Geometry for ht = hr

  • 3.7.1 Fresnel Zone Geometry

  • consider a transmitter-receiver pair in free space

  • let obstruction of effective height h &width  protrude  to page

    • - distance from transmitter = d1

    • - distance from receiver = d2

    • - LOS distance between transmitter & receiver = d = d1+d2

Excess Path Length = difference between direct path & diffracted path

 = d – (d1+d2)


Slide4 l.jpg

 

3.54

3.55

 =

=

h

h’

TX

d1

d2

RX

hobs

ht

hr

Knife Edge Diffraction Geometry ht > hr

Assume h << d1 , h <<d2 and h >> then by substitution and Taylor

Series Approximation

Phase Difference between two paths given as


Slide5 l.jpg

tan(x)

TX

hobs-hr

ht-hr

RX

d1

d2

x

tan  =  

tan  =  

 

x = 0.4 rad  tan(x) = 0.423

(0.4 rad ≈ 23o )

Equivalent Knife Edge Diffraction Geometry with hrsubtracted from all other heights

180-

when tan x  x   =  + 


Slide6 l.jpg

v =

(3.56)

when  is inunits of radians  is given as

 =

(3.57)

Eqn 3.55 for  is often normalized using the dimensionless Fresnel-Kirchoffdiffraction parameter, v

  • from equations 3.54-3.57   , the phase difference, between LOS & diffracted path is function of

    • obstruction’s height & position

    • transmitters & receiversheight & position

  • simplify geometry by reducing all heights to minimum height


Slide7 l.jpg

d

λ/2 + d

λ + d

1.5λ + d

  • (1) Fresnel Zones

    • used to describe diffraction loss as a function of path difference, 

    • around an obstruction

    • represents successive regions between transmitter and receiver

    • nthregion = region where path length of secondary waves is n/2

    • greater than total LOS path length

    • regions form a series of ellipsoids with foci at Tx & Rx

at 1 GHz λ = 0.3m


Slide8 l.jpg

R

=

T

slice an ellipsoid with a plane  yields circle with radius rn given as

h = rn =

then Kirchoffdiffraction parameter is given as

v =

=

thus for given rnvdefines an ellipsoid with constant = n/2

  • Construct circles on the axis of Tx-Rx such that  = n/2, for given integer n

    • radii of circles depends on location of normal plane between Tx and Rx

    • given n, the set of points where = n/2 defines a family of ellipsoids

    • assuming d1,d2 >> rn


Slide9 l.jpg

nthFresnel Zone is volume enclosed by ellipsoid defined for n andis defined

as  relative to LOS path

  • 1st Fresnel Zone is volume enclosed by ellipsoid defined forn = 1

Phase Difference, pertaining to nthFresnel Zone is

≤ Δ≤

(n-1)≤  ≤ n

  • contribution to the electric field at Rx from successive Fresnel Zones

  • tend to be in phase opposition  destructive interference

  • generally must keep 1st Fresnel Zone unblocked to obtain free space

  • transmission conditions


Slide10 l.jpg

d

d2

d1

  • destructive interference

    •  = /2

    • d = /2 + d1+d2

Tx

Rx

  • constructive interference:

    • d =  + d1+d2

    • = 

For 2nd Fresnel Zone

  • For 1st Fresnel Zone, at a distance d1from Tx & d2 from Rx

    • diffracted wave will have a path length of d


Slide11 l.jpg

Q

R

h

d2

O

T

d1

  • Fresnel Zones

    • slice the ellipsoids with a transparent plane between transmitter &

    • receiver – obtain series of concentric circles

    • circles represent loci of2ndry wavelets that propagate to receiver

    • such that total path length increases by /2 for each successive circle

    • effectively produces alternativelyconstructive &destructive

    • interference to received signal

  • If an obstruction were present, it could block some of the Fresnel

  • zones


Slide12 l.jpg

n

 =n/2

1

/2

2

rn =

(3.58)

3

3/2

Excess Total Path Length,  for each ray passing through nth circle

Rx

Tx

Assuming, d1& d2 >> rn radius of nth Fresnel Zone can be given in terms of n, d1,d2, 

  • radii of concentric circles depends on location between Tx & Rx

    • - maximum radii at d1 = d2 (midpoint), becomes smaller as plane

    • moves towards receiver or transmitter

    • - shadowing is sensitive to obstruction’s position and frequency


Slide13 l.jpg

  • (2) Diffraction Loss caused by blockage of 2ndry (diffracted) waves

    • partial energy from 2ndry waves is diffracted around an obstacle

      • obstruction blocks energy from some of the Fresnel zones

      • only portion of transmitted energy reaches receiver

    • received energy = vector sum of contributions from all unobstructed

    • Fresnel zones

      • depends on geometry of obstruction

      • Fresnel Zones indicate phase of secondary (diffracted) E-field

  • Obstacles may block transmission paths – causing diffraction loss

    • construct family of ellipsoids between TX & RX to represent

    • Fresnel zones

    • join all points for which excess path delay is multiple of /2

    • compare geometry of obstacle with Fresnel zones to determine

    • diffraction loss (or gain)


Slide14 l.jpg

Rx

Tx

Diffraction Losses

  • Place ideal, perfectly straight screen between Tx and Rx

  • (i) if top of screen is well below LOS path  screen will have little effect

    • - the Electric field at Rx = ELOS (free space value)

  • (ii) as screen height increases E will vary up & down as screen blocks more

  • Fresnel zones below LOS path

  • amplitude of oscillation increases until just in line with Tx and Rx

    •  field strength = ½ of unobstructed field strength


Slide15 l.jpg

e.g.

v =

excess path length

/2

3/2

RX

TX

h

d1

d2

 and v are positive, thus h is positive

  • Fresnel zones: ellipsoids with foci at transmit & receive antenna

    • if obstruction does not block the volume contained within 1st Fresnel

    • zone  then diffraction loss is minimal

    • rule of thumb for LOS uwave:

      • if 55% of 1st Fresnel zone is clear  further Fresnel zone clearing

      • does not significantly alter diffraction loss


Slide16 l.jpg

v =

RX

TX

h = 0   and v =0

RX

TX

d1

d2

h

d1

d2

 and v are negative h is negative


Slide17 l.jpg

3.7.2 Knife Edge Diffraction Model

  • Diffraction Losses

    • estimating attenuation caused by diffraction over obstacles is

    • essential for predicting field strength in a given service area

    • generally not possible to estimate losses precisely

    • theoretical approximations typically corrected with empirical

    • measurements

  • Computing Diffraction Losses

    • for simple terrain  expressions have been derived

    • for complex terrain  computing diffraction losses is complex


Slide18 l.jpg

Huygens 2nddry

source

h’

T

d1

R

d2

Knife Edge Diffraction Geometry, R located in shadowed region

  • Knife-edge Model- simplest model that provides insight into order of magnitude for diffraction loss

    • useful for shadowing caused by 1 object  treat object as a knife edge

    • diffraction losses estimated using classical Fresnel solution for field

    • behind a knife edge

  • Consider receiver at R located in shadowed region (diffraction zone)

    • E- field strength at R = vector sum of all fields due to 2ndry Huygen’s

    • sources in the plane above the knife edge


Slide19 l.jpg

= F(v) =

(3.59)

Electric field strength, Ed of knife-edge diffracted wave is given by:

  • F(v) = Complex Fresnel integral

    • v = Fresnel-Kirchoff diffraction parameter

    • typically evaluated using tables or graphs for given values of v

  • E0 = Free Space Field Strength in the absence of both ground

  • reflections & knife edge diffraction


Slide20 l.jpg

Gd(dB) = Diffraction Gaindue to knife edge presence relative to E0

  • Gd(dB)= 20 log|F(v)| (3.60)

5

0

-5

-10

-15

-20

-25

-30

v

Graphical Evaluation

Gd(dB)

-3 -2 -1 0 1 2 3 4 5


Slide21 l.jpg

Gd(dB)

v

0

 -1

20 log(0.5-0.62v)

[-1,0]

20 log(0.5 e- 0.95v)

[0,1]

20 log(0.4-(0.1184-(0.38-0.1v)2)1/2)

[1, 2.4]

20 log(0.225/v)

> 2.4

Table for Gd(dB)


Slide22 l.jpg

= 2.74

v =

3. path length difference between LOS & diffracted rays

 

e.g. Let:  = 0.333 (fc = 900MHz), d1 = 1km, d2 = 1km, h = 25m

Compute Diffraction Loss at h = 25m

1. Fresnel Diffraction Parameter

  • 2. diffraction loss

    • from graph is Gd(dB) -22dB

    • from table Gd(dB) 20 log (0.225/2.74) = - 21.7dB

  • 4. Fresnel zone at tip of obstruction (h=25)

    • solve for n such that  = n/2

    • n = 2· 0.625/0.333= 3.75

    • tip of the obstruction completely blocks 1st 3 Fresnel zones


Slide23 l.jpg

1. Fresnel Diffraction Parameter

v =

= -2.74

3. path length difference between LOS & diffracted rays

 

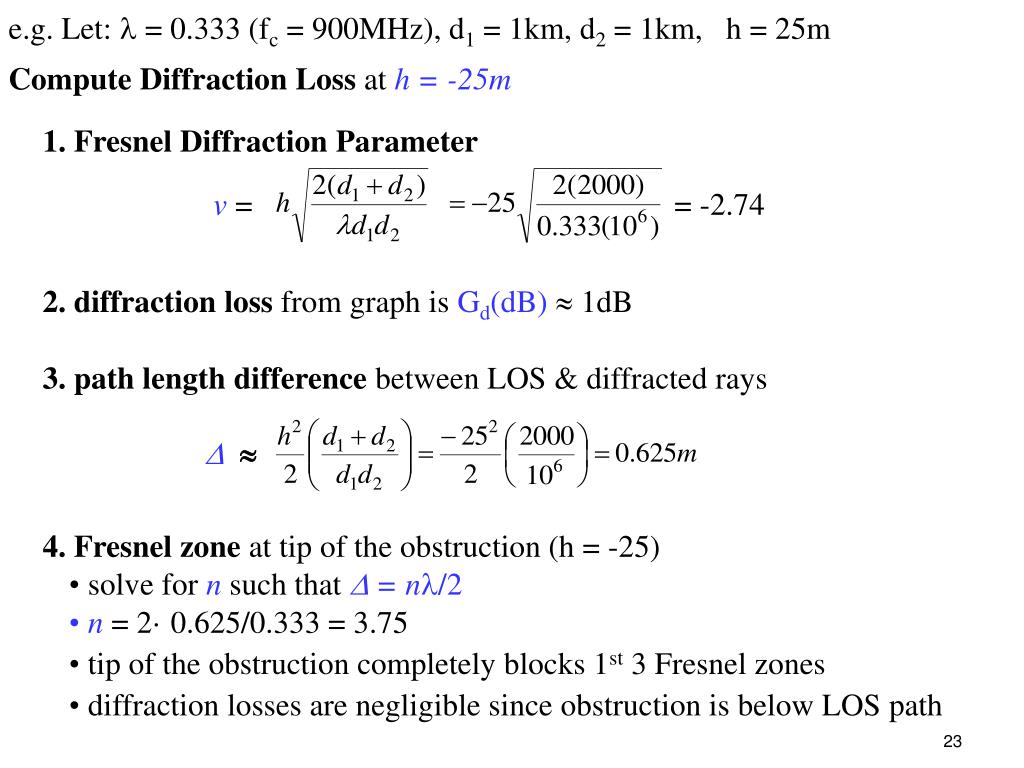

e.g. Let:  = 0.333 (fc = 900MHz), d1 = 1km, d2 = 1km, h = 25m

Compute Diffraction Loss at h = -25m

2. diffraction loss from graph is Gd(dB) 1dB

  • 4. Fresnel zone at tip of the obstruction (h = -25)

    • solve for n such that  = n/2

    • n = 2· 0.625/0.333= 3.75

    • tip of the obstruction completely blocks 1st 3 Fresnel zones

    • diffraction losses are negligible since obstruction is below LOS path


Slide24 l.jpg

T

R

50m

100m

25m

10km

2km

T

v =

75m

25m

R

=

10km

2km

from graph, Gd(dB)= -25.5 dB

find h if Gd(dB)= 6dB

T

=0

h

  • forGd(dB)= 6dB  v≈ 0

  • then  = 0 and  = - 

  • and h/2000 = 25/12000  h = 4.16m

25m

R

10km

2km

find diffraction loss

f = 900MHz   = 0.333m

 = tan-1(75-25/10000) = 0.287o

 = tan-1(75/2000) = 2.15o

 = +  = 2.43o = 0.0424 radians


Slide25 l.jpg

  • 3.7.3 Multiple Knife Edge Diffraction

  • with more than one obstruction  compute total diffraction loss

  • (1) replace multiple obstacles with one equivalent obstacle

    • use single knife edge model

    • oversimplifies problem

    • often produces overly optimistic estimates of received signal

    • strength

  • (2) wave theory solution for field behind 2 knife edges in series

  • Extensions beyond 2 knife edges becomes formidable

  • Several models simplify and estimate losses from multiple obstacles


Slide26 l.jpg

3.8 Scattering

  • RF waves impinge on rough surface reflected energy diffuses in all directions

    • e.g. lamp posts, trees  random multipath components

    • provides additional RF energy at receiver

    • actual received signal in mobile environment often stronger than

    • predicted by diffraction & reflection models alone


Slide27 l.jpg

h

  • Let h =maximum protuberance – minimum protuberance

    • if h < hc  surface is considered smooth

    • if h > hc  surface is considered rough

hc =

(3.62)

  • Reflective Surfaces

    • flat surfaceshas dimensions >> 

    • rough surface often induces specular reflections

    • surface roughness often tested using Rayleigh fading criterion

      • - define critical height for surface protuberances hc for given

      • incident angle i


Slide28 l.jpg

h = standard deviation of surface height about mean surface height

  • stone – dielectric properties

    • r = 7.51

    •  = 0.028

    •  = 0.95

  • rough stone parameters

    • h = 12.7cm

    • h = 2.54


Slide29 l.jpg

rough= s 

(3.65)

  • (i) Ament, assume h is a Gaussian distributed random variable with a

    • local mean, find s as:

s =

(3.63)

  • (ii) Boithias modified scattering coefficient has better correlation

    • with empirical data

s =

(3.64)

I0 is Bessel Function of 1st kind and 0 order

For h > hc reflected E-fields can be solved for rough surfaces using modified reflection coefficient


Slide30 l.jpg

||

1.0

0.8

0.6

0.4

0.2

0.0

0 10 20 30 40 50 60 70 80 90

angle of incidence

Reflection Coefficient of Rough Surfaces

(1)  polarization (vertical antenna polarization)

  • ideal smooth surface

  • Gaussian Rough Surface

  • Gaussian Rough Surface (Bessel)

  • Measured Data forstone wall h = 12.7cm, h = 2.54


Slide31 l.jpg

| |

1.0

0.8

0.6

0.4

0.2

0.0

angle of incidence

0 10 20 30 40 50 60 70 80 90

Reflection Coefficient of Rough Surfaces

(2) || polarization (horizontal antenna polarization)

  • ideal smooth surface

  • Gaussian Rough Surface

  • Gaussian Rough Surface (Bessel)

  • Measured Data forstone wall h = 12.7cm, h = 2.54


Slide32 l.jpg

power densityof signal scattered in direction of the receiver

RCS =

power density of radio wave incident upon scattering object

  • units = m2

  • determine signal strength by analysis using

    • - geometric diffraction theory

    • - physical optics

3.8.1 Radar Cross Section Model (RCS)

  • if a large distant objects causes scattering & its location is known

  •  accurately predict scattered signal strengths


Slide33 l.jpg

  • Urban Mobile Radio

    • Bistatic Radar Equation used to find received power from

    • scattering in far field region

      • describes propagation of wave traveling in free space that

      • impinges on distant scattering object

      • wave is reradiated in direction of receiver by:

Pr(dBm) = Pt (dBm) + Gt(dBi) + 20 log() + RCS [dB m2]

– 30 log(4) -20 log dT - 20log dR

  • dT=distance of transmitter from the scattering object

  • dR=distance of receiver from the scattering object

  • assumes object is in the far fieldof transmitter & receiver


Slide34 l.jpg

  • RCS can be approximated by surface area of scattering object (m2)

  • measured in dB relative to 1m2reference

    • may be applied to far-field of both transmitter and receiver

    • useful in predicting received power which scatters off large

    • objects (buildings)

    • units = dB m2

    • [Sei91] for medium and large buildings, 5-10km

      • 14.1 dB  m2 < RCS < 55.7 dB  m2


  • Login
