Presentation Transcript
Gmaw fundamentals l.jpg

GMAW Fundamentals

Gas Metal Arc Welding

Metal Inert Gas

By: Wanda Sue Benton

ESAB University & Florence-Darlington Technical College


Introduction l.jpg
Introduction

  • GMAW is defined as arc welding using a continuously fed consumable electrode and a shielding gas.

  • GMAW is also known as MIG (Metal Inert Gas).

  • Produces high-quality welds

  • Yields high productivity


Advantages l.jpg
Advantages

  • Large gaps filled or bridged easily

  • Welding can be done in all positions

  • No slag removal required

  • High welding speeds

  • High weld quality

  • Less distortion of work piece


Types of metal transfer l.jpg
Types of Metal Transfer

The basic GMAW process includes three distinctive process techniques:

  • Short Circuit (Short Arc)

  • Globular Transfer

  • Spray Arc Transfer


Short circuit short arc l.jpg

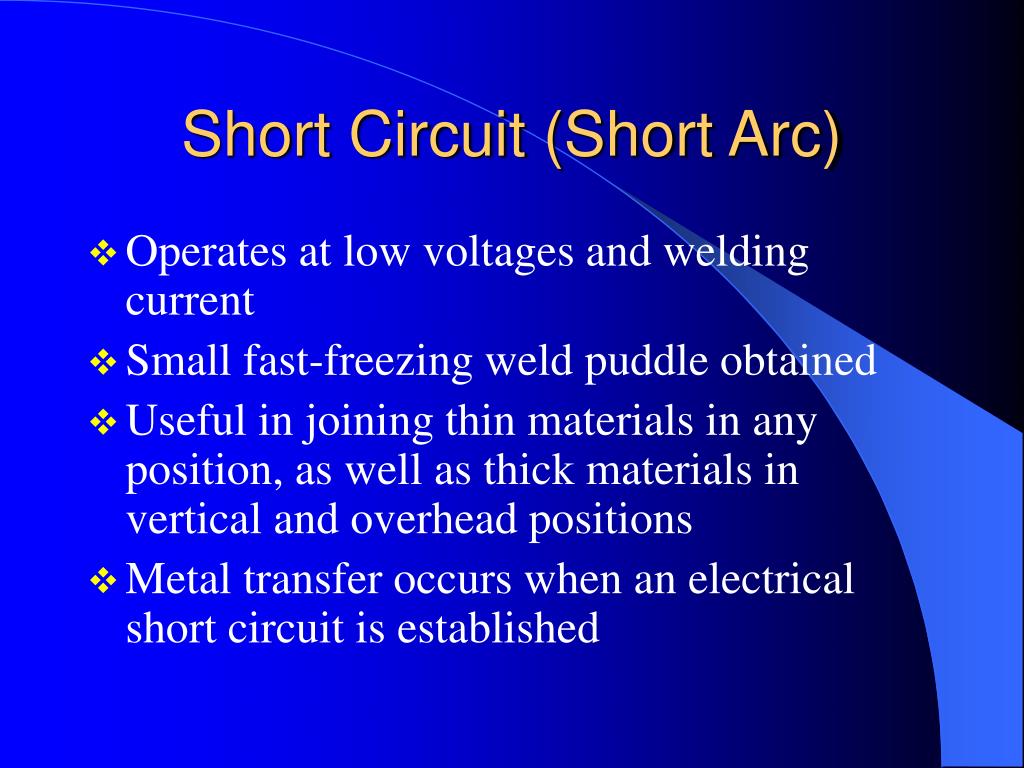

Short Circuit (Short Arc)

  • Operates at low voltages and welding current

  • Small fast-freezing weld puddle obtained

  • Useful in joining thin materials in any position, as well as thick materials in vertical and overhead positions

  • Metal transfer occurs when an electrical short circuit is established


Globular transfer l.jpg

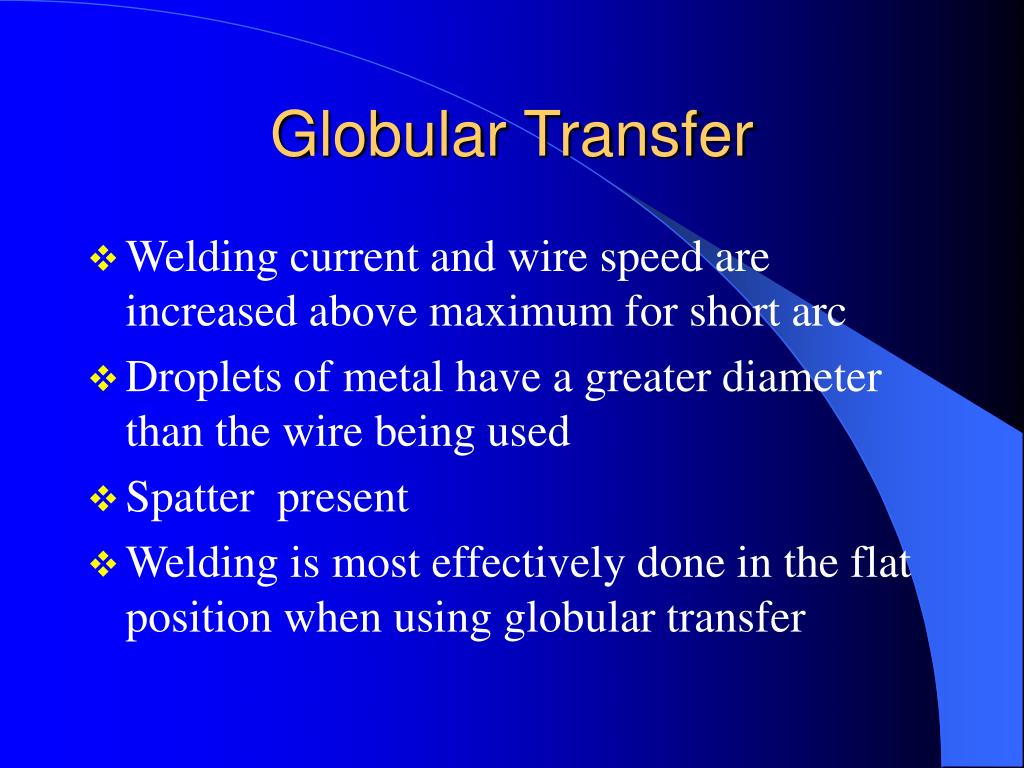

Globular Transfer

  • Welding current and wire speed are increased above maximum for short arc

  • Droplets of metal have a greater diameter than the wire being used

  • Spatter present

  • Welding is most effectively done in the flat position when using globular transfer


Spray arc transfer l.jpg
Spray Arc Transfer

  • Occurs when the current and voltage settings are increased higher than that used for Globular Transfer

  • Used on thick sections of base material, best suited for flat position due to large weld puddle

  • Spatter is minimal to none


Manual gmaw equipment l.jpg
Manual GMAW Equipment

  • Three major elements are :

    1.) Welding torch and accessories

    2.) Welding control & Wire feed motor

    3.) Power Source

  • GMAW equipment can be used either manually or automatically


Slide9 l.jpg

WIRE CONTROL

&

WIRE FEED MOTOR

POWER SOURCE


Welding torch accessories l.jpg
Welding Torch & Accessories

  • The welding torch guides the wire and shielding gas to the weld zone.

  • Brings welding power to the wire also

  • Major components/parts of the torch are the contact tip, shielding gas nozzle, gas diffuser, and the wire conduit


Slide11 l.jpg

GAS DIFFUSER

NOZZLE

TRIGGER

CONTACT TIP

INSTALLED

COMPONENTS


Welding control wire feed motor l.jpg
Welding Control & Wire Feed Motor

  • Welding control & Wire feed motor are combined into one unit

  • Main function is to pull the wire from the spool and feed it to the arc

  • Controls wire feed speed and regulates the starting and stopping of wire feed

  • Wire feed speed controls Amperage



Power source l.jpg

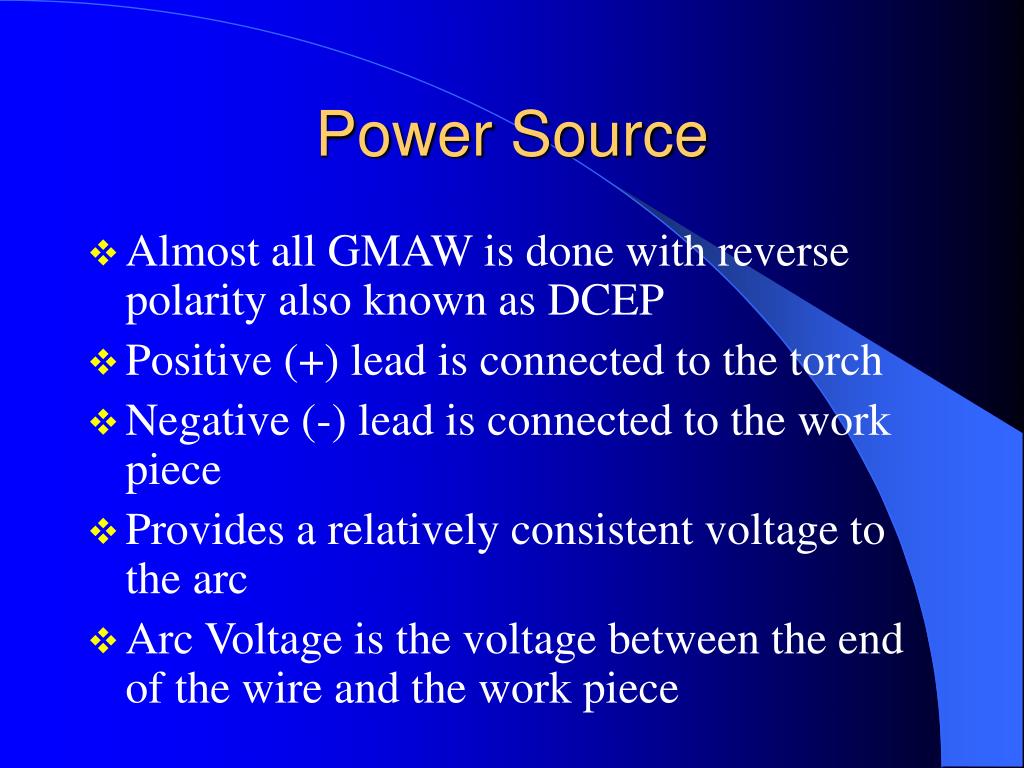

Power Source

  • Almost all GMAW is done with reverse polarity also known as DCEP

  • Positive (+) lead is connected to the torch

  • Negative (-) lead is connected to the work piece

  • Provides a relatively consistent voltage to the arc

  • Arc Voltage is the voltage between the end of the wire and the work piece

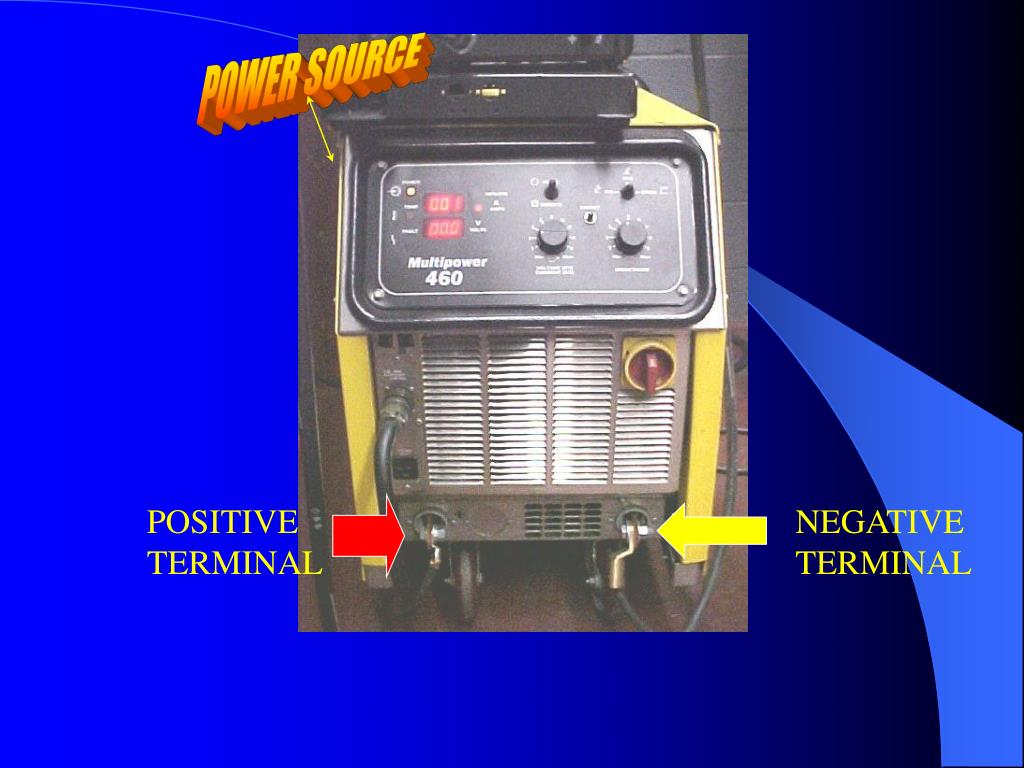

Slide16 l.jpg

POWER SOURCE

POSITIVE

TERMINAL

NEGATIVE

TERMINAL


Shielding gases l.jpg
Shielding Gases

  • Purpose of shielding gas is the protect the weld area from the contaminants in the atmosphere

  • Gas can be Inert, Reactive, or Mixtures of both

  • Gas flow rate is between 25-35 CFH

  • Argon, Helium, and Carbon Dioxide are the main three gases used in GMAW


Slide18 l.jpg

FLOW METER

CFH PRESSURE

ADJUSTMENT

KNOB

CYLCINDER

PRESSURE

GAUGE
