Presentation Transcript


Denormalization

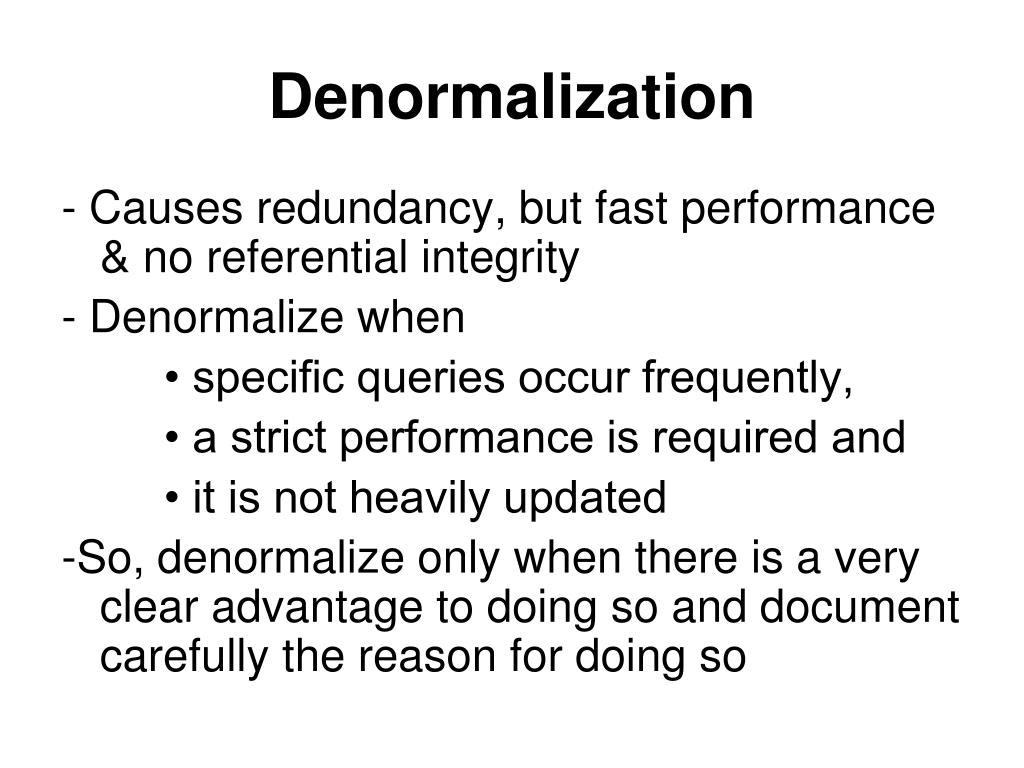

Denormalization

- Causes redundancy, but fast performance & no referential integrity

- Denormalize when

• specific queries occur frequently,

• a strict performance is required and

• it is not heavily updated

-So, denormalize only when there is a very clear advantage to doing so and document carefully the reason for doing so


Typical denormalization techniques

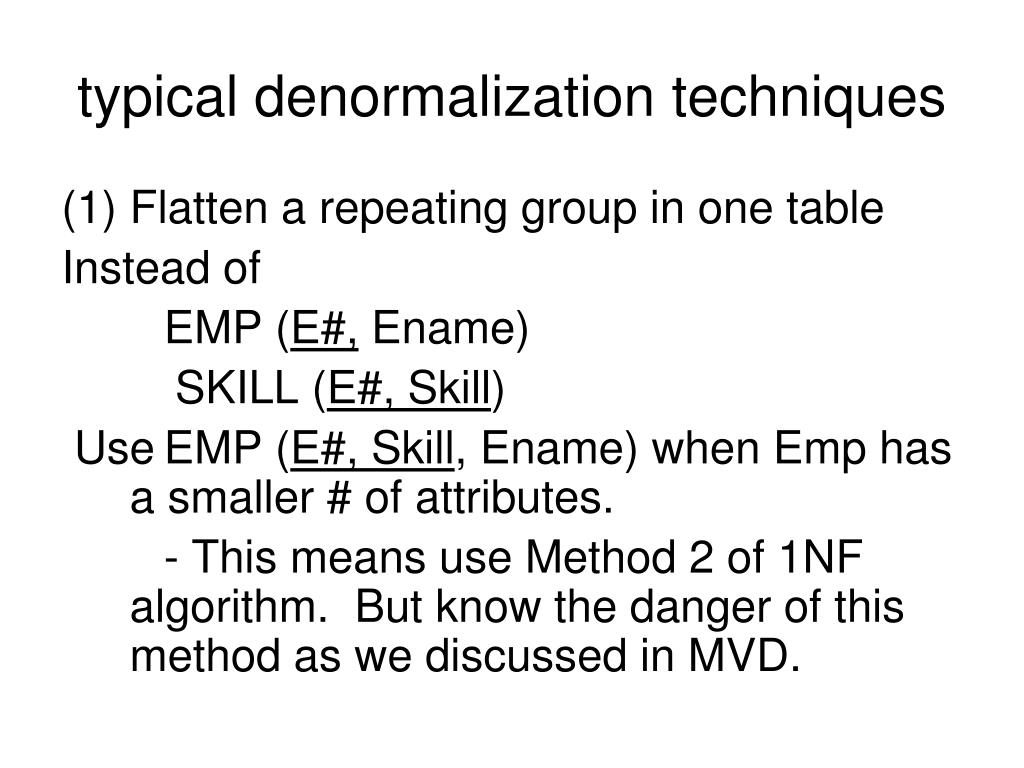

typical denormalization techniques

  • Flatten a repeating group in one table

    Instead of

    EMP (E#, Ename)

    SKILL (E#, Skill)

    UseEMP (E#, Skill, Ename) when Emp has a smaller # of attributes.

    - This means use Method 2 of 1NF algorithm. But know the danger of this method as we discussed in MVD.


Denormalization

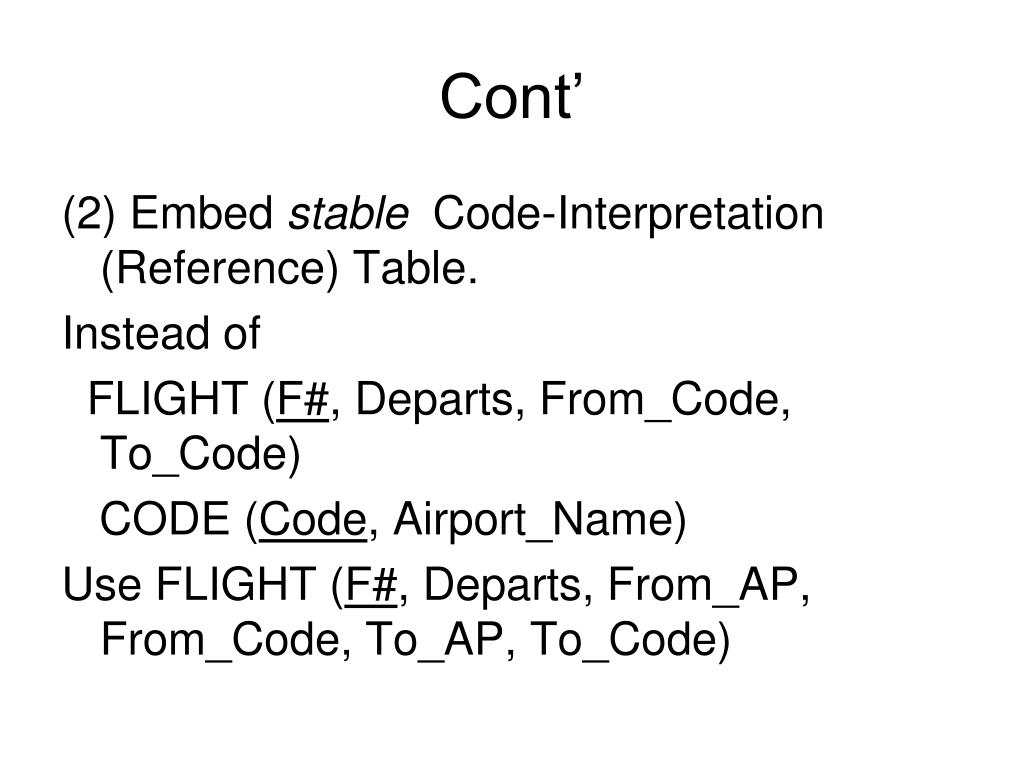

Cont’

(2) Embed stable Code-Interpretation (Reference) Table.

Instead of

FLIGHT (F#, Departs, From_Code, To_Code)

CODE (Code, Airport_Name)

Use FLIGHT (F#, Departs, From_AP, From_Code, To_AP, To_Code)


Denormalization

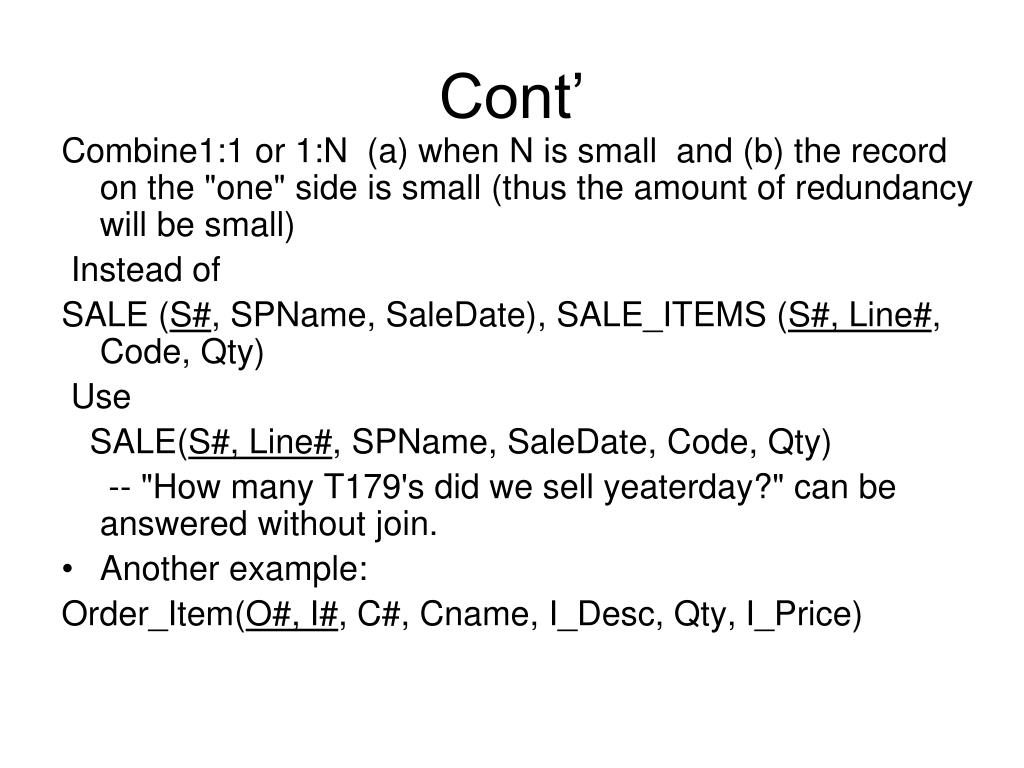

Cont’

Combine1:1 or 1:N (a) when N is small and (b) the record on the "one" side is small (thus the amount of redundancy will be small)

Instead of

SALE (S#, SPName, SaleDate), SALE_ITEMS (S#, Line#, Code, Qty)

Use

SALE(S#, Line#, SPName, SaleDate, Code, Qty)

-- "How many T179's did we sell yeaterday?" can be answered without join.

  • Another example:

    Order_Item(O#, I#, C#, Cname, I_Desc, Qty, I_Price)


Denormalization

Cont’

(4) When the other entity in is not interesting by itself

Order(O#, ODate, OShipTerms, PmtTerms, Cname, CAddr)

(5) Replicate non-frequently updated attributes to avoid JOIN

WORK_ON (ESSN, P_NUM, PName, Hours)


Problems of denormalization

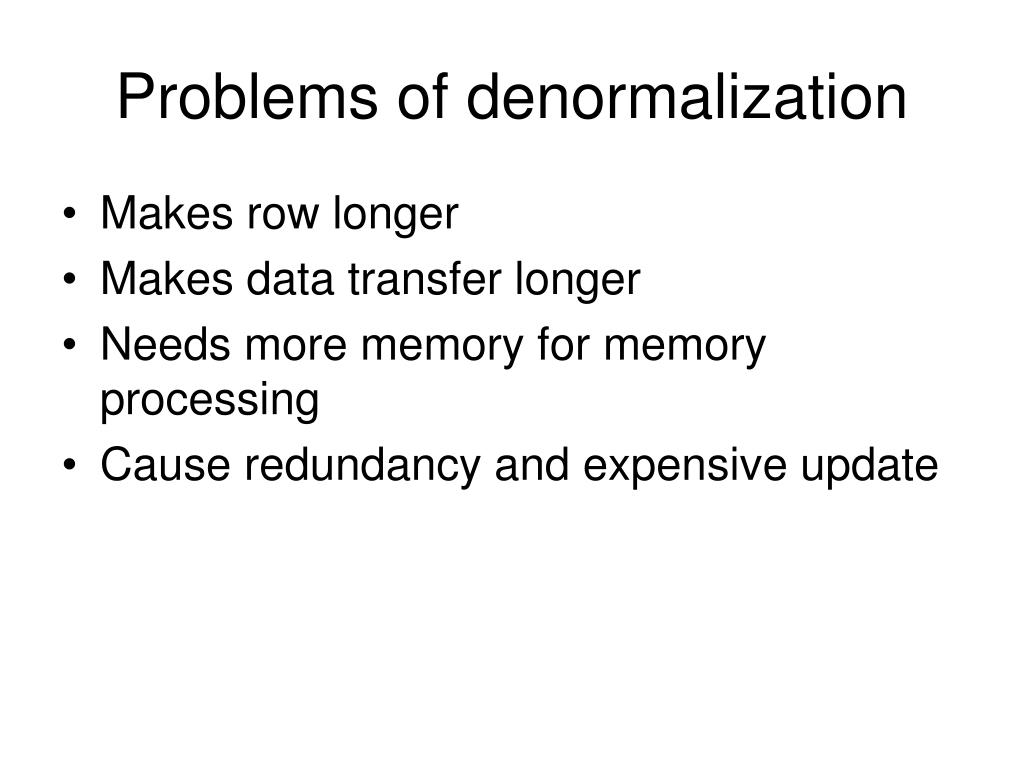

Problems of denormalization

  • Makes row longer

  • Makes data transfer longer

  • Needs more memory for memory processing

  • Cause redundancy and expensive update


Adding redundant data

Adding redundant data

- Add summary attributes or derived attributes

- Redundant relationships can improve performance with the cost of update overhead


Schema translation

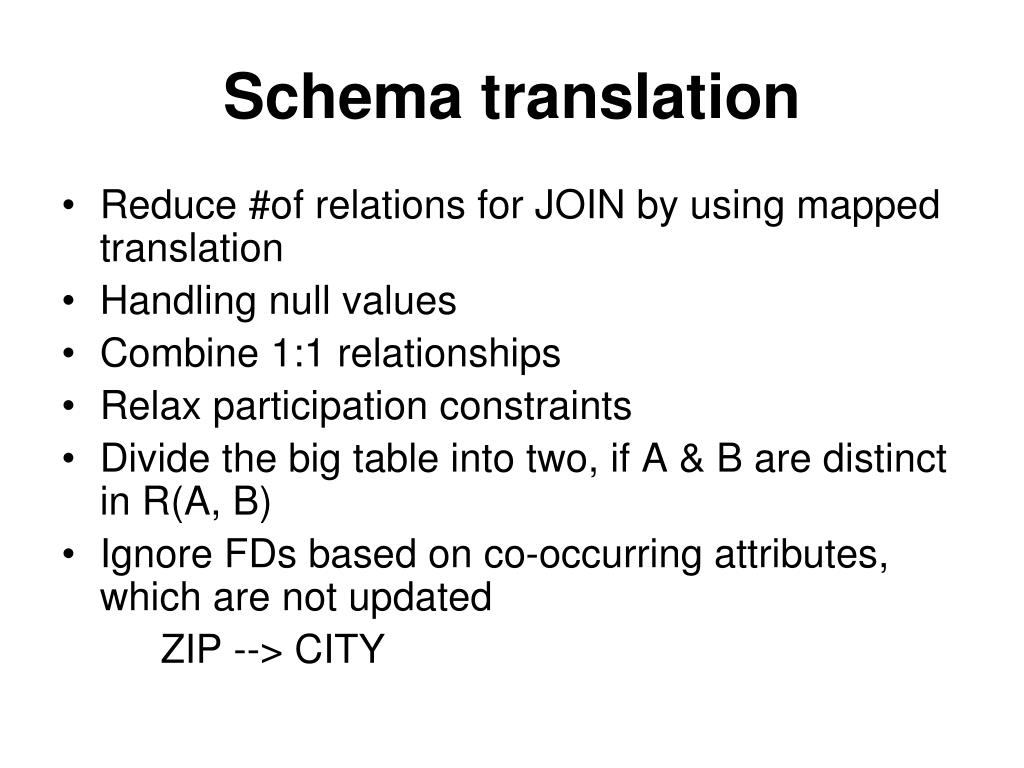

Schema translation

  • Reduce #of relations for JOIN by using mapped translation

  • Handling null values

  • Combine 1:1 relationships

  • Relax participation constraints

  • Divide the big table into two, if A & B are distinct in R(A, B)

  • Ignore FDs based on co-occurring attributes, which are not updated

    ZIP --> CITY


Primary key

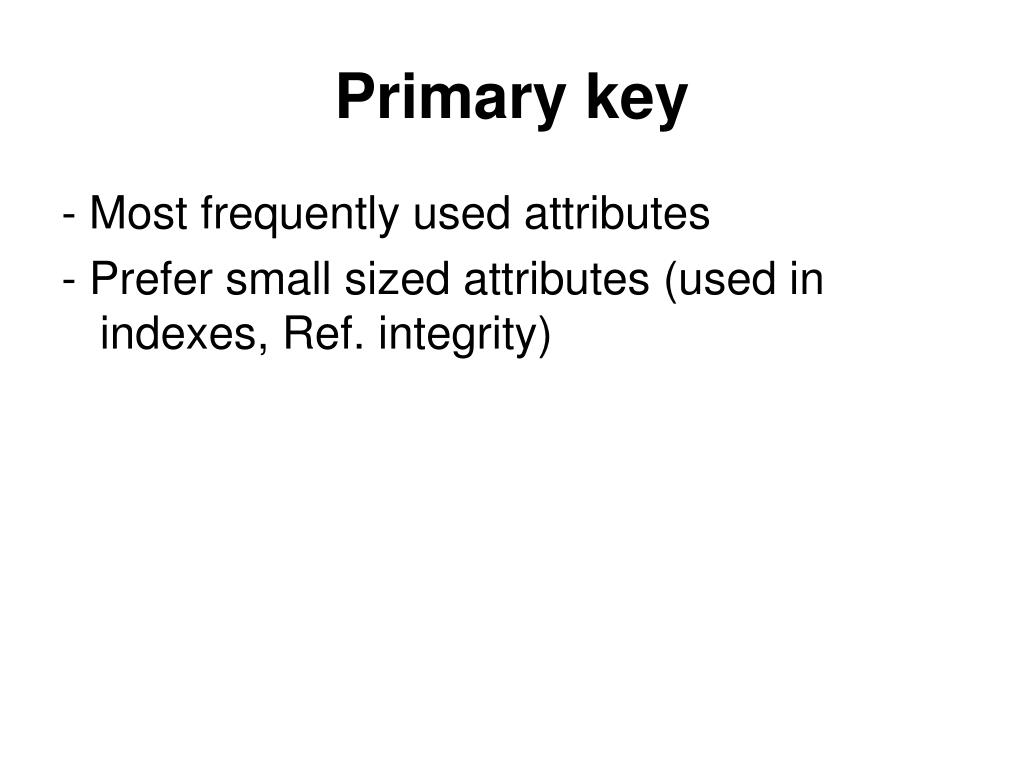

Primary key

- Most frequently used attributes

- Prefer small sized attributes (used in indexes, Ref. integrity)


Index

Index

- Create a set of appropriate indexes optimzing queries (This will be discussed more in physical DB chapters.)
