Reverse Telnet. Console(DTE) or Aux. RS232- RJ45 Adaptor. Line 1. Async Port (DTE). Loopback1 172.21.1.1. telnet 172.21.1.1 2001. PC 에서 C2501-1 등의 라우터에 연결한다. #telent 172.21.1.1 2001 을 사용한다. #telnet 172.21.1.1 후, # show host, #host1, ctrl+shift+6+x, #show session, #resume 1.

faith-hood
Download Presentation

Console(DTE) or Aux

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

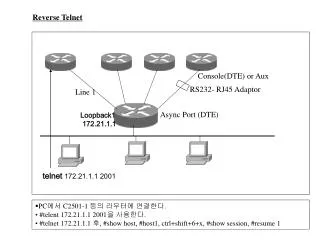

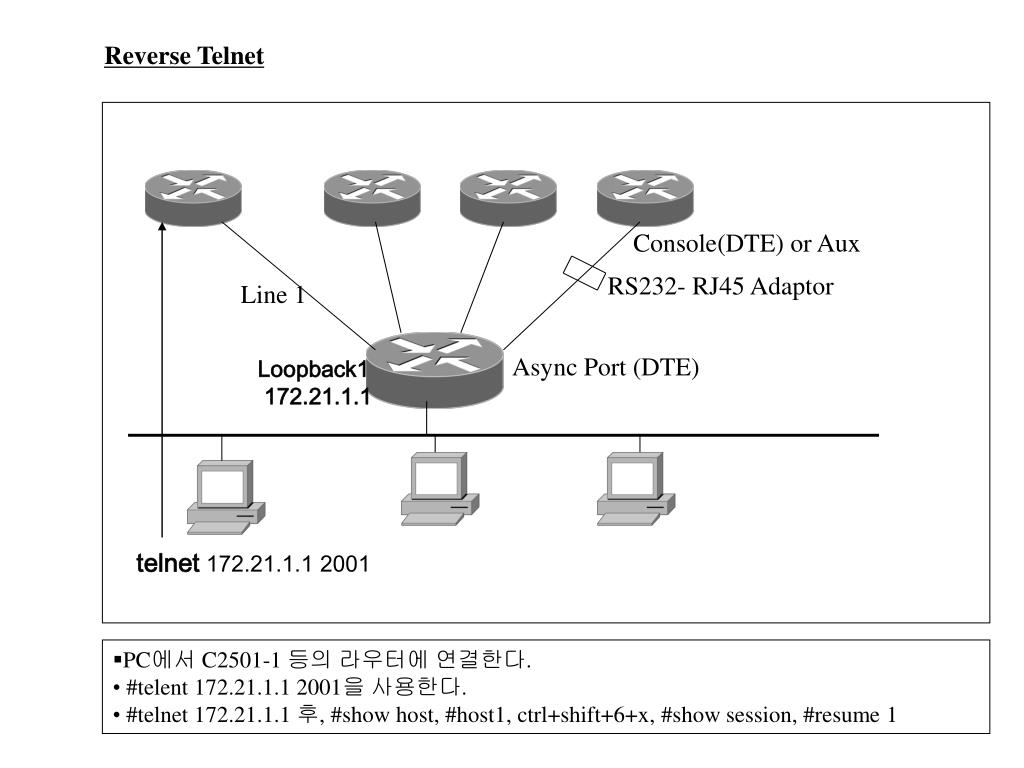

  1. Reverse Telnet Console(DTE) or Aux RS232- RJ45 Adaptor Line 1 Async Port (DTE) Loopback1 172.21.1.1 telnet 172.21.1.1 2001 • PC에서 C2501-1 등의 라우터에 연결한다. • #telent 172.21.1.1 2001을 사용한다. • #telnet 172.21.1.1 후, #show host, #host1, ctrl+shift+6+x, #show session, #resume 1

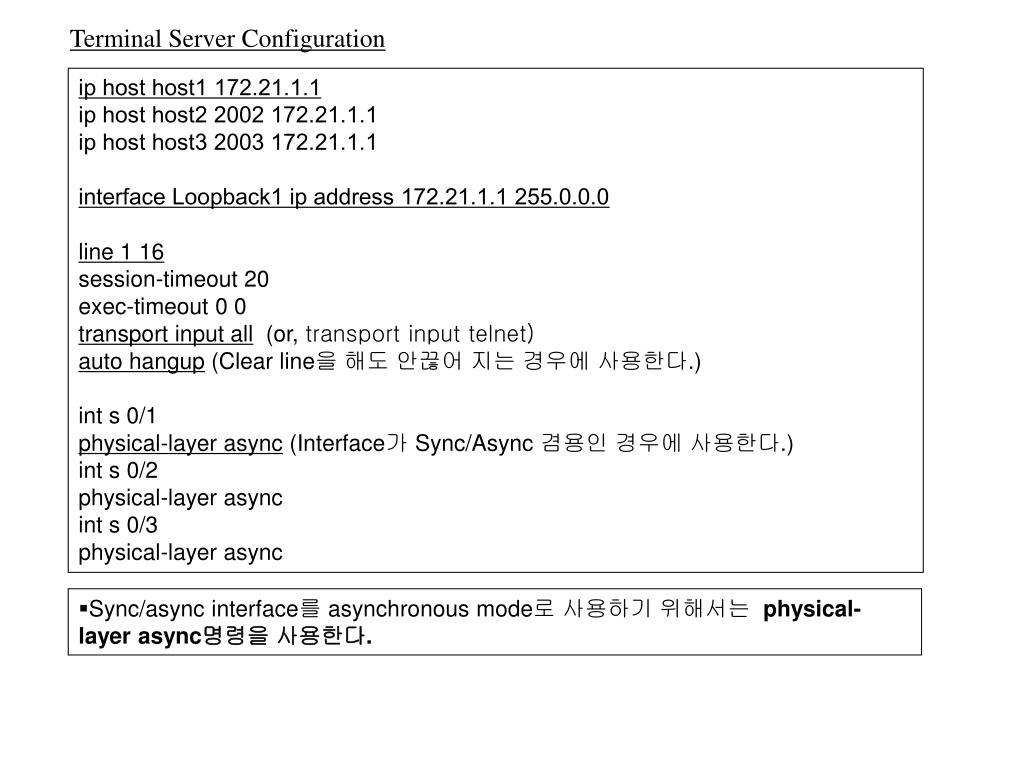

  2. Terminal Server Configuration ip host host1 172.21.1.1 ip host host2 2002 172.21.1.1 ip host host3 2003 172.21.1.1 interface Loopback1 ip address 172.21.1.1 255.0.0.0 line 1 16 session-timeout 20 exec-timeout 0 0 transport input all (or, transport input telnet) auto hangup (Clear line을 해도 안끊어 지는 경우에 사용한다.) int s 0/1 physical-layer async (Interface가 Sync/Async 겸용인 경우에 사용한다.) int s 0/2 physical-layer async int s 0/3 physical-layer async • Sync/async interface를 asynchronous mode로 사용하기 위해서는 physical-layer async명령을 사용한다.

  3. Line Number • Console Port(CTY)가 0번이 된다. • Async Port(TTY)가 1번에서 포트 수 만큼의 Number를 점유한다. • Aux Port(AUX)는 Async Port 다음 Number를 점유한다. • Telnet Port(VTY)는 Aux Port 다음 번호를 점유한다.
