  1. OBJ009302 MA5300 Broadband Access Equipment Troubleshooting 1.0

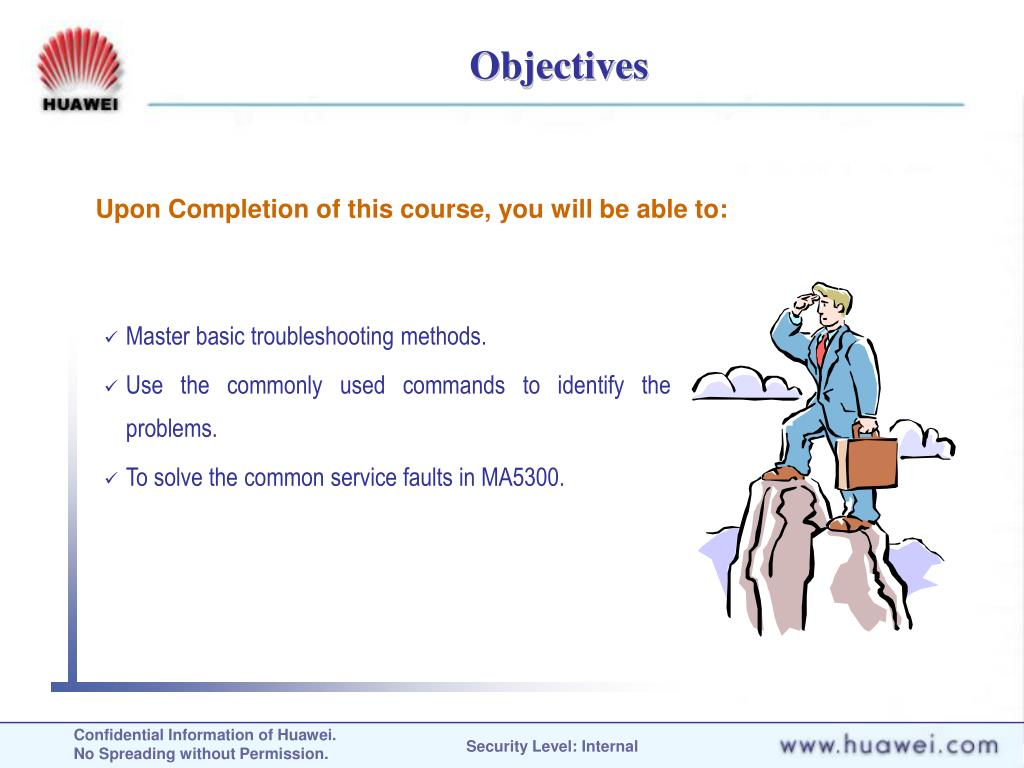

  2. Objectives • Master basic troubleshooting methods. • Use the commonly used commands to identify the problems. • To solve the common service faults in MA5300. Upon Completion of this course, you will be able to: Security Level: Internal

  3. Contents Some Ideas in Troubleshooting How to Troubleshoot in MA5300 Service Troubleshooting in MA5300 Security Level: Internal

  4. Some Ideas in Troubleshooting General procedure of troubleshooting. • Recognizing Symptoms • Understanding the Problem • Identifying Cause of the Problem • Solving the Problem Security Level: Internal

  5. Some Ideas in Troubleshooting Common methods in troubleshooting: • Layer-based analysis • Isolation analysis • Comparison analysis • Swapping analysis Security Level: Internal

  6. Layer-based Analysis Application Presentation Session Transport Destination unreachable, … Network PVC, VLAN, PPP link fail… Data Link Cable fail, board fail, cable disconnected… Physical Security Level: Internal

  7. IP Network Isolation Analysis DHCP Server Radius Server DSLAM BAS VDSL Modem Security Level: Internal

  8. Comparison Analysis MA5300(Built-in BAS) ….. Ordinary subscribers Ordinary subscribers Commercial subscribers Commercial subscribers Ordinary subscribers Commercial subscribers Ordinary subscribers Security Level: Internal

  9. IP Network Swapping Analysis FTP Server DHCP Server Radius Server Low Speed DSLAM BAS VDSL Modem Swap Component Security Level: Internal

  10. Troubleshooting Tools Common tools used in troubleshooting: • Command Line • NMS • Network analyzer (Ethereal, Sniffer, Analyzer…) Security Level: Internal

  11. Contents Some Ideas in Troubleshooting How to Troubleshoot in MA5300 Service Troubleshooting in MA5300 Security Level: Internal

  12. Physical Layer Troubleshooting Indicator Modem: ADSL line sync, Ethernet state Board: RUN, ALARM Interface: State, Data Security Level: Internal

  13. Physical Layer Troubleshooting Alarm [BAS]display trap Display trap buffer: # [02/23/2004 23:57:33-] DEV-2-070f2004:frame 0 slot 0 subslot 0 port 10 up …… MA5300(config)#show alarm list all ALARMID OUTPUT STATISTIC ALARM_NAME 0x00200000 YES NO 15-minute threshold alarm 0x00200001 YES NO 24-hour threshold alarm 0x02300003 YES NO Clock SDH source switch Security Level: Internal

  14. Physical Layer Troubleshooting Display state of the interface. [bas1-for-nms]display interface Ethernet 5 Ethernet5 current state : DOWN Line protocol current state : DOWN Description : HUAWEI, ISU, Ethernet5 Interface The Maximum Transmit Unit is 1500, The keepalive is 10(sec) … MA5300(config)#show interface adsl 0/0/0 Adsl0/0/0 is administratively down The ADSL link is deactive Bind line-profile No.1 LINE-PROFILE-1 Bind alarm-profile No.1 ALARM-PROFILE-1 … Security Level: Internal

  15. Physical Layer Troubleshooting Display working state of the board MA5300(config)#show board 0 SlotID BoardName Status SubType1 SubType2 0 EADA Normal 1 2 3 4 5 6 7 ESMA Active_normal O2GAE E4FE 8 ESMA Standby_normal O2GAE E4FE Security Level: Internal

  16. Physical Layer Troubleshooting ADSL line condition MA5300(config)#show adsl line state adsl 0/0/0 Current Link Status : deactive Atuc Current Snr Margin(dB) : 0 Current Chan Attenuation(dB) : 0 Current Output Power(dBm) : 0 Current Attainable Rate(Kbps) : 0 Current Transmission Mode : NONE Channel Interleave Delay(ms) : 0 Channel Current tx-Rate(Kbps) : 0 Atur … Security Level: Internal

  17. Data Link Layer Troubleshooting Check working mode of Modem Check the pvc configuraiton MA5300(config)#show interface adsl 0/0/0 Adsl0/0/0 is administratively down The ADSL link is deactive Bind line-profile No.1 LINE-PROFILE-1 Bind alarm-profile No.1 ALARM-PROFILE-1 Line coding type is DMT Local-Tx-Rate 0 Kbps, Remote-Tx-Rate 0 Kbps, _ADSL_TX …… PVC: vpi is 0, vci is 35 …… Security Level: Internal

  18. Data Link Layer Troubleshooting Check the VLAN configuration MA5300(config)#show vlan Now, the following vlan exist(s): 1(default), 99, 128-175 MA5300(config)#show interface adsl 0/0/0 Adsl0/0/0 is administratively down The ADSL link is deactive …… PVID is 128 …… Port mode: access Tagged VLAN ID : none Untagged VLAN ID : 128 Security Level: Internal

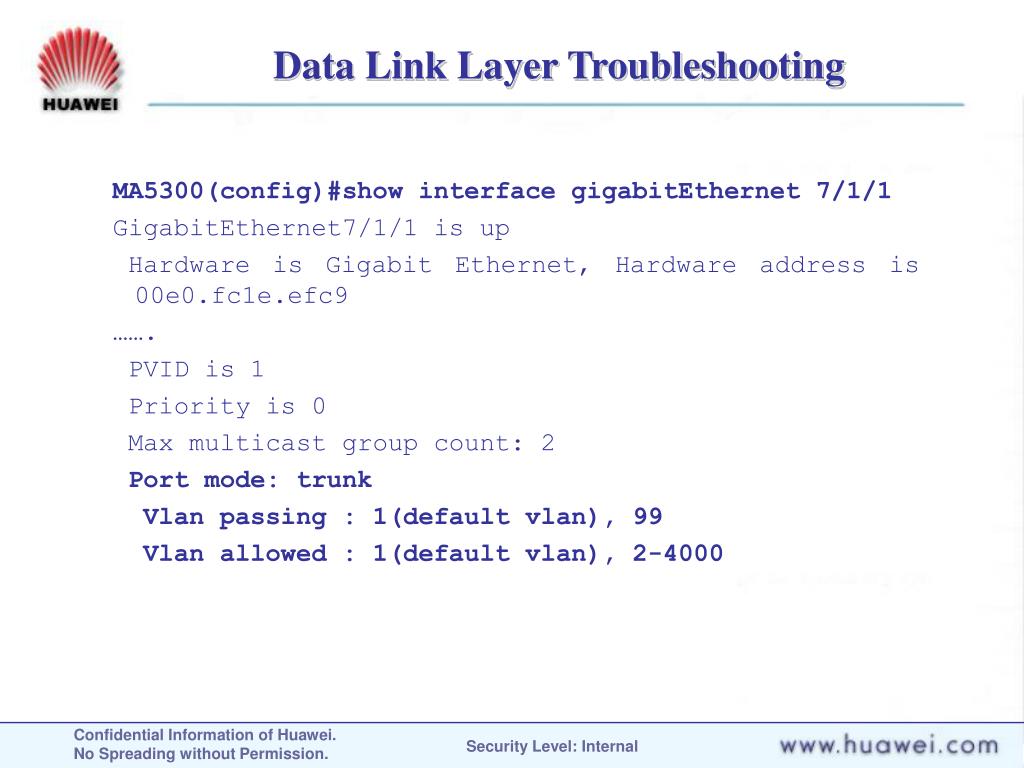

  19. Data Link Layer Troubleshooting MA5300(config)#show interface gigabitEthernet 7/1/1 GigabitEthernet7/1/1 is up Hardware is Gigabit Ethernet, Hardware address is 00e0.fc1e.efc9 ……. PVID is 1 Priority is 0 Max multicast group count: 2 Port mode: trunk Vlan passing : 1(default vlan), 99 Vlan allowed : 1(default vlan), 2-4000 Security Level: Internal

  20. Network Layer Troubleshooting Check IP configuration of the customer’s computer. Display interface state [BAS]display interface GigabitEthernet 10 GigabitEthernet10 current state : UP Line protocol current state : UP Description : HUAWEI, ISU, GigabitEthernet10 Interface …… Ping MA5300#ping 172.31.1.53 Security Level: Internal

  21. Network Layer Troubleshooting Check IP route <BAS>display ip routing-table Routing Table: public net Destination/Mask Proto Pre Cost Nexthop Interface 127.0.0.0/8 DIRECT 1 0 127.0.0.1 InLoopBack0 127.0.0.1/32 DIRECT 1 0 127.0.0.1 InLoopBack0 MA5300(config)#show ip route Routing Tables: Destination/Mask Proto Pre Metric Nexthop Interface 127.0.0.0/8 DIRECT 0 0 127.0.0.1 InLoopBack0 172.31.1.0/24 DIRECT 0 0 172.31.1.52 Vlan-interface99 Security Level: Internal

  22. Network Layer Troubleshooting Debug <BAS>terminal monitor <BAS>terminal debugging <BAS>debugging dhcpr packet Trace <BAS>trace object ? ethernet Object ethernet number gigabitethernet Object ethernet number ip-address Object ip address mac-address Object mac address trunk Object trunk number user-name Object user name Security Level: Internal

  23. Contents Some Ideas in Troubleshooting How to Troubleshoot in MA5300 Service Troubleshooting in MA5300 Security Level: Internal

  24. PPPoE Service Troubleshooting Common service problems in MA5300: • User cannot find the PPPoE server. • Username or password is incorrect. • Low speed. Security Level: Internal

  25. PPPoE Service Troubleshooting User cannot find the PPPoE server. Cause: The PPPoE client cannot find the PPPoE server. Locating problem:Physical layer, or data link layer. Solving problems: [User] • Check the PPPoE client was installed correctly; • Check the Physical connection between computer and modem, modem and the phone line; • Check modem was configured correctly; Security Level: Internal

  26. PPPoE Service Troubleshooting [DSLAM] • Check the EAD board state, and the ADSL line state; • Check the connection between DLSAM and BAS; • Check the vpi/vci of the ADSL port; • Check the VLAN configuration in DSLAM; ADSL port and uplink ethernet port. [BAS] • Check the PPPoE configuration in BAS. Virtual-template and whether the port is bound with VT. Security Level: Internal

  27. PPPoE Service Troubleshooting Username or password is incorrect. Cause: user cannot pass authentication. Locatingproblem: PPP link layer, network layer. Physical layer works. Physical layer is working normally. Solving problems: [User] • Confirm the user input correct username and password; [BAS] • Check the authentication configuration in BAS, whether the user uses local authentication or Radius authentication. Security Level: Internal

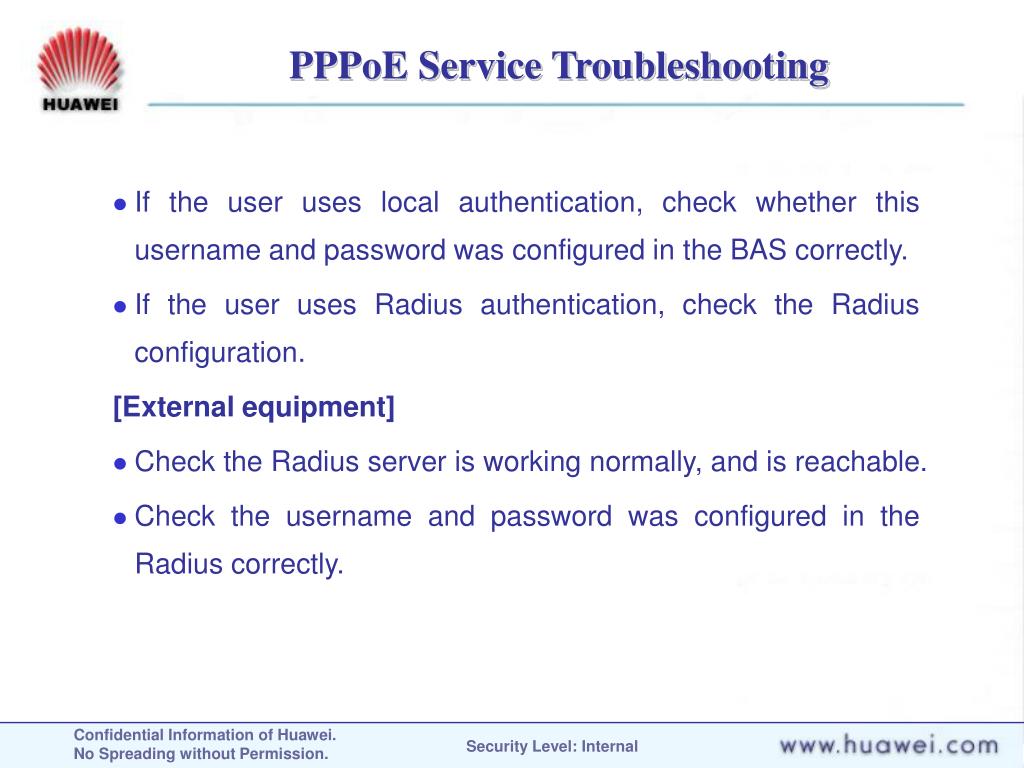

  28. PPPoE Service Troubleshooting • If the user uses local authentication, check whether this username and password was configured in the BAS correctly. • If the user uses Radius authentication, check the Radius configuration. [External equipment] • Check the Radius server is working normally, and is reachable. • Check the username and password was configured in the Radius correctly. Security Level: Internal

  29. PPPoE Service Troubleshooting Low speed. Solving problems: [User] • Check the user’s computer’s hardware configuration, and running performance. • Check the cable and line is fully connected. [DSLAM] • Check the quality of the ADSL line • Check the transmission rate configuration of the ADSL line profile. Security Level: Internal

  30. PPPoE Service Troubleshooting [BAS] • Check the CAR configuration of the user. • Ping destination IP address to see whether there is a traffic bottleneck to the destination in network. • If possible, connect a server directly with BAS, observe the traffic on the user’s computer. Security Level: Internal

  31. DHCP Service Troubleshooting User cannot obtain IP address. Locating problem:physical layer, data link layer, network layer. Solving problem: [User]: • Check the IP configuration of the computer. • Check the Physical connection between computer and modem, modem and the phone line; • Check modem was configured correctly; Security Level: Internal

  32. DHCP Service Troubleshooting [DSLAM] • Check the EAD board state, and the ADSL line state; • Check the connection between DLSAM and BAS; • Check the vpi/vci of the ADSL port; • Check the VLAN configuration in DSLAM; [BAS] • Check the service configuration. • If the external DHCP is used, check the DHCP server is working normally and reachable. Security Level: Internal

  33. DHCP Service Troubleshooting [External equipment] • Make sure the configuration in DHCP server is correct. Security Level: Internal

  34. DHCP Service Troubleshooting Low speed. • Same as PPPoE service. Security Level: Internal

  35. Thank you Security Level: Internal
