  1. FOAL 2012 (AOSD Workshop) Architectural Point Mappingfor Design Traceability • NaoyasuUbayashi and Yasutaka Kamei • Kyushu University, Japan • March 26, 2012

  2. Overview Architecture Traceability public class Subject{
private Vector observers = new Vector(); private String state = “”;
public void addObserver(Observero){ … }
public void removeObserver(Observero){ … }
public void notify(){
Iteratori = observers.iterator();
while(i.hasNext() ){
Observers o = (Observer)i.next();
o.update(this);
}
} public void setState(Strings){ state = s; } public String getState() {return state; }
} Abstraction mechanism based on Archpoints(Pointcut-based architectural representation) Traceability link based on Archmapping (Automatic verification using an SMT solver) Bidirectional traceability between design and code (preserving appropriate abstraction level) Program Code 2

  3. Outline • Introduction • Architectural points and mapping • SMT-based traceability checking • Conclusions and Future work

  4. Introduction

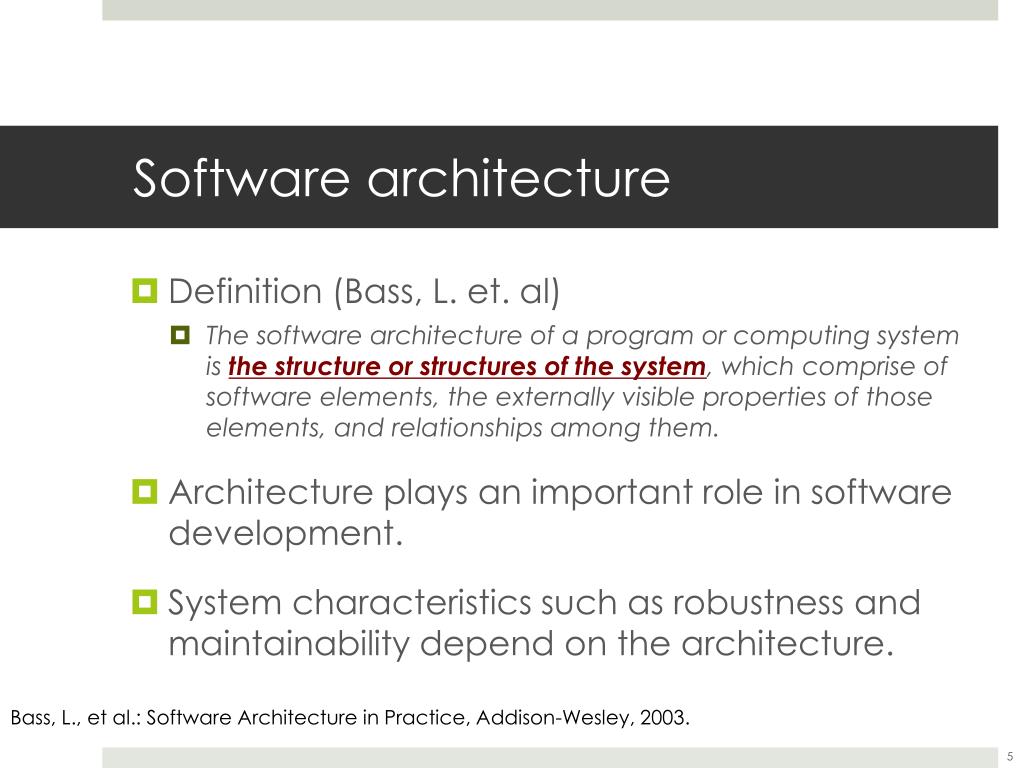

  5. Software architecture • Definition (Bass, L. et. al) • The software architecture of a program or computing system is the structure or structures of the system, which comprise of software elements, the externally visible properties of those elements, and relationships among them. • Architecture plays an important role in software development. • System characteristics such as robustness and maintainability depend on the architecture. Bass, L., et al.: Software Architecture in Practice, Addison-Wesley, 2003.

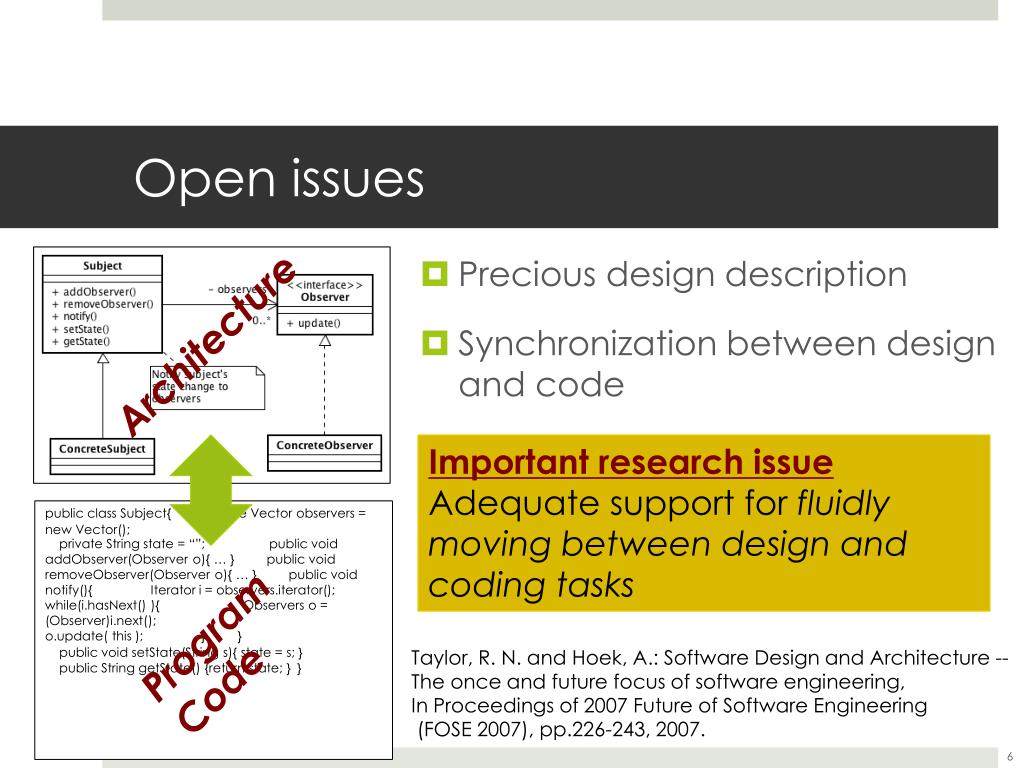

  6. Open issues • Precious design description • Synchronization between design and code Architecture Important research issue Adequate support forfluidly moving between design and coding tasks public class Subject{
private Vector observers = new Vector(); private String state = “”;
public void addObserver(Observero){ … }
public void removeObserver(Observero){ … }
public void notify(){
Iteratori = observers.iterator();
while(i.hasNext() ){
Observers o = (Observer)i.next();
o.update(this);
}
} public void setState(Strings){ state = s; } public String getState() {return state; }
} Program Code Taylor, R. N. and Hoek, A.: Software Design and Architecture --The once and future focus of software engineering, In Proceedings of 2007 Future of Software Engineering (FOSE 2007), pp.226-243, 2007.

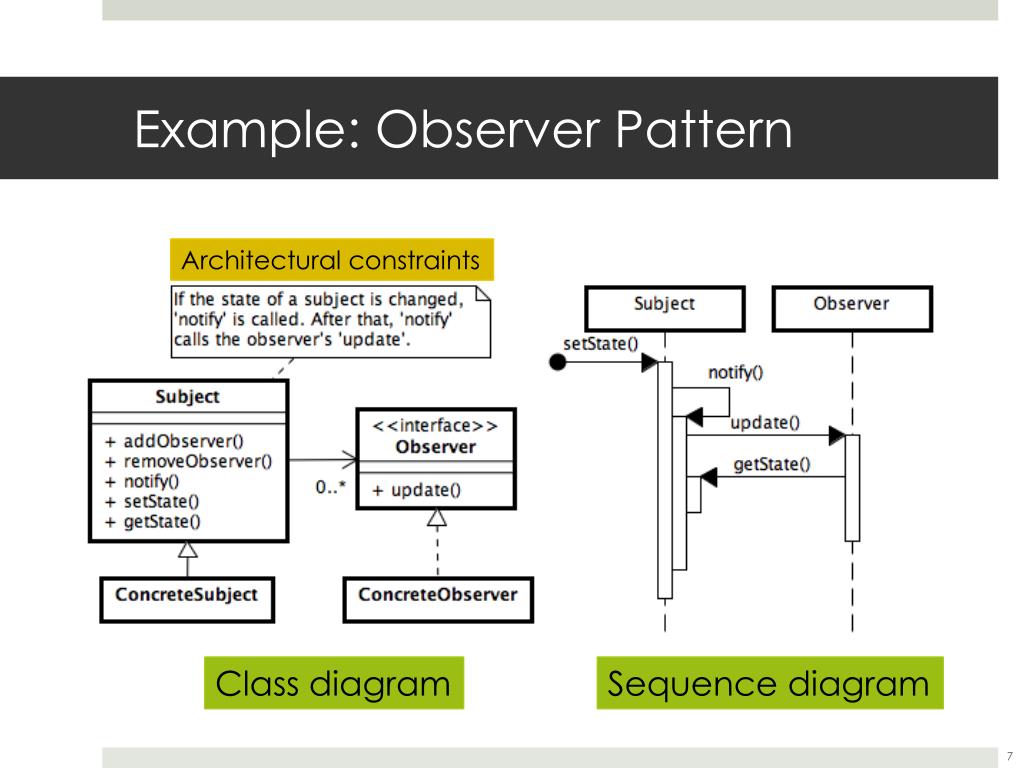

  7. Example: Observer Pattern Architectural constraints Class diagram Sequence diagram

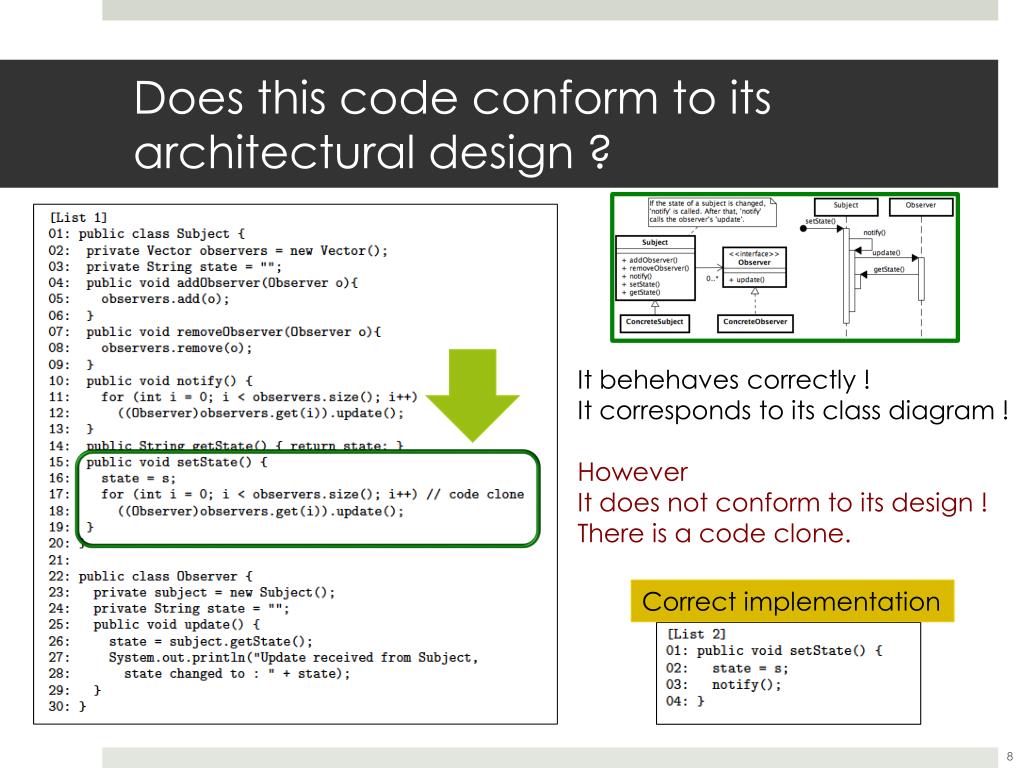

  8. Does this code conform to its architectural design ? It behehaves correctly ! It corresponds to its class diagram ! However It does not conform to its design ! There is a code clone. Correct implementation

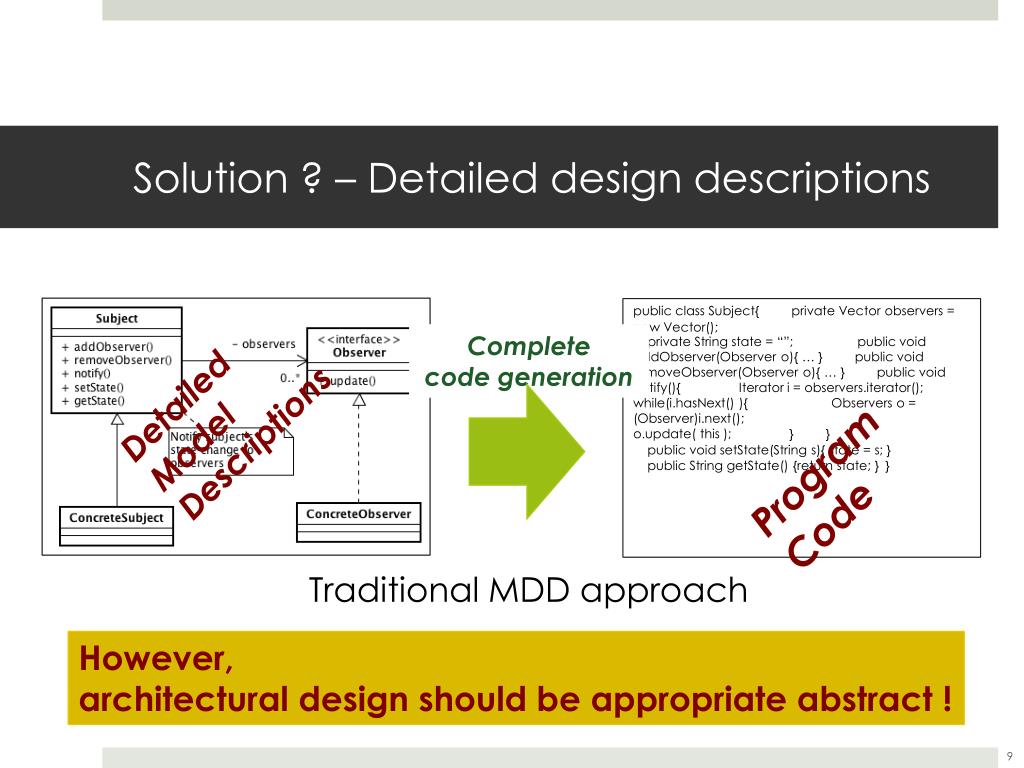

  9. Solution ? – Detailed design descriptions public class Subject{
private Vector observers = new Vector(); private String state = “”;
public void addObserver(Observero){ … }
public void removeObserver(Observero){ … }
public void notify(){
Iteratori = observers.iterator();
while(i.hasNext() ){
Observers o = (Observer)i.next();
o.update(this);
}
} public void setState(Strings){ state = s; } public String getState() {return state; }
} Complete code generation Detailed Model Descriptions Program Code Traditional MDD approach However, architectural design should be appropriate abstract !

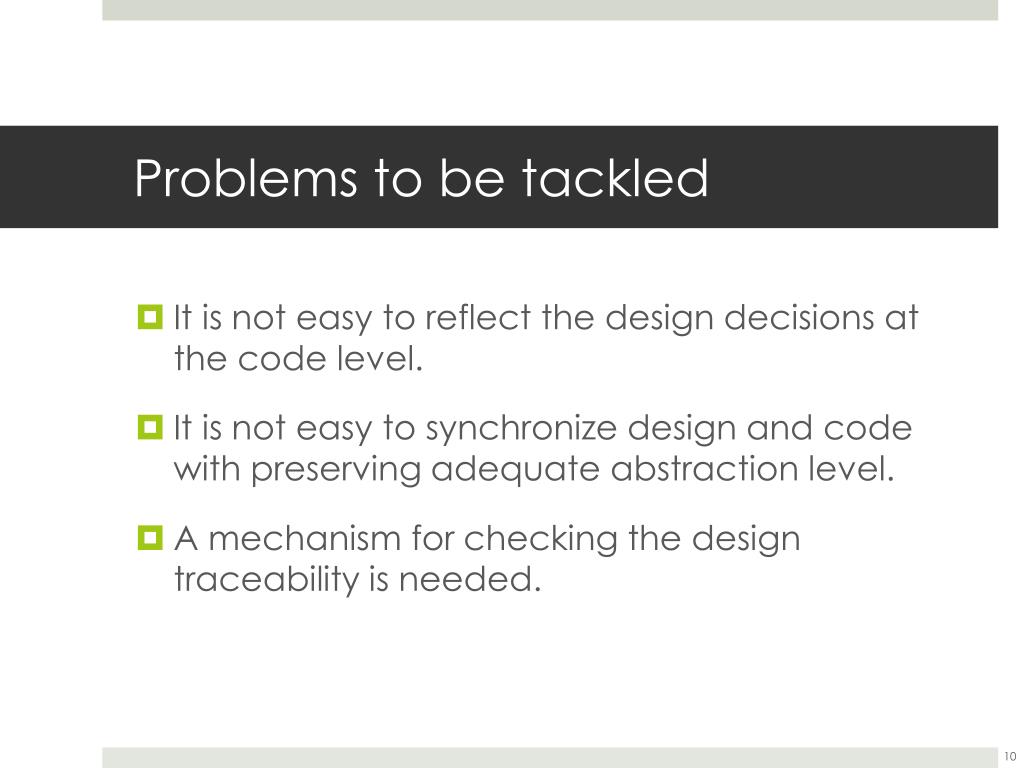

  10. Problems to be tackled • It is not easy to reflect the design decisions at the code level. • It is not easy to synchronize design and code with preserving adequate abstraction level. • A mechanism for checking the design traceability is needed.

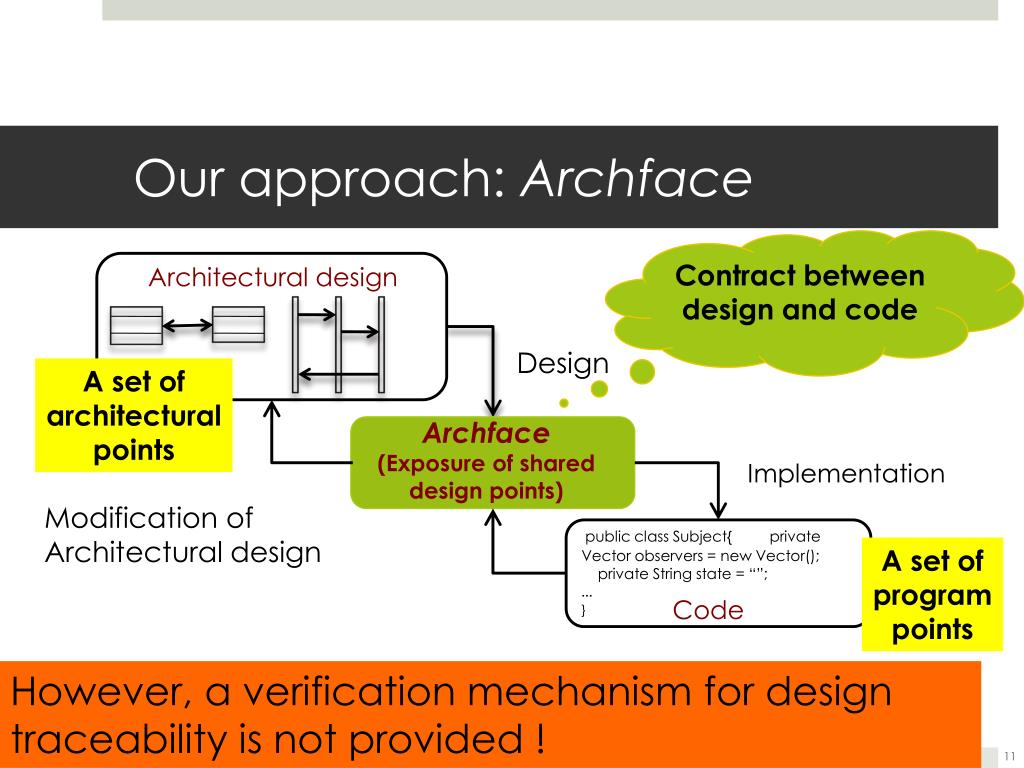

  11. Our approach: Archface Contract between design and code Architectural design Design A set of architectural points Archface (Exposure of shared design points) Implementation Modification of Architectural design A set of program points • public class Subject{
private Vector observers = new Vector(); • private String state = “”; • … } Code NaoyasuUbayashi, Jun Nomura, and Tetsuo Tamai: Archface: A Contract Place Where Architectural Design and Code Meet Together. 32rd ACM/IEEE International Conference on Software Engineering (ICSE 2010), ACM PRESS, pp.75-84 (2010). However, a verification mechanism for design traceability is not provided !

  12. Our proposal :A verification mechanism for design traceability • Basic concept • Archpoint: Architectural point • Points for representing the essence of architectural design. • Architecture represented by inter-component structure and message interaction among components can be designed. • ArchMapping: Archpoint mapping • A mechanism for design traceability • An archpoint such as message send in design is mapped to a program point such as method call in code. • Traceability can be verified by checking whether archpoints are consistently mapped to program points while preserving order. • For this checking, an SMT (Satisfiability Modulo Theories) solver is used.

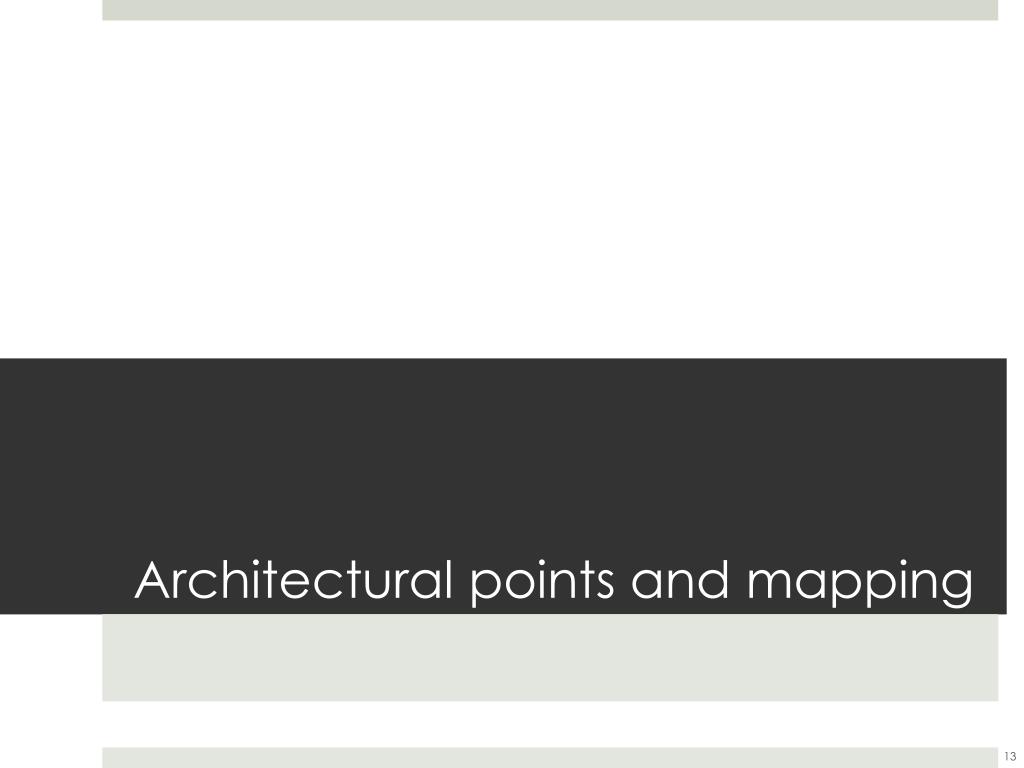

  13. Architectural points and mapping

  14. Archpoint and ArchMapping SMT solver In this talk, Archmapping is introduced from behavioral aspects Bidirectional traceability while preserving appropriate abstraction level

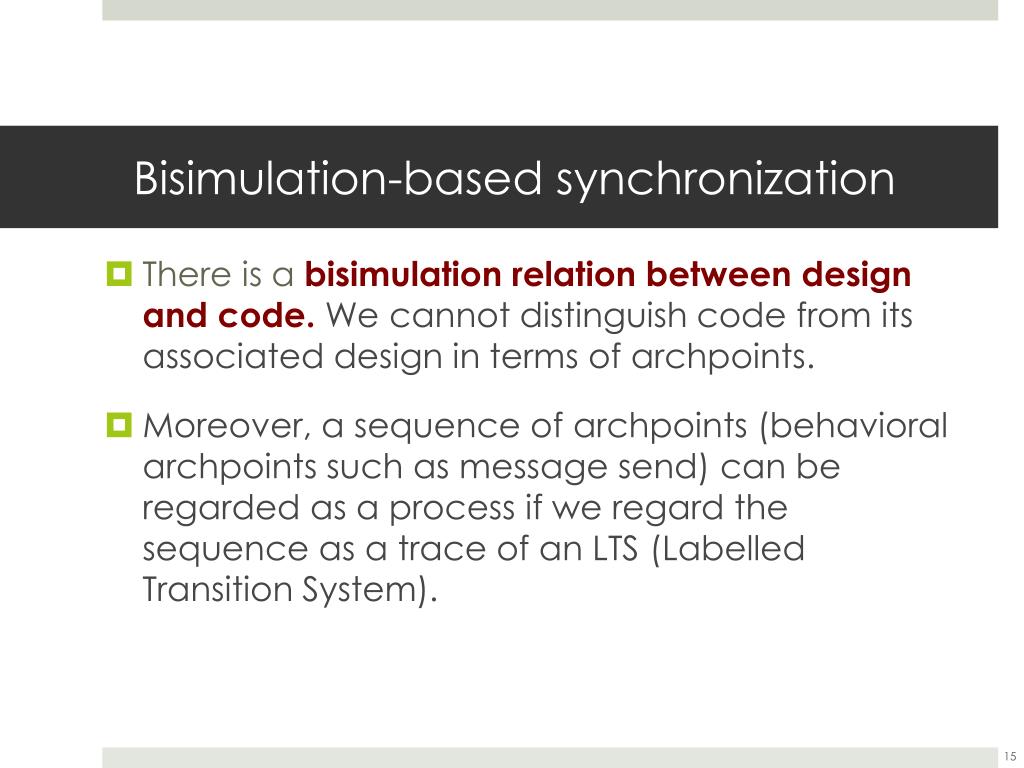

  15. Bisimulation-based synchronization • There is a bisimulation relation between design and code.We cannot distinguish code from its associated design in terms of archpoints. • Moreover, a sequence of archpoints (behavioral archpoints such as message send) can be regarded as a process if we regard the sequence as a trace of an LTS (Labelled Transition System).

  16. Bisimulation-based synchronization Abstraction=Bisimulationin terms of archpoints

  17. Translation from Archfaceinto logical formula cObserver Component interface cSubject Component interface Logical formula AspectJ pointcut Architectural design cObserverPattern Connector interface

  18. Design description Architecture is defined as a set of archpoints and a set of constraints among them. [List 3] Observer_Pattern := sequence(; [predicate] cSubject_setState_message_receive, ; archpoint cSubject_notify_message_send, ; archpoint cSubject_notify_message_receive, ; archpoint iteration(; [predicate] cSubject_update_message_send, ; archpoint cObserver_update_message_receive, ; archpoint cObserver_getState_message_send, ; archpoint cSubject_getState_message_receive)) ; archpoint

  19. Program description A program can be represented as a set of program points and a set of constraints among them. [List 4] Program_List1 := sequence(; [predicate] cSubject_setState_execution, ; program point iteration(; [predicate] cSubject_size_call, ; program point Vector_size_execution, ; program point cSubject_get_call, ; program point Vector_get_execution, ; program point cSubject_update_call, ; program point cObserver_update_execution, ; program point cObserver_getState_call, ; program point cSubject_getState_execution, ; program point cObserver_println_call, ; program point System_out_println_execution)) ; program point

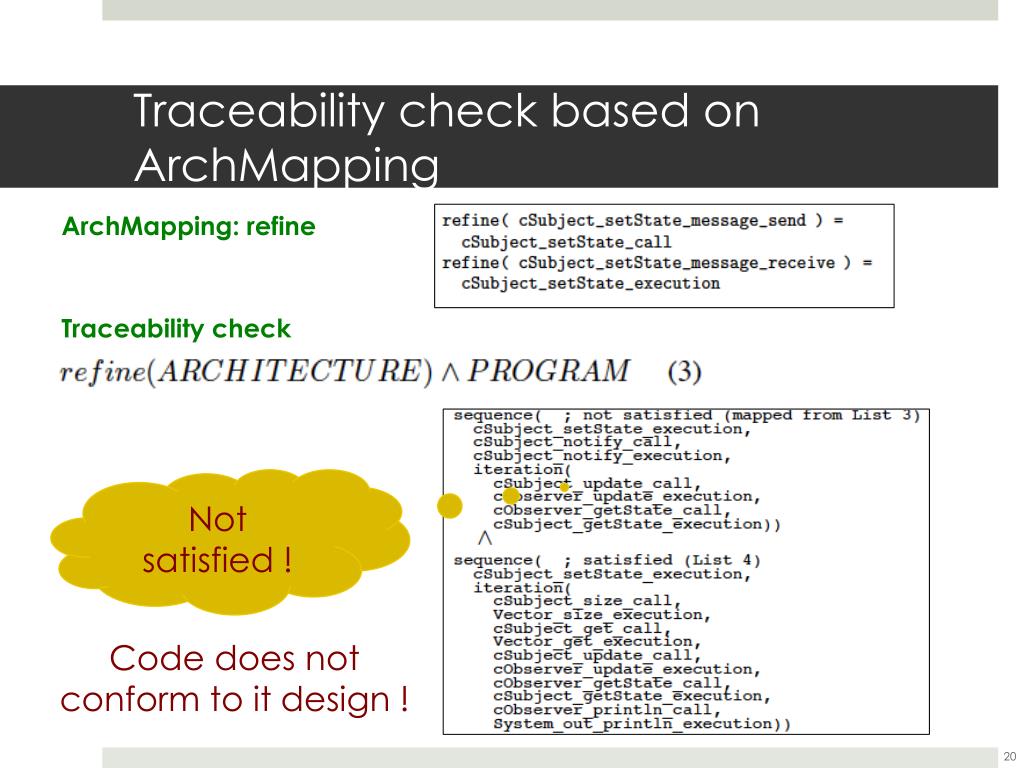

  20. Traceability check based on ArchMapping ArchMapping: refine Traceability check Not satisfied ! Code does not conform to it design !

  21. SMT-based traceability checking

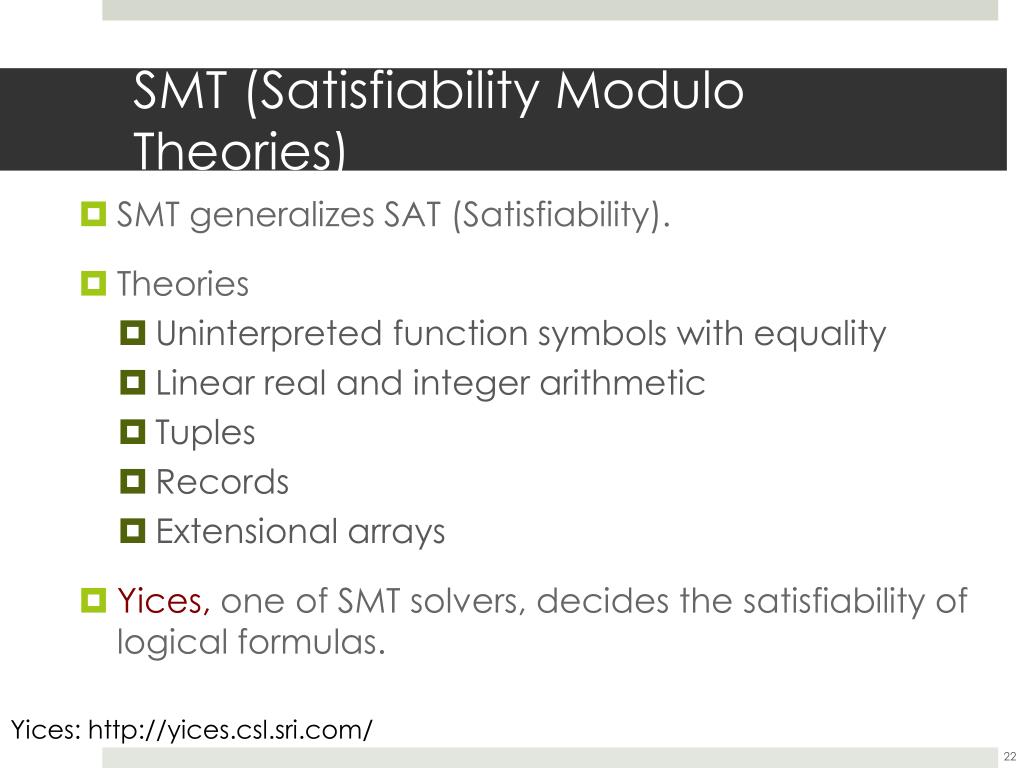

  22. SMT (Satisfiability Modulo Theories) • SMT generalizes SAT (Satisfiability). • Theories • Uninterpreted function symbols with equality • Linear real and integer arithmetic • Tuples • Records • Extensional arrays • Yices, one of SMT solvers, decides the satisfiability of logical formulas. Yices: http://yices.csl.sri.com/

  23. Yiceseccoding Order preservation A sequence of archpoints Is encoded by an array.

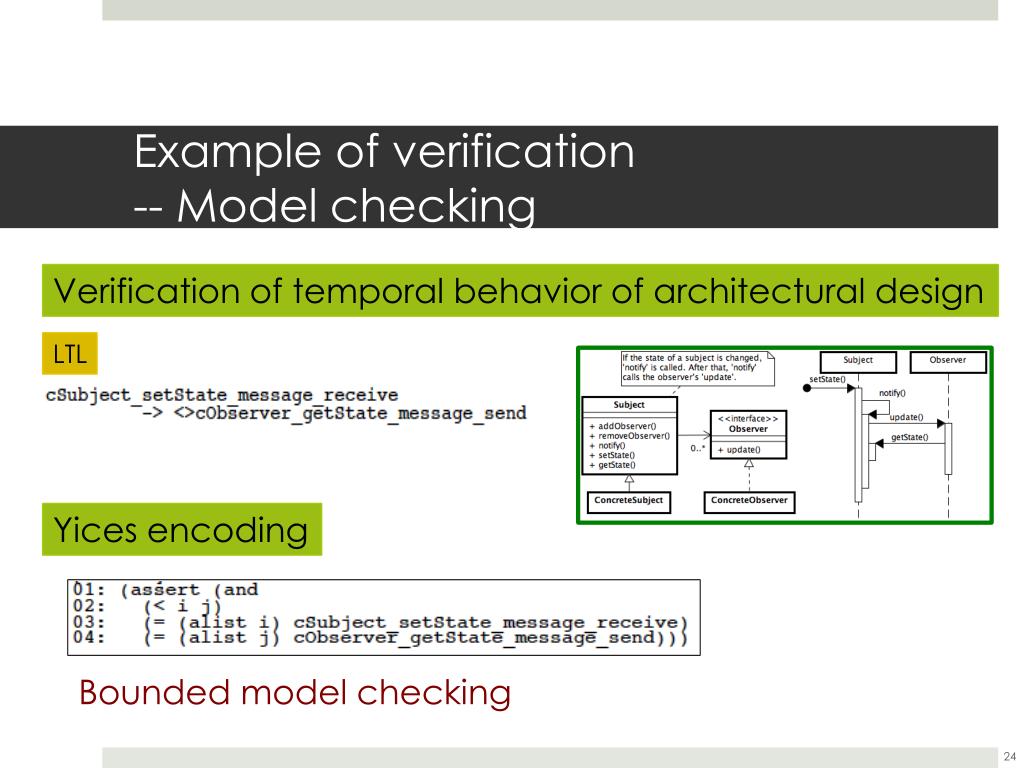

  24. Example of verification-- Model checking Verification of temporal behavior of architectural design LTL Yices encoding Bounded model checking

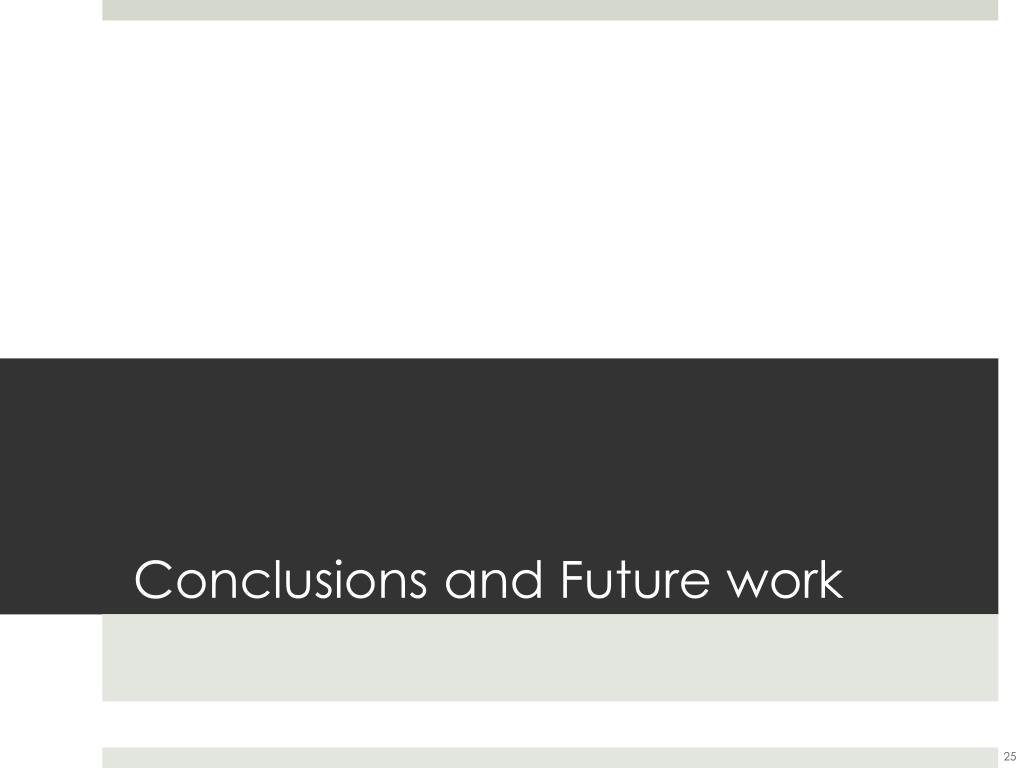

  25. Conclusions and Future work

  26. Summary • The essence of our approach is a fruitful integration of • a design abstraction mechanism based on archpoints, • bidirectional mapping between archpoints and program points, and • SMT-based verification.

  27. Future work • In this paper, we considered only one-to-one mapping between archpoints in design and program points in code. • We think there is a case in which one-to-multiple mapping and multiple-to-one mapping are needed.

  28. Thank you for your attention.
