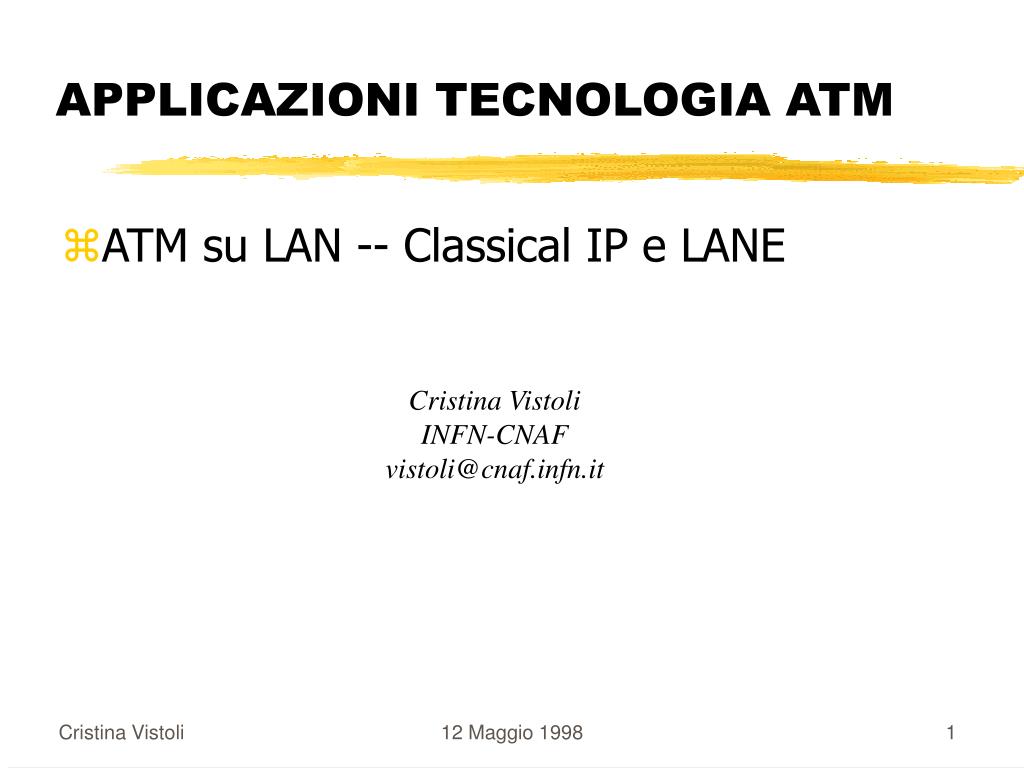

  1. APPLICAZIONI TECNOLOGIA ATM • ATM su LAN -- Classical IP e LANE Cristina Vistoli INFN-CNAF vistoli@cnaf.infn.it 12 Maggio 1998

  2. APPLICAZIONI TECNOLOGIA ATM • RFC 1577 • ATM su LAN Classical IP ATM Network come una IP Subnetwork Router ATM Network circondata la dispositivi di livello 3 : Router 12 Maggio 1998

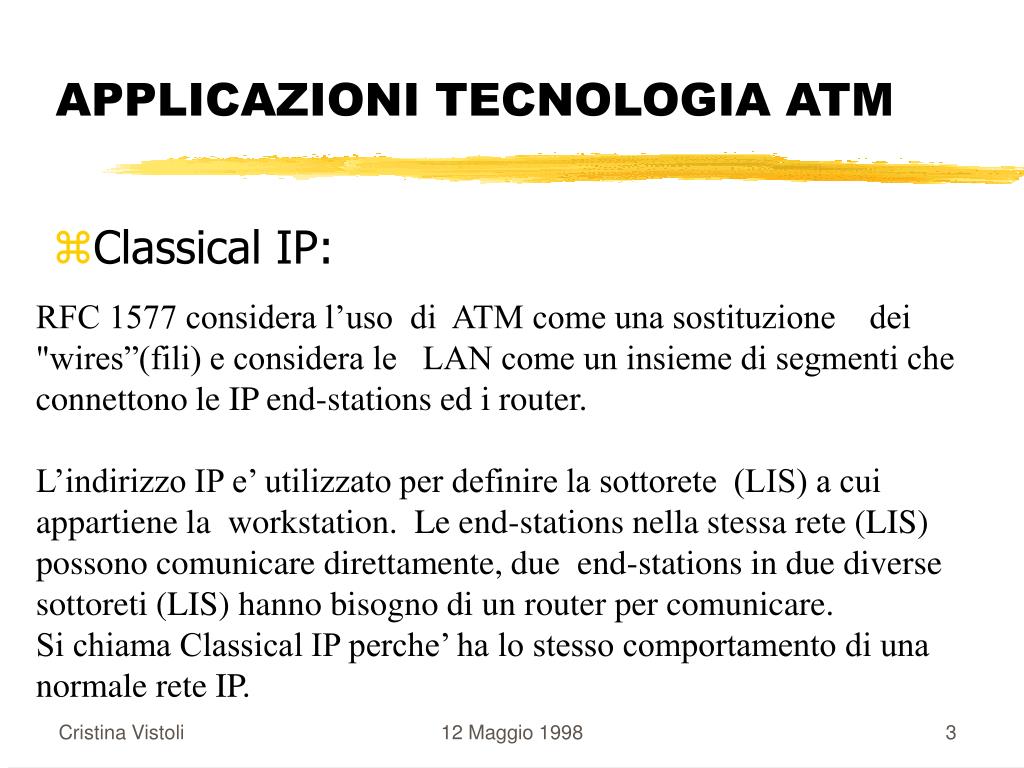

  3. APPLICAZIONI TECNOLOGIA ATM • Classical IP: RFC 1577 considera l’uso di ATM come una sostituzione dei "wires”(fili) e considera le LAN come un insieme di segmenti che connettono le IP end-stations ed i router. L’indirizzo IP e’ utilizzato per definire la sottorete (LIS) a cui appartiene la workstation. Le end-stations nella stessa rete (LIS) possono comunicare direttamente, due end-stations in due diverse sottoreti (LIS) hanno bisogno di un router per comunicare. Si chiama Classical IP perche’ ha lo stesso comportamento di una normale rete IP. 12 Maggio 1998

  4. APPLICAZIONI TECNOLOGIA ATM • Classical IP: Il classical IP puo’ essere configurato sia in presenza di ATM-SVC che ATM-PVC. Nel caso di ATM-SVC, un end-station deve essere configurato come ARP server mentre tutte le stazioni devono essere configurate come client di tale server. ARP: Address Resolution Protocol : indirizzo IP - ATM(MAC) Address 12 Maggio 1998

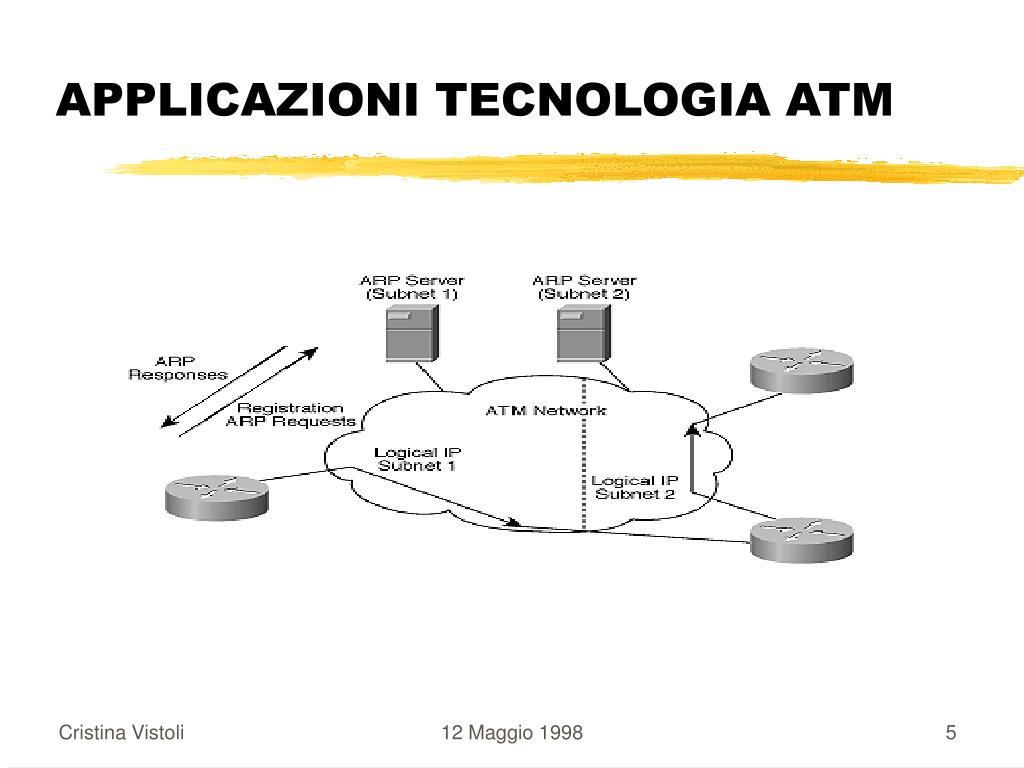

  5. APPLICAZIONI TECNOLOGIA ATM 12 Maggio 1998

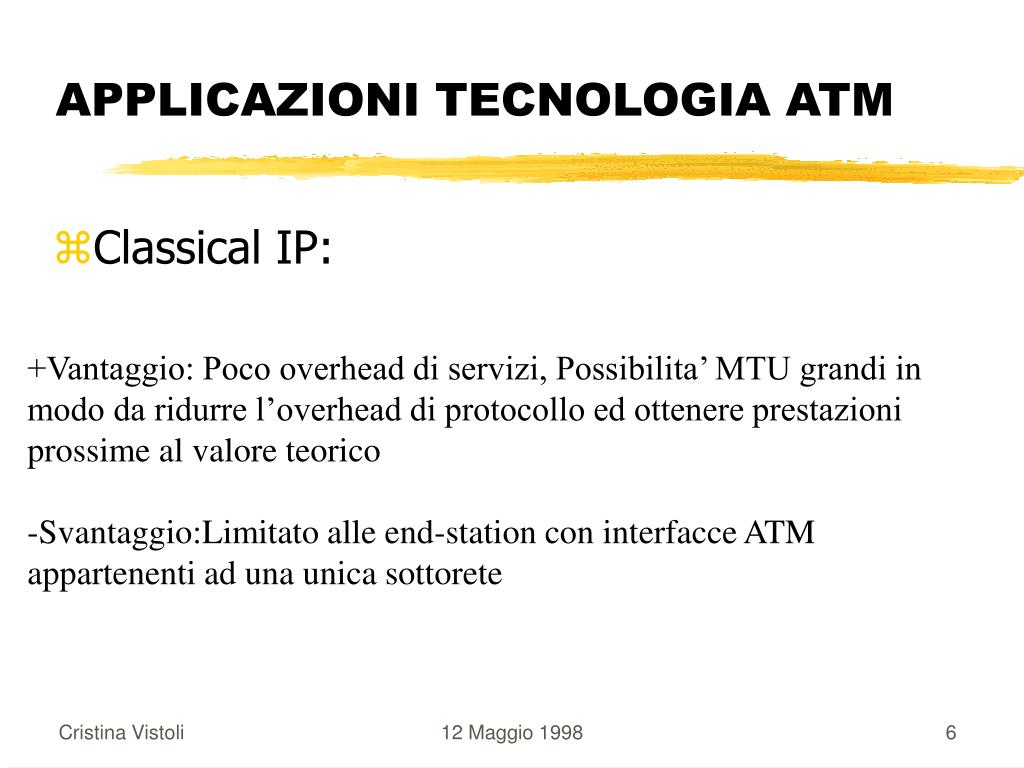

  6. APPLICAZIONI TECNOLOGIA ATM • Classical IP: +Vantaggio: Poco overhead di servizi, Possibilita’ MTU grandi in modo da ridurre l’overhead di protocollo ed ottenere prestazioni prossime al valore teorico -Svantaggio:Limitato alle end-station con interfacce ATM appartenenti ad una unica sottorete 12 Maggio 1998

  7. 12 Maggio 1998

  8. 12 Maggio 1998

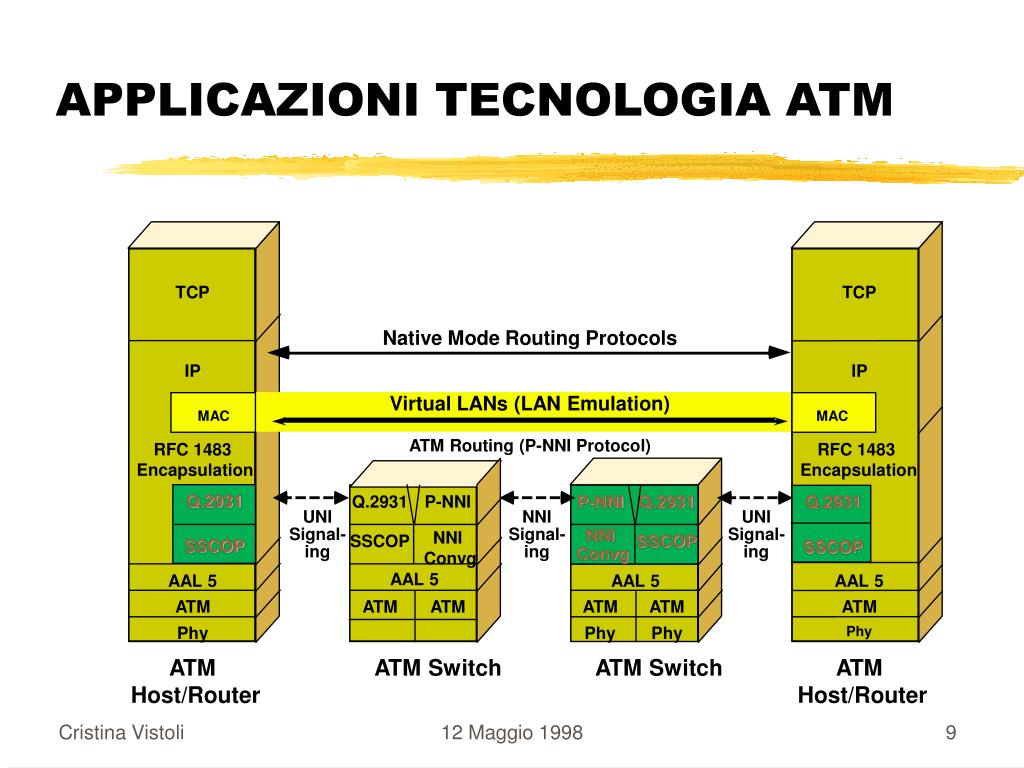

  9. APPLICAZIONI TECNOLOGIA ATM TCP TCP Native Mode Routing Protocols IP IP Virtual LANs (LAN Emulation) MAC MAC ATM Routing (P-NNI Protocol) RFC 1483 Encapsulation RFC 1483 Encapsulation Q.2931 Q.2931 P-NNI P-NNI Q.2931 Q.2931 UNISignal-ing NNISignal-ing UNISignal-ing NNI Convg NNI Convg SSCOP SSCOP SSCOP SSCOP AAL 5 AAL 5 AAL 5 AAL 5 ATM ATM ATM ATM ATM ATM Phy Phy Phy Phy Phy Phy Phy Phy ATM Host/Router ATM Switch ATM Switch ATM Host/Router 12 Maggio 1998

  10. APPLICAZIONI TECNOLOGIA ATM LAN Emulation Service LANE Configuration Server (LECS) Initialization LAN Emulation Server (LES) Address Resolution Broadcast and Unknown Server (BUS) Data Flooding LAN Emulation Clients (LEC) 12 Maggio 1998

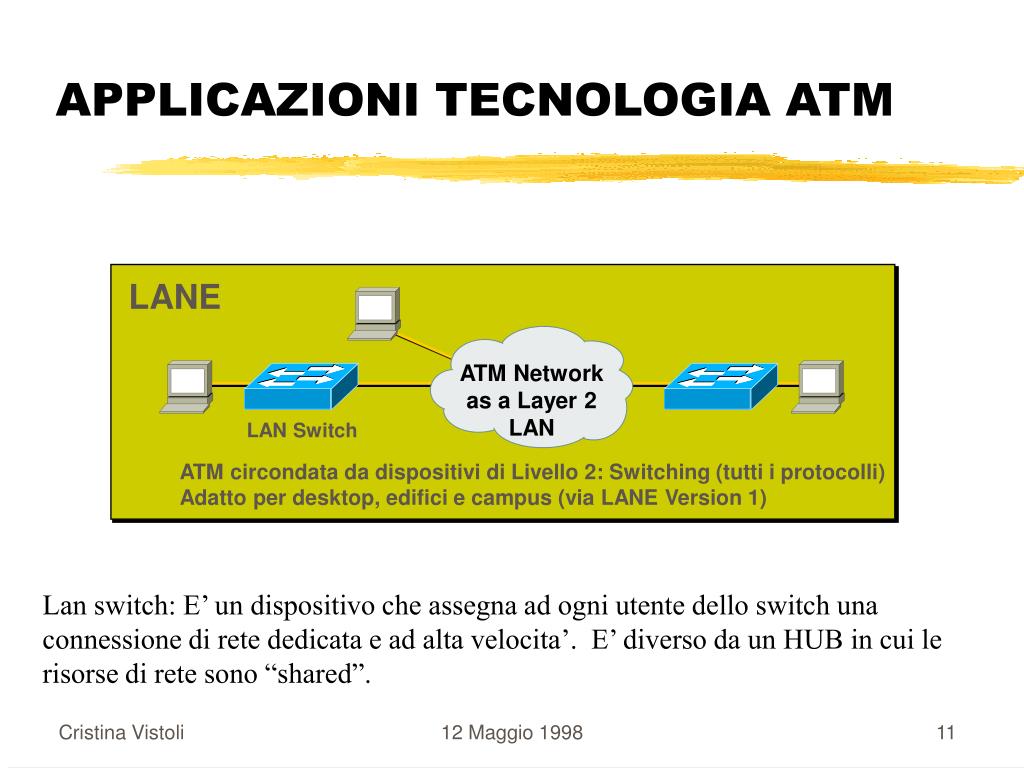

  11. APPLICAZIONI TECNOLOGIA ATM LANE ATM Network as a Layer 2 LAN LAN Switch ATM circondata da dispositivi di Livello 2: Switching (tutti i protocolli)Adatto per desktop, edifici e campus (via LANE Version 1) Lan switch: E’ un dispositivo che assegna ad ogni utente dello switch una connessione di rete dedicata e ad alta velocita’. E’ diverso da un HUB in cui le risorse di rete sono “shared”. 12 Maggio 1998

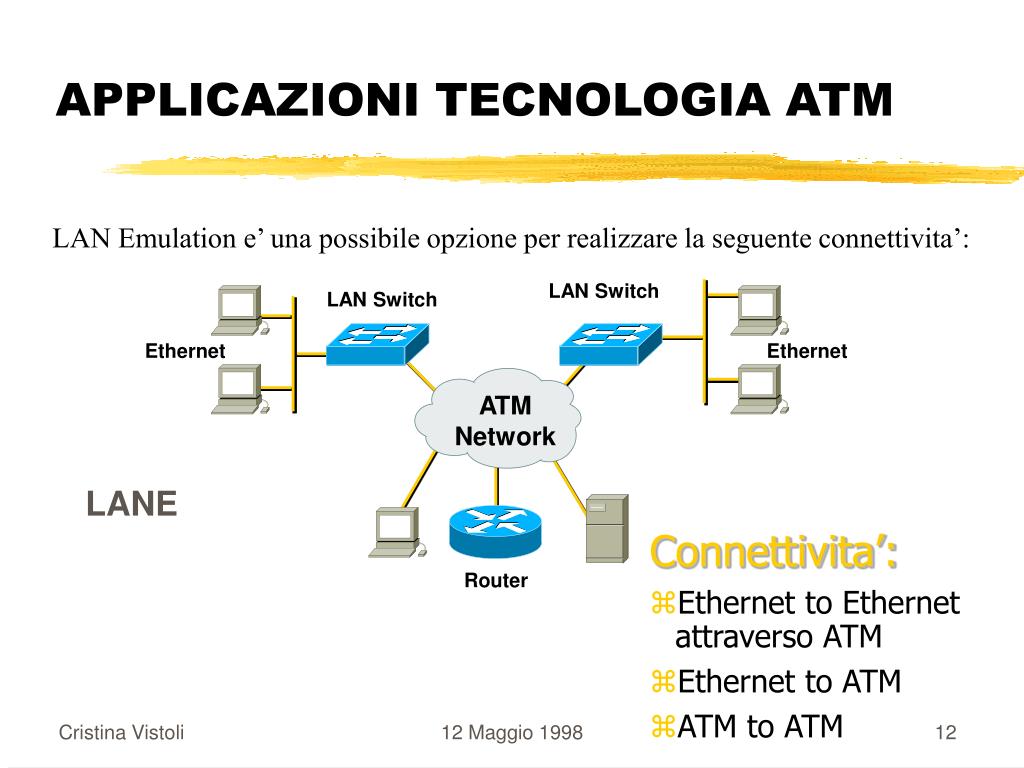

  12. APPLICAZIONI TECNOLOGIA ATM LAN Emulation e’ una possibile opzione per realizzare la seguente connettivita’: LAN Switch LAN Switch Ethernet Ethernet ATM Network LANE Router Connettivita’: • Ethernet to Ethernet attraverso ATM • Ethernet to ATM • ATM to ATM 12 Maggio 1998

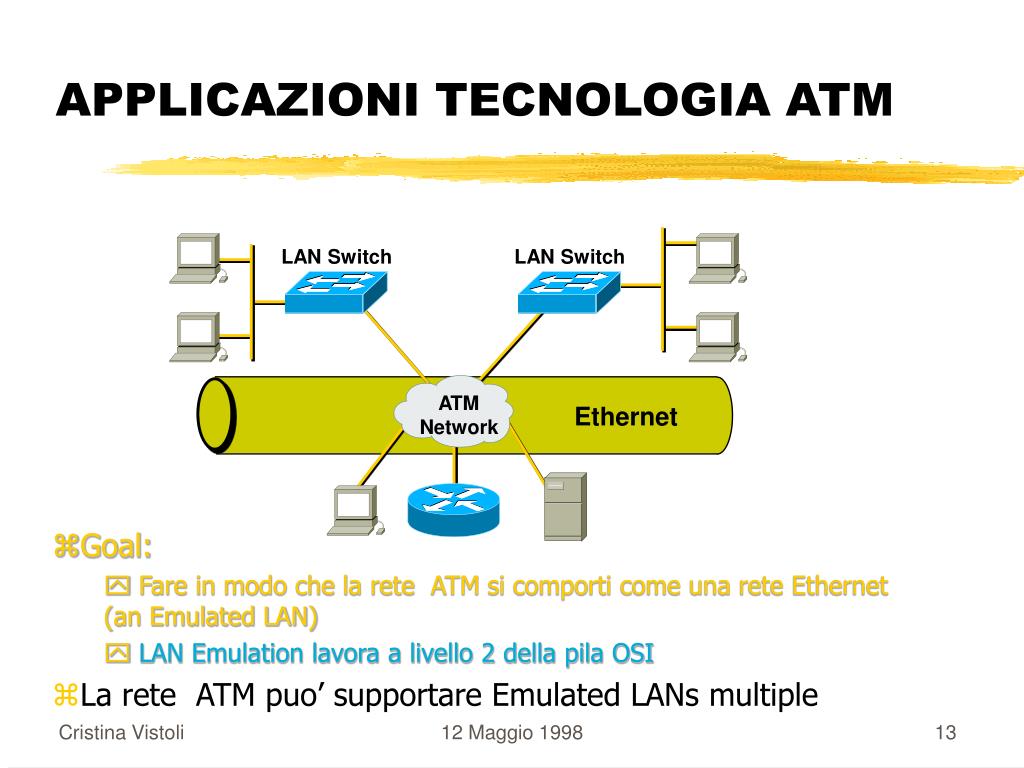

  13. APPLICAZIONI TECNOLOGIA ATM LAN Switch LAN Switch ATM Network Ethernet • Goal: • Fare in modo che la rete ATM si comporti come una rete Ethernet (an Emulated LAN) • LAN Emulation lavora a livello 2 della pila OSI • La rete ATM puo’ supportare Emulated LANs multiple 12 Maggio 1998

  14. APPLICAZIONI TECNOLOGIA ATM LECS LES BUS • LAN emulation services • LEC: LAN Emulation Client • Fornisce address resolution service e data forwarding. Ci possono essere piu’ istanze LEC su un ATM adapter. • LES: Assign individual LEC to different Emulated LANs • BUS: Handle data sent by LEC to: • Broadcast MAC address • Multicast data • Initial Unicast data • Riceve tutti i pacchetti multicast e broadcast e li inoltra a tutti i membri della LAN Emulata • LECS: • Control and coordination function • Registering and resolving • MAC addresses ATM Switches LEC LEC LEC Enterprise WAN 12 Maggio 1998

  15. APPLICAZIONI TECNOLOGIA ATM LECS LES BUS Il protocollo di LAN Emulation fornisce i servizi richiesti dal livello 3 di una rete broadcast e connectionless facendo le conversioni necessarie tra pacchetti della LAN e celle ATM e traducendo indirizzi MAC in indirizzi ATM ATM Switches LEC LEC LEC Enterprise WAN 12 Maggio 1998

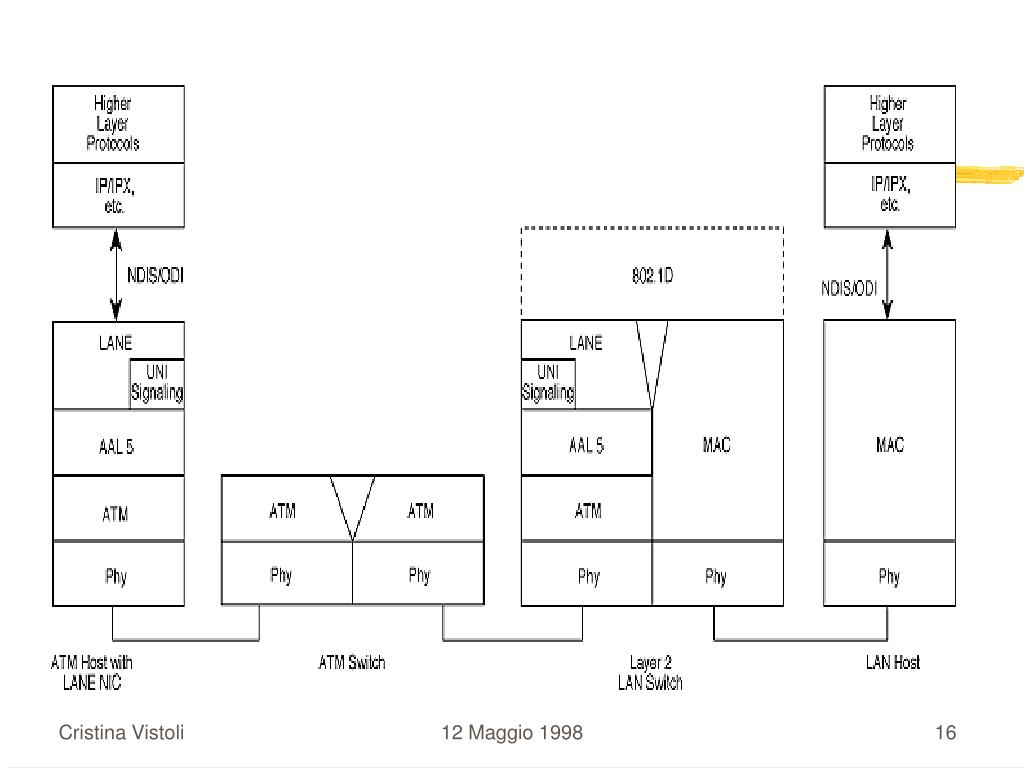

  16. 12 Maggio 1998

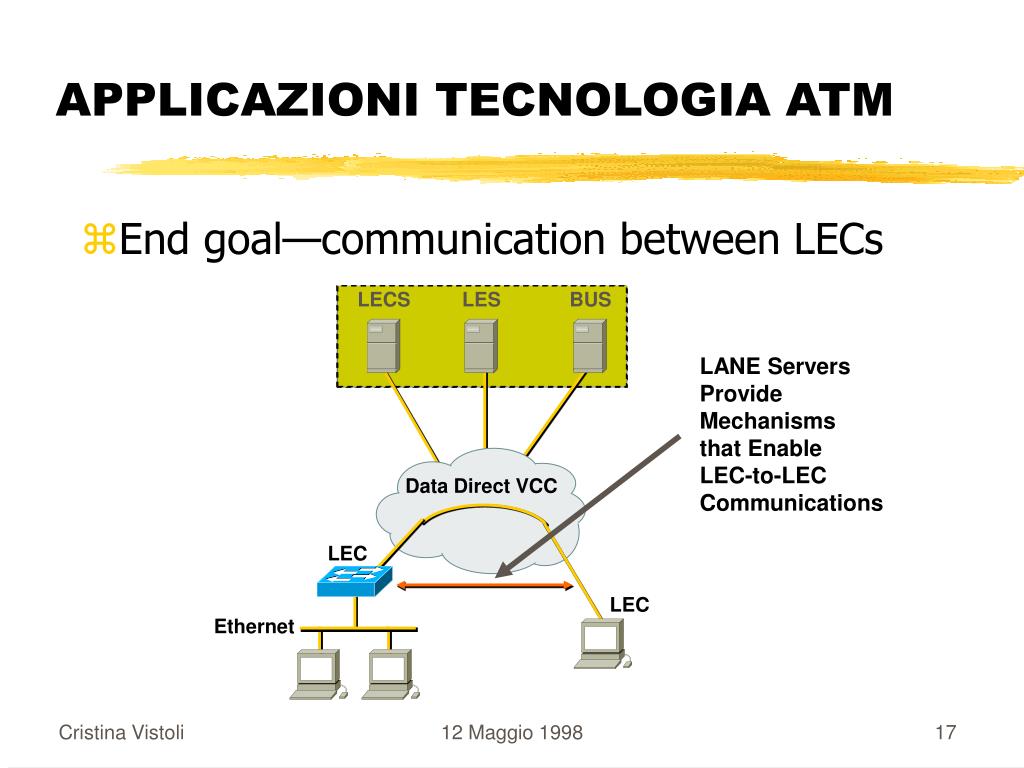

  17. APPLICAZIONI TECNOLOGIA ATM • End goal—communication between LECs LECS LES BUS LANE Servers Provide Mechanisms that Enable LEC-to-LEC Communications Data Direct VCC LEC LEC Ethernet 12 Maggio 1998

  18. APPLICAZIONI TECNOLOGIA ATM • SVC are required to make this a viable technology • Setup of all VCC are automatic LECS LES BUS LEC LEC Ethernet 12 Maggio 1998

  19. In a typical LANE operation, the LEC must first find the LECS to discover which ELAN it should join. Specifically, the LEC is looking for the ATM address of the LECS that serves the desired ELAN. Contacting the LECS The LEC creates a signaling packet with the ATM address of the LECS. It signals a Configure Direct VCC and then issues an LE_CONFIGURE_REQUEST on that VCC. The information in this request is compared with the data in the LECS database. The source ATM address is most commonly used to place a LEC into a specific ELAN. 12 Maggio 1998

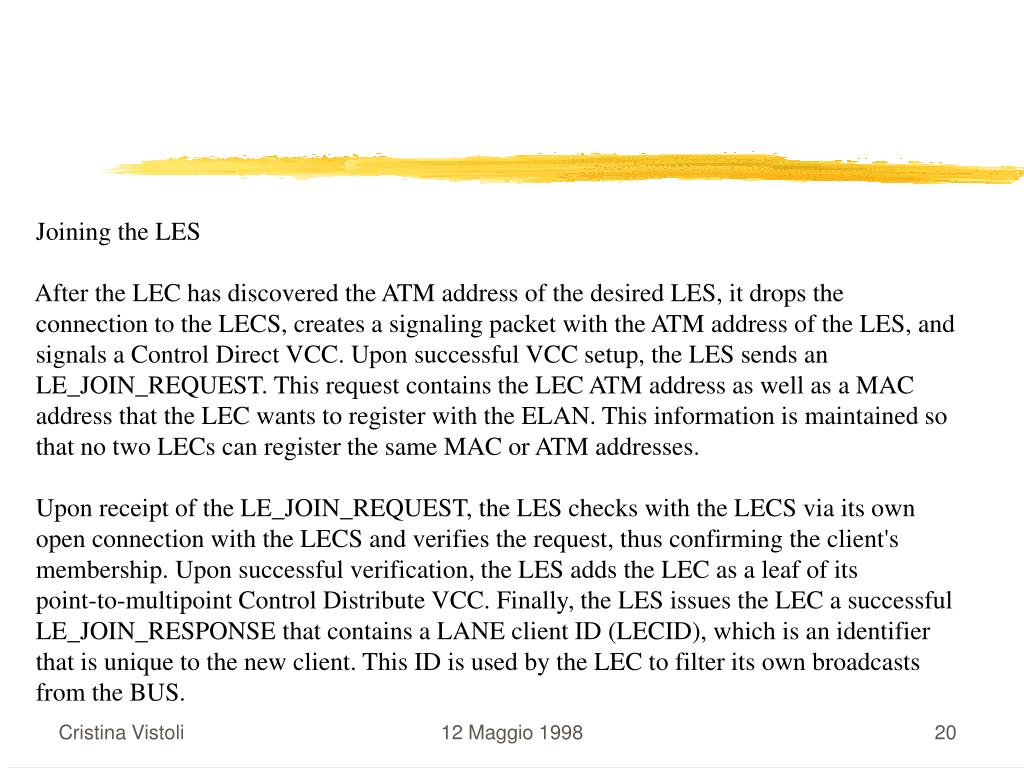

  20. Joining the LES After the LEC has discovered the ATM address of the desired LES, it drops the connection to the LECS, creates a signaling packet with the ATM address of the LES, and signals a Control Direct VCC. Upon successful VCC setup, the LES sends an LE_JOIN_REQUEST. This request contains the LEC ATM address as well as a MAC address that the LEC wants to register with the ELAN. This information is maintained so that no two LECs can register the same MAC or ATM addresses. Upon receipt of the LE_JOIN_REQUEST, the LES checks with the LECS via its own open connection with the LECS and verifies the request, thus confirming the client's membership. Upon successful verification, the LES adds the LEC as a leaf of its point-to-multipoint Control Distribute VCC. Finally, the LES issues the LEC a successful LE_JOIN_RESPONSE that contains a LANE client ID (LECID), which is an identifier that is unique to the new client. This ID is used by the LEC to filter its own broadcasts from the BUS. 12 Maggio 1998

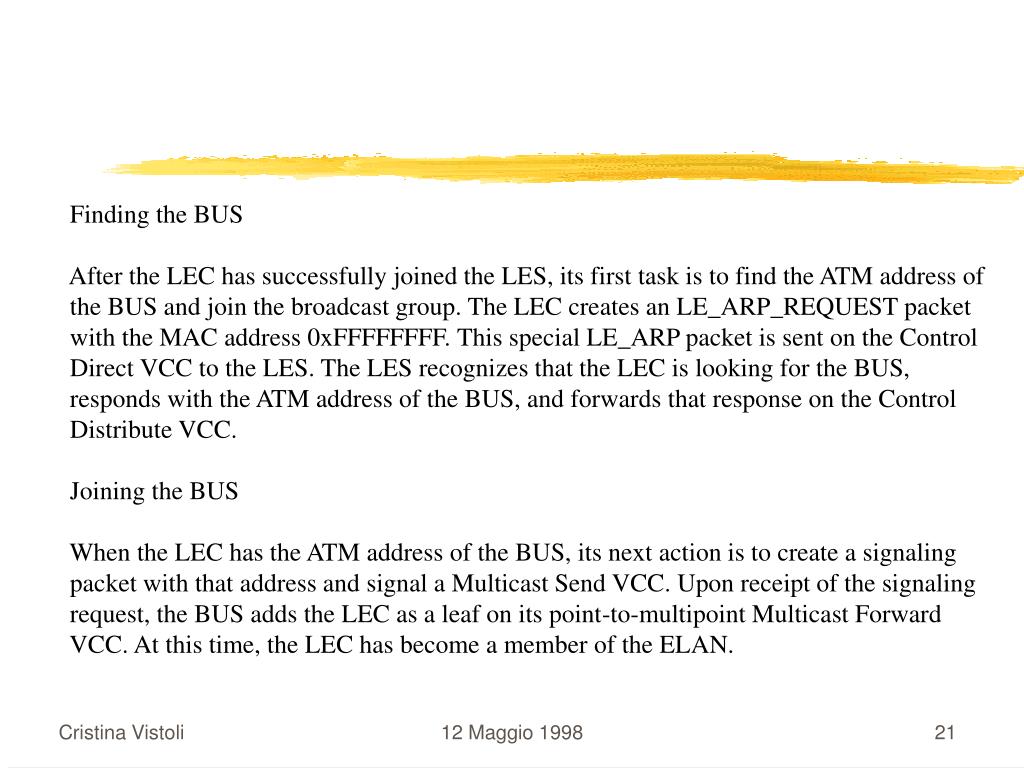

  21. Finding the BUS After the LEC has successfully joined the LES, its first task is to find the ATM address of the BUS and join the broadcast group. The LEC creates an LE_ARP_REQUEST packet with the MAC address 0xFFFFFFFF. This special LE_ARP packet is sent on the Control Direct VCC to the LES. The LES recognizes that the LEC is looking for the BUS, responds with the ATM address of the BUS, and forwards that response on the Control Distribute VCC. Joining the BUS When the LEC has the ATM address of the BUS, its next action is to create a signaling packet with that address and signal a Multicast Send VCC. Upon receipt of the signaling request, the BUS adds the LEC as a leaf on its point-to-multipoint Multicast Forward VCC. At this time, the LEC has become a member of the ELAN. 12 Maggio 1998

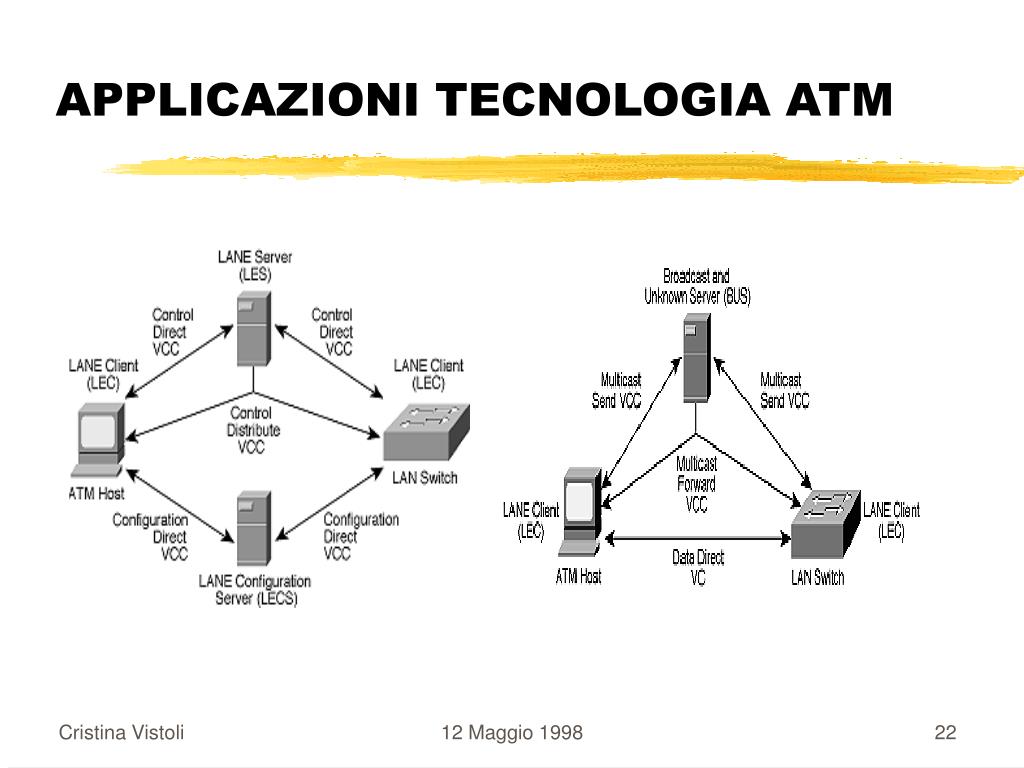

  22. APPLICAZIONI TECNOLOGIA ATM 12 Maggio 1998

  23. APPLICAZIONI TECNOLOGIA ATM Dispositivi critici per il buon funzionamneto della rete Ethernet Switch w/LANE Module Enterprise WAN OC-12 Campus ATM Network Local SwitchedEthernet Servers OC-12 OC-12 Ethernet Switch w/LANE module ATM-Attached Servers 12 Maggio 1998

  24. APPLICAZIONI TECNOLOGIA ATM Constant Bit Rate Circuit Emulation, Voice CBR Guaranteed Service Variable Bit RateFull Traffic CharacterizationReal-Time VBR and Non Real-Time VBR VBR Unspecified Bit RateNo Guarantees, Adequate Buffering Needed UBR Available Bit RateNo Quantitative Guarantees, but Congestion Control Feedback Assures No/Low Cell Loss ABR 12 Maggio 1998

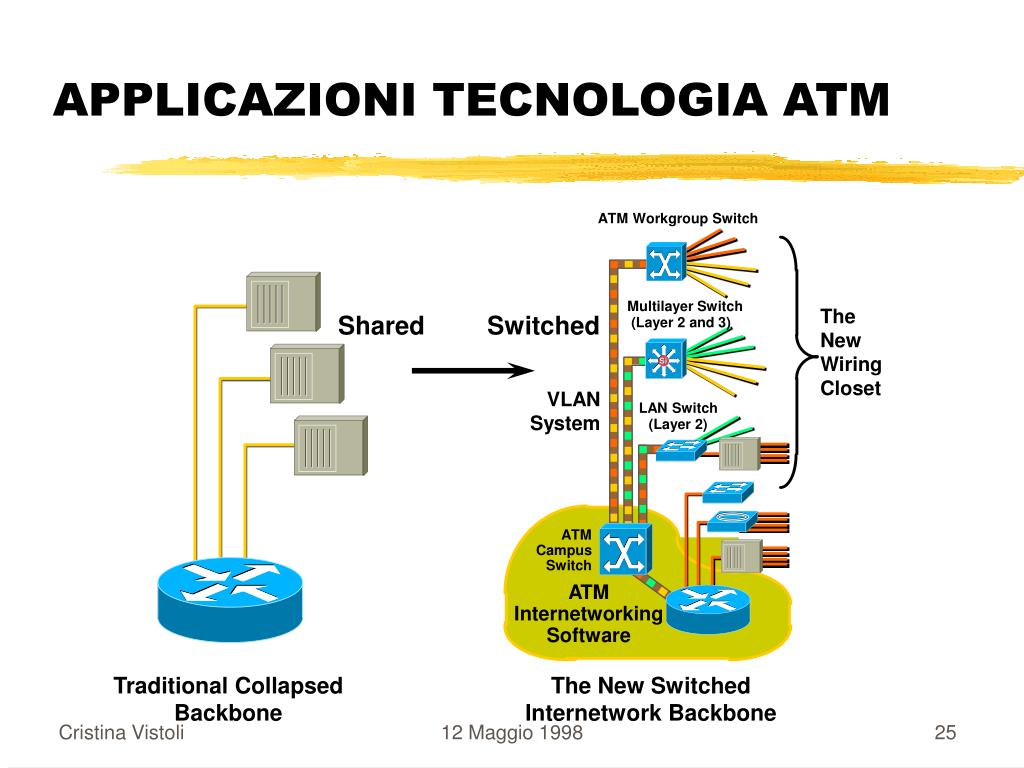

  25. APPLICAZIONI TECNOLOGIA ATM ATM Workgroup Switch Multilayer Switch (Layer 2 and 3) The New Wiring Closet Shared Switched VLAN System LAN Switch (Layer 2) ATMCampusSwitch Hub ATM Internetworking Software Traditional CollapsedBackbone The New Switched Internetwork Backbone 12 Maggio 1998

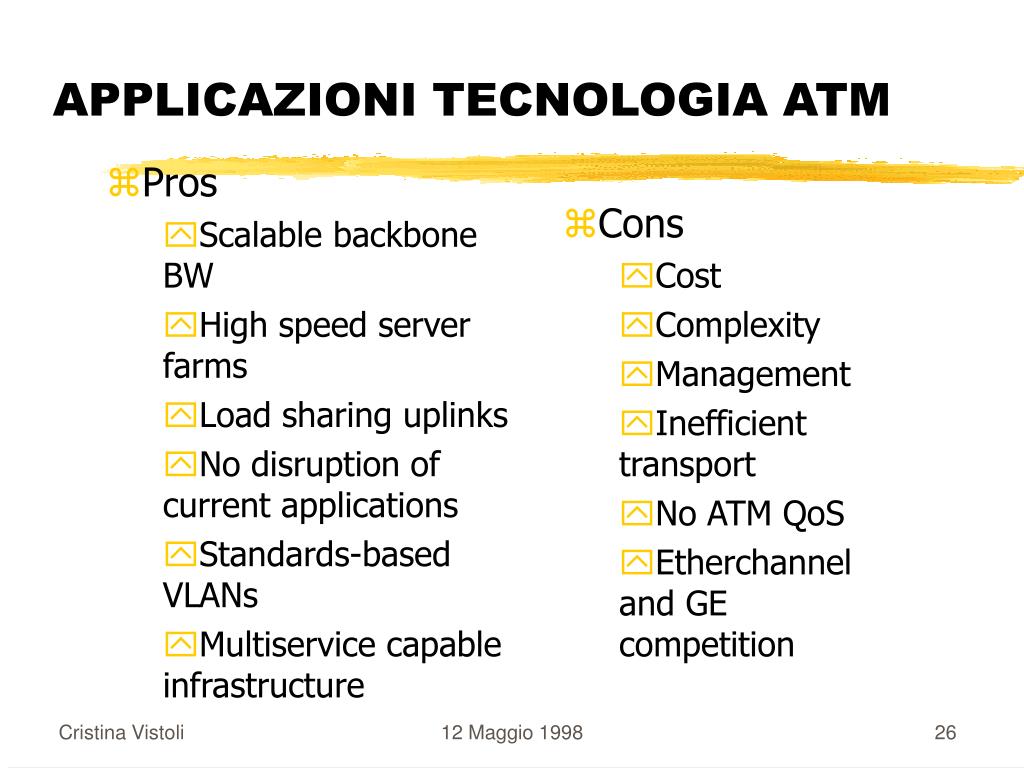

  26. APPLICAZIONI TECNOLOGIA ATM • Pros • Scalable backbone BW • High speed server farms • Load sharing uplinks • No disruption of current applications • Standards-based VLANs • Multiservice capable infrastructure • Cons • Cost • Complexity • Management • Inefficient transport • No ATM QoS • Etherchannel and GE competition 12 Maggio 1998

  27. 12 Maggio 1998

  28. APPLICAZIONI TECNOLOGIA ATM Prospettive: • LAN Emulation v2.0 • LAN Emulation UNI (LUNI) v2.0 • LAN Emulation NNI (LNNI) 12 Maggio 1998

  29. APPLICAZIONI TECNOLOGIA ATM LUNI v2.0 Goals • Migliore efficienza • Riduce l’uso di VC via optional LCC multiplexing • distribuzione dei multicast piu’ efficente • Migliore uso di ATM QOS • ABR e signaling 4.0 • Supporto IEEE 802.1q/p Class of Service (CoS) 12 Maggio 1998

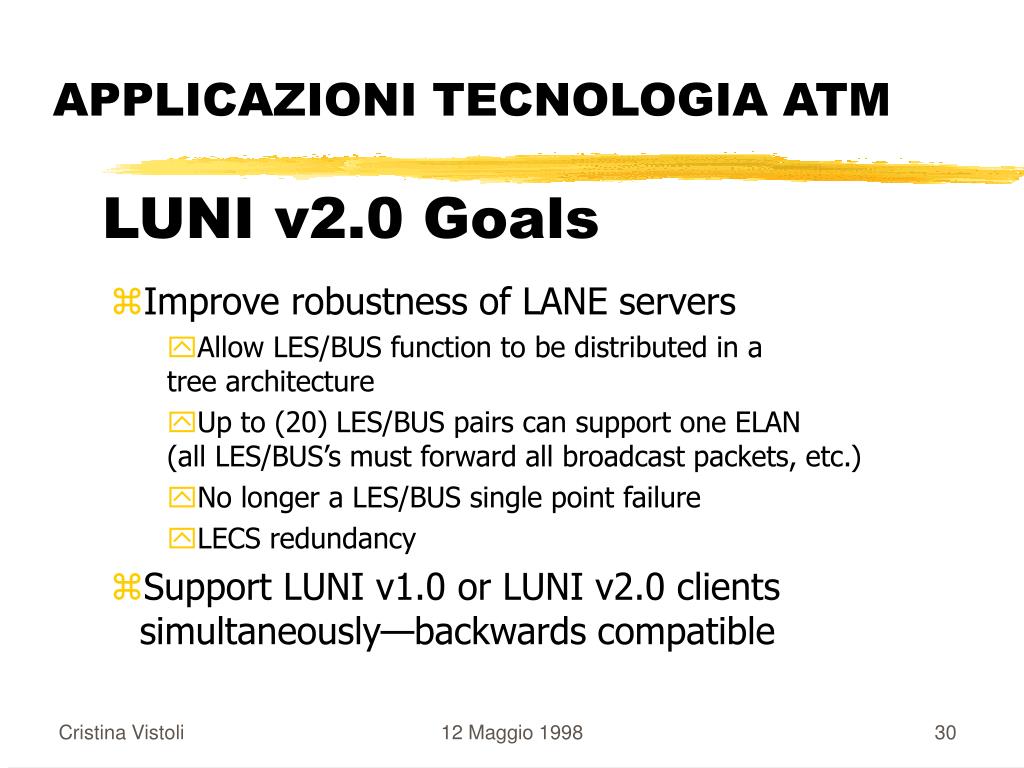

  30. APPLICAZIONI TECNOLOGIA ATM LUNI v2.0 Goals • Improve robustness of LANE servers • Allow LES/BUS function to be distributed in a tree architecture • Up to (20) LES/BUS pairs can support one ELAN (all LES/BUS’s must forward all broadcast packets, etc.) • No longer a LES/BUS single point failure • LECS redundancy • Support LUNI v1.0 or LUNI v2.0 clients simultaneously—backwards compatible 12 Maggio 1998
