CPE 619: Modeling and Analysis of Computer and Communications Systems Aleksandar Milenković The LaCASA Laboratory Electrical and Computer Engineering Department The University of Alabama in Huntsville http://www.ece.uah.edu/~milenka http://www.ece.uah.edu/~lacasa

Topics • Background • About the Course

Professor Background • Dr. Aleksandar Milenković • Research interests • LaCASA laboratory: www.ece.uah.edu/~lacasa • Computer architecture: hardware/software structures for secure, cost-effective, and performance-effective computation and communication • Performance analysis and evaluation • Low-power deeply embedded systems (sensor networks) • Teaching interests • CPE 631: Advanced Computer Systems Architecture • CPE 619: Modeling and Analysis of Computer and Communication Systems • CPE 527: VLSI Design • CPE 323: Introduction to Embedded Computer Systems

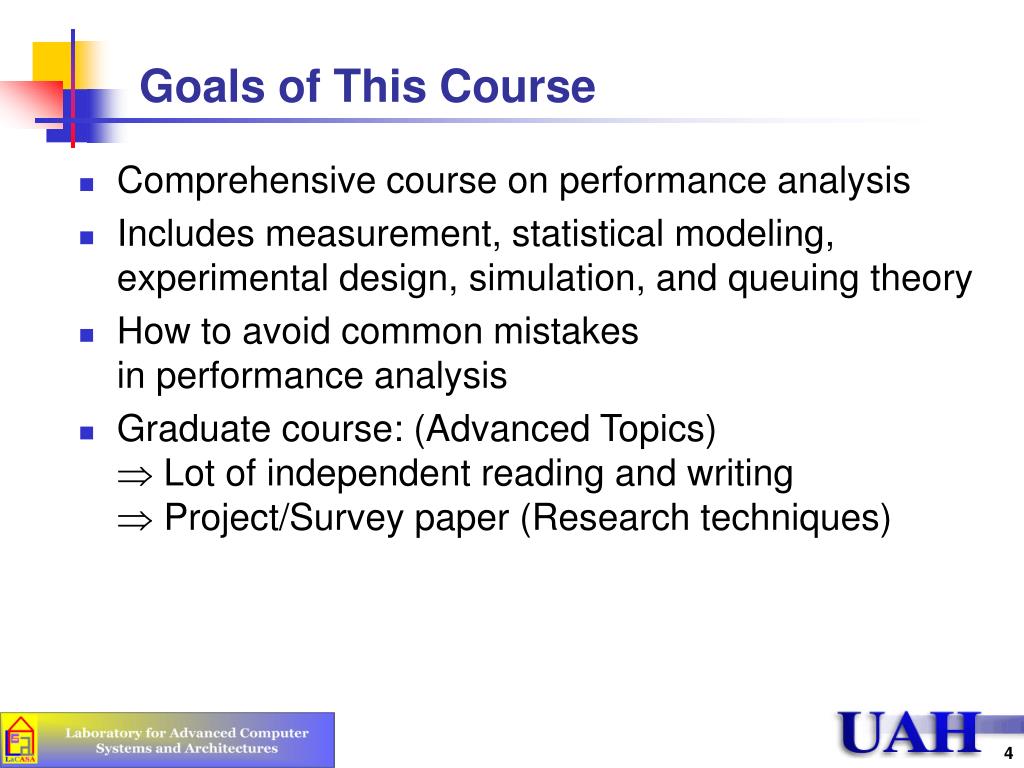

Goals of This Course • Comprehensive course on performance analysis • Includes measurement, statistical modeling, experimental design, simulation, and queuing theory • How to avoid common mistakes in performance analysis • Graduate course: (Advanced Topics)  Lot of independent reading and writing Project/Survey paper (Research techniques)

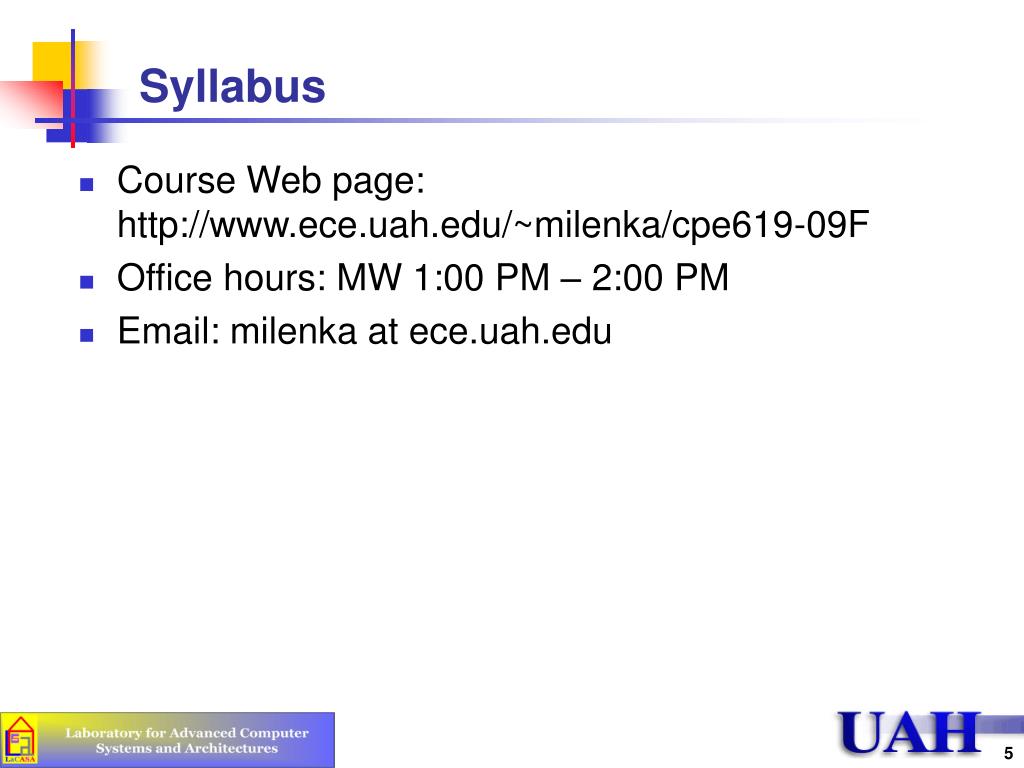

Syllabus • Course Web page: http://www.ece.uah.edu/~milenka/cpe619-09F • Office hours: MW 1:00 PM – 2:00 PM • Email: milenka at ece.uah.edu

Text Books • Required • Raj Jain. The Art of Computer Systems Performance Analysis: Techniques for Experimental Design, Measurement, Simulation, and Modeling, John Wiley and Sons, Inc., New York, NY, 1991. ISBN:0471503363 • Other • Edward D. Lazowska, John Zahorjan, G. Scott Graham, and Kenneth C. Sevcik. Computer System Analysis Using Queueing Network Models. NOTE: Available for free on the WEB at http://www.cs.washington.edu/homes/lazowska/qsp/ • David J. Lilja. Measuring Computer Performance: A Practitioner's Guide, Cambridge University Press, New York, NY, 2000.

Objectives: What You Will Learn • Specifying performance requirements • Evaluating design alternatives • Comparing two or more systems • Determining the optimal value of a parameter (system tuning) • Finding the performance bottleneck (bottleneck identification) • Characterizing the load on the system (workload characterization) • Determining the number and sizes of components (capacity planning) • Predicting the performance at future loads (forecasting)

Basic Terms • System: Any collection of hardware, software, and firmware • Metrics: Criteria used to evaluate the performance of the system components • Workloads: The requests made by the users of the system

Main Parts of the Course • Part I: An Overview of Performance Evaluation • Part II: Measurement Techniques and Tools • Part III: Probability Theory and Statistics • Part IV: Experimental Design and Analysis • Part V: Simulation • Part VI: Queuing Theory

Part I: An Overview of Performance Evaluation • Introduction • Common Mistakes and How To Avoid Them • Selection of Techniques and Metrics

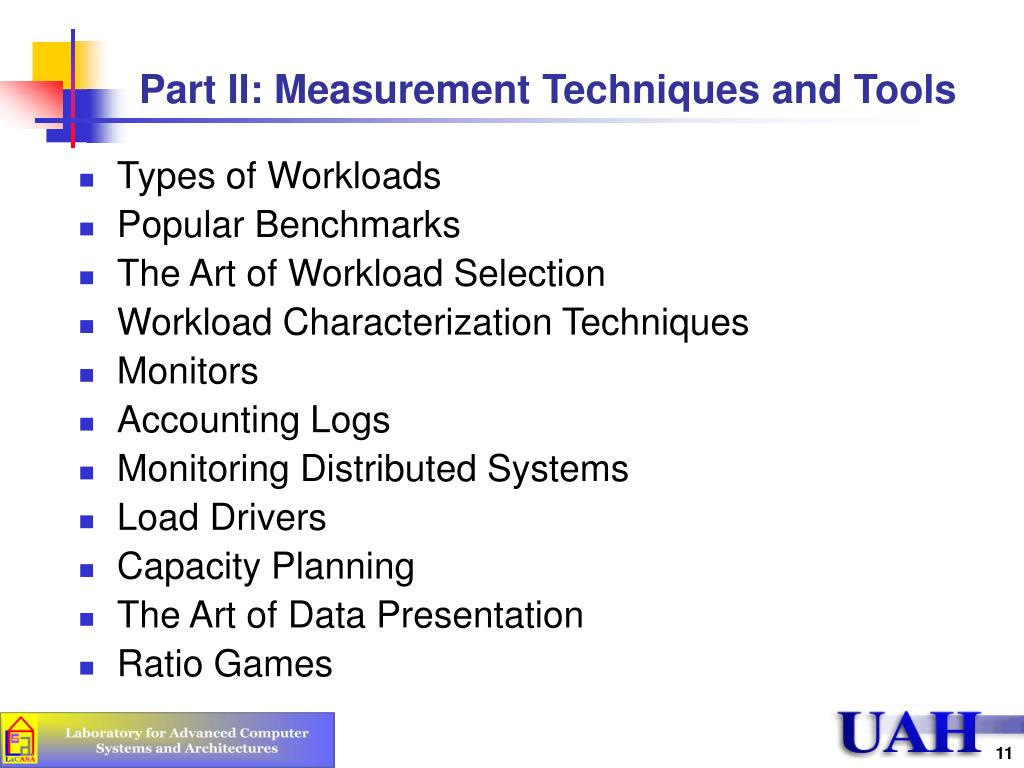

Part II: Measurement Techniques and Tools • Types of Workloads • Popular Benchmarks • The Art of Workload Selection • Workload Characterization Techniques • Monitors • Accounting Logs • Monitoring Distributed Systems • Load Drivers • Capacity Planning • The Art of Data Presentation • Ratio Games

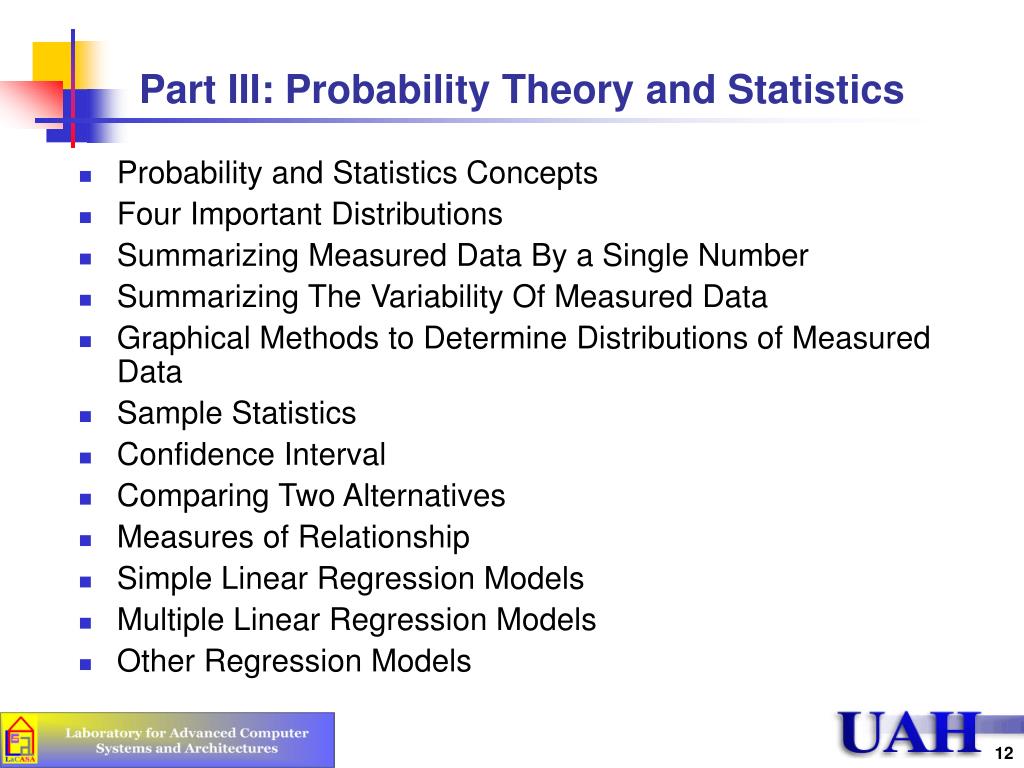

Part III: Probability Theory and Statistics • Probability and Statistics Concepts • Four Important Distributions • Summarizing Measured Data By a Single Number • Summarizing The Variability Of Measured Data • Graphical Methods to Determine Distributions of Measured Data • Sample Statistics • Confidence Interval • Comparing Two Alternatives • Measures of Relationship • Simple Linear Regression Models • Multiple Linear Regression Models • Other Regression Models

Part IV: Experimental Design and Analysis • Introduction to Experimental Design • 2k Factorial Designs • 2kr Factorial Designs with Replications • 2k-p Fractional Factorial Designs • One Factor Experiments • Two Factors Full Factorial Design without Replications • Two Factors Full Factorial Design with Replications • General Full Factorial Designs With k Factors

Part V: Simulation • Introduction to Simulation • Types of Simulations • Model Verification and Validation • Analysis of Simulation Results • Random-Number Generation • Testing Random-Number Generators • Random-Variate Generation • Commonly Used Distributions

Part VI: Queuing Theory • Introduction to Queueing Theory • Analysis of A Single Queue • Queuing Networks • Operational Laws • Mean Value Analysis and Related Techniques • Convolution Algorithm • Advanced Techniques

Grading Policy • Prerequisites • MA 585 or EE 500 (soft requirement) • General knowledge about computer systems • Interest in performance evaluation • Grading • Homeworks 20% • Midterm Exam 25% • Final Exam 25% • Project 25% • Class participation 5%

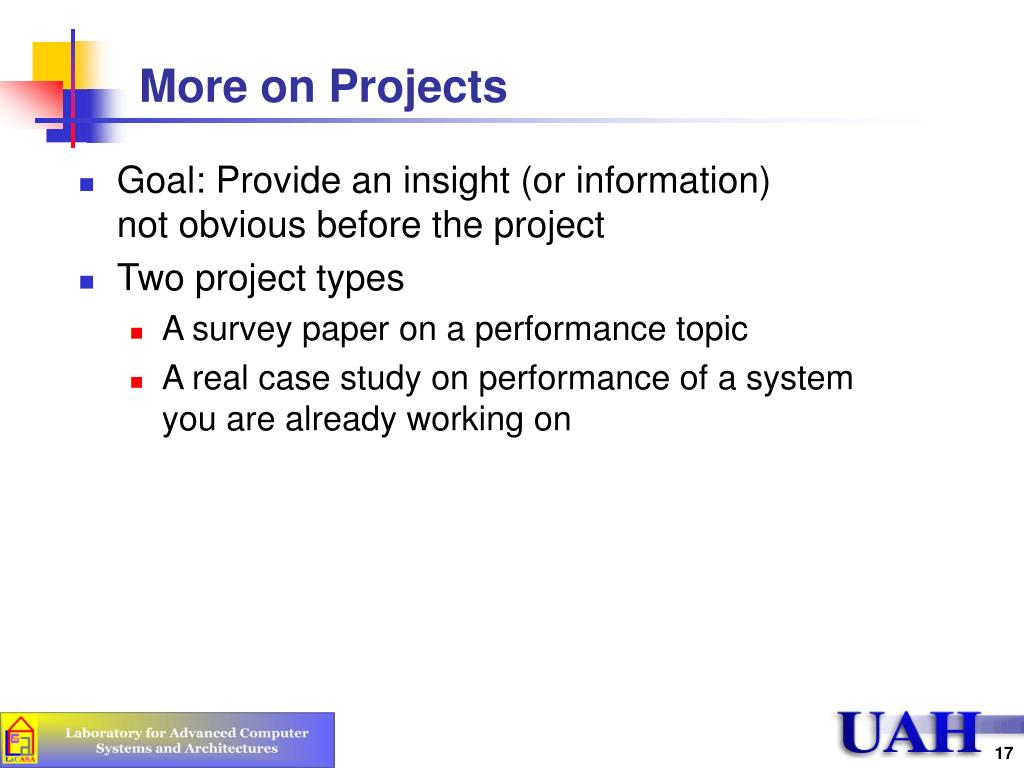

More on Projects • Goal: Provide an insight (or information) not obvious before the project • Two project types • A survey paper on a performance topic • A real case study on performance of a system you are already working on

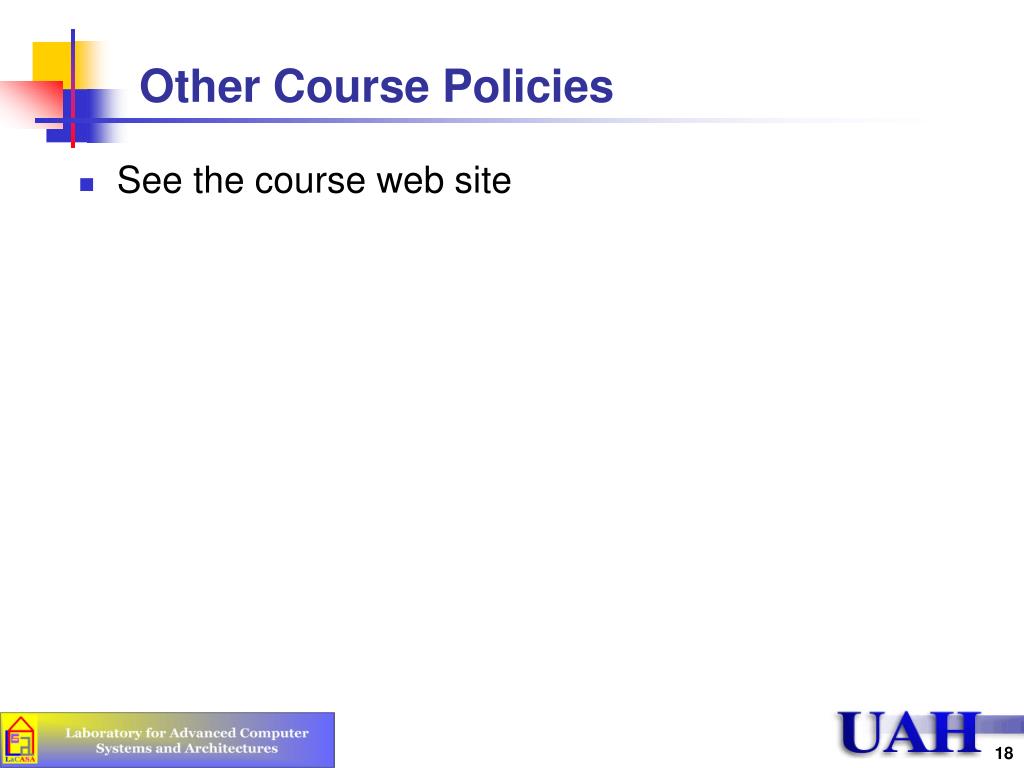

Other Course Policies • See the course web site

Introduction

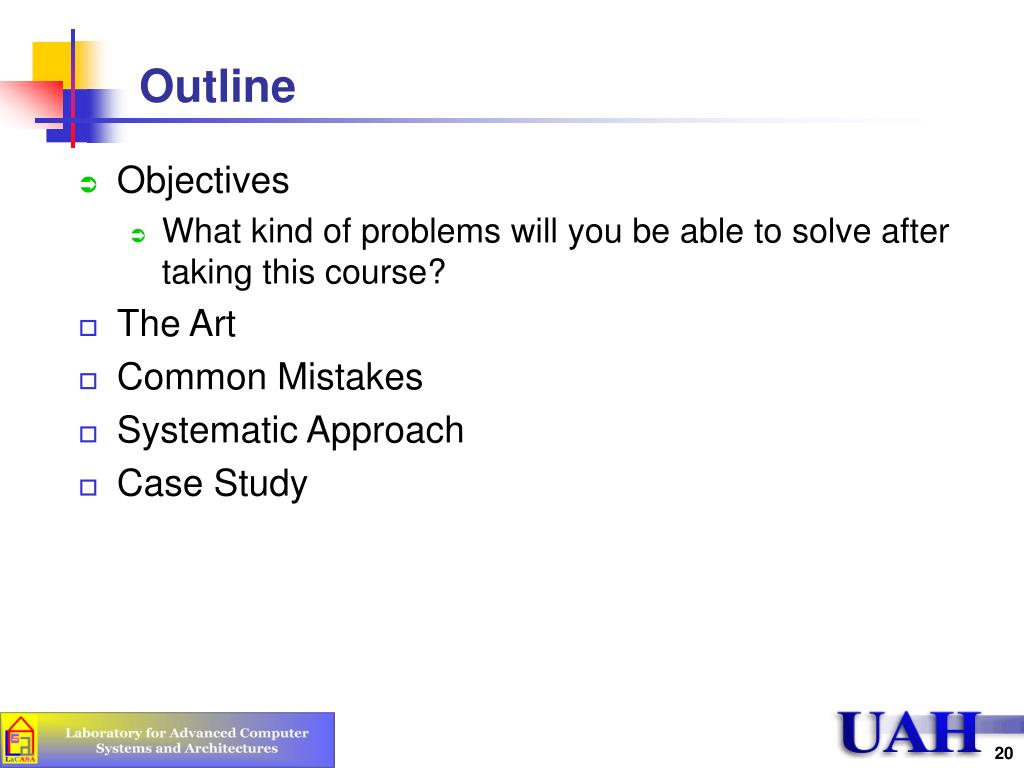

Outline • Objectives • What kind of problems will you be able to solve after taking this course? • The Art • Common Mistakes • Systematic Approach • Case Study

Objectives (1 of 6) • Select appropriate evaluation techniques, performance metrics and workloads for a system • Techniques: measurement, simulation, analytic modeling • Metrics: criteria to study performance (ex: response time) • Workloads: requests by users/applications to the system • Example: What performance metrics should you use for the following systems? • a) Two disk drives • b) Two transactions processing systems • c) Two packet retransmission algorithms

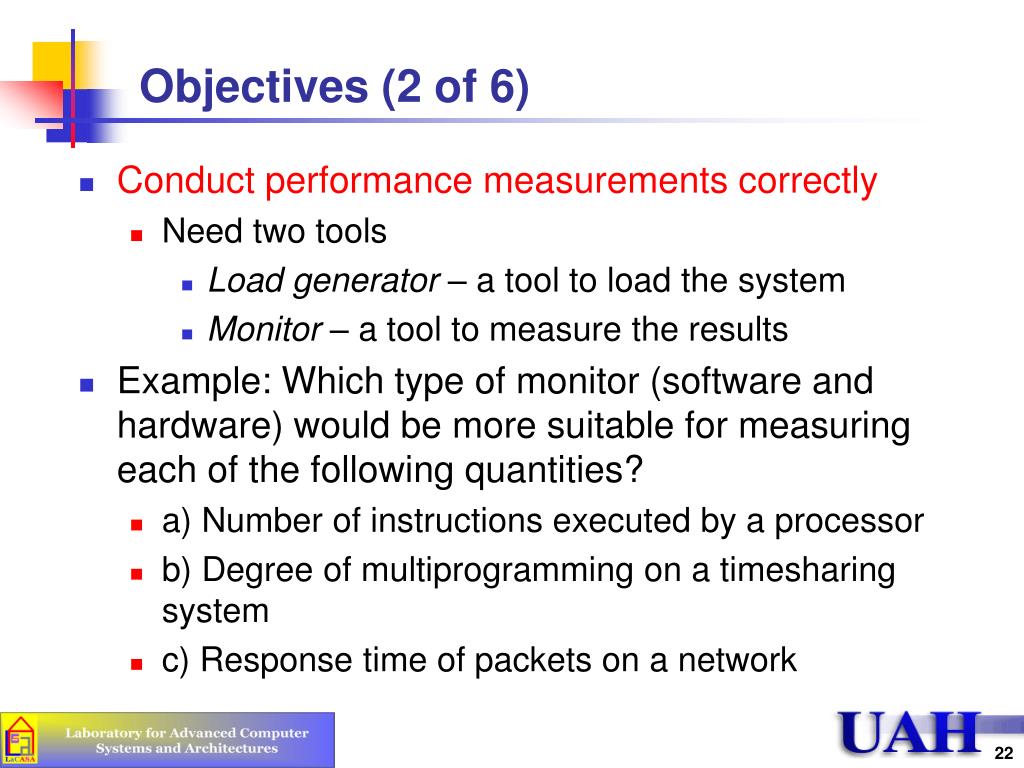

Objectives (2 of 6) • Conduct performance measurements correctly • Need two tools • Load generator – a tool to load the system • Monitor – a tool to measure the results • Example: Which type of monitor (software and hardware) would be more suitable for measuring each of the following quantities? • a) Number of instructions executed by a processor • b) Degree of multiprogramming on a timesharing system • c) Response time of packets on a network

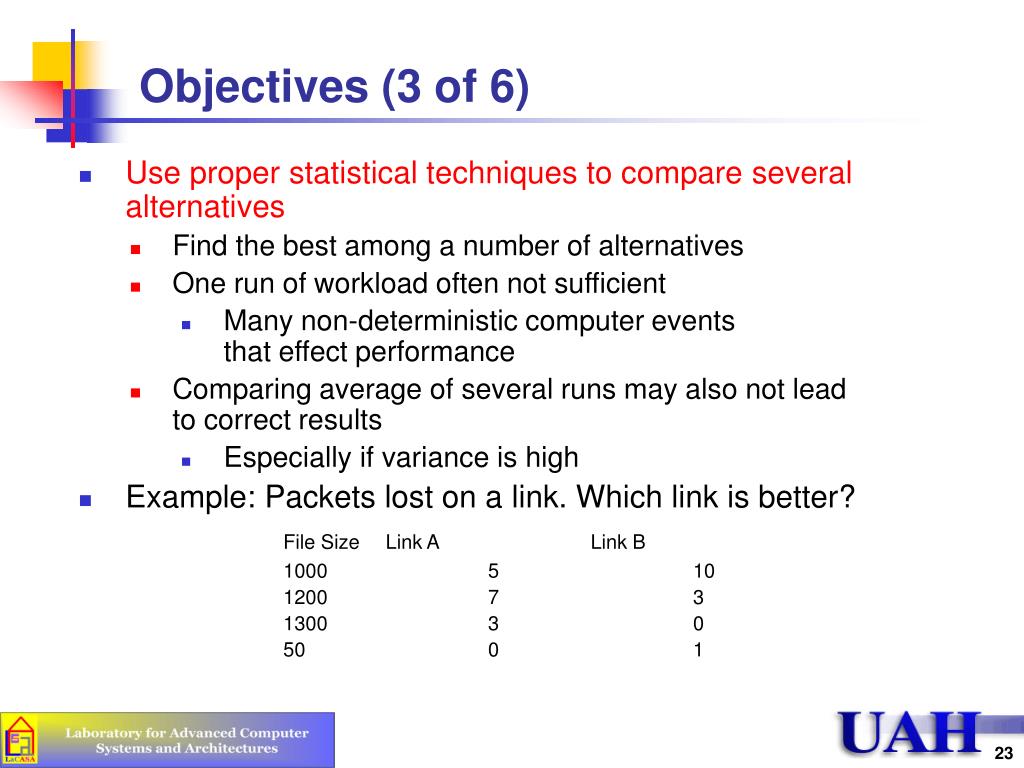

Objectives (3 of 6) • Use proper statistical techniques to compare several alternatives • Find the best among a number of alternatives • One run of workload often not sufficient • Many non-deterministic computer events that effect performance • Comparing average of several runs may also not lead to correct results • Especially if variance is high • Example: Packets lost on a link. Which link is better? File Size Link A Link B 1000 5 10 1200 7 3 1300 3 0 50 0 1

Objectives (4 of 6) • Design measurement and simulation experiments to provide the most information with the least effort • Often many factors that affect performance. Separate out the effects of individual factors. • Example: The performance of a system depends upon three factors: • A) garbage collection technique: G1, G2, or none • B) type of workload: editing, compiling, AI • C) type of CPU: P2, P4, Sparc • How many experiments are needed? How can the performance of each factor be estimated?

Objectives (5 of 6) • Perform simulations correctly • Select correct language, seeds for random numbers, length of simulation run, and analysis • Before all of that, may need to validate simulator • Example: To compare the performance of two cache replacement algorithms: • A) What type of simulation model should be used? • B) How long should the simulation be run? • C) What can be done to get the same accuracy with a shorter run? • D) How can one decide if the random-number generator in the simulation is a good generator?

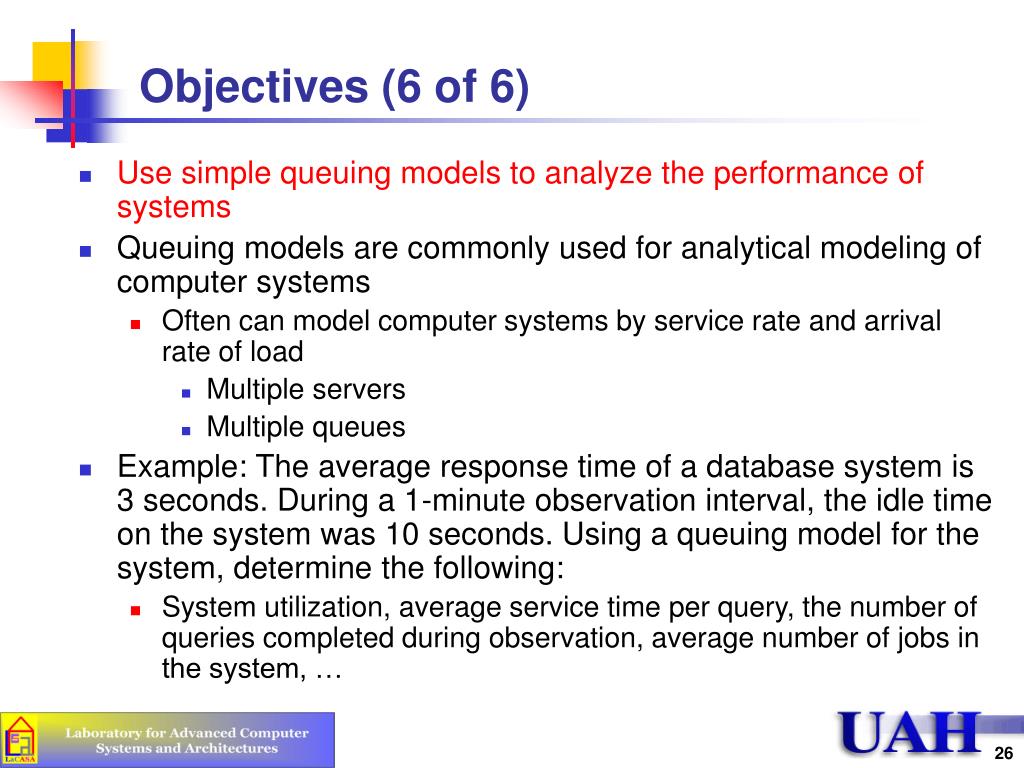

Objectives (6 of 6) • Use simple queuing models to analyze the performance of systems • Queuing models are commonly used for analytical modeling of computer systems • Often can model computer systems by service rate and arrival rate of load • Multiple servers • Multiple queues • Example: The average response time of a database system is 3 seconds. During a 1-minute observation interval, the idle time on the system was 10 seconds. Using a queuing model for the system, determine the following: • System utilization, average service time per query, the number of queries completed during observation, average number of jobs in the system, …

Outline • Objectives • The Art • Common Mistakes • Systematic Approach • Case Study

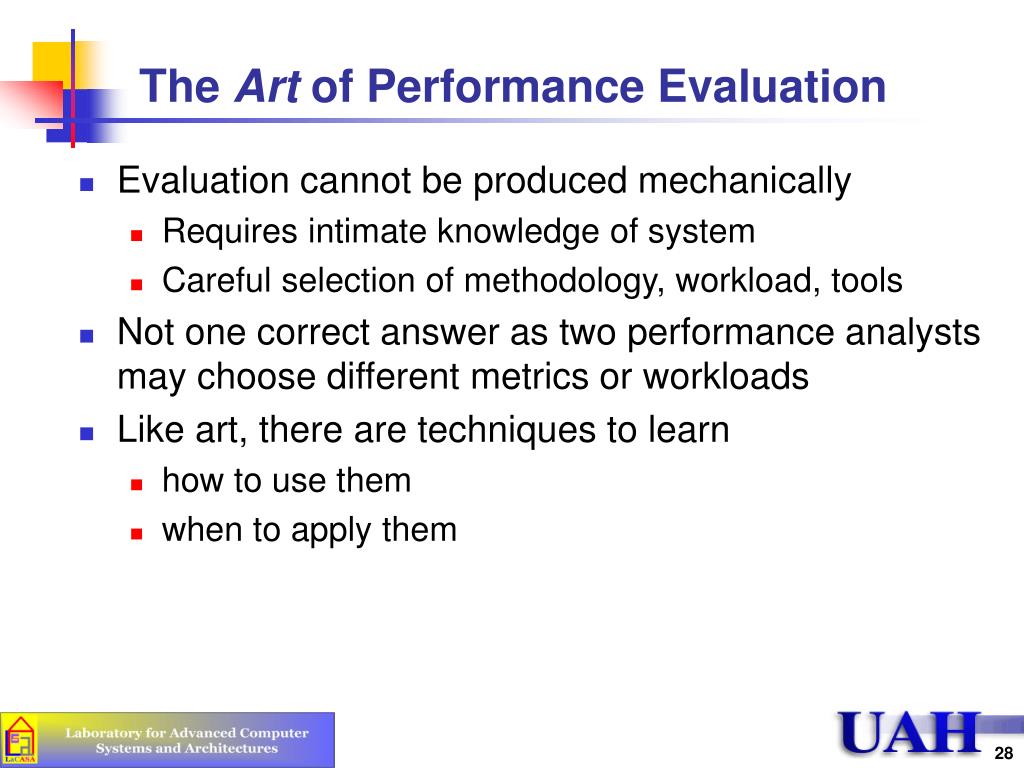

The Art of Performance Evaluation • Evaluation cannot be produced mechanically • Requires intimate knowledge of system • Careful selection of methodology, workload, tools • Not one correct answer as two performance analysts may choose different metrics or workloads • Like art, there are techniques to learn • how to use them • when to apply them

Example: Comparing Two Systems • Two systems, two workloads, measure transactions per second • Which is better?

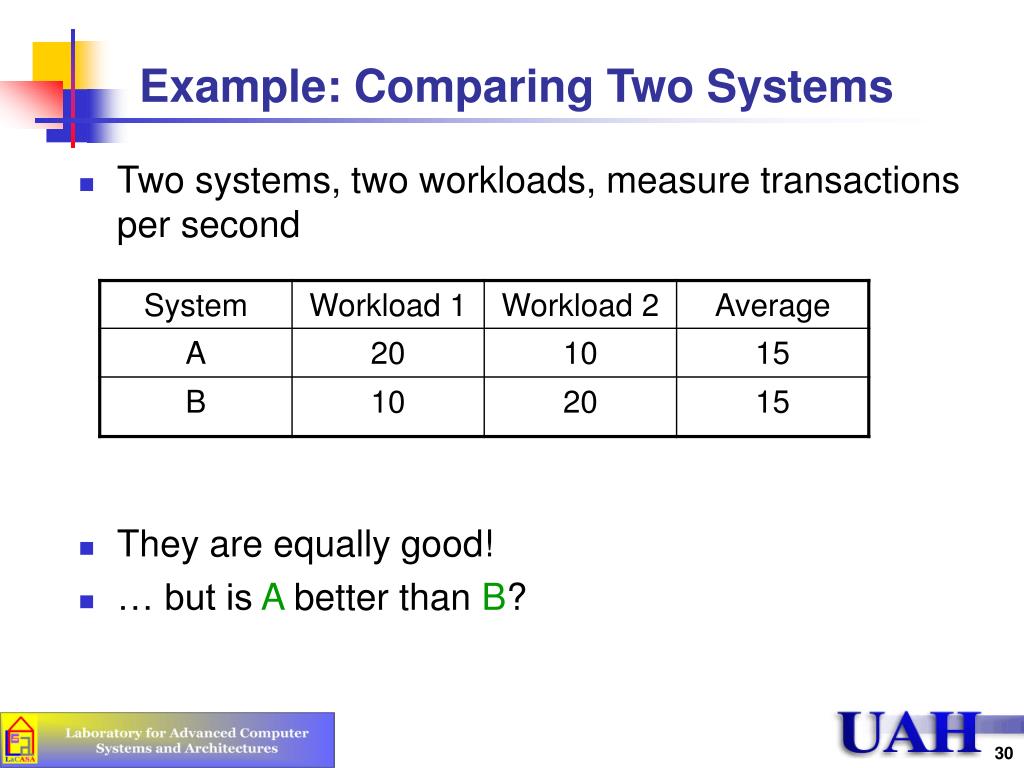

Example: Comparing Two Systems • Two systems, two workloads, measure transactions per second • They are equally good! • … but is A better than B?

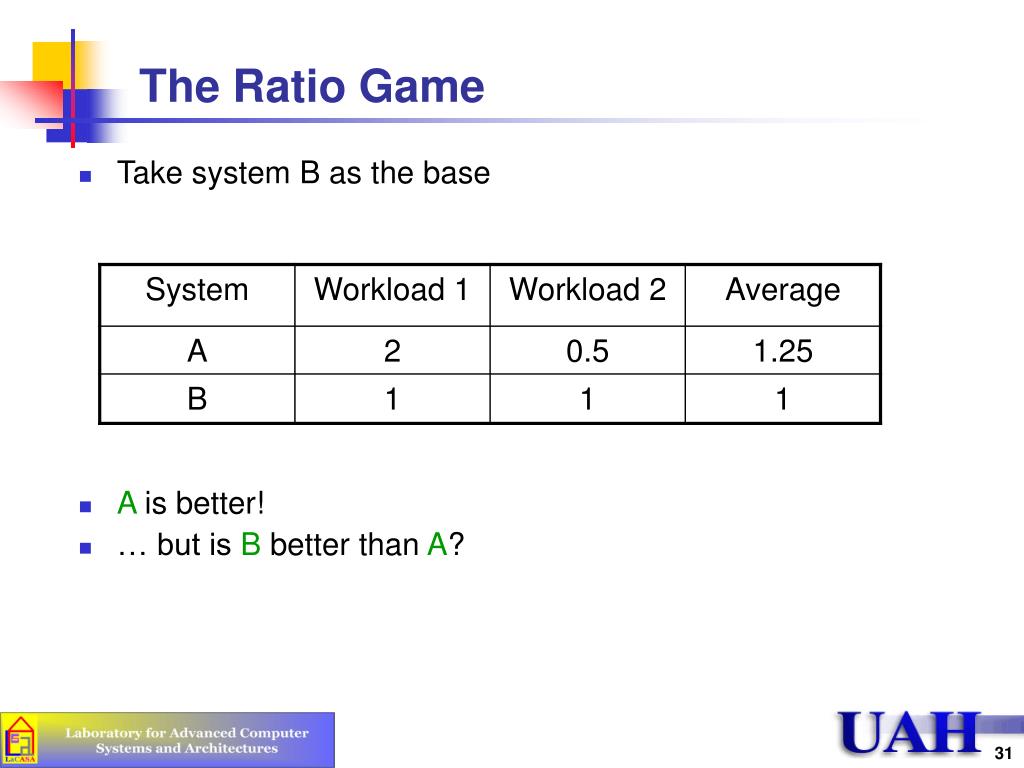

The Ratio Game • Take system B as the base • A is better! • … but is B better than A?

The Ratio Game • Take system A as the base • B is better!?

Common Mistakes (1-4) • 1. Undefined Goals (Don’t shoot and then draw target) • There is no such thing as a general model • Describe goals and then design experiments • 2. Biased Goals (Performance analysis is like a jury) • Don’t show YOUR system better than HERS • 3. Unsystematic Approach • Arbitrary selection of system parameters, factors, metrics, … will lead to inaccurate conclusions • 4. Analysis without Understanding (“A problem well-stated is half solved”) • Don’t rush to modeling before defining a problem

Common Mistakes (5-8) • 5. Incorrect Performance Metrics • E.g., MIPS • 6. Unrepresentative Workload • Wrong workload will lead to inaccurate conclusions • 7. Wrong Evaluation Technique (Don’t have a hammer and see everything as a nail) • Use most appropriate: model, simulation, measurement • 8. Overlooking Important Parameters • Start from a complete list of system and workload parameters that affect the performance

Common Mistakes (9-12) • 9. Ignoring Significant Factors • Parameters that are varied are called factors; others are fixed • Identify parameters that make significant impact on performance when varied • 10. Inappropriate Experimental Design • Relates to the number of measurement or simulation experiments to be conducted • 11. Inappropriate Level of Detail • Can have too much! Ex: modeling disk • Can have too little! Ex: analytic model for congested router • 12. No Analysis • Having a measurement expert is desirable but not enough • Expertise in analyzing results is crucial

Common Mistakes (13-16) • 13. Erroneous Analysis • E.g., take averages on too short simulations • 14. No Sensitivity Analysis • Analysis is evidence and not fact • Need to determine how sensitive results are to settings • 15. Ignoring Errors in Input • Often parameters of interest cannot be measured; Instead, they are estimated using other variables • Adjust the level of confidence on the model output • 16. Improper Treatment of Outliers • Outliers are values that are too high or too low compared to a majority of values • If possible in real systems or workloads, do not ignore them

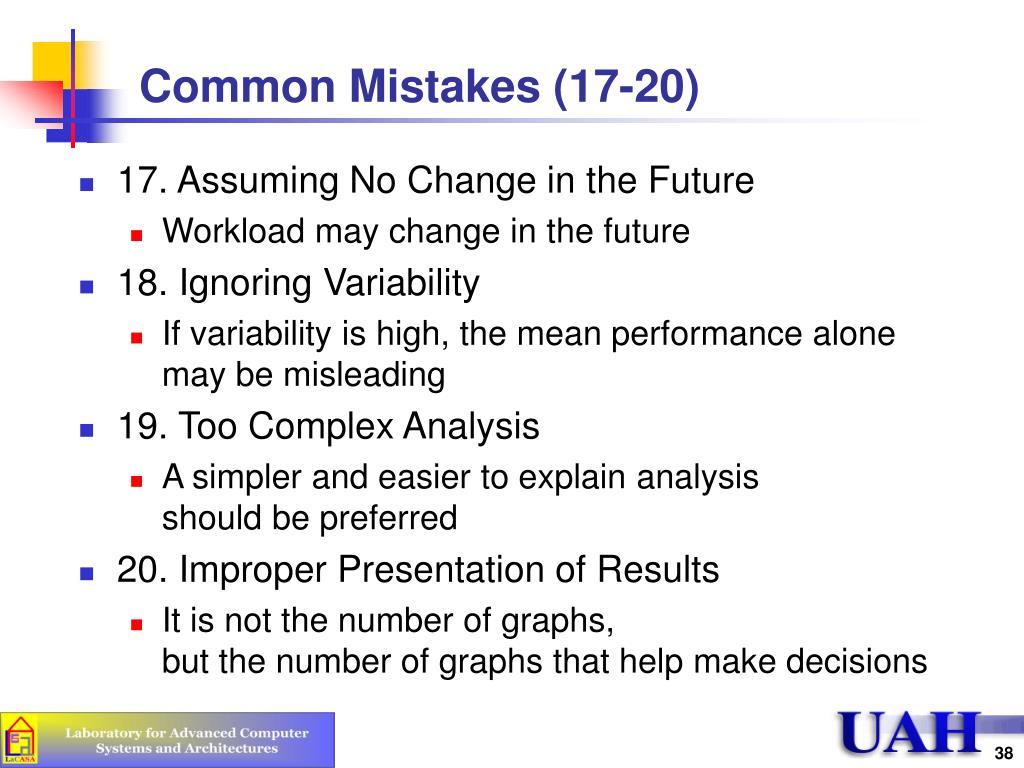

Common Mistakes (17-20) • 17. Assuming No Change in the Future • Workload may change in the future • 18. Ignoring Variability • If variability is high, the mean performance alone may be misleading • 19. Too Complex Analysis • A simpler and easier to explain analysis should be preferred • 20. Improper Presentation of Results • It is not the number of graphs, but the number of graphs that help make decisions

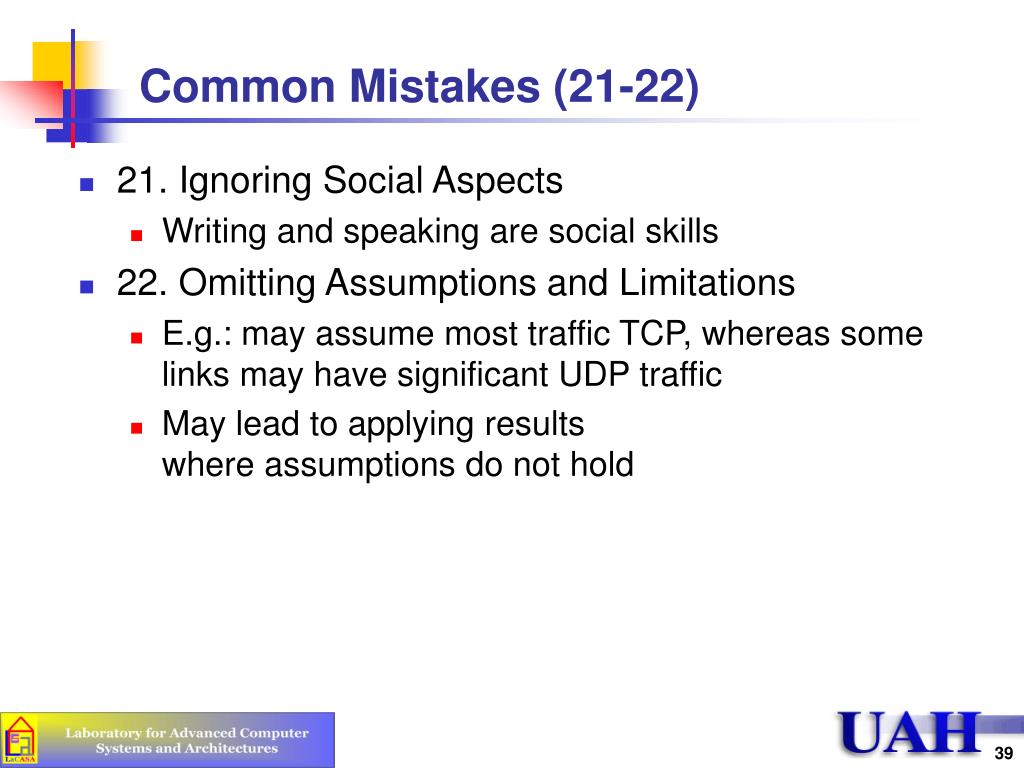

Common Mistakes (21-22) • 21. Ignoring Social Aspects • Writing and speaking are social skills • 22. Omitting Assumptions and Limitations • E.g.: may assume most traffic TCP, whereas some links may have significant UDP traffic • May lead to applying results where assumptions do not hold

Checklist for Avoiding Common Mistakes in Performance Evaluation • Is the system correctly defined and the goals are clearly stated? • Are the goals stated in an unbiased manner? • Have all the steps of the analysis followed systematically? • Is the problem clearly understood before analyzing it? • Are the performance metrics relevant for this problem? • Is the workload correct for this problem? • Is the evaluation technique appropriate? • Is the list of parameters that affect performance complete? • Have all parameters that affect performance been chosen as factors to be varied? • Is the experimental design efficient in terms of time and results? • Is the level of detail proper? • Is the measured data presented with analysis and interpretation? • Is the analysis statistically correct? • Has the sensitivity analysis been done? • Would errors in the input cause an insignificant change in the results? • Have the outliers in the input or the output been treated properly? • Have the future changes in the system and workload been modeled? • Has the variance of input been taken into account? • Has the variance of the results been analyzed? • Is the analysis easy to explain? • Is the presentation style suitable for its audience? • Have the results been presented graphically as much as possible? • Are the assumptions and limitations of the analysis clearly documented?

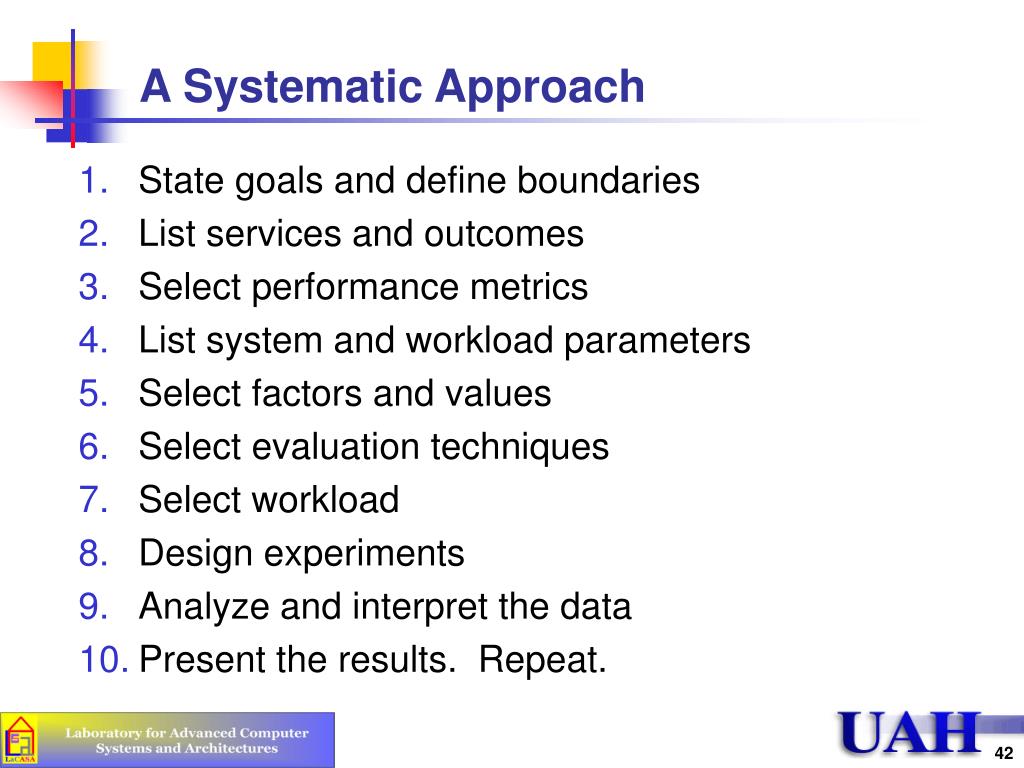

A Systematic Approach • State goals and define boundaries • List services and outcomes • Select performance metrics • List system and workload parameters • Select factors and values • Select evaluation techniques • Select workload • Design experiments • Analyze and interpret the data • Present the results. Repeat.

State Goals and Define Boundaries • Just “measuring performance” or “seeing how it works” is too broad • E.g.: goal is to decide which ISP provides better throughput • Definition of system may depend upon goals • E.g.: if measuring CPU instruction speed, system may include CPU + cache • E.g.: if measuring response time, system may include CPU + memory + … + OS + user workload

List Services and Outcomes • List services provided by the system • E.g., a computer network allows users to send packets to specified destinations • E.g., a database system responds to queries • E.g., a processor performs a number of tasks • A user request for any of these services results in a number of possible outcomes (desirable or not) • E.g., a database system may answer correctly, incorrectly (due to inconsistent updates), or not at all (due to deadlocks)

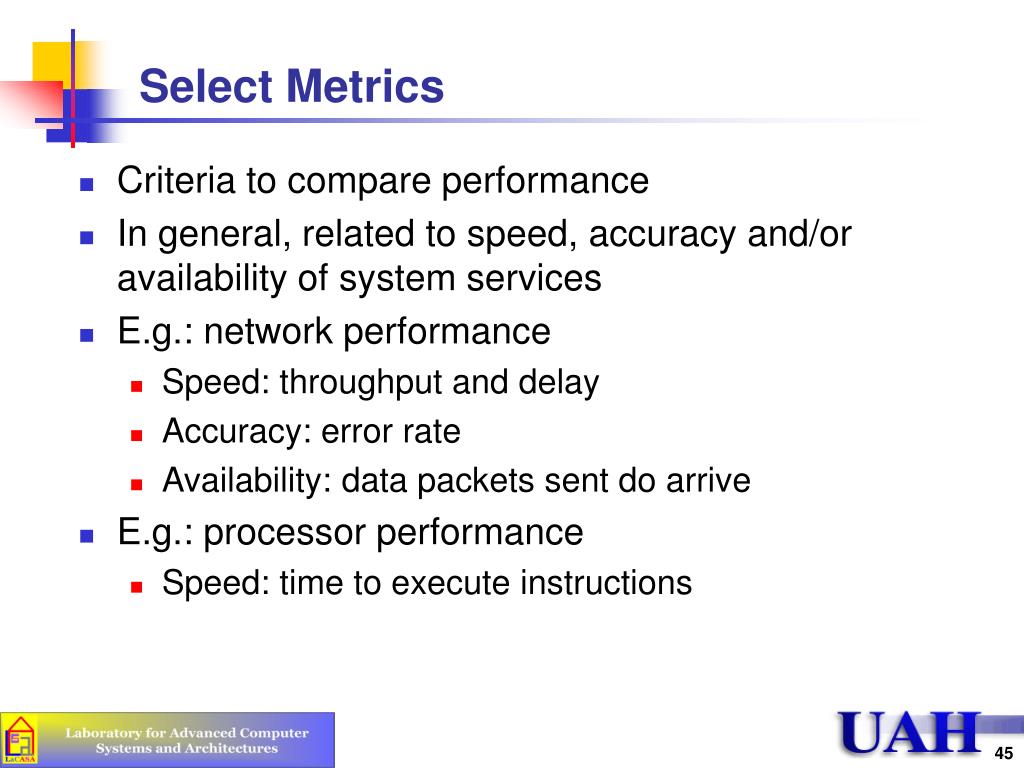

Select Metrics • Criteria to compare performance • In general, related to speed, accuracy and/or availability of system services • E.g.: network performance • Speed: throughput and delay • Accuracy: error rate • Availability: data packets sent do arrive • E.g.: processor performance • Speed: time to execute instructions

List Parameters • List all parameters that affect performance • System parameters (hardware and software) • E.g.: CPU type, OS type, … • Workload parameters • E.g.: Number of users, type of requests • List may not be initially complete, so have a working list and let grow as progress

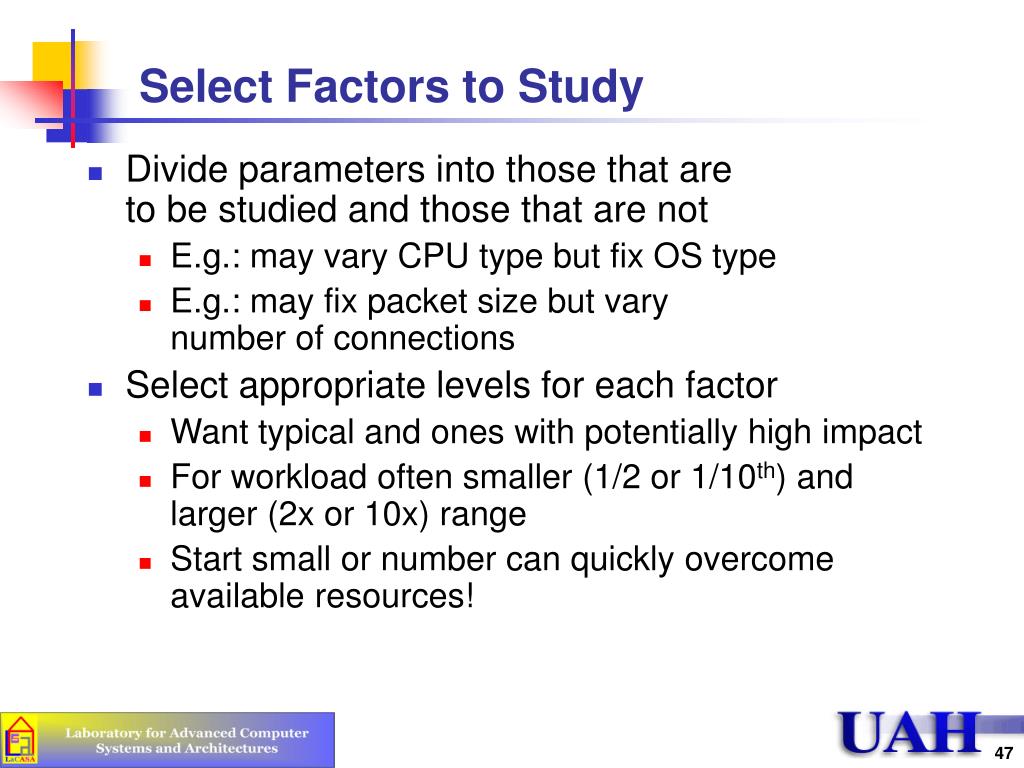

Select Factors to Study • Divide parameters into those that are to be studied and those that are not • E.g.: may vary CPU type but fix OS type • E.g.: may fix packet size but vary number of connections • Select appropriate levels for each factor • Want typical and ones with potentially high impact • For workload often smaller (1/2 or 1/10th) and larger (2x or 10x) range • Start small or number can quickly overcome available resources!

Select Evaluation Technique • Depends upon time, resources, and desired level of accuracy • Analytic modeling • Quick, less accurate • Simulation • Medium effort, medium accuracy • Measurement • Typical most effort, most accurate • Note, above are all typical but can be reversed in some cases!

Select Workload • Set of service requests to system • Depends upon measurement technique • Analytic model may have probability of various requests • Simulation may have trace of requests from real system • Measurement may have scripts impose transactions • Should be representative of real life

Design Experiments • Want to maximize results with minimal effort • Phase 1: • Many factors, few levels • See which factors matter • Phase 2: • Few factors, more levels • See where the range of impact for the factors is
