Normal distribution

NORMAL DISTRIBUTION

Normal distribution- continuous distribution.

Normal density:

  • bell shaped,

  • unimodal- single peak at the center, symmetric.

  • Completely described by its center of symmetry - mean μand spread - standard deviation σ.

μ

Random variable with normal distribution – normal random variable with mean μ and st. dev. σ: X~N(μ, σ)

Standard normal random variable: mean 0 and st. dev. 1: Z~N(0, 1)


Normal distribution changing location and scale

NORMAL DISTRIBUTION-CHANGING LOCATION AND SCALE

CHANGING SCALE σ

CHANGING LOCATION μ

μ1

μ2

“peaky” density

“flatter” density

1=σ1 < σ2 = 2

0=μ1 < μ2 =1

Changes in mean/location cause shifts in the density curve along the x-axis.

Changes in spread/standard deviation cause changes in the shape of the density curve.


Why bother with normal distributions

Why Bother with Normal Distributions?

  • Normal distributions are great descriptions-models-approximations for many data sets such as weights, heights, exam scores, experimental errors, etc.

  • Great descriptions of results-outcomes of many chance driven experiments.

  • Statistical inference based on normal distribution works well for many (approximately) symmetric distributions.

  • HOWEVER, remember that not everything or everybody is normal!


The empirical rule the 68 95 99 7 rule

THE EMPIRICAL RULE - THE 68-95-99.7 RULE

Areas under the normal curve are probabilities (as under any density curve).

Special areas under the normal density curve:

  • Approximately 68% of the observations fall within 1 standard deviation of the mean

  • Approximately 95% of the observations fall within 2 standard deviations of the mean

  • Approximately 99.7% of the observations fall within 3 standard deviations of the mean


The empirical rule contd

THE EMPIRICAL RULE - contd

The range "within one/two/three standard deviation(s) of the mean" is highlighted in green.

The area under the curve over this range is the rel. frequency of observations in the range.

That is, 0.68/95/99.7 = 68%/95%/99.7% of the observations fall within one/two/three standard deviation(s) of the mean, or, 68%/95%/99.7% of the observations are between (μ – 1/2/3σ) and (μ + 1/2/3σ).


Areas under the normal curve

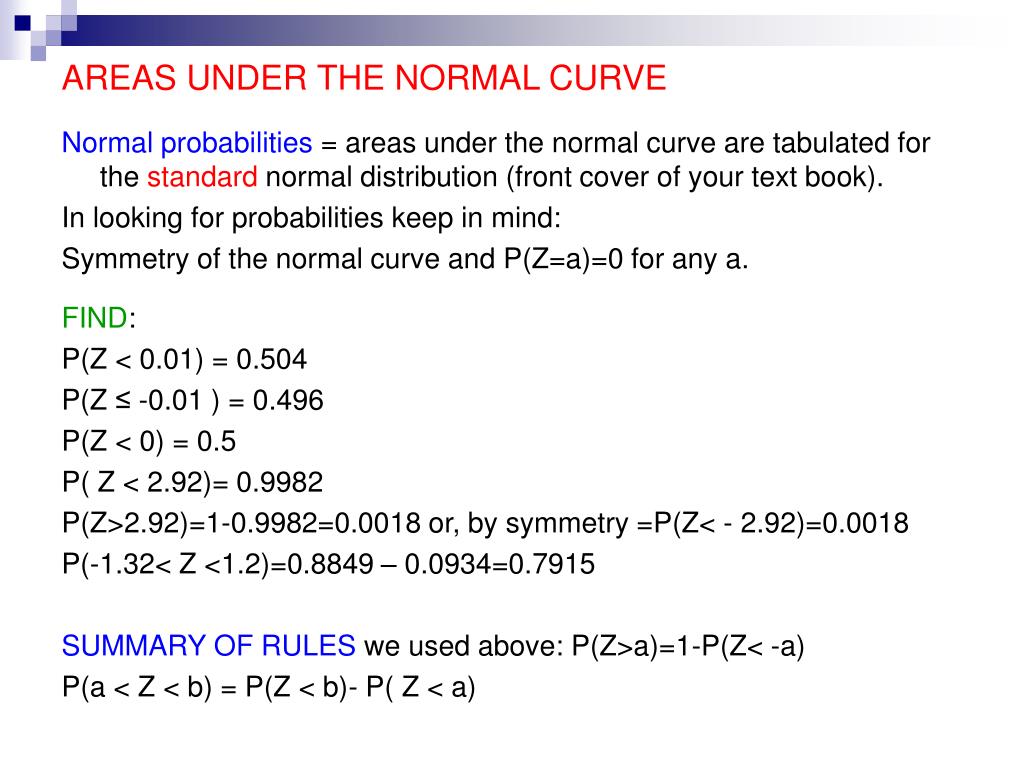

AREAS UNDER THE NORMAL CURVE

Normal probabilities = areas under the normal curve are tabulated for the standard normal distribution (front cover of your text book).

In looking for probabilities keep in mind:

Symmetry of the normal curve and P(Z=a)=0 for any a.

FIND:

P(Z < 0.01) = 0.504

P(Z ≤ -0.01 ) = 0.496

P(Z < 0) = 0.5

P( Z < 2.92)= 0.9982

P(Z>2.92)=1-0.9982=0.0018 or, by symmetry =P(Z< - 2.92)=0.0018

P(-1.32< Z <1.2)=0.8849 – 0.0934=0.7915

SUMMARY OF RULES we used above: P(Z>a)=1-P(Z< -a)

P(a < Z < b) = P(Z < b)- P( Z < a)


General normal distribution

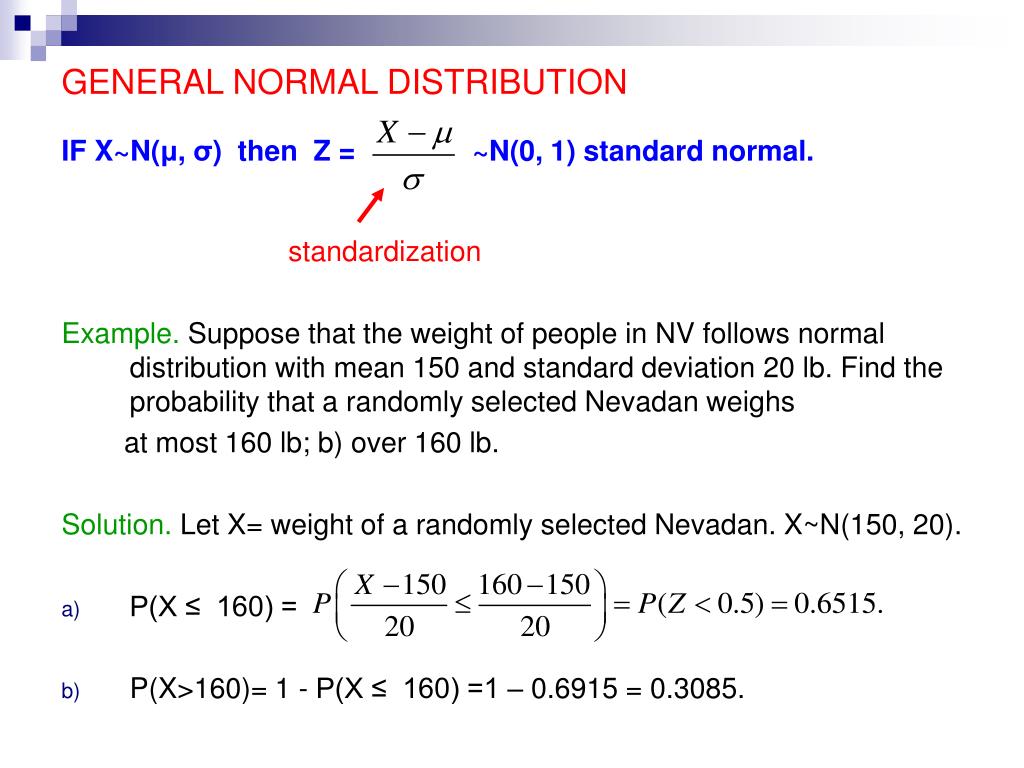

GENERAL NORMAL DISTRIBUTION

IF X~N(μ, σ) then Z = ~N(0, 1) standard normal.

standardization

Example. Suppose that the weight of people in NV follows normal distribution with mean 150 and standard deviation 20 lb. Find the probability that a randomly selected Nevadan weighs

at most 160 lb; b) over 160 lb.

Solution. Let X= weight of a randomly selected Nevadan. X~N(150, 20).

  • P(X ≤ 160) =

  • P(X>160)= 1 - P(X ≤ 160) =1 – 0.6915 = 0.3085.


Normal percentiles

NORMAL PERCENTILES

Given that P(Z < p)=0.95 find p. Here p is called 95thpercentile of Z.

Inside the table I looked for 0.95.

Found 0.9495 and 0.9505.

Used z-value corresponding to

the midpoint (0.95) between the

two available probabilities 1.645.

p=1.645

If an available probability is closer

to the one we need, use the

z-value corresponding to

that probability.

0.95

p=?


Normal percentiles contd

NORMAL PERCENTILES, CONTD.

EXAMPLE. Suppose scores X on a test follow a normal distribution with mean 430 and standard deviation 100. Find 90th percentile of the scores, that is find score x such that P(X ≤ x)=0.9.

Solution. Since we start with a normal but NOT STANDARD normal distribution, we have to standardize at some point:

0.9 = P(X ≤ x) =

get equation:

x - 430 =128

x = 558

90% of students scored 558 or less.

0.90

z =1.28


Example

EXAMPLE

Height of women follows normal distribution with mean 64.5 and standard deviation of 2.5 inches. Find

a) The probability that a woman is shorter than 70 in.

b) The probability that a woman is between 60 and 70 in tall.

c) What is the height 10% of women are shorter than, i.e. what is the 10th percentile of women heights?

SOLUTION. X= women height; X~N(64.5, 2.5).

a) P(X <70)=P(Z< (70-64.5)/2.5)=P(Z<2.2)=0.9861

b) P( 60 < X < 70) = P( (60-64.5)/2.5) < Z < (70-64.5)/2.5)=P(-1.8< Z < 2.2)= P( Z <-2.2) – P( Z < -1.8) = 0.9861 – 0.0359 = 0.9502.

c) 10th percentile of X =?

0.1=P( X< x) = P( Z< (x-65.5)/2.5), so -2.33=(x-65.5)/2.5; x=59.675.

10% of women are shorter than 59.675 in.
