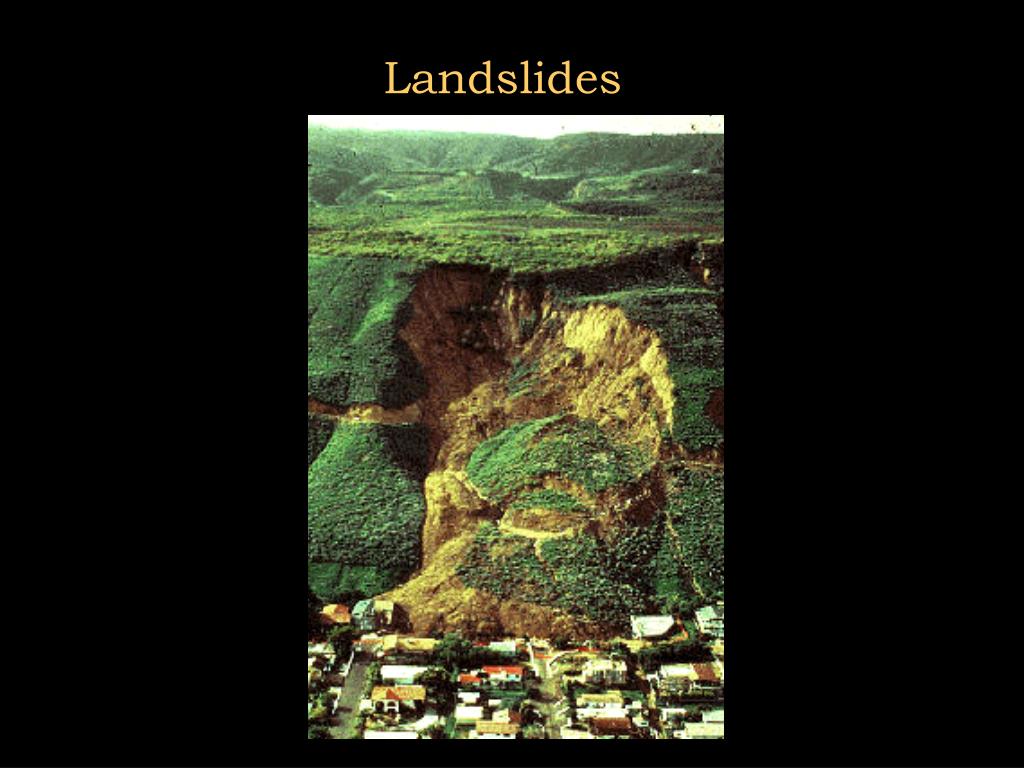

  1. Landslides

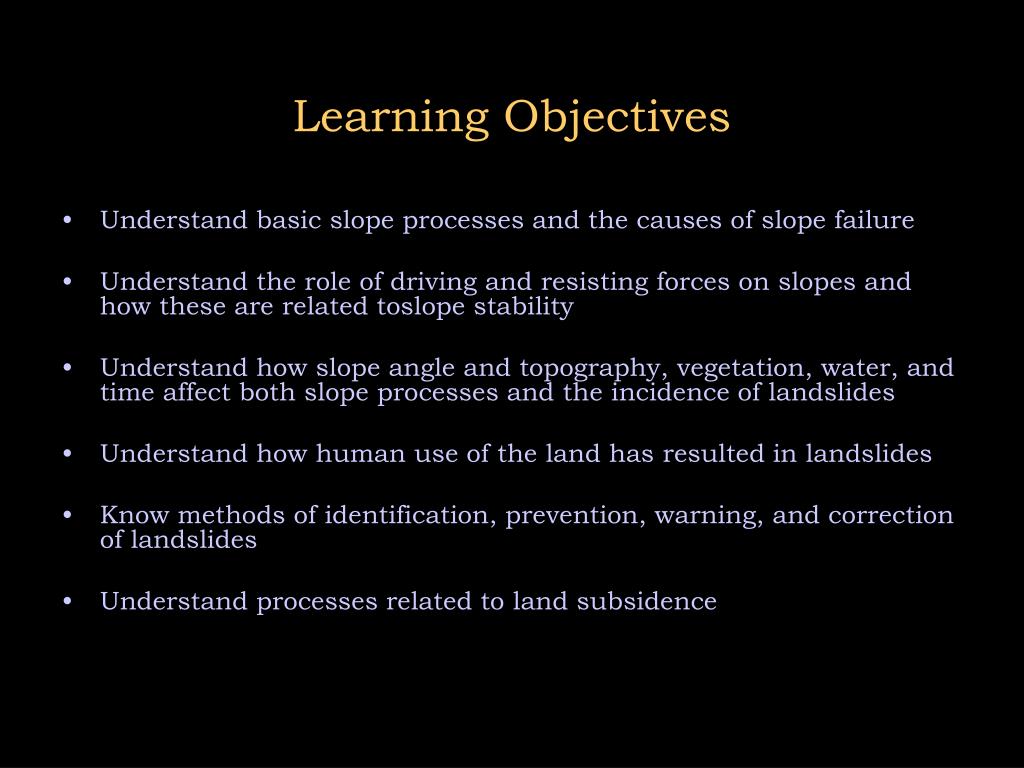

  2. Learning Objectives • Understand basic slope processes and the causes of slope failure • Understand the role of driving and resisting forces on slopes and how these are related toslope stability • Understand how slope angle and topography, vegetation, water, and time affect both slope processes and the incidence of landslides • Understand how human use of the land has resulted in landslides • Know methods of identification, prevention, warning, and correction of landslides • Understand processes related to land subsidence

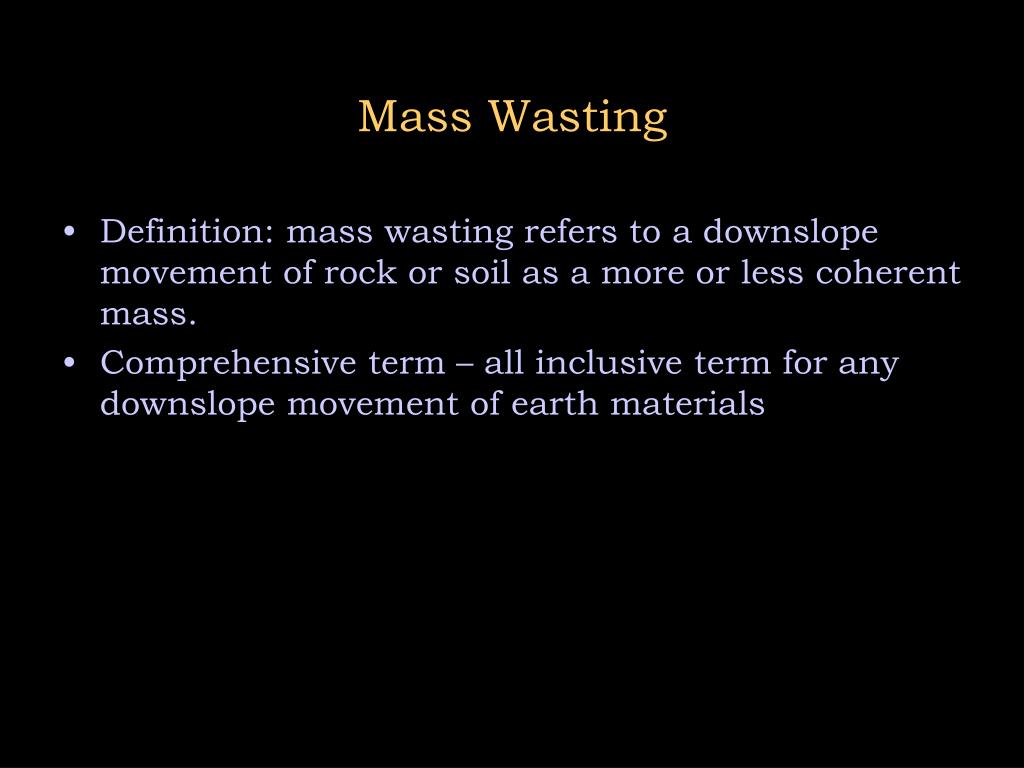

  3. Mass Wasting • Definition: mass wasting refers to a downslope movement of rock or soil as a more or less coherent mass. • Comprehensive term – all inclusive term for any downslope movement of earth materials

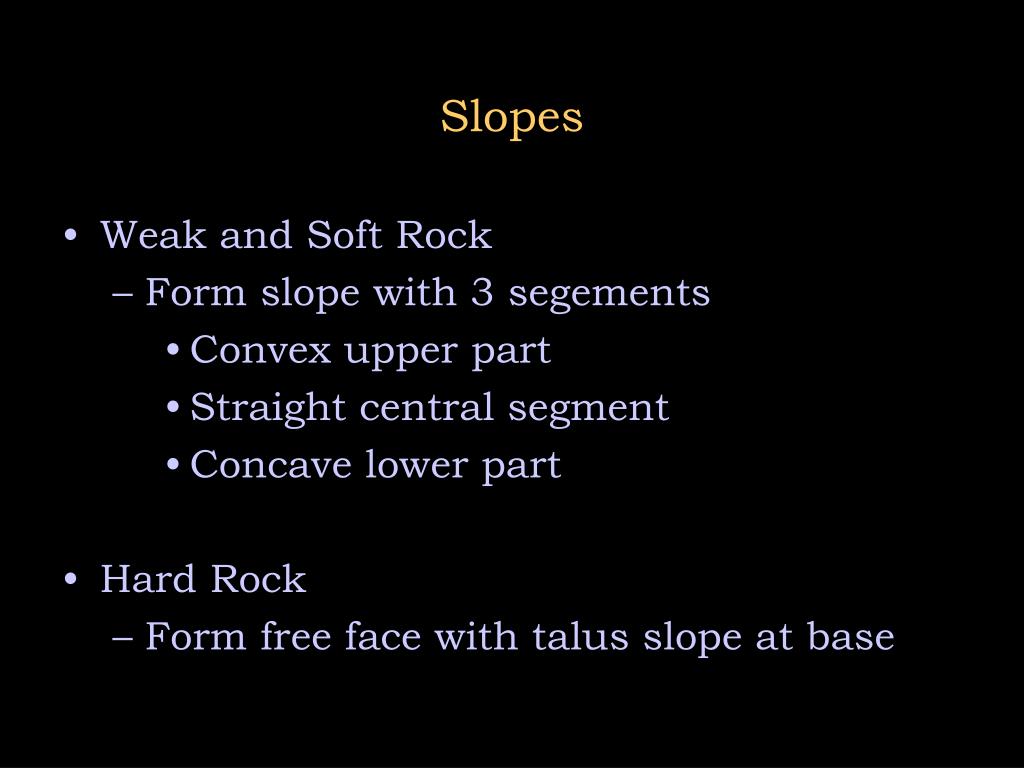

  4. Slopes • Weak and Soft Rock • Form slope with 3 segements • Convex upper part • Straight central segment • Concave lower part • Hard Rock • Form free face with talus slope at base

  5. Important types of mass wasting • Slide – downslope movement of coherent block of earth material • Slump – is sliding along a curved slip plane producing slump blocks • Fall – rocks fall from vertical face • Flow – Downslope movement of unconsolidated material in which particles move about and mix within the mass • Subsidence is the sinking of of a mass of earth material below the level of surrounding material

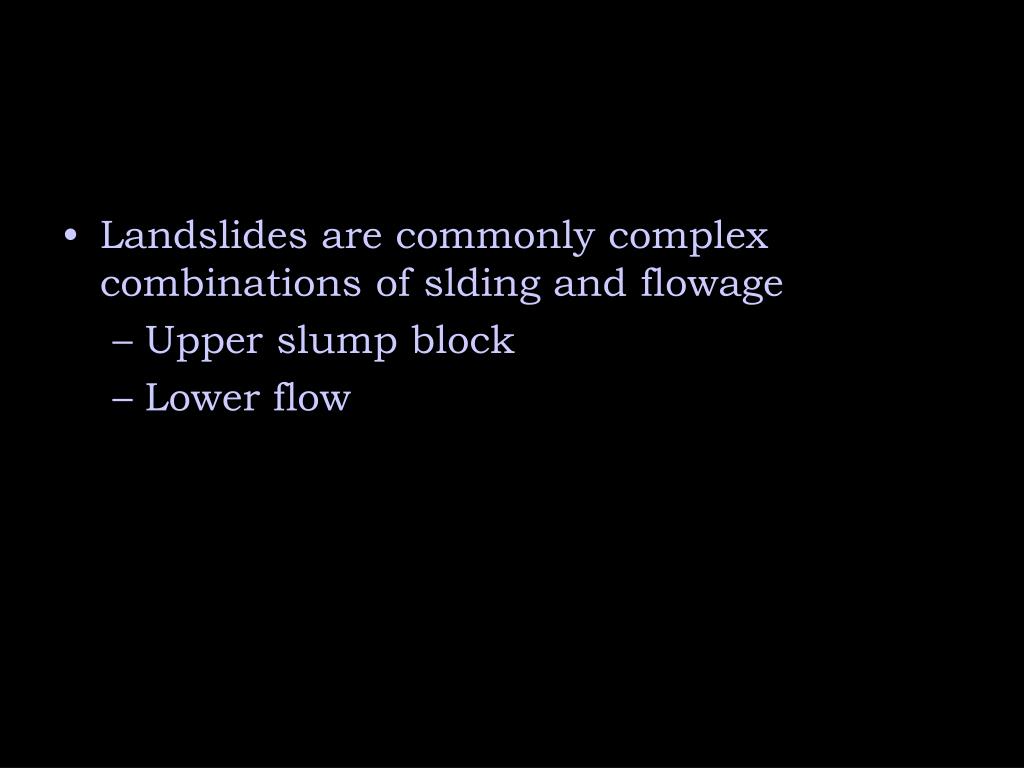

  6. Landslides are commonly complex combinations of slding and flowage • Upper slump block • Lower flow

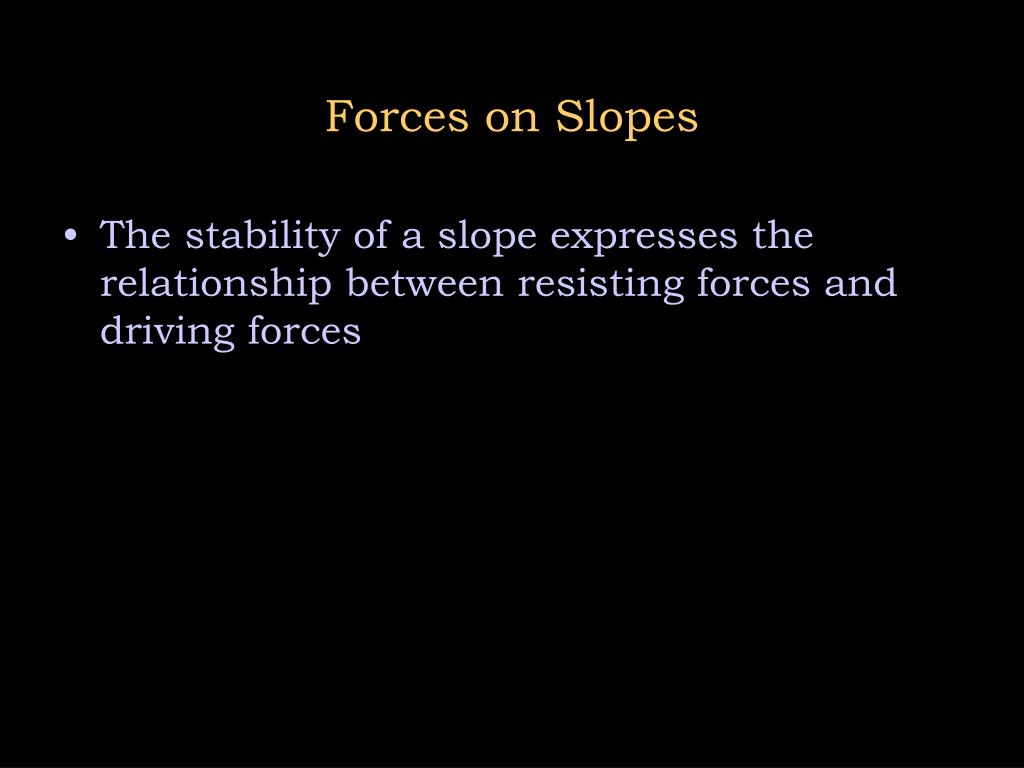

  7. Forces on Slopes • The stability of a slope expresses the relationship between resisting forces and driving forces

  8. Driving forces – forces which move earth materials downslope • Downslope component of weight of material including vegetation, fill material, or buildings • Resisting forces – forces which oppose movement • Resisting forces include strength of material

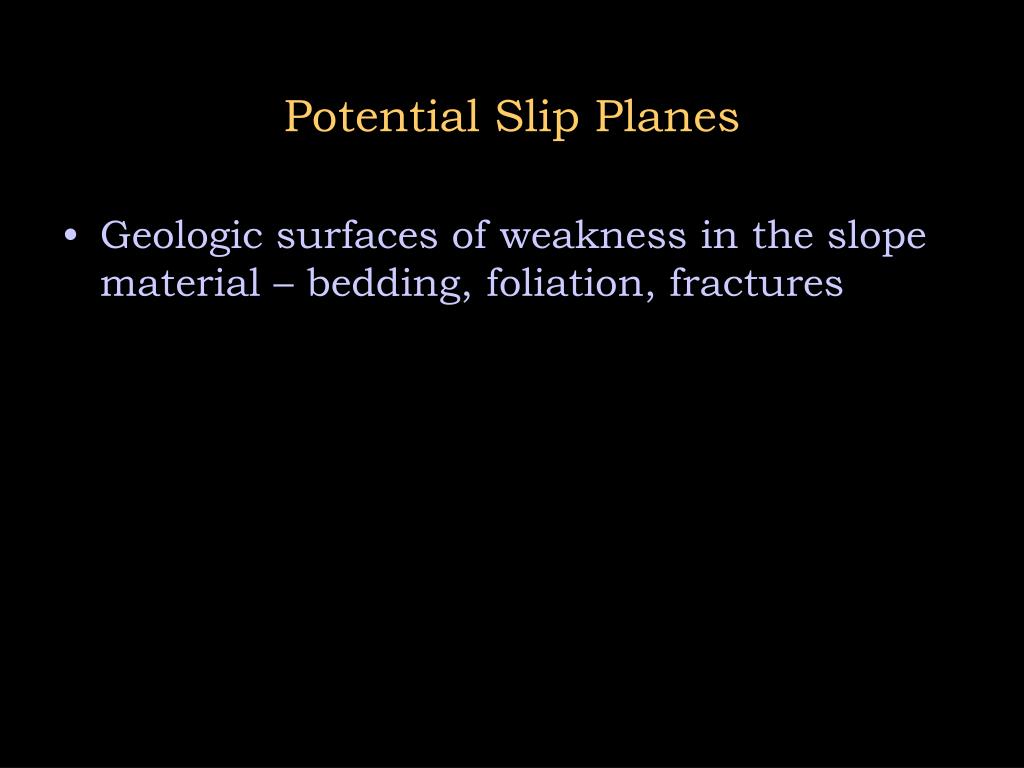

  9. Potential Slip Planes • Geologic surfaces of weakness in the slope material – bedding, foliation, fractures

  10. Safety Factor • The ratio of resisting forces to the driving forces • RF/DF SF > 1 Slope is stable SF < 1 Slope is unstable

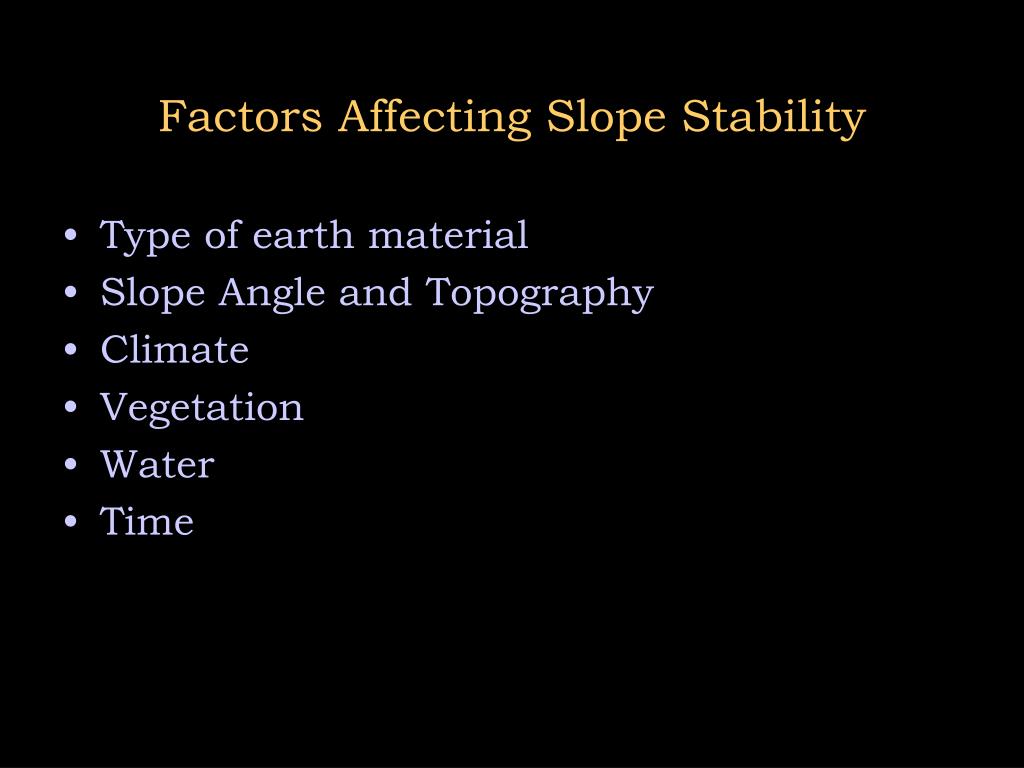

  11. Factors Affecting Slope Stability • Type of earth material • Slope Angle and Topography • Climate • Vegetation • Water • Time

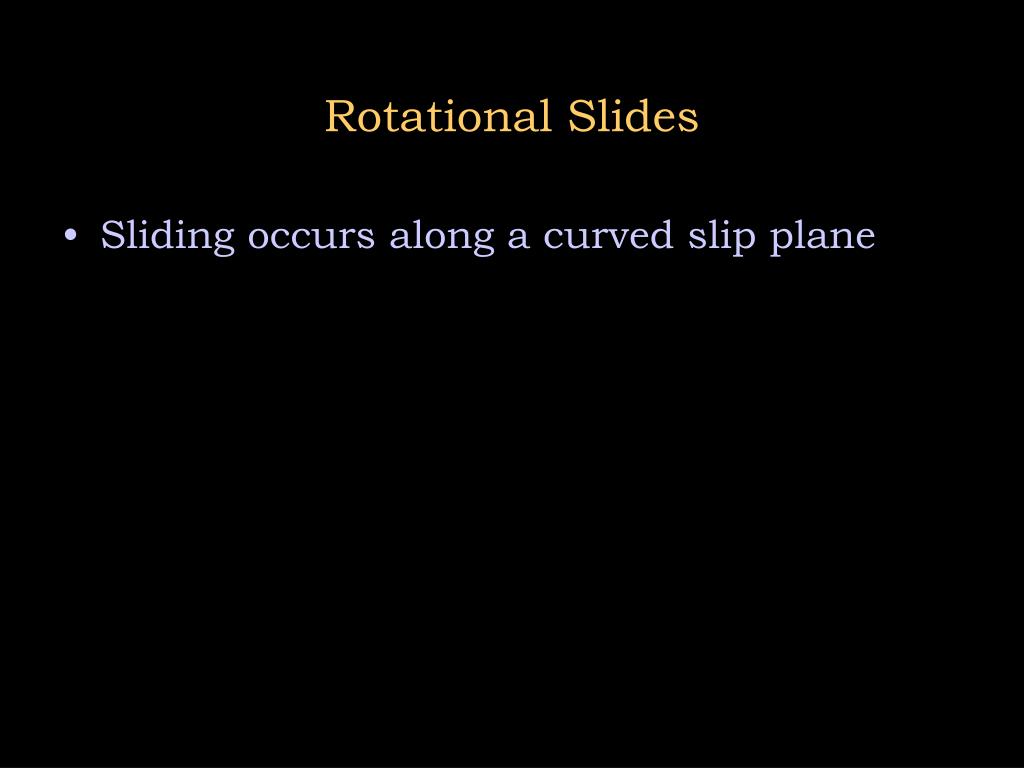

  12. Rotational Slides • Sliding occurs along a curved slip plane

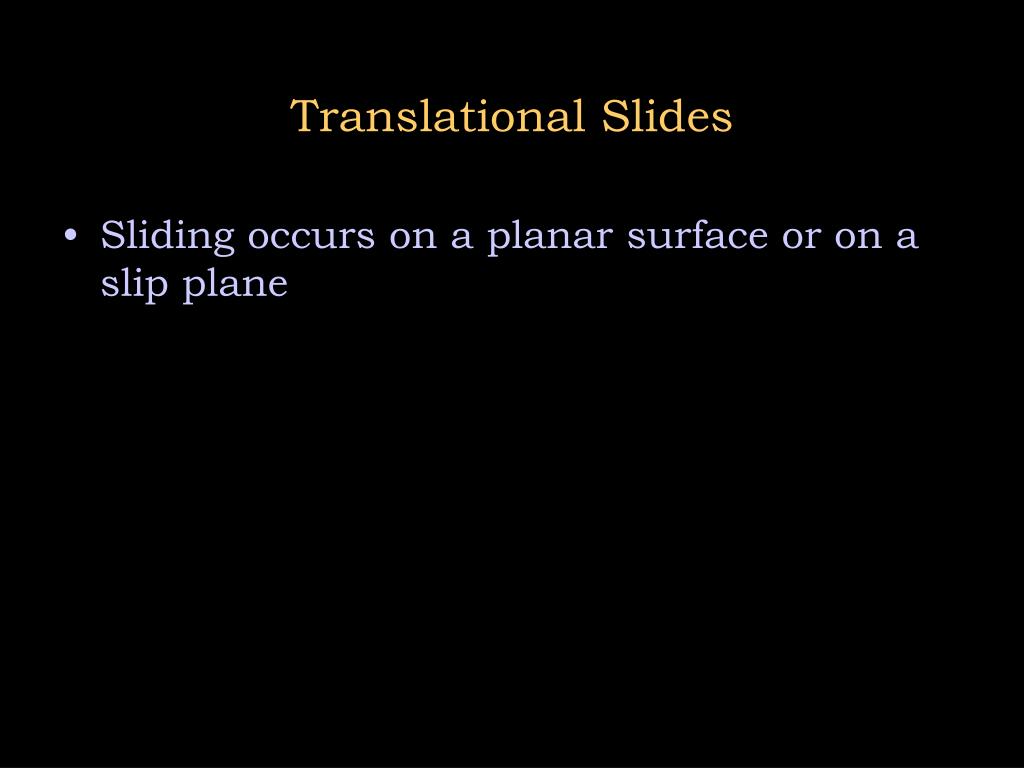

  13. Translational Slides • Sliding occurs on a planar surface or on a slip plane

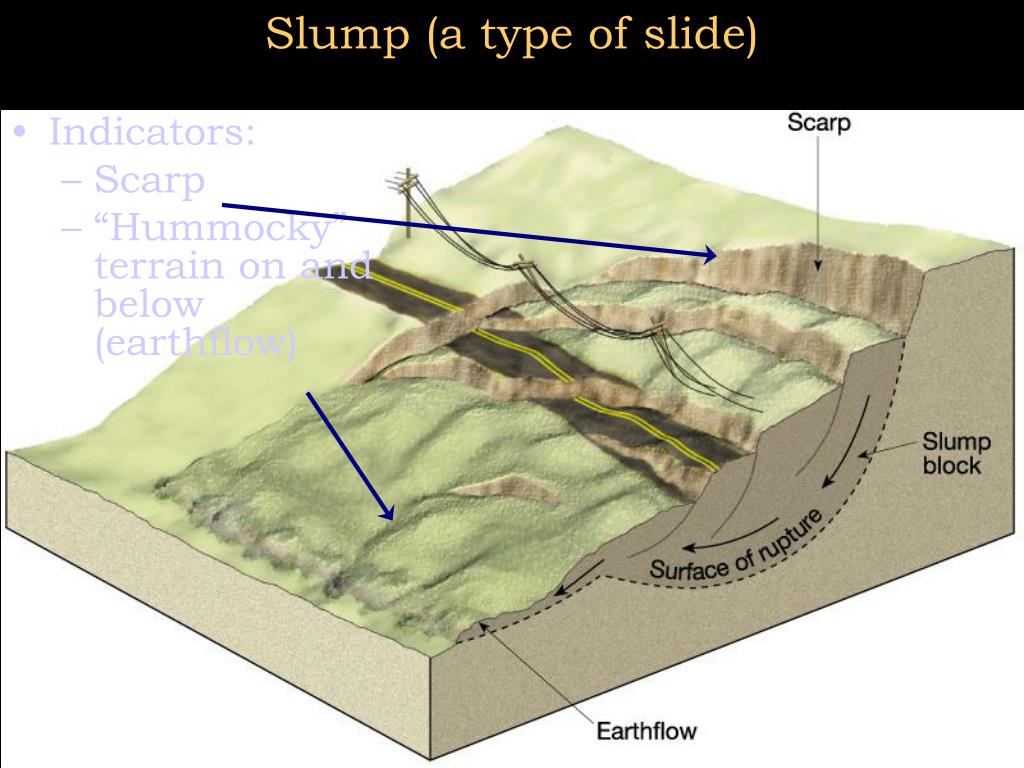

  14. Slump (a type of slide) • Indicators: • Scarp • “Hummocky” terrain on and below (earthflow)

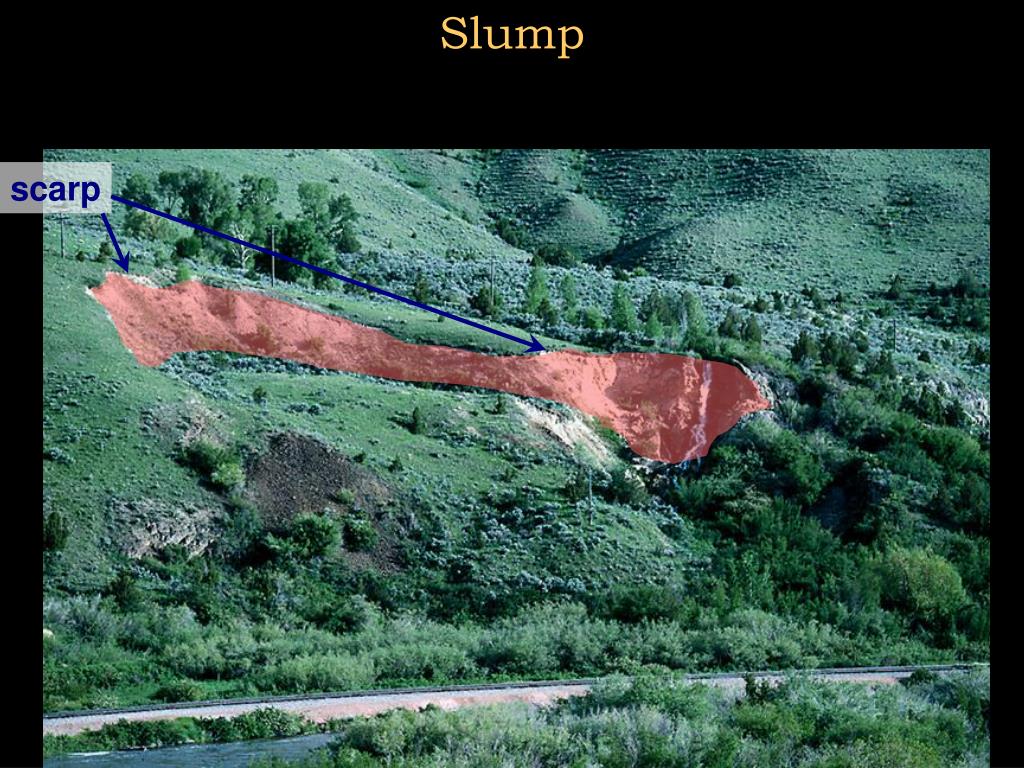

  15. scarp Slump

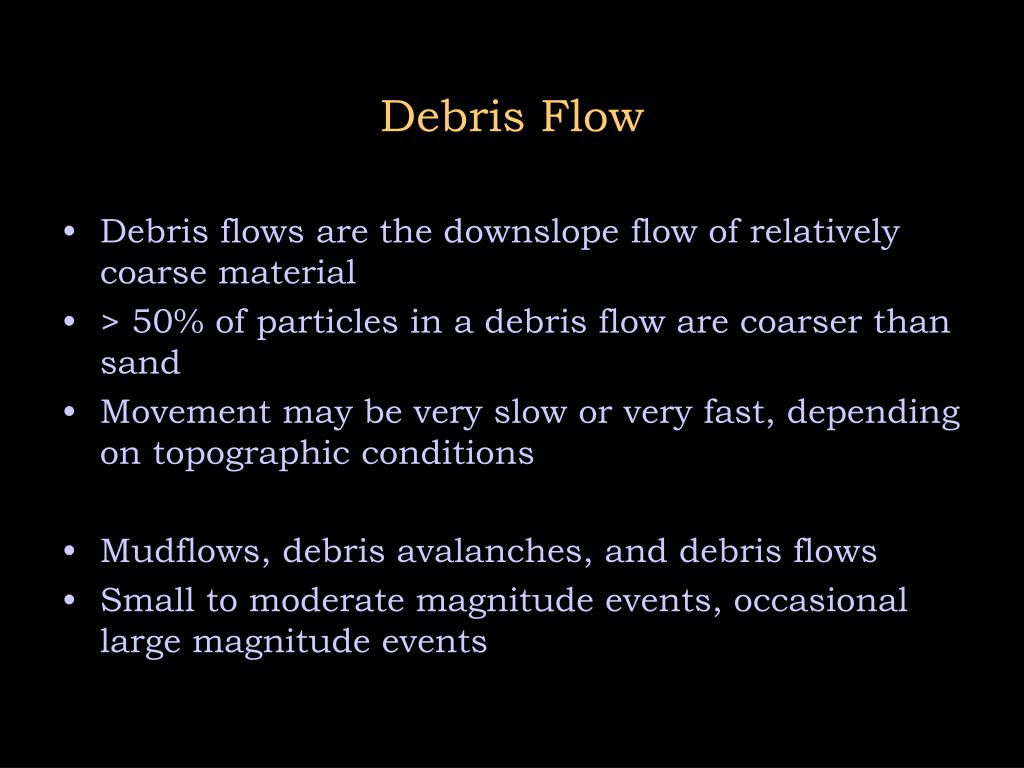

  16. Debris Flow • Debris flows are the downslope flow of relatively coarse material • > 50% of particles in a debris flow are coarser than sand • Movement may be very slow or very fast, depending on topographic conditions • Mudflows, debris avalanches, and debris flows • Small to moderate magnitude events, occasional large magnitude events

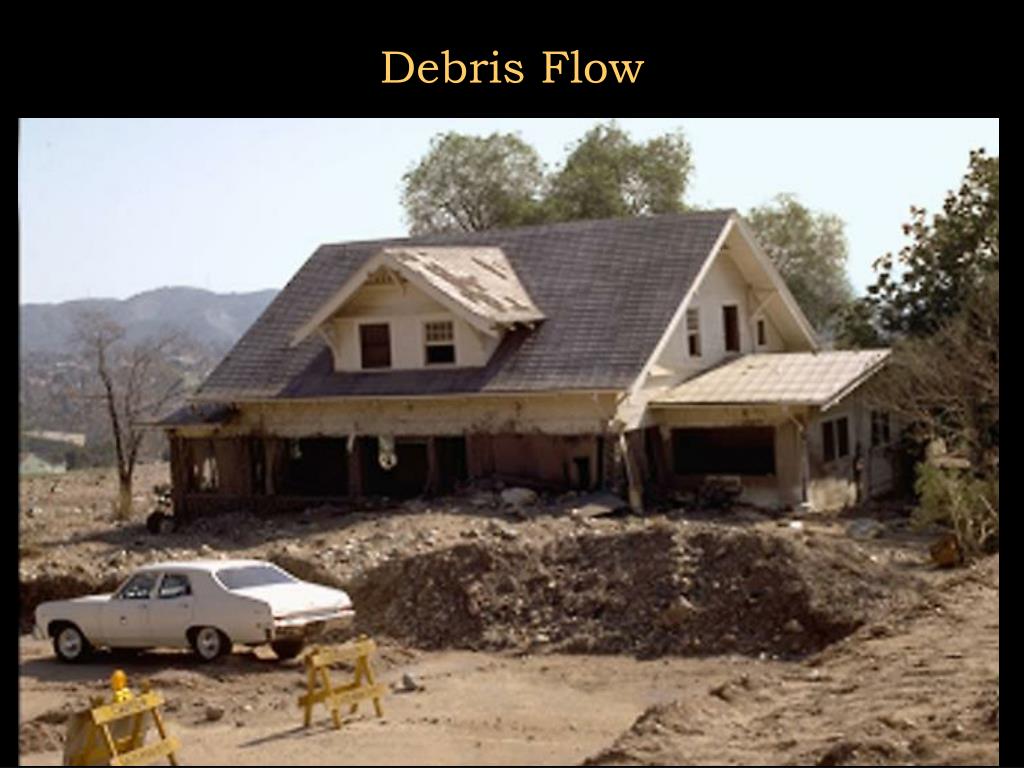

  17. Debris Flow

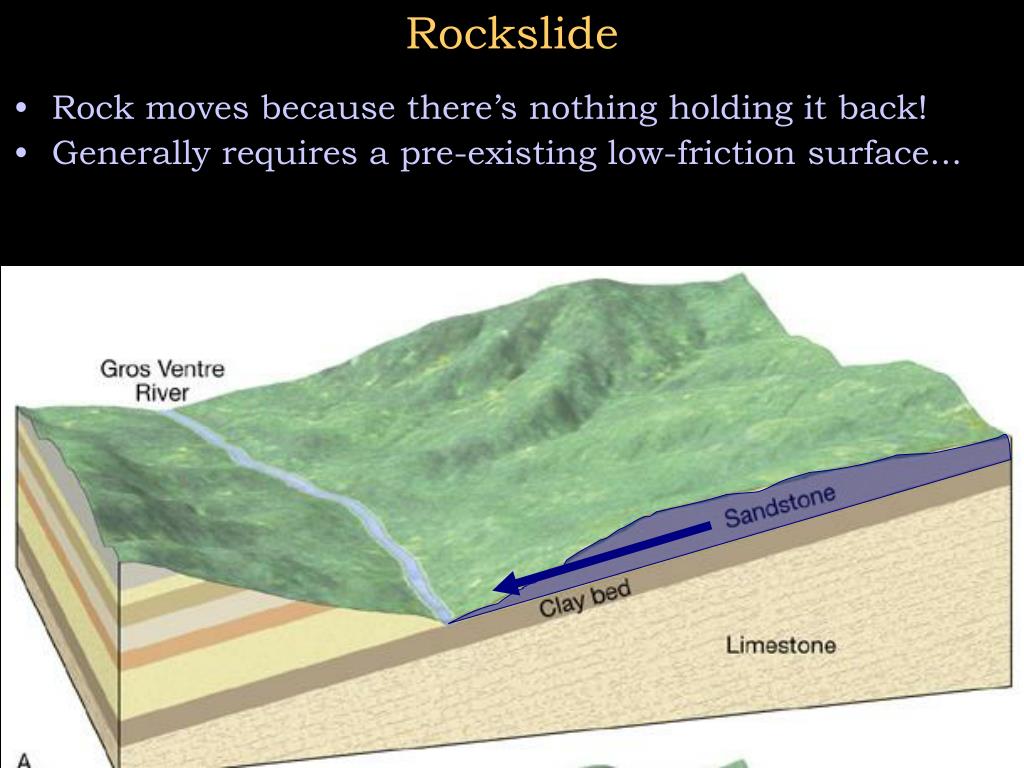

  18. Rockslide • Rock moves because there’s nothing holding it back! • Generally requires a pre-existing low-friction surface...

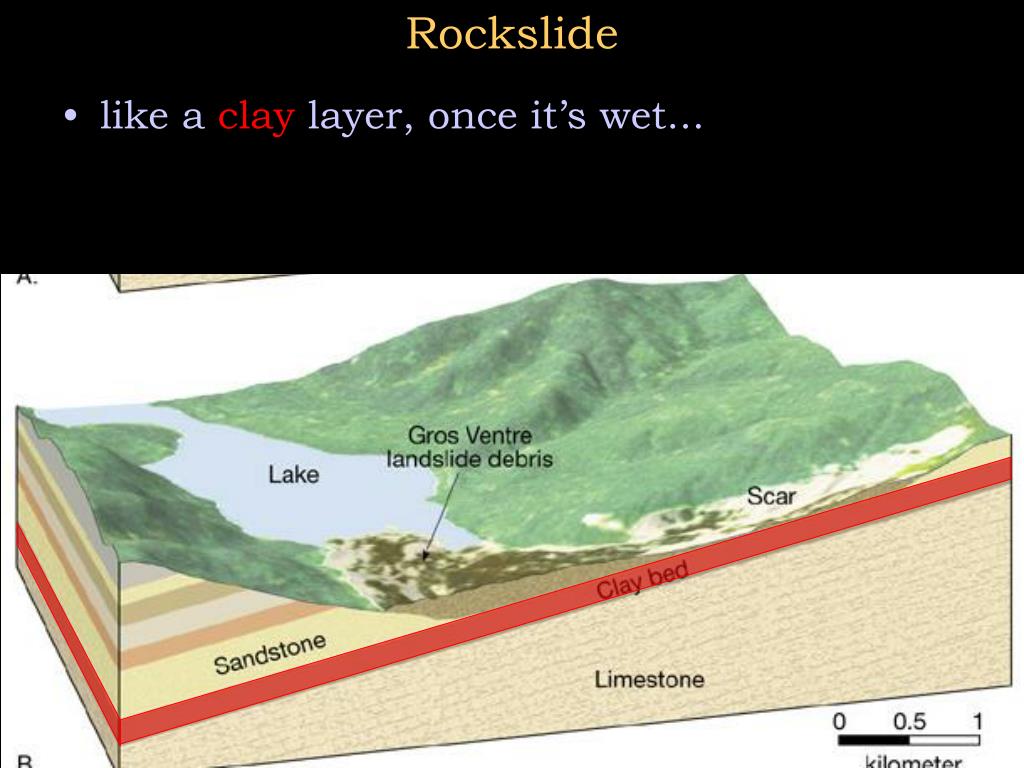

  19. Rockslide • like a clay layer, once it’s wet...

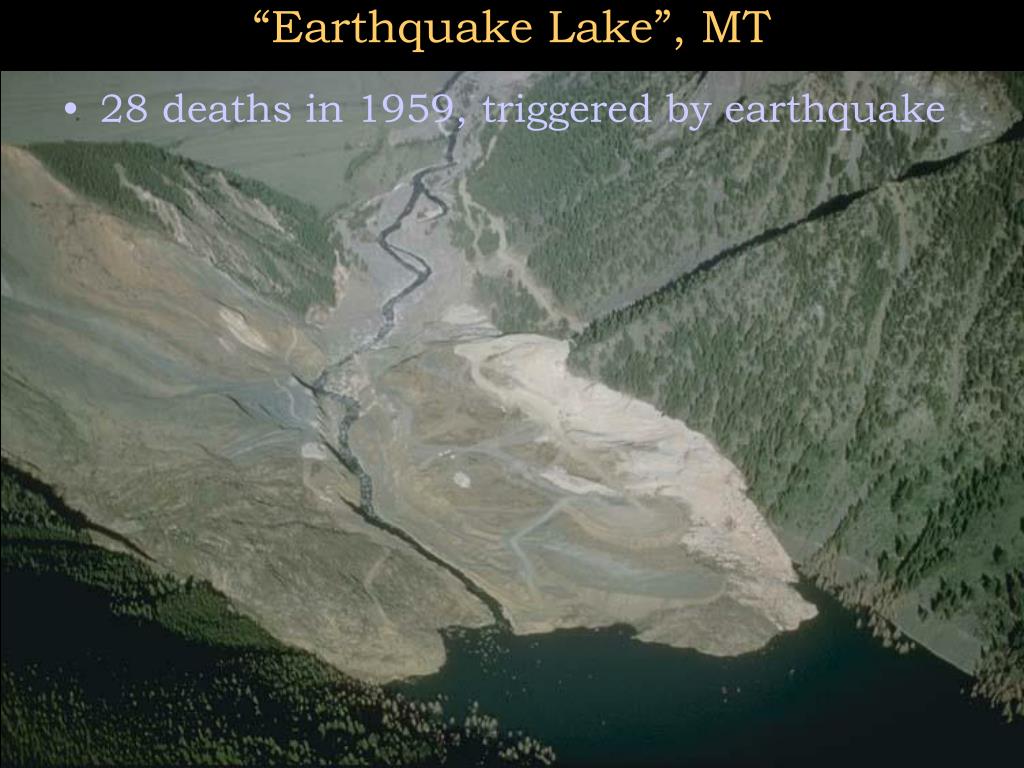

  20. 28 deaths in 1959, triggered by earthquake “Earthquake Lake”, MT

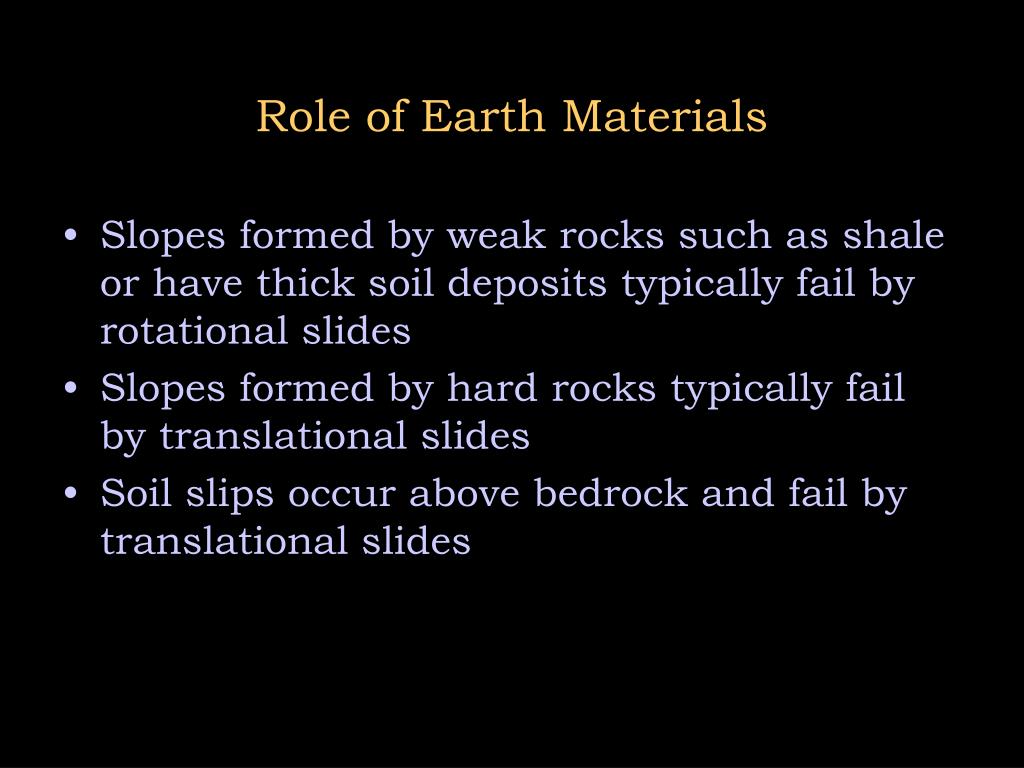

  21. Role of Earth Materials • Slopes formed by weak rocks such as shale or have thick soil deposits typically fail by rotational slides • Slopes formed by hard rocks typically fail by translational slides • Soil slips occur above bedrock and fail by translational slides

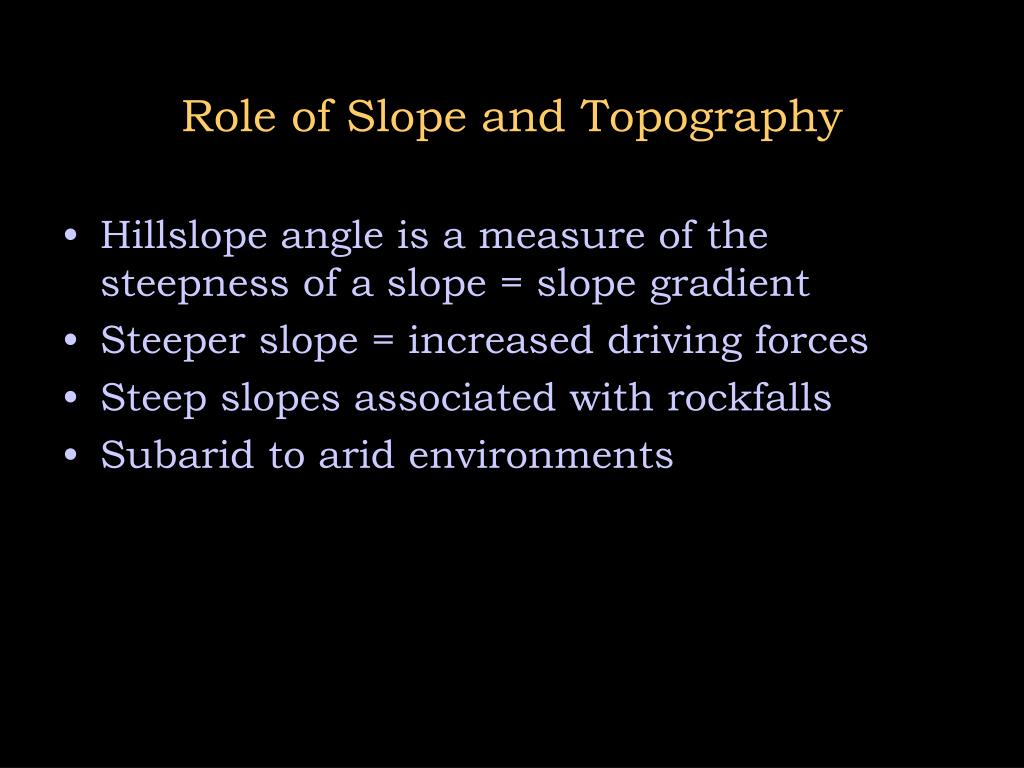

  22. Role of Slope and Topography • Hillslope angle is a measure of the steepness of a slope = slope gradient • Steeper slope = increased driving forces • Steep slopes associated with rockfalls • Subarid to arid environments

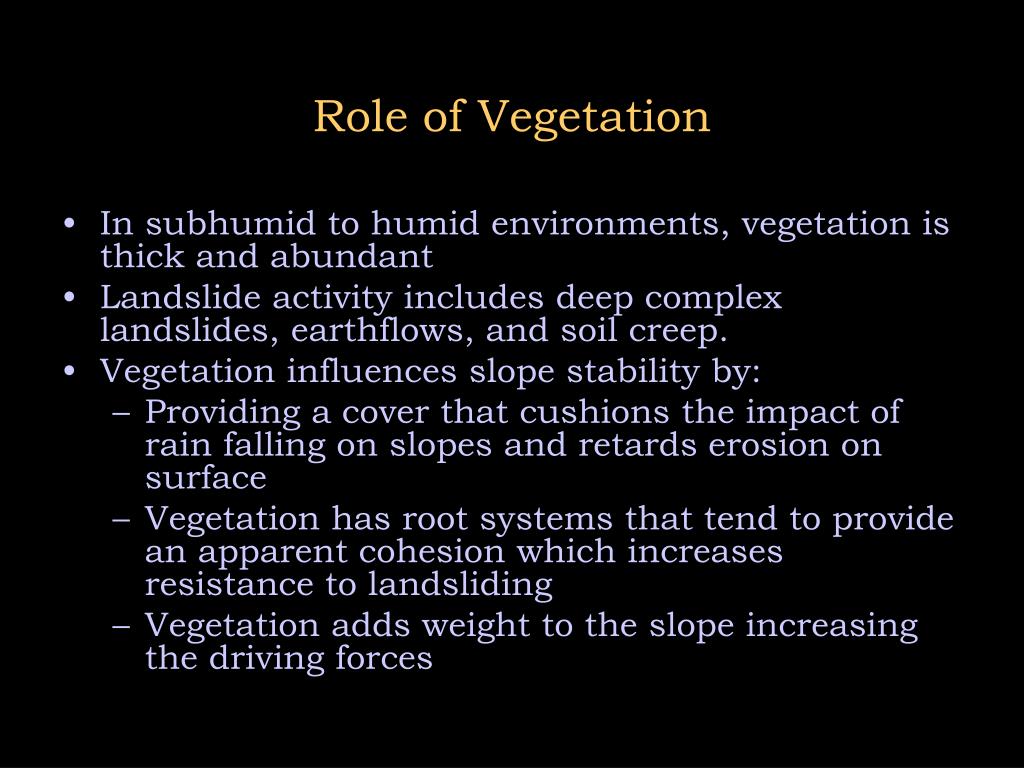

  23. Role of Vegetation • In subhumid to humid environments, vegetation is thick and abundant • Landslide activity includes deep complex landslides, earthflows, and soil creep. • Vegetation influences slope stability by: • Providing a cover that cushions the impact of rain falling on slopes and retards erosion on surface • Vegetation has root systems that tend to provide an apparent cohesion which increases resistance to landsliding • Vegetation adds weight to the slope increasing the driving forces

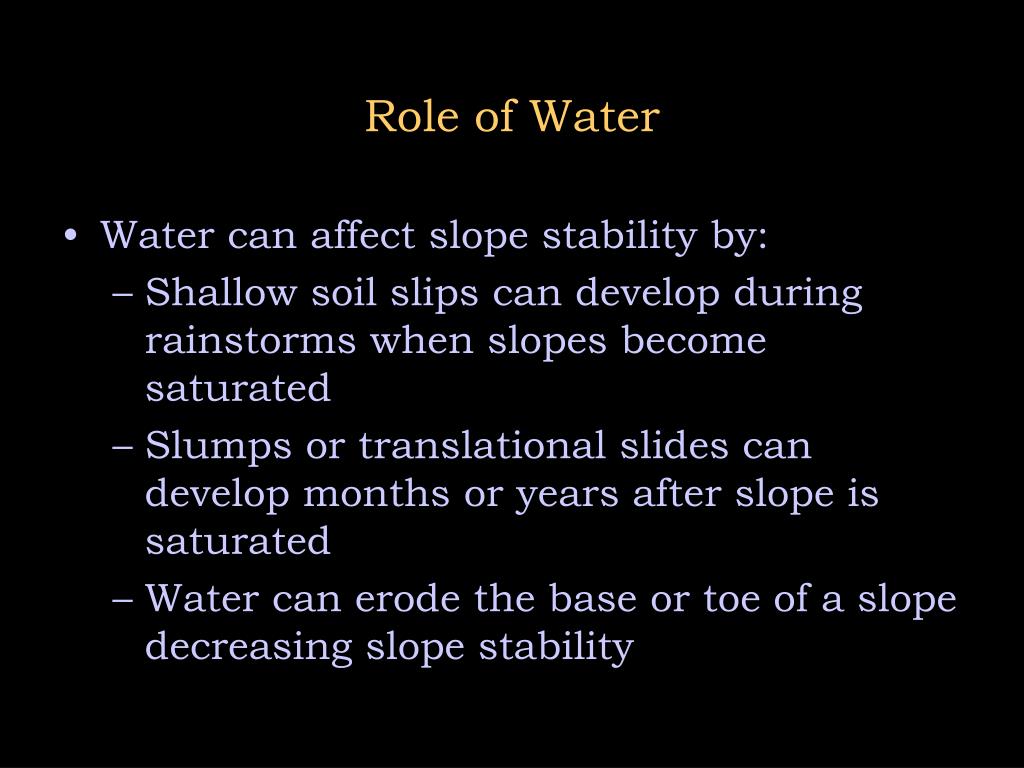

  24. Role of Water • Water can affect slope stability by: • Shallow soil slips can develop during rainstorms when slopes become saturated • Slumps or translational slides can develop months or years after slope is saturated • Water can erode the base or toe of a slope decreasing slope stability

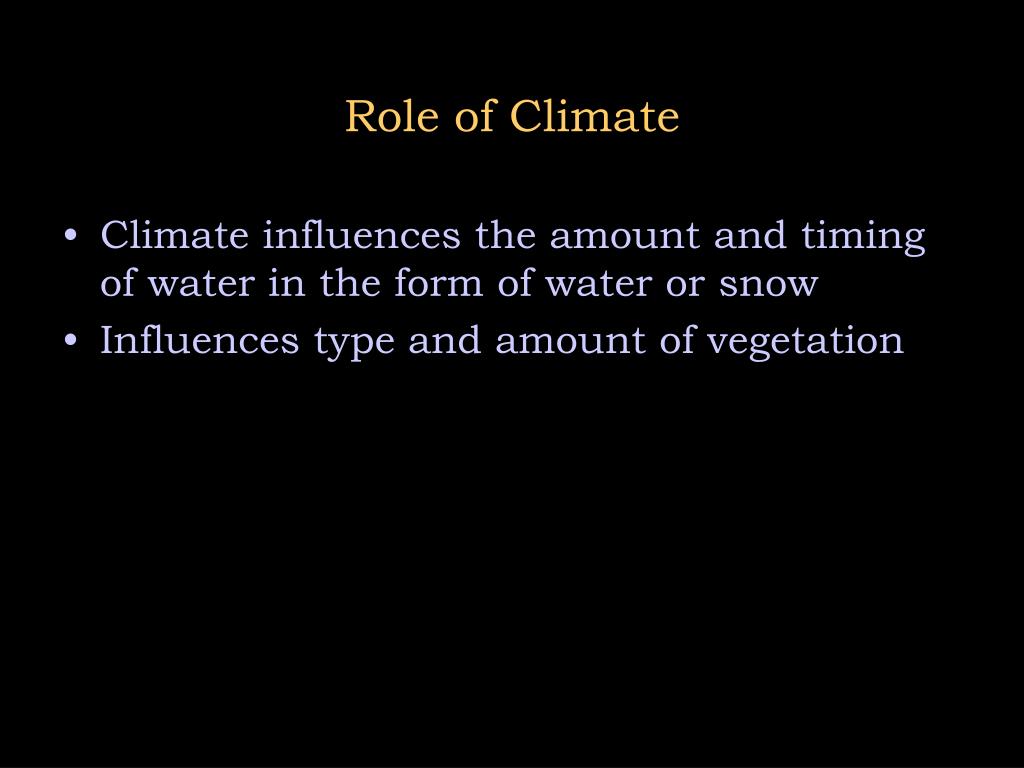

  25. Role of Climate • Climate influences the amount and timing of water in the form of water or snow • Influences type and amount of vegetation

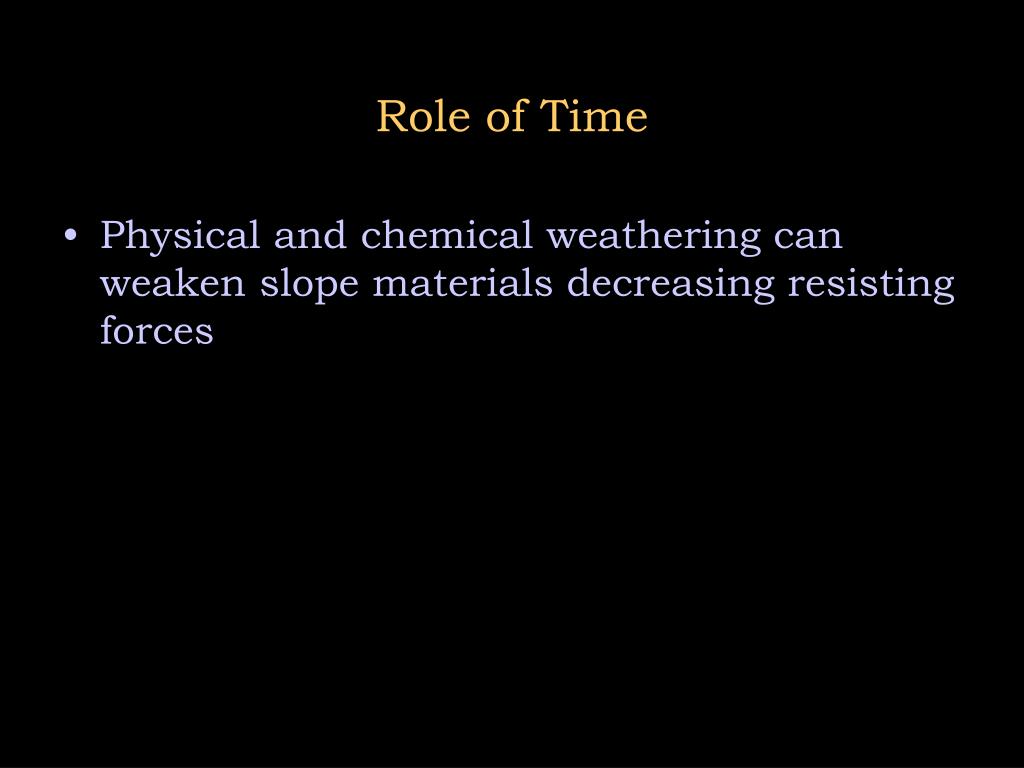

  26. Role of Time • Physical and chemical weathering can weaken slope materials decreasing resisting forces

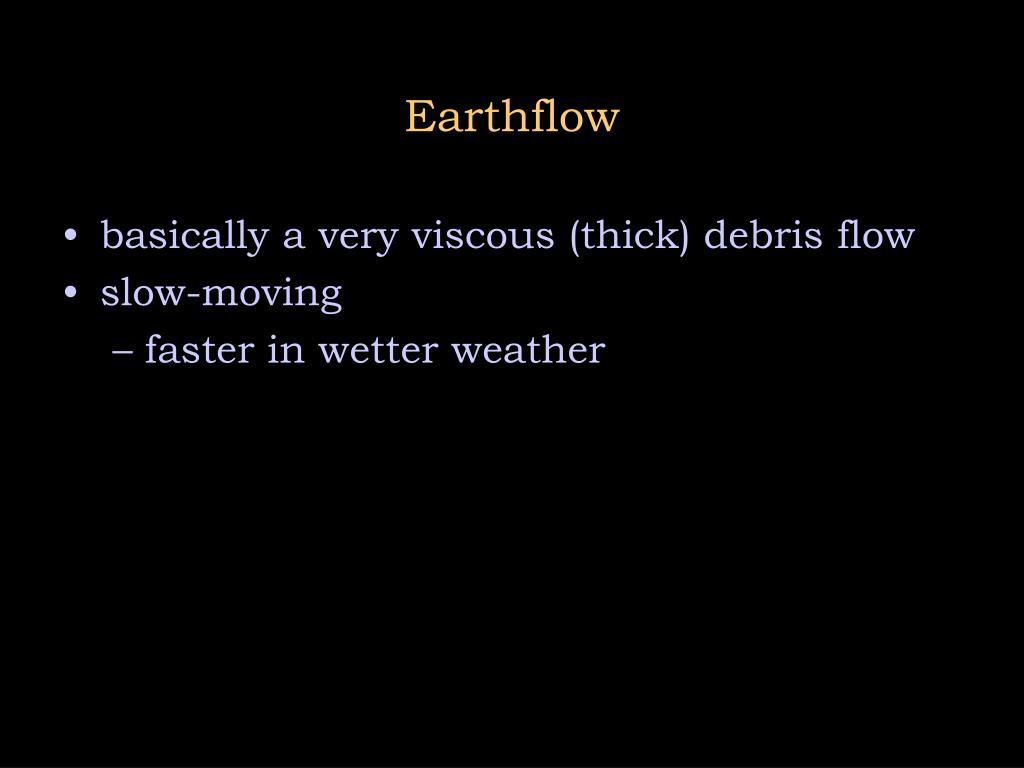

  27. Earthflow • basically a very viscous (thick) debris flow • slow-moving • faster in wetter weather

  28. Earthflow

  29. Creep • very slow • result of freezing and thawing

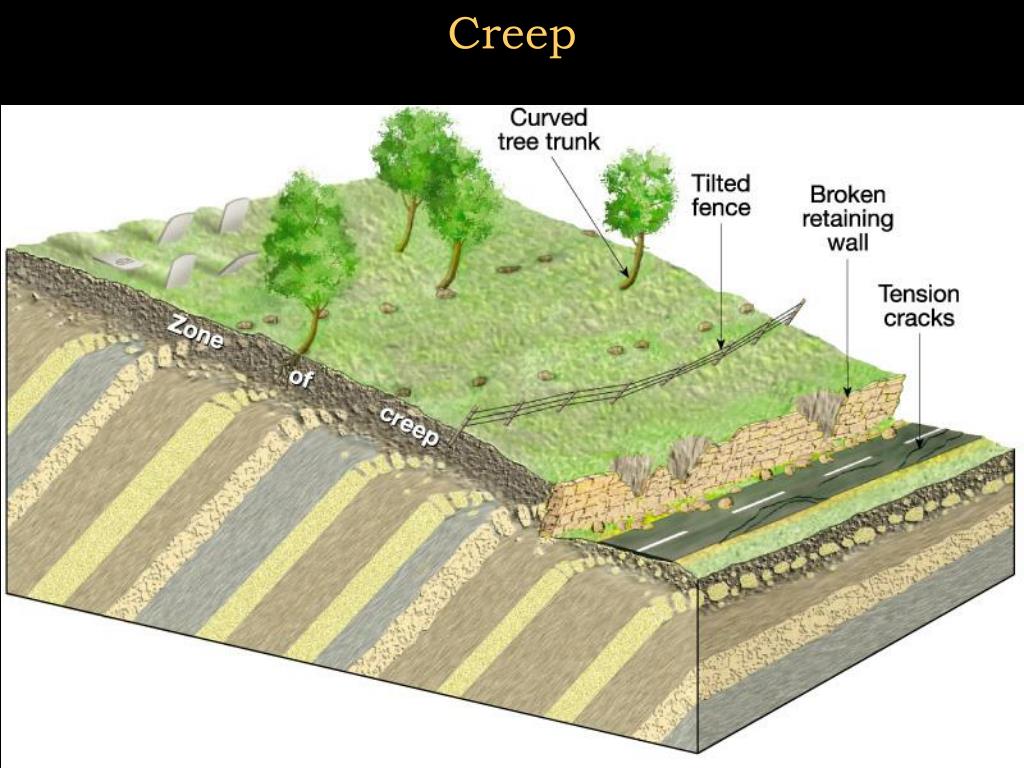

  30. Creep

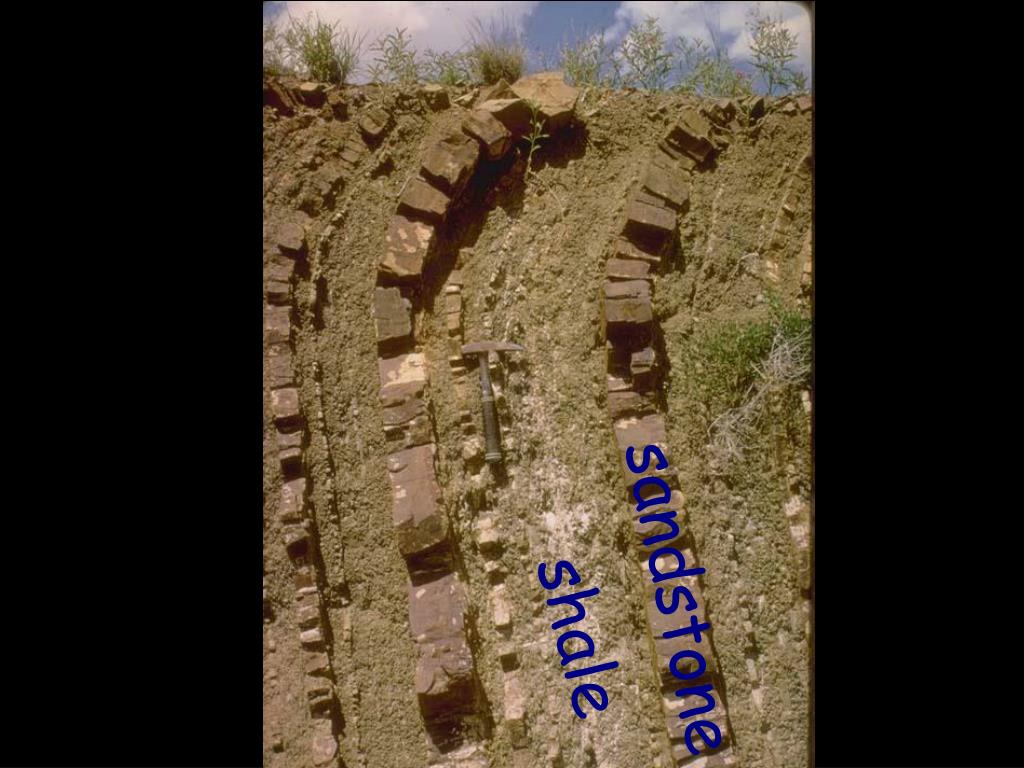

  31. sandstone shale

  32. from D. Schwert, NDSU Creep

  33. Triggers for rapid Mass Wasting • Rain • Oversteepening • cutting at foot of slope • piling on head of slope • Deforesting / Devegetating • Earthquakes
