An Introduction to Networking
Let us get acquainted! • What is your name and how would you like us to address you? • What is your background in networking (classes, experience)? • Why did you sign up for this class and what are your expectations? • Would you be interested in the CCNA, CCNP, MCSE, MCSA track? • What is your next step in technical training and industry certification after finishing this class?
Networks and Standalone Computers • Network • Group of computers and other devices connected by some type of transmission media • Networks enable users to share devices and data, collectively called a network’s resources • Standalone computer • Uses programs and data only from its local disks and is not connected to a network
Sneakernet • Method of sharing data by copying it to a disk and carrying the disk from computer to computer
Local and Remote Computers • Local computer • Computer on which user is working • Remote computer • Computer that user controls or works on via network connection
Peer-to-Peer Network • Computers communicate on single segment of cable and share each other’s data and devices • Simple example of a local area network (LAN)
Local Area Network (LAN) • Network of computers and other devices confined to relatively small space • LANs involving many computers are usually server-based • On a server-based network, special computers (known as servers) process data for and facilitate communication between other computers on the network (known as clients)
Networking Basics • Workstation • Computer that typically runs a desktop operating system and connects to a network • Client/server architecture • Networking model in which clients use central server to share applications, devices, and data
Networking Basics • Client/server network • Network based on client/server architecture • Network operating system • Special software designed to manage data and other resources on a server for a number of clients
Advantages of Server-Based over Peer-to-Peer Networks • User login accounts and passwords can be assigned in one place • Access to multiple shared resources can be centrally granted • Servers are optimized to handle heavy processing loads and dedicated to handling requests from clients • Servers can connect more than a handful of computers
MANs and WANs • Metropolitan area network (MAN) • Network connecting clients and servers in multiple buildings within limited geographic area • Wide area network (WAN) • Network that spans large distance and connects two or more LANs • The Internet is an example of a very intricate and extensive WAN that spans the globe
Elements Common to AllServer-Based Networks • Client • In addition to referring to a computer on the network, may also refers to human user of client workstation • Server • Workstation • Network interface card (NIC) • Enables workstation to connect to the network and communicate with other computers
Elements Common to AllServer-Based Networks • Network operating system (NOS) • Host • Server that manages shared resources • Node • Client, server, or other device that can communicate over a network and that is identified by a unique identifying number, known as its network address
Elements Common to AllServer-Based Networks • Protocol • Rules network uses to transfer data • Data Packets • The distinct units of data transmitted from one computer to another on a network
Elements Common to AllServer-Based Networks • Addressing • Scheme for assigning unique identifying number to every workstation on network • The number that uniquely identifies each workstation and device on a network is its address
Elements Common to AllServer-Based Networks • Transmission media • Means through which data are transmitted and received
How Networks Are Used • Services • Features provided by a network • File and print services • Communications services • Mail services • Internet services • Management services
Horizontal and Backbone Cabling (Type A) MDF IDF 3000m

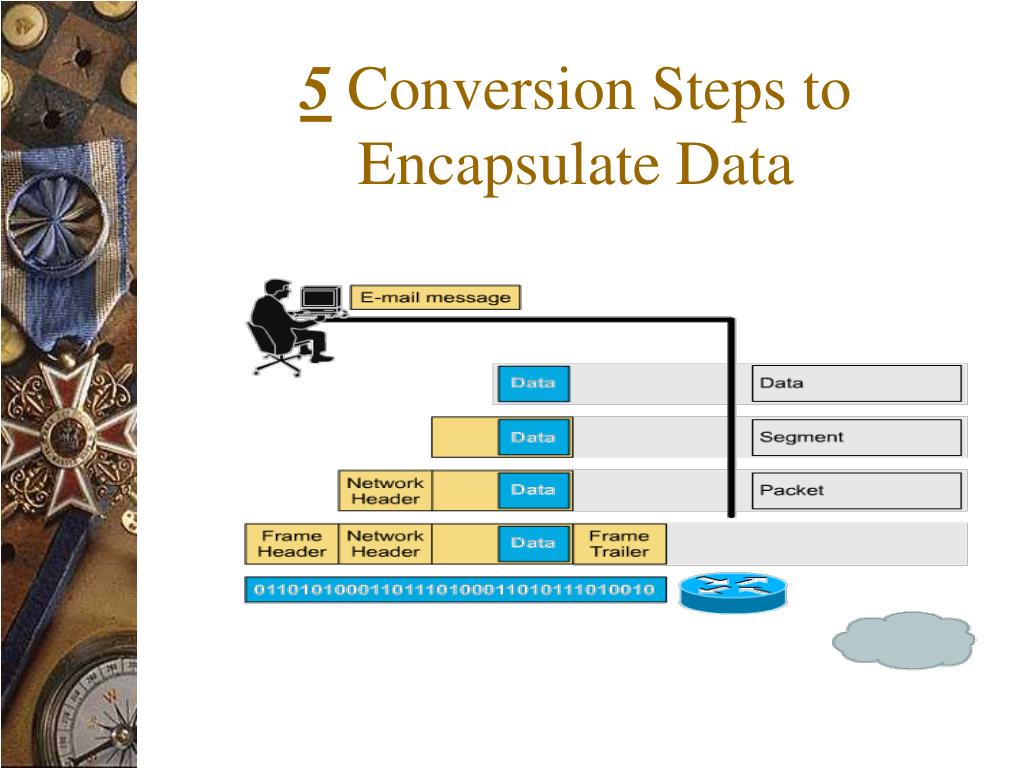

The Seven Layers of the OSI Model International Organization of Standardization ISO
Layer7 • The application layer is the OSI layer that is closest to the user; it provides network services to the user’s applications. It differs from the other layers in that it does not provide services to any other OSI layer, but rather, only to applications outside the OSI model. Examples of such applications are spreadsheet programs, word processing programs, and bank terminal programs. If you want to remember Layer 7 in as few words as possible, think of browsers.
Layer 6 • The presentation layer ensures that the information that the application layer of one system sends out is readable by the application layer of another system. If necessary, the presentation layer translates between multiple data formats by using a common format. If you want to think of Layer 6 in as few words as possible, think of a common data format
Layer 5 • As its name implies, the session layer establishes, manages, and terminates sessions between two communicating hosts. The session layer provides its services to the presentation layer. It also synchronizes dialogue between the two hosts' presentation layers and manages their data exchange. If you want to remember Layer 5 in as few words as possible, think of dialogues and conversations.
Layer 4 • The transport layer segments data from the sending host's system and reassembles the data into a data stream on the receiving host's system. Layer 4 is the boundary between media-layer protocols and host-layerprotocols. Layer 4 also deals with Flow Control (Windowing), and Reliability of Communication (Acknowledgement).
Layer 3 • The network layer is a complex layer that provides connectivity and path selection between two host systems that may be located on geographically separated networks. If you want to remember Layer 3 in as few words as possible, think of path selection, routing, and addressing.
Layer 2 • The data link layer provides reliable transit of data across a physical link. In so doing, the data link layer is concerned with physical (as opposed to logical) addressing, network topology, network access, error notification, ordered delivery of frames. If you want to remember Layer 2 in as few words as possible, think of frames and media access control.
Layer 1 • The physical layer defines the electrical, mechanical, procedural, and functional specifications for activating, maintaining, and deactivating the physical link between end systems. Such characteristics as voltage levels, timing of voltage changes, physical data rates, maximum transmission distances, physical connectors, and other, similar, attributes are defined by physical layer specifications. If you want to remember Layer 1 in as few words as possible, think of signals and media.
Summary of the OSI Model Layer Description
