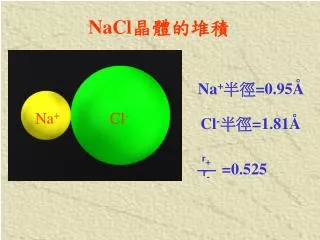

  1. r+ =0.525 r- NaCl晶體的堆積 Na+半徑=0.95Å Na+ Cl- Cl-半徑=1.81Å

  2. 離子晶體的堆積

  3. NaCl晶體的堆積 六配位 Cl- Na+ 八面體形

  4. Cl- Na+ NaCl的圓球模型

  5. NaCl的球棒模型

  6. NaCl晶體

  7. NaCl晶格

  8. NaCl的面心立方結構

  9. 雙面心立方結構

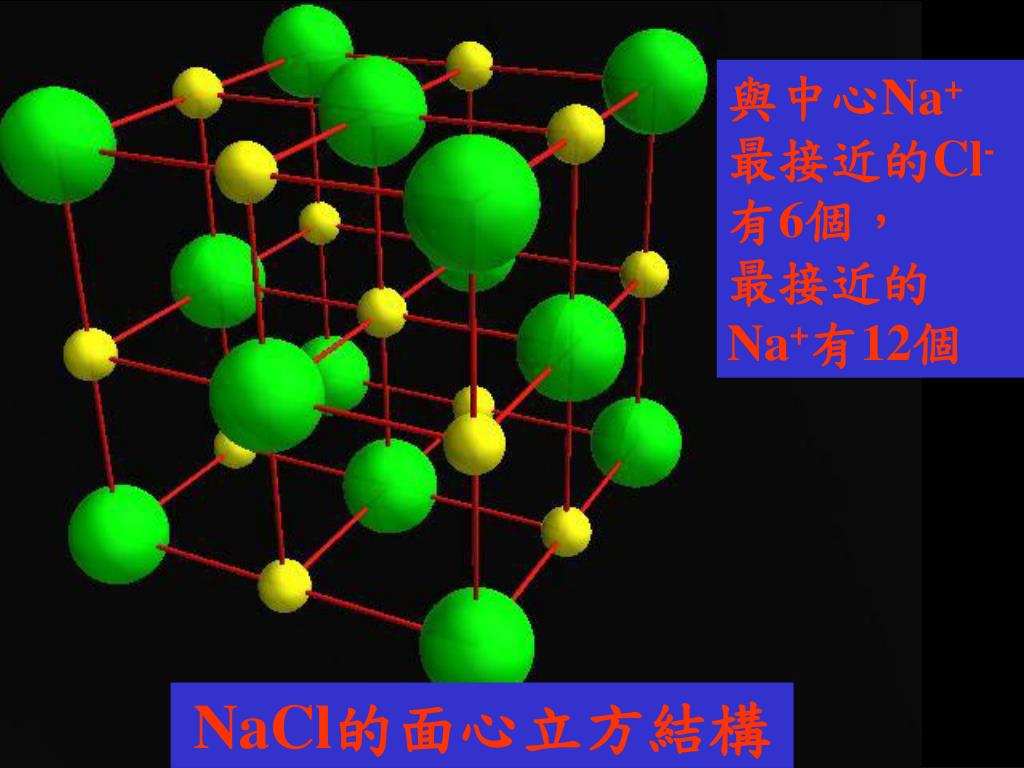

  10. 與中心Na+最接近的Cl-有6個, 最接近的Na+有12個 NaCl的面心立方結構

  11. NaCl單位晶格

  12. 一個單位晶格中, 含有多少個Cl- ?   多少個Na+?

  13. 一個單位晶格中, 共含有4個Cl-  含有4個Na+

  14. 1 1 8 4 1 2

  15. L :單位晶格邊長 M :NaCl分子量 N:亞佛加厥常數 D :晶體密度 晶體密度與單位晶格 的關係式: L =2(r++r-)

  16. 離子晶體的堆積

  17. 半徑比 Cs+ =0.978 Cl- 八配位 CsCl晶格(體心立方)

  18. 離子晶體的堆積
