Irmer why

IRMER , WHY?

Amanda Bath

Advance Practitioner

RPS

May 2014


RPS- Radiation Protection Supervisor

RPA- Radiation Protection Advisor

CMPE- Christies Medical Physics and

Engineering


Topics
Topics

  • Ionising radiation and effects.

  • Risks

  • Legislation

  • How does it effect our practice




somatic effects

stochastic

deterministic


Stochastic effects
Stochastic Effects

  • Stochastic effects are ones where the chance of the effect happening increases with radiation dose.

  • There is no threshold dose at which they will definitely occur.

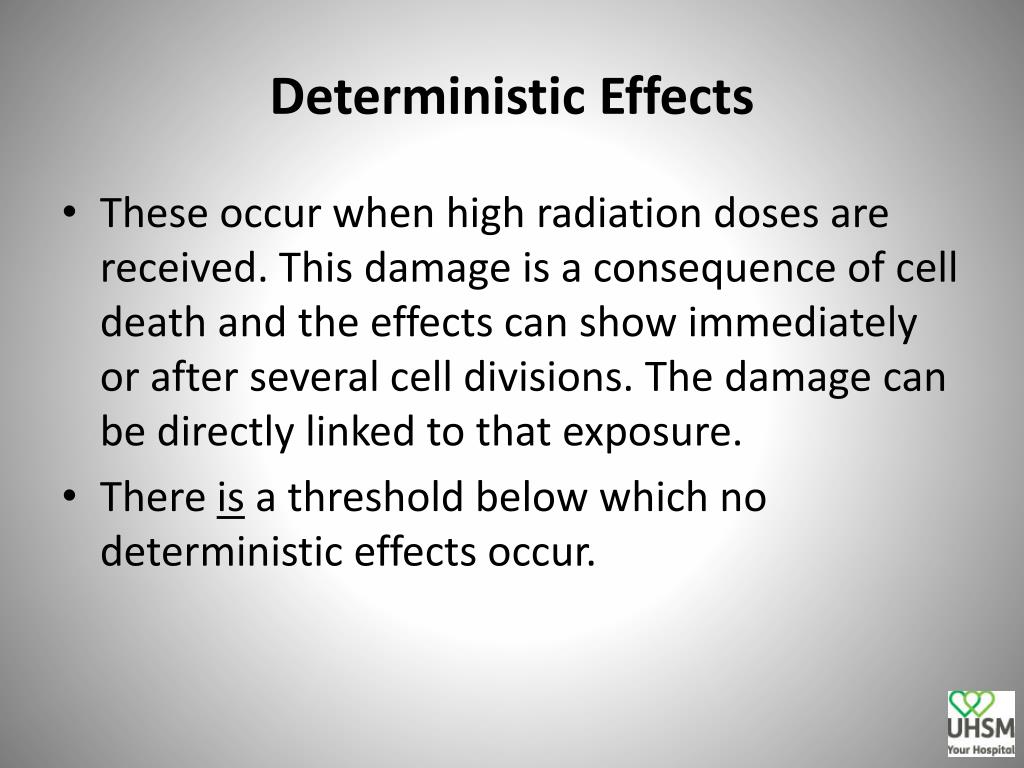

Deterministic effects
Deterministic Effects

  • These occur when high radiation doses are received. This damage is a consequence of cell death and the effects can show immediately or after several cell divisions. The damage can be directly linked to that exposure.

  • There is a threshold below which no deterministic effects occur.


Risks
Risks

  • Annual Risk of death:

  • Smoking 10 cigarettes a day – 1 in 200

  • Road accident – 1 in 5,000

  • Natural radiation – 1 in 9,000

  • Accidents at work – 1 in 20,000

  • Medical radiation – 1 in 53,000



The United Nations

1953 Dwight D.Eisenhower “Chance for Peace”.

IAEA- International Atomic Energy Agency

WHO- World Health Organisation.

UNSCEAR- United Nations Scientific Committee on the Effects of Atomic Radiation.


International Commission for Radiological Protection (ICRP) Independent advisory body founded in 1928 , registered charity.

Three fundamental principles of radiation protection

Justification

Optimisation

Dose limits


European Union/Commission (ICRP) Independent advisory body founded in 1928 , registered charity.

  • European Atomic Energy Community (EURATOM)

  • Peaceful use of Nuclear Energy .

  • Protection of patients exposed in medical practice

  • Issued directives that led to IR99 and IRMER.


UK Legislation (ICRP) Independent advisory body founded in 1928 , registered charity.


  • The Health and Safety Executive (HSE)- (ICRP) Independent advisory body founded in 1928 , registered charity.

  • Work with Ionising Radiation, which includes:

  • The Ionising Radiations Regulations 1999

  • (IRR99)

  • An approved Code of Practice

  • Guidance notes

  • IRR99 is UK law and is enforced by the HSE.


Irr99
IRR99 (ICRP) Independent advisory body founded in 1928 , registered charity.

The employer has the responsibility for complying with the regulations but will not be able to fully discharge his responsibility without the cooperation of his employees.


Irr991
IRR99 (ICRP) Independent advisory body founded in 1928 , registered charity.

As Low As Reasonably Practicable

ALARP

“Every radiation employer shall…take all necessary steps to restrict as far as reasonably practicable the extent to which his employees or other persons are exposed to ionising radiation.”


Irr99 requirements
IRR99- Requirements (ICRP) Independent advisory body founded in 1928 , registered charity.

  • Appropriate training

  • Register of staff “engaged “ in work.

  • Staff uniquely identified .

  • Training dates and refresher dates recorded.


The ionising radiation medical exposure regulations 2000 ir me r
The (ICRP) Independent advisory body founded in 1928 , registered charity.Ionising Radiation (Medical Exposure) Regulations 2000 IR(ME)R

Employers are required to provide written procedures and protocols to cover medical exposures for which they are responsible.

IR(ME)R 2000 is UK law andis currently enforced by the Care Quality Commission.(CQC)


Ir me r
IR(ME)R (ICRP) Independent advisory body founded in 1928 , registered charity.

4 duty holders in the administering of ionising radiation

  • Employer-radiological installation and risk assessments. (advice from RPA)

  • Referrer- registered medical practitioner/health professional.

  • Practitioner- registered medical practitioner/health professional. Justifies the exposure.

  • Operator- person who carries out the exposure.

    No role is specific to any profession

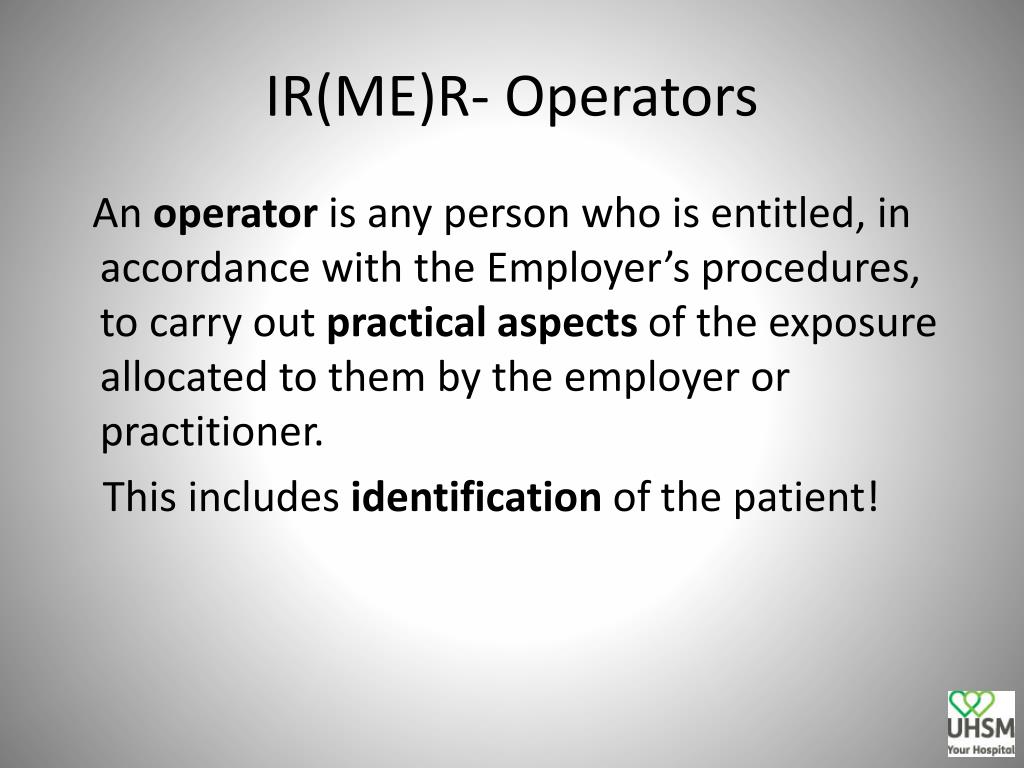

Ir me r operators
IR(ME)R- Operators (ICRP) Independent advisory body founded in 1928 , registered charity.

An operator is any person who is entitled, in accordance with the Employer’s procedures, to carry out practical aspects of the exposure allocated to them by the employer or practitioner.

This includes identification of the patient!

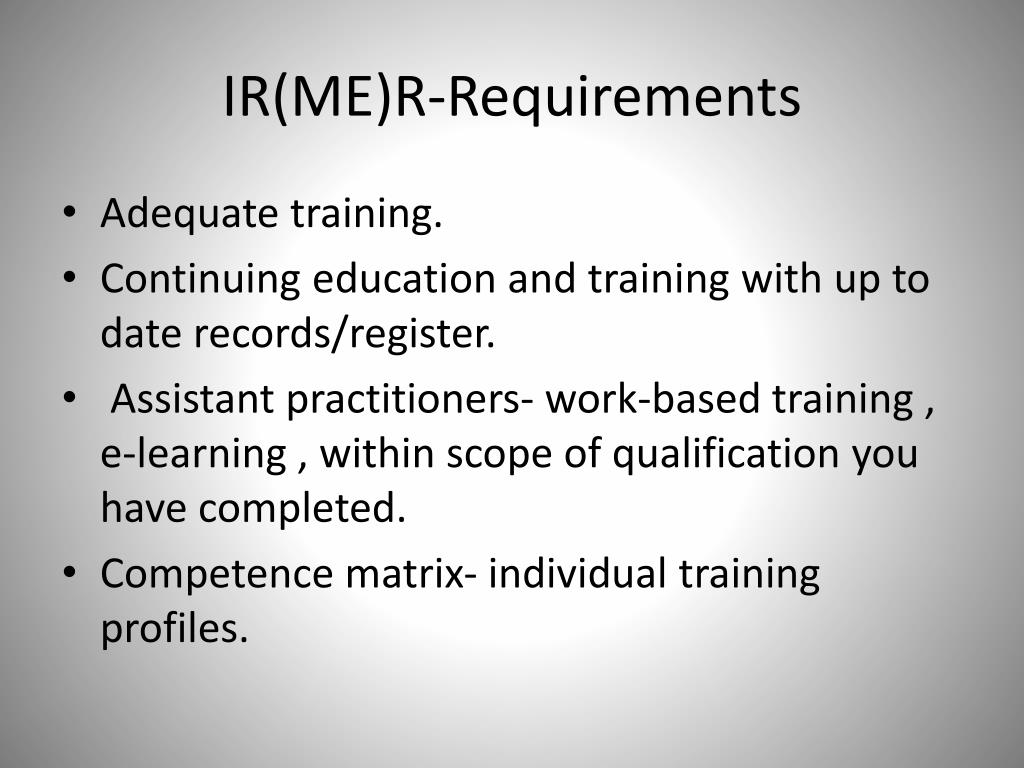

Ir me r requirements
IR(ME)R-Requirements (ICRP) Independent advisory body founded in 1928 , registered charity.

  • Adequate training.

  • Continuing education and training with up to date records/register.

  • Assistant practitioners- work-based training , e-learning , within scope of qualification you have completed.

  • Competence matrix- individual training profiles.


How does this effect our practice
How does this effect our practice? (ICRP) Independent advisory body founded in 1928 , registered charity.

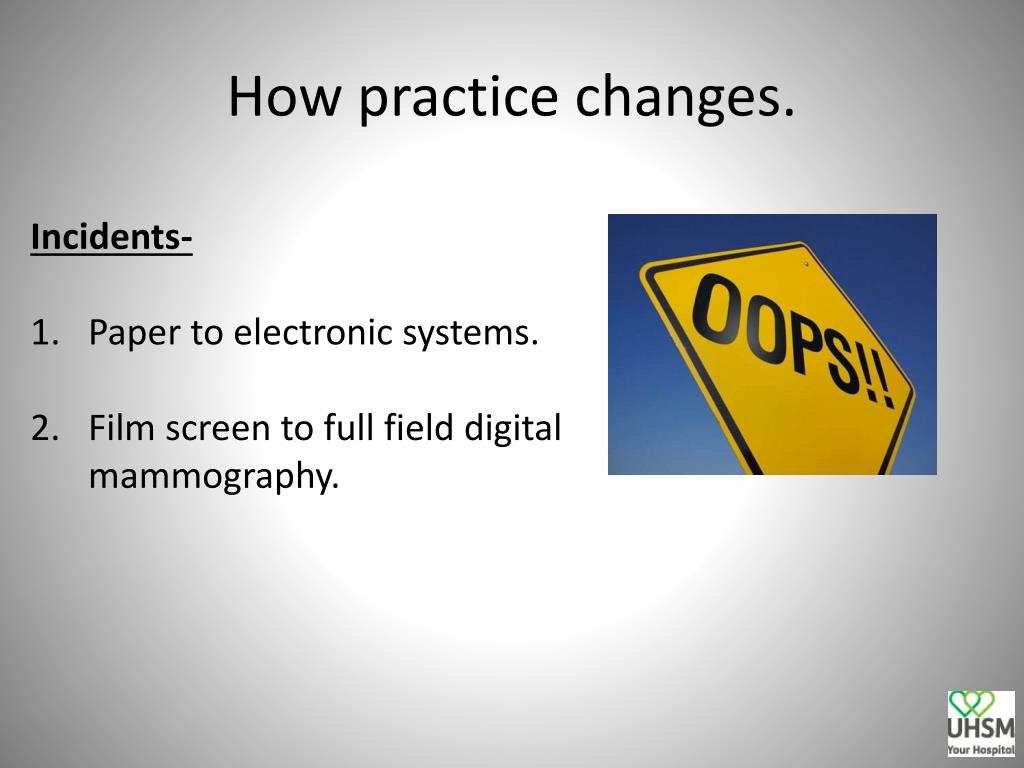

How practice changes
How practice changes. (ICRP) Independent advisory body founded in 1928 , registered charity.

Incidents-

Paper to electronic systems.

Film screen to full field digital mammography.


1 electronic requesting
1.Electronic Requesting (ICRP) Independent advisory body founded in 1928 , registered charity.

  • No mammograms repeated within 6 months of previous mammogram. (exceptional circumstances).

  • Previous paperwork not available, no method of recording information.

  • Client had a mammogram 2 months earlier.


Outcome
Outcome (ICRP) Independent advisory body founded in 1928 , registered charity.

  • New protocol in place.

  • Check on PACS system for previous imaging

  • Record on ‘Q’ page of RIS system.

  • Result- fewer incidents.


2 ffd mammography
2.FFD Mammography (ICRP) Independent advisory body founded in 1928 , registered charity.

  • Flat field test

  • The parameters are set automatically ie. large focal spot, Mo/Mo, 26kV and 200 mAs.

  • Ensure that the operating parameters are returned to Standard and Auto


2 ffd mammography1
2.FFD Mammography (ICRP) Independent advisory body founded in 1928 , registered charity.


Outcome1
Outcome (ICRP) Independent advisory body founded in 1928 , registered charity.

  • New protocol in place.

  • Sign to say have returned to “auto” and “auto”.

  • All staff informed of incidents.

  • Not happened since.


Regulatory changes
Regulatory Changes (ICRP) Independent advisory body founded in 1928 , registered charity.

  • 2007 EU process of revision

  • Influenced by IRCP and IAEA recommendations.

  • The Department of Energy and Climate Change.

  • Audit- Identification and justification.


Audit
Audit (ICRP) Independent advisory body founded in 1928 , registered charity.

  • Audited the ‘Q’ page.

  • April 2013- 179 out of 196, (91%) of examinations were justified, from a target of 100%.

  • Dec 2013-199 out of 200 examinations (99.5%) were justified and had the operator recorded.


Summary
Summary (ICRP) Independent advisory body founded in 1928 , registered charity.

  • Legislation is LAW.

  • Necessary to keep up to date with training.

  • Recording of evidence.

  • Resources.


www.e-lfh.org.uk (ICRP) Independent advisory body founded in 1928 , registered charity.

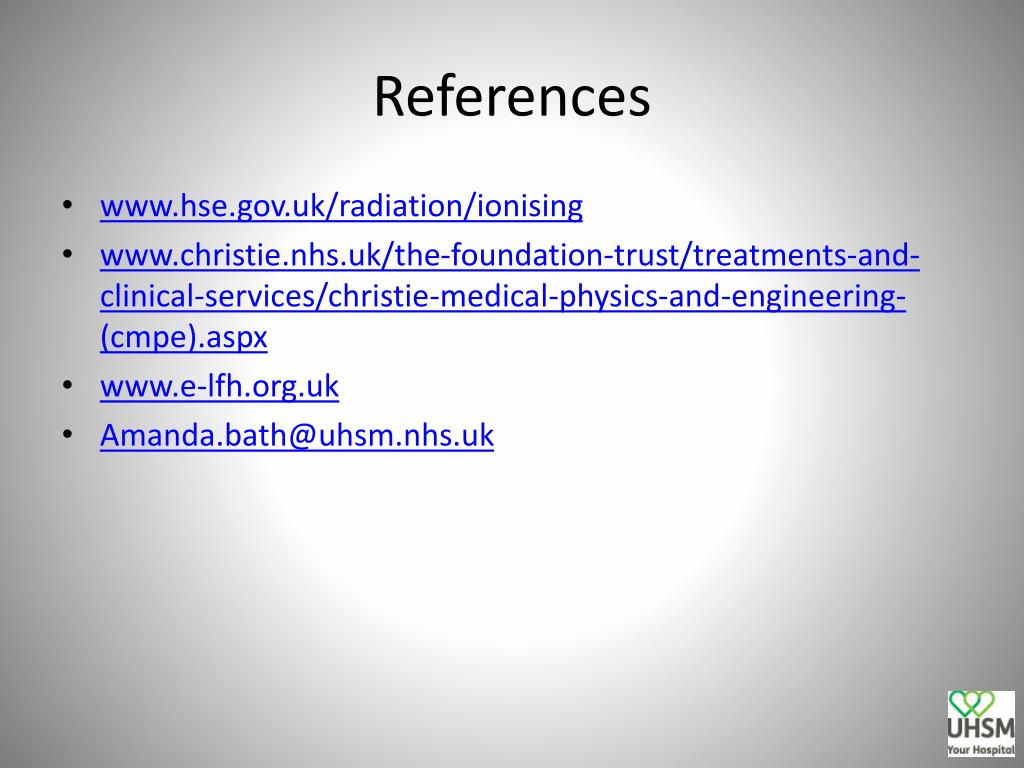

References
References (ICRP) Independent advisory body founded in 1928 , registered charity.

  • www.hse.gov.uk/radiation/ionising

  • www.christie.nhs.uk/the-foundation-trust/treatments-and-clinical-services/christie-medical-physics-and-engineering-(cmpe).aspx

  • www.e-lfh.org.uk

  • [email protected]
