Presentation Transcript


Presentation 10 th february 2010 in ljubljana introduction by gustav r grob

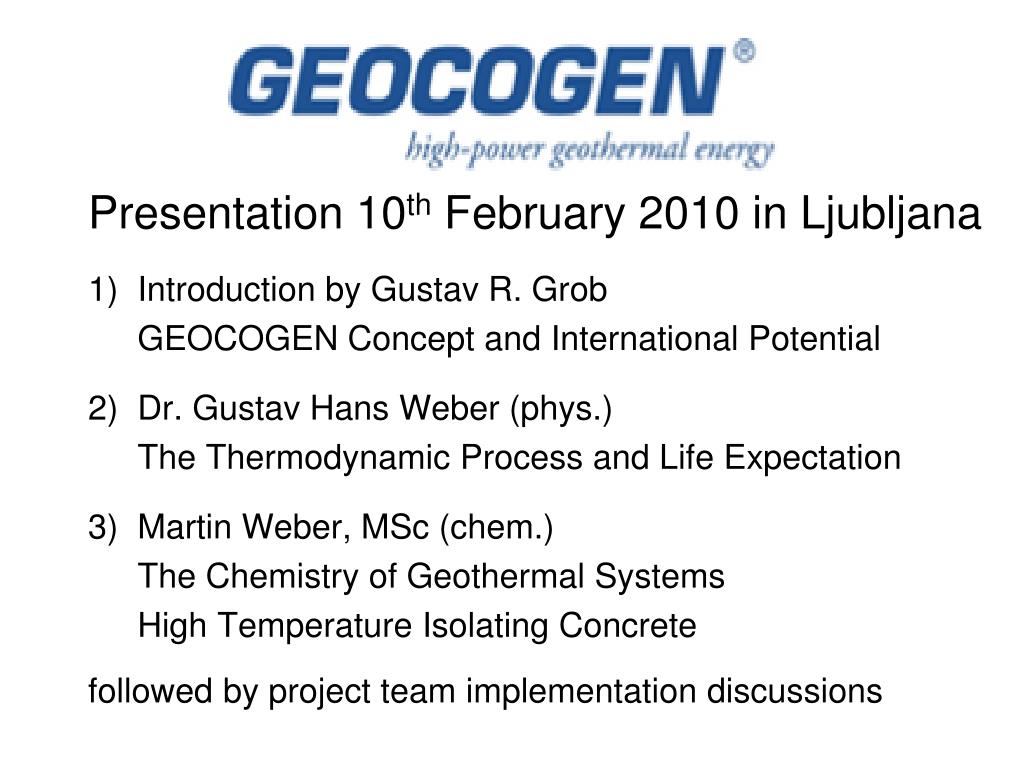

Presentation 10th February 2010 in Ljubljana

  • Introduction by Gustav R. Grob

    GEOCOGEN Concept and International Potential

    2)Dr. Gustav Hans Weber (phys.)

    The Thermodynamic Process and Life Expectation

    3)Martin Weber, MSc (chem.)

    The Chemistry of Geothermal Systems

    High Temperature Isolating Concrete

    followed by project team implementation discussions


Why use geothermal heat

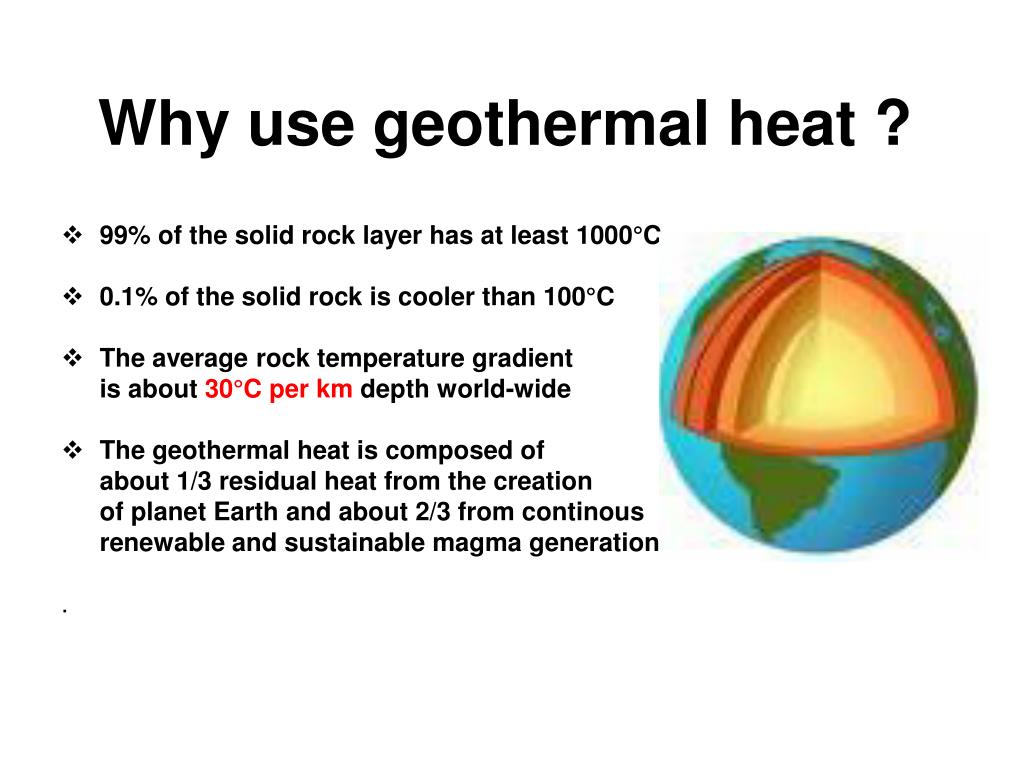

Why use geothermal heat ?

  • 99% of the solid rock layer has at least 1000°C

  • 0.1% of the solid rock is cooler than 100°C

  • The average rock temperature gradient

    is about 30°C per km depth world-wide

  • The geothermal heat is composed of

    about 1/3 residual heat from the creation

    of planet Earth and about 2/3 from continous

    renewable and sustainable magma generation

    .


Energy cost comparison

Energy Cost Comparison

¢/kWh

Energy Cost Comparison


Use of geothermal heat around the world

Use of geothermal heat around the world


Presentation 10 th february 2010 in ljubljana introduction by gustav r grob

Global Geothermal Industry Evolution by Market, 1970–2015

GEOCOGEN


Types of geothermal power plants

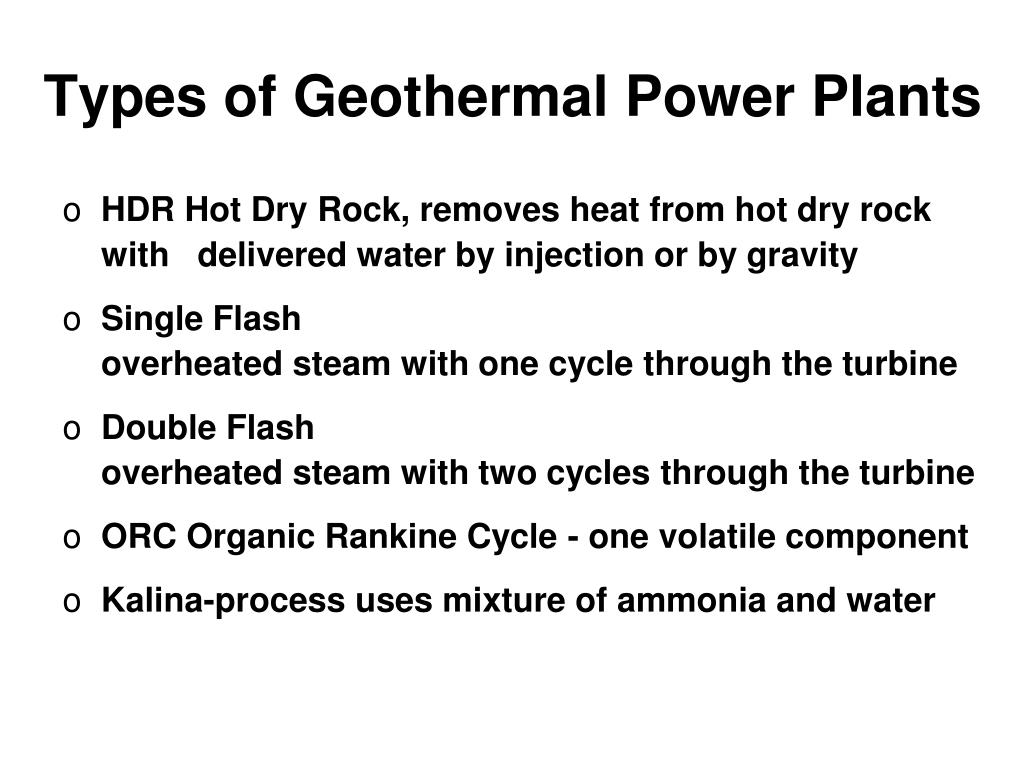

Types of Geothermal Power Plants

  • HDR Hot Dry Rock, removes heat from hot dry rock

    with delivered water by injection or by gravity

  • Single Flash

    overheated steam with one cycle through the turbine

  • Double Flash

    overheated steam with two cycles through the turbine

  • ORC Organic Rankine Cycle - one volatile component

  • Kalina-process uses mixture of ammonia and water


Binary hdr system removes heat from hot dry rock by compressed water

Binary HDR System removes heat from hot dry rock by compressed water

Earth Quake Risk !

Problem: Kirchhoff‘s law

of the easiest way


Conventional low power binary system unterhaching bavaria

Conventional Low Power Binary SystemUnterhaching, Bavaria


Examples of conventional geothermal power plants

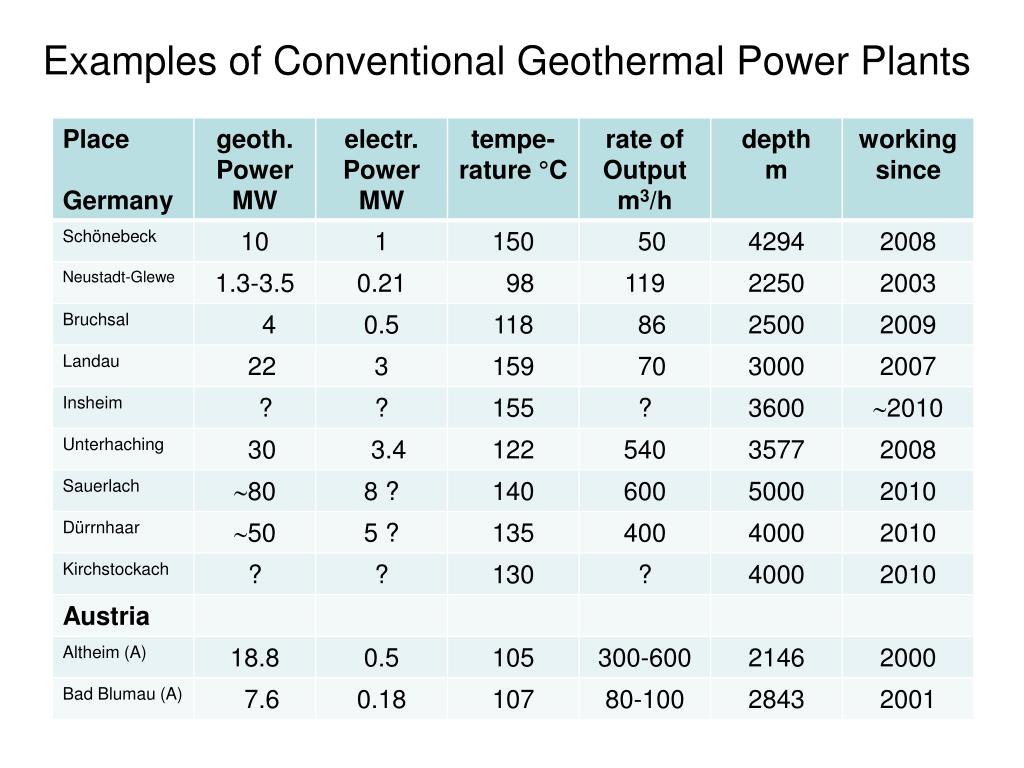

Examples of Conventional Geothermal Power Plants


Evolution of geothermal energy

Evolution of Geothermal Energy


Original brunnschweiler system

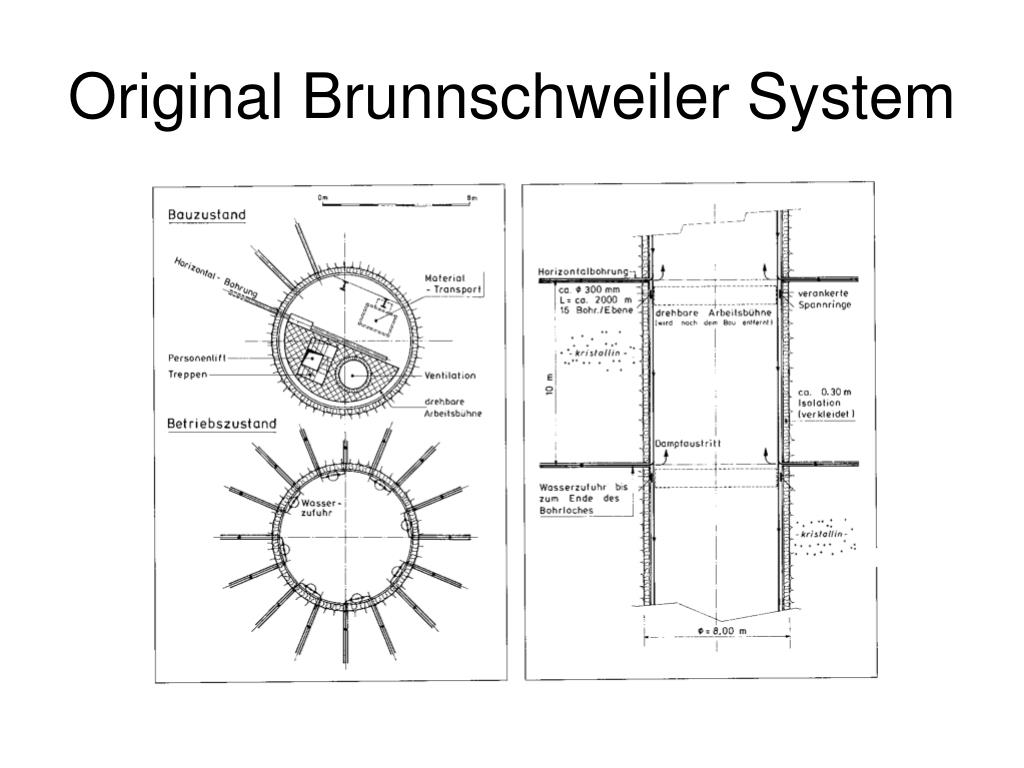

Original Brunnschweiler System


Presentation 10 th february 2010 in ljubljana introduction by gustav r grob

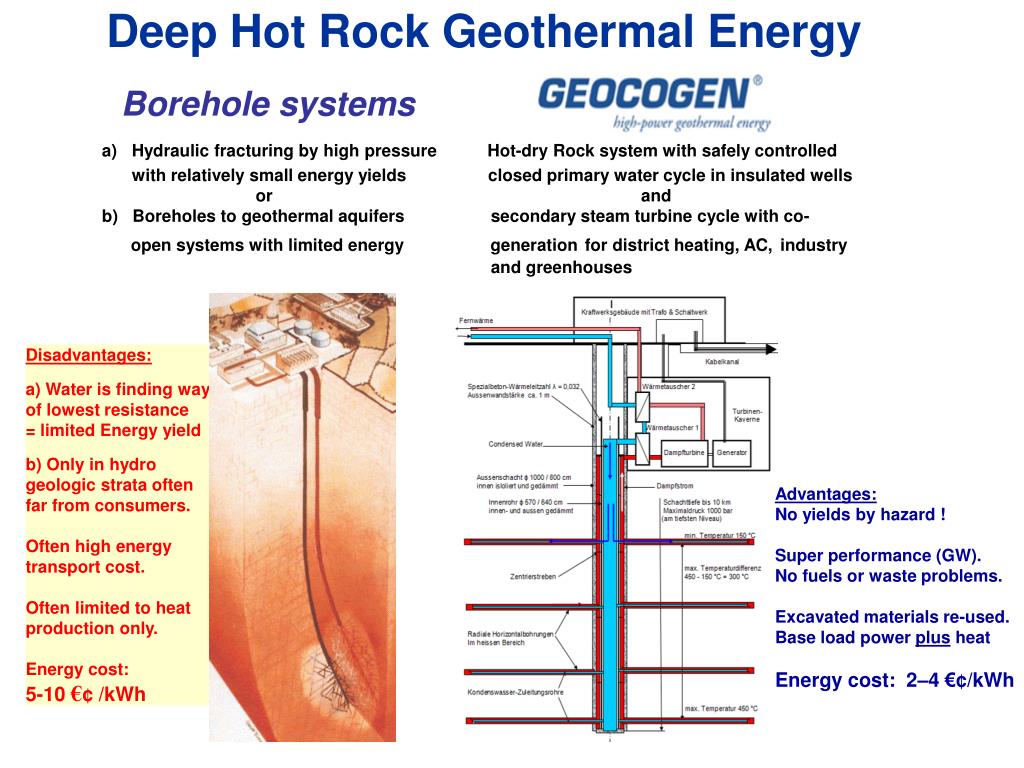

Deep Hot Rock Geothermal Energy

  • Borehole systems

  • Hydraulic fracturing by high pressureHot-dry Rock system with safely controlled

  • with relatively small energy yields closed primary water cycle in insulated wells

  • or and

  • b) Boreholes to geothermal aquifers secondary steam turbine cycle with co-

  • open systems with limited energy generationfor district heating, AC,industry and greenhouses

Disadvantages:

a) Water is finding way of lowest resistance

= limited Energy yield

b) Only in hydro geologic strata often far from consumers.

Often high energy transport cost.

Often limited to heat production only.

Energy cost:

5-10 €¢ /kWh

Advantages:

No yields by hazard !

Super performance (GW).

No fuels or waste problems.

Excavated materials re-used.

Base load power plus heat

Energy cost: 2–4 €¢/kWh


New thermal drilling methods

New thermal drilling methods


Advantages of geothermal deep well energy co generation

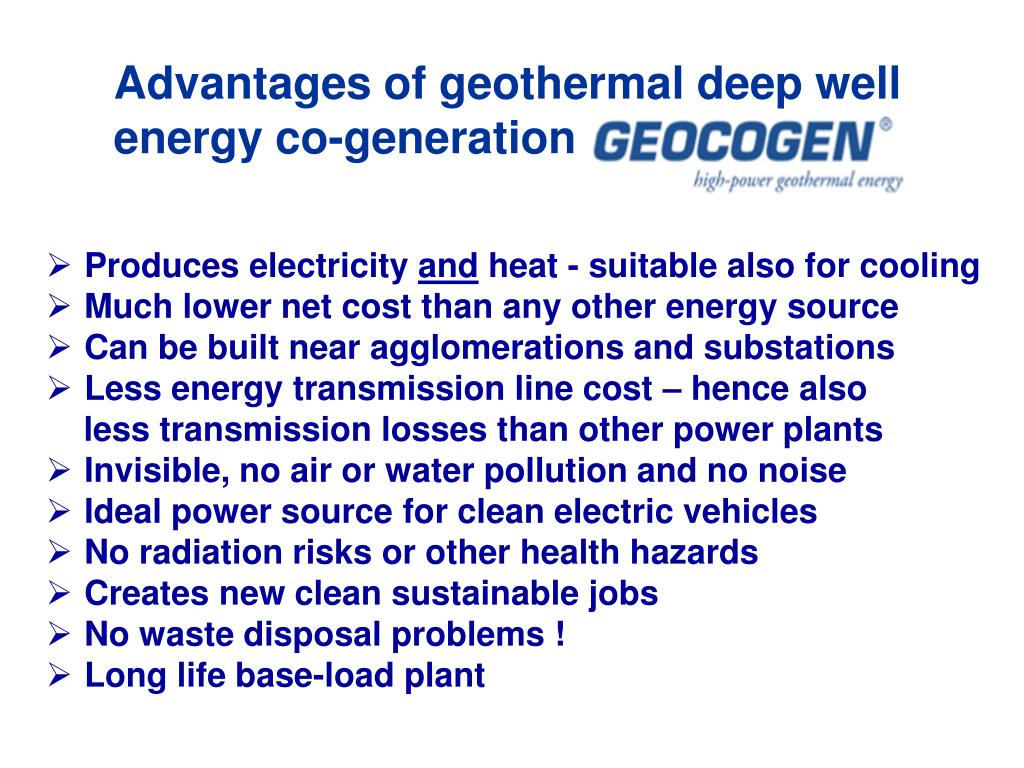

Advantages of geothermal deep well energy co-generation

  • Produces electricity and heat - suitable also for cooling

  • Much lower net cost than any other energy source

  • Can be built near agglomerations and substations

  • Less energy transmission line cost – hence also

    less transmission losses than other power plants

  • Invisible, no air or water pollution and no noise

  • Ideal power source for clean electric vehicles

  • No radiation risks or other health hazards

  • Creates new clean sustainable jobs

  • No waste disposal problems !

  • Long life base-load plant


Typical locations

Typical locations

Example NRW Subsitution of Nuclear & Coal


Finite nuclear power to be replaced

Finite Nuclear Power (to be replaced)


Radioactive contamination of europe including chernobyl fallout

Radioactive contamination of Europe including Chernobyl fallout.


Presentation 10 th february 2010 in ljubljana introduction by gustav r grob

Map showing Caesium-137 contamination in Belarus, Russia & Ukraine. Curies per km2 (1 curie = 37 gigabecquerels).


The link between electric vehicles and power the smart grid

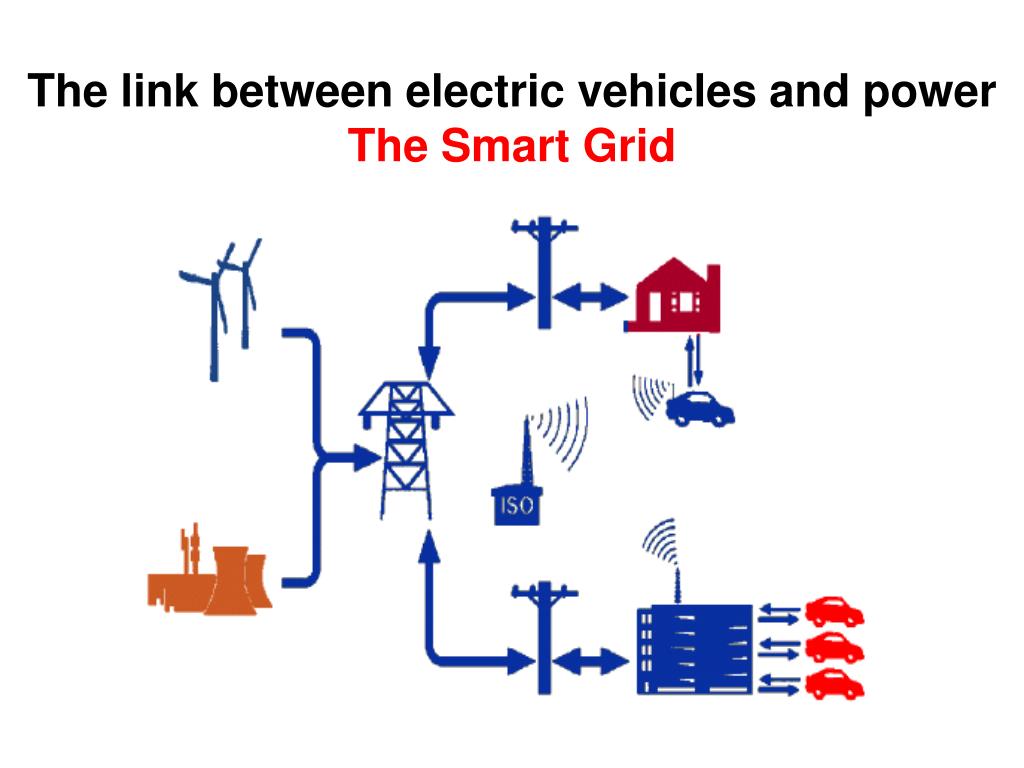

The link between electric vehicles and powerThe Smart Grid


Geocogen planning sequence

GEOCOGEN planning sequence

4th phase

finacing &

implementation

3rd phase

engineering

& tendering

2nd phase

data analysis

field testing

1st phase

pre-

engineering

Final Layout

Chemical System

Final Scheduling

Permits & PPA

Vendor Selection

Logistic

Partners (EU etc.)

PPA Signatures

Financing

Site Management

Grid Connection

Company Registration

Commissoning

Start of operation

Feasibilty Checks

Data Analyses

Electrical Engineering

Steam Engineering

Safety Checks

Permit Investigations

Financing

Detrmination of Team

with Disciplines

Time Schedule

Pre-calculatations

Business Plan Draft

SWOT Analysis

Geologic Surveys

Financing Concept


Conclusions and recommendations

Conclusions and Recommendations

  • GEOCOGEN is the most economical base load energy system

  • GEOCOGEN does not harm the health, environment & climate

  • GEOCOGEN can be installed near the energy consumption

  • A Swiss-Slovenian interdisciplinary task force is necessary

  • The EU should support a pilot plant in Slovenia

  • Engineering can be done in affordable stages

  • A national start up budget is needed
