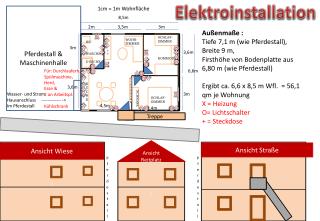

Elektroinstallation. 1cm = 1m Wohnfläche. Pferdestall & Maschinenhalle. 8,5m. 2m 3,5m 3m . Außenmaße : Tiefe 7,1 m (wie Pferdestall), Breite 9 m, Firsthöhe von Bodenplatte aus 6,80 m (wie Pferdestall) Ergibt ca. 6,6 x 8,5 m Wfl . = 56,1 qm je Wohnung X = Heizung

evan
Download Presentation

K Ü C H E

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

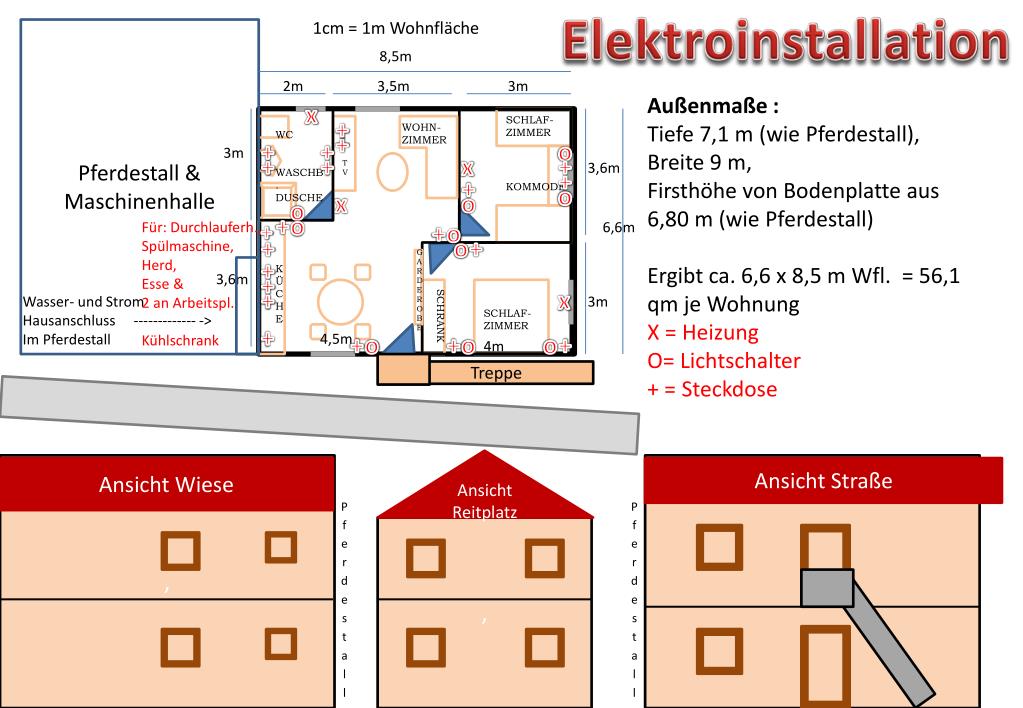

  1. Elektroinstallation 1cm = 1m Wohnfläche Pferdestall & Maschinenhalle 8,5m 2m 3,5m 3m Außenmaße : Tiefe 7,1 m (wie Pferdestall), Breite 9 m, Firsthöhe von Bodenplatte aus 6,80 m (wie Pferdestall) Ergibt ca. 6,6 x 8,5 m Wfl. = 56,1 qm je Wohnung X = Heizung O= Lichtschalter + = Steckdose x + SCHLAF- ZIMMER WOHN- ZIMMER WC WASCHB. DUSCHE + + + o 3m + + x + TV 3,6m + + KOMMODE o x o o + o Für: Durchlauferh., Spülmaschine, Herd, Esse & 2 an Arbeitspl. Kühlschrank + + o 6,6m + o + G A R D E R O B E + K Ü C H E 3,6m + + x Wasser- und Strom Hausanschluss ------------- -> Im Pferdestall 3m SCHLAF- ZIMMER SCHRANK + 4,5m + o + o o + 4m Treppe Ansicht Reitplatz , , Ansicht Wiese Ansicht Straße Pferdestall Pferdestall ,
