  1. CON7553 PeopleTools REST Web Services: Everything You Need to Know  Graham Smith - OXFAM GB PeopleSoft Technical Lead & System Architect

  2. Oxfam Oxfam is a vibrant global movement of dedicated people fighting poverty 70 years experience in 94 countries Syria - Helping over 200,000 refugees

  3. PeopleSoft @ OXFAM • HCM & FSCM Applications • 4,500+ users in 70+ countries • Working on 9.2 upgrade to FSCM

  4. Agenda 1) What is a web service 2) What is SOAP & REST 3) What is WSDL and WADL 4) What is XML and JSON 6) Configuring PeopleTools for REST 7) What's delivered in a SYS database that works 8) How to Build a REST service 9) Testing tools 10) Security 11) Demo 12) Questions

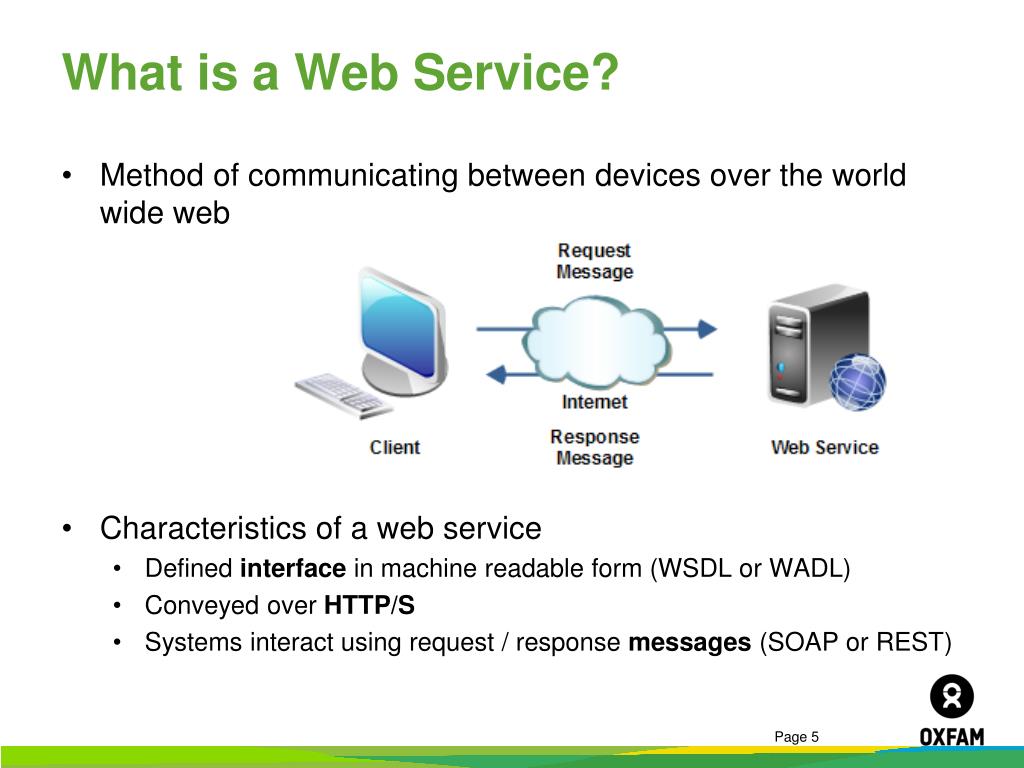

  5. What is a Web Service? • Method of communicating between devices over the world wide web • Characteristics of a web service • Defined interface in machine readable form (WSDL or WADL) • Conveyed over HTTP/S • Systems interact using request / response messages (SOAP or REST)

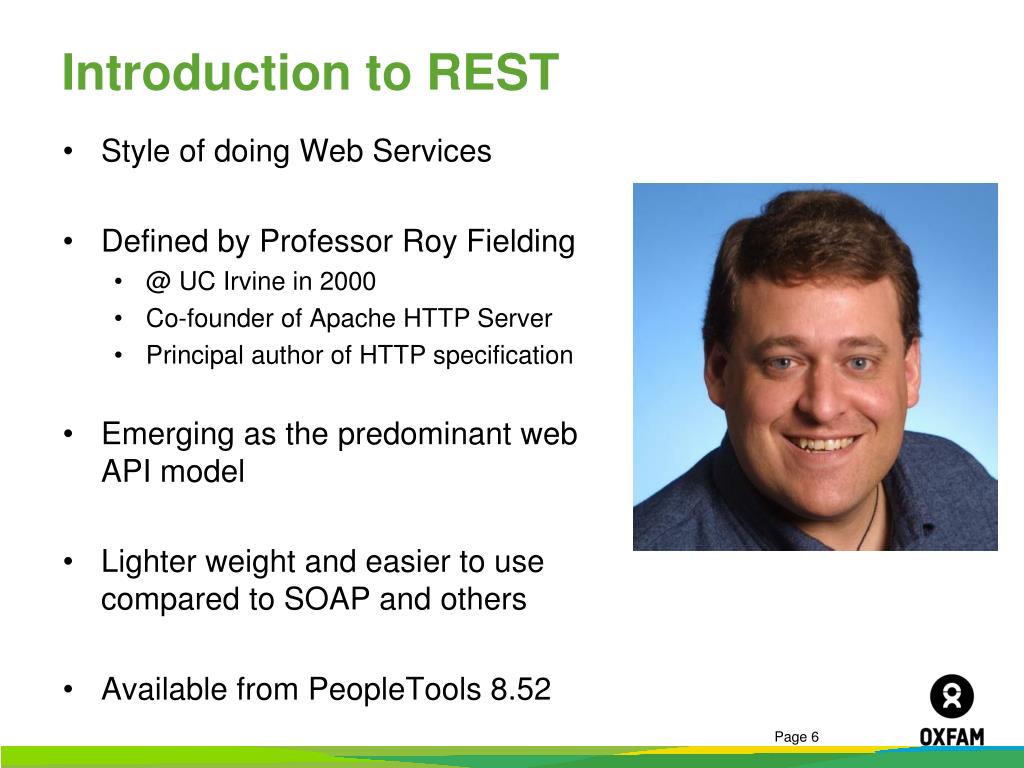

  6. Introduction to REST • Style of doing Web Services • Defined by Professor Roy Fielding • @ UC Irvine in 2000 • Co-founder of Apache HTTP Server • Principal author of HTTP specification • Emerging as the predominant web API model • Lighter weight and easier to use compared to SOAP and others • Available from PeopleTools 8.52

  7. What is SOAP & REST? • Both are used to access Web Services • One is a protocol (SOAP) with defined specification http://www.w3.org/TR/soap/ • One is an architectural style (REST)

  8. What is SOAP? • SOAP Simple Object Access Protocol “SOAP Version 1.2 is a lightweight protocol intended for exchanging structured information in a decentralized, distributed environment” • TECHNOLOGY SPECIFICATION (W3C in 2033) • Requires custom methods (e.g. getCustomerName) • Uses HTTP POST method to send XML messages • Designed for distributed transactions • Extensible model (WS-Security, WS-Routing, etc) • Asynchronous and Synchronous communication possible • Built in error handling

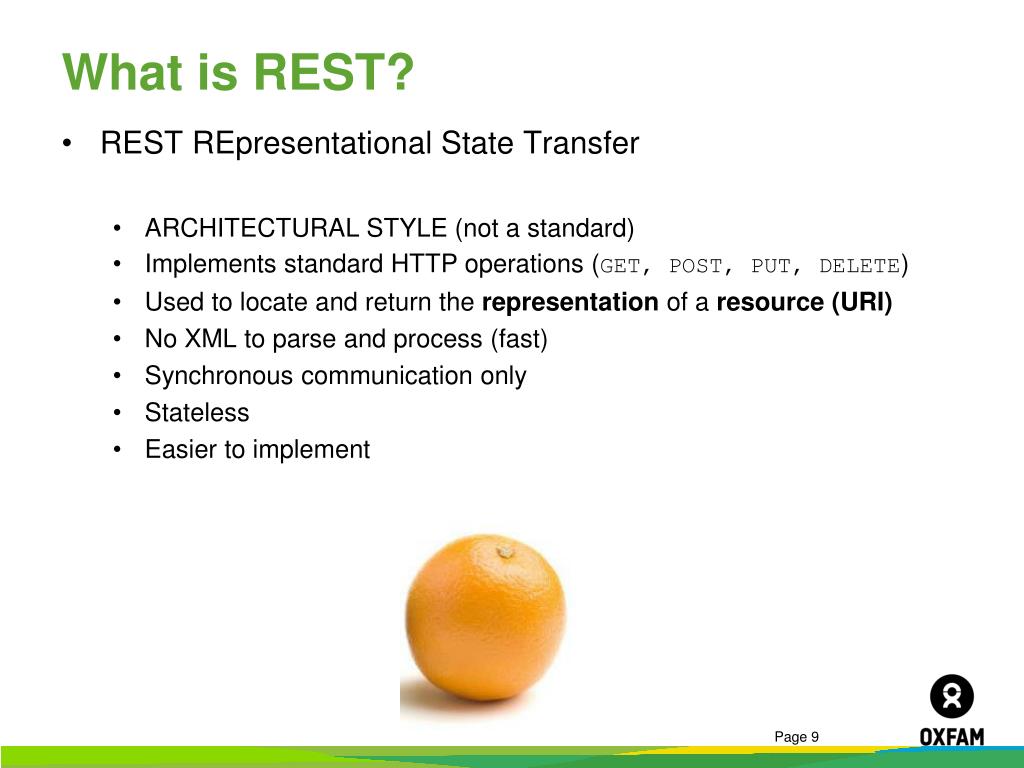

  9. What is REST? • REST REpresentational State Transfer • ARCHITECTURAL STYLE (not a standard) • Implements standard HTTP operations (GET, POST, PUT, DELETE) • Used to locate and return the representation of a resource (URI) • No XML to parse and process (fast) • Synchronous communication only • Stateless • Easier to implement

  10. What is WSDL & WADL? • WSDL Web Services Description Language • XML to describe SOAP web service • Can define both SOAP and REST web services (from WSDL 2.0) • PeopleTools describes SOAP based service • W3C Recommendation 2007 • WADL Web Application Description Language • XML to describe REST web services • PeopleTools describes REST services using WADL • W3C Submission in 2009 by Sun Microsystems • Limited tooling support

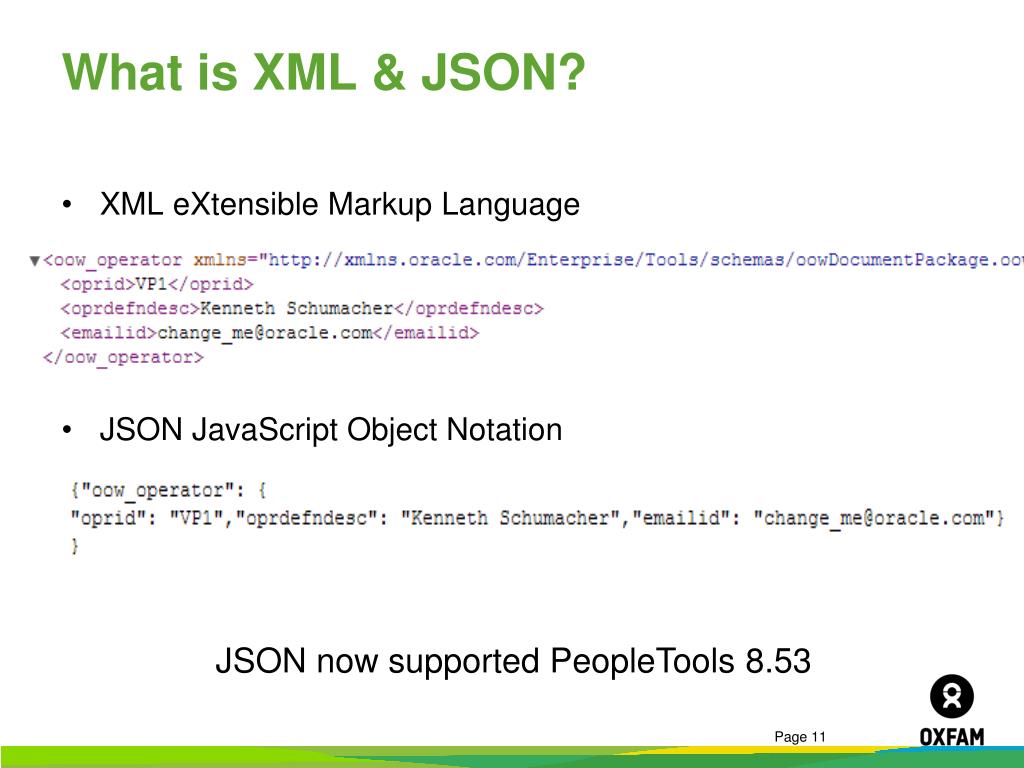

  11. What is XML & JSON? • XML eXtensible Markup Language • JSON JavaScript Object Notation JSON now supported PeopleTools 8.53

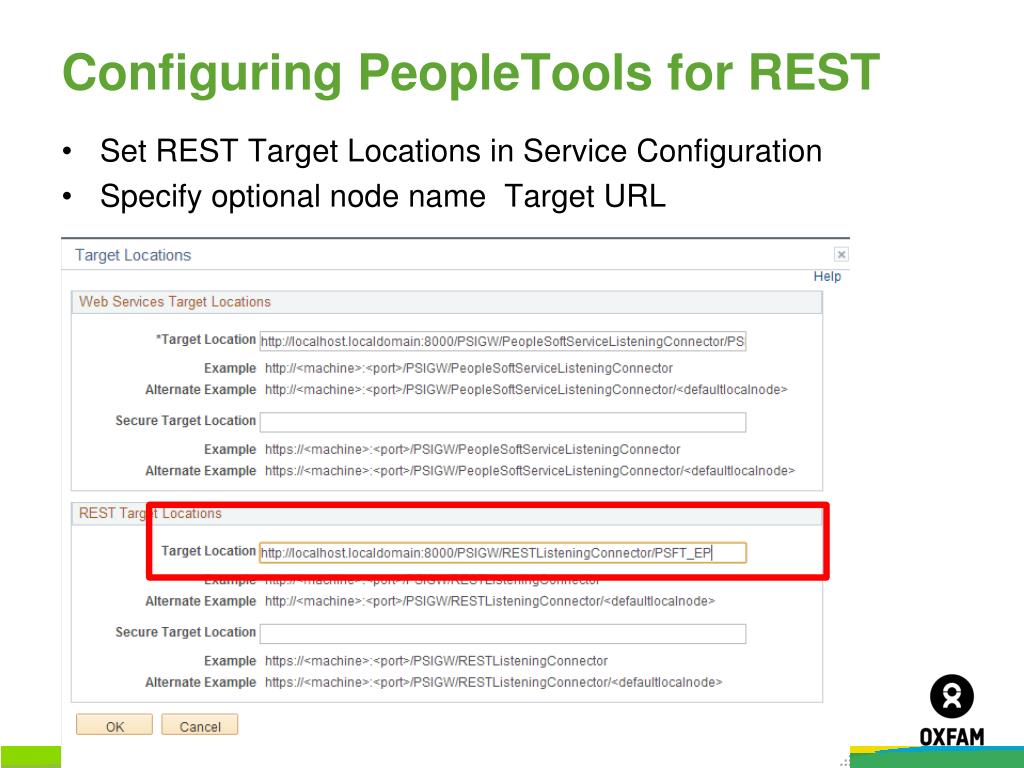

  12. Configuring PeopleTools for REST • Set REST Target Locations in Service Configuration • Specify optional node name Target URL

  13. Configuring PeopleTools for REST • Activate ~~Any~~ to Local Routing on GETWADLService Op

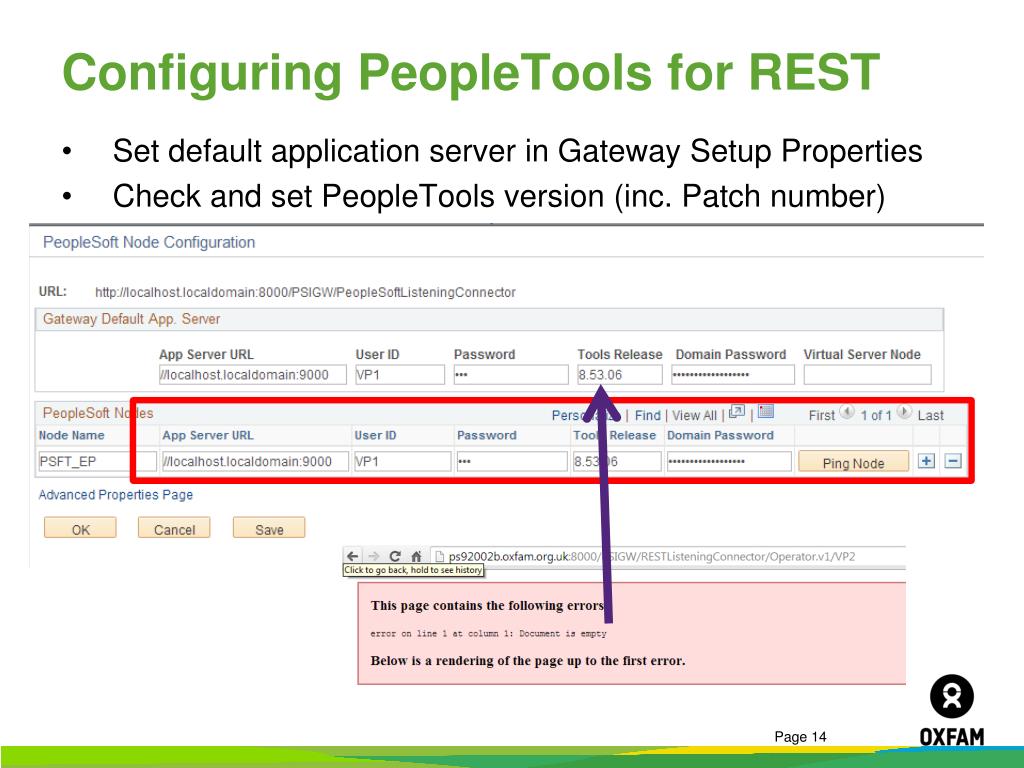

  14. Configuring PeopleTools for REST • Set default application server in Gateway Setup Properties • Check and set PeopleTools version (inc. Patch number)

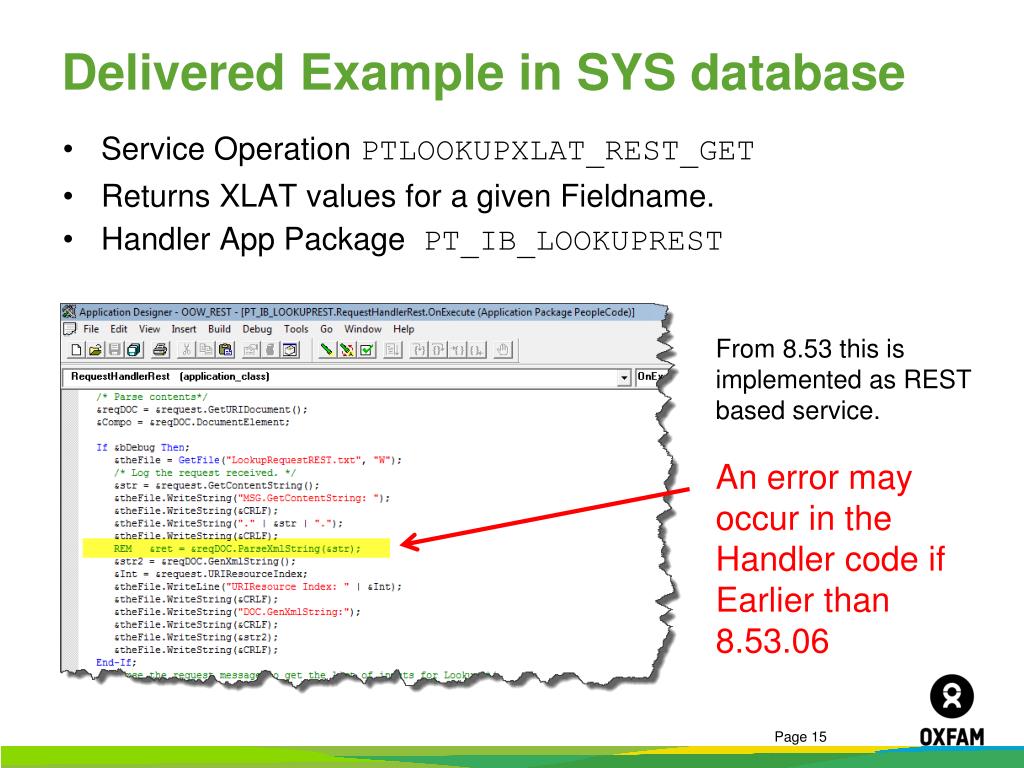

  15. Delivered Example in SYS database • Service Operation PTLOOKUPXLAT_REST_GET • Returns XLAT values for a given Fieldname. • Handler App Package PT_IB_LOOKUPREST From 8.53 this is implemented as REST based service. An error may occur in the Handler code if Earlier than 8.53.06

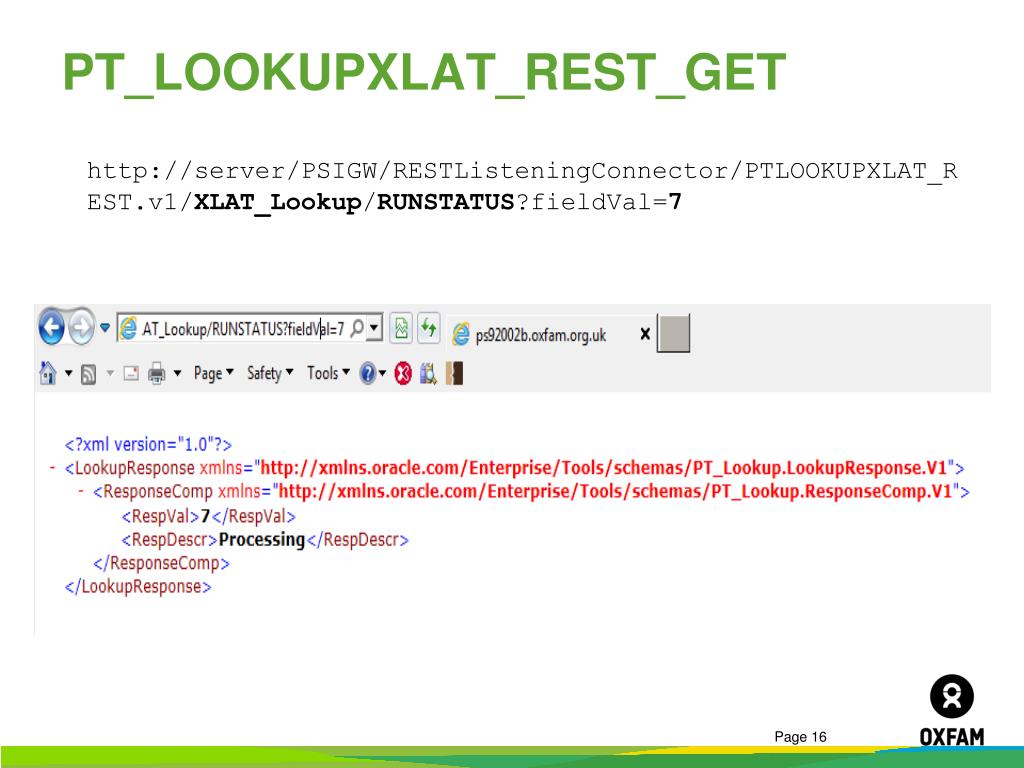

  16. PT_LOOKUPXLAT_REST_GET http://server/PSIGW/RESTListeningConnector/PTLOOKUPXLAT_REST.v1/XLAT_Lookup/RUNSTATUS?fieldVal=7

  17. REST URI - Uniform Resource Identifier • Identifies the name of a web resource http://myserver/orders/data.html erfeufhefherf her hferfherhferfherheihfweewewewewewdwedwedewdweewdewdweewwe dew wewedewweewweewdweewwdewdweew dew weewewweewdwedewdewdewdewewdewdewdewdewdwe

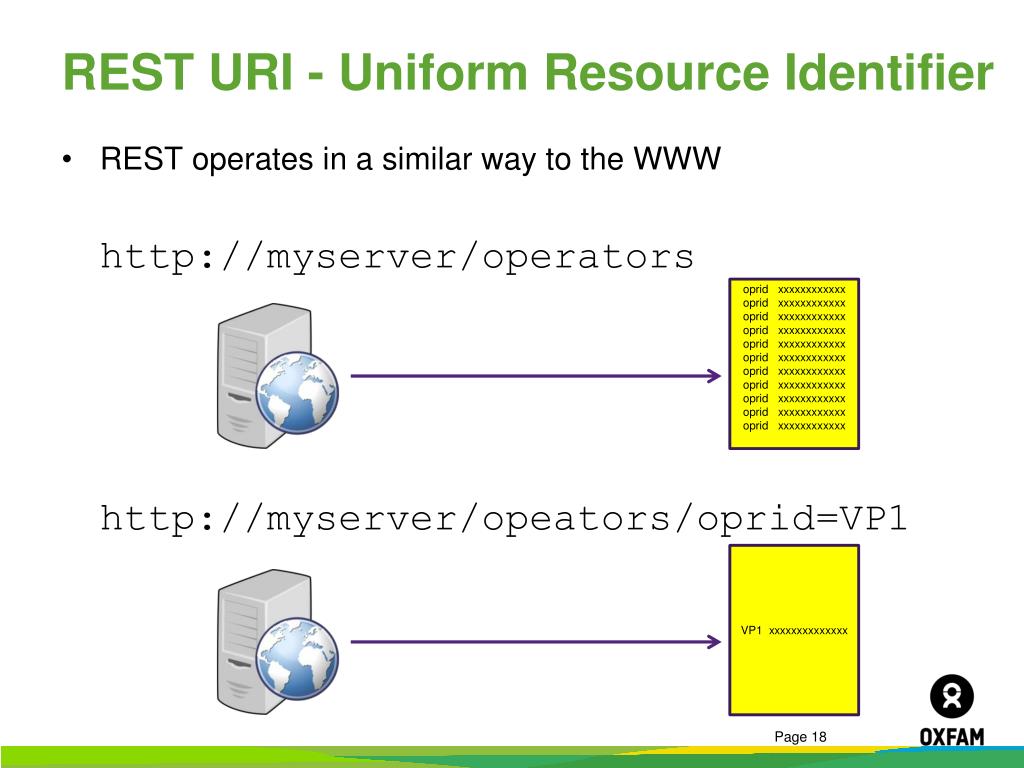

  18. REST URI - Uniform Resource Identifier • REST operates in a similar way to the WWW http://myserver/operators http://myserver/opeators/oprid=VP1 opridxxxxxxxxxxxx opridxxxxxxxxxxxx opridxxxxxxxxxxxx opridxxxxxxxxxxxx opridxxxxxxxxxxxx opridxxxxxxxxxxxx opridxxxxxxxxxxxx opridxxxxxxxxxxxx opridxxxxxxxxxxxx opridxxxxxxxxxxxx opridxxxxxxxxxxxx VP1 xxxxxxxxxxxxxx

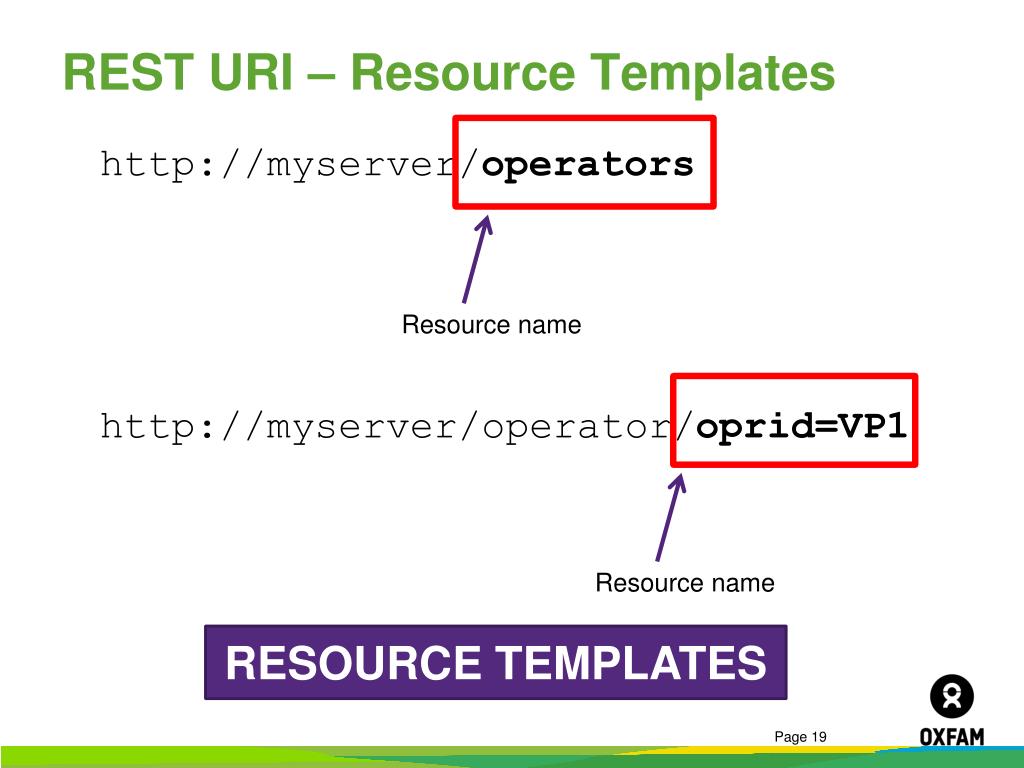

  19. REST URI – Resource Templates http://myserver/operators http://myserver/operator/oprid=VP1 Resource name Resource name RESOURCE TEMPLATES

  20. REST URI – Resource Document http://myserver/operators/oprid=VP1 /operators/oprid={oprid} Template Mapping by element name

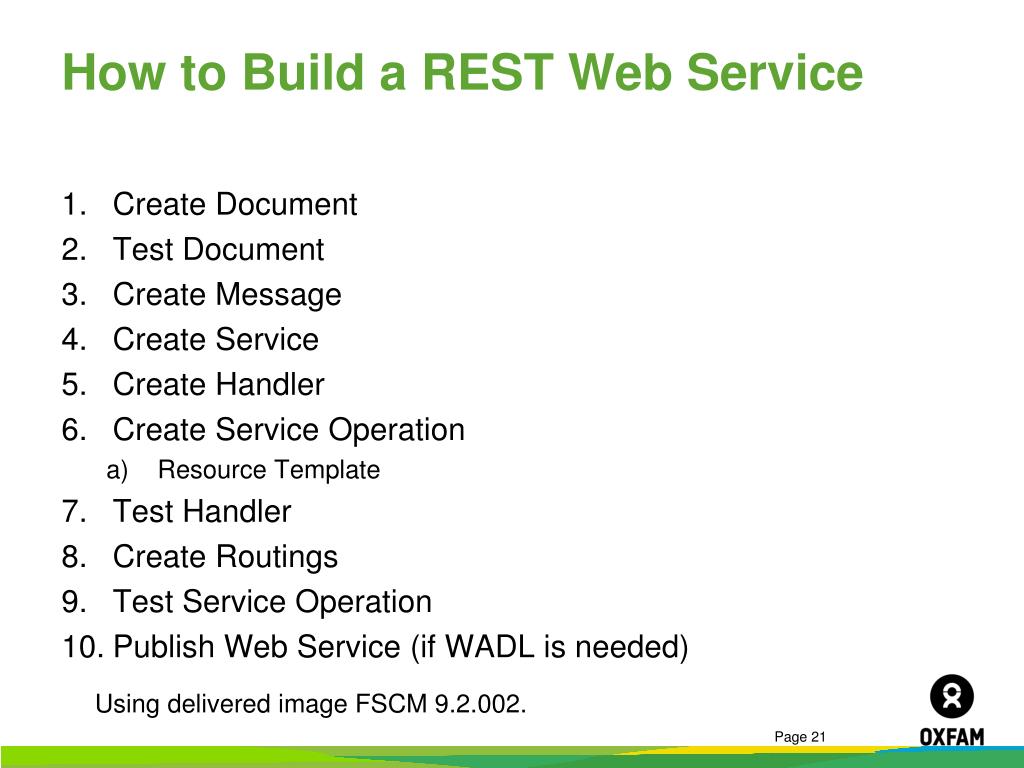

  21. How to Build a REST Web Service • Create Document • Test Document • Create Message • Create Service • Create Handler • Create Service Operation • Resource Template • Test Handler • Create Routings • Test Service Operation • Publish Web Service (if WADL is needed) Using delivered image FSCM 9.2.002.

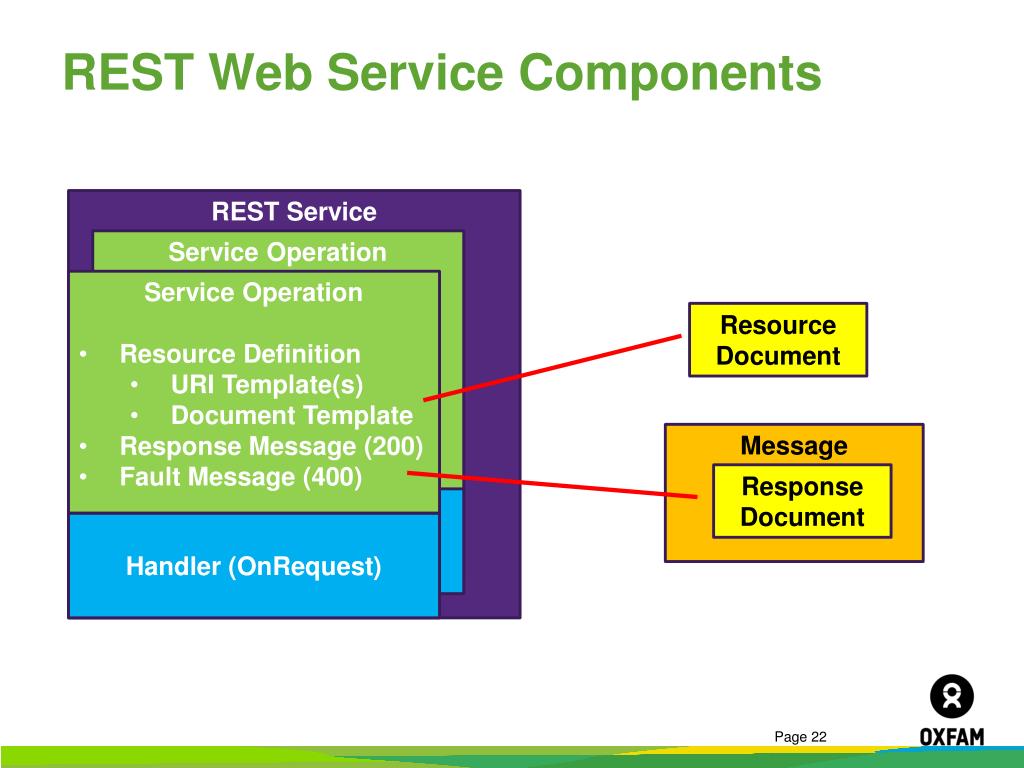

  22. REST Web Service Components REST Service • Service Operation • Resource Definition • URI Template(s) • Document Template • Response Message (200) • Fault Message (400) Resource Document • Service Operation • Resource Definition • URI Template(s) • Document Template • Response Message (20 • Fault Message (400) Message Response Document Handler (OnRequest) Handler (OnRequest)

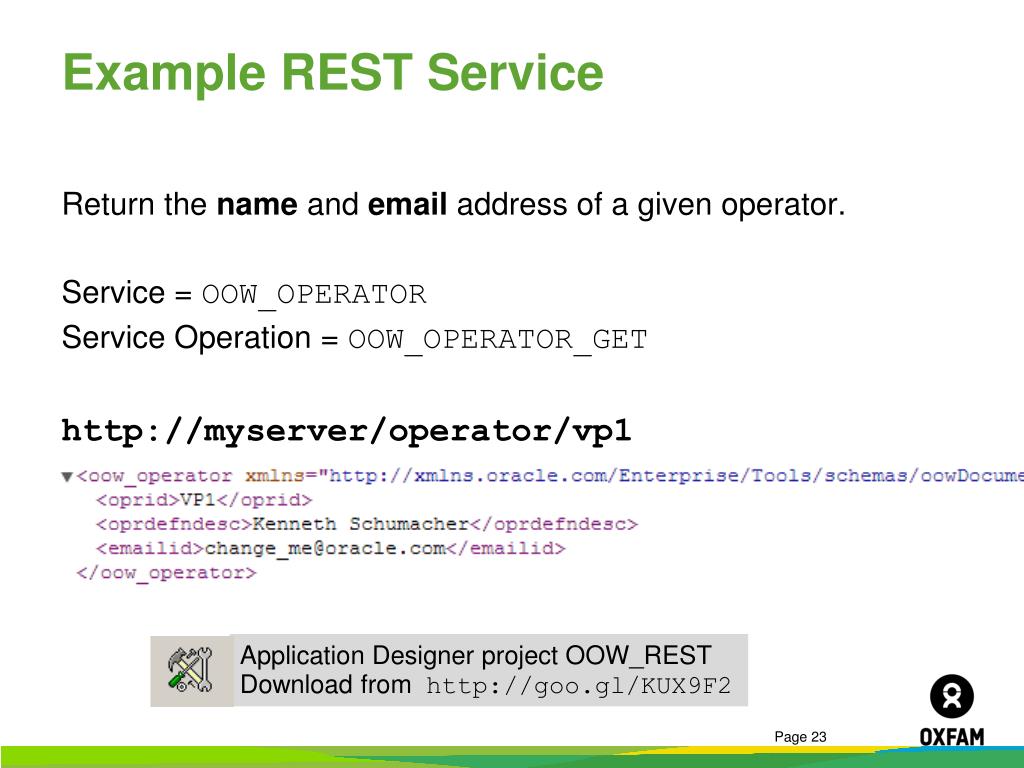

  23. Example REST Service Return the name and email address of a given operator. Service = OOW_OPERATOR Service Operation = OOW_OPERATOR_GET http://myserver/operator/vp1 Application Designer project OOW_REST Download from http://goo.gl/KUX9F2

  24. 1) Documents Definition • Define hierarchical data structures (logical) • Map onto physical structures • XML • JSON • Database records and fields • Data types available • PRIMITIVE = string, char, integer, etc • COMPLEX PRIMITIVE = primitive with attributes • COMPOUND = set of one or more primitives • COLLECTION = set of one or more compounds

  25. 1) Document Data Types • ROOT element • Collection • Record Compound • Primitive • Complex Primitive Compound

  26. 1) Documents Needed • Document Template • Used to retrieve inbound URI parameters • Cannot contain COMPOUND types • Supports direct variable substitution • Request Document/Message • Only required if using POST method • Response Document • Used to construct return message to client • Fault Document (optional) • Used to construct return message on error condition They can be all the same document or different ones

  27. 1) Create Document

  28. 1) Create Document – Relational Allows mapping of document elements to PeopleSoft records and fields.

  29. 2) Document Tester

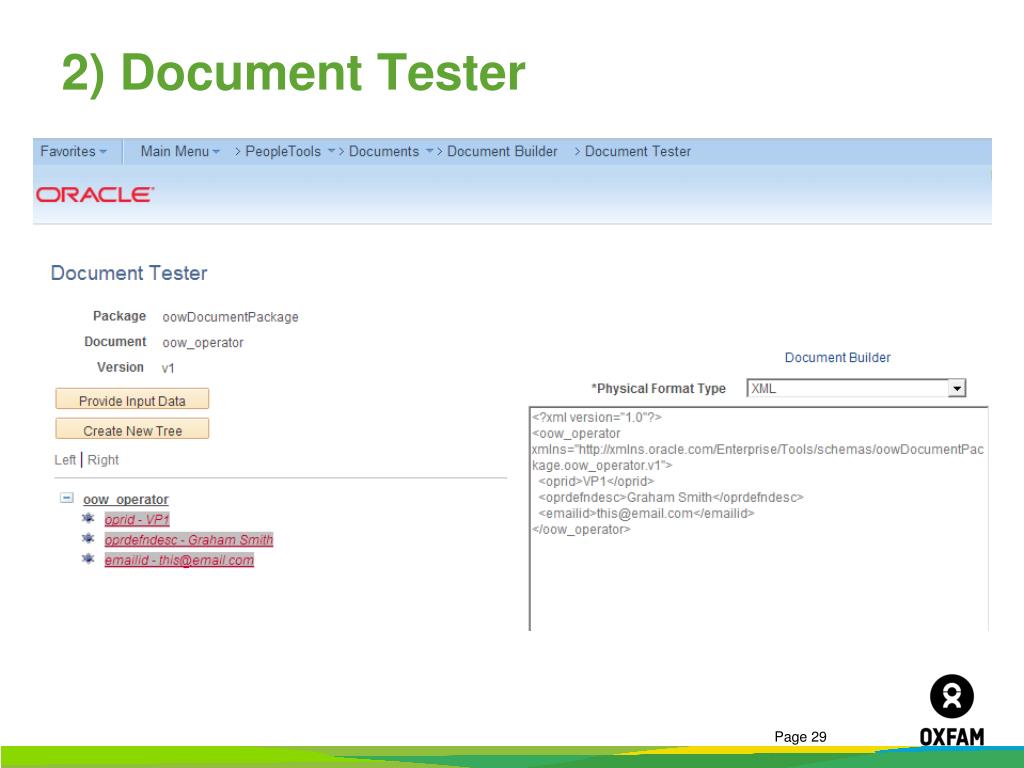

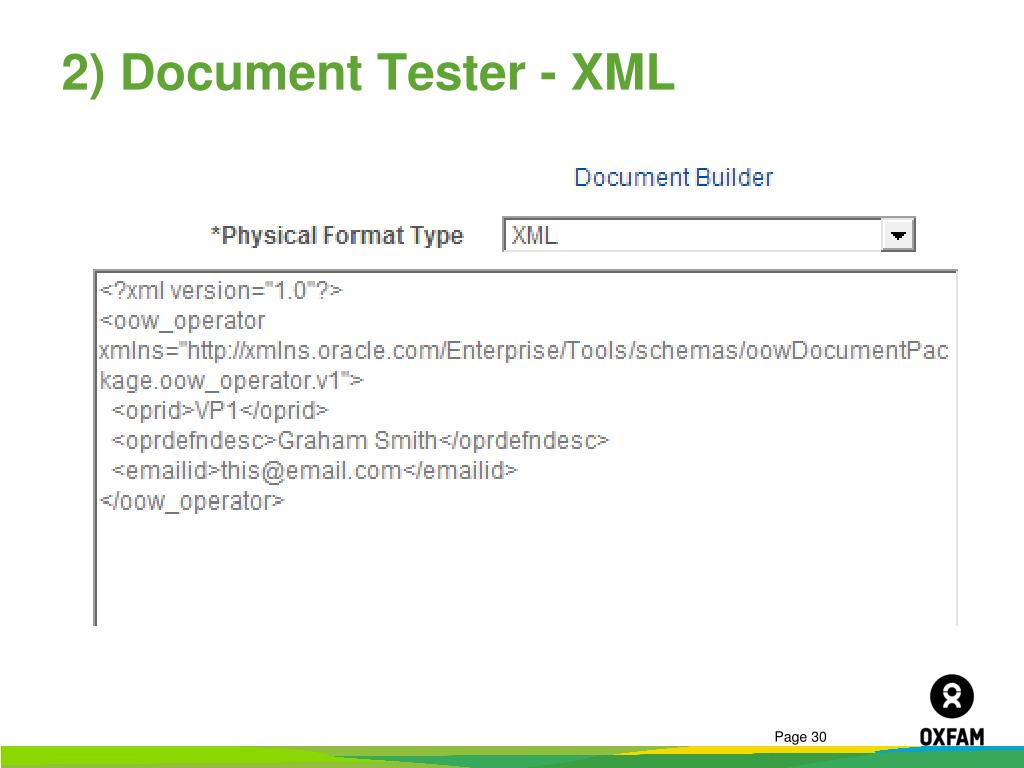

  30. 2) Document Tester - XML

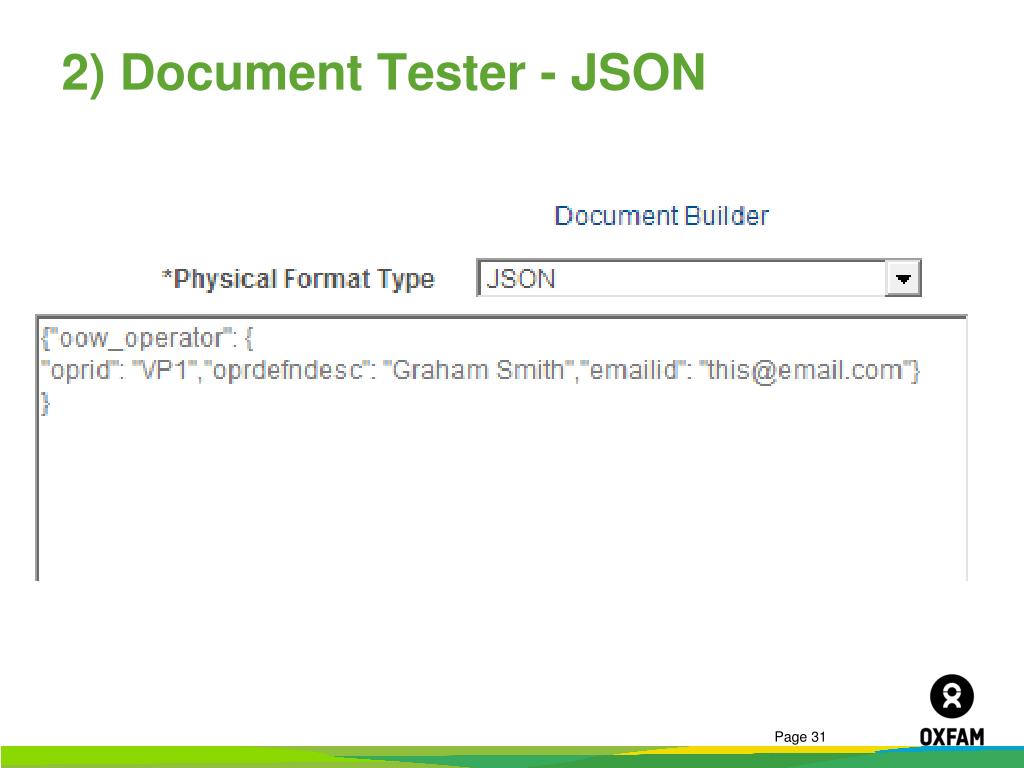

  31. 2) Document Tester - JSON

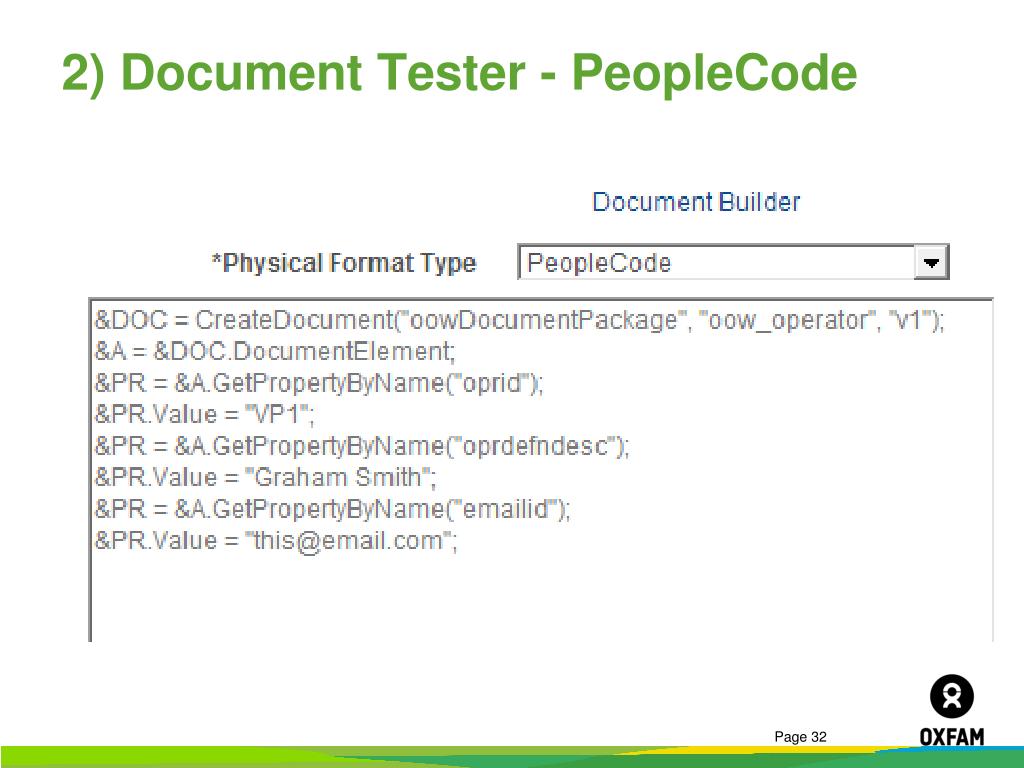

  32. 2) Document Tester - PeopleCode

  33. 2) Document Tester – Create XSD

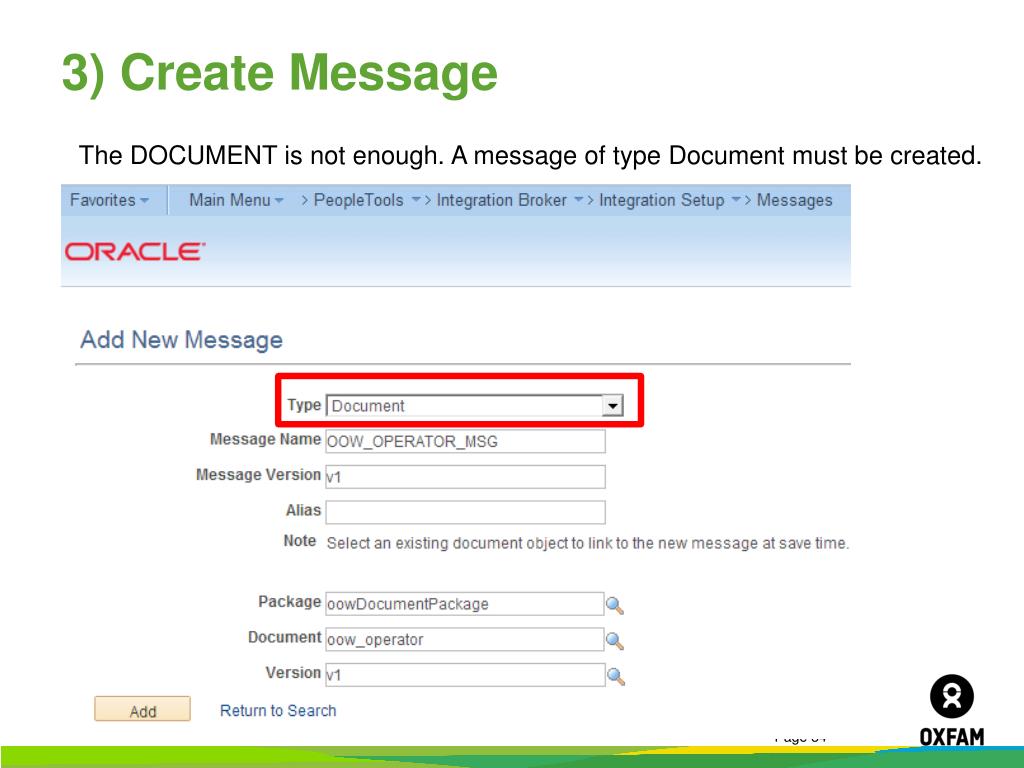

  34. 3) Create Message The DOCUMENT is not enough. A message of type Document must be created.

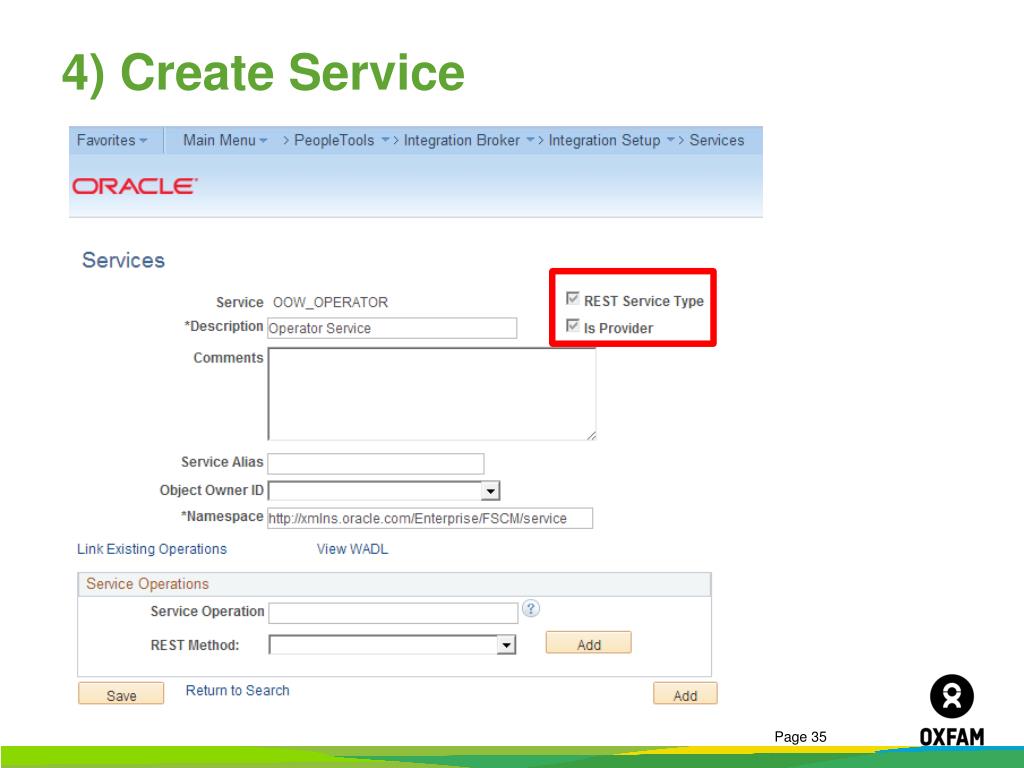

  35. 4) Create Service

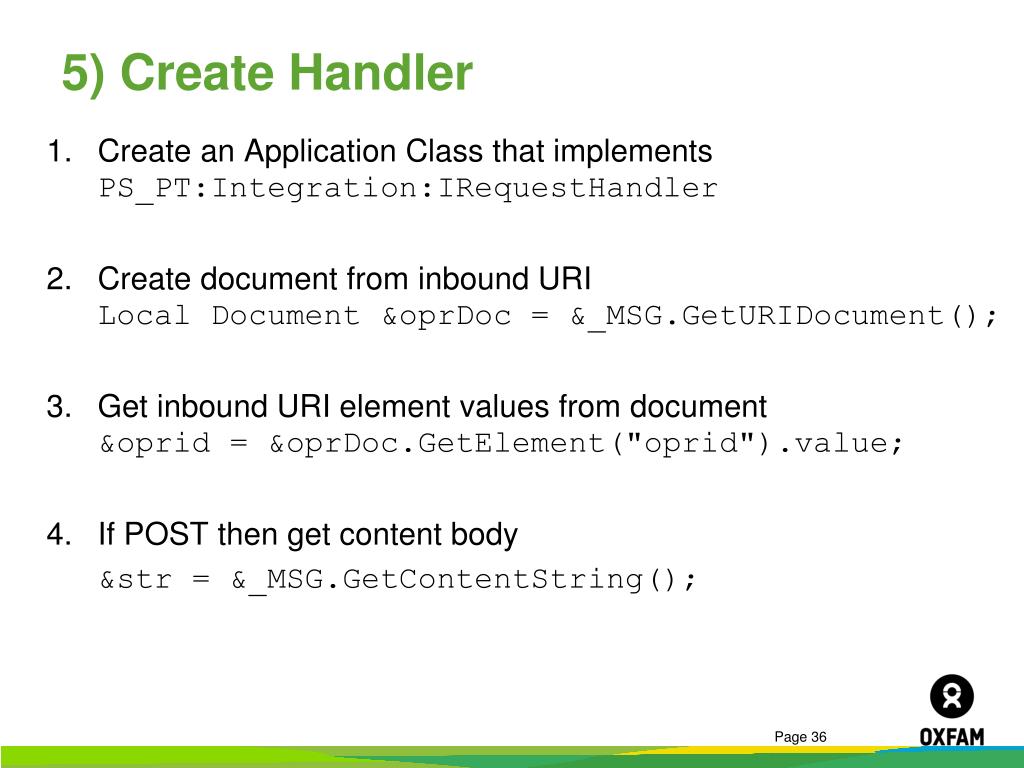

  36. 5) Create Handler • Create an Application Class that implements PS_PT:Integration:IRequestHandler • Create document from inbound URI Local Document &oprDoc = &_MSG.GetURIDocument(); • Get inbound URI element values from document&oprid = &oprDoc.GetElement("oprid").value; • If POST then get content body &str = &_MSG.GetContentString();

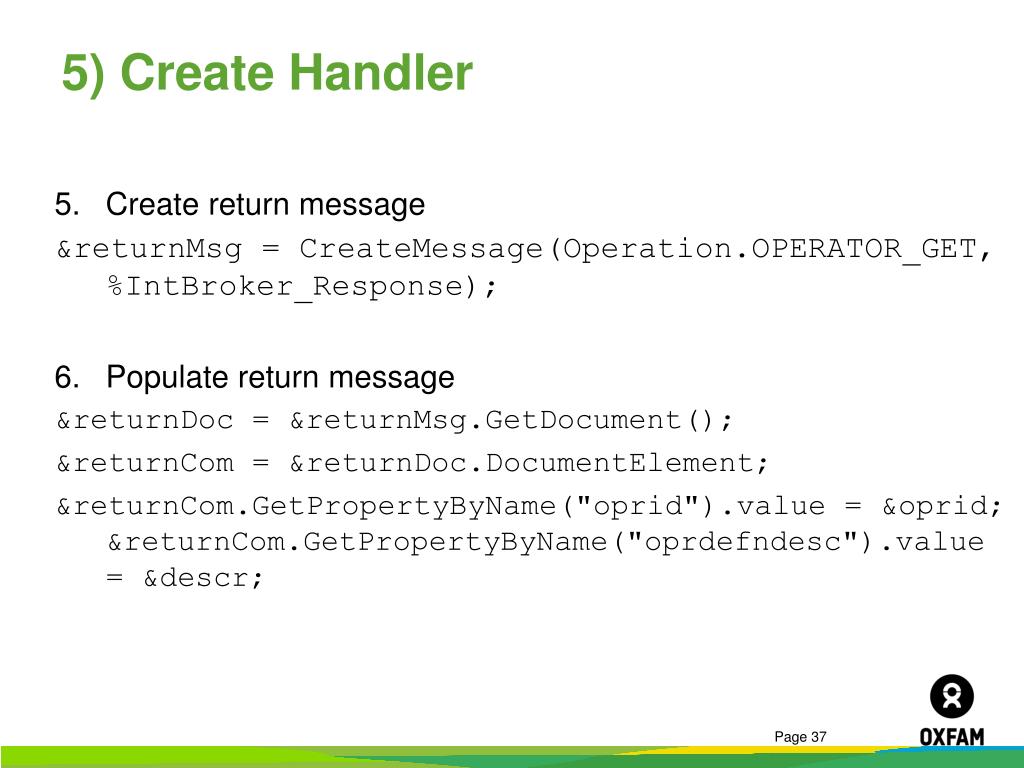

  37. 5) Create Handler • Create return message &returnMsg = CreateMessage(Operation.OPERATOR_GET, %IntBroker_Response); • Populate return message &returnDoc = &returnMsg.GetDocument(); &returnCom = &returnDoc.DocumentElement; &returnCom.GetPropertyByName("oprid").value = &oprid; &returnCom.GetPropertyByName("oprdefndesc").value = &descr;

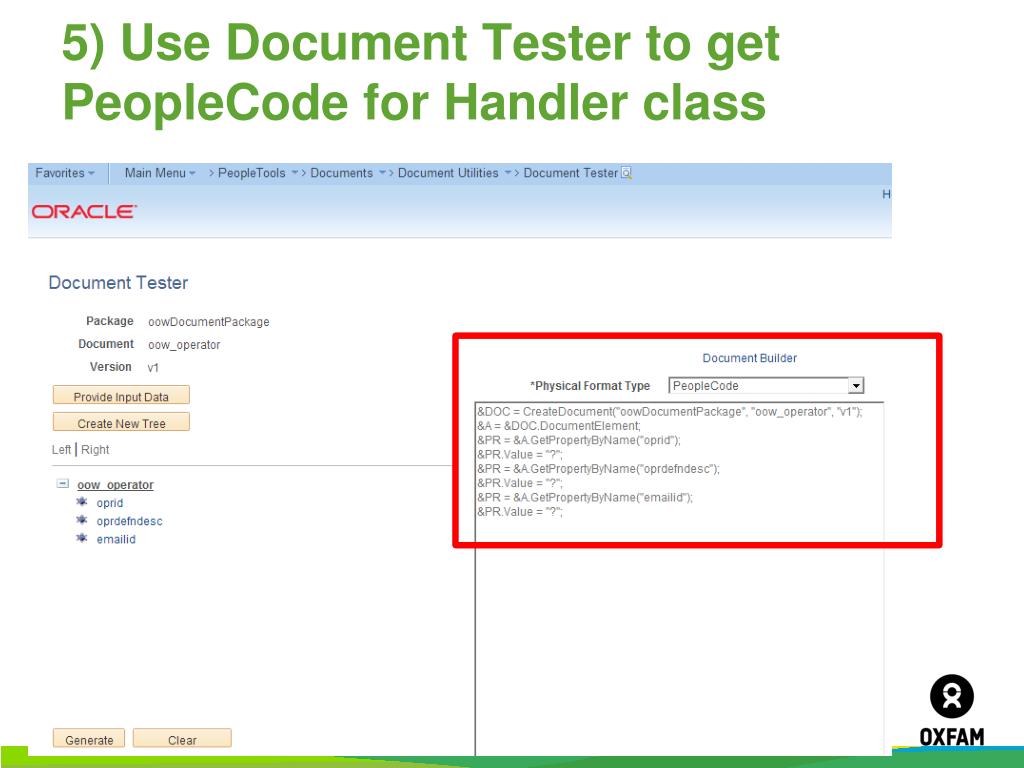

  38. 5) Use Document Tester to get PeopleCode for Handler class

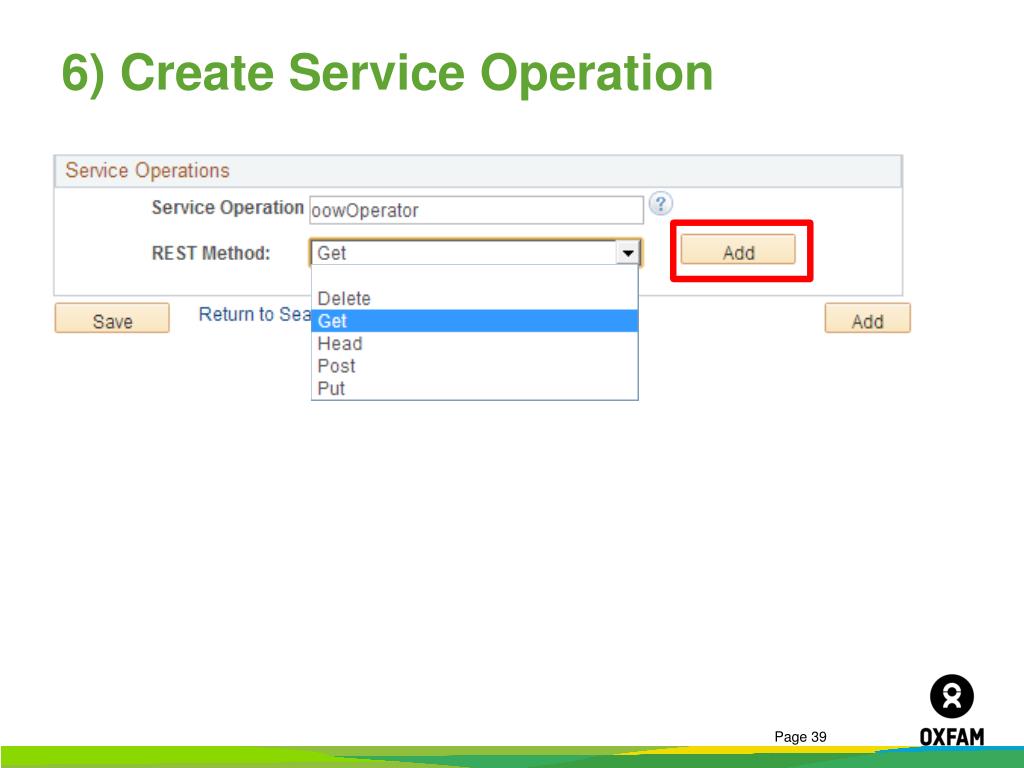

  39. 6) Create Service Operation

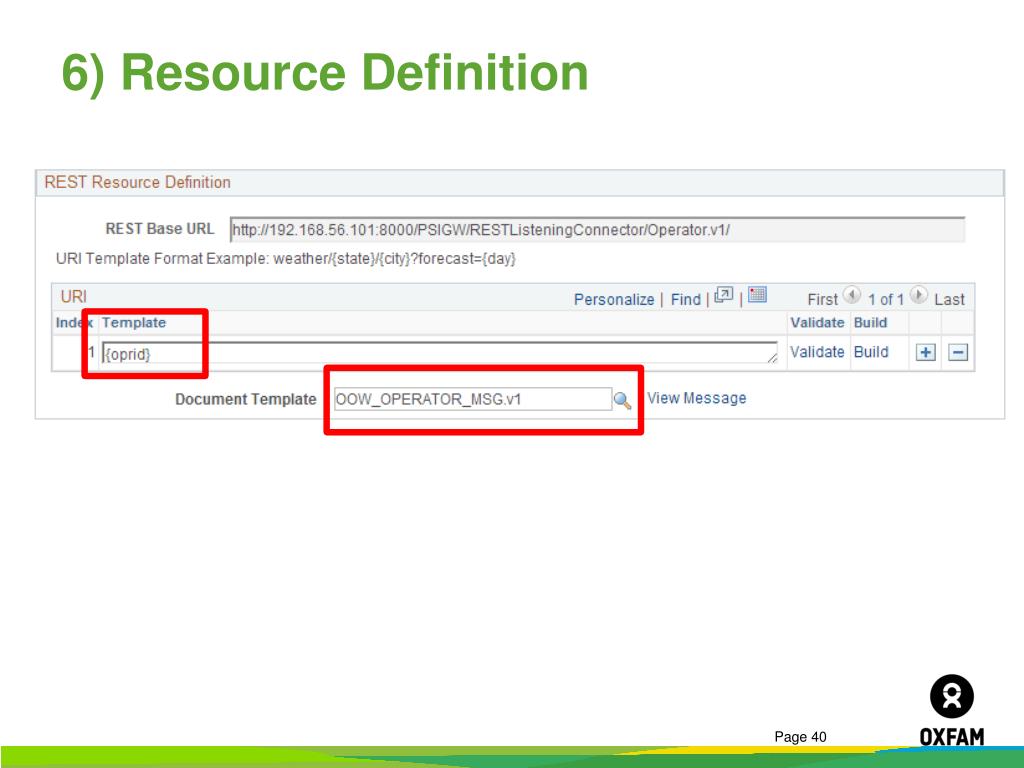

  40. 6) Resource Definition

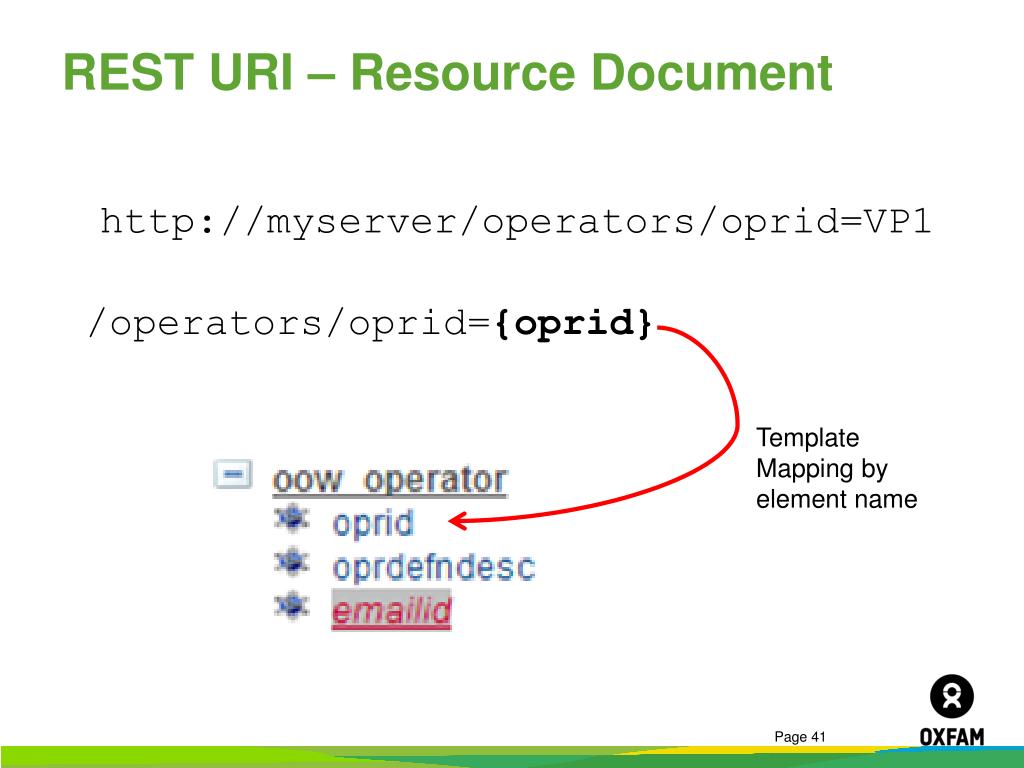

  41. REST URI – Resource Document http://myserver/operators/oprid=VP1 /operators/oprid={oprid} Template Mapping by element name

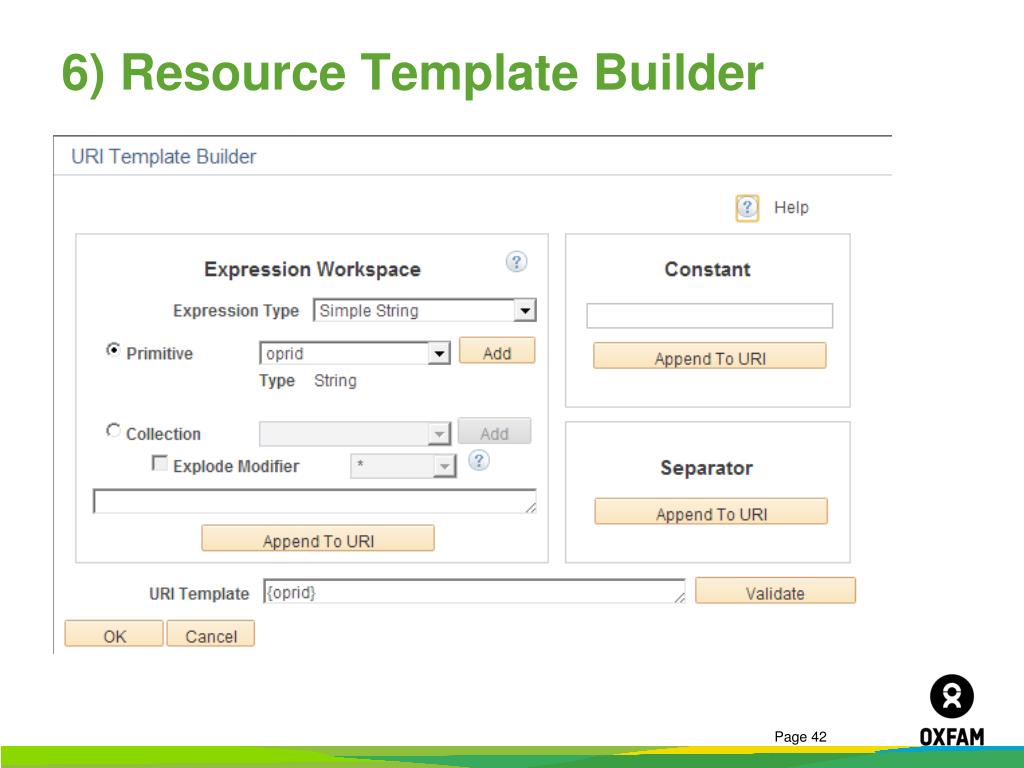

  42. 6) Resource Template Builder

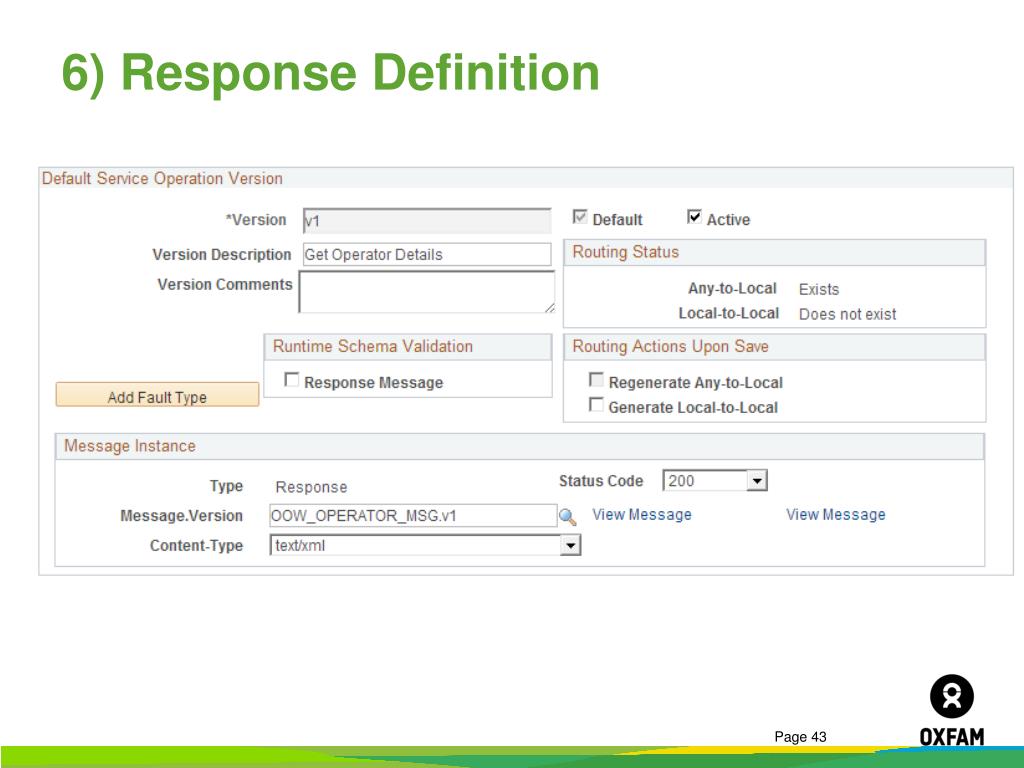

  43. 6) Response Definition

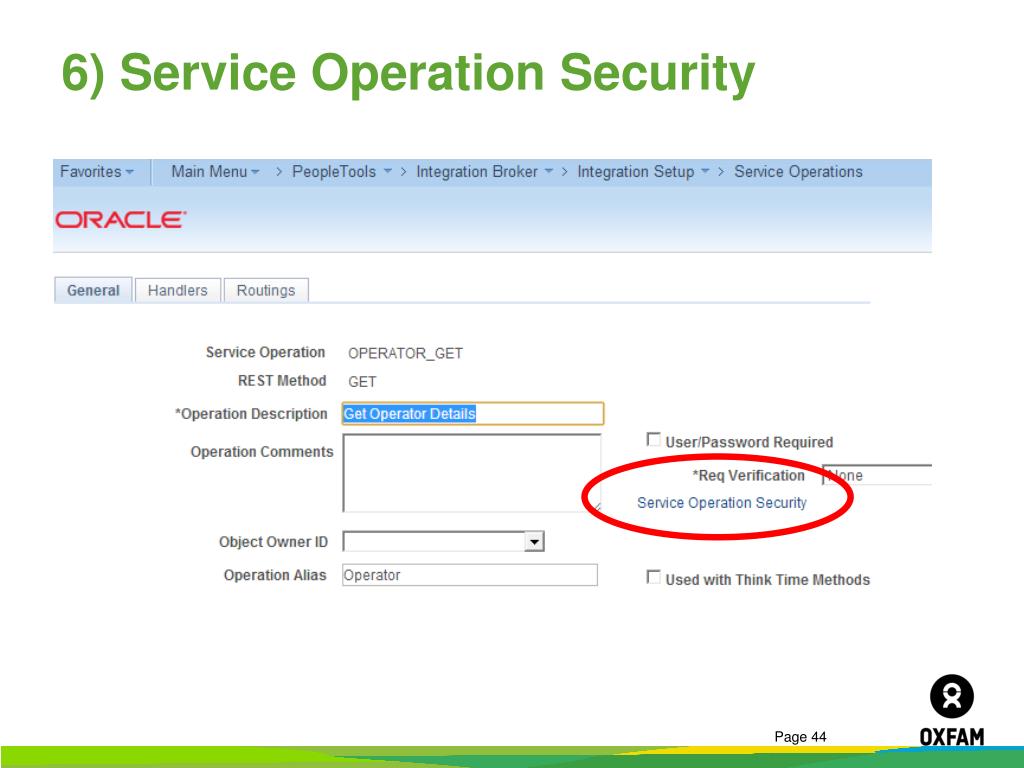

  44. 6) Service Operation Security

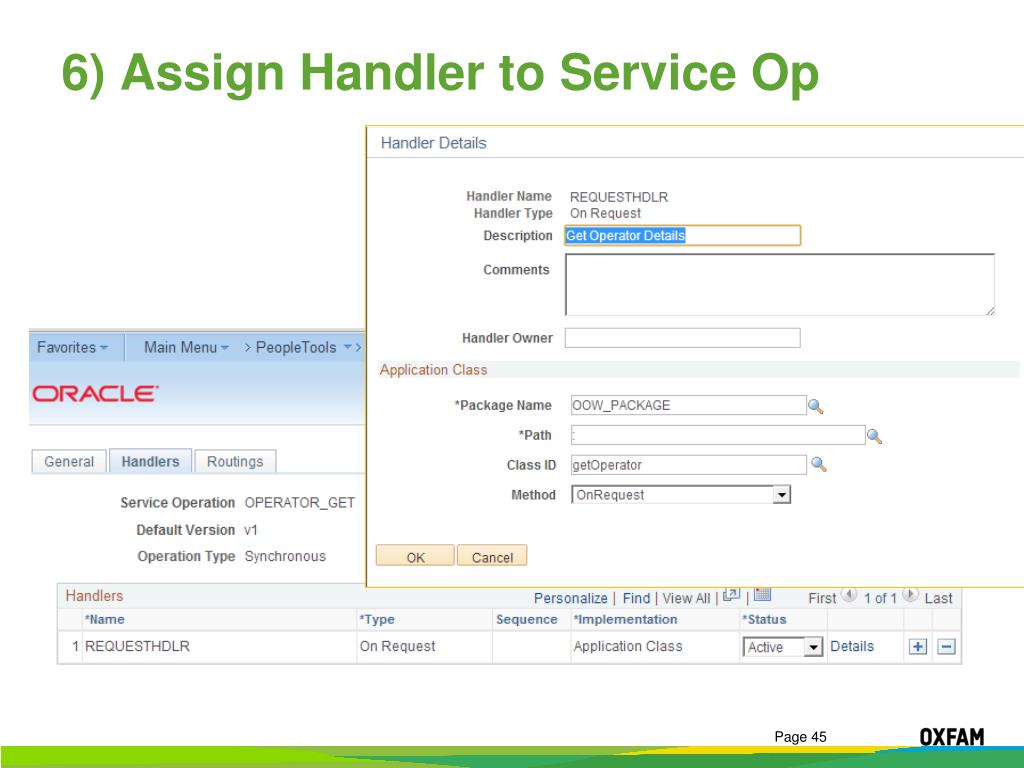

  45. 6) Assign Handler to Service Op

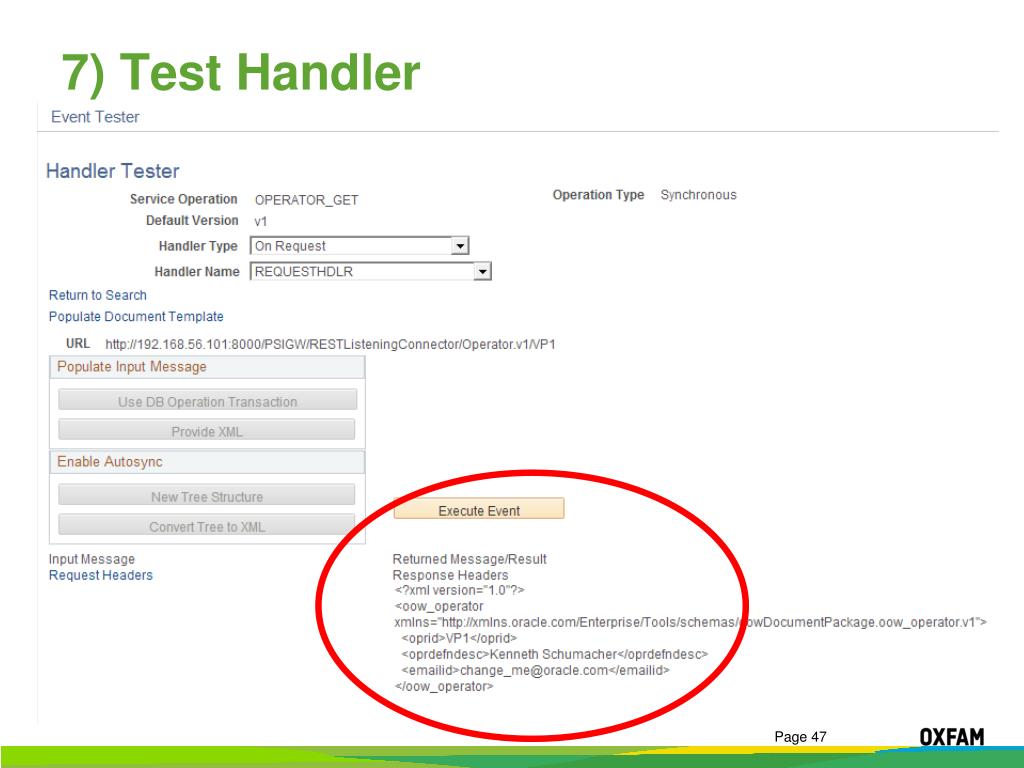

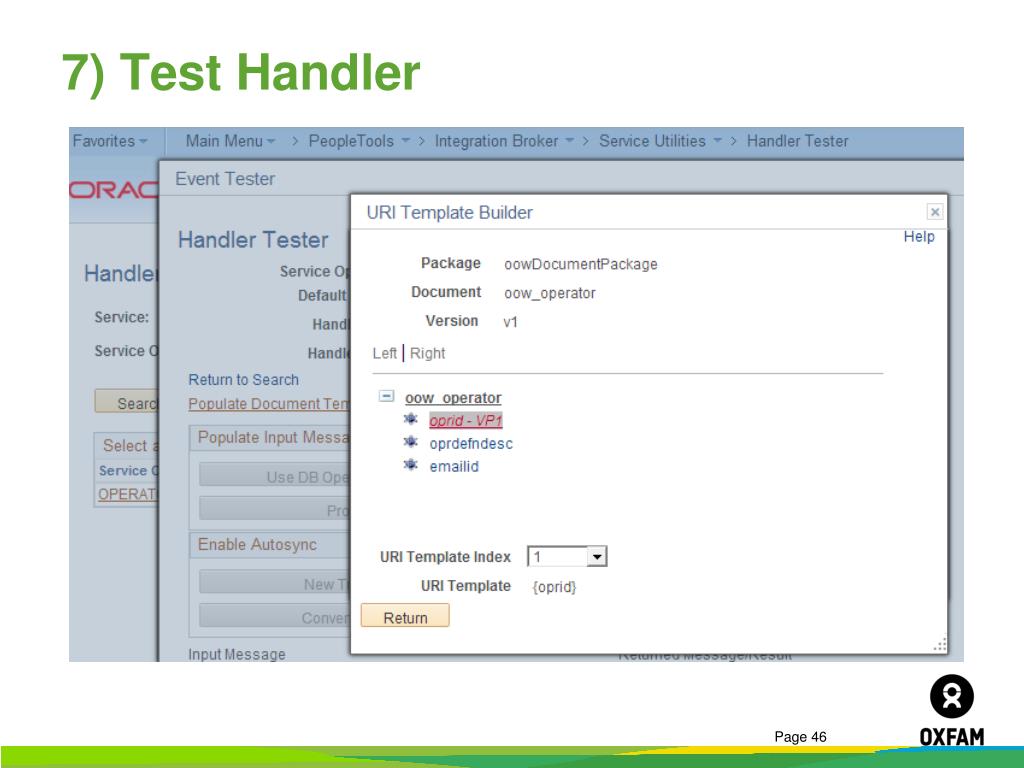

  46. 7) Test Handler

  47. 7) Test Handler

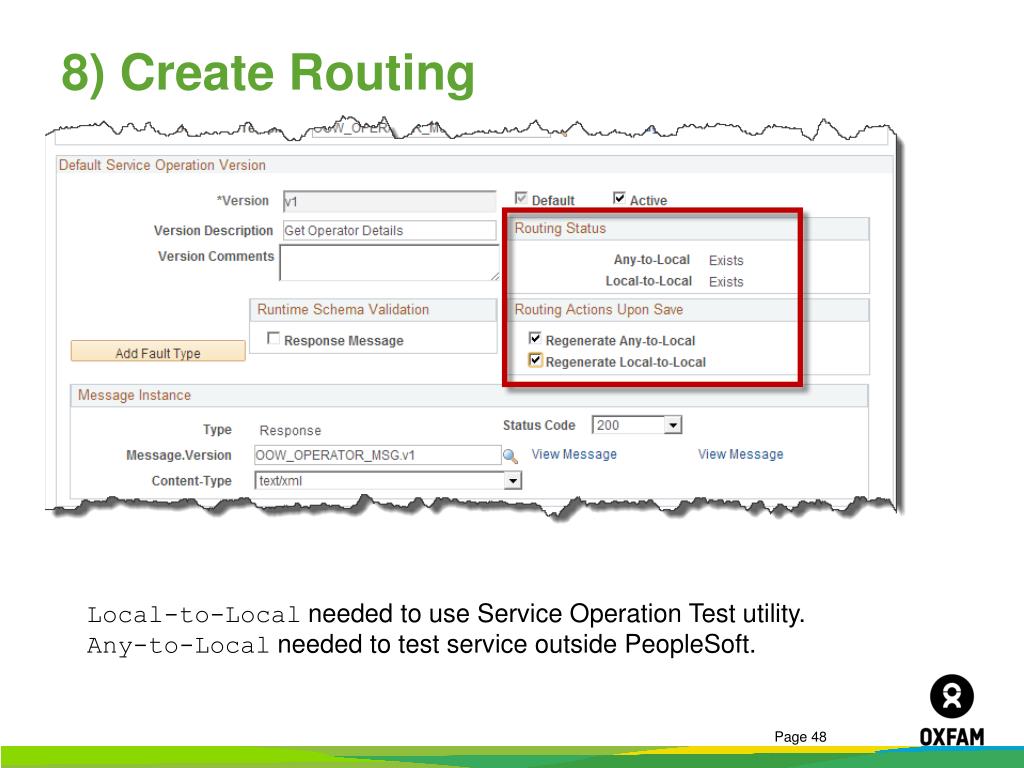

  48. 8) Create Routing Local-to-Local needed to use Service Operation Test utility. Any-to-Local needed to test service outside PeopleSoft.

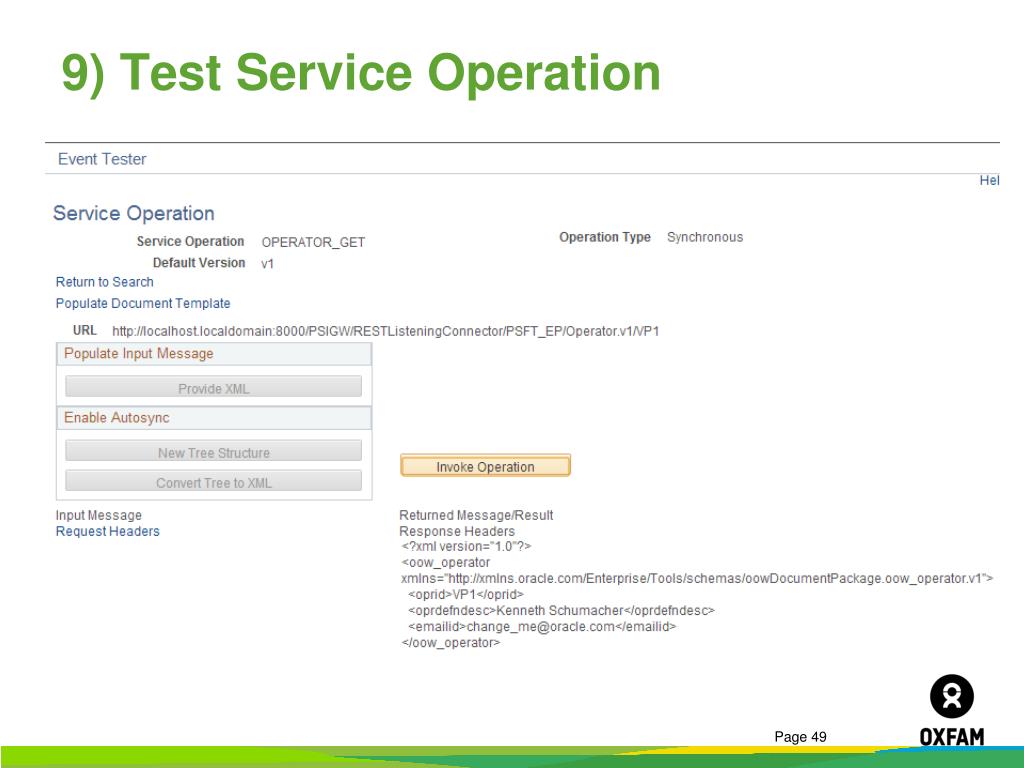

  49. 9) Test Service Operation

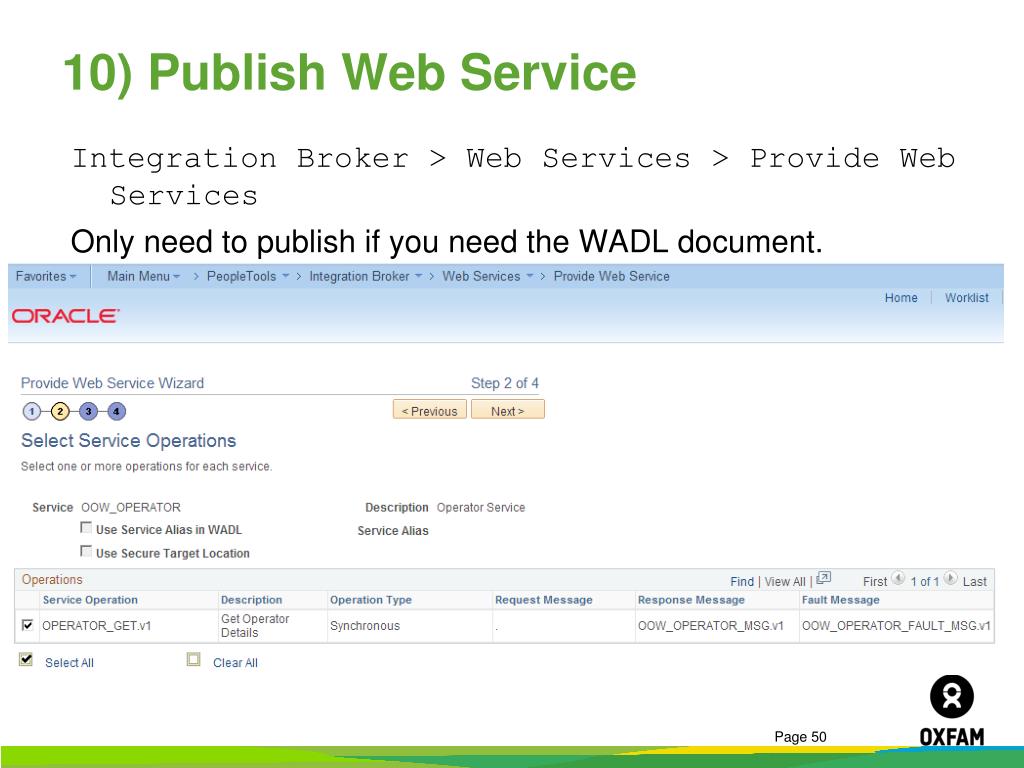

  50. 10) Publish Web Service Integration Broker > Web Services > Provide Web Services Only need to publish if you need the WADL document.
