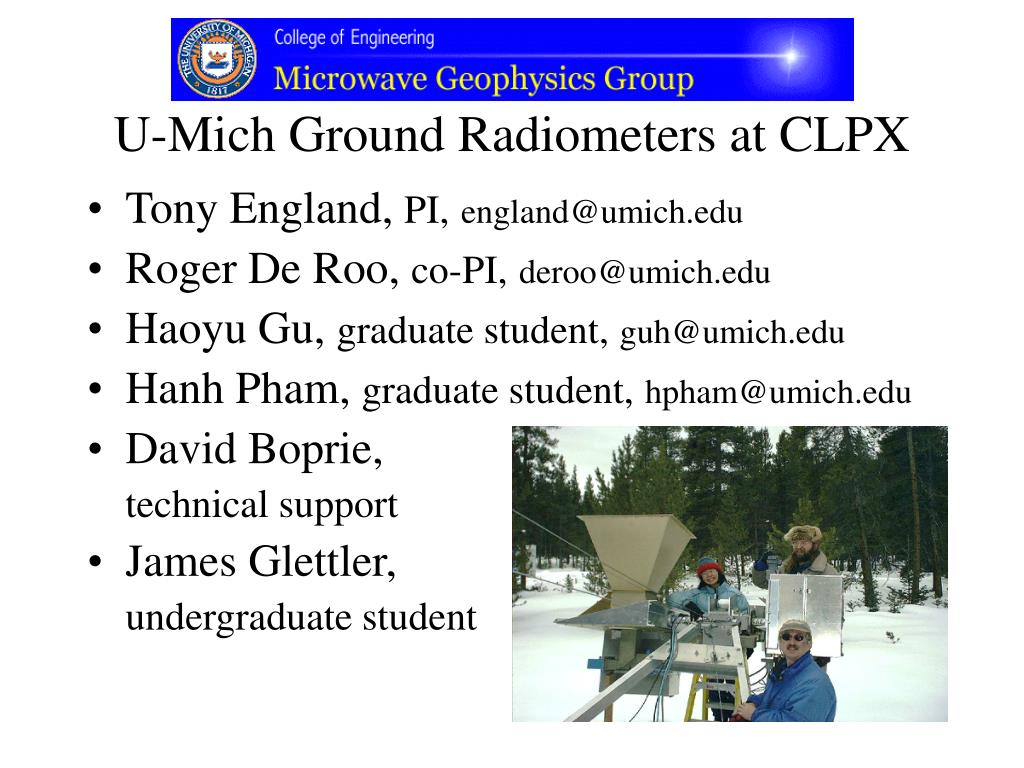

  1. U-Mich Ground Radiometers at CLPX • Tony England, PI,england@umich.edu • Roger De Roo, co-PI,deroo@umich.edu • Haoyu Gu, graduate student,guh@umich.edu • Hanh Pham, graduate student,hpham@umich.edu • David Boprie, technical support • James Glettler, undergraduate student

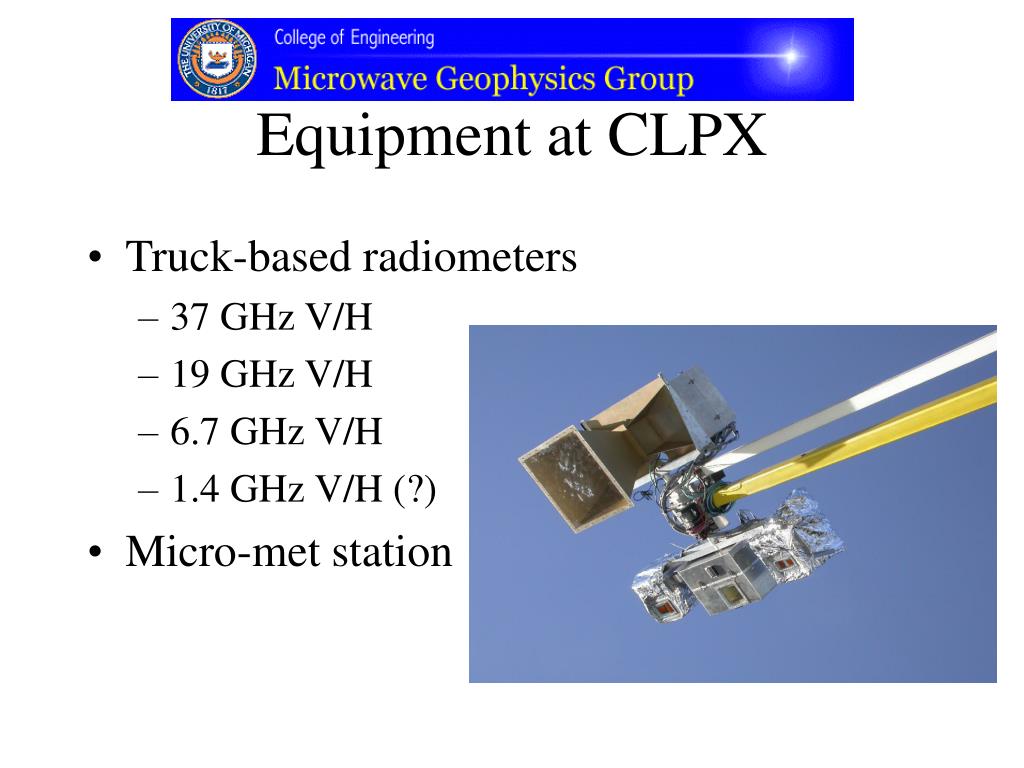

  2. Equipment at CLPX • Truck-based radiometers • 37 GHz V/H • 19 GHz V/H • 6.7 GHz V/H • 1.4 GHz V/H (?) • Micro-met station

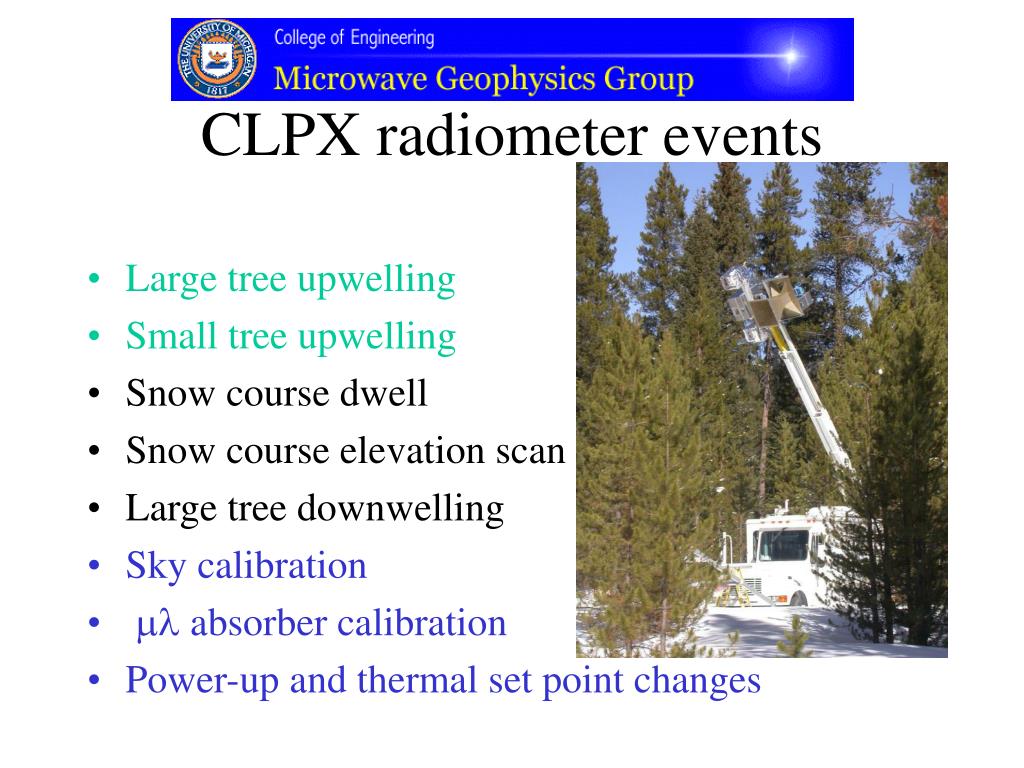

  3. CLPX radiometer events • Large tree upwelling • Small tree upwelling • Snow course dwell • Snow course elevation scan • Large tree downwelling • Sky calibration • ml absorber calibration • Power-up and thermal set point changes

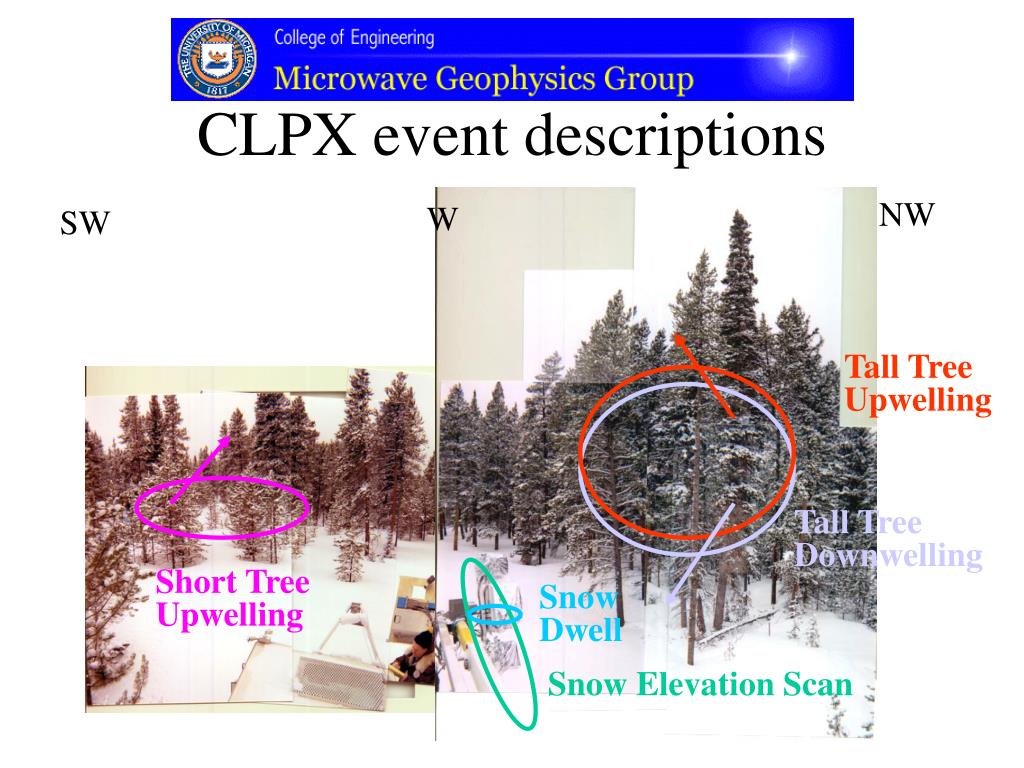

  4. CLPX event descriptions NW W SW Tall Tree Upwelling Tall Tree Downwelling Short Tree Upwelling Snow Dwell Snow Elevation Scan

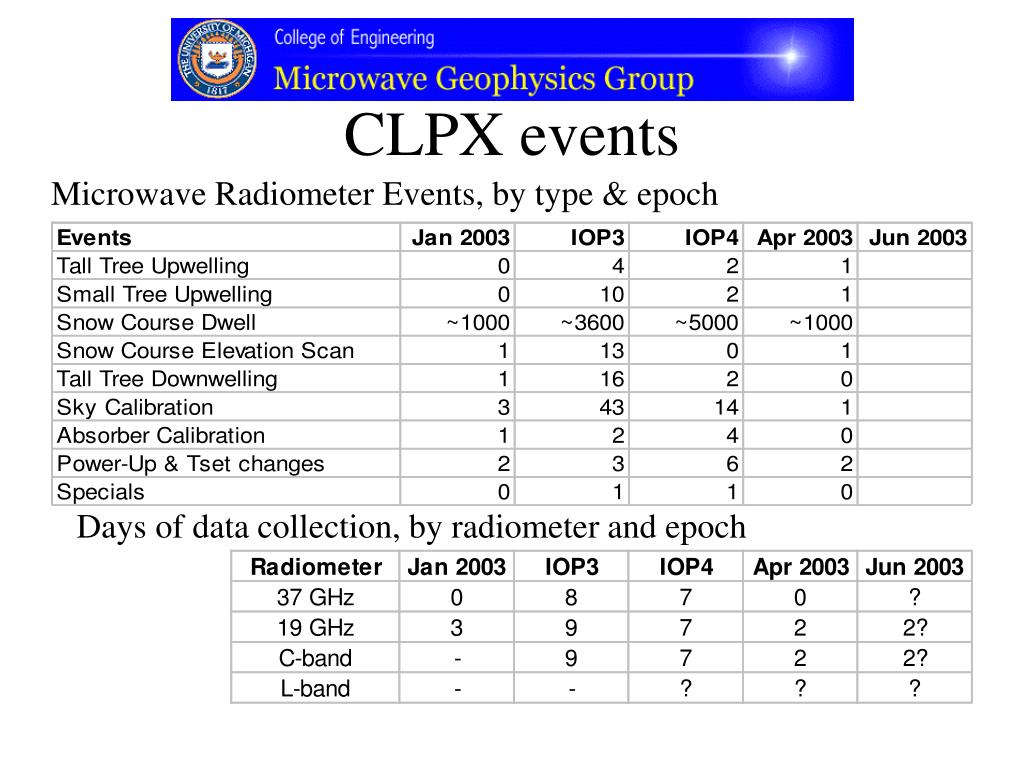

  5. CLPX events Microwave Radiometer Events, by type & epoch Days of data collection, by radiometer and epoch

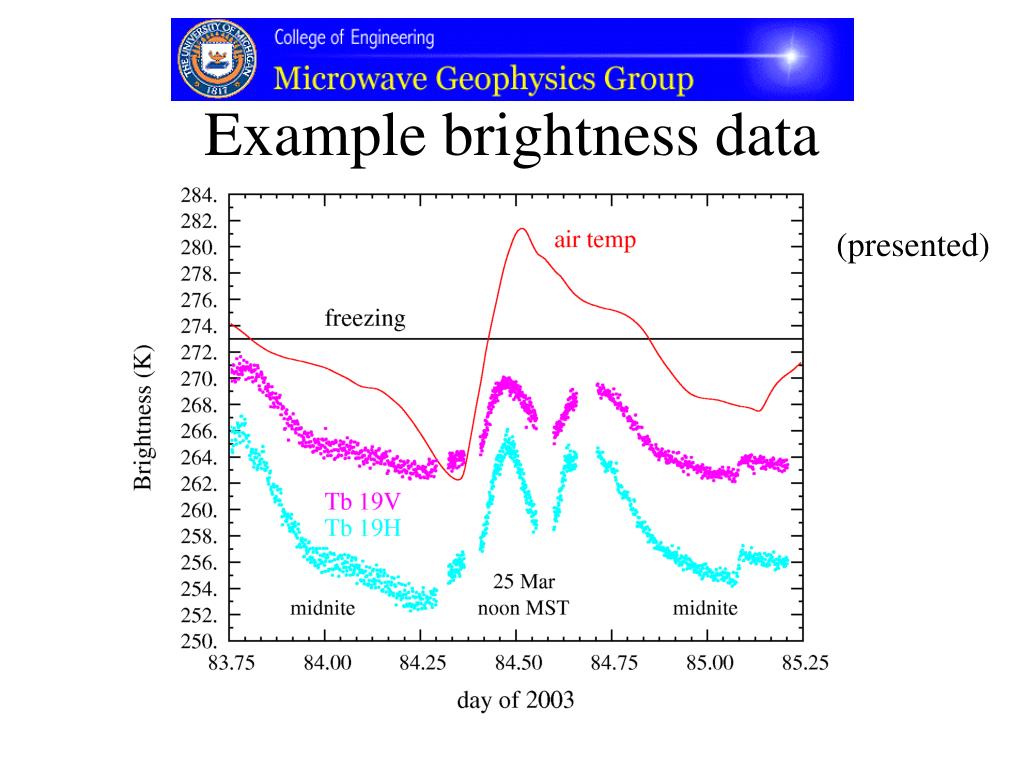

  6. Example brightness data (presented)

  7. Example brightness data (corrected)
