  1. Natural Multi-Arrival Datumingof CDP Data to VSP Data with VSP Green’s Function Xiang Xiao UTAM, Univ. of Utah Feb 2, 2006

  2. This is not an Outline… But an content ! • Motivation p. 3~5 • Theory p. 6~12 • Numerical Tests p. 13~24 • Conclusion p. 25 Motivation Theory Numerical Tests Conclusion

  3. I. Why we need more VSP? CDPVSP • Surface related statics • Twice Once Seabed • Overburden velocity error • Twice Once • Raypath Salt • Longer Shorter • Attenuation • More Less • Frequency Target • Lower Higher • Resolution • Lower Higher Motivation Theory Numerical Tests Conclusion

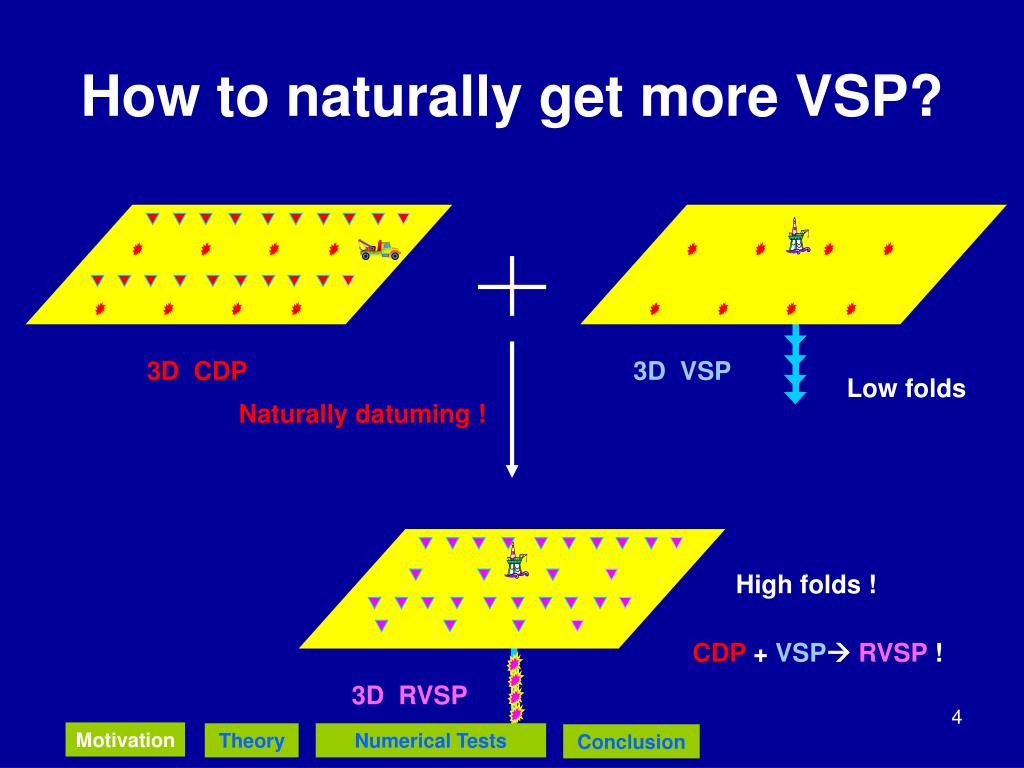

  4. How to naturally get more VSP? 3DCDP 3D VSP Low folds Naturally datuming ! High folds ! CDP + VSP RVSP! 3D RVSP Motivation Theory Numerical Tests Conclusion

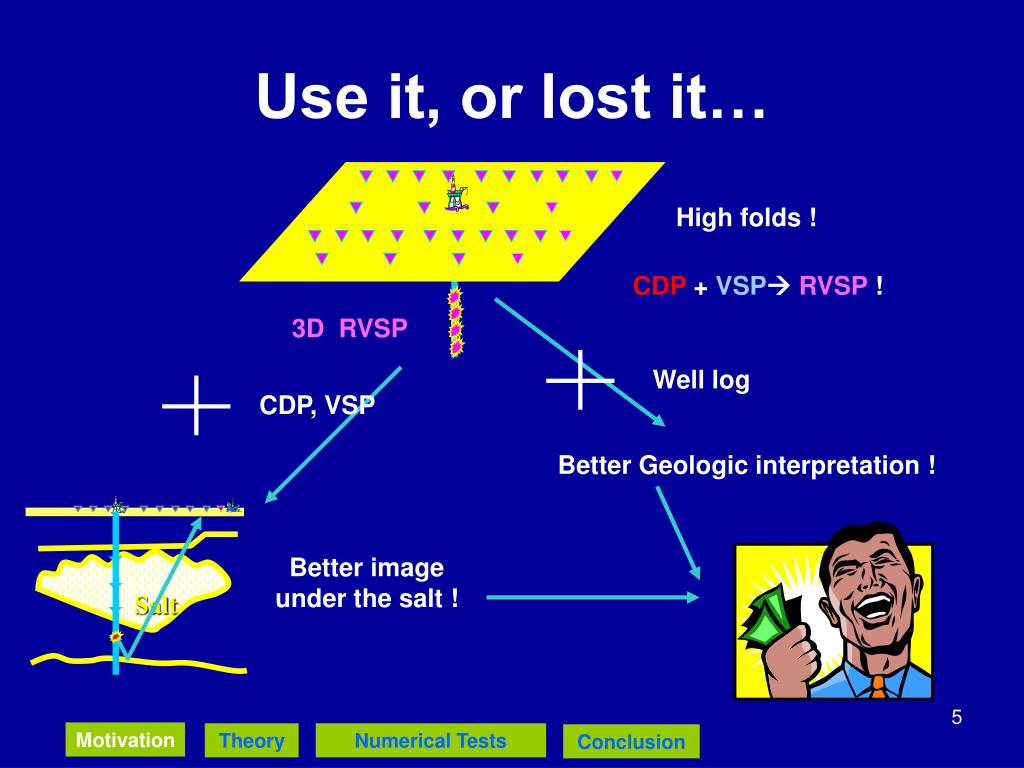

  5. CDP, VSP Well log High folds ! Salt CDP + VSP RVSP! 3D RVSP Use it, or lost it… Better Geologic interpretation ! Better image under the salt ! Motivation Theory Numerical Tests Conclusion

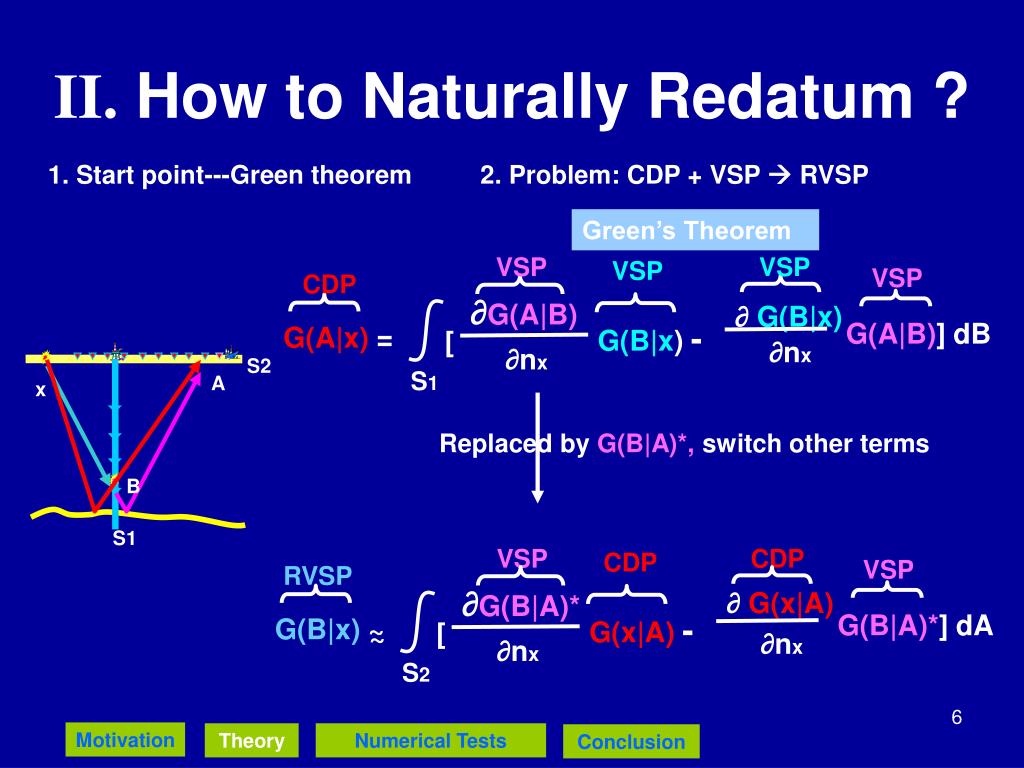

  6. VSP CDP CDP VSP RVSP S2 ∂G(B|A)* ∂ G(x|A) A G(B|A)*]dA G(x|A)- x G(B|x) ~ [ ~ ∂nx ∂nx S2 S1 B II. How to Naturally Redatum ? 1. Start point---Green theorem 2. Problem: CDP + VSP  RVSP Green’s Theorem VSP VSP VSP VSP CDP ∂G(A|B) ∂ G(B|x) G(A|B)]dB G(B|x) - G(A|x) = [ ∂nx ∂nx S1 Replaced by G(B|A)*, switch other terms Motivation Theory Numerical Tests Conclusion

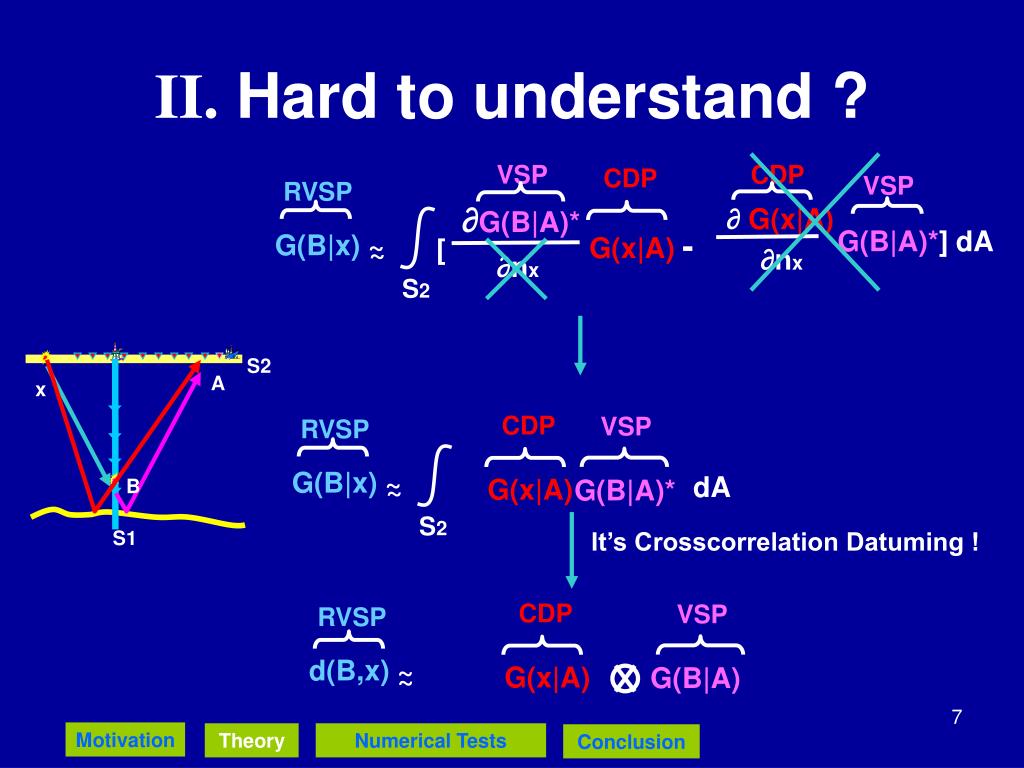

  7. VSP CDP CDP VSP CDP VSP RVSP ∂G(B|A)* ∂ G(x|A) G(x|A) G(B|A)*]dA G(B|A)* G(x|A)- G(B|x) ~ [ ~ ∂nx dA ∂nx S2 CDP VSP RVSP d(B,x) ~ G(x|A) G(B|A) II. Hard to understand ? S2 A x RVSP G(B|x) ~ ~ B S2 S1 It’s Crosscorrelation Datuming ! ~ Motivation Theory Numerical Tests Conclusion

  8. VSP CDP CDP VSP RVSP ∂G(B|A)* ∂ G(x|A) G(B|A)*]dA G(x|A)- G(B|x) ~ [ ~ ∂nx Forward Propagate Backward Propagate ∂nx ( 2+K2)G(B|A)=d(B-A) S2 ReceiverB ReceiverB Source A Source X II. Let’s understand this… Problem: CDP + VSP  RVSP G(B|A)* is the acausal Green’s function S2 A x G(B|x) is the causal Green’s function B S1 Motivation Theory Numerical Tests Conclusion

  9. VSP CDP CDP VSP RVSP ∂G(B|A)* ∂ G(x|A) G(B|A)*]dA G(x|A)- G(B|x) ~ [ ~ ∂nx ∂nx S2 II. Let’s understand this… Problem: CDP + VSP  RVSP Green’s Theorem Back- For- X A B S2 A CDP VSP x For- X B RVSP B S1 Motivation Theory Numerical Tests Conclusion

  10. DipoleFormula VSP CDP CDP VSP RVSP S2 ∂G(B|A)* ∂ G(x|A) A G(B|A)*]dA G(x|A)- x G(x|B) ~ [ ~ ∂nx ∂nx S2 B Solution CDP + VSP  RVSP Multi-arrival Monopole Datuming CDP VSP cosq RVSP i k G(B|A)* G(x|A) G(x|B) ~ dA ~ S1 G(B|A) G(B|A)* + e VSP VSP Deconvolution Datuming ! Motivation Theory Numerical Tests Conclusion

  11. DipoleFormula VSP CDP CDP VSP RVSP ∂G(B|A)* ∂ G(x|A) G(B|A)*]dA G(x|A) + G(x|B) ~ [ ~ ∂nx ∂nx S2 Solution CDP + VSP  RVSP S2 A q x Shortest-arrival Monopole Approximation q VSP B CDP -iwtxB RVSP e S1 cosq i k G(x|A) G(x|B) ~ [ dA ] ~ S2 4π Motivation Theory Numerical Tests Conclusion

  12. What is the benefit ? CDP + VSP  RVSP • Sources are closer to the target; • Higher fold virtual RVSP data are obtained; • No velocity model is needed; • Multi-arrival are considered; Salt Motivation Theory Numerical Tests Conclusion

  13. Outline Comes Back… • Motivation • Theory • Numerical Tests • SEG/EAGE Salt Model • Field Data Examples • Conclusion Motivation Theory Numerical Tests Conclusion

  14. P-wave velocity model Velocity (m/s) 0 4500 Depth (m) 15700 1500 -7850 Offset (m) 7850 A Salt Model ! Motivation Theory Numerical Tests Conclusion

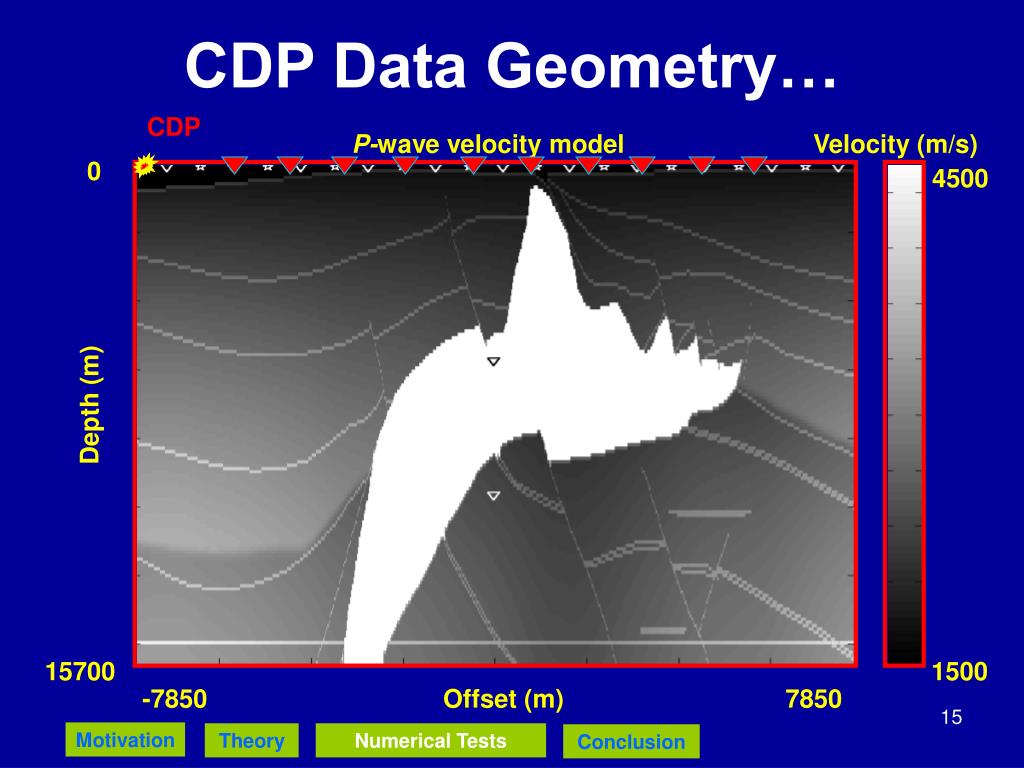

  15. P-wave velocity model Velocity (m/s) 0 4500 Depth (m) 15700 1500 -7850 Offset (m) 7850 CDP Data Geometry… CDP Motivation Theory Numerical Tests Conclusion

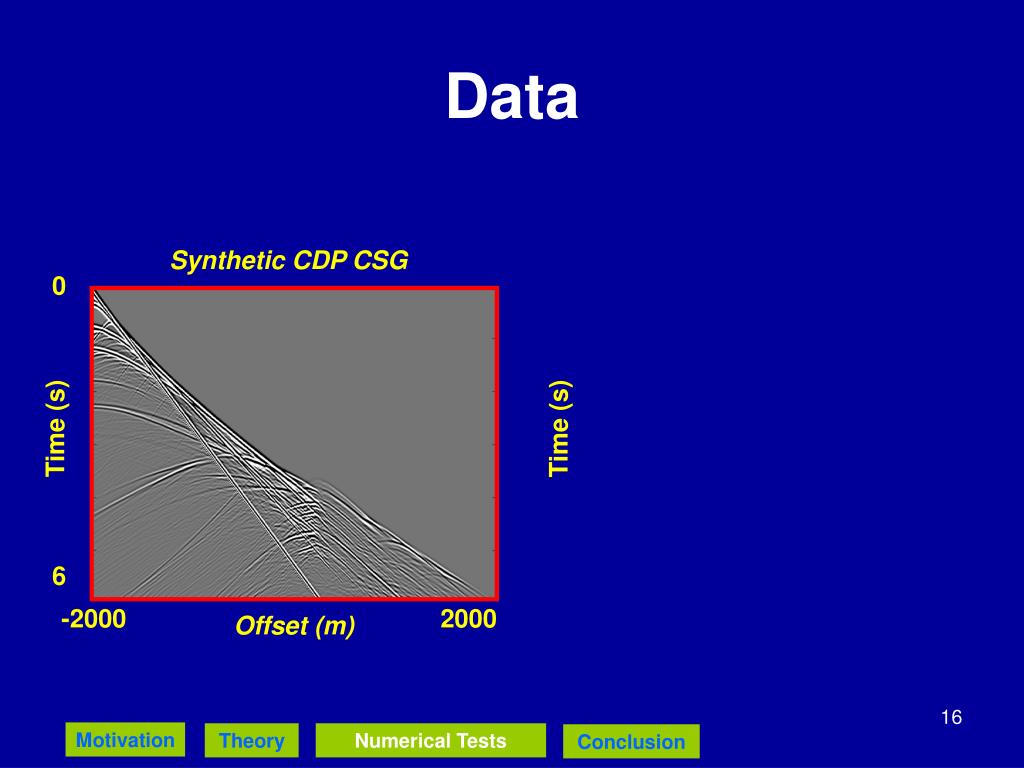

  16. Synthetic CDP CSG 0 Time (s) 6 -2000 2000 Offset (m) Data Time (s) Motivation Theory Numerical Tests Conclusion

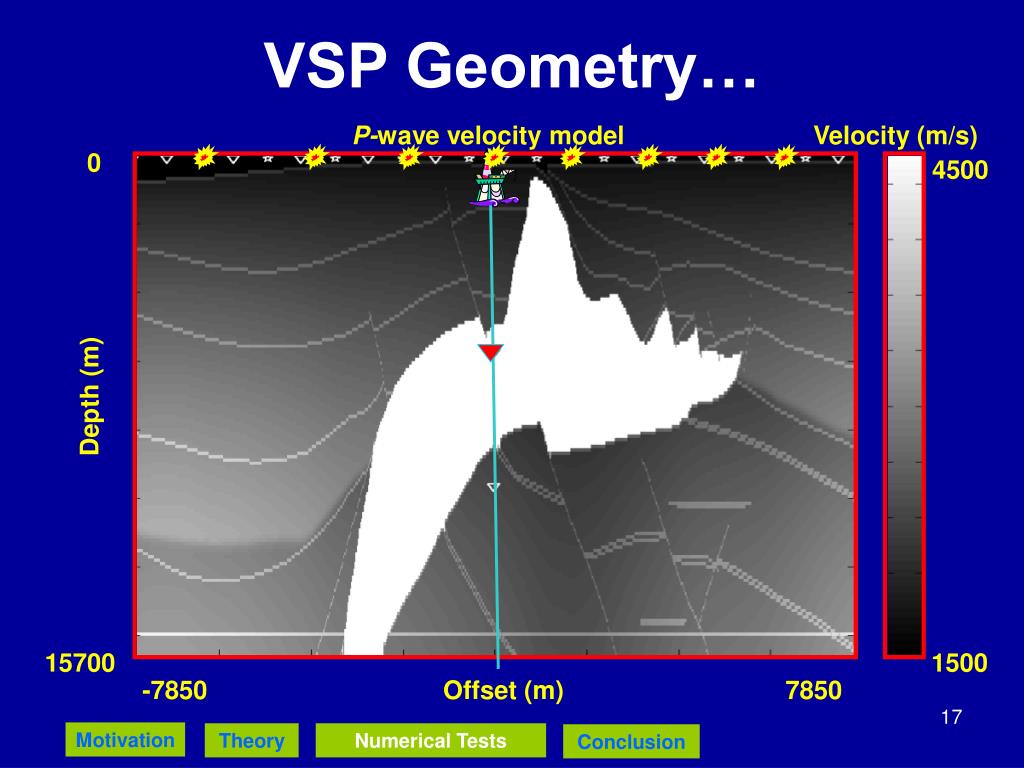

  17. P-wave velocity model Velocity (m/s) 0 4500 Depth (m) 15700 1500 -7850 Offset (m) 7850 VSP Geometry… Motivation Theory Numerical Tests Conclusion

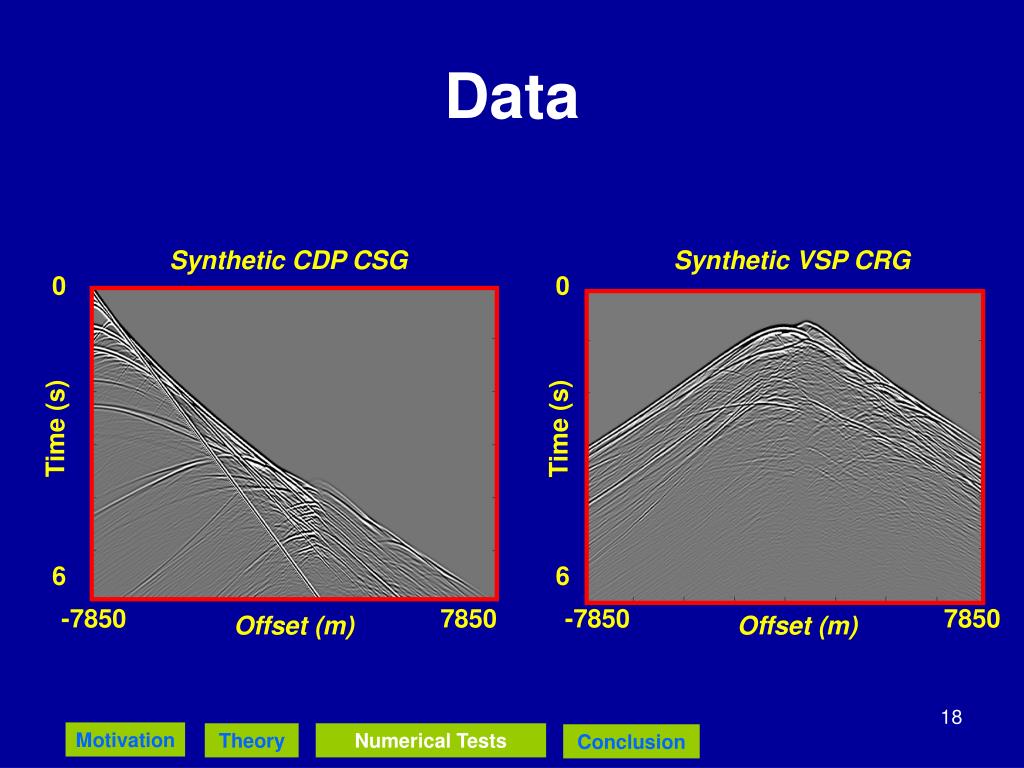

  18. Synthetic CDP CSG Synthetic VSP CRG 0 0 Time (s) 6 6 -7850 7850 -7850 7850 Offset (m) Offset (m) Data Time (s) Motivation Theory Numerical Tests Conclusion

  19. Synthetic RVSP CSG 0 0 Time (s) Time (s) 6 6 -7850 7850 Offset (m) noise Which is better? Multi-arrival datuming vs. Shortest-arrival datuming 0 Time (s) noise 6 -7850 7850 Offset (m)

  20. How about the waveform? Traces comparisons Direct waves are cut Shortest-arrival datuming poor data folds multi-arrival datuming Normalized Amplitude Zoom area 6 3 Time (s) Motivation Theory Numerical Tests Conclusion

  21. Multi-arrival datuming wins! Zoom View of Traces Shortest-arrival datuming Normalized Amplitude multi-arrival datuming 3 Time (s) 5.5 Motivation Theory Numerical Tests Conclusion

  22. P-wave velocity model Velocity (m/s) 0 4500 Depth (m) 15700 1500 -7850 Offset (m) 7850 Another Datuming Results Motivation Theory Numerical Tests Conclusion

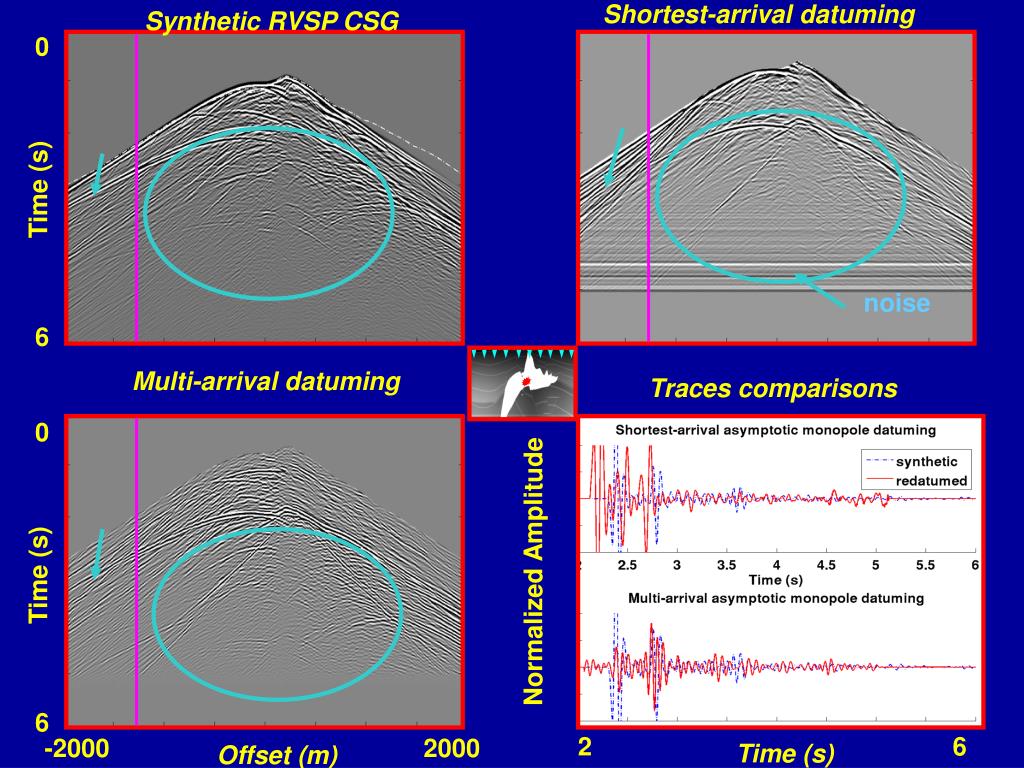

  23. Shortest-arrival datuming Synthetic RVSP CSG 0 Time (s) 6 Multi-arrival datuming Traces comparisons 0 Normalized Amplitude Time (s) 6 2 6 -2000 2000 Time (s) Offset (m) noise

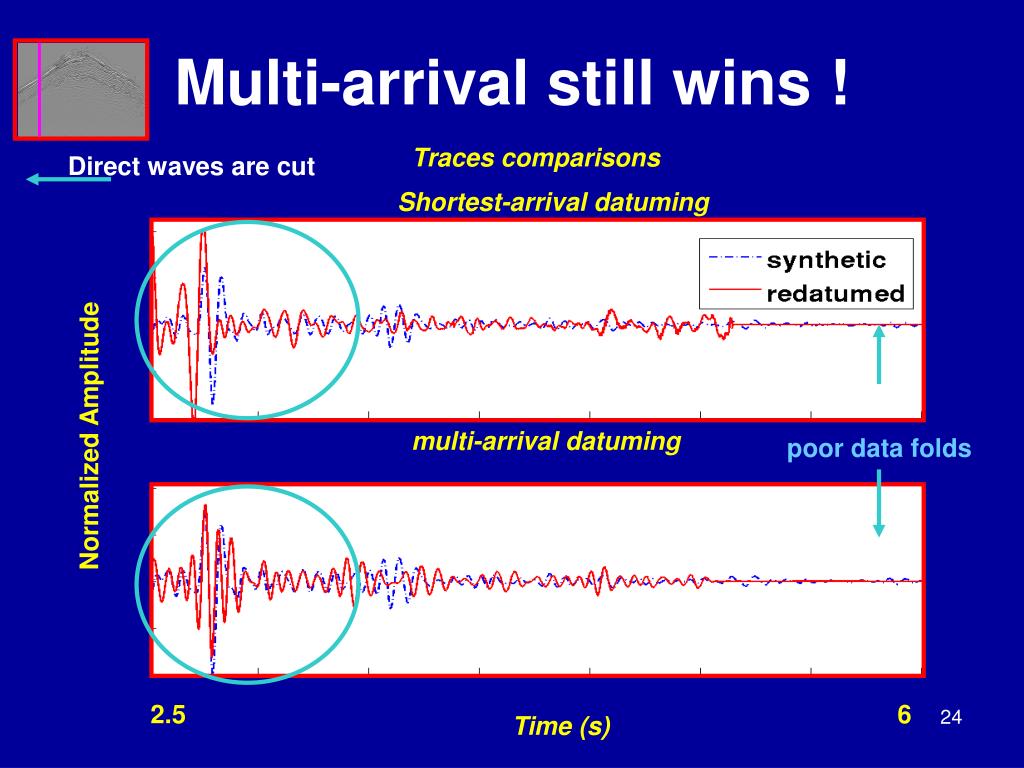

  24. Multi-arrival still wins ! Traces comparisons Direct waves are cut Shortest-arrival datuming Normalized Amplitude multi-arrival datuming poor data folds 2.5 6 Time (s)

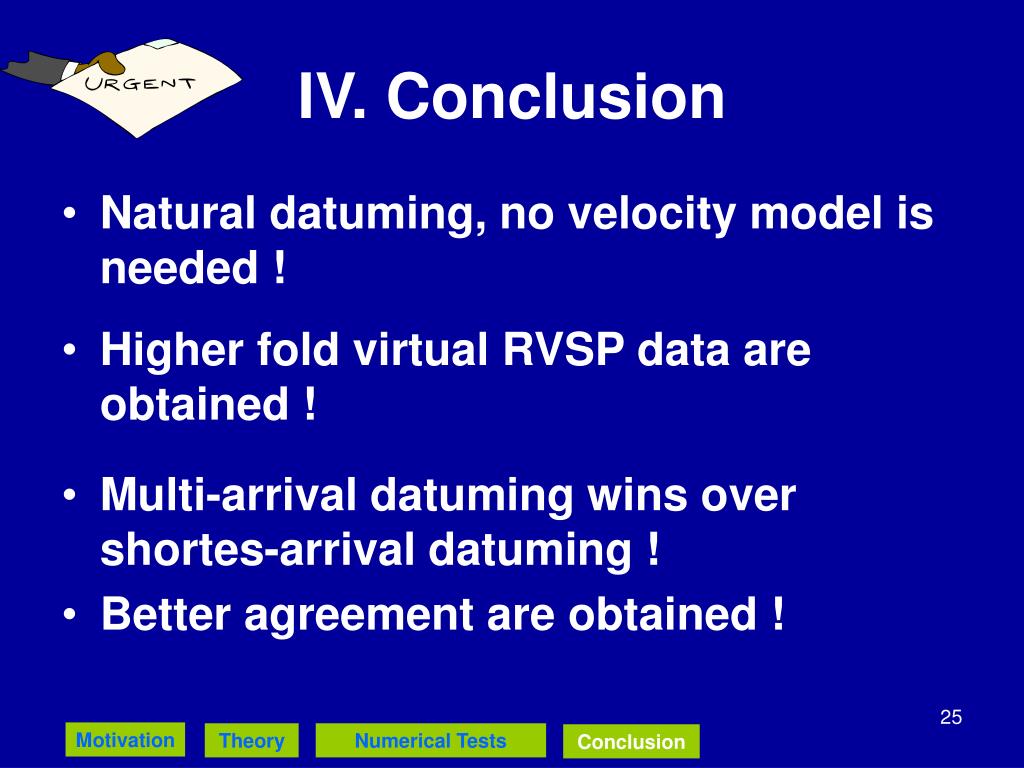

  25. IV. Conclusion • Natural datuming, no velocity model is needed ! • Higher fold virtual RVSP data are obtained ! • Multi-arrival datuming wins over shortes-arrival datuming ! • Better agreement are obtained ! Motivation Theory Numerical Tests Conclusion
