Exploring Linearizability. 刘高昂. Definition :. Q : What is linearizability ?. Overview. A correctness property describe the program’s behaviour . Principle: Each method call should appear to take effect instantaneously at some moment between its invocation and response.

Download Presentation

Exploring Linearizability

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript


Exploring linearizability

Exploring Linearizability

刘高昂


Definition

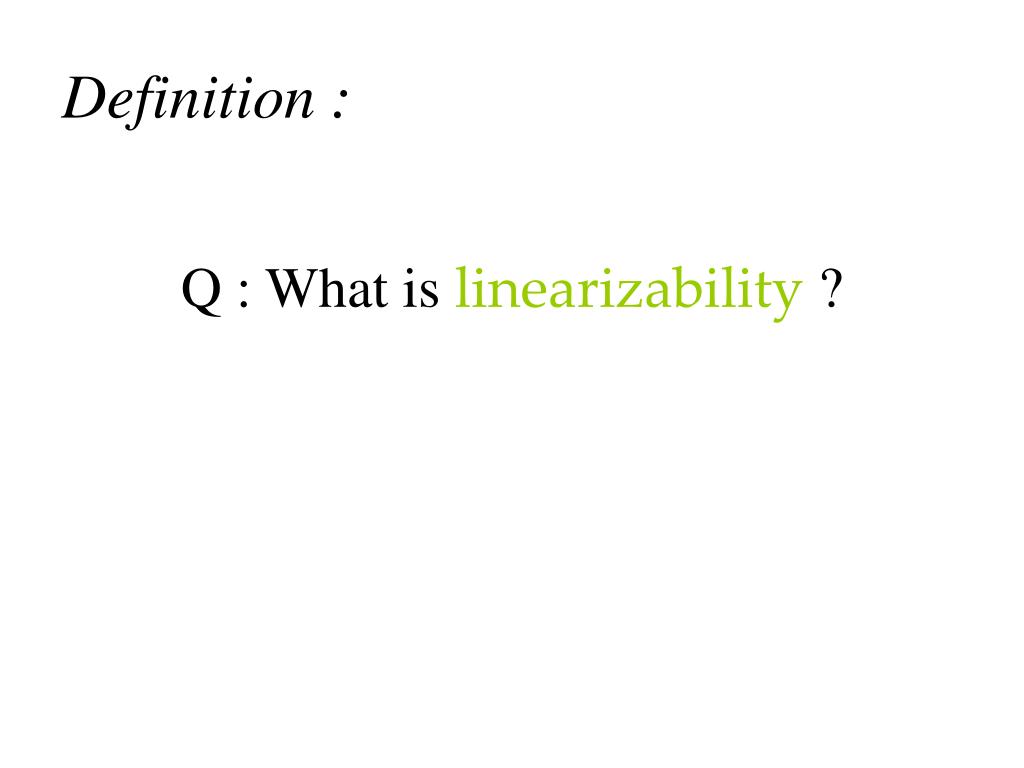

Definition :

Q : What is linearizability ?


Overview

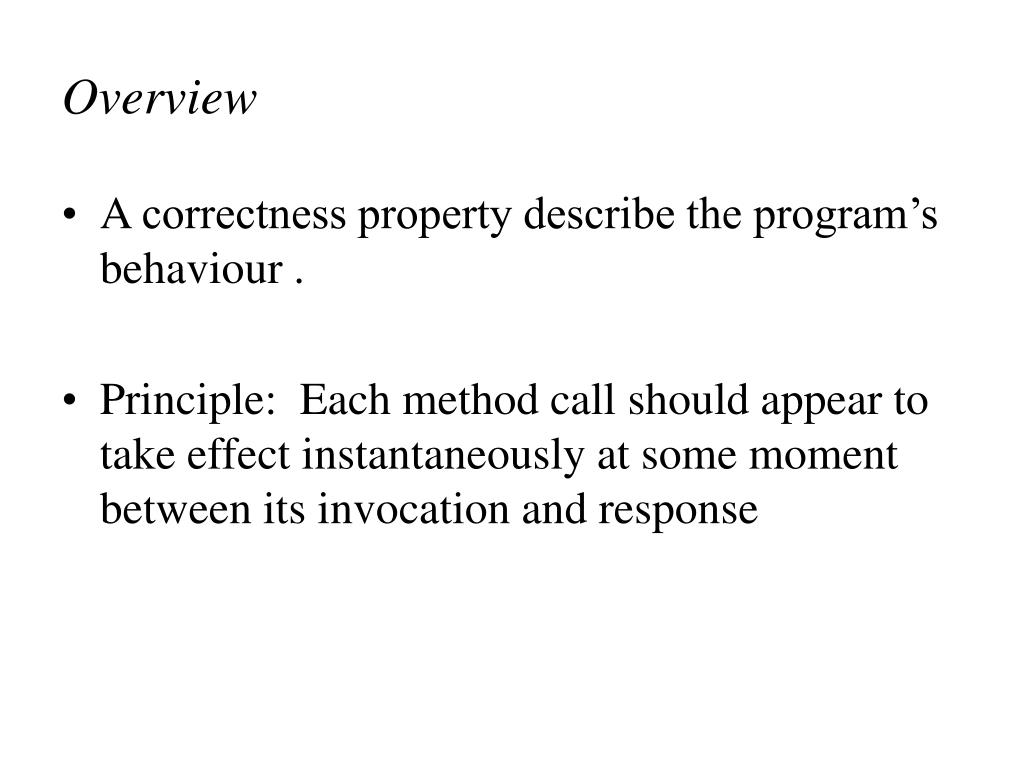

Overview

  • A correctness property describe the program’s behaviour .

  • Principle: Each method call should appear to take effect instantaneously at some moment between its invocation and response


For concurrent history

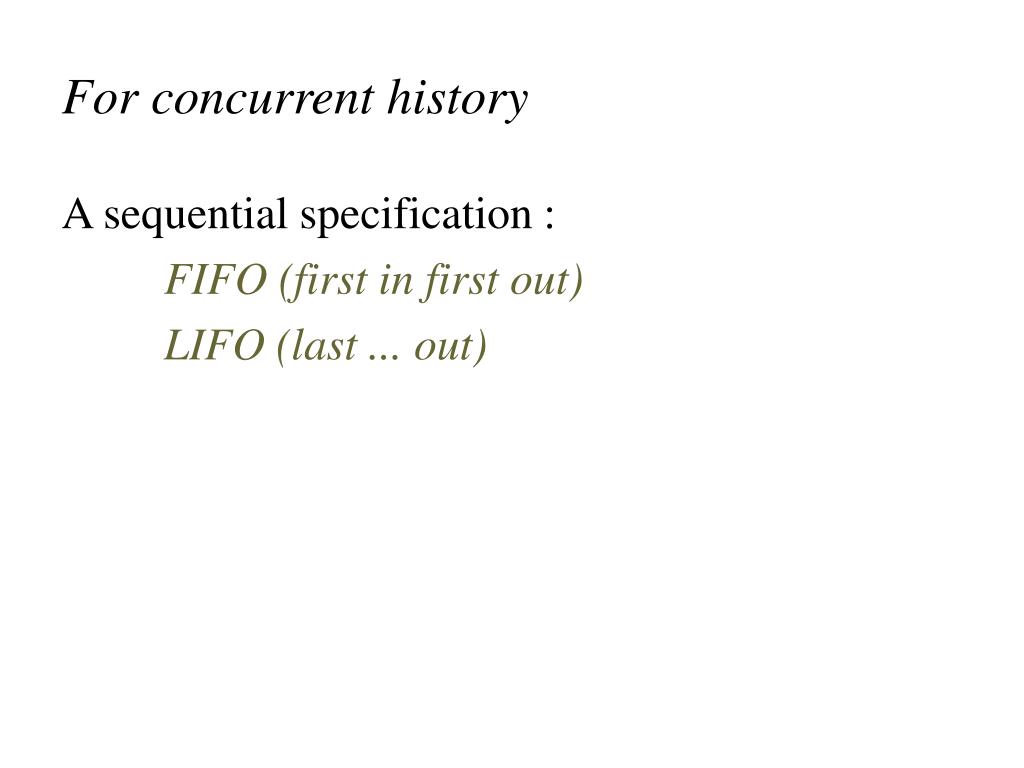

For concurrent history

A sequential specification :

FIFO (first in first out)

LIFO (last ... out)


For concurrent history1

For concurrent history

A concurrent history is linearizable comply with the sequential specification ,

If there is a sequential history S extracted from the concurrent history H,

so that the sequential history S satisfies this specification


Example 1

Example_1

non_linearizable & Spec : FIFO

|--------ta.enq(1)-------| |--------ta.enq(2)---------|

|--------tb.deq(2)--------|


Example 2

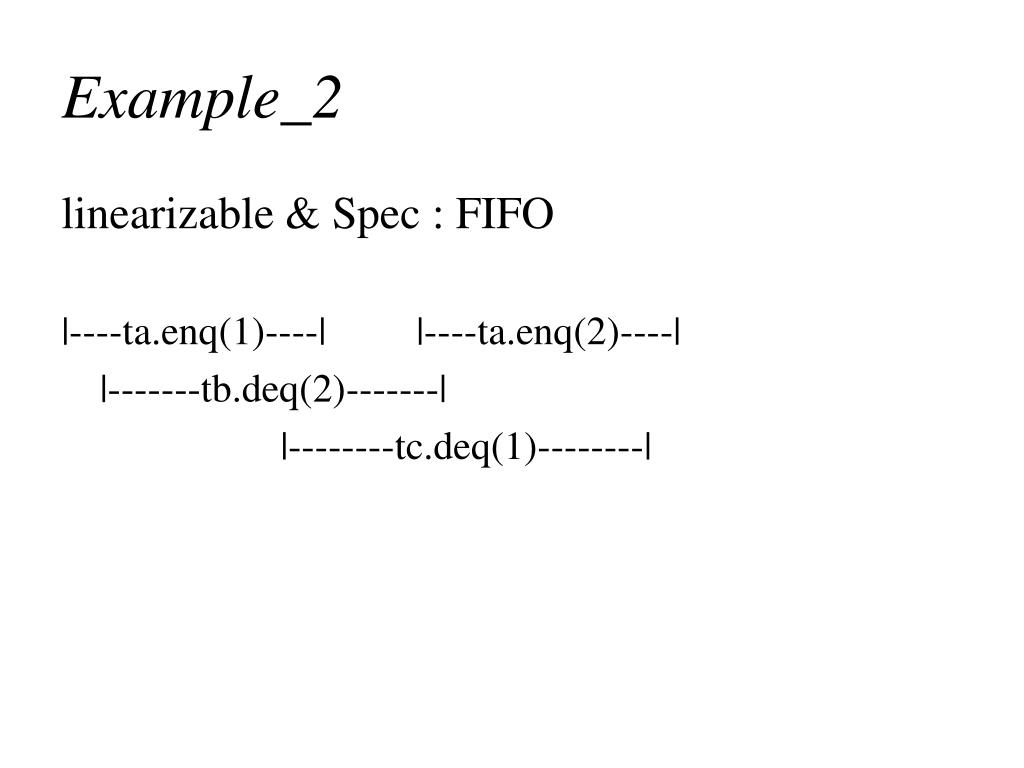

Example_2

linearizable & Spec : FIFO

|----ta.enq(1)----| |----ta.enq(2)----|

|-------tb.deq(2)-------|

|--------tc.deq(1)--------|


Formal definition

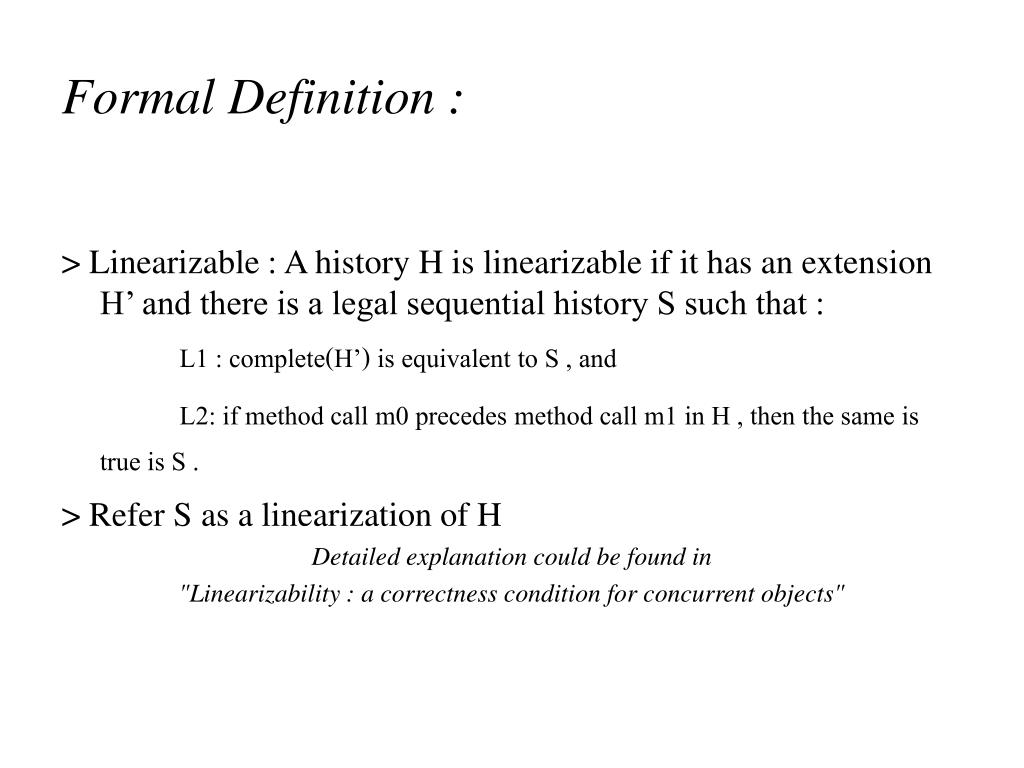

Formal Definition :

> Linearizable : A history H is linearizable if it has an extension H’ and there is a legal sequential history S such that :

L1 : complete(H’) is equivalent to S , and

L2: if method call m0 precedes method call m1 in H , then the same is true is S .

> Refer S as a linearization of H

Detailed explanation could be found in

"Linearizability : a correctness condition for concurrent objects"


Definitions

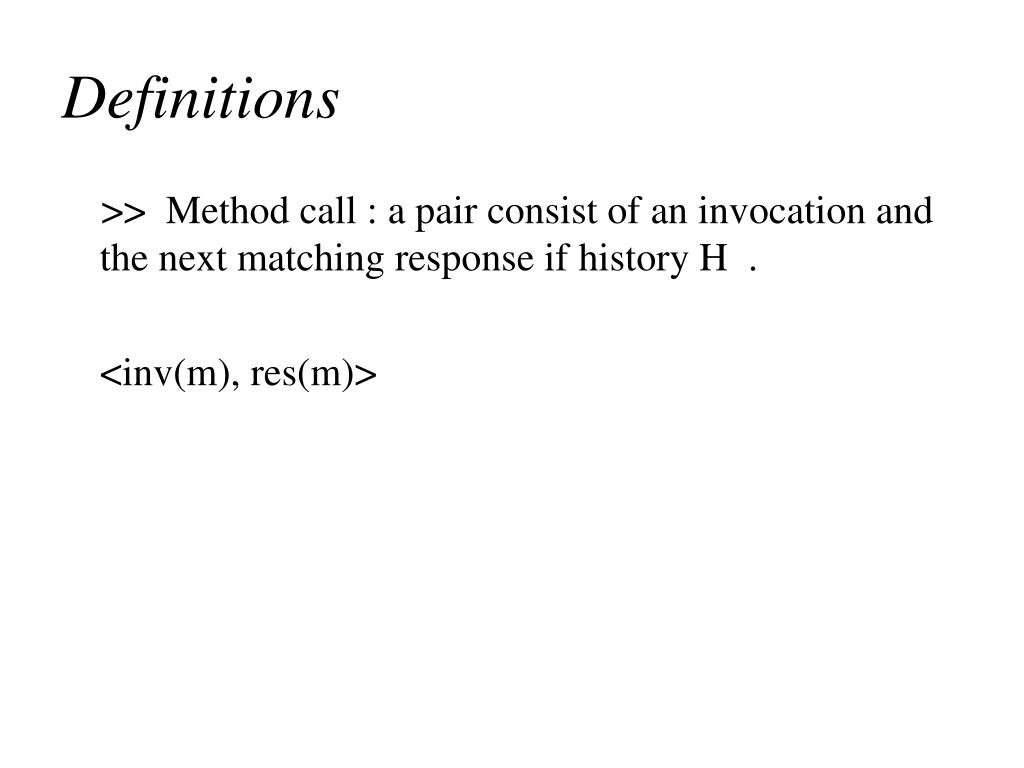

Definitions

>> Method call : a pair consist of an invocation and the next matching response if history H .

<inv(m), res(m)>


Definitions1

Definitions

  • Extension H' of H : H' is a history by appending responses to zero or more pending invocations of H

    Say : H =

    q Enq(x) A

    q OK() A

    q Enq(y) B

    q OK() B

    q Deq() B

    q Deq() A

  • H ' = H . q OK(x) B . q OK(y) A


Definitions2

Definitions

  • Complete(H) : the maximal subsequence of H consisting only of invocations and matching responses .

    Complete (H) =

    q Enq(x) A

    q OK() A

    q Enq(y) B

    q OK() B


Why linearizability

Why linearizability ?

Compositionality : H is linearizable if ,and only if , for each object x , H|x is linearizable .

Compositionality if import as it

1 .allows concurrent systems to designed and constructed in a modular fashion

2. Linearizable objects can be implemented , verified , and executed independently .


Exploring linearizability

Nonblocking : every pending invocation has a correct response .

No deadlock , No non_terminating loop .


How to prove linearizability

How to prove linearizability ?

> Theorem proving , abstract the code into semantics ,and supply that to theorem prover .

Need hand-crafted

> Enumerate , state explosion

E.g: 5 Threads , 1 method for each thread

The worst case :

5 ! = 120


Locate lp

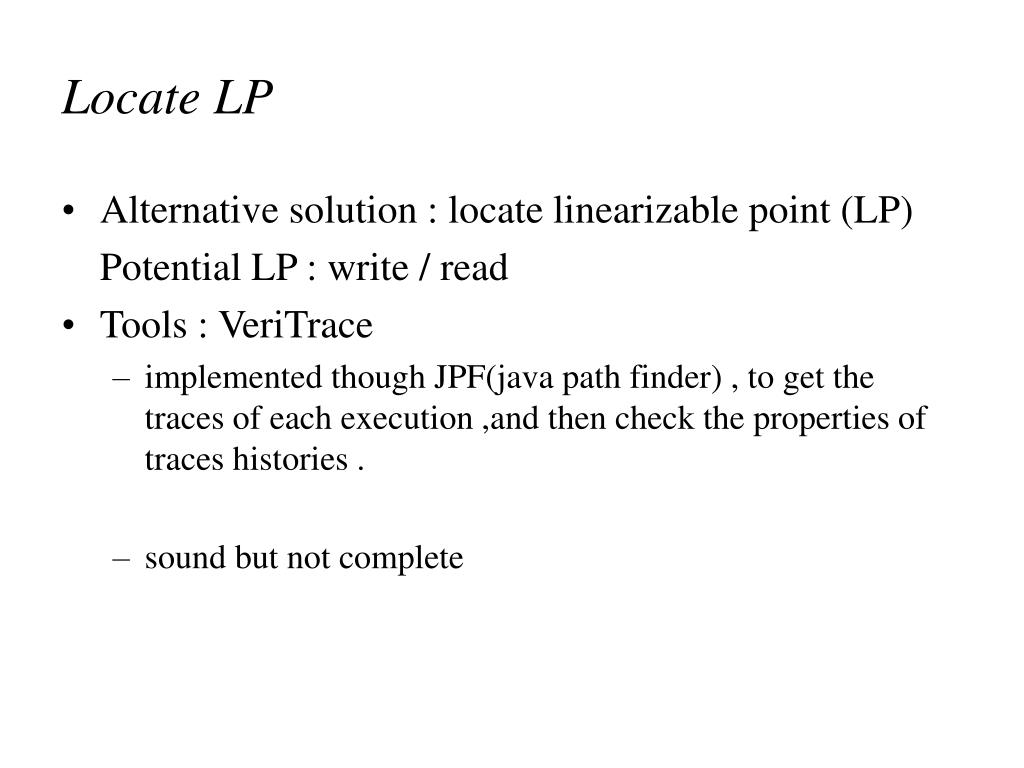

Locate LP

  • Alternative solution : locate linearizable point (LP)

    Potential LP : write / read

  • Tools : VeriTrace

    • implemented though JPF(java path finder) , to get the traces of each execution ,and then check the properties of traces histories .

    • sound but not complete


Video

Video


Exploring linearizability

Thanks !
