Presentation Transcript


Cell separation using magnetic beads l.jpg

Cell Separation Using Magnetic Beads


Slide2 l.jpg

MiniMACS® Separator

MS Column

Magnet


Macs technology l.jpg

MACS® Technology

  • MACS Technology Used For Cell Separation

    • Magnetic Activated Cells Sorting

  • Yields Relatively High Purity Cell Populations

  • 3 Components Involved

    • MACS MicroBeads

    • MACS Column

    • MACS Separator


Macs technology4 l.jpg

MACS® Technology

  • MACS MicroBeads

    • 50 nm in size

    • Biodegradable

    • Conjugated to monoclonal antibodies

  • MACS Column

    • Generates strong magnetic field


Labeling of cells with beads l.jpg

Labeling Of Cells With Beads

Bead

Monoclonal Ab


Magnetic separation l.jpg

Trapped Labeled Cells

High Gradient

Magnetic Field

Magnetic Separation


Magnetic separation7 l.jpg

Cells Of Interest

Magnetic Separation


Direct labeling l.jpg

Direct Labeling

  • Advantages

    • Fast

    • Yields High Purity Cell Populations

  • Disadvantages

    • Binding of antibody to surface marker may activate cell

    • Some cell populations may require multiple markers to be identified


Indirect labeling l.jpg

Indirect Labeling


Indirect labeling10 l.jpg

Indirect Labeling

  • Useful in cases with dim surface marker expression

  • Allows for amplification of signal

  • Secondary antibody recognizes

    • Biotin

    • FITC

    • Fc portion of primary antibody

  • Streptavidin instead of secondary antibody

    • Recognizes biotin on primary antibody


Depletion strategy l.jpg

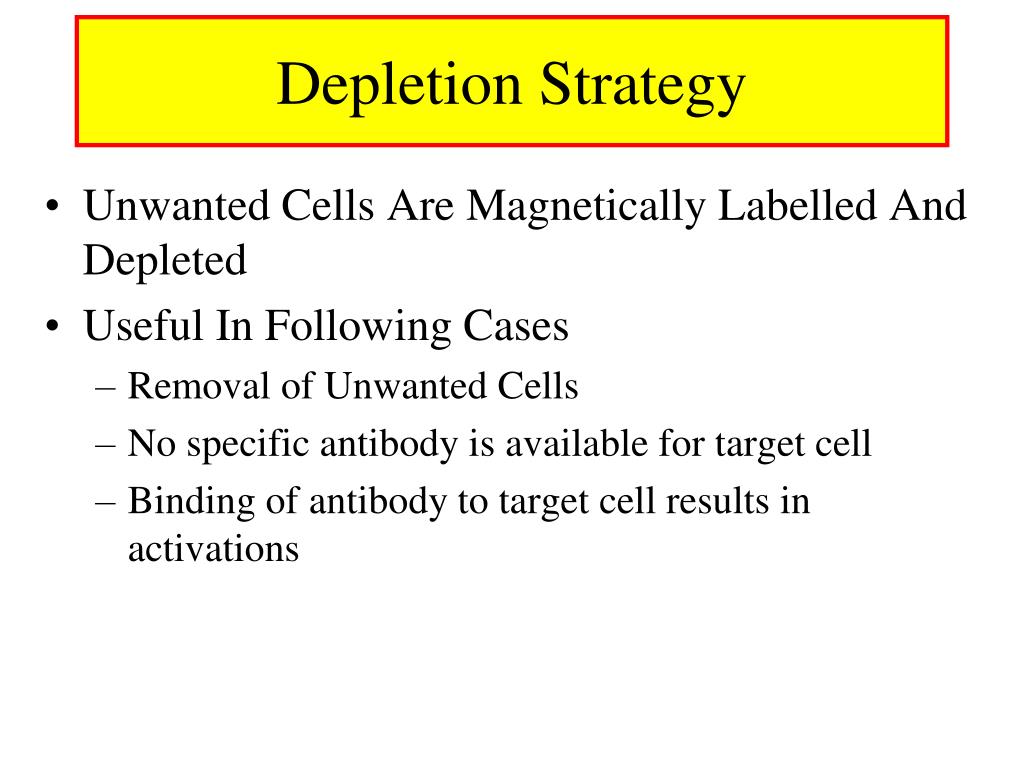

Depletion Strategy

  • Unwanted Cells Are Magnetically Labelled And Depleted

  • Useful In Following Cases

    • Removal of Unwanted Cells

    • No specific antibody is available for target cell

    • Binding of antibody to target cell results in activations


Depletion strategy12 l.jpg

Depletion Strategy


Depletion strategy13 l.jpg

Depletion Strategy


Depletion strategy14 l.jpg

Depletion Strategy


Protocol for isolation of cd4 cells l.jpg

Protocol For Isolation Of CD4+ Cells


Protocol for isolation of cd4 cells16 l.jpg

Protocol For Isolation Of CD4+ Cells


Protocol for isolation of cd4 cells17 l.jpg

Protocol For Isolation Of CD4+ Cells

  • 1. Prepare degased buffer
