Presentation Transcript

About me
About me

Markus Völter

[email protected]

www.voelter.de

  • Independent Consultant

  • Based out of Heidenheim, Germany

  • Focus on

    • Software Architecture

    • Middleware

    • Model-Driven SoftwareDevelopment


C o n t e n t s
C O N T E N T S

  • What is MDSD?

  • MDSD Infrastructure

  • Related Eclipse Projects

    • Meta-metamodelling

    • Editor Construction

    • Model Transformation

    • Code Generation

    • Infrastructure


C o n t e n t s1
C O N T E N T S

  • What is MDSD?

  • MDSD Infrastructure

  • Related Eclipse Projects

    • Meta-metamodelling

    • Editor Construction

    • Model Transformation

    • Code Generation

    • Infrastructure


What is mdsd
What is MDSD?

  • Domain Driven Development is about making software development more domain-related as opposed to computing related. It is also about making software development in a certain domain more efficient.


What is mdsd ii
What is MDSD? II

  • Model-Driven Software Development is about making models first class development artifacts as opposed to “just pictures”.

  • Various aspects of a system are not programmed manually; rather they are specified using a suitable modelling language.

  • The language for expressing these models is specific to the domain for which the models are relevant. The modelling languages used to describe such models are called domain-specific languages (DSL).

  • Models have to be translated into executable code for a specific platform.

  • Such a translation is implemented using model transformations.


What is mdsd iii
What is MDSD? III

several

  • Related Approaches (Specializations):MDA, SF, DSM, GP, …

Metametamodel

target

subdomains

software

software

designexpertise

architecture

architecture

bounded area of

partial

knowlege/interest

composable

multiple

knowledge

viewpoint

multi-step

transform

Domain

single-step

compile

semantics

Model

Ontology

interpret

no

precise/

Domain

roundtrip

executable

Specific

Language

graphical

Metamodel

textual


How does mdsd work
How does MDSD work?

  • Developer develops model(s)based on certain metamodel(s).

  • Using code generation templates, the model is transformed to executable code.

  • Optionally, the generated code is merged with manually written code.

  • One or more model-to-model transformation steps may precede code generation.


C o n t e n t s2
C O N T E N T S

  • What is MDSD?

  • MDSD Infrastructure

  • Related Eclipse Projects

    • Meta-metamodelling

    • Editor Construction

    • Model Transformation

    • Code Generation

    • Infrastructure


Mdsd tooling
MDSD Tooling

  • Meta-Metamodels incl. Editors to define Metamodels

  • Editors to build and (real-time) verify models

  • Transformers that build models from other models

  • Code generators that generate code from models


C o n t e n t s3
C O N T E N T S

  • What is MDSD?

  • MDSD Infrastructure

  • Related Eclipse Projects

    • Meta-metamodelling

    • Editor Construction

    • Model Transformation

    • Code Generation

    • Infrastructure


Emf for metamodelling
EMF for Metamodelling

  • EMF stands for Eclipse Modelling Framework

  • Its prime content is a metametamodel called Ecore

    • it is implemented in Java; i.e. metamodels are represented using Java data structures

    • It is more or less a subset of MOF (the OMG metametamodel that forms the basis for MDA)

  • Metamodels built with EMF automatically feature

    • Event-based change notification

    • XMI serialization/deserialization

    • An API to modify instances of the metamodel (i.e. models)

  • EMF also provides editor support – see later.


Emf for metamodelling ii
EMF for Metamodelling II

  • EMF seems to become the basis for many MDSD-related tools, such as

    • Model-to-Model transformers,

    • Code generators,

    • Editors

    • And maybe even Code IDE‘s


Openarchitectureware for metamodelling
openArchitectureWare for Metamodelling

  • openArchitectureWare is a comprehensive open source tool suite for model-driven software development (see www.openarchitectureware.org).

    • It is not an Eclipse project – it’s hosted at sourceforge – but it provides extensive integration into Eclipse.

  • Metamodels are represented as Java classes (no metametamodel supported, except reflection, if you will)

  • It‘s possible to model metamodels using an arbitrary UML modelling tool and then generate metaclasses including

    • Constraint checkes

    • Namespaces

    • Compostion

    • Event mechanisms


C o n t e n t s4
C O N T E N T S

  • What is MDSD?

  • MDSD Infrastructure

  • Related Eclipse Projects

    • Meta-metamodelling

    • Editor Construction

    • Model Transformation

    • Code Generation

    • Infrastructure


GEF

  • GEF stands for Graphical Editing Framework

  • It can be used to build MVC-based graphical editors that are integrated into the Eclipse platform.

  • It forms the basis for basically all editor generators… that’s why its mentioned here.

  • At this time, there is no specific integration with EMF; it is non-trivial to build GEF editors for EMF models.

  • Note that using GEF is far from trivial, therefore, several projects aim at generating GEF editors from higher level descriptions, ideally, annotated domain metamodels – see later.




Emf for editor generation
EMF for Editor Generation

  • Based on EMF metamodels, you can use EMF tools to generate Eclipse-based editors.

    • These are tree-based editors,

    • Coupled with properties that can be edited in the eclipse property view

  • Editors are specified using a so-called genmodel, it allows you to specify the editor-relevant information for the metamodel for which you want the editor generated.

  • Note that the generated code is separated into two parts,

    • A generic editor infrastructure onto which any kind of editors can be built (by you, manually!),

    • And then the tree editors themselves.

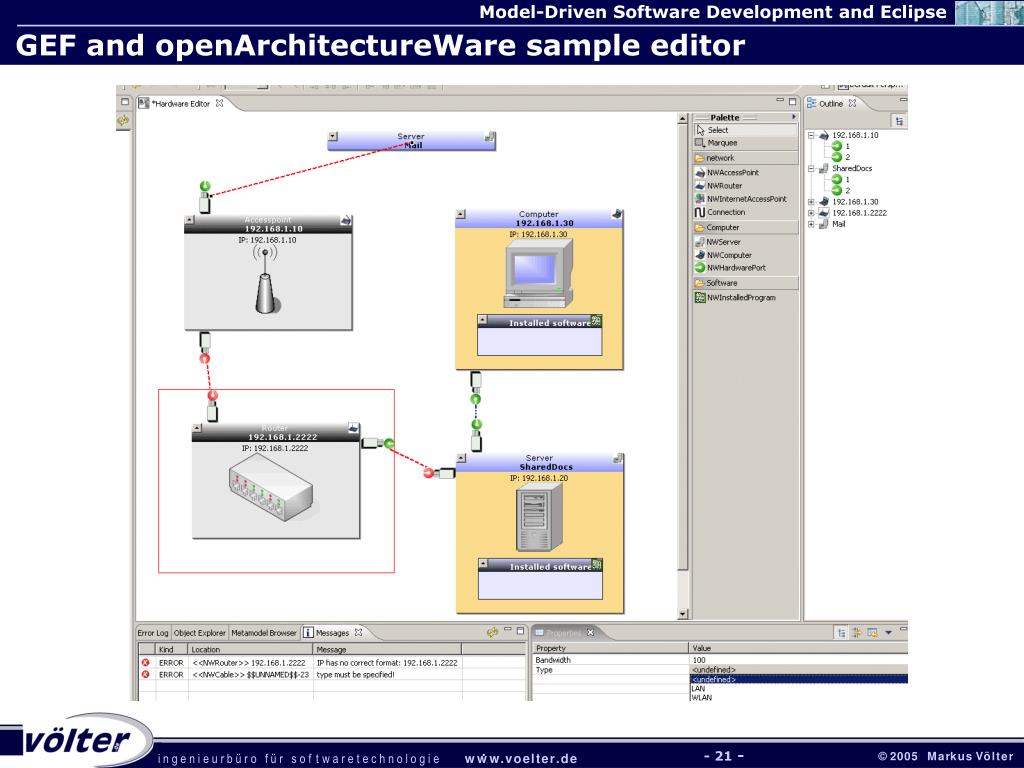

Gef openarchitectureware
GEF & openArchitectureWare

  • openArchitectureWare provides a generator to generate GEF editors from (annotated) domain metamodels.

  • This makes editor development significantly easier and more efficient, especially if the domain metamodel (and thus, the associated editors) evolves over the course of a project.

  • Can be used to generate any „box and line“ editors with arbitrary visualization, tool tips, smart buttons, decorators, etc.




GMF

  • GMF stands for graphical modelling framework and is a project that aims at generating graphical (GEF-based) editors for EMF models.

  • As of April 2005, the project is currently being initiated. I expect useful code end of 2005 earliest.

    • It seems like IBM will be contributing the framework (on top of GEF) which will be used as the basis against which the code will be generated

  • In principle, the approach will probably work the same way as “normal” EMF-generated editors:

    • You define an EMF metamodel

    • You build a genmodel from it, where you specify all the editor-relevant properties of the metamodel.

    • From that, you generate an editor plugin.



More…

  • Merlin generates GEF editors that handle EMF models

  • GME is a metamodelling/modelling tool for building DSLs. It is natively a COM tool. There is a Eclipse plugin that can at least show models…


C o n t e n t s5
C O N T E N T S

  • What is MDSD?

  • MDSD Infrastructure

  • Related Eclipse Projects

    • Meta-metamodelling

    • Editor Construction

    • Model Transformation

    • Code Generation

    • Infrastructure


Ibm mtf
IBM MTF

  • MTF is a (currently commercial/alphaworks) model-to-model transformation framework for EMF models.

  • It is based on a textual transformation syntax

  • It can work with bijective transformations, i.e.

    • You first define bijective mapping rules between two metamodels (relations),

    • In a second step the framework can use these rules to:

      • Find out whether two models conform to the rules, or what the differences are

      • Or modify one of the two models in order to make them conforming to the mapping rules


Ibm mtf ii
IBM MTF II

import ecore http://www.eclipse.org/emf/2002/Ecoreimport emf http:///com/ibm/mtf/model/emf.ecoreimport ws http:///com/ibm/mtf/model/workspace.ecore

relate sample4(ws:IFile file1, ws:IFile file2) { mapPackages(over file1.resource.contents, over file2.resource.contents)}

relate mapPackages(ecore:EPackage pkg1, ecore:EPackage pkg2 ) when equals(pkg1.name, pkg2.name ) { mapPackages( over pkg1.eSubpackages, over pkg2.eSubpackages),

mapClasses( over pkg1.eClassifiers,over pkg2.eClassifiers ), mapDatatypes( over pkg1.eClassifiers, over pkg2.eClassifiers ), mapEnums( over pkg1.eClassifiers, over pkg2.eClassifiers )

}

relate mapClasses(ecore:EClass class1, ecore:EClass class2 ) when equals(class1.name, class2.name )

relate mapDatatypes…

relate mapEnums…


Tefkat
TefKat

  • TefKat is a framework from DSTC that is also aimed at model-to-model transformations.

  • It does not provide the bijective mapping feature

  • It provides a textual syntax to describe transformations from a source metamodel to a target metamodel.

    • The syntax seems a bit more intuitive to use, mainly because the rules are uni-directional


Tefkat ii
TefKat II

TRANSFORMATION uml2rel : uml -> rel

IMPORT platform:/resource/transformation/models/simpleuml.ecoreIMPORT platform:/resource/transformation/models/relational.ecore

// Produces a Table and Key for each persistent UMLClass. RULE Class2Table(c, t, k) FORALL UMLClass c WHERE c.kind = "persistent“ MAKE Table t, Key k SET t.name = c.name, t.key = k, k.name = c.name;

// Produces Columns belonging to a Table for // each persistent UMLClass with storable Attributes. RULE Attr2Column(c, a, t, k, col) EXTENDS Class2Table(c, t, k) FORALL Attribute a WHERE hasAttr(c, a, n) MAKE Column col FROM c4a(c,a,n) SET col.name = n, col.owner = t;

// Immediate Attributes of a UMLClass that are primary have // their corresponding Column as part of the Table's Key. RULE KeyColumns(c, a, t, k, col) EXTENDS Attr2Column(c, a, t, k, col) WHERE a.kind = "primary" AND inhAttr(c, a) SET col.belongsTo = k;

PATTERN storable(A) …

PATTERN inhAttr(C, A) …

PATTERN hasAttr(C, A, N) …


Openarchitectureware for m2m
openArchitectureWare for M2M

  • Since openArchitectureWare is a comprehensive tool suite for MDSD there is also some support for model-to-model transformations.

    • Graphical model-to-model transformations are currently being developed as a diploma thesis (well, maybe…).

    • As of now, you have to program model transformations agains the very powerful metamodel-API.

    • This is easy to understand and ok to use, however, it is procedural


Openarchitectureware for m2m ii
openArchitectureWare for M2M II

public void modifyModel(MetaEnvironment metaEnv) {

ElementSet allEntites = SCMEntityExtent.findAll(metaEnv);

for (Iterator iter = allEntites.iterator(); iter.hasNext();) {

SCMEntity e = (SCMEntity) iter.next();

createDAOComponent(e);

}

}

private void createDAOComponent(SCMEntity e) {

SCMDAOComponent c = SCMDAOComponentExtent.newInstance(e, e.Name()+"DAO");

c.setEntity( e );

c.setPackage( e.Package() );

createOperation(e, c, "save");

createOperation(e, c, "delete");

createOperation(e, c, "update");

}

private void createOperation(SCMEntity e, SCMDAOComponent c, String opName) {

Operation op = OperationExtent.newInstance(e, opName);

c.addOperation( op );

op.setReturnType( PrimitiveTypeExtent.findByName(e, ":java:lang:void") );

Parameter p = ParameterExtent.newInstance( e, "value" );

p.setType( e );

op.addParameter( p );

}


C o n t e n t s6
C O N T E N T S

  • What is MDSD?

  • MDSD Infrastructure

  • Related Eclipse Projects

    • Meta-metamodelling

    • Editor Construction

    • Model Transformation

    • Code Generation

    • Infrastructure


Openarchitectureware
openArchitectureWare

  • openArchitectureWare provides a specialized language for code generation that provides a very efficient way to represent templates.

  • Advanced features that are essential for building larger generators are supports, such as

    • template polymorphism

    • template inheritance

    • and template advices are supported (AOP on template level)

  • An explicit metamodel representation based on Java classes is supported – which is essential for representing non-trivial domains.

  • Many frontends are provided – the code generator itself is independent from the concrete model syntax. They include

    • Many UML tools,

    • Visio

    • Feature-Modelling tools


Openarchitectureware ii
openArchitectureWare II

«DEFINE Root FOR SCMComponent» «EXPAND ImplBase» «IF needsDecoratorProxy» «EXPAND ComponentProxy::DecoratorProxy» «ENDIF» «EXPAND ContextInterface» «EXPAND Interface»«ENDDEFINE»

«DEFINE Interface FOR SCMComponent» «FILE InterfaceFilename» package «InterfacePackageName»; public interface «InterfaceName» { «EXPAND Operation::InterfaceImplementation FOREACH Operation» } «ENDFILE»«ENDDEFINE»

«DEFINE ImplBase FOR SCMComponent» «FILE ImplBaseFilename» package «ImplBasePackageName»; public abstract class «ImplBaseName» extends «BaseClassName» implements «FullyQualifiedInterfaceName» {

protected «FullyQualifiedContextInterfaceName» context() { return («FullyQualifiedContextInterfaceName»)getContextInternal(); } }´ «ENDFILE»«ENDDEFINE»


Emf for code generation
EMF for Code Generation

  • EMF is not a dedicated code generator.

  • EMF uses code generation internally in order to generate the metaclass implementations and the editors.

  • It provides template-based code generation based on the the JET template engine.

    • JET uses a syntax that resembles JSP (i.e. it uses escaped Java code for template control).

  • For big code generators, this syntax does not scale. Advanced features (see next slide) are not supported.

  • Also, there is only a very limited number of frontends that read models as input for code generation.


Oaw emf best of both worlds
oAW/EMF: Best of Both Worlds

  • A future release of oAW will be based on EMF.

  • It will be possible to generate code from EMF models, even based on dynamic metamodels.

  • The proven XPAND language will be reused; it will feature a couple of interesting extensions

    • among others, AOP for templates.

  • A new component-based workflow engine will control the code generation process.

    • It will be possible to integrate other EMF based tools (such as OCL checkers, model transformers) into this workflow.


C o n t e n t s7
C O N T E N T S

  • What is MDSD?

  • MDSD Infrastructure

  • Related Eclipse Projects

    • Meta-metamodelling

    • Editor Construction

    • Model Transformation

    • Code Generation

    • Infrastructure


MDDi

  • The MDD infrastructure project aims at building the necessary infrastructure for MDSD tool component compostion based on the Eclipse platform.

  • The core component will be a model-bus that interconnects editors, transformers and generators in real time.

  • As of April 2005, MDDi is still quite early in its development, I would expect useful code not before Q1/2006.

  • MDDi is developed in close cooperation with the ModelWare project – a European-Union supported project for model-driven development.


GMT

  • The Generative Model Transformer project was orginally intended at building a workflow engine for transformers and generators.

  • It is now considered a “pool for collecting interesting research prototypes”.

    • The goal of producing a production-ready infrastructure has been dropped if it ever was there

    • Maybe as a consequence of ModelWare and MDDi

  • Currently, the following projects are hosted by GMT:

    • UMLX: Ed Willink’s M2M language

    • ATL: Another M2M tool from (french) INRIA

    • FUUT-je: a simple XML-based code generator developed and maintained by Ghica van Emde Boas


Omelet
OMELET

  • OMELET is a framework for integrating arbitrary models, model transformations and model representations.

  • Metamodels are considered types, models are instances of these types.

  • OMELET is maily driven by E.D. Willink.

  • As far as I can tell, it will probably cooperate/merge with MDDi.


Eclipse platform
Eclipse Platform

  • Last but not least, the Eclipse platform, IDE and RCP frameworks can be used to integrate all the various tools into a coherent “MDSD-IDE”.

  • openArchitectureWare provides a set of libraries and frameworks that help building MDSD IDEs based on Eclipse. This includes

    • Model Tree Views

    • An adapted spider view for models

    • A view that shows model validation messages,

    • Etc.


C o n t e n t s8
C O N T E N T S

  • What is MDSD?

  • MDSD Infrastructure

  • Related Eclipse Projects

    • Meta-metamodelling

    • Editor Construction

    • Model Transformation

    • Code Generation

    • Infrastructure

THE END.


URLs

  • EMF – www.eclipse.org/emf

  • oAW – www.openarchitectureware.org

  • GMF – http://eclipse.org/proposals/eclipse-gmf/

  • MDDi – http://eclipse.org/proposals/eclipse-mddi/main.html

  • MTF – http://zones.advisor.com/doc/15042 http://eclipse-plugins.2y.net/eclipse/plugin_details.jsp?id=910

  • Tefkat – http://ww.dstc.edu.au/Research/Projects/Pegamento/tefkat/

  • GMT – http://www.eclipse.org/gmt/

  • OMELET - http://www.eclipse.org/omelet/


Some advertisement
Some advertisement

  • Völter, Stahl

  • Modellgetriebene SoftwareentwicklungTechnik, Engineering, Management

  • dPunkt 2005

  • www.mdsd-buch.de


ad
