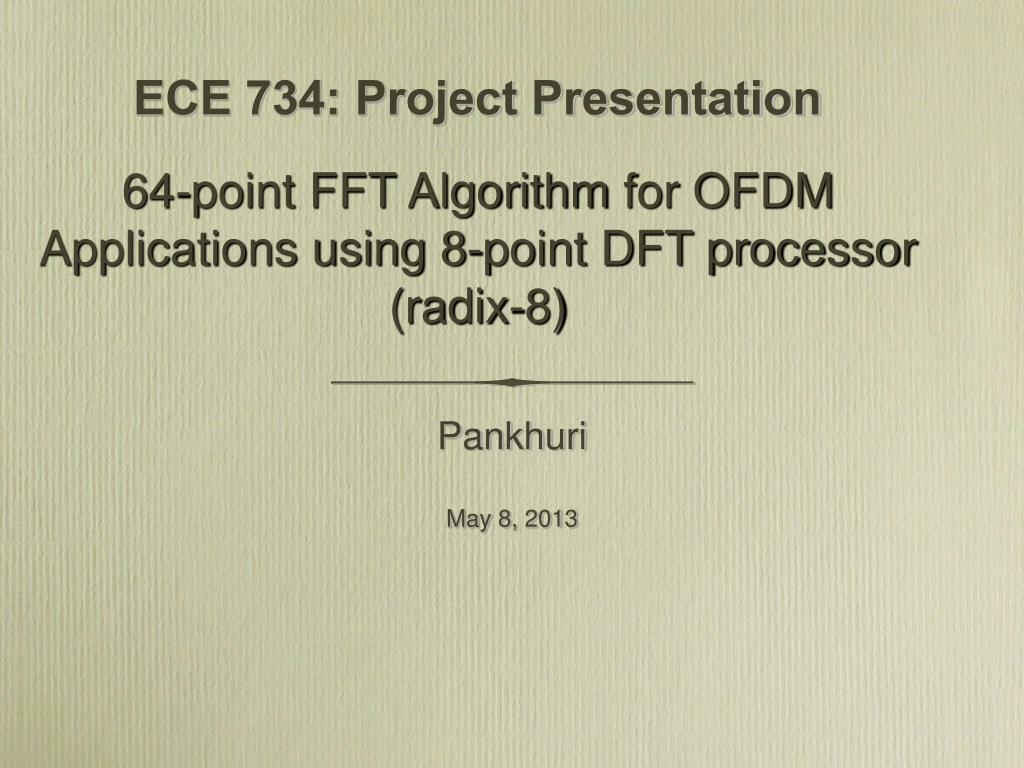

ECE 734: Project Presentation

64-point FFT Algorithmfor OFDM Applications using 8-point DFT processor (radix-8)

Pankhuri

May 8, 2013


Fast fourier transform

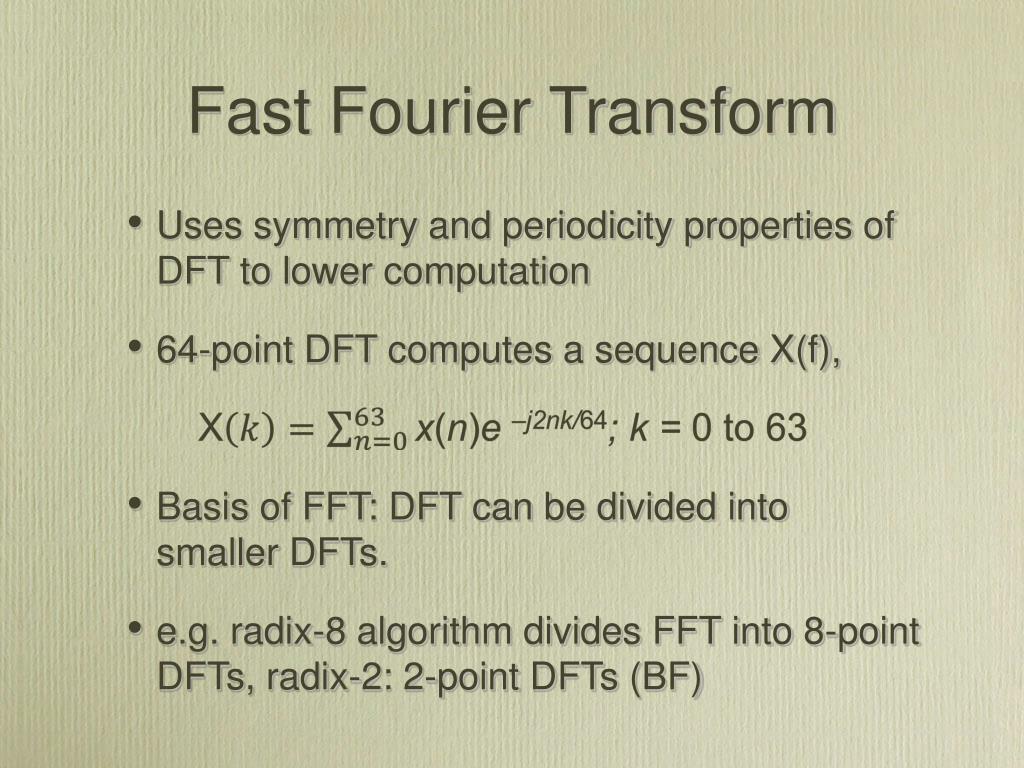

Fast Fourier Transform

  • Uses symmetry and periodicity properties of DFT to lower computation

  • 64-point DFT computes a sequence X(f),

  • Basis of FFT: DFT can be divided into smaller DFTs.

  • e.g. radix-8 algorithm divides FFT into 8-point DFTs, radix-2: 2-point DFTs (BF)


64 point fft algorithm details

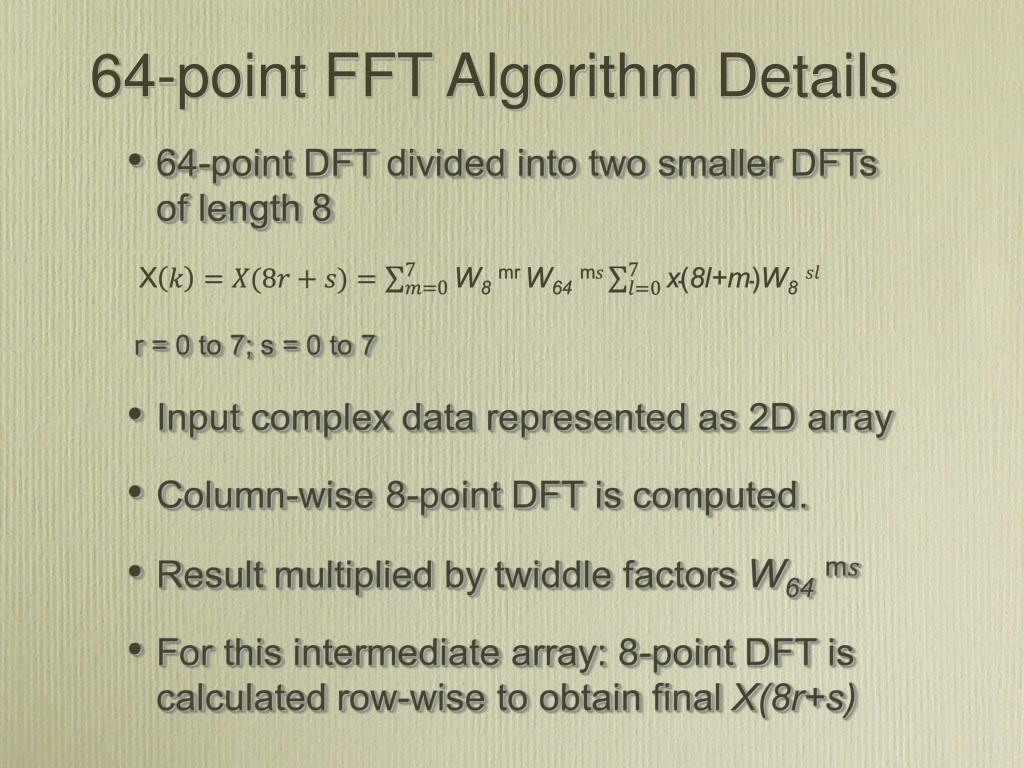

64-point FFT Algorithm Details


Performance improvement

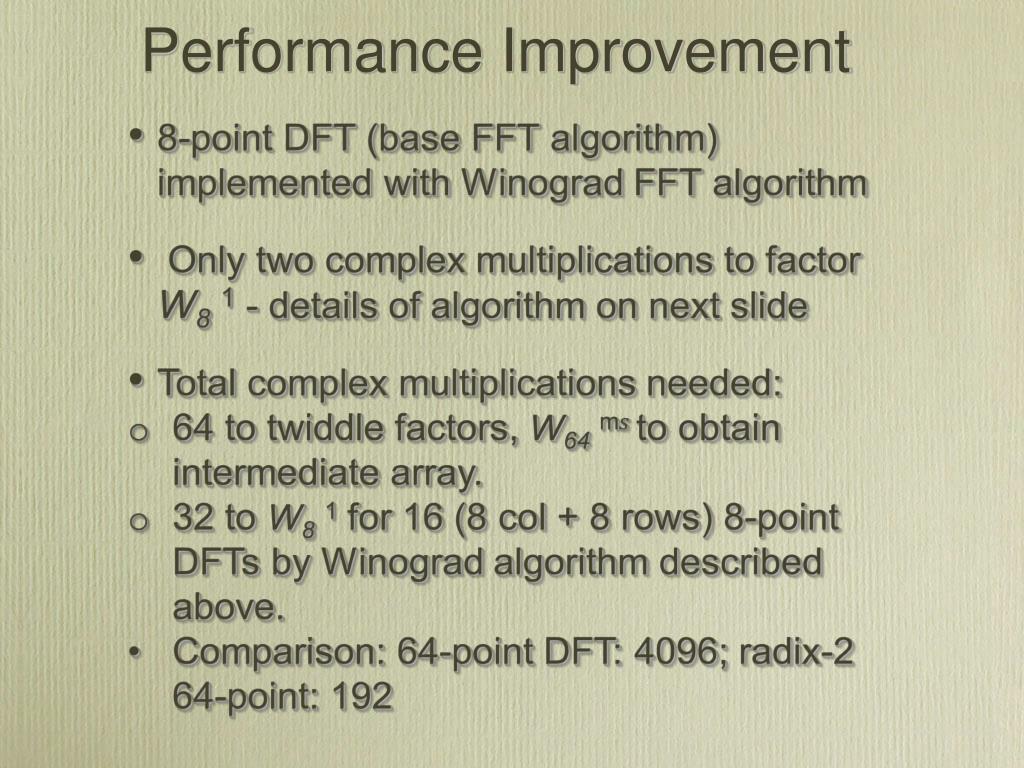

Performance Improvement


8 point fft processor details

8-point FFT processor details

  • FFT8 processor uses Winograd algorithm

  • Minimizes multiplication (more expensive operation) at expense of increased additions and some more memory requirement.

  • FFT8 (unit that performs base FFT operation) is pipelined

  • One complex number is read from/written into input/output data buffer each clock cycle. (Total of 14 clock cycles)

  • Supports clock frequency of up to 250 MHz


8 point fft processor algorithm

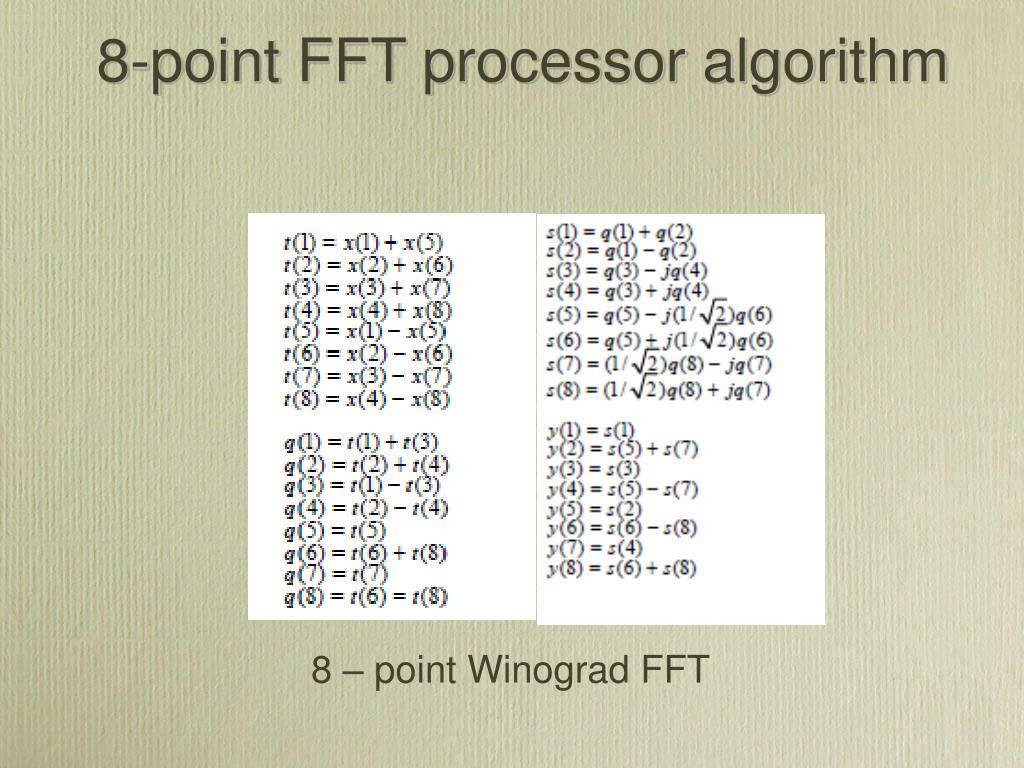

8-point FFT processor algorithm

8 – point Winograd FFT


Processor design overview

Processor Design Overview

Buffer RAM1

Twiddle factor multiplier

8-point FFT unit 1

Complex Input

  • Synthesis and Simulation: Altera Quartus II

  • Language: Verilog

  • Target: Stratix IV FPGA

8-point FFT unit 2

Buffer RAM2

Buffer RAM3

Complex Output


Processor design overview1

Processor Design Overview

  • Data buffers: convert data from 8-inverse order to natural order e.g. without third buffer at the end, the output order is 0,8,16….56, 1,9,17,….. (8-inverse order).

  • Use altsyncram, can store 2x64 complex data

  • One bank is written to from previous stage, other can be read simultaneously.

  • FFT Blocks: Only constant multiplications needed are 1/√2 (bunch of shift and add operations)


Processor design overview2

Processor Design Overview

  • Sixteen 8-point FFT units are avoided here by instead multiplexing the use of two units at expense of increased latency.

  • Twiddle factor multiplier is a ROM having pre-calculated twiddle factors

  • Complex multiplication is accomplished by breaking it into three multiplies and five additions. (lpm_mult mega function)

    (A + jB)(C + jD) = C(A-B) + B(C-D) + j(A(C-D) – C(A-B))


Synthesis results

Synthesis Results


Processor design overview3

Processor Design Overview


Learning outcomes

Learning Outcomes

  • Details of various implementation issues of FFT processor design - resolving bandwidth issues when multiple stages are involved, reducing multiplier count (pipelining), total number of multiplications required (algorithm efficiency)

  • Read about a LOT of FFT algorithms used for OFDM applications (before shortlisting this one). Various strategies to reduce computation employed in these algorithms especially popularity of radix-8 algorithms over radix-2.


Future work applications

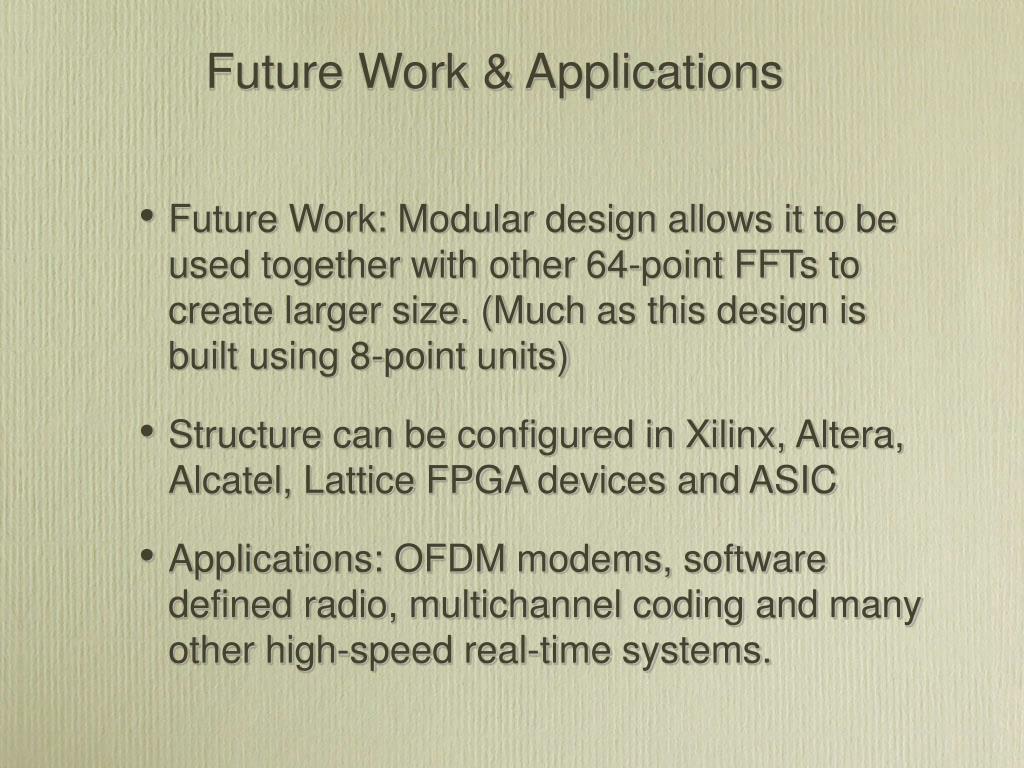

Future Work & Applications

  • Future Work: Modular design allows it to be used together with other 64-point FFTs to create larger size. (Much as this design is built using 8-point units)

  • Structure can be configured in Xilinx, Altera, Alcatel, Lattice FPGA devices and ASIC

  • Applications: OFDM modems, software defined radio, multichannel coding and many other high-speed real-time systems.
