Presentation Transcript


Gallstones types l.jpg

GallstonesTypes

  • Cholesterol stones

  • Pigment stones

    • black stones

    • brown stones


Factors associated with black pigment stones formation l.jpg

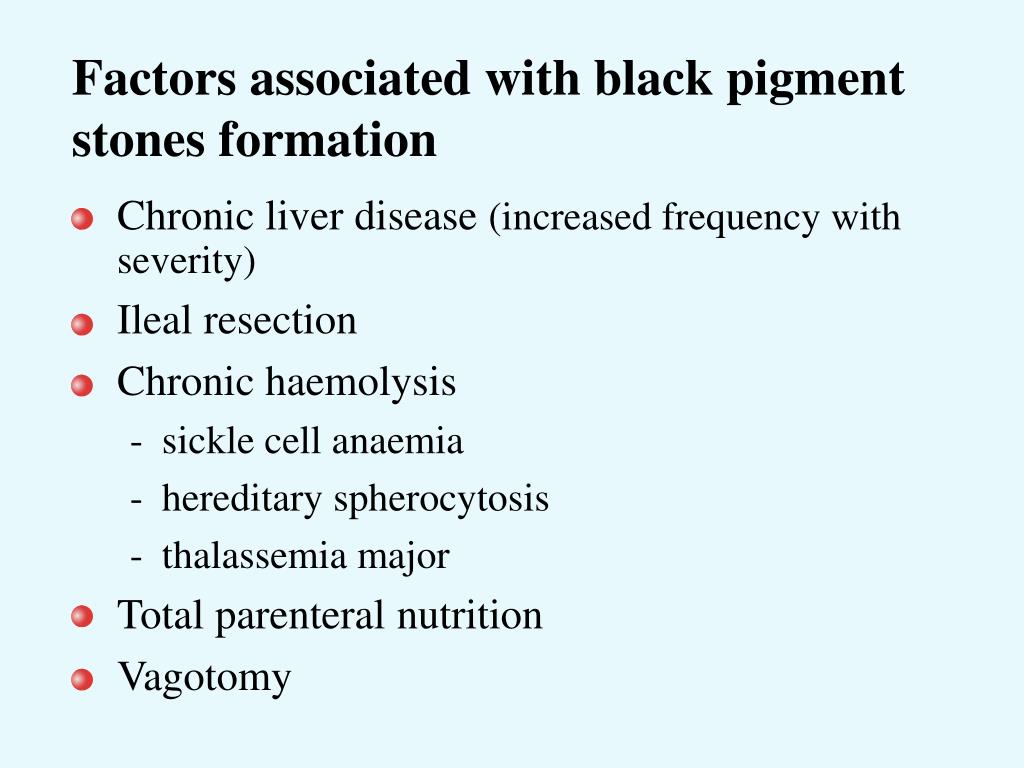

Factors associated with black pigment stones formation

  • Chronic liver disease (increased frequency with severity)

  • Ileal resection

  • Chronic haemolysis

    • sickle cell anaemia

    • hereditary spherocytosis

    • thalassemia major

  • Total parenteral nutrition

  • Vagotomy


Reasons for gallstone formation in cirrhosis l.jpg

Reasons for gallstone formation in cirrhosis

  • Cirrhotic liver unable to convert all unconjugated bilirubin into bilirubin mono- and di-glucuronides

  • Small fraction of unconjugated bilirubin spills into bile

  • Unconjugated bilirubin precipitated with calcium


Brown pigment stones formation l.jpg

Brown pigment stones formation

Bilirubin diglucuronide

hydrolysis by -glucuronidase

Unconjugated bilirubin

+Ca ion

Calcium bilirubinate


Cholesterol gallstones pathogenesis l.jpg

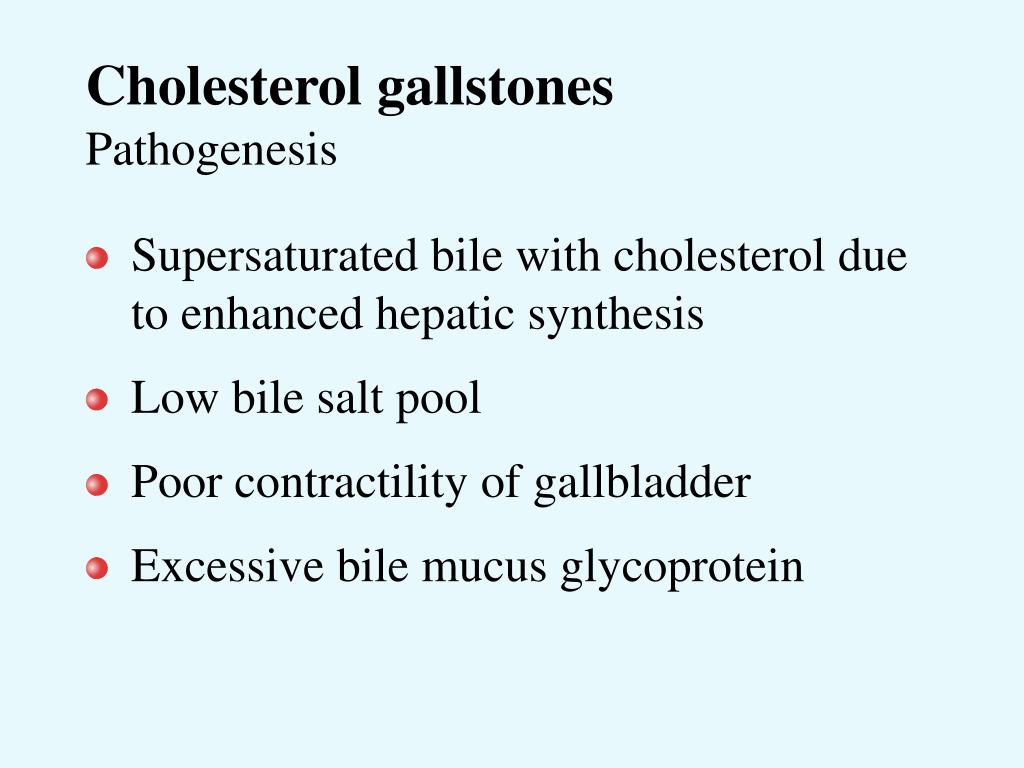

Cholesterol gallstonesPathogenesis

  • Supersaturated bile with cholesterol due to enhanced hepatic synthesis

  • Low bile salt pool

  • Poor contractility of gallbladder

  • Excessive bile mucus glycoprotein


Calcified shadow at right upper abdomen in x ray differential diagnosis l.jpg

Calcified shadow at right upper abdomen in X-rayDifferential diagnosis


Cholecystectomy for asymptomatic gallstones indication l.jpg

Cholecystectomy for asymptomatic gallstonesIndication

  • Calcified gallbladder

  • Young patients with sickle cell disease

  • Patients on long-term TPN


Complications of gallstones inside the gallbladder l.jpg

Complications of gallstonesInside the gallbladder

  • Acute cholecystitis

  • Empyema gallbladder

  • Mucocele of gallbladder

  • Carcinoma


Complications of gallstones outside the gallbladder l.jpg

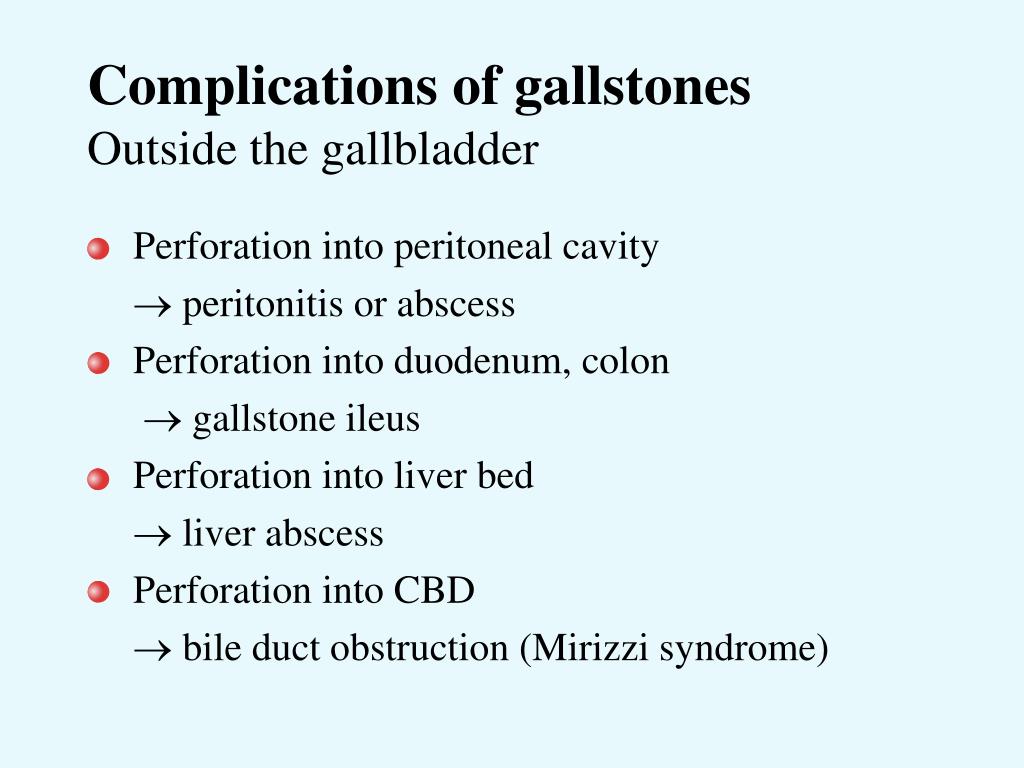

Complications of gallstonesOutside the gallbladder

  • Perforation into peritoneal cavity

  •  peritonitis or abscess

  • Perforation into duodenum, colon

  •  gallstone ileus

  • Perforation into liver bed

  •  liver abscess

  • Perforation into CBD

  •  bile duct obstruction (Mirizzi syndrome)


Slide15 l.jpg

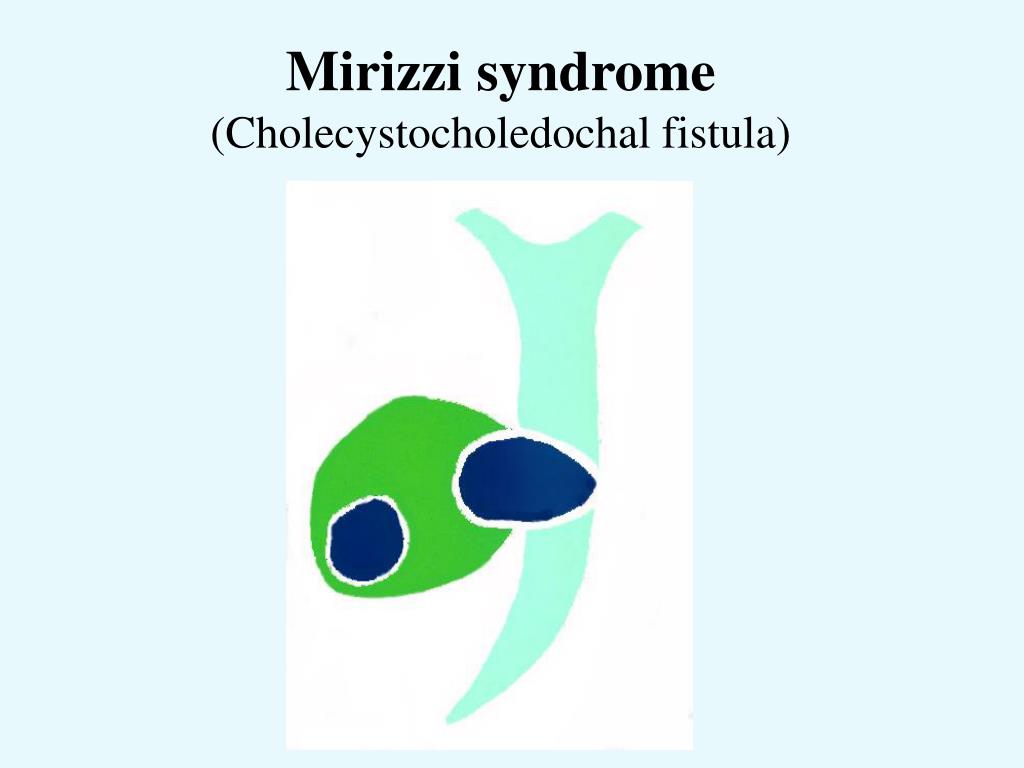

Mirizzi syndrome

(Cholecystocholedochal fistula)


Complications of gallstones in the common bile duct l.jpg

Complications of gallstonesIn the common bile duct

  • Obstructive jaundice

  • Acute cholangitis

  • Acute pancreatitis


Postcholecystectomy syndrome l.jpg

Postcholecystectomy syndrome

  • Persistent symptom after cholecystectomy

  • Due to technical complication of cholecystectomy and/or missed pathology which is the real cause of original symptom


Postcholecystectomy syndrome investigation l.jpg

Postcholecystectomy syndromeInvestigation

  • CBP, RFT, LFT, amylase

  • Upper endoscopy

  • US/CT

  • ERCP

  • HAG SMA


Acute cholangitis aetiology l.jpg

Acute cholangitisAetiology

  • Stones

  • Malignancy

  • Biliary stricture

  • Anastomotic stricture


Slide20 l.jpg

To hepatic vein cholangiovenous reflux

Cholangio-lymphatic reflux

Venous system

Stones obstructing the bile duct


Acute cholangitis aetiology21 l.jpg

Acute cholangitisAetiology

  • Predisposing causes

    • obstruction to bile duct

    • bacterial growth in bile


Acute cholangitis l.jpg

Acute cholangitis

  • Reynold’s pentad

  • Fever/chill/rigor

  • Right upper quadrant pain

  • Jaundice

  • Hypotension

  • Mental confusion


Acute cholangitis management initial conservative l.jpg

Acute cholangitisManagement - initial & conservative

  • Nil by mouth

  • IV fluid

  • Blood tests

  • Blood crossmatch

  • Antibiotic

  • Analgesic

  • Monitoring

    • BP, pulse, temperature, urine output


Acute cholangitis rationale of conservative treatment l.jpg

Acute cholangitisRationale of conservative treatment

  • 70% will resolve

  • Related to spontaneous stone disimpaction


Acute cholangitis clinical manifestation of failure of conservative treatment l.jpg

Acute cholangitisClinical manifestation of failure of conservative treatment

  •  temperature, pulse

  •  BP

  •  urine output

  •  sensorium

  •  abdominal tenderness, guarding


Acute cholangitis treatment for failure of conservatism l.jpg

Acute cholangitisTreatment for failure of conservatism

  • Invasive monitoring

    • CVP

    • arterial line

    • pulmonary artery wedge pressure

  • Inotrope

  • Mannitol


Acute cholangitis treatment for failure of conservatism27 l.jpg

Acute cholangitisTreatment for failure of conservatism

  • Biliary decompression and drainage

  • Surgery

    • choledochotomy

    • exploration of CBD

    • T-tube drainage

    • avoid choledochoscopy

    • avoid cholangiography

    • ± cholecystectomy


Function of t tube after exploration of common bile duct l.jpg

Function of T-tube after exploration of common bile duct

  • Serves to allow infected bile draining into the external environment and prevent elevation of intraductal pressure (and bile leakage through the suture line or holes) if there is oedema of lower end of CBD or residual CBD stones

  • For postoperative cholangiogram on day 7-10


Slide29 l.jpg

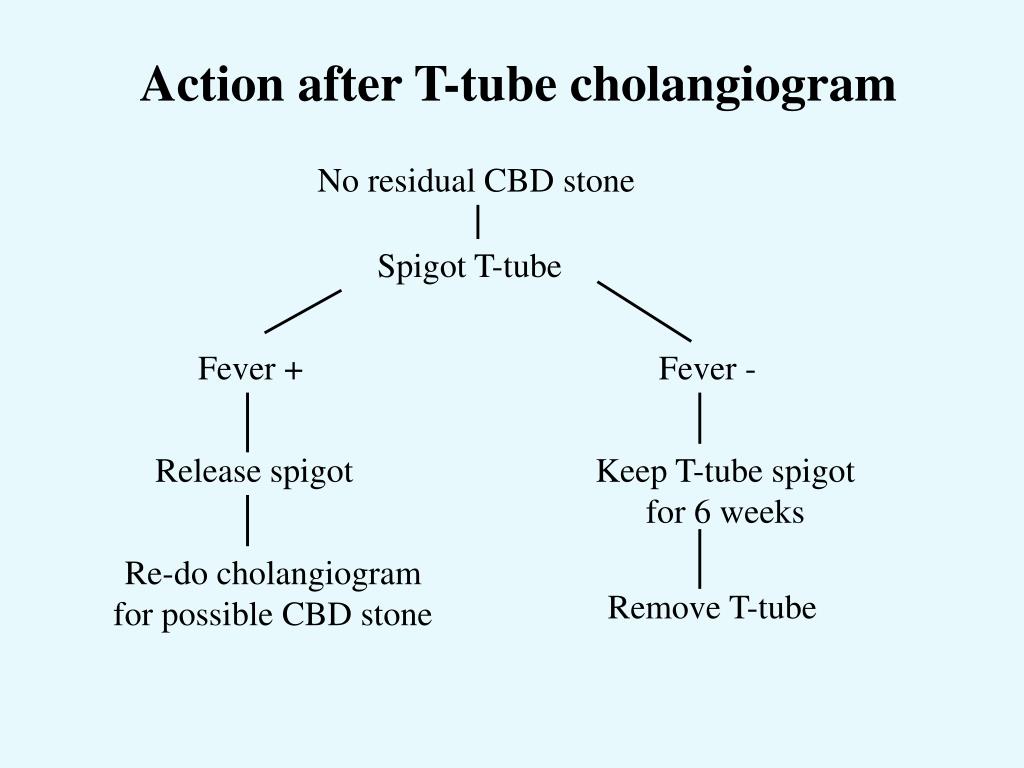

Action after T-tube cholangiogram

No residual CBD stone

Spigot T-tube

Fever +

Fever -

Release spigot

Keep T-tube spigot for 6 weeks

Re-do cholangiogram for possible CBD stone

Remove T-tube


Slide30 l.jpg

Action after T-tube cholangiogram

Residual CBD stone +

Keep T-tube for 2-3 months

Choledochoscopy via fibrous T-tube tract


Slide31 l.jpg

T-tube in common bile duct and residual CBD stones

T-tube induces formation of fibrous tissue around it


Slide32 l.jpg

Fibrous tract formed around T-tube serves as a

conduit for choledochoscopy


Slide33 l.jpg

Insertion of choledochoscope into the common bile duct through T-tube tract for extraction of residual CBD stones


Acute cholangitis treatment for failure of conservatism34 l.jpg

Acute cholangitisTreatment for failure of conservatism

  • Biliary decompression

  • Endoscopy

    • endoscopic retrograde cholangio-pancreatography

    • endoscopic papillotomy

    • basket removal of stone

    • nasobiliary drainage

    • endoprosthesis


Slide36 l.jpg

Nasobiliary drainage (NBD)

Nose


Slide39 l.jpg

Endoprosthesis


Acute cholangitis comparison of treatment result l.jpg

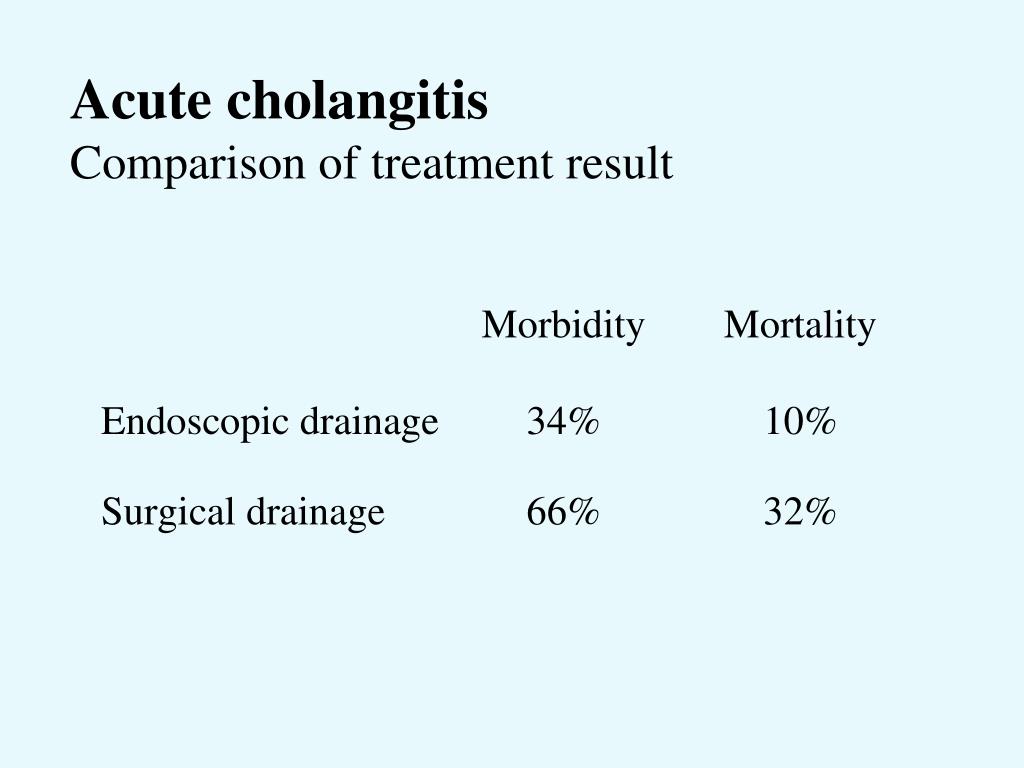

Acute cholangitisComparison of treatment result


Acute cholangitis treatment for failure of conservatism41 l.jpg

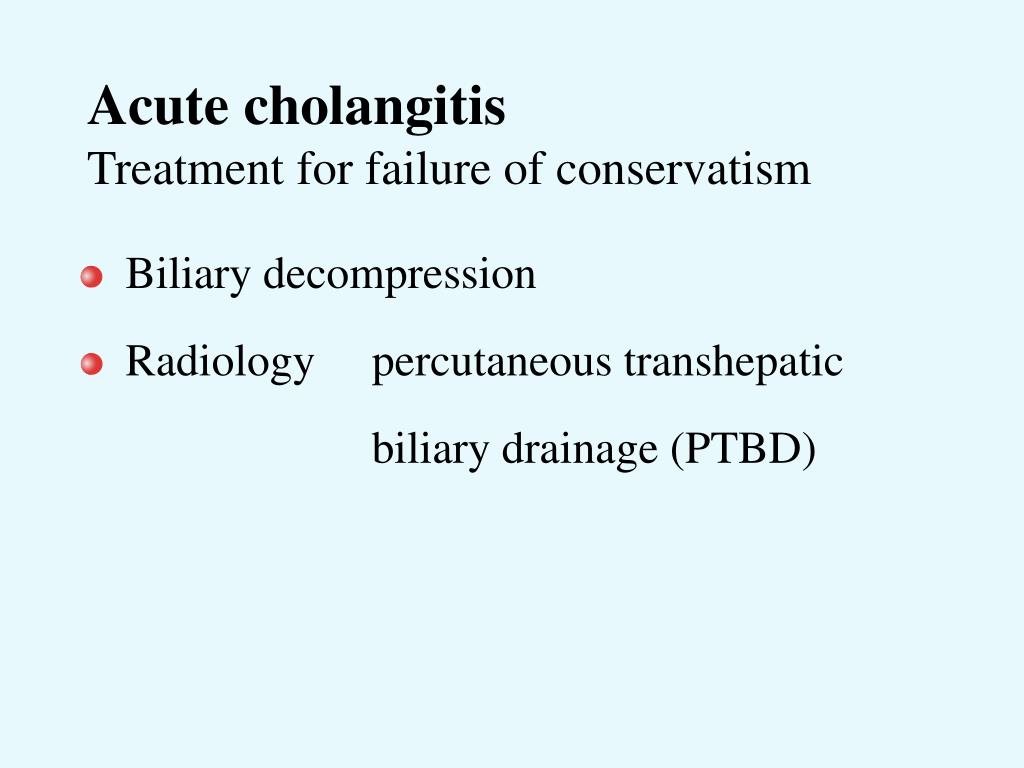

Acute cholangitisTreatment for failure of conservatism

  • Biliary decompression

  • Radiology percutaneous transhepatic

    biliary drainage (PTBD)


Slide42 l.jpg

Percutaneous transhepatic biliary drainage

(External type)


Slide43 l.jpg

Percutaneous transhepatic biliary drainage

(External-internal type)


Slide48 l.jpg

Acute cholangitis

Strategy of treatment

Conservatism

Failure

Success

Endoscopic drainage

Imaging of bile duct

Radiological drainage

Surgery

Surgical drainage
