Education is the most powerful weapon which you can use to change the world nelson mandela do now

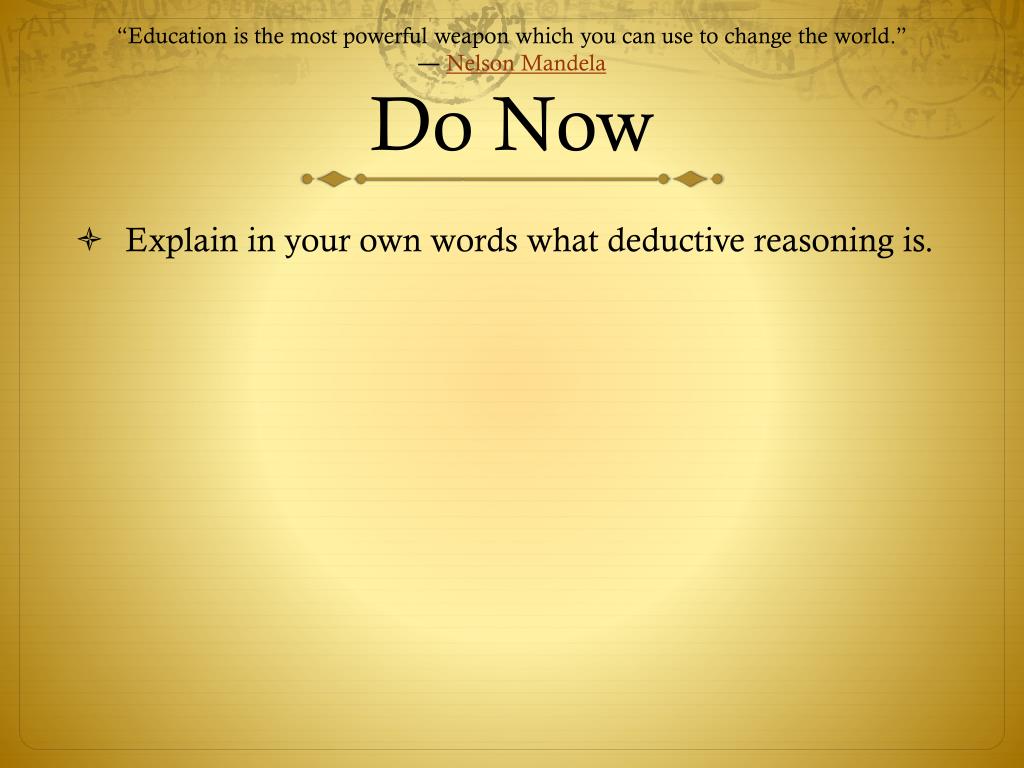

“Education is the most powerful weapon which you can use to change the world.” ― Nelson MandelaDo Now

Explain in your own words what deductive reasoning is.


Exit slip error analysis
Exit Slip Error Analysis to change the world.”

Compare your exit slip to this one.


Problem solving at an early age
Problem Solving at an early age to change the world.”

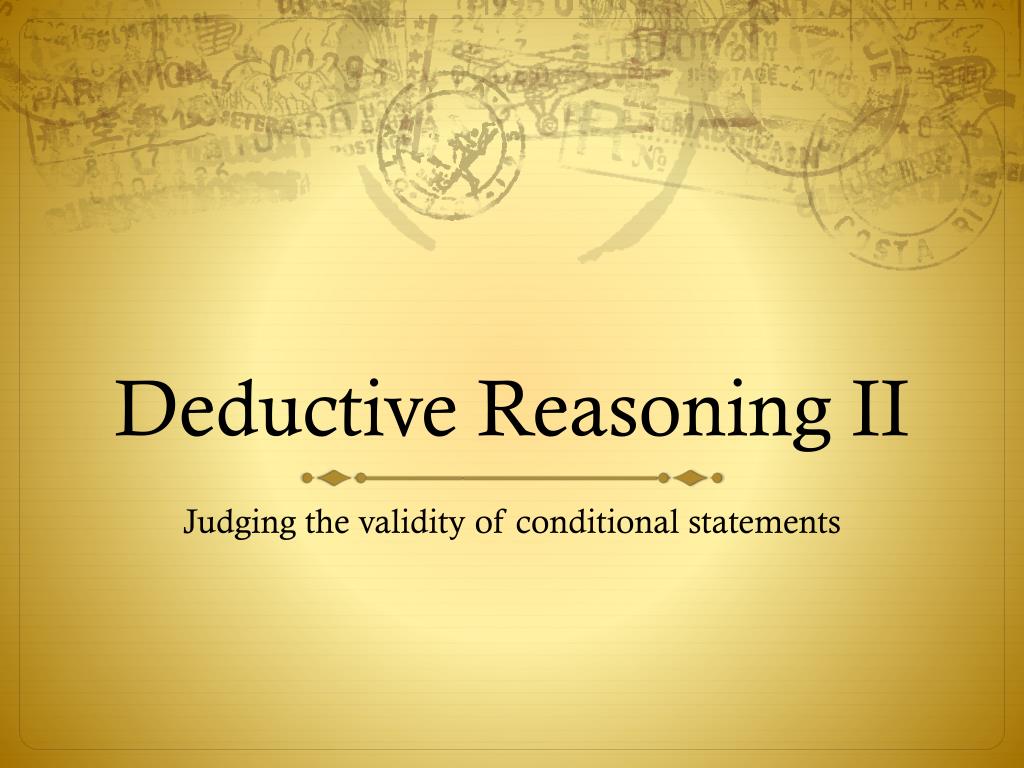

Deductive reasoning ii

Deductive to change the world.” Reasoning II

Judging the validity of conditional statements

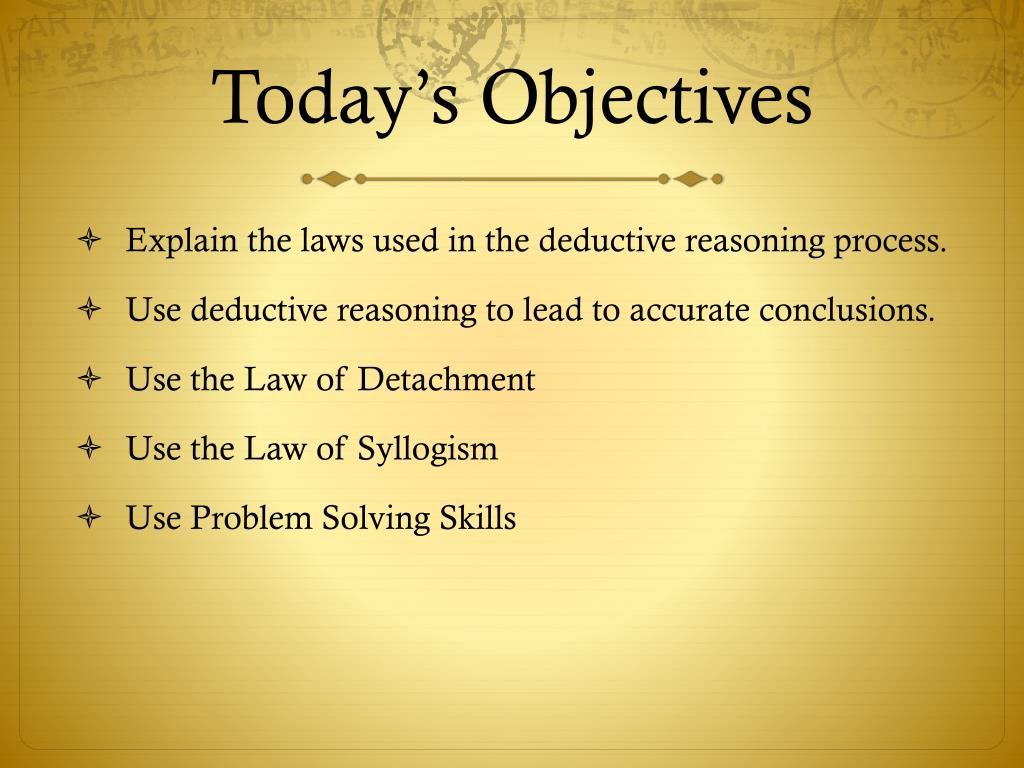

Today s objectives
Today’s Objectives to change the world.”

Explain the laws used in the deductive reasoning process.

Use deductive reasoning to lead to accurate conclusions.

Use the Law of Detachment

Use the Law of Syllogism

Use Problem Solving Skills


Rewrite in conditional if then form
Rewrite in conditional to change the world.” (“if-then”) form

All quadrilaterals have four sides.

If it’s a quadrilateral, then it has four sides.

Inverse?

If it’s not a quadrilateral, then it does not have four sides.

In other words, it has more or less than four sides.


Rewrite in conditional if then form1
Rewrite in conditional to change the world.” (“if-then”) form

A triangle has, at most, one right angle.

If it’s a triangle, then it has, at most, one right angle.

Inverse?

If it’s not a triangle, then it has more than one right angle.


Rewrite in conditional if then form2
Rewrite in conditional to change the world.” (“if-then”) form

Two lines in a plane always intersect at exactly one point

If there are two lines in a plane, they intersect at exactly one point

Negation?

If there are two lines in a plane, they do not intersect at exactly one point.

In other words, they do not intersect at all or they intersect at more than one point.

Counterexample: Parallel lines!

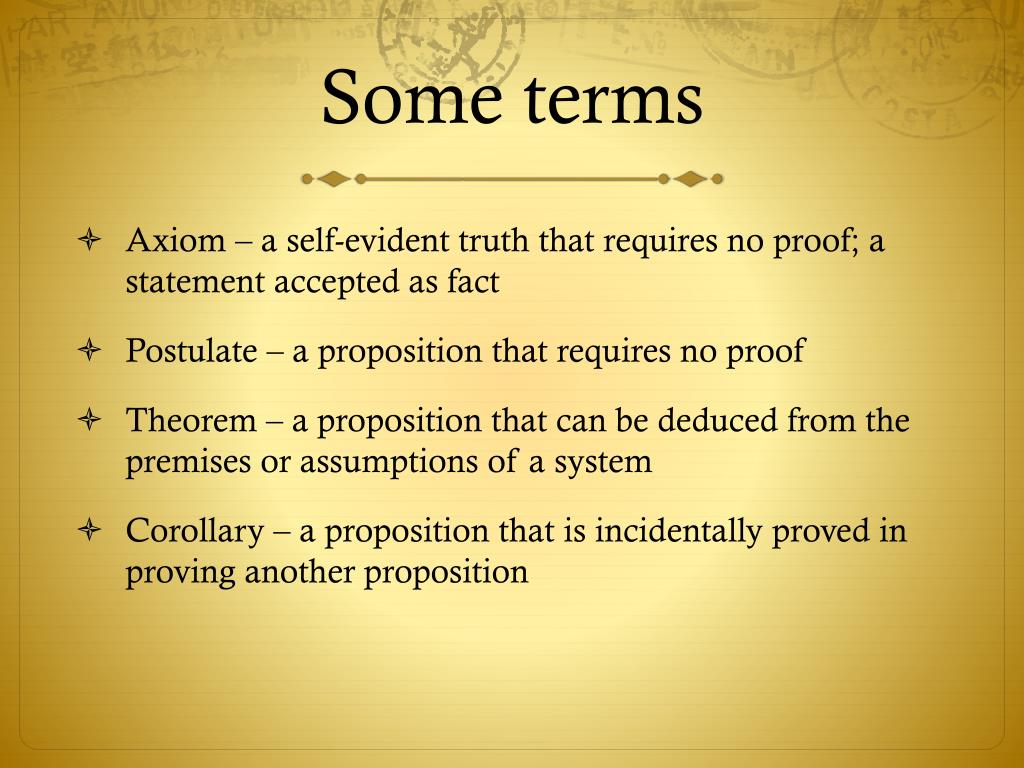

Some terms
Some terms to change the world.”

Axiom – a self-evident truth that requires no proof; a statement accepted as fact

Postulate – a proposition that requires no proof

Theorem – a proposition that can be deduced from the premises or assumptions of a system

Corollary – a proposition that is incidentally proved in proving another proposition


Equivalence properties
Equivalence Properties to change the world.”

Reflexive Property

Symmetric Property

Transitive Property


Reflexive property
Reflexive Property to change the world.”

A=A

A quantity is equal to itself

In logic, A A.

Always true in logic

If you’re a student at Simon Tech, then you’re a student at Simon Tech.

If a pentagon has five sides, then a pentagon has five sides.


Symmetric property
Symmetric Property to change the world.”

If A=B then B=A

Always true of numbers (if x=5 then 5=x)

In logic, If A B, then B A.

Not always true.

If I eat too much I get sick. If I get sick then I eat too much.

But when is it true?

When the Biconditional statement is true.

For example, “Two lines intersect iff they are not parallel”

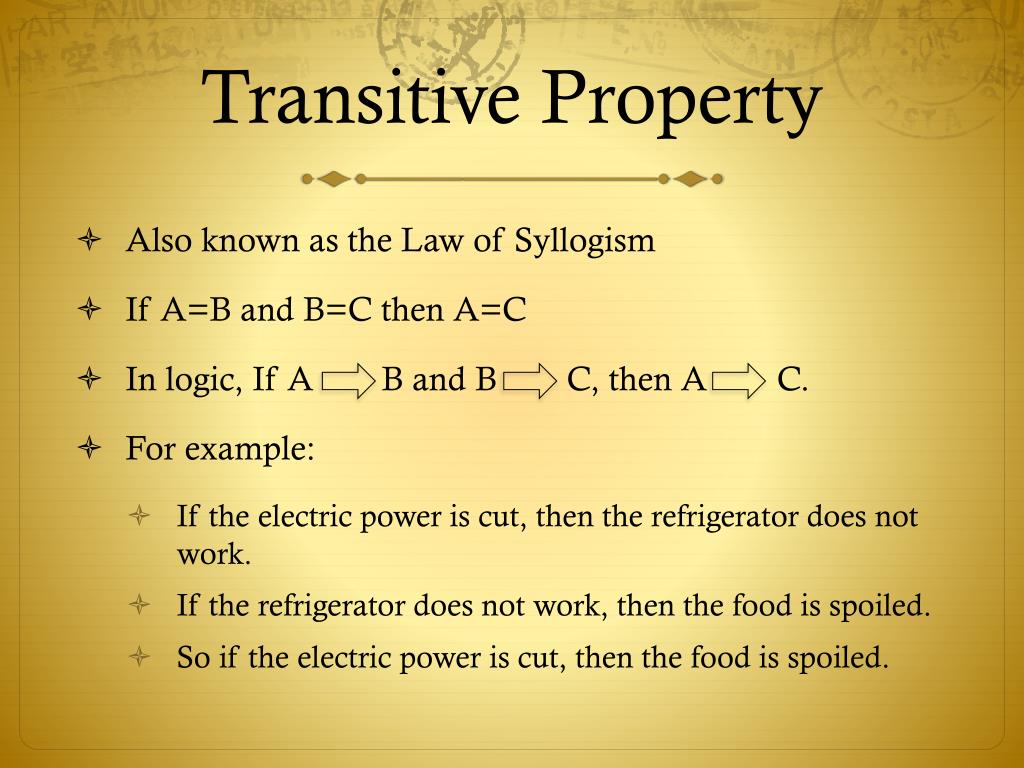

Transitive property
Transitive Property to change the world.”

  • Also known as the Law of Syllogism

  • If A=B and B=C then A=C

  • In logic, If A B and B C, then A C.

  • For example:

    • If the electric power is cut, then the refrigerator does not work.

    • If the refrigerator does not work, then the food is spoiled.

    • So if the electric power is cut, then the food is spoiled.


Law of detachment
Law of Detachment to change the world.”

  • Also known as Modus Ponens

  • If P Qis true and P is true, then Q must be true.

  • For example

    • If an angle is obtuse, then it cannot be acute.

    • Angle A is obtuse.

    • Therefore, Angle A cannot be acute.


Law of syllogism
Law of Syllogism to change the world.”

Transitive Property


Is this valid
Is this valid? to change the world.”

Christian wrote the following argument:

If the soccer team loses, Janalee won’t watch their next game.

Janalee watched their next game.

Therefore, the soccer team lost.

No. But what can Christian conclude?

The soccer team won.


Is this valid1

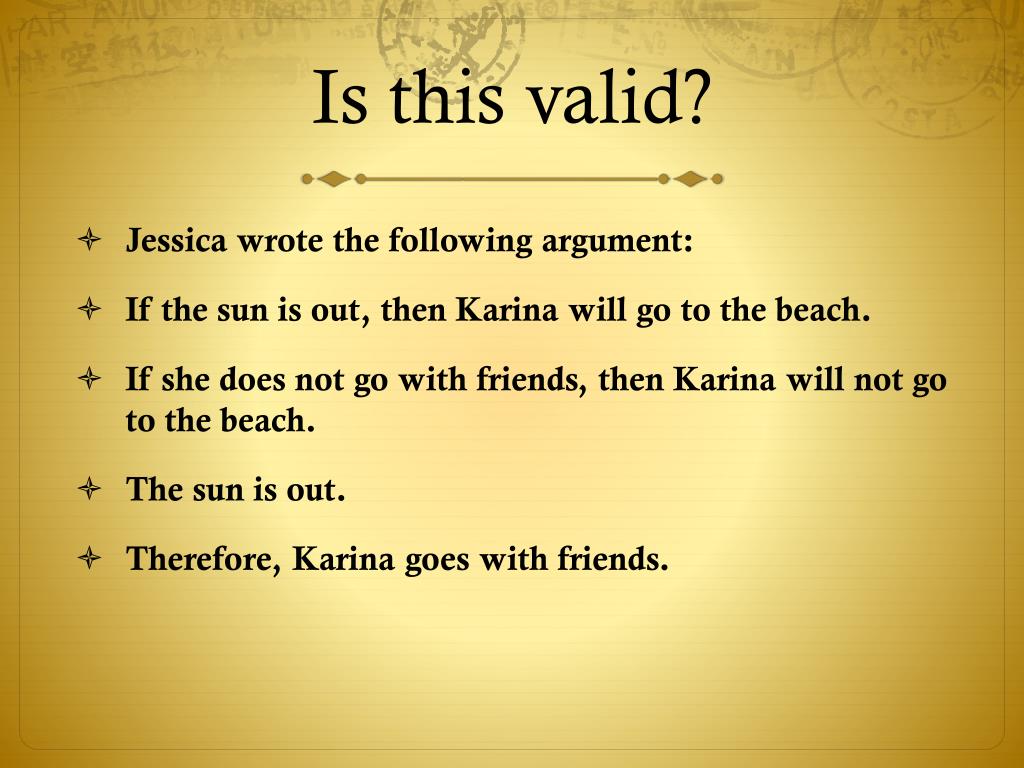

Is this valid? to change the world.”

Jessica wrote the following argument:

If the sun is out, then Karina will go to the beach.

If she does not go with friends, then Karina will not go to the beach.

The sun is out.

Therefore, Karina goes with friends.



Review
Review reasoning!

Inductive or Deductive?

Inductive


Review1
Review reasoning!

Inductive or Deductive?

Deductive


Review2
Review reasoning!

Inductive or Deductive?

Deductive


Practice
Practice reasoning!

W

True

Therefore, it will not start.

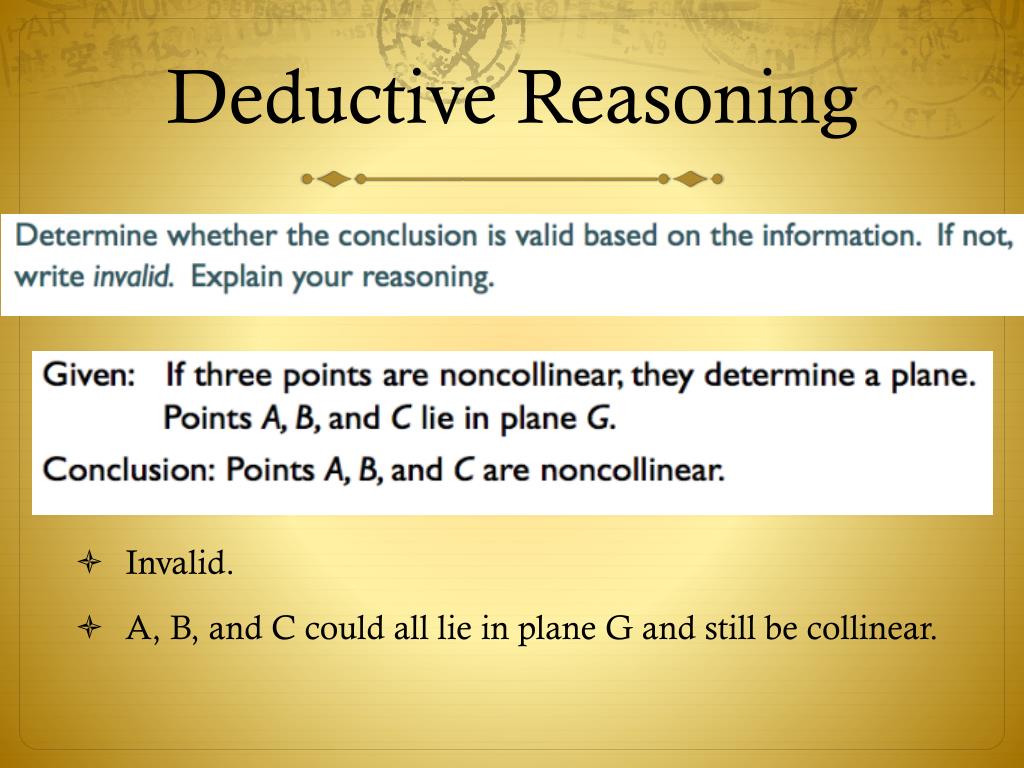

Deductive reasoning
Deductive Reasoning reasoning!

Invalid.

A, B, and C could all lie in plane G and still be collinear.


Deductive reasoning1
Deductive Reasoning reasoning!

Valid.

Uses the Law of Detachment.

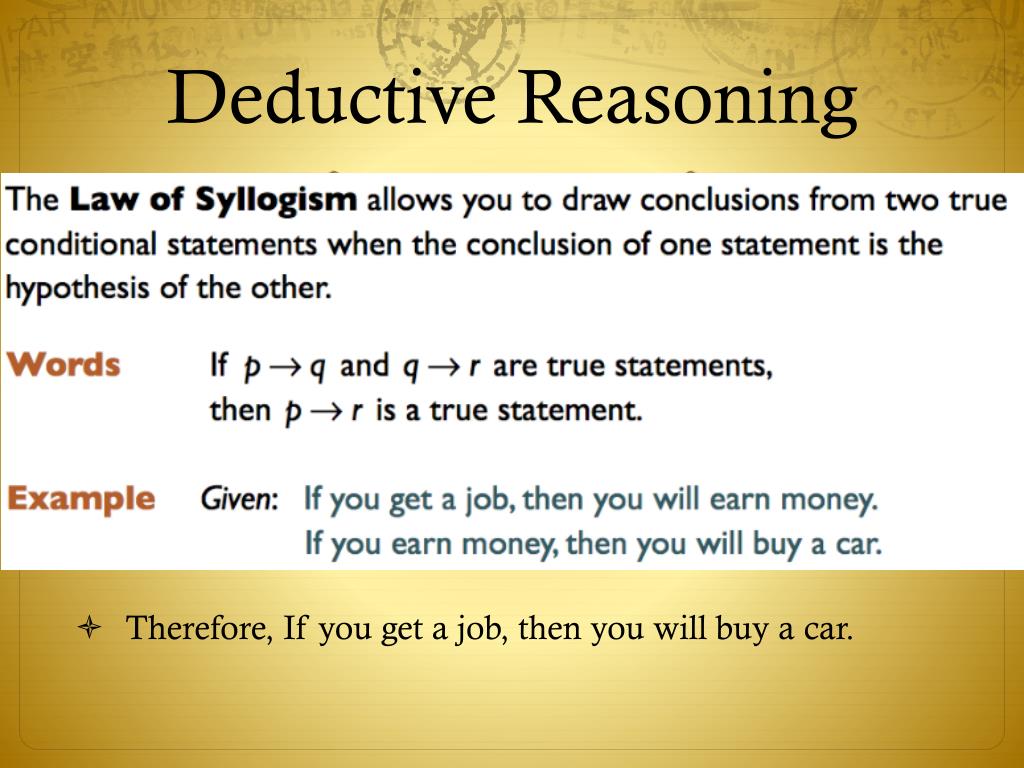

Deductive reasoning2
Deductive Reasoning reasoning!

W

Therefore, If you get a job, then you will buy a car.

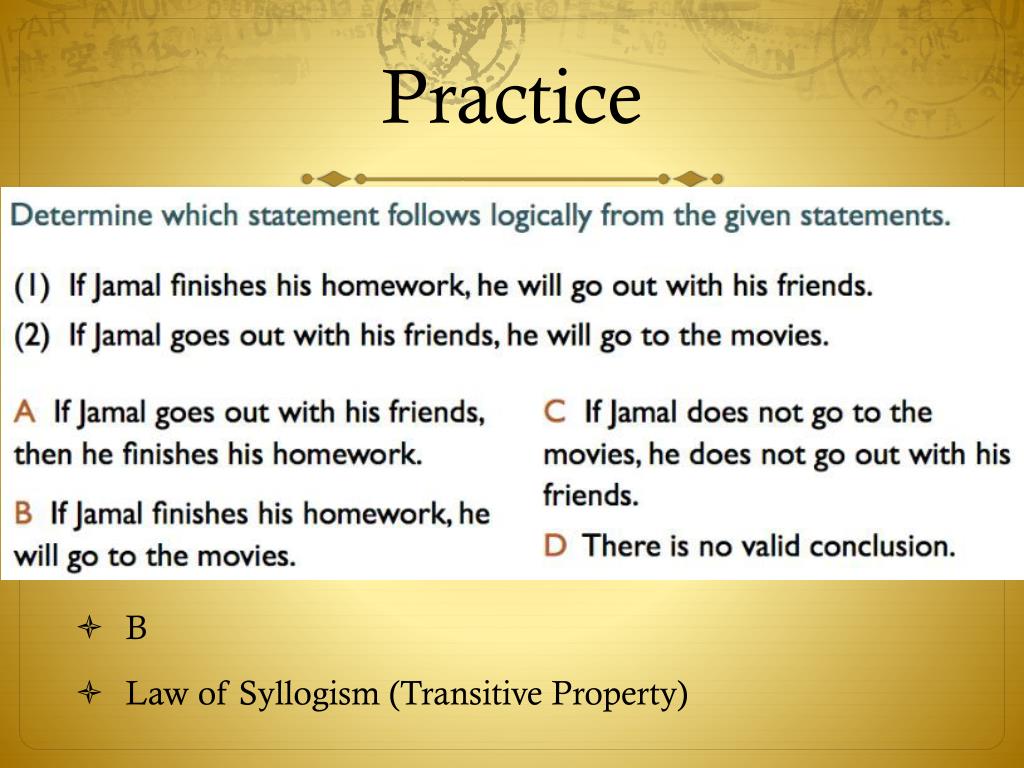

Practice1
Practice reasoning!

W

B

Law of Syllogism (Transitive Property)

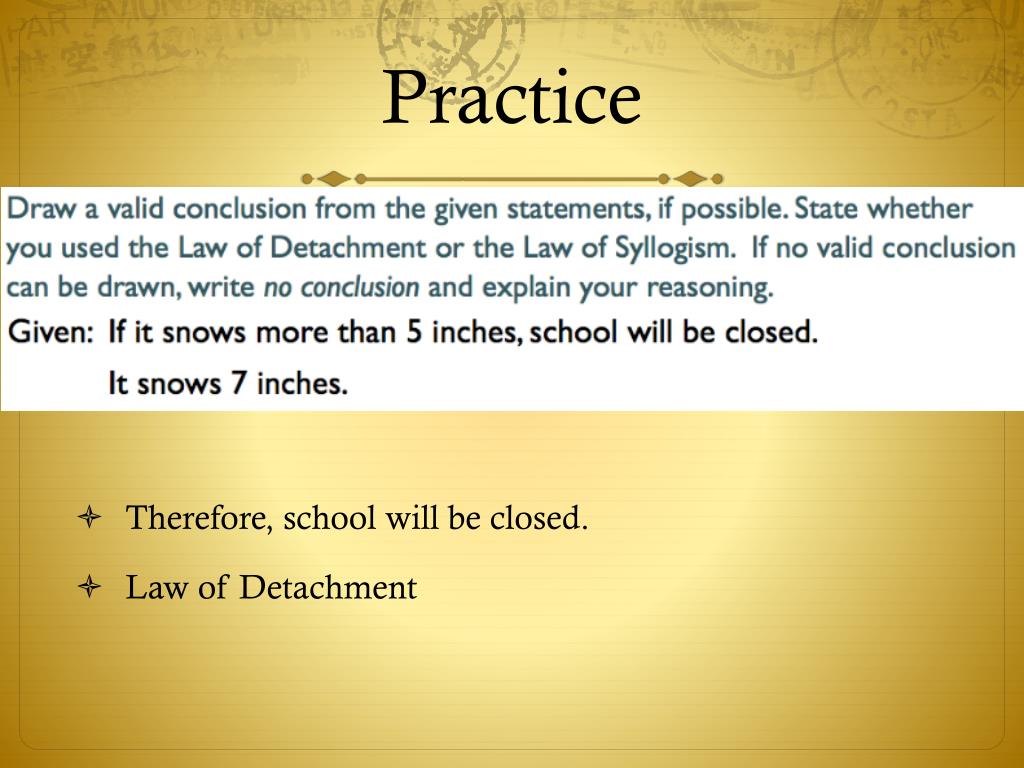

Practice2
Practice reasoning!

W

Therefore, school will be closed.

Law of Detachment


Practice3
Practice reasoning!

W

Therefore MA = MB.

Law of Syllogism.


Challenge
Challenge reasoning!

W


Practice4
Practice reasoning!


Today s objectives1
Today’s Objectives reasoning!

Explain the laws used in the deductive reasoning process.

Use deductive reasoning to lead to accurate conclusions.

Use the Law of Detachment

Use the Law of Syllogism

Use Problem Solving Skills


Exit slip
Exit reasoning!Slip

For #1, fill in both blanks and explain your reasoning.

  • Using the Law of ____________, what can be deduced? If you check your email, you must have internet access. Michael checks his email. Therefore, _______________________________.

  • Describe the following properties:

    • Reflexive

    • Symmetric

    • Transitive

  • Five girls took part in a race. Ana finished before Blanca but behind Concepcion. Daysi finished before Elizabeth but behind Blanca. What was the finishing order?

  • Explain your reasoning for #3. Include whichlaw or property you used.
