Mfc gui

MFC GUI 编程

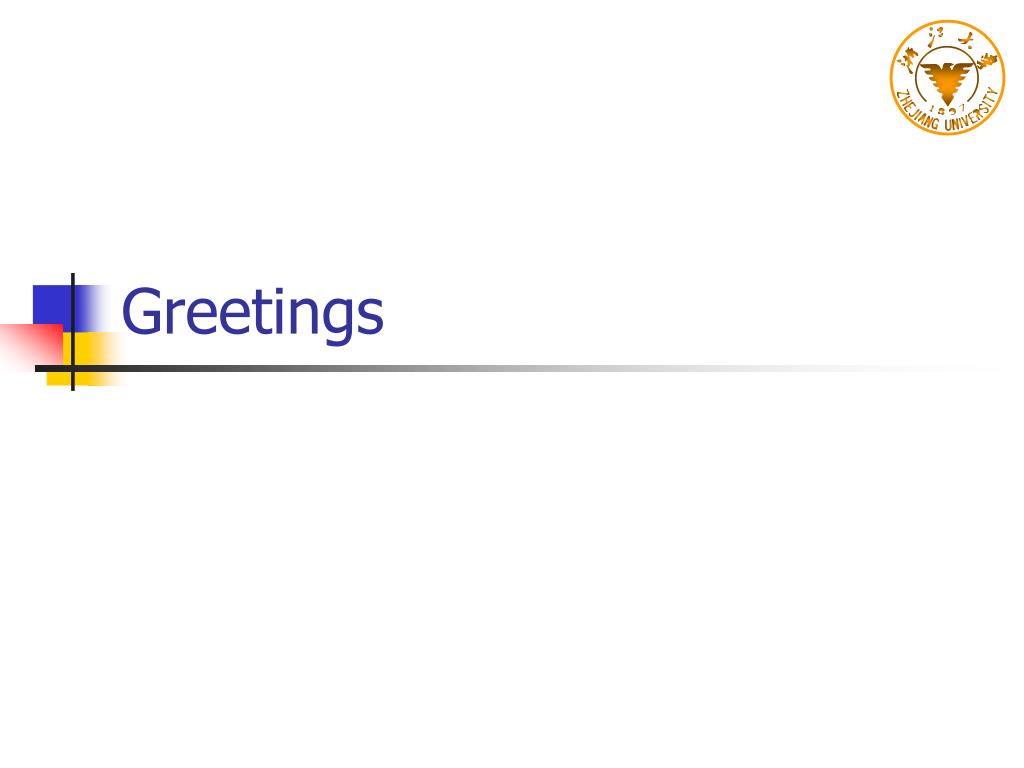

Greetings

Greetings


Hello world

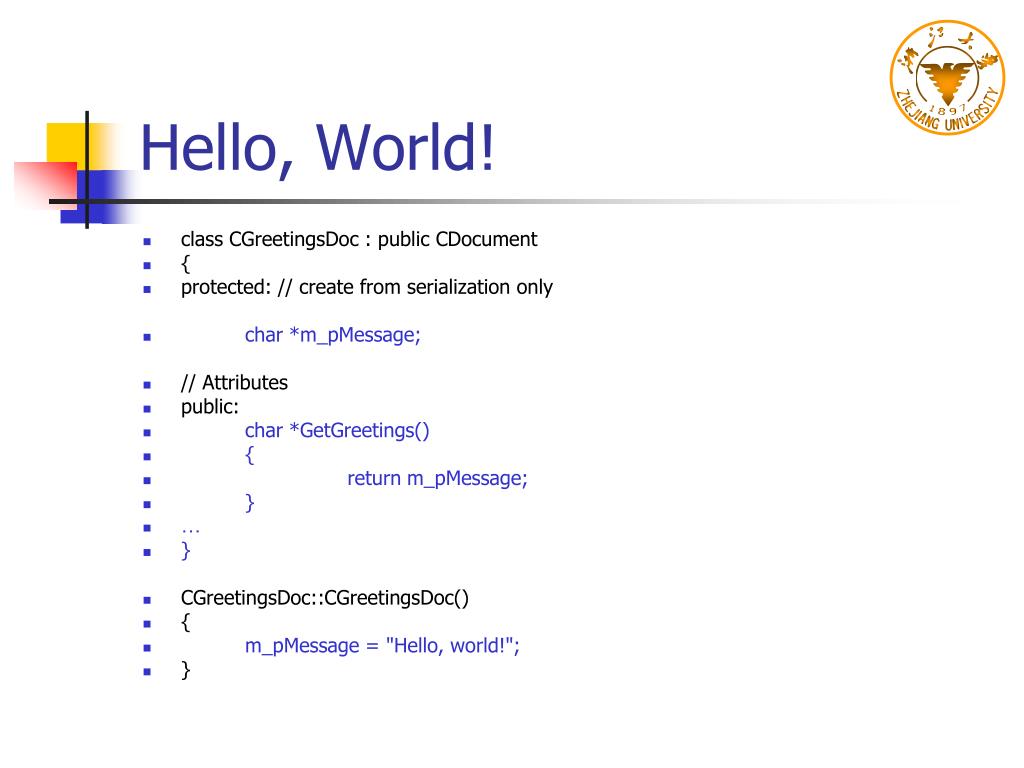

Hello, World!

  • class CGreetingsDoc : public CDocument

  • {

  • protected: // create from serialization only

  • char *m_pMessage;

  • // Attributes

  • public:

  • char *GetGreetings()

  • {

  • return m_pMessage;

  • }

  • }

  • CGreetingsDoc::CGreetingsDoc()

  • {

  • m_pMessage = "Hello, world!";

  • }


Mfc gui

  • void CGreetingsView::OnDraw(CDC* pDC)

  • {

  • CGreetingsDoc* pDoc = GetDocument();

  • ASSERT_VALID(pDoc);

  • RECTClientRect;

  • GetClientRect(&ClientRect);

  • pDC->DrawText( pDoc->GetGreetings(), -1, &ClientRect, DT_CENTER );

  • }


Button

Button

  • void CGreetingsView::OnButtongreetings()

  • {

  • AfxMessageBox("Hello, world!");

  • }


Minidraw

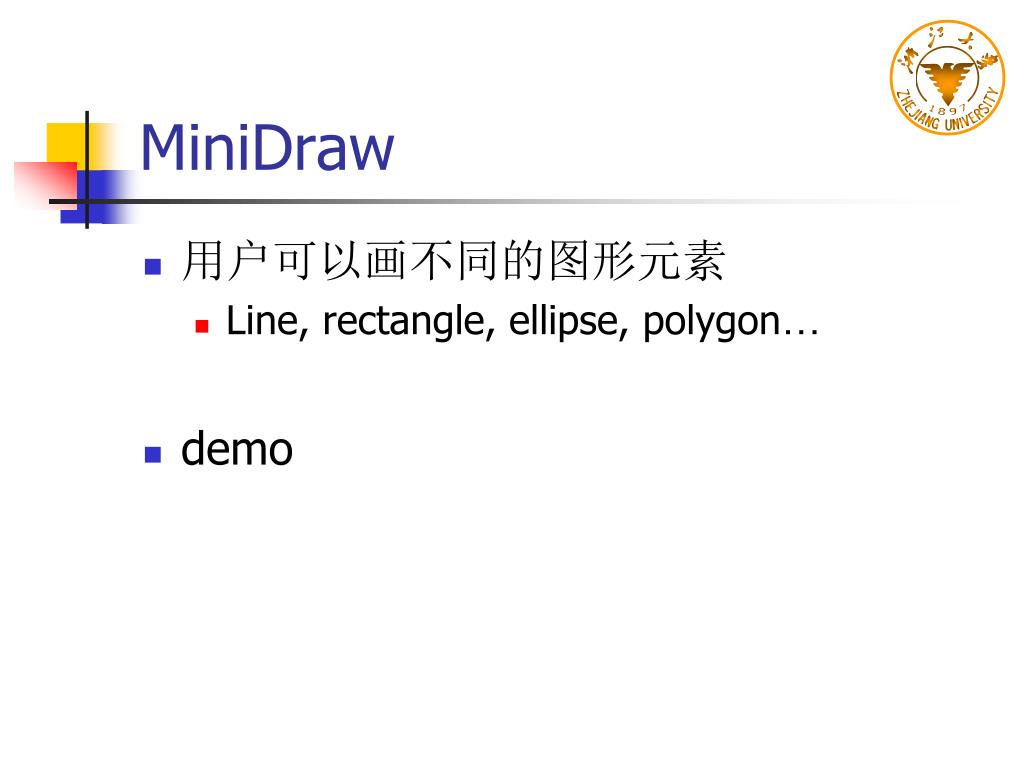

MiniDraw


Minidraw1

MiniDraw

  • 用户可以画不同的图形元素

    • Line, rectangle, ellipse, polygon…

  • demo


Mfc gui

1. 用鼠标画线


Member variables

Member Variables

  • class CMiniDrawView : public CView

  • {

  • private:

  • intm_Dragging;

  • CPointm_PointOld;

  • CPointm_PointOrigin;

  • }

  • CMiniDrawView::CMiniDrawView()

  • {

  • m_Dragging = 0;

  • }


Mfc gui

响应消息

  • ClassWizard (^W)


Wm lbuttondown

WM_LBUTTONDOWN

  • void CMiniDrawView::OnLButtonDown(UINT nFlags, CPoint point)

  • {

  • //AfxMessageBox("button down");

  • m_PointOrigin = point;

  • m_PointOld = point;

  • m_Dragging = 1;

  • CView::OnLButtonDown(nFlags, point);

  • }


Wm mousemove

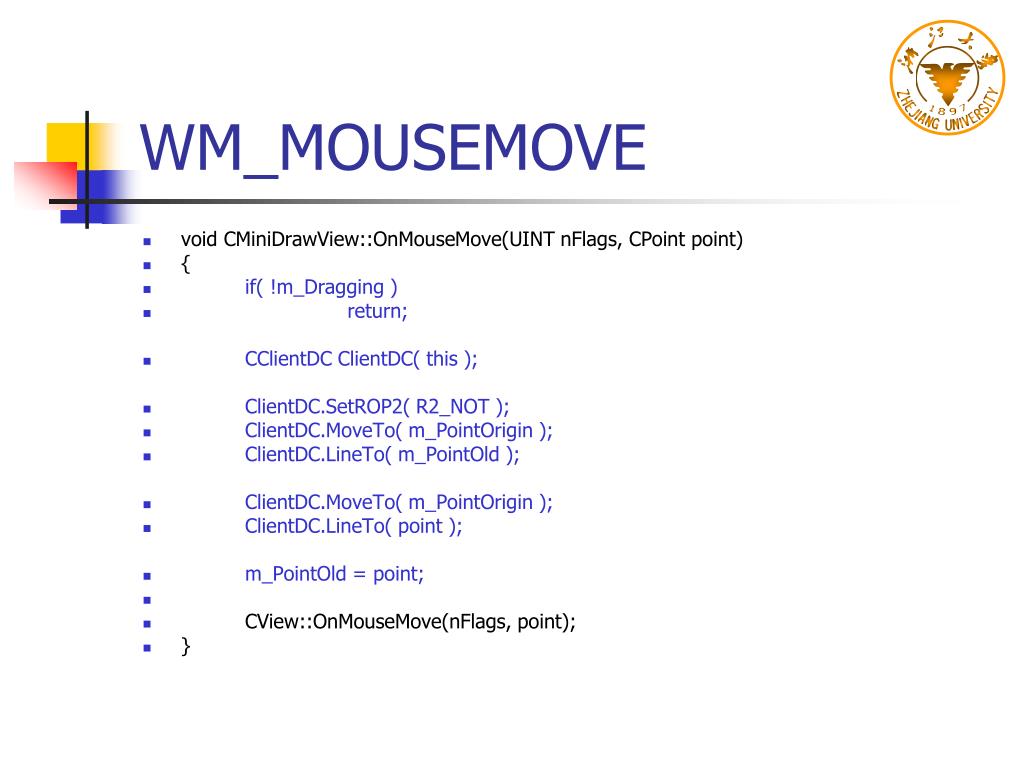

WM_MOUSEMOVE

  • void CMiniDrawView::OnMouseMove(UINT nFlags, CPoint point)

  • {

  • if( !m_Dragging )

  • return;

  • CClientDC ClientDC( this );

  • ClientDC.SetROP2( R2_NOT );

  • ClientDC.MoveTo( m_PointOrigin );

  • ClientDC.LineTo( m_PointOld );

  • ClientDC.MoveTo( m_PointOrigin );

  • ClientDC.LineTo( point );

  • m_PointOld = point;

  • CView::OnMouseMove(nFlags, point);

  • }


Wm lbuttonup

WM_LBUTTONUP

  • void CMiniDrawView::OnLButtonUp(UINT nFlags, CPoint point)

  • {

  • if( !m_Dragging )

  • return ;

  • CClientDC ClientDC( this );

  • ClientDC.SetROP2( R2_NOT );

  • ClientDC.MoveTo( m_PointOrigin );

  • ClientDC.LineTo( m_PointOld );

  • ClientDC.SetROP2( R2_COPYPEN );

  • ClientDC.MoveTo( m_PointOrigin );

  • ClientDC.LineTo( point );

  • m_Dragging = 0;

  • CView::OnLButtonUp(nFlags, point);

  • }

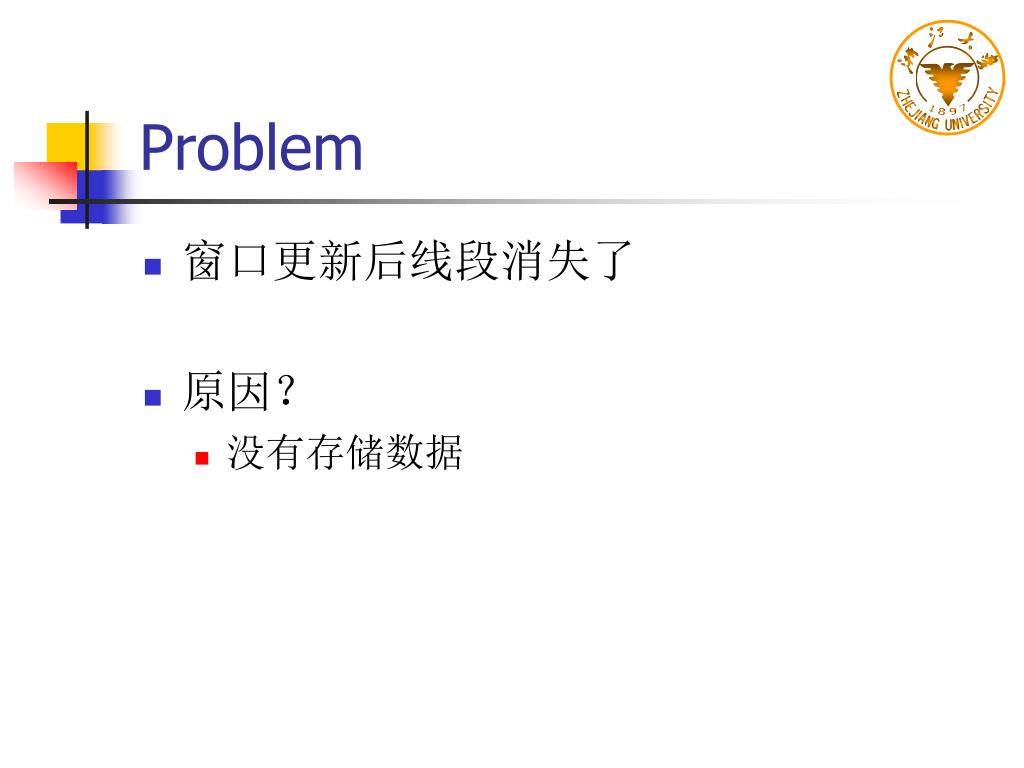

Problem

Problem

  • 窗口更新后线段消失了

  • 原因?

    • 没有存储数据


Mfc gui

2. 存储数据


Mfc gui

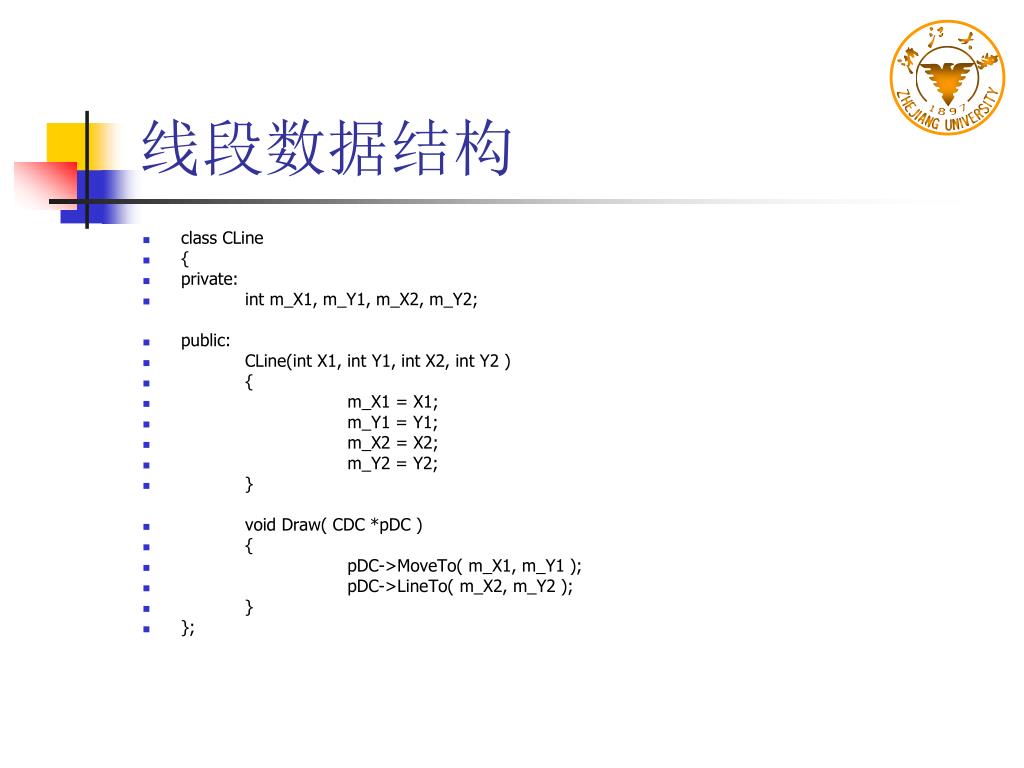

线段数据结构

  • class CLine

  • {

  • private:

  • int m_X1, m_Y1, m_X2, m_Y2;

  • public:

  • CLine(int X1, int Y1, int X2, int Y2 )

  • {

  • m_X1 = X1;

  • m_Y1 = Y1;

  • m_X2 = X2;

  • m_Y2 = Y2;

  • }

  • void Draw( CDC *pDC )

  • {

  • pDC->MoveTo( m_X1, m_Y1 );

  • pDC->LineTo( m_X2, m_Y2 );

  • }

  • };


Mfc gui

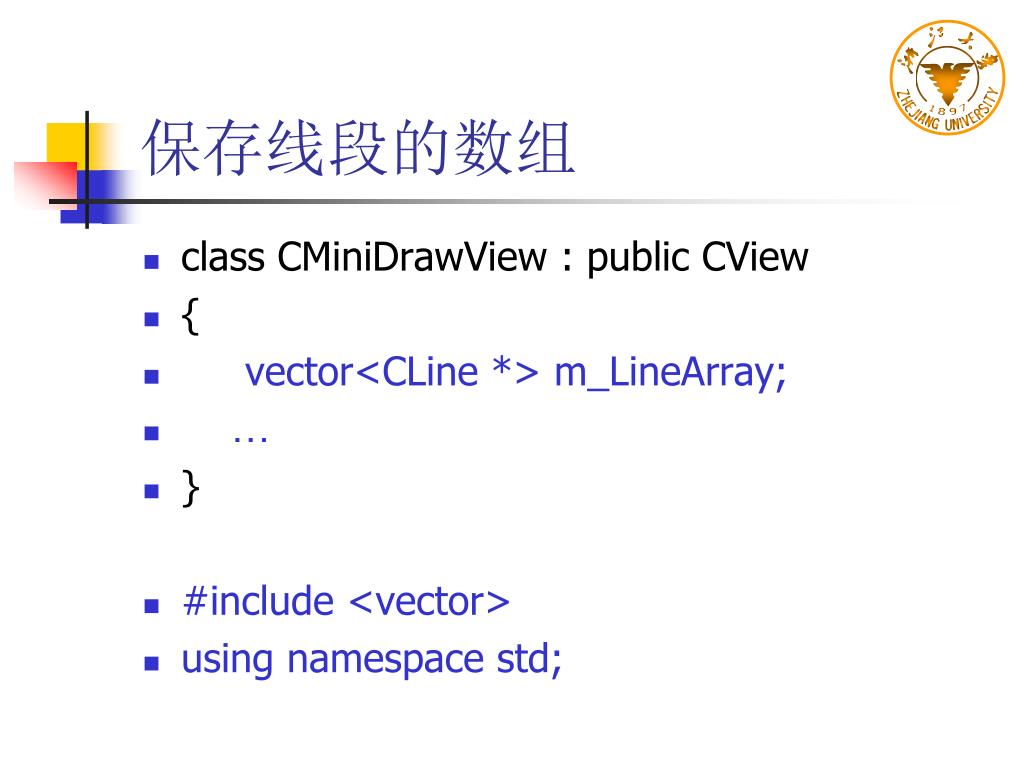

保存线段的数组

  • class CMiniDrawView : public CView

  • {

  • vector<CLine *> m_LineArray;

  • }

  • #include <vector>

  • using namespace std;


Mfc gui

保存线段数据

  • void CMiniDrawView::OnLButtonUp(UINT nFlags, CPoint point)

  • {

  • // TODO: Add your message handler code here and/or call default

  • if( m_Dragging )

  • {

  • CClientDC ClientDC( this );

  • ClientDC.SetROP2( R2_NOT );

  • ClientDC.MoveTo( m_PointOrigin );

  • ClientDC.LineTo( m_PointOld );

  • ClientDC.SetROP2( R2_COPYPEN );

  • ClientDC.MoveTo( m_PointOrigin );

  • ClientDC.LineTo( point );

  • m_Dragging = 0;

  • CLine *pLine = NULL;

  • pLine = new CLine(m_PointOrigin.x, m_PointOrigin.y,

  • point.x, point.y );

  • m_LineArray.push_back( pLine );

  • }


Mfc gui

重画所有线段

  • void CMiniDrawView::OnDraw(CDC* pDC)

  • {

  • CMiniDrawDoc* pDoc = GetDocument();

  • ASSERT_VALID(pDoc);

  • // TODO: add draw code for native data here

  • for( int i=0; i<m_LineArray.size(); i++)

  • {

  • m_LineArray.at(i)->Draw(pDC);

  • }

  • }


Mfc gui

如何检测有无内存泄漏

  • Debug information


Mfc gui

释放空间

  • CMiniDrawView::~CMiniDrawView()

  • {

  • for( int i=0; i<m_LineArray.size(); i++)

  • {

  • SAFEDELETE( m_LineArray.at(i) );

  • }

  • }

  • #define SAFEDELETE(p) {if(p){delete p; p=NULL;}}


Mfc gui

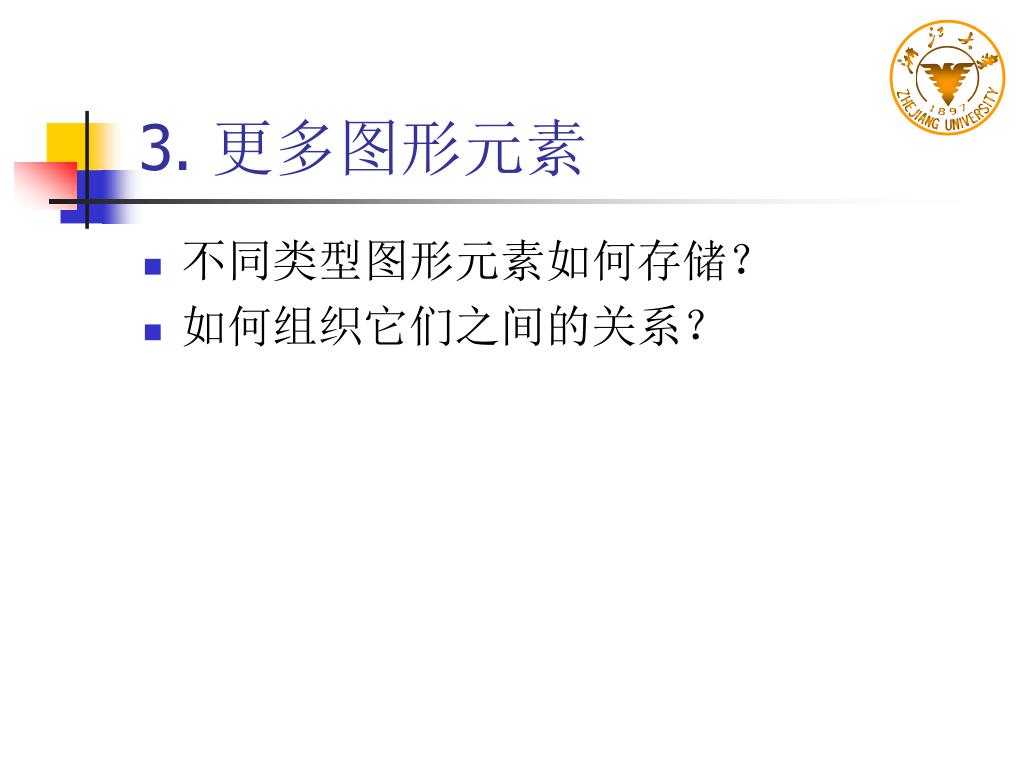

3. 更多图形元素

  • 不同类型图形元素如何存储?

  • 如何组织它们之间的关系?


Mfc gui

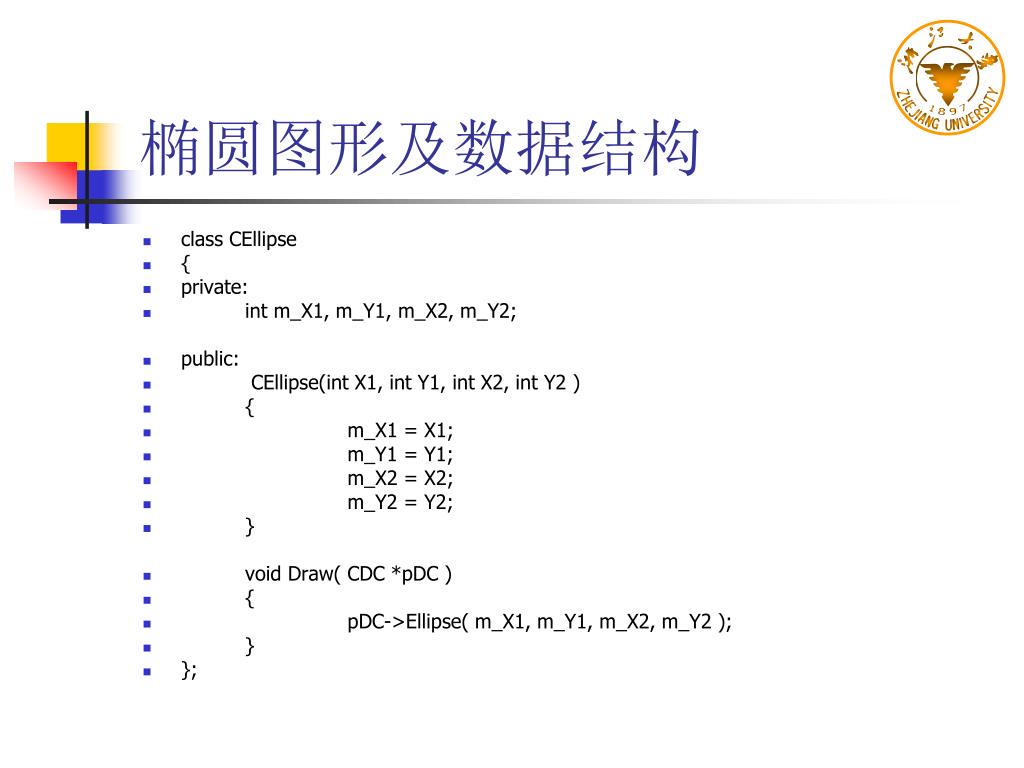

椭圆图形及数据结构

  • class CEllipse

  • {

  • private:

  • int m_X1, m_Y1, m_X2, m_Y2;

  • public:

  • CEllipse(int X1, int Y1, int X2, int Y2 )

  • {

  • m_X1 = X1;

  • m_Y1 = Y1;

  • m_X2 = X2;

  • m_Y2 = Y2;

  • }

  • void Draw( CDC *pDC )

  • {

  • pDC->Ellipse( m_X1, m_Y1, m_X2, m_Y2 );

  • }

  • };


Mfc gui

???

  • vector<CLine *> m_LineArray;

  • vector<CEllipse *> m_EllipseArray;


Mfc gui

4. 父类和继承

  • class CFigure

  • {

  • public:

  • virtual void Draw( CDC *pDC ) {} //虚函数

  • };

  • class CLine: public CFigure

  • class CEllipse: public CFigure


Mfc gui

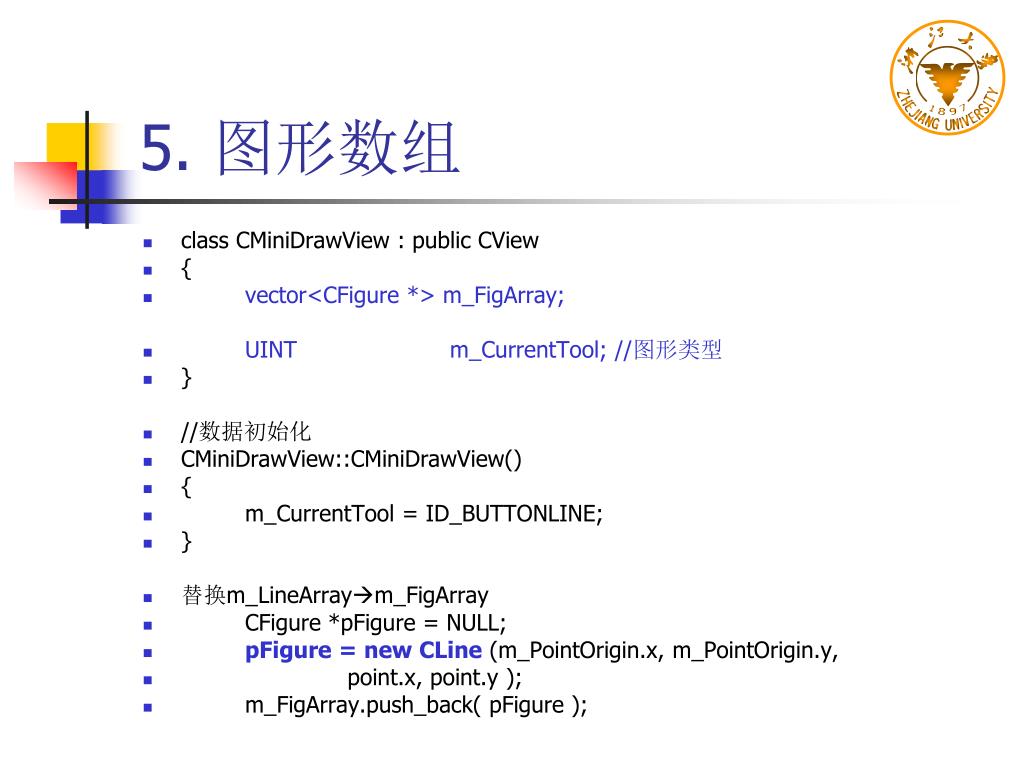

5. 图形数组

  • class CMiniDrawView : public CView

  • {

  • vector<CFigure *> m_FigArray;

  • UINTm_CurrentTool; //图形类型

  • }

  • //数据初始化

  • CMiniDrawView::CMiniDrawView()

  • {

  • m_CurrentTool = ID_BUTTONLINE;

  • }

  • 替换m_LineArraym_FigArray

  • CFigure *pFigure = NULL;

  • pFigure = new CLine (m_PointOrigin.x, m_PointOrigin.y,

  • point.x, point.y );

  • m_FigArray.push_back( pFigure );


Mfc gui

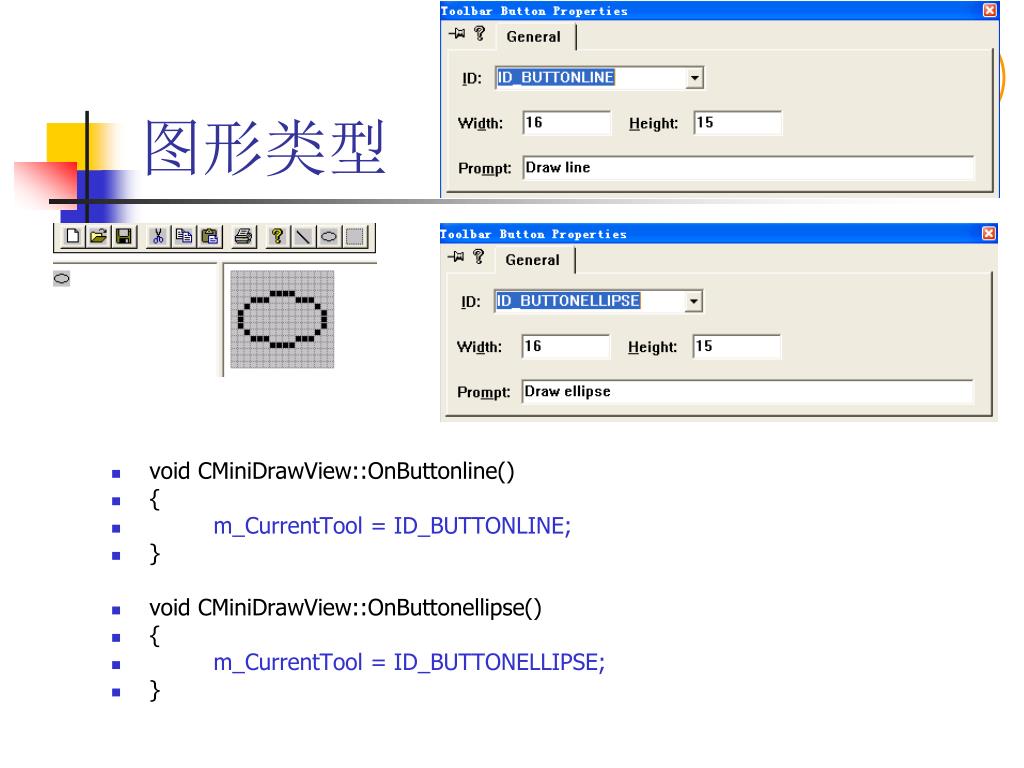

图形类型

  • void CMiniDrawView::OnButtonline()

  • {

  • m_CurrentTool = ID_BUTTONLINE;

  • }

  • void CMiniDrawView::OnButtonellipse()

  • {

  • m_CurrentTool = ID_BUTTONELLIPSE;

  • }


Onmousemove

OnMouseMove

  • void CMiniDrawView::OnMouseMove(UINT nFlags, CPoint point)

  • {

  • if( !m_Dragging )

  • return ;

  • CClientDC ClientDC( this );

  • ClientDC.SelectStockObject (NULL_BRUSH);

  • switch (m_CurrentTool)

  • {

  • case ID_BUTTONLINE:

  • ClientDC.SetROP2( R2_NOT );

  • ClientDC.MoveTo( m_PointOrigin );

  • ClientDC.LineTo( m_PointOld );

  • ClientDC.MoveTo( m_PointOrigin );

  • ClientDC.LineTo( point );

  • break;

  • case ID_BUTTONELLIPSE:

  • ClientDC.SetROP2 (R2_NOT);

  • ClientDC.Ellipse (m_PointOrigin.x, m_PointOrigin.y, m_PointOld.x, m_PointOld.y );

  • ClientDC.Ellipse (m_PointOrigin.x, m_PointOrigin.y, point.x, point.y );

  • break;

  • }

  • m_PointOld = point;

  • CView::OnMouseMove(nFlags, point);

  • }


Onlbuttonup

OnLButtonUp

  • void CMiniDrawView::OnLButtonUp(UINT nFlags, CPoint point)

  • {

  • if( !m_Dragging )

  • return;

  • CClientDC ClientDC( this );

  • ClientDC.SelectStockObject (NULL_BRUSH);

  • CFigure *pFigure = NULL;

  • switch (m_CurrentTool)

  • {

  • case ID_BUTTONLINE:

  • ClientDC.SetROP2( R2_NOT );

  • ClientDC.MoveTo( m_PointOrigin );

  • ClientDC.LineTo( m_PointOld );

  • pFigure = new CLine(m_PointOrigin.x, m_PointOrigin.y,

  • point.x, point.y );

  • break;

  • case ID_BUTTONELLIPSE:

  • ClientDC.SetROP2 (R2_NOT);

  • ClientDC.Ellipse (m_PointOrigin.x, m_PointOrigin.y, m_PointOld.x, m_PointOld.y );

  • pFigure = new CEllipse (m_PointOrigin.x, m_PointOrigin.y, point.x, point.y);

  • break;

  • }

  • ClientDC.SetROP2 (R2_COPYPEN);

  • pFigure->Draw (&ClientDC);

  • m_FigArray.push_back( pFigure );

  • m_Dragging = 0;

  • CView::OnLButtonUp(nFlags, point);

  • }


Mfc gui

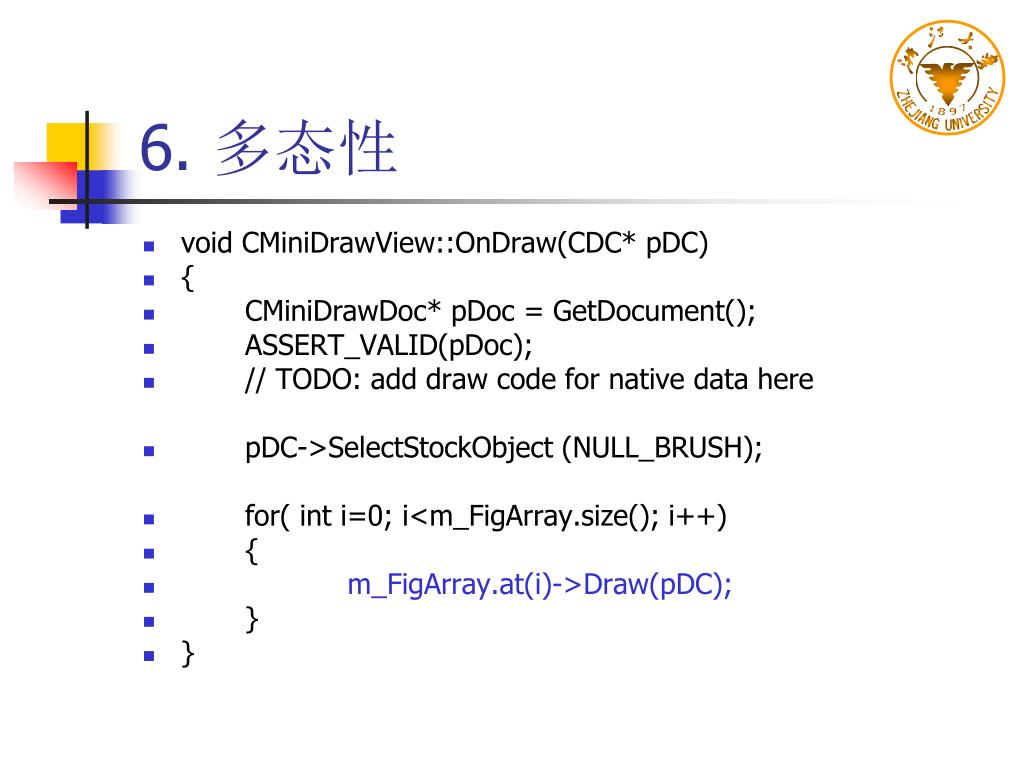

6. 多态性

  • void CMiniDrawView::OnDraw(CDC* pDC)

  • {

  • CMiniDrawDoc* pDoc = GetDocument();

  • ASSERT_VALID(pDoc);

  • // TODO: add draw code for native data here

  • pDC->SelectStockObject (NULL_BRUSH);

  • for( int i=0; i<m_FigArray.size(); i++)

  • {

  • m_FigArray.at(i)->Draw(pDC);

  • }

  • }


Mfc gui

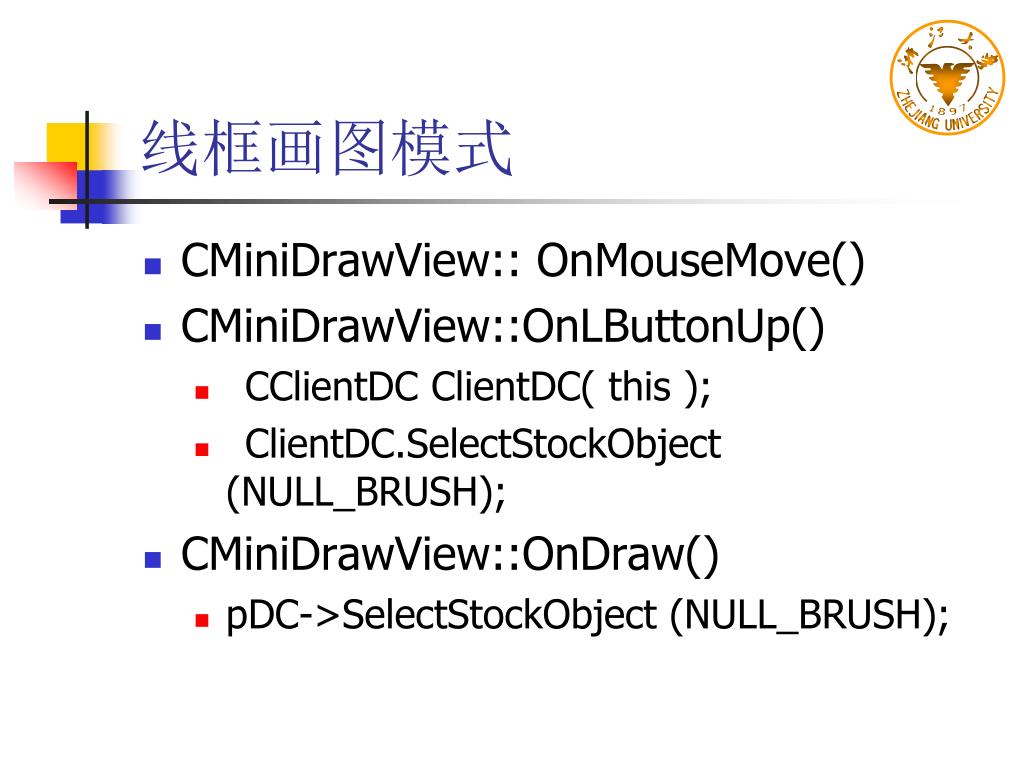

线框画图模式

  • CMiniDrawView:: OnMouseMove()

  • CMiniDrawView::OnLButtonUp()

    • CClientDC ClientDC( this );

    • ClientDC.SelectStockObject (NULL_BRUSH);

  • CMiniDrawView::OnDraw()

    • pDC->SelectStockObject (NULL_BRUSH);


Mfc gui

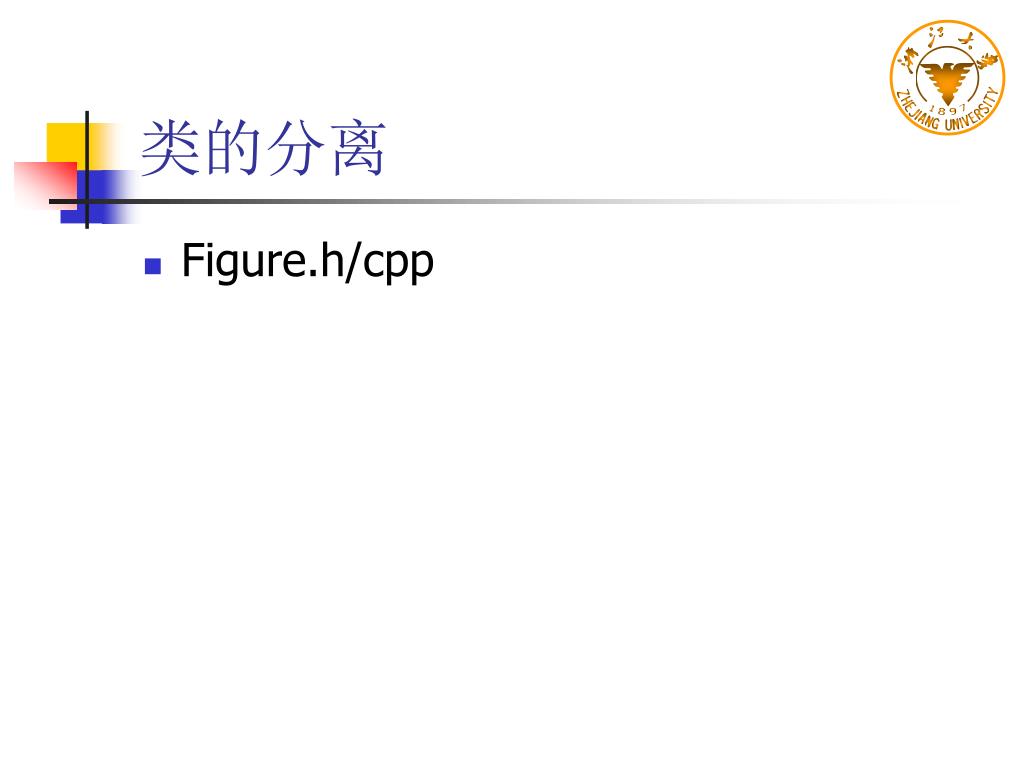

类的分离

  • Figure.h/cpp


Mfc gui

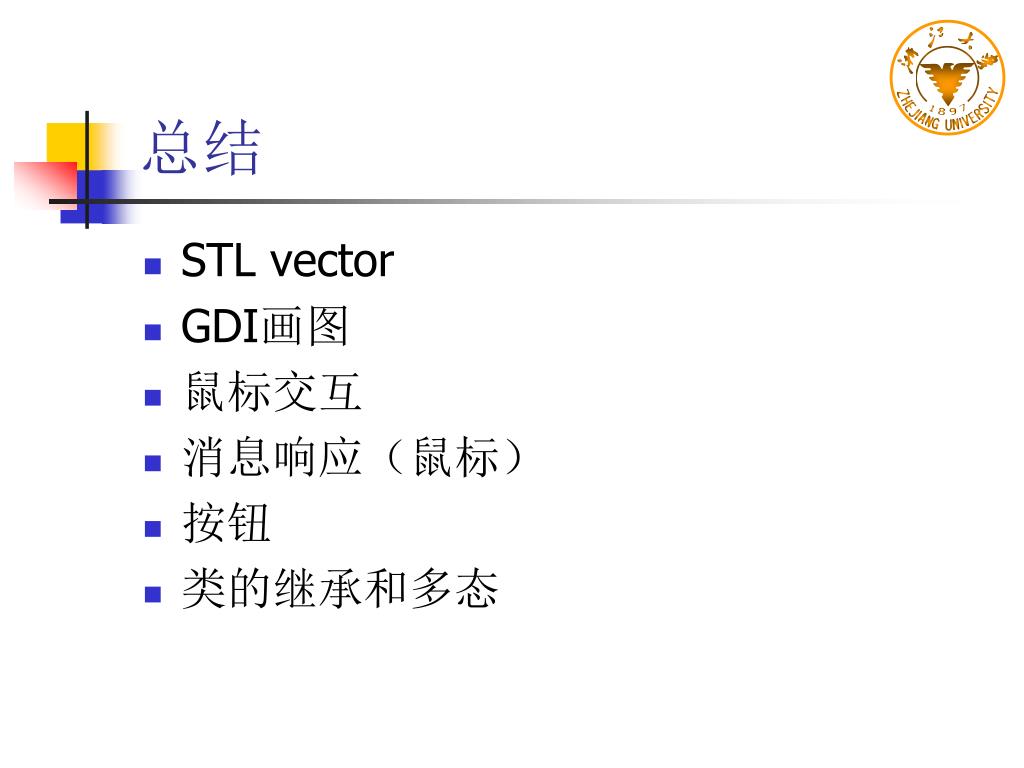

总结

  • STL vector

  • GDI画图

  • 鼠标交互

  • 消息响应(鼠标)

  • 按钮

  • 类的继承和多态


3 minidraw

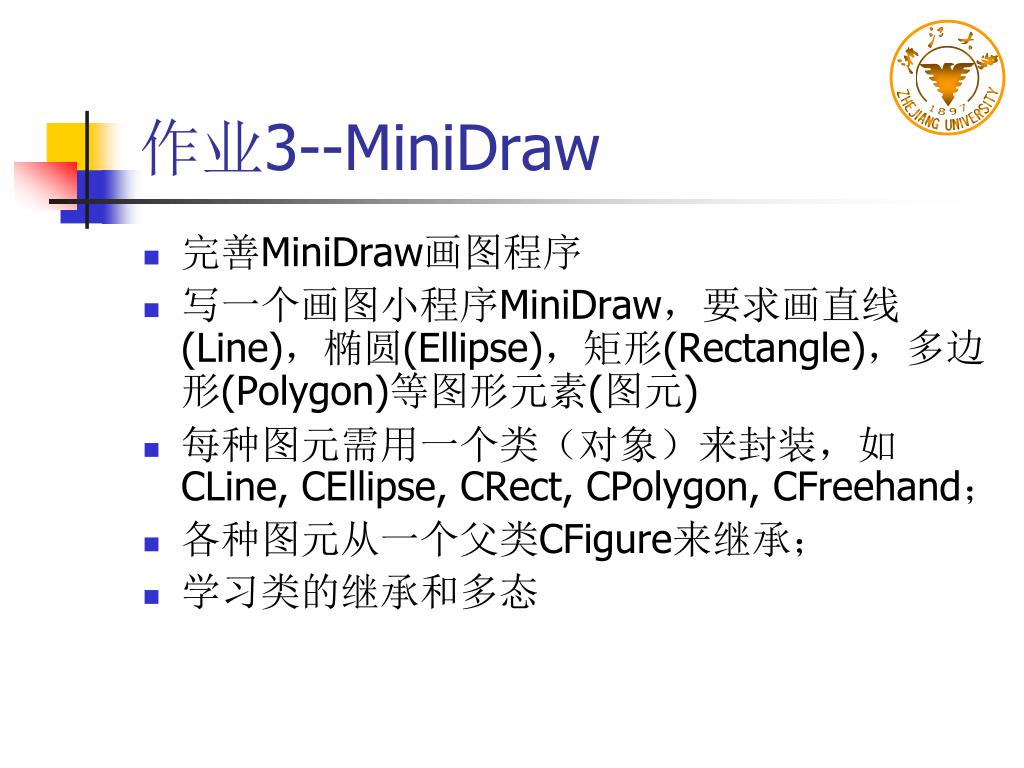

作业3--MiniDraw

  • 完善MiniDraw画图程序

  • 写一个画图小程序MiniDraw,要求画直线(Line),椭圆(Ellipse),矩形(Rectangle),多边形(Polygon)等图形元素(图元)

  • 每种图元需用一个类(对象)来封装,如CLine, CEllipse, CRect, CPolygon, CFreehand;

  • 各种图元从一个父类CFigure来继承;

  • 学习类的继承和多态


Mfc gui

要求

  • 至少完成直线(Line),椭圆(Ellipse),矩形(Rectangle),多边形(Polygon) ,自由手绘线(Freehand)等图形元素

  • Deadline: 9:30a.m. April 6, 2011


Mfc gui

如何学好VC

  • 需要有好的C/C++基础

  • 理解Windows的消息机制,窗口句柄和其他GUI句柄的含义和用途

  • 多使用Online Help

  • 记住一些常用的消息名称和参数的意义

  • 学会看别人的代码

  • 多练习,在实践中成长!


References

References

  • VC入门级书籍

  • Windows编程

  • 《MFC深入浅出》


Mfc gui

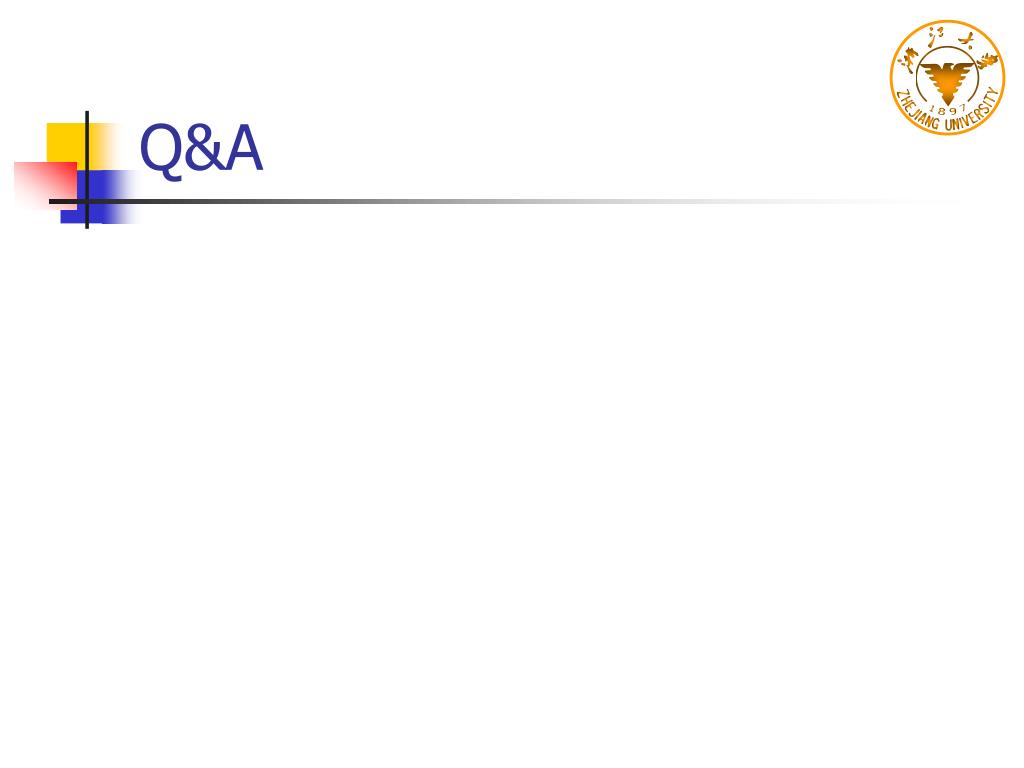

Q&A
