  1. Affectresponsivephotoframe Hamdi Dibeklioğlu Ilkka Kosunen Marcos Ortega Albert Ali Salah Petr Zuzánek eNTERFACE ’10 Amsterdam, July-August 2010

  2. Goal of the Project • Responsive photograph frame • User interaction leads to different responses • Modules of the project • Video segmentation module • Dictionary of responses • Behaviour understanding • Offline: Labelling dictionary • Online: Cluster user action • System logic • Linking user actions to responses

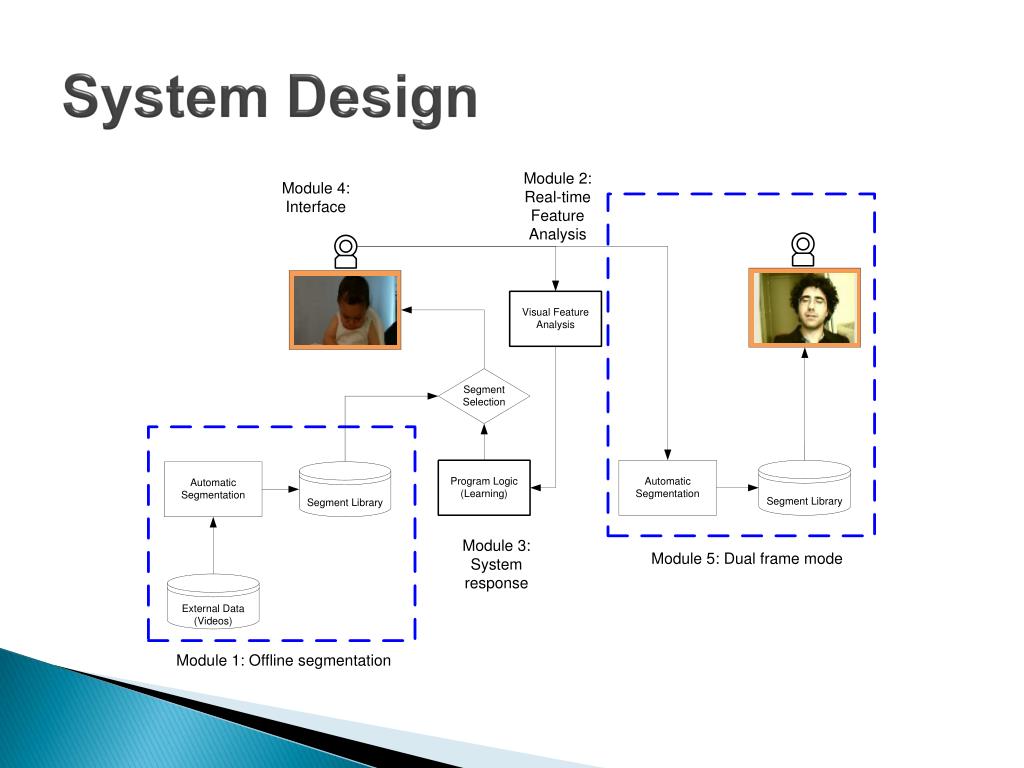

  3. System Design

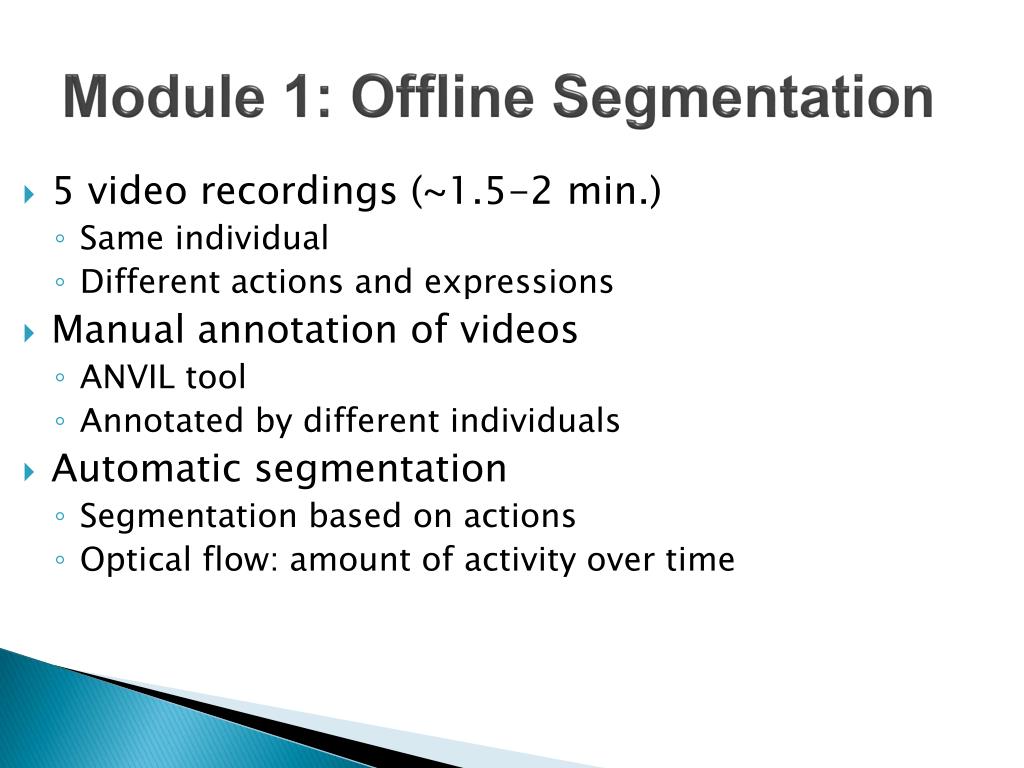

  4. Module 1: Offline Segmentation • 5 video recordings (~1.5-2 min.) • Same individual • Different actions and expressions • Manual annotation of videos • ANVIL tool • Annotated by different individuals • Automatic segmentation • Segmentation based on actions • Optical flow: amount of activity over time

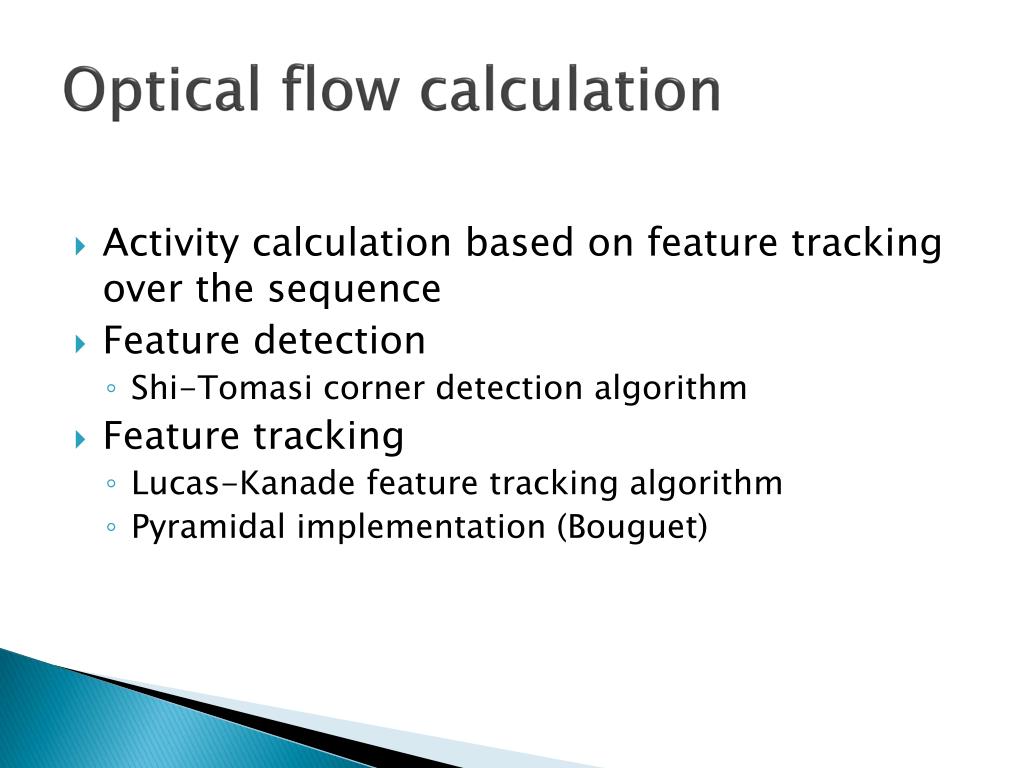

  5. Optical flow calculation • Activity calculation based on feature tracking over the sequence • Feature detection • Shi-Tomasi corner detection algorithm • Feature tracking • Lucas-Kanade feature tracking algorithm • Pyramidal implementation (Bouguet)

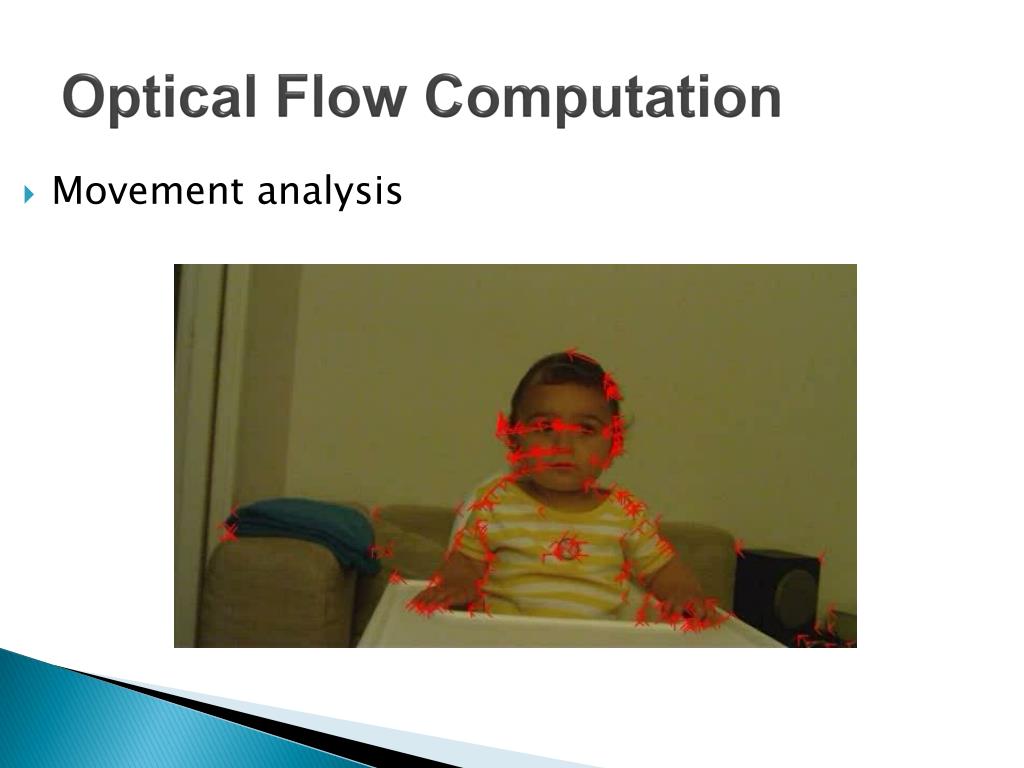

  6. Optical Flow Computation • Movement analysis

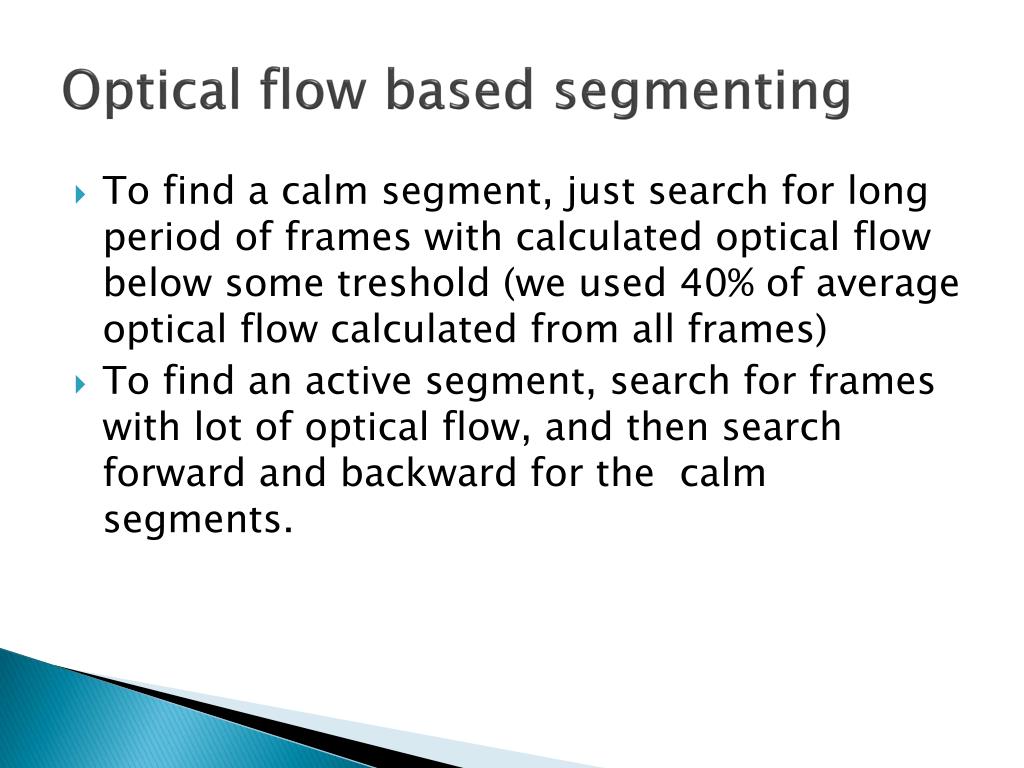

  7. Optical flow based segmenting • To find a calm segment, just search for long period of frames with calculated optical flow below some treshold (we used 40% of average optical flow calculated from all frames) • To find an active segment, search for frames with lot of optical flow, and then search forward and backward for the calm segments.

  8. Smoothing Optical Flow Data

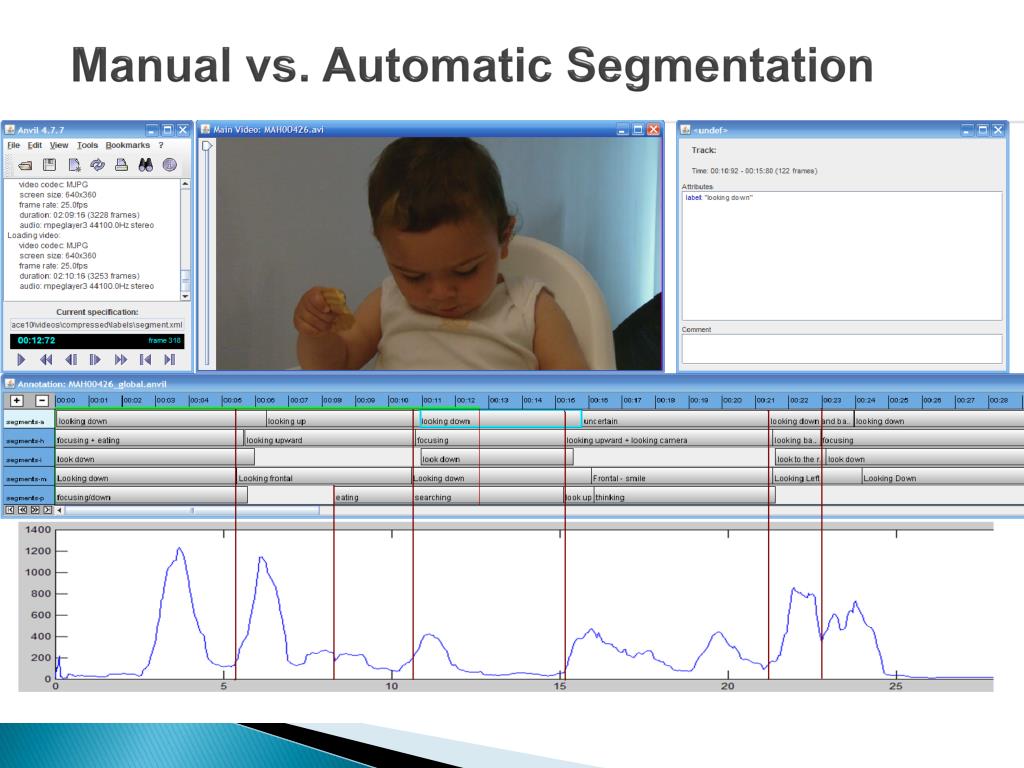

  9. Manual vs. Automatic Segmentation

  10. Calm Segment Example

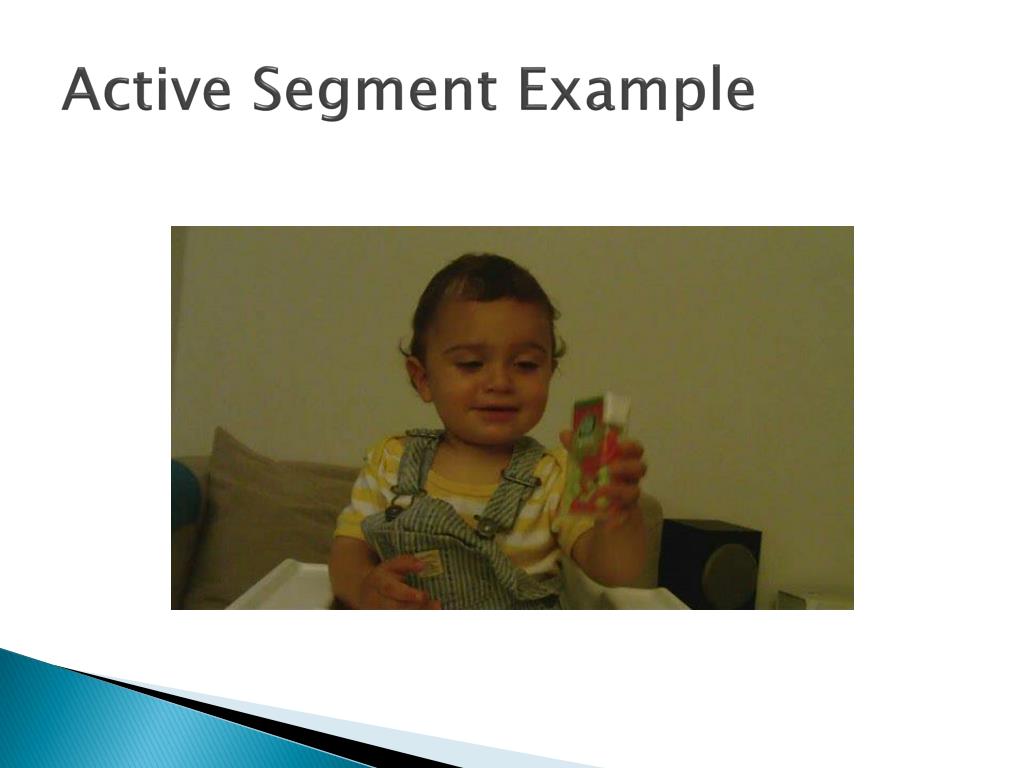

  11. Active Segment Example

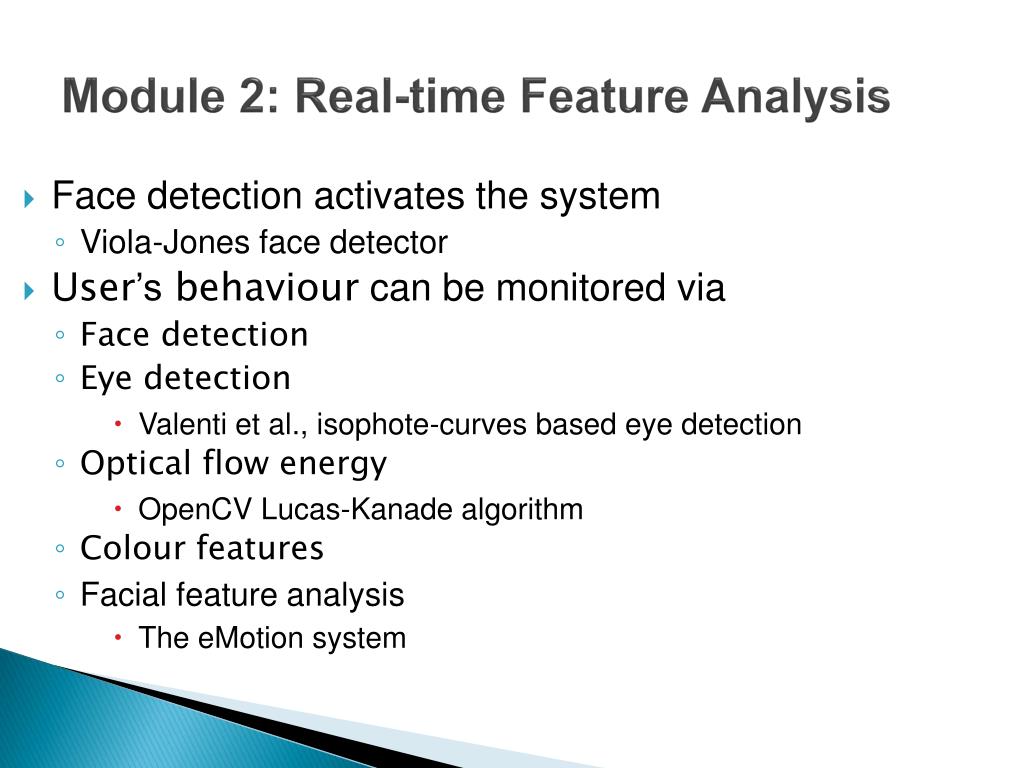

  12. Module 2: Real-time Feature Analysis • Face detection activates the system • Viola-Jones face detector • User’s behaviour can be monitored via • Face detection • Eye detection • Valenti et al., isophote-curves based eye detection • Optical flow energy • OpenCV Lucas-Kanade algorithm • Colour features • Facial feature analysis • The eMotion system

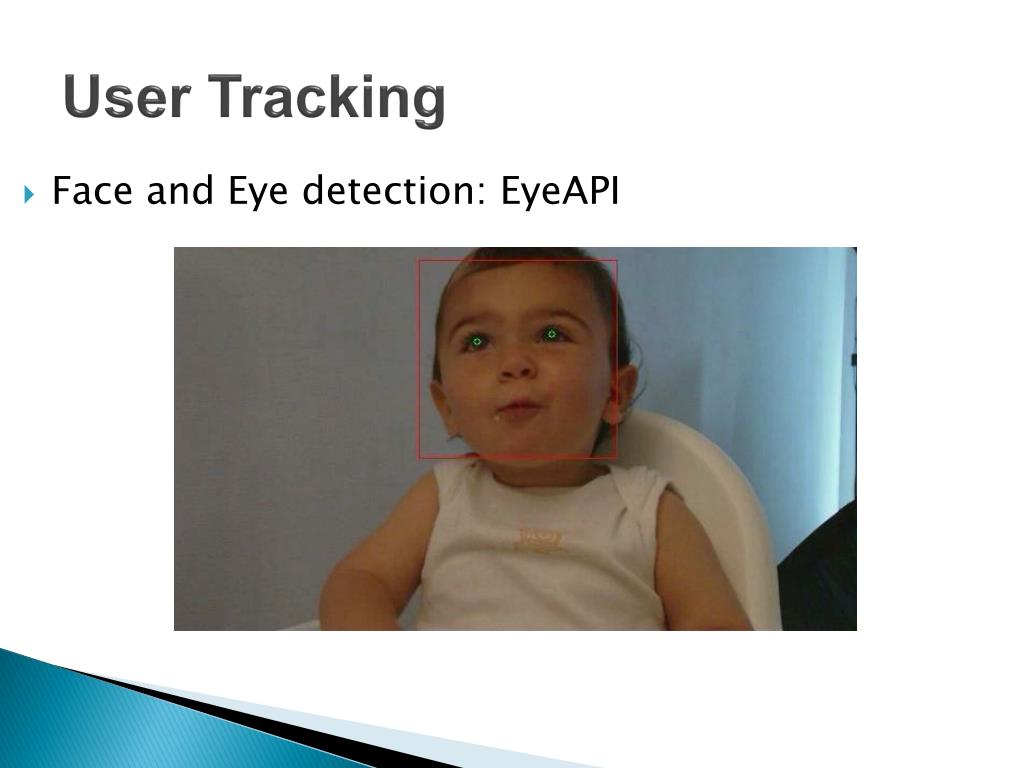

  13. User Tracking • Face and Eye detection: EyeAPI

  14. Facial feature tracking * R. Valenti, N. Sebe, and T. Gevers. Facial expression recognition: A fully integrated approach. In ICIAPW, pages 125–130, 2007. Face model: 16 surface patches embedded in Bezier volumes. Piecewise Bezier Volume Deformation (PBVD) tracker is used to trace the motion of the facial features.

  15. Expression Classification 12 motion units Naive Bayes (NB) classifier forcategorizing expressions NB Advantage: the posterior probabilities allow a soft output of the system

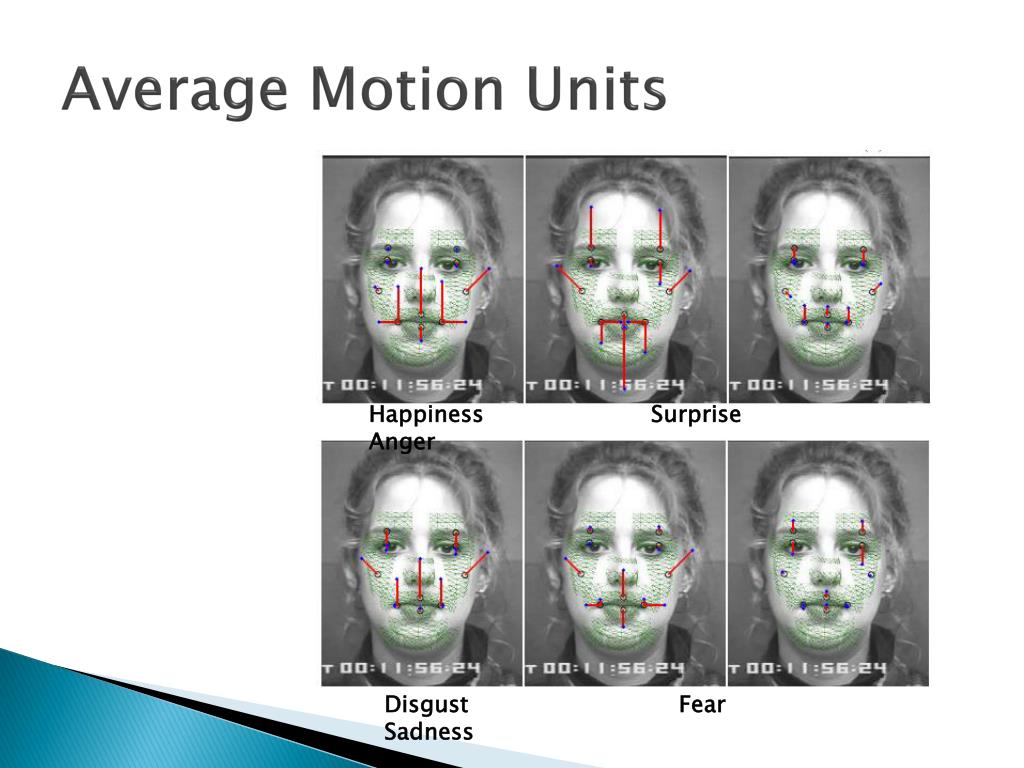

  16. Average Motion Units Happiness Surprise Anger Disgust Fear Sadness

  17. Real-time Expression Analysis

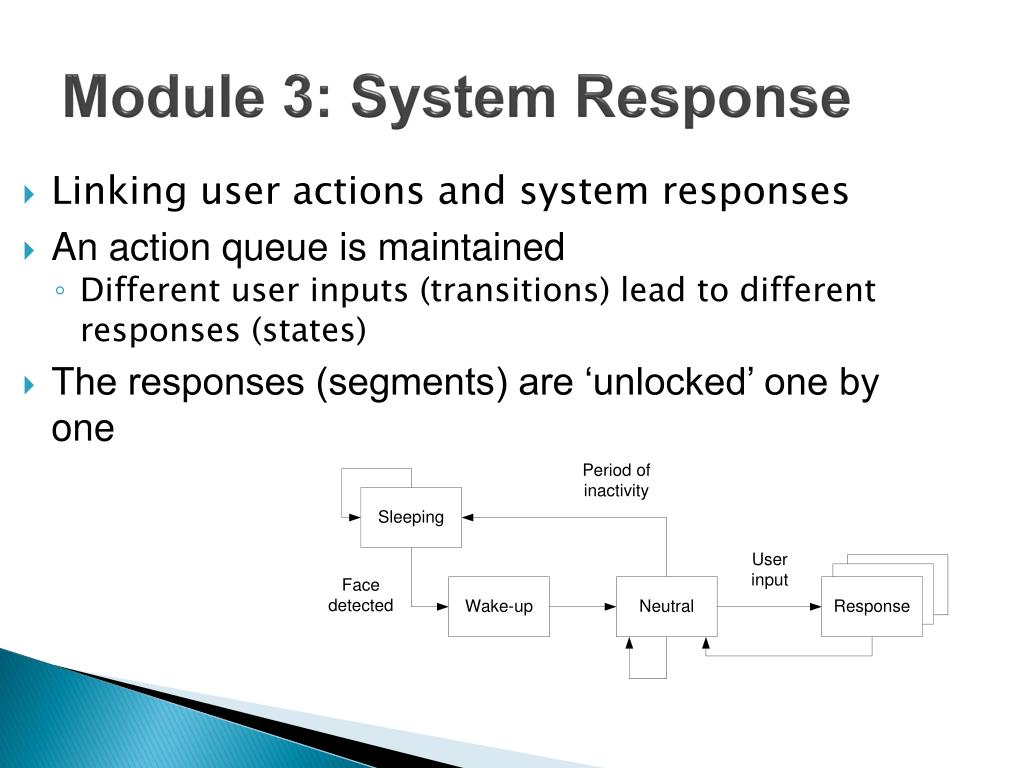

  18. Module 3: System Response • Linking user actions and system responses • An action queue is maintained • Different user inputs (transitions) lead to different responses (states) • The responses (segments) are ‘unlocked’ one by one

  19. Module 3: System Response Before learning After learning

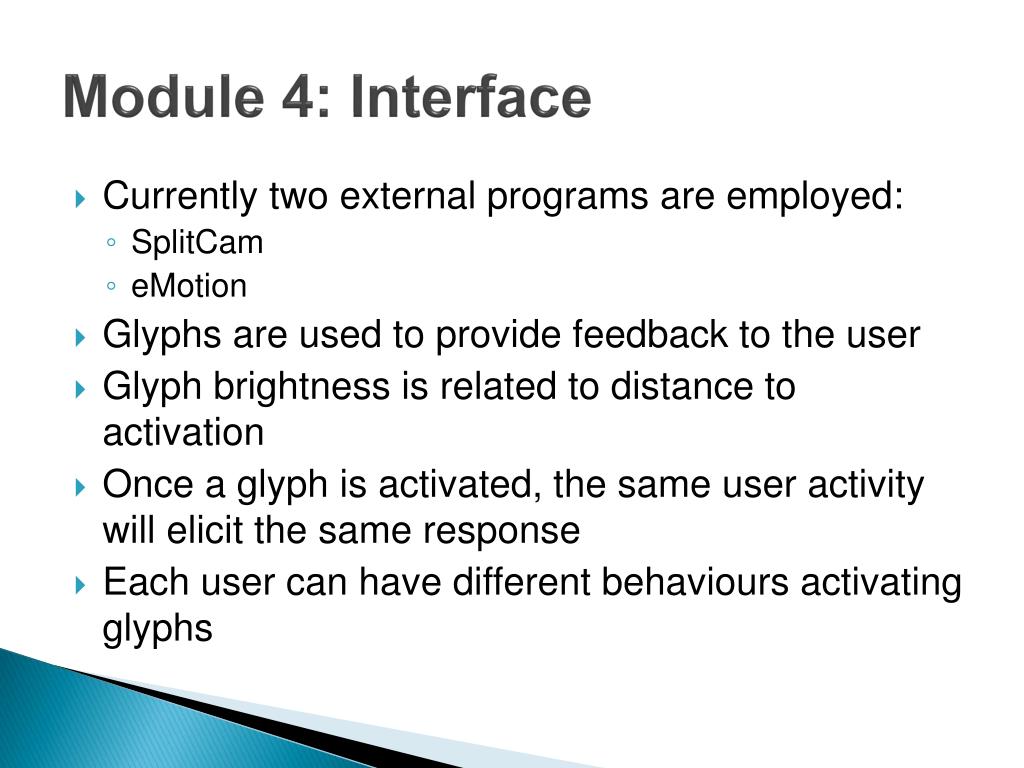

  20. Module 4: Interface • Currently two external programs are employed: • SplitCam • eMotion • Glyphs are used to provide feedback to the user • Glyph brightness is related to distance to activation • Once a glyph is activated, the same user activity will elicit the same response • Each user can have different behaviours activating glyphs

  21. Demo of the system

  22. Future Work • Work on the learning module • Testing the segmentation parameters • The dual frame mode • Speeding up the system • Wizard of Oz study • Usability studies • SEMAINE integration?
