  1. The International Hydrographic Organization (IHO) and The Hydrographic and Oceanographic Service of the Chilean Navy (SHOA) - S-100 –New Geospatial Standard for Marine Data and Information Captain Mariano E. Rojas Director, SHOA

  2. IHO Standards and Technical Guidelines 15 international standards or guidelines 10 associated guidance publications

  3. 15 standards and guidelines • paper chart specifications • electronic chart specifications • data • symbology • security • testing • digital hydrographic data standards • training of surveyors and nautical cartographers

  4. S-57 - International Transfer Standard IHO Transfer Standard for Digital Hydrographic Data established 1992 intended for wide use

  5. S57 - shortcomings content and carrier (ISO 8211) combined difficult to update / introduce new editions lacks flexibility and ease of extension / development used almost exclusively for official nautical charts no longer a contemporary standard requires specific tools to use in GIS

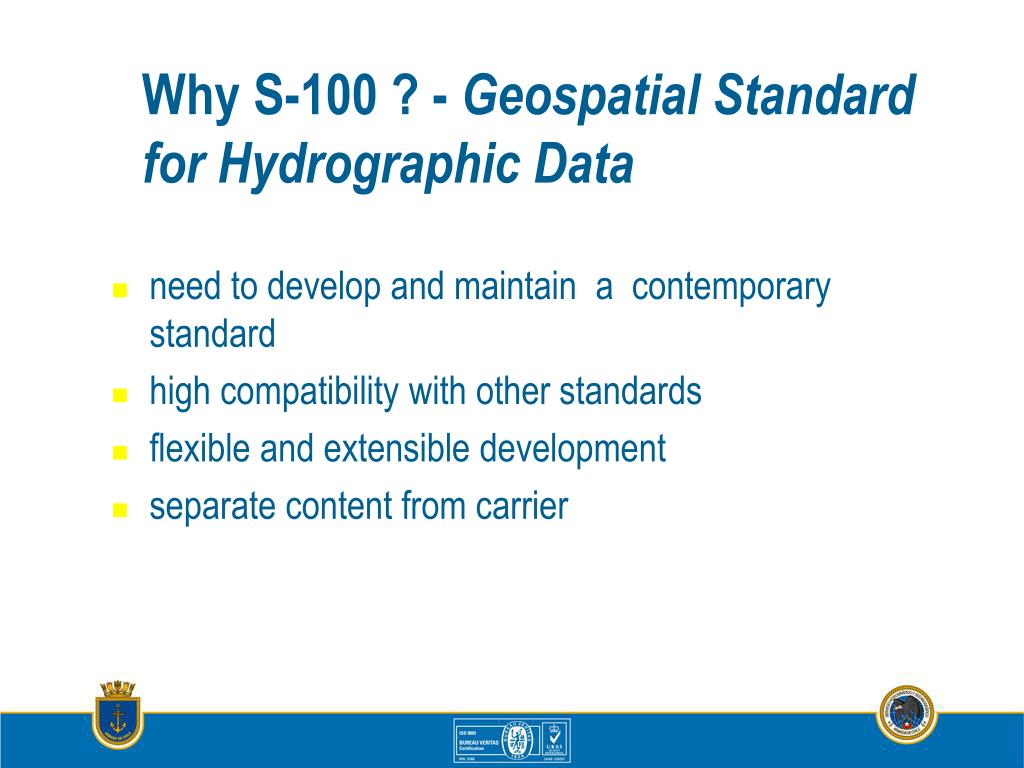

  6. Why S-100 ? - Geospatial Standard for Hydrographic Data • need to develop and maintain a contemporary standard • high compatibility with other standards • flexible and extensible development • separate content from carrier

  7. Why S-100 ? - Geospatial Standard for Hydrographic Data • different data types • imagery • gridded data • 3-D • time varying data ( x, y, z ) • high density bathymetry • seafloor classification

  8. Why S-100 ? - Geospatial Standard for Hydrographic Data • wider user base • GIS applications • Web-based services

  9. Entrance to River Scheldt, Antwerp Dynamic water level: Tide-aware ENC Demo provided by Seven C’s

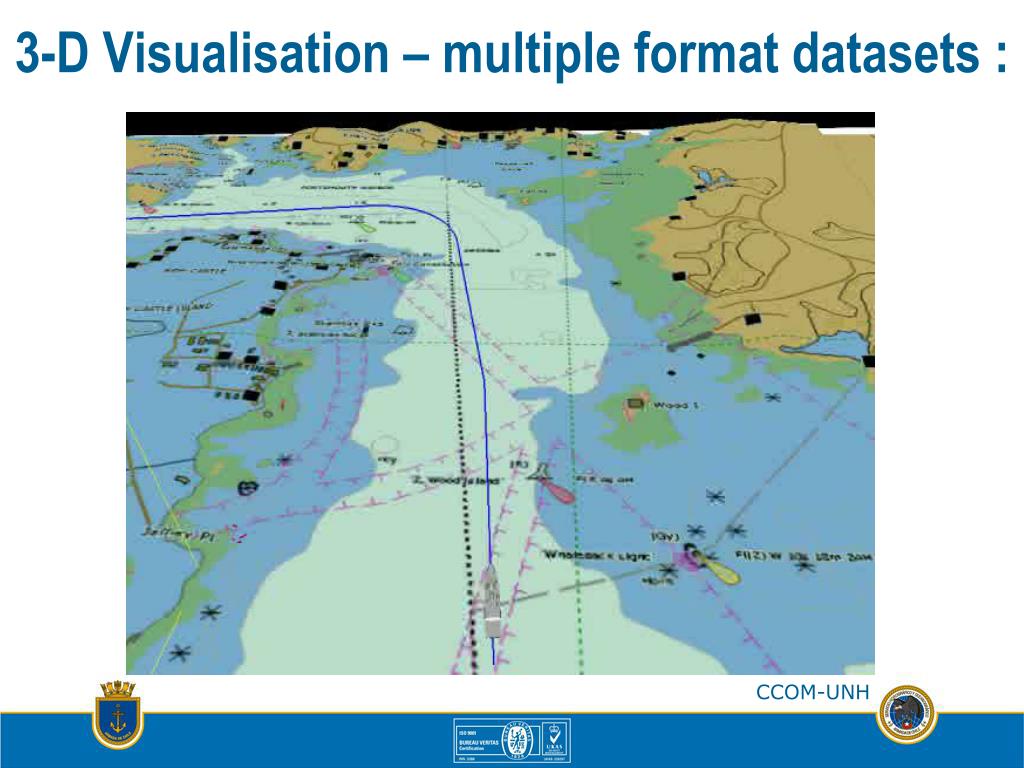

  10. 3-D Visualisation – multiple format datasets : CCOM-UNH

  11. S-100 - Geospatial Standard for Hydrographic Data Data content separated from carrier S-100 aligned with ISO 19100 series of standards ISO 19100 … and S-100 data can be used together Standard never “frozen” Product specifications are a subset of S-100 S-100 “family” developed and maintained via an ISO-conforming, web-based IHO Registry

  12. AML S-101 Next Generation ENC S-100 - built on ISO 19100 • IHO S-10x standards will depend on various ISO19100 standards 19107 19113 InlandENC MIO 19115 BathyENC 19126 3D &Temporal Web Services 19109 19139 Gridded 19135 19131 19129 S-100 19117 S-10x 19111 19110 19114 ISO 19100 Nautical Pubs

  13. IHO Geospatial Information Registry (of Registers) • Ready to use NOW – http://195.217.61.120/iho_registry/ • Web-based database • Registers • FCD • Portrayal • Metadata • Product Specifications

  14. Register Ownership • Open to IHO and non-IHO users/developers • Registers moderated by relevant subject-matter-expert Managers or Groups

  15. Register Ownership • IHO • directly support IHO program • charts, nautical publications, ….. • Non-IHO • complement the IHO • Inland ENC, dynamic ice coverage, Additional Military Layers, marine weather and climate, …..

  16. Register Ownership • IHO • TSMAD (S-101) • SNPWG (digital nautical publications) • Non-IHO • IEHC (inland ENC) • ITSI (dynamic ice coverage) • ……. You ?

  17. Timetable Draft S-100 released; in force January 2010

  18. National Point of Contact • IHO representative • Hydrographic Office • National hydrographic authority

  19. More Information http://www.iho.int/COMMITTEES/CHRIS/TSMAD/tsmadintro.htm#S-100

  20. International Hydrographic Organization (IHO) International Hydrographic Bureau 4, Quai Antoine 1er B.P. 445 MC 98011 MONACO CEDEX Principauté de Monaco Telephone: +377 93 10 81 00 e-mail: robert.ward@ihb.mc WEB Site: www.iho.int Hydrographic and Oceanographic Service of the Chilean Navy (SHOA) Errazuriz 254, Playa Ancha Valparaíso Chile Telephone: +56 (032) 2266666 e-mail: shoa@shoa.cl WEB Site: www.shoa.mil.cl
