Aim: What Is Implicit Differentiation and How Does It Work?

Aim: What Is Implicit Differentiation and How Does It Work?. Implicit. Do Now:. Explicit. Explicit Form . Implicit Form. Often you can solve for y in term of x. Implicit vs. Explicit. variable y is written as a function of x. derivative of y ?. Not Always!.

erol
Download Presentation

Aim: What Is Implicit Differentiation and How Does It Work?

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Aim: What Is Implicit Differentiation and How Does It Work? Implicit Do Now: Explicit

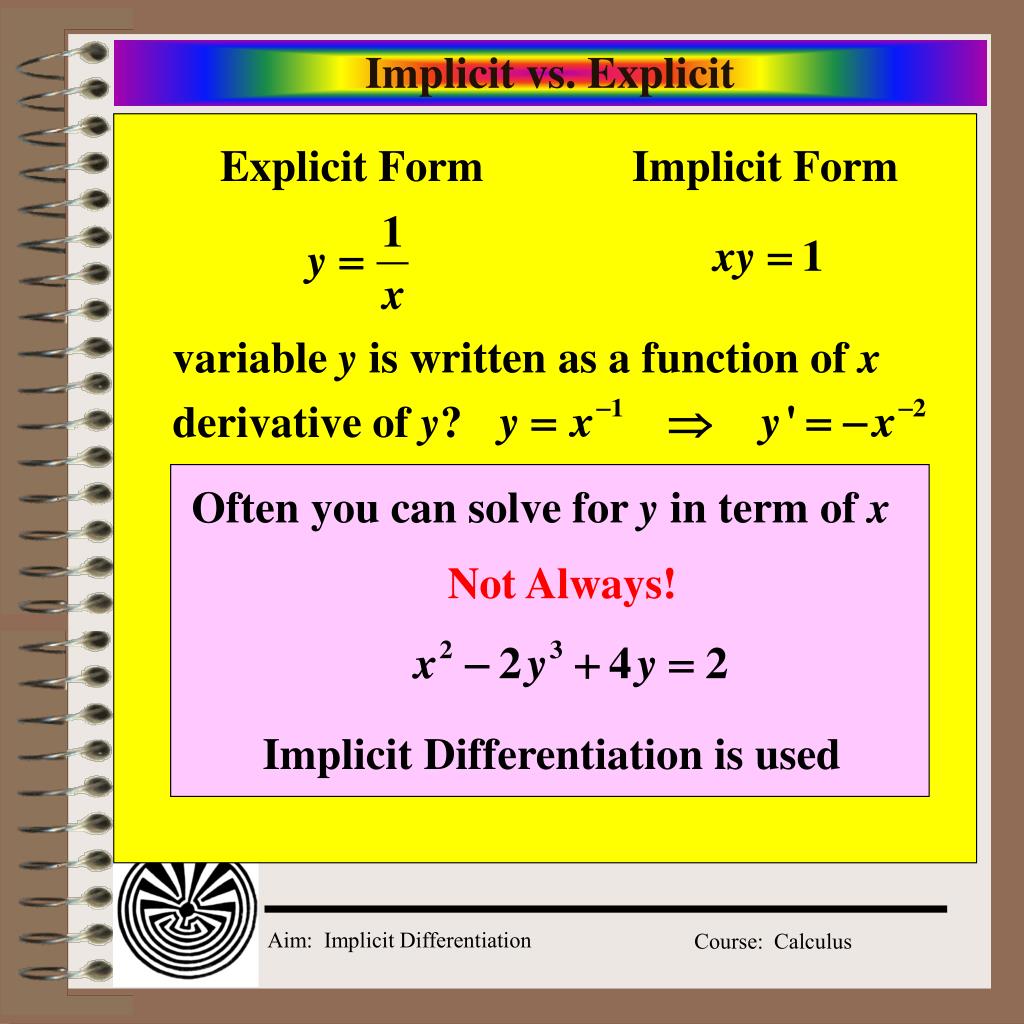

  2. Explicit Form Implicit Form Often you can solve for y in term of x Implicit vs. Explicit variable y is written as a function of x derivative of y? Not Always! Implicit Differentiation is used

  3. variables agree un u’ nun-1 variables disagree Chain Rule Differentiating with Respect to x Use Simple Power Rule Use Chain Rule Product Rule Chain Rule Simplify

  4. COMMON ERROR! DON’T FORGET variables agree un u’ nun-1 variables disagree Chain Rule Differentiating with Respect to x Use Simple Power Rule Use Chain Rule Product Rule Chain Rule Simplify

  5. Guidelines for Implicit Differentiation • Differentiate both sides of the equation with respect to x. • Collect all terms involving dy/dx on the left side of the equation and move all other terms to the right side of the equation. • Factor dy/dx out of the left side of the equation. • Solve for dy/dx by dividing both sides of the equation by the left-hand factor that does not contain dy/dx.

  6. Model Problem Find dy/dx given y3 + y2 – 5y – x2 = -4 • Differentiate both sides of the equation with respect to x. 2. Collect all terms involving dy/dx on the left side of the equation

  7. (1, 1) slope at (1, 1) (2, 0) slope at (2, 0) (1, -3) slope at (1, -3) y3 + y2 – 5y – x2 = -4 Model Problem Find dy/dx given y3 + y2 – 5y – x2 = -4 3. Factor dy/dx out of the left side of the equation. 4. Solve for dy/dx by dividing by (3y2 + 2y – 5) function? NO und -4/5 1/8

  8. Functions from Equations If a segment of a graph can be represented by a differentiable function, dy/dx will have meaning as the slope. function? NO YES YES Recall: a function is not differentiable at points with vertical tangents nor at points where the function is not continuous

  9. Aim: What Is Implicit Differentiation and How Does It Work? Do Now: Determine the slope of the tangent line to the graph x2 + 4y2 = 4 at the point .

  10. Slope of tangent at is 1/2 Model Problem Determine the slope of the tangent line to the graph x2 + 4y2 = 4 at the point . implicit differentiation solve for dy/dx evaluate for the point

  11. Model Problem Determine the slope of the tangent line to the graph 3(x2 + y2)2 = 100xy and the point (3, 1). Constant and General Power Rules FOIL and isolate dy/dx

  12. Model Problem Determine the slope of the tangent line to the graph 3(x2 + y2)2 = 100xy and the point (3, 1).

  13. Model Problem Determine the slope of the tangent line to the graph 3(x2 + y2)2 = 100xy and the point (3, 1). substitute (3, 1)

  14. find first derivative implicitly: Finding the 2nd Derivative Implicitly Given x2 + y2 = 25, find quotient rule sub –x/y for dy/dx sub 25 for x2+y2

  15. Model Problem Find the tangent line to the graph given by x2(x2 + y2) = y2 at the point implicit differentiation

  16. Model Problem Find the tangent line to the graph given by x2(x2 + y2) = y2 at the point substitute = 3 = m point-slope formula for equation (y – y1) = m(x – x1)

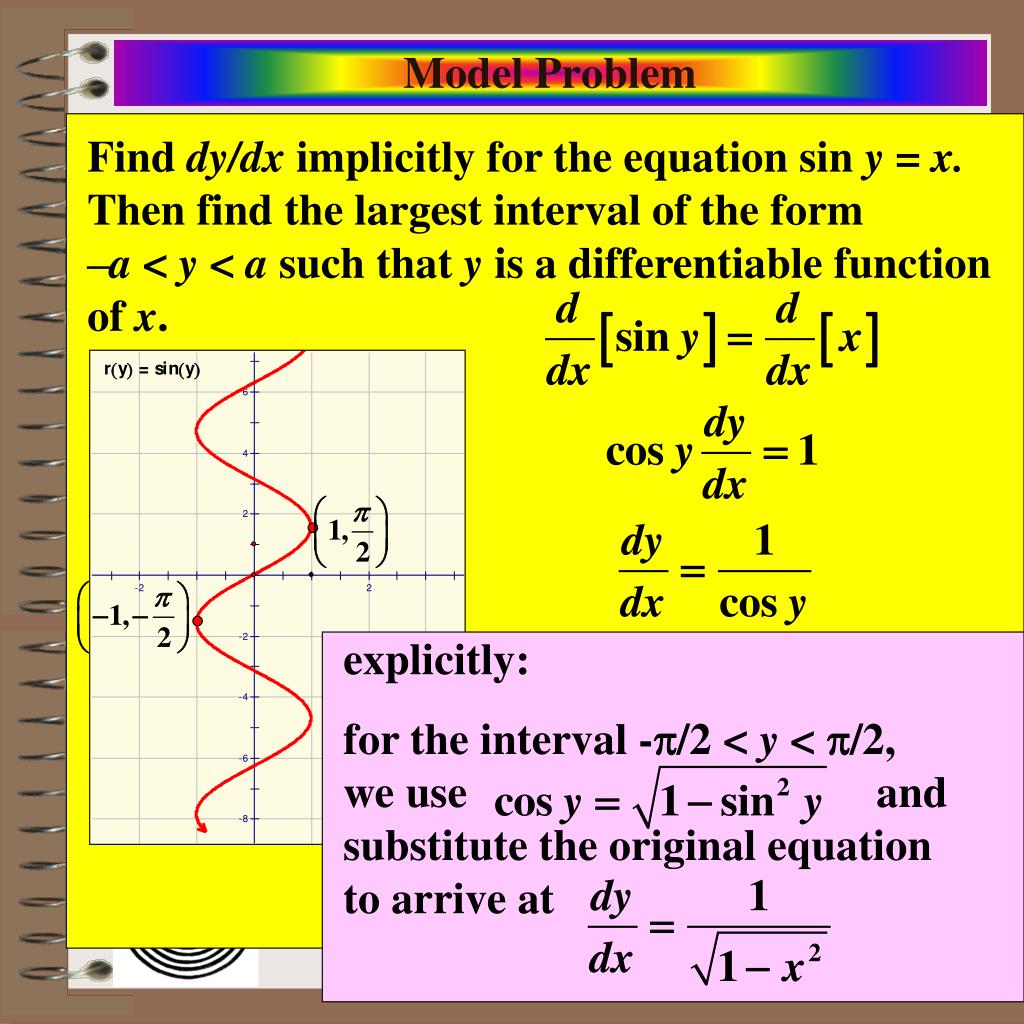

  17. Model Problem Find dy/dx implicitly for the equation sin y = x. Then find the largest interval of the form –a < y < a such that y is a differentiable function of x. explicitly: for the interval -/2 < y < /2, we use and substitute the original equation to arrive at
