Physically Based Motion Transformation. Zoran Popović Andrew Witkin SIGGRAPH ‘99. Objective. Transform previously generated motion while preserving its physical properties User-controlled editing process Good for re-use of highly detailed motions

Download Presentation

Physically Based Motion Transformation

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript


Physically based motion transformation

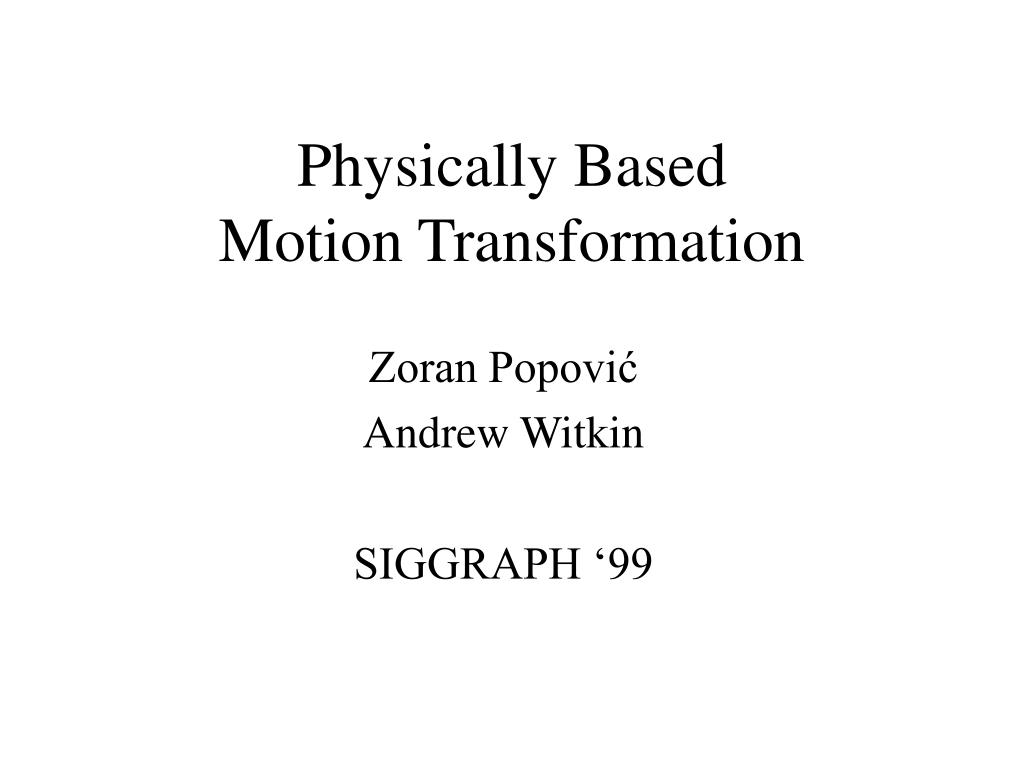

Physically BasedMotion Transformation

Zoran Popović

Andrew Witkin

SIGGRAPH ‘99


Objective

Objective

  • Transform previously generated motion while preserving its physical properties

  • User-controlled editing process

  • Good for re-use of highly detailed motions

  • Map motion between characters with different DOFs (control complex systems with simpler ones)

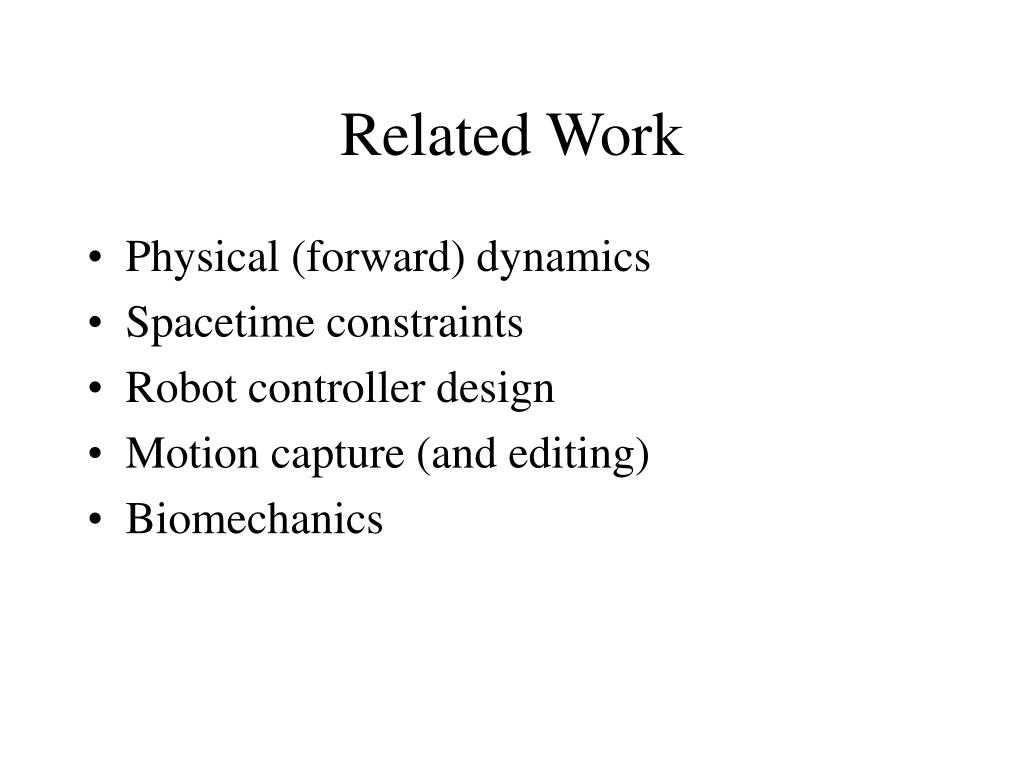

Related work

Related Work

  • Physical (forward) dynamics

  • Spacetime constraints

  • Robot controller design

  • Motion capture (and editing)

  • Biomechanics


Forward dynamics

Forward Dynamics

  • Highly realistic (physically accurate)

  • Determining muscle forces is difficult

  • Changing one frame drastically affects all others


Spacetime constraints

Spacetime Constraints

  • Helps with realism and controllability

  • Specify pose constraints that must be met

  • Specify objective function or metric of performance or style

  • Minimize objective function while satisfying constraints

  • Does not scale up to complex characters (poor time complexity)

  • Sensitive to starting position of optimization (may not converge)

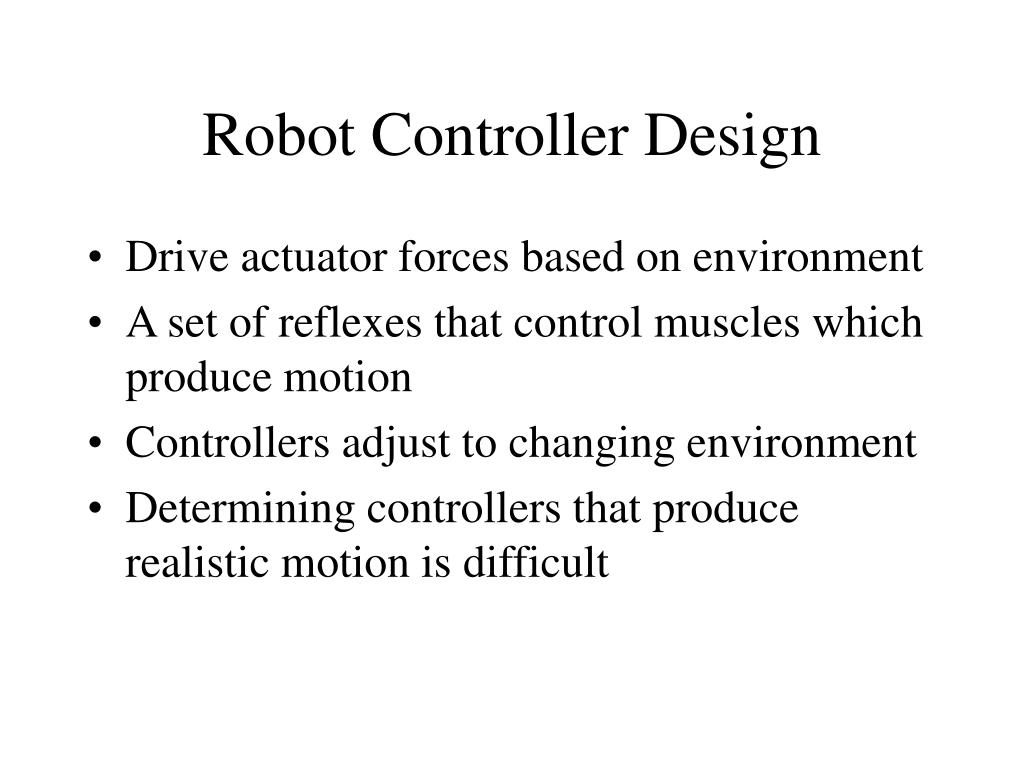

Robot controller design

Robot Controller Design

  • Drive actuator forces based on environment

  • A set of reflexes that control muscles which produce motion

  • Controllers adjust to changing environment

  • Determining controllers that produce realistic motion is difficult

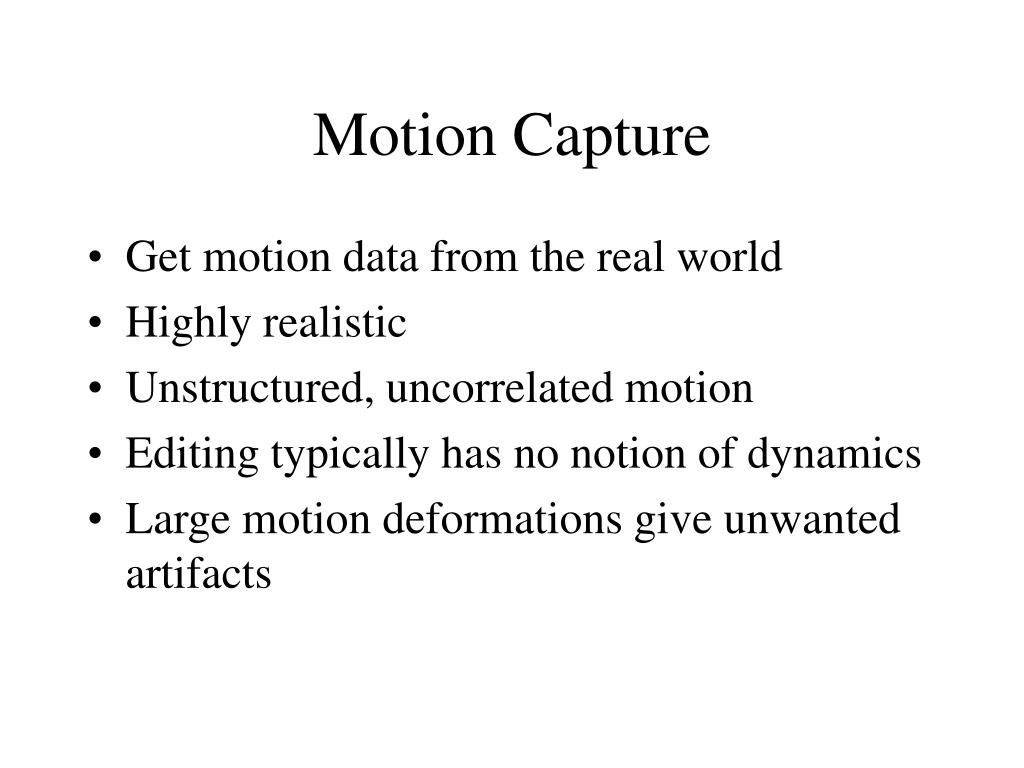

Motion capture

Motion Capture

  • Get motion data from the real world

  • Highly realistic

  • Unstructured, uncorrelated motion

  • Editing typically has no notion of dynamics

  • Large motion deformations give unwanted artifacts

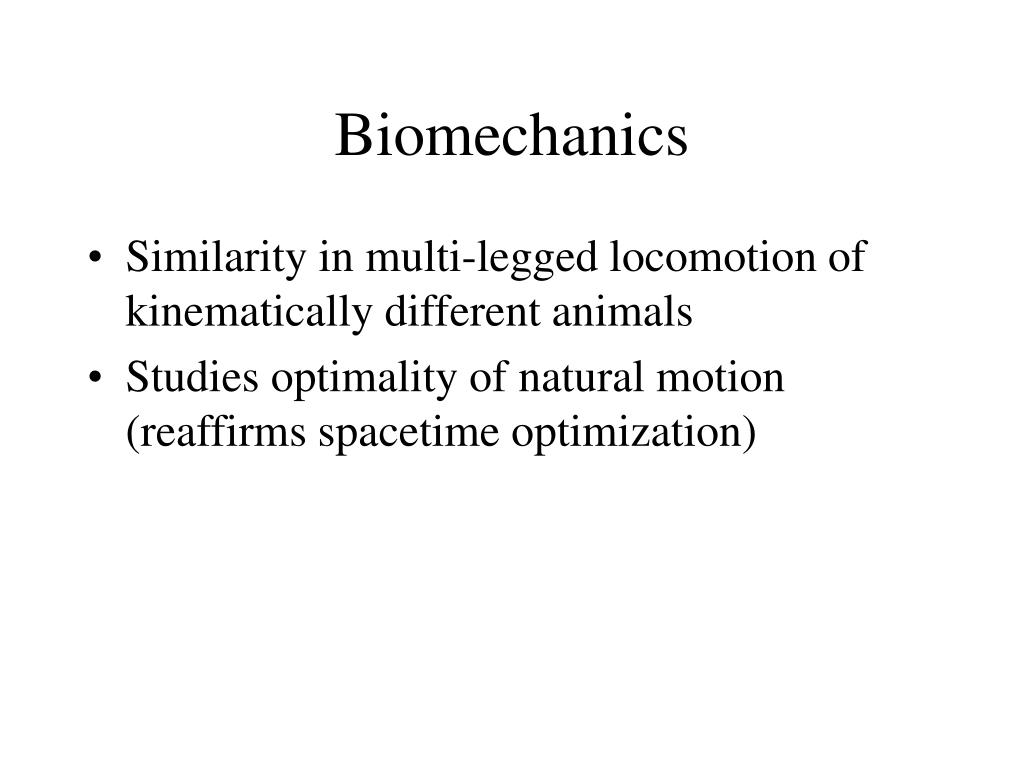

Biomechanics

Biomechanics

  • Similarity in multi-legged locomotion of kinematically different animals

  • Studies optimality of natural motion (reaffirms spacetime optimization)


Algorithm outline

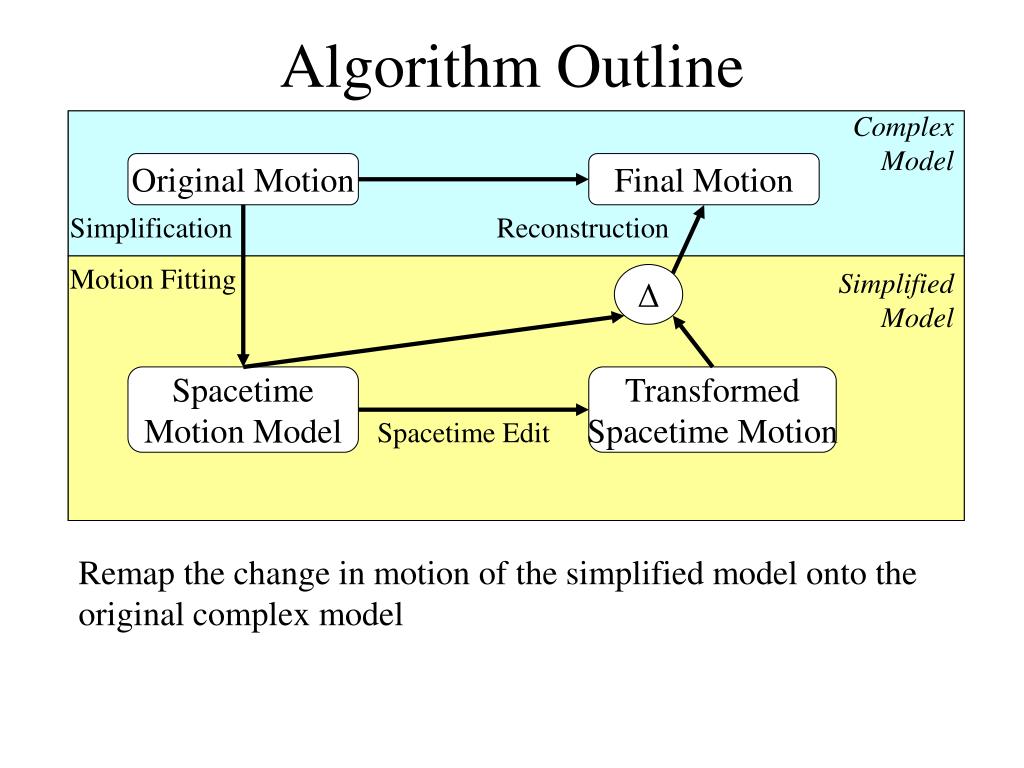

Algorithm Outline

Complex

Model

Original Motion

Final Motion

Simplification

Reconstruction

Motion Fitting

Simplified

Model

Δ

Spacetime

Motion Model

Transformed

Spacetime Motion

Spacetime Edit

Change motion parameters

Introduce new pose constraints

Change character kinematics or objective function

Remap the change in motion of the simplified model onto the original complex model

Create abstract character model with minimal DOFs

Map input motion onto simplified model

Find spacetime optimization problem with solution most closely matching simplified character motion


Character simplification

Complex

Model

Original Motion

Final Motion

Reconstruction

Simplification

Simplified

Model

Δ

Motion Fitting

Spacetime

Motion Model

Transformed

Spacetime Motion

Spacetime Edit

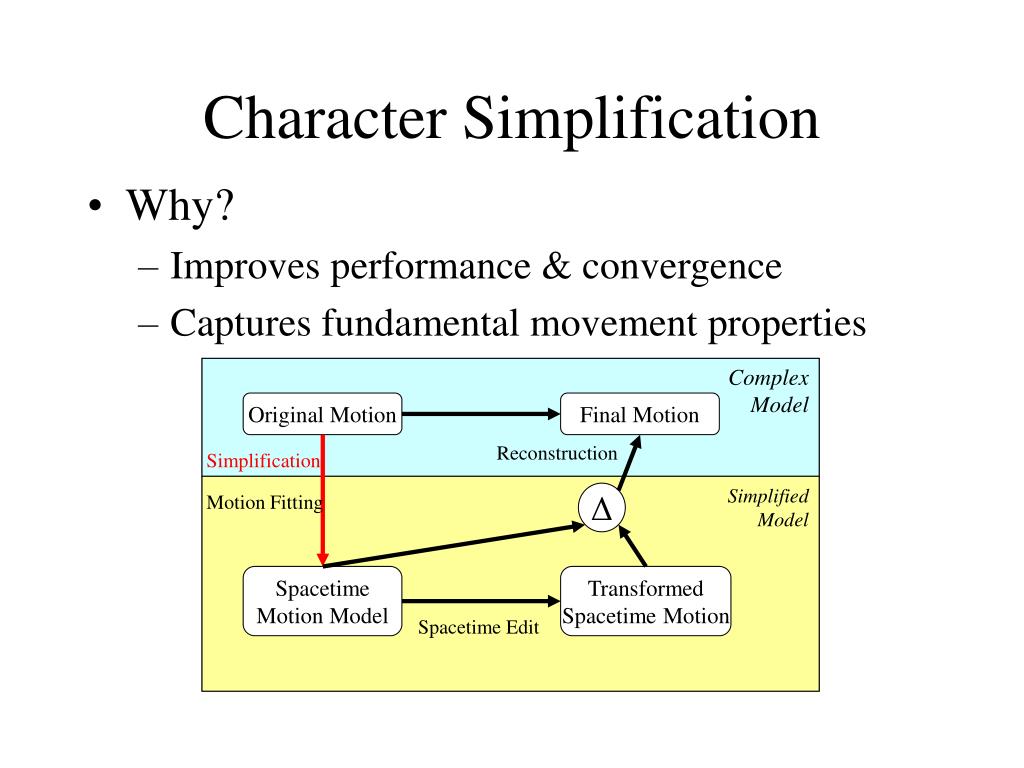

Character Simplification

  • Why?

    • Improves performance & convergence

    • Captures fundamental movement properties

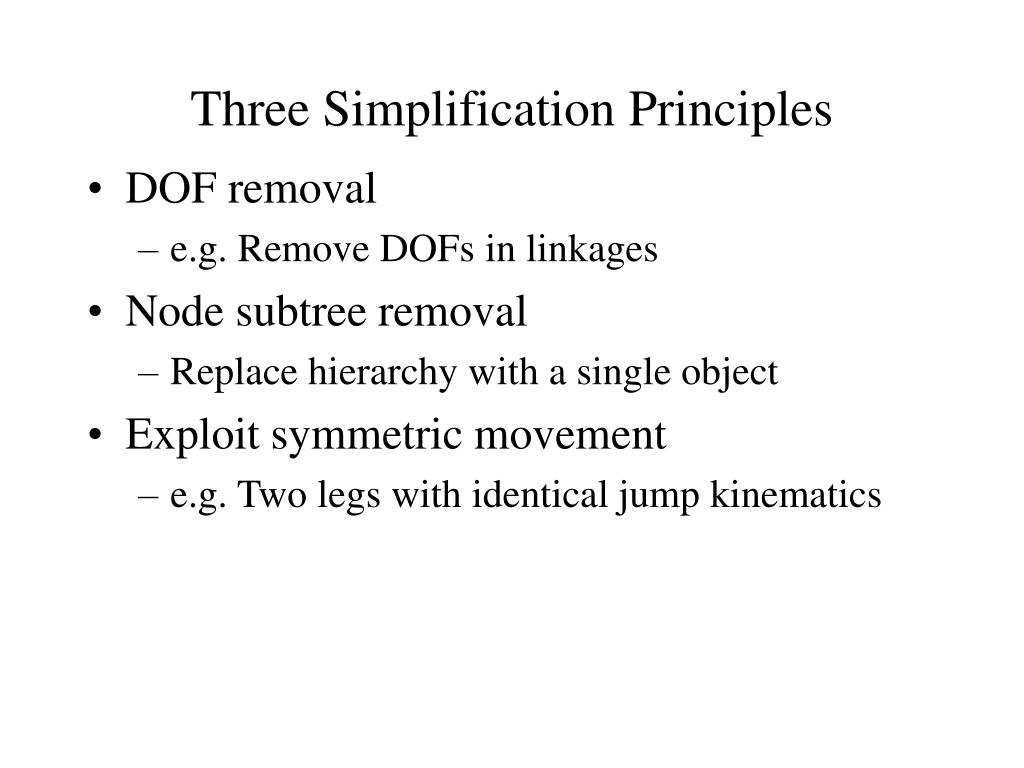

Three simplification principles

Three Simplification Principles

  • DOF removal

    • e.g. Remove DOFs in linkages

  • Node subtree removal

    • Replace hierarchy with a single object

  • Exploit symmetric movement

    • e.g. Two legs with identical jump kinematics


Mapping motion onto simplified model

Mapping motion onto simplified model

  • Overdetermined problem

    • simplified character has much fewer DOFs

  • Use Handles

    • correlate properties between complex and simplified motion sequences

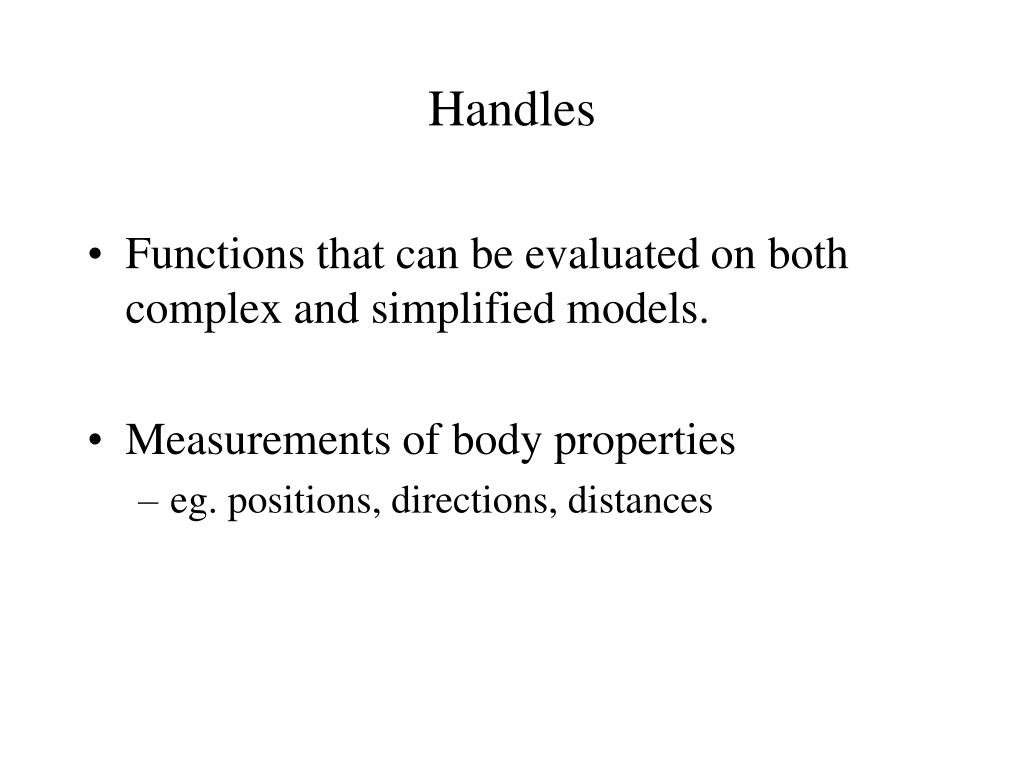

Handles

Handles

  • Functions that can be evaluated on both complex and simplified models.

  • Measurements of body properties

    • eg. positions, directions, distances

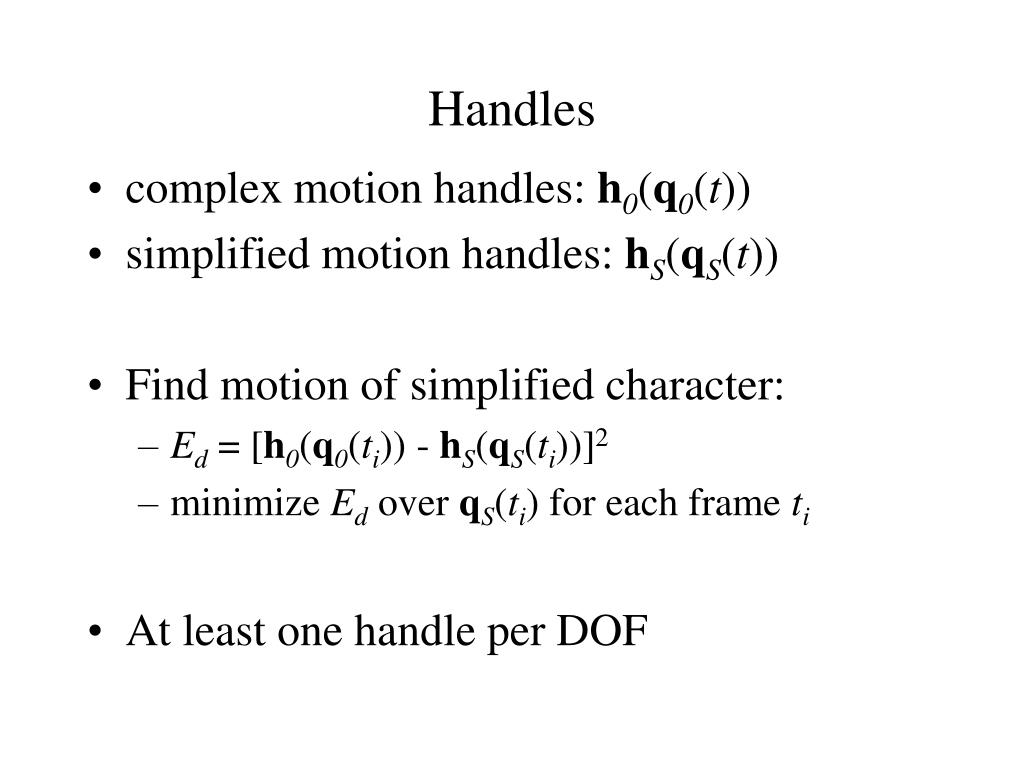

Handles1

Handles

  • complex motion handles: h0(q0(t))

  • simplified motion handles: hS(qS(t))

  • Find motion of simplified character:

    • Ed = [h0(q0(ti)) - hS(qS(ti))]2

    • minimize Ed over qS(ti) for each frame ti

  • At least one handle per DOF


Spacetime motion fitting

Complex

Model

Original Motion

Final Motion

Reconstruction

Simplification

Simplified

Model

Δ

Motion Fitting

Spacetime

Motion Model

Transformed

Spacetime Motion

Spacetime Edit

Spacetime Motion Fitting

  • Must make the simplified motion dynamically correct (and realistic)

  • Find the spacetime optimization problem most closely matching simplified motion


Spacetime motion fitting1

Spacetime Motion Fitting

  • Character has two kinds of DOFs - q(t)

    • kinematicqk(t)) and muscleqm(t))

  • Character is constrained by:

    • pose constraints: Cp

    • mechanical constraints: Cm

    • dynamics constraints: Cd

  • Optimization problem:

    • minimize objective function, E(q(t),t), over all DOFs, q(t), subject to:

      • Cp(q(t),t) = 0 Cm(q(t),t) = 0 Cd(q(t),t) = 0


Muscles

Muscles

  • Biomechanically accurate models are too complex

  • Use generalized muscle forces, Q

    • apply accelerations directly onto DOFs

    • minimum set of muscles for full range of motion

    • unstable spacetime optimization with poor convergence

  • Use damped generalized muscle force:

  • Velocity-dependent damping encourages smoothness

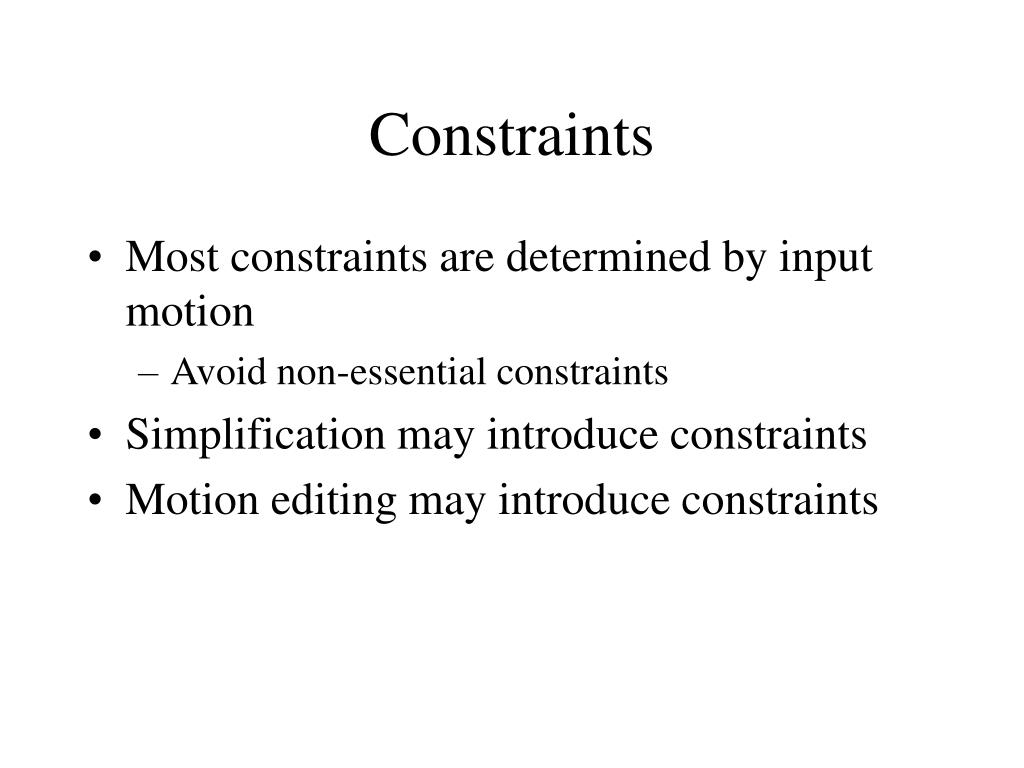

Constraints

Constraints

  • Most constraints are determined by input motion

    • Avoid non-essential constraints

  • Simplification may introduce constraints

  • Motion editing may introduce constraints

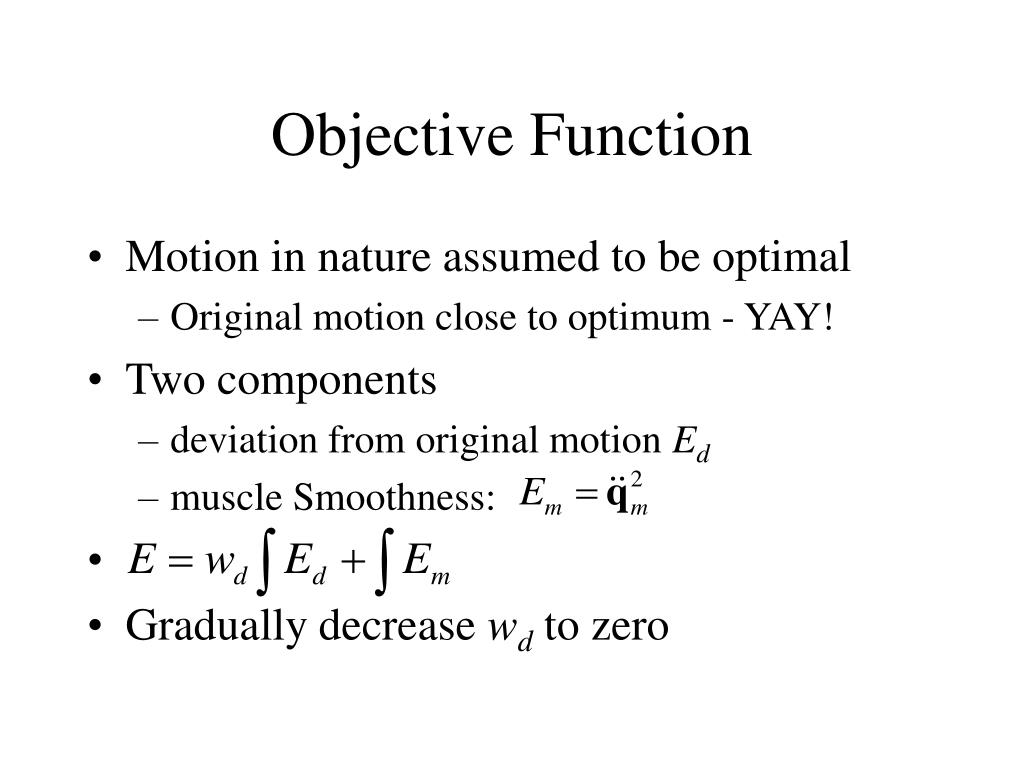

Objective function

Objective Function

  • Motion in nature assumed to be optimal

    • Original motion close to optimum - YAY!

  • Two components

    • deviation from original motion Ed

    • muscle Smoothness:

  • Gradually decrease wd to zero


Spacetime edit

Complex

Model

Original Motion

Final Motion

Reconstruction

Simplification

Simplified

Model

Δ

Motion Fitting

Spacetime

Motion Model

Transformed

Spacetime Motion

Spacetime Edit

Spacetime Edit

  • Modify dynamic properties of the simplified model of the animation


Spacetime edit1

Spacetime Edit

  • Change constraints

    • positions, timings

  • Add new constraints

  • Change the character model

  • Add new components to the objective function

  • After editing, re-solve spacetime optimization problem

    • Already close to solution. Converges quickly.


Motion reconstruction

Complex

Model

Original Motion

Final Motion

Reconstruction

Simplification

Simplified

Model

Δ

Motion Fitting

Spacetime

Motion Model

Transformed

Spacetime Motion

Spacetime Edit

Motion Reconstruction

  • Construct final motion from original complex motion and simplified spacetime motions


Motion reconstruction1

Motion Reconstruction

  • Now have three sets of handles

    • original motion handles: h0(q0)

    • spactime fit handles: hs(qs)

    • transformed spacetime handles: ht(qt)

  • Combine: hf(qf) = h0(q0) + (ht(qt) - hs(qs))

  • Solve for qf?

    • Number of handles much smaller than DOFs

    • problem is underdetermined


Motion reconstruction2

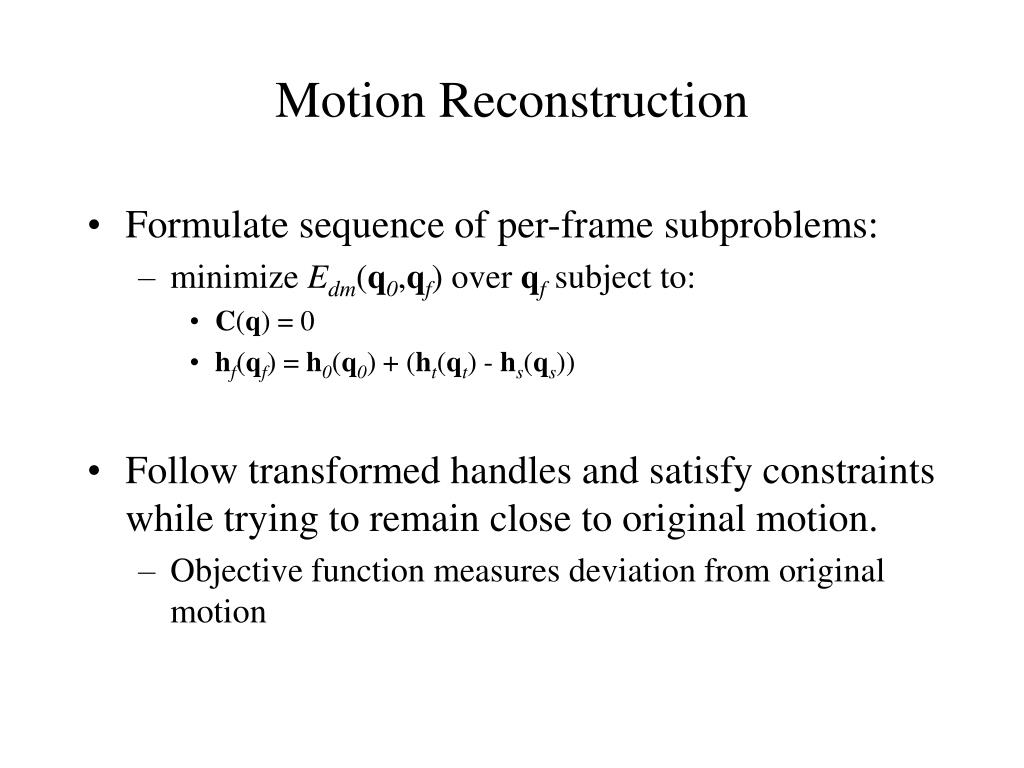

Motion Reconstruction

  • Formulate sequence of per-frame subproblems:

    • minimize Edm(q0,qf) over qf subject to:

      • C(q) = 0

      • hf(qf) = h0(q0) + (ht(qt) - hs(qs))

  • Follow transformed handles and satisfy constraints while trying to remain close to original motion.

    • Objective function measures deviation from original motion

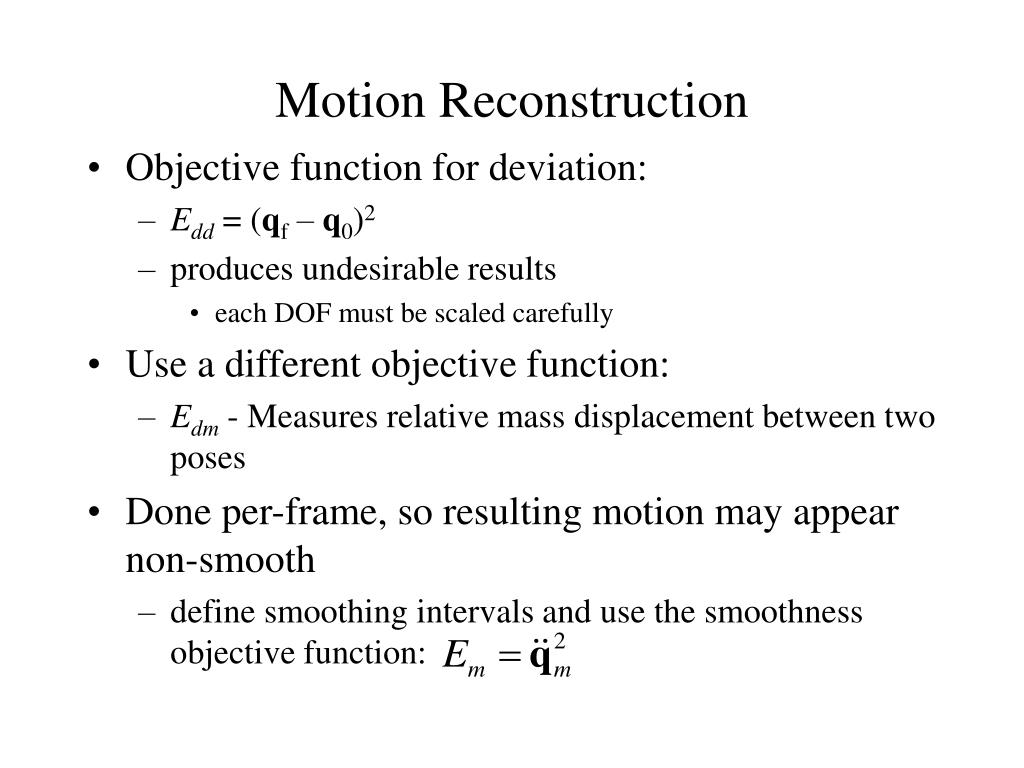

Motion reconstruction3

Motion Reconstruction

  • Objective function for deviation:

    • Edd = (qf – q0)2

    • produces undesirable results

      • each DOF must be scaled carefully

  • Use a different objective function:

    • Edm - Measures relative mass displacement between two poses

  • Done per-frame, so resulting motion may appear non-smooth

    • define smoothing intervals and use the smoothness objective function:

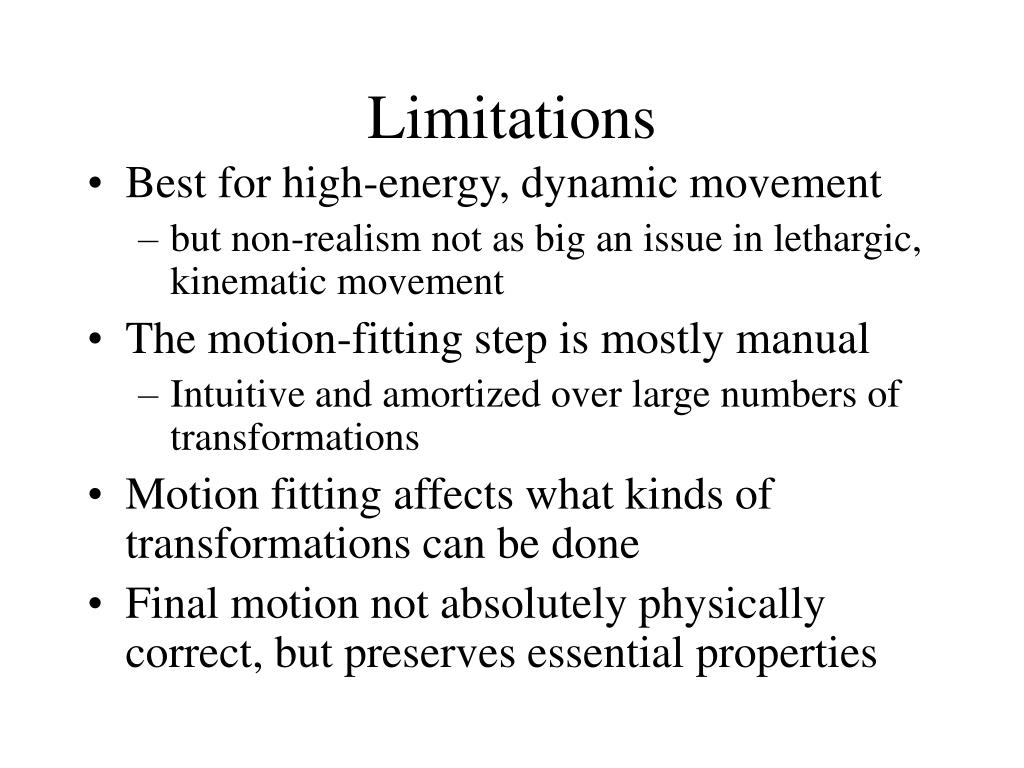

Limitations

Limitations

  • Best for high-energy, dynamic movement

    • but non-realism not as big an issue in lethargic, kinematic movement

  • The motion-fitting step is mostly manual

    • Intuitive and amortized over large numbers of transformations

  • Motion fitting affects what kinds of transformations can be done

  • Final motion not absolutely physically correct, but preserves essential properties


Results

Results

  • Fitting: 15-20 minutes

  • Transformation optimization: ~2 minutes
