Presentation Transcript


Special case of 2d motion projectile motion

Special Case of 2D Motion:Projectile Motion


Special case of 2d motion projectile motion

Recall Gravity

  • The acceleration due to gravity

  • What goes up.

  • Must come down.

ag= g = 9.8 m/s2 [Down]

Vf = 0 m/s

Vi = 0 m/s

Vi = 10 m/s

Vf = -10 m/s


Concept check

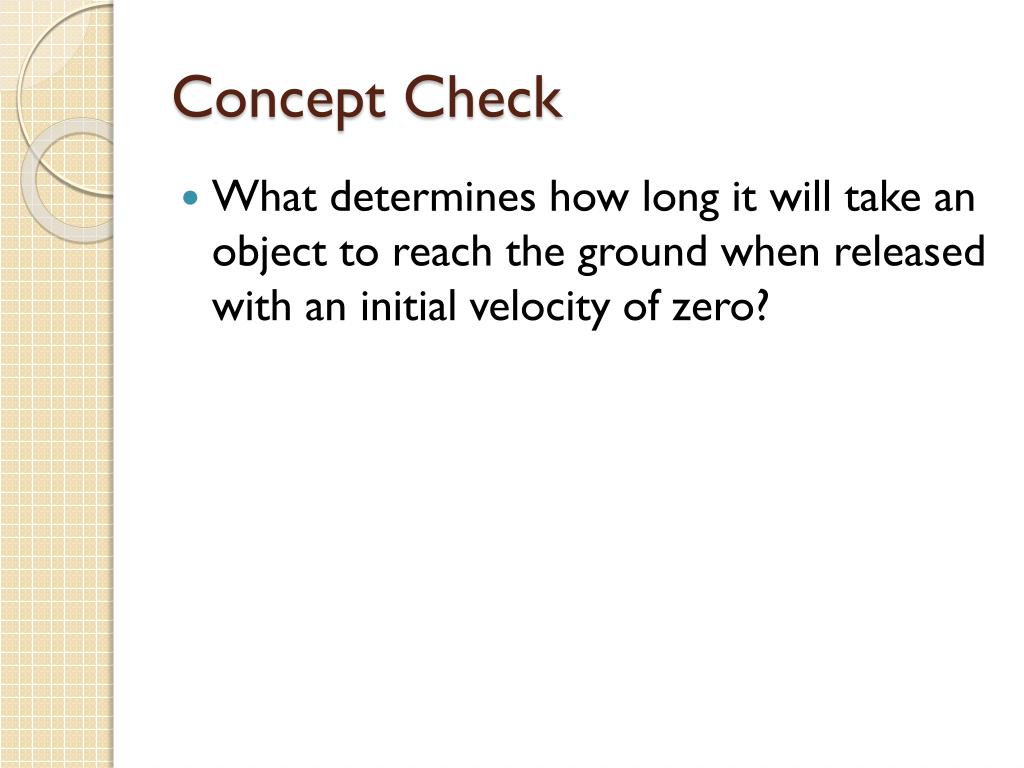

Concept Check

  • What determines how long it will take an object to reach the ground when released with an initial velocity of zero?

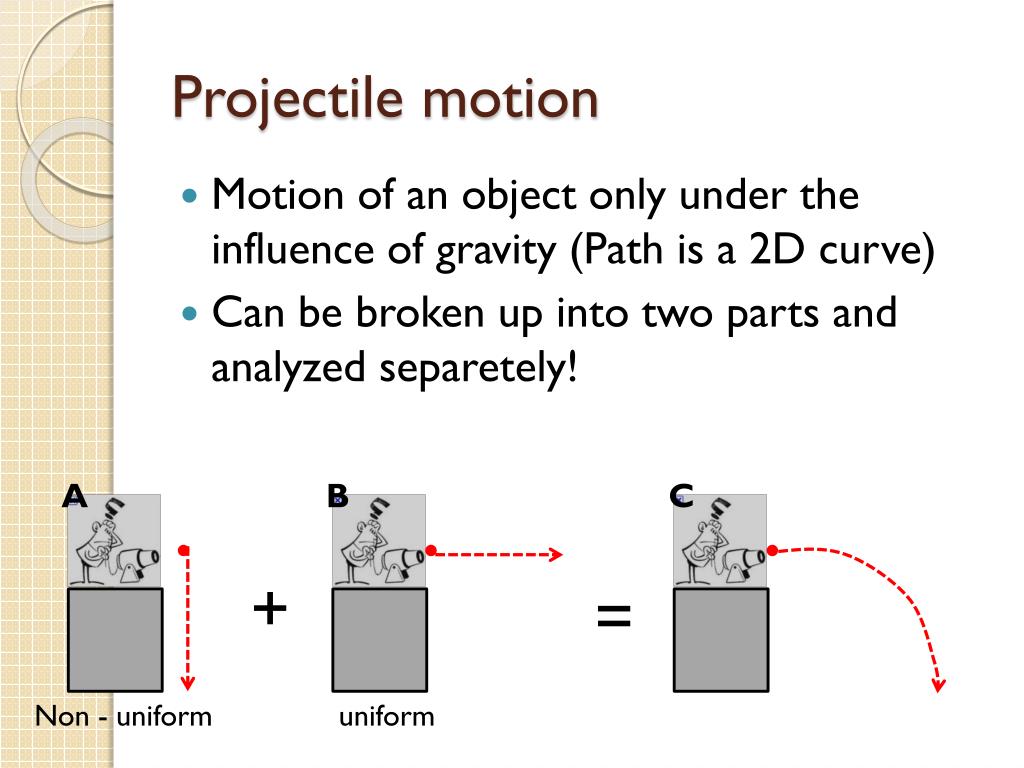

Projectile motion

Projectile motion

  • Motion of an object only under the influence of gravity (Path is a 2D curve)

  • Can be broken up into two parts and analyzed separetely!

A

B

C

+

=

Non - uniform

uniform


Special case of 2d motion projectile motion

Sample Problem

  • A cannon on top of a 10 m wall fires a cannonball at an initial velocity of 10 m/s in the horizontal direction. How far will the cannonball go before it hits the ground?

C

G:

R: Δdx = ?

  • In the “X” Direction

  • vx = 10 m/s [R]

  • Use Δdx = vx × Δt

X-Y Position

12

10

  • In the “Y” Direction

  • viy = 0 m/s

  • diy = 10 m [D]

  • ay = 9.8 m/s2 [D]

  • Use Δdy = viyΔt +1/2 ay (Δt)2

8

6

4

2

0

2

4

6

8

10

12

14

0

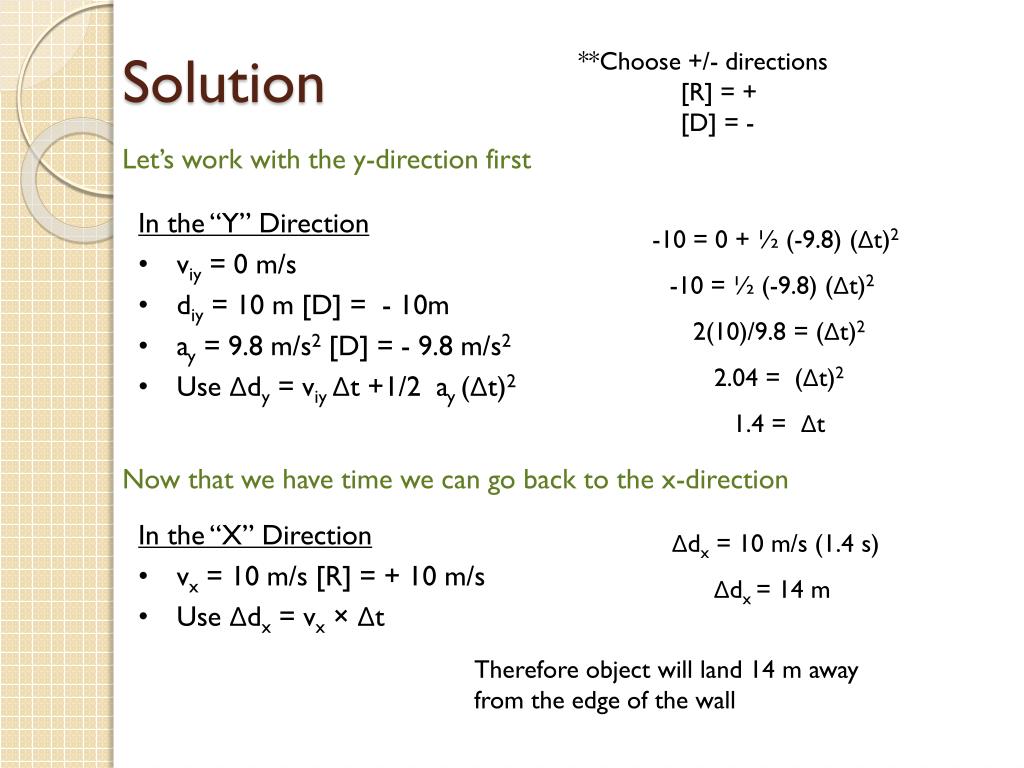

Solution

Solution

**Choose +/- directions

[R] = +

[D] = -

Let’s work with the y-direction first

  • In the “Y” Direction

  • viy = 0 m/s

  • diy = 10 m [D] = - 10m

  • ay = 9.8 m/s2 [D] = - 9.8 m/s2

  • Use Δdy = viyΔt +1/2 ay (Δt)2

-10 = 0 + ½ (-9.8) (Δt)2

-10 = ½ (-9.8) (Δt)2

2(10)/9.8 = (Δt)2

2.04 = (Δt)2

1.4 = Δt

Now that we have time we can go back to the x-direction

  • In the “X” Direction

  • vx = 10 m/s [R] = + 10 m/s

  • Use Δdx = vx × Δt

Δdx = 10 m/s (1.4 s)

Δdx= 14 m

Therefore object will land 14 m away from the edge of the wall


Special case of 2d motion projectile motion

  • Still confused, look at Example 1 on pg 77
