  1. Detecting OAM&P design defects using a feature interactionapproach- Internet telephoney service focus Team 9+ 5004692 2273994 3484095 3028498 5007299 3411946 3474249

  2. Purpose • Introduce Feature Interaction (FI) and OAM&P • Provide methods handling FI • Provide methods detecing FI in OAM&P

  3. Outline • Concepts of FI and OAM&P • Current Research Motivation • Methods handling FI under OAM&p • Case Study • Conclusions

  4. Feature Interaction Defination: Services running at the same time create undesired alters affecting behaviors

  5. Feature Interaction Example: • Original Call Screening (OCS) allows users create a blacklist to block calls • Call Forwarding Unconditional (CFU) allows users to redirect call FI Problems: • If user A has OCS with user C and user B has CFU to C • when A calls B, FI problem occurs

  6. OAM&P • Operation • Adminstration • Maintance • Provision

  7. OAM&P Functions of OAM&P • Operations: Coordinating between other aspects • Adminstration: Designing network, processing orders, assigning address, tracking usages and accounting • Maintance: Diagnosing and repairing errors • Provisioning: Installing equipment, setting paremeters,verfying service, updating and de-installing

  8. Current Reserach Motivation • Foucs on grey-colour components • Few studies on addressing problems • TMN frames (FCAPS) standarize OAM&P implentation in PTSN • No more interest in OAM&P FI because OAM&P not directly influence end-user's usage of service

  9. Methods Handling FI • Handling FI Problems • Period: Design Time • Components • 1. Detecting • 2. Resolving

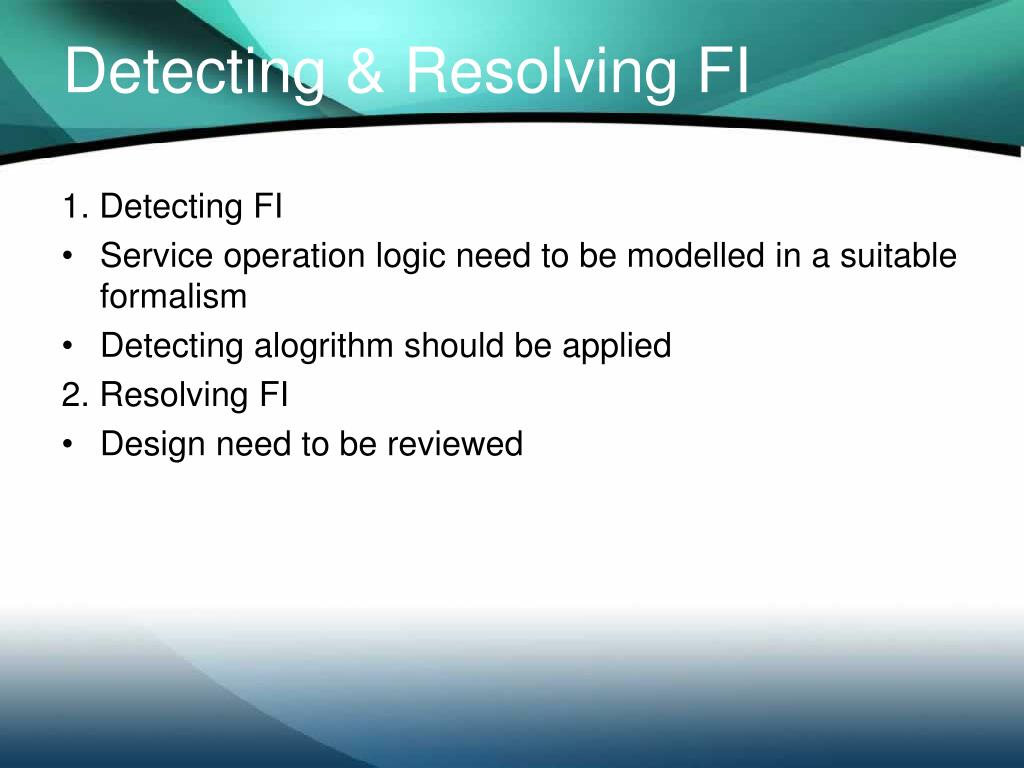

  10. Detecting & Resolving FI 1. Detecting FI • Service operation logic need to be modelled in a suitable formalism • Detecting alogrithm should be applied 2. Resolving FI • Design need to be reviewed

  11. P509 FI Detection Method • Period: 1995-1996 • Area: European Companies • Object: consistent and cost-effective FI solution covering whole service lifecycle • Mission:analyzing all solutions and modelling approaches reported by specialized literature so far

  12. P509 FI Detection Method Defining four FI detection models 1. Concept-based 2. Goal-based 3. Feature invocation graph‐based 4. Pre/post‐condition‐based NOTE: Only first detection applied to OAM&P features!

  13. P509 FI Detection Method Details: 1.Modelling a service as a sequence of manipulations performed on concepts; 2.Manipulation actions could be to read or to modify; 3.Concepts are addresses, call state, charging records, etc; 4.Comparing two service models. Example: An interaction detected service reads a concept that is modified by the other service

  14. P509 FI Detection Method Applied to previous example:

  15. OAM&P Modelling Feature Relationship Changes made to P509: 1.Features:System concept and entites OAM&P services built on 2. Relationship 2.1 Use:not affect data or processing 2.2 Modify: affect data or processing

  16. FI Detection Procedure 1.General Princples: Comparison of couples of ERs 2.Two Types: (1)UM: A uses C, B modifies C (2)MM: A modifies C, B modifies C 3.Check: (1) UM: B's modify alter A's logic? (2)MM: C accept modify? 4.Results: (1)Not undersirable, ignored. (2)Need to review

  17. Case Study Internet Telephoney Softswitch Input:136 ERs Algorithm:

  18. Case Study Input and Results:

  19. FI Flow Chart - UM Interaction

  20. FI Flow Chart - UM Interaction

  21. FI Flow Chart - MM Interaction

  22. FI Flow Chart - MM Interaction

  23. FI Flow Chart - MM Interaction

  24. FI Flow Chart - MM Interaction

  25. FI Flow Chart - MM Interaction

  26. FI Flow Chart - MM Interaction

  27. FI Flow Chart - MM Interaction

  28. Conclusions: • Feature Interaction (FI)could be avoided in design time; • Implementing FI problem approach: (1)Modelling Feature relationship 1.UM 2.MM (2)Check each one through compairing (3)Reporting results (4)Modifying Design

  29. Thank you for Listening!
