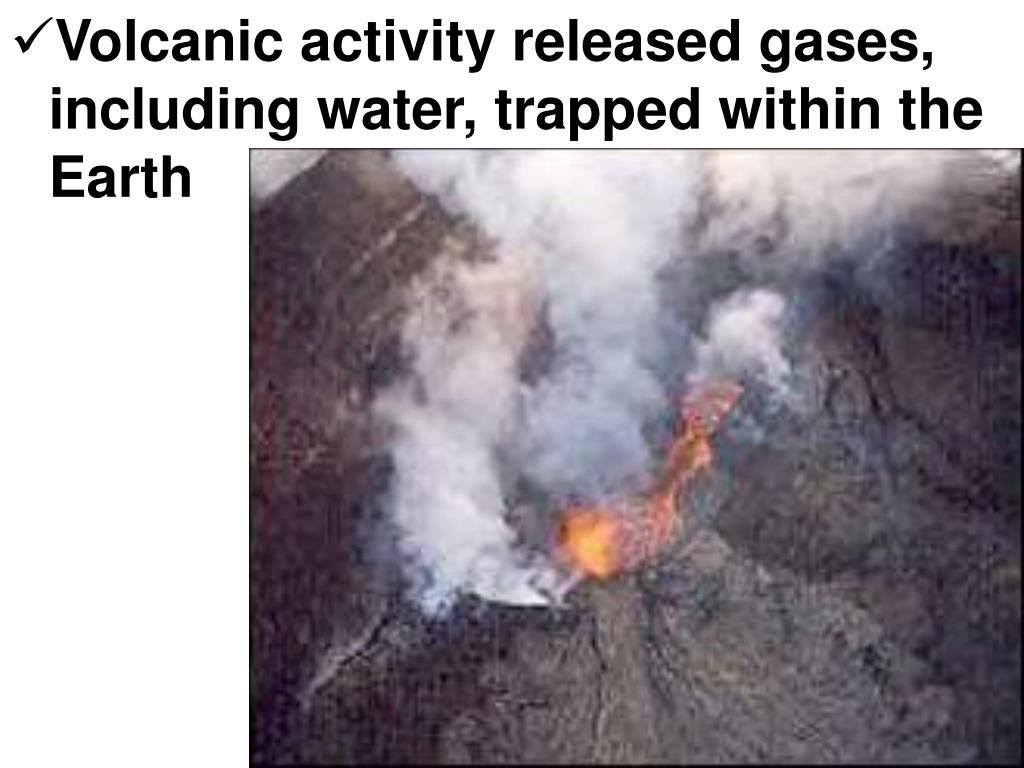

SO, HOW DID THE OCEANS FORM?. Earth was molten at first Heavy metals migrated to the center while lighter elements moved toward the surface Hydrogen and oxygen migrated toward the surface to form an atmosphere. Volcanic activity released gases, including water, trapped within the Earth.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'OCEAN FORMATION' - erika


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript

Slide2 l.jpg

Earth was molten at first

Heavy metals migrated to the center while lighter elements moved toward the surface

Hydrogen and oxygen migrated toward the surface to form an atmosphere



Slide4 l.jpg

Earth cooled, gases in the atmosphere condensed, and rain fell

It may have rained for 10 million years


Ocean formation l.jpg
OCEAN FORMATION fell

  • Rain during the formation of Earth




Slide8 l.jpg

Approximately 0.1 km fell3 of new water is added to the ocean each year, mostly from vents



Geographic puzzle l.jpg
Geographic Puzzle fell

  • Alfred Wegener noted that Africa and South America appear to fit together neatly, like the pieces of a jigsaw puzzle

  • He proposed that the continents had been joined and had since drifted apart


Pangaea l.jpg
Pangaea fell

  • Wegener suggested that 225 million years ago all of the land masses were connected in a supercontinent called Pangaea, a Greek word meaning ‘all lands’

  • Panthalessa, Greek for ‘all seas’, was the name given to the resulting world ocean.


Wegener s evidence l.jpg
Wegener’s Evidence fell

  • Fossil remains in continuous bands across continents

  • Cynognathus - a land reptile from the Triassic period and

  • Glossopteris – a tropical fern

  • mountain ranges and coal deposits run uninterrupted across both continents


Continental drift l.jpg
Continental Drift fell

  • Wegener proposed that the continents floated somewhat like icebergs in water

  • And that the continents had drifted apart

  • He did not know what caused the continents to drift apart

  • His theories were not widely accepted



Science and the war l.jpg
Science and the War continents

  • During WWII, Harry Hess was a captain in the Navy on a transport ship.

  • His vessel was equipped with an echo sounder (SONAR) which Hess used to map the ocean floor to aid the war effort

  • In the postwar period the Atlantic was extensively mapped and the Mid-Atlantic Ridge was discovered


Mid atlantic ridge l.jpg
Mid-Atlantic Ridge continents

  • a giant undersea mountain range extending north to south in the center of the Atlantic Ocean

  • Ocean sediments were discovered to be youngest near the ridge and oldest near the continental margins.

  • MAR is evidence of sea-floor spreading



Sea floor spreading l.jpg
Sea-Floor Spreading the surface

  • Hess’s theory that new ocean crust is formed at mid-ocean ridges and destroyed at subduction zones.

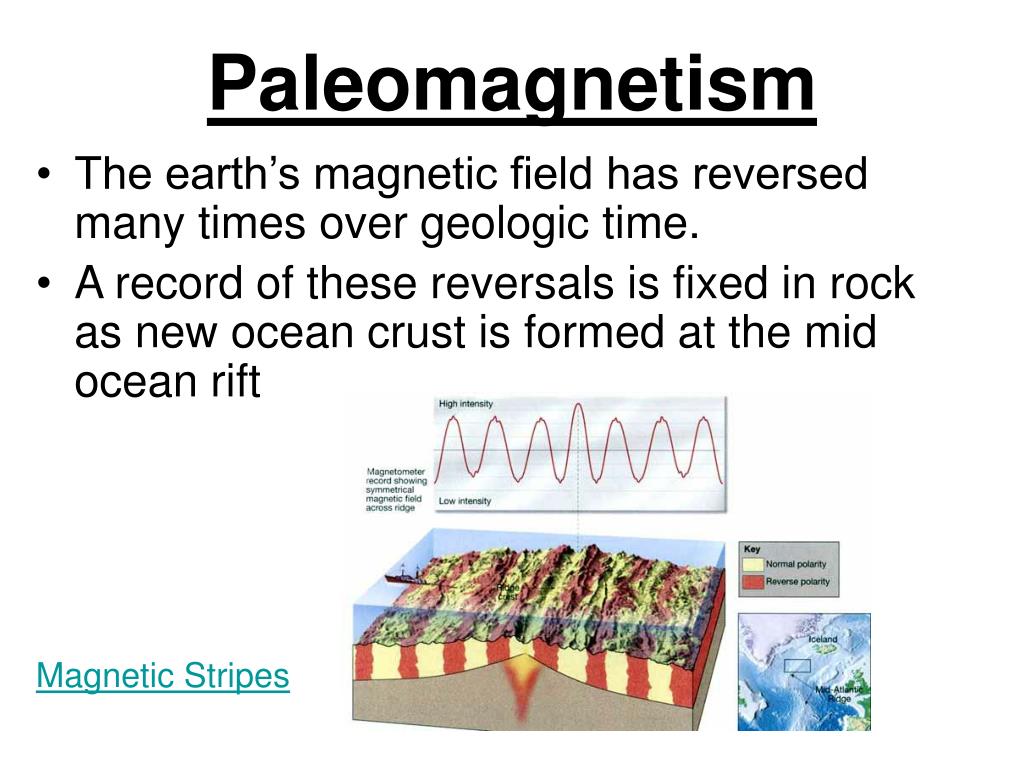

Paleomagnetism l.jpg
Paleomagnetism the surface

  • The earth’s magnetic field has reversed many times over geologic time.

  • A record of these reversals is fixed in rock as new ocean crust is formed at the mid ocean rift

Magnetic Stripes

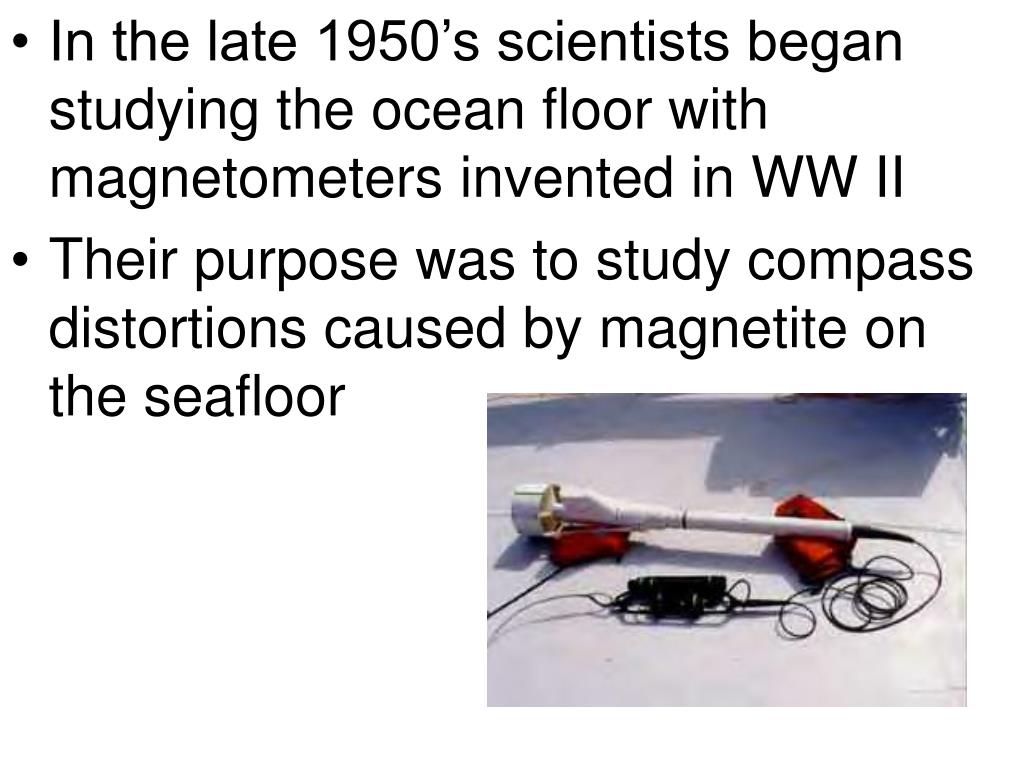

Slide22 l.jpg

In the late 1950’s scientists began studying the ocean floor with magnetometers invented in WW II

Their purpose was to study compass distortions caused by magnetite on the seafloor


Slide23 l.jpg

What did they find? floor with magnetometers invented in WW II

A series of stripes along the ocean floor

One stripe adds to the Earth’s magnetic field causing a strong signal on the magnetometer

The stripes adjacent to this stripe subtracts from Earth’s magnetic field, causing a weak signal on the magnetometer

These stripes were found to be symmetrical around the crests of the mid-ocean ridge


Slide24 l.jpg


Slide25 l.jpg

In 1963 an interpretation of these stripes was developed associated with changes in the motion of the magnetic material of Earth’s outer core

Earth’s magnetic field reverses at regular intervals of a few hundred thousand years

During a reversal, a compass points south, also causing the iron-bearing minerals in newly forming rocks to point south


Apparent polar wandering l.jpg
APPARENT POLAR WANDERING associated with changes in the motion of the magnetic material of Earth’s outer core

  • The location of the North Pole can be plotted from the magnetic orientation of rocks alone

  • When such data was plotted, it appeared that the North Pole was once in the middle of the Pacific


The theory of plate tectonics l.jpg
The Theory of Plate Tectonics associated with changes in the motion of the magnetic material of Earth’s outer core

  • a combination of two earlier ideas, continental drift and sea-floor spreading.

  • According to the theory, the surface of the Earth is broken into large plates.

  • The size and position of these plates change over time.

  • The edges of these plates, where they move against each other, are sites of intense geologic activity, such as earthquakes, volcanoes, and mountain building


Map of tectonic plates l.jpg
Map of Tectonic Plates associated with changes in the motion of the magnetic material of Earth’s outer core


Plate tectonics l.jpg
Plate Tectonics associated with changes in the motion of the magnetic material of Earth’s outer core

  • Evidence from fossils

  • Seafloor spreading

  • Geomagnetic time scale (paleomagnetism)


Plate boundaries31 l.jpg
Plate boundaries associated with changes in the motion of the magnetic material of Earth’s outer core

  • Convergent Boundary–

    • mountain building – India Himalayas

  • Divergent Boundary–

    • rift (trenches) – Mid Atlantic Rift

  • Transform Boundary–

    • slide by each other – San Andreas fault


Plate motion l.jpg
Plate Motion associated with changes in the motion of the magnetic material of Earth’s outer core

  • ?????????

  • Convection

  • Magma- pushes up from the earth


Plate boundaries33 l.jpg
Plate Boundaries associated with changes in the motion of the magnetic material of Earth’s outer core

  • Convergent

  • Crust is destroyed

  • Ex: Marianas Trench, Himalayas forming in Asia


Plate boundaries34 l.jpg
Plate Boundaries associated with changes in the motion of the magnetic material of Earth’s outer core

  • Divergent

  • New crust forms

  • Ex: Mid-ocean rift


Plate boundaries35 l.jpg
Plate Boundaries associated with changes in the motion of the magnetic material of Earth’s outer core

  • Transform

  • Crust is not created or destroyed

  • Ex: San Andreas

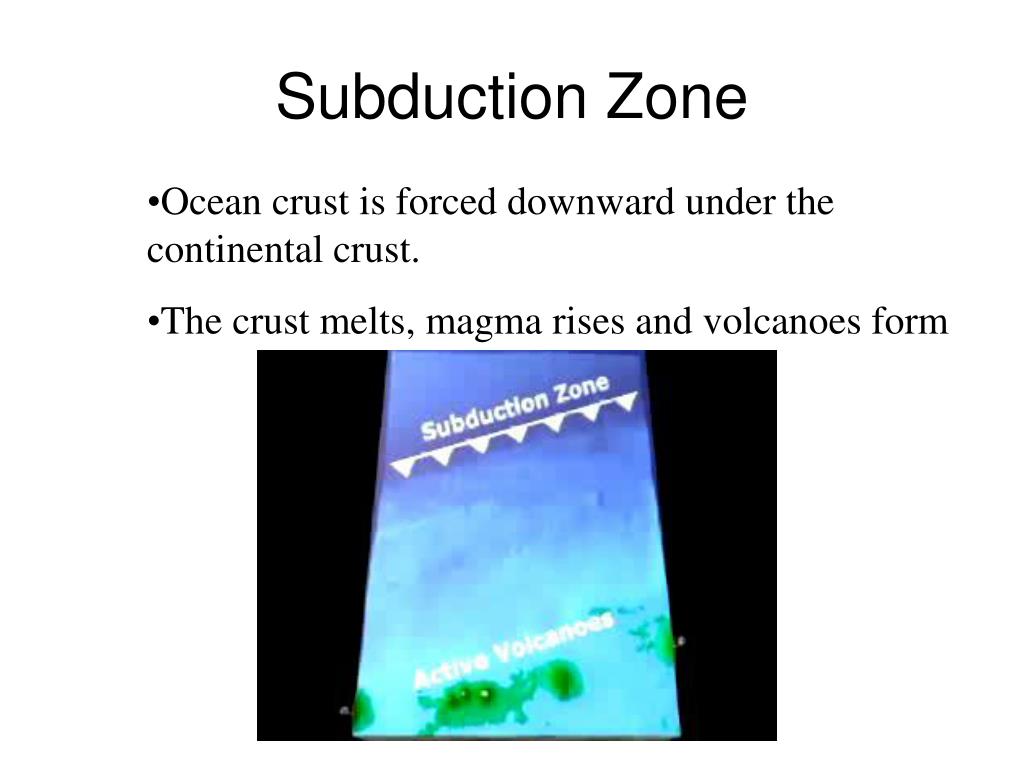

Subduction zone l.jpg
Subduction Zone associated with changes in the motion of the magnetic material of Earth’s outer core

  • Ocean crust is forced downward under the continental crust.

  • The crust melts, magma rises and volcanoes form

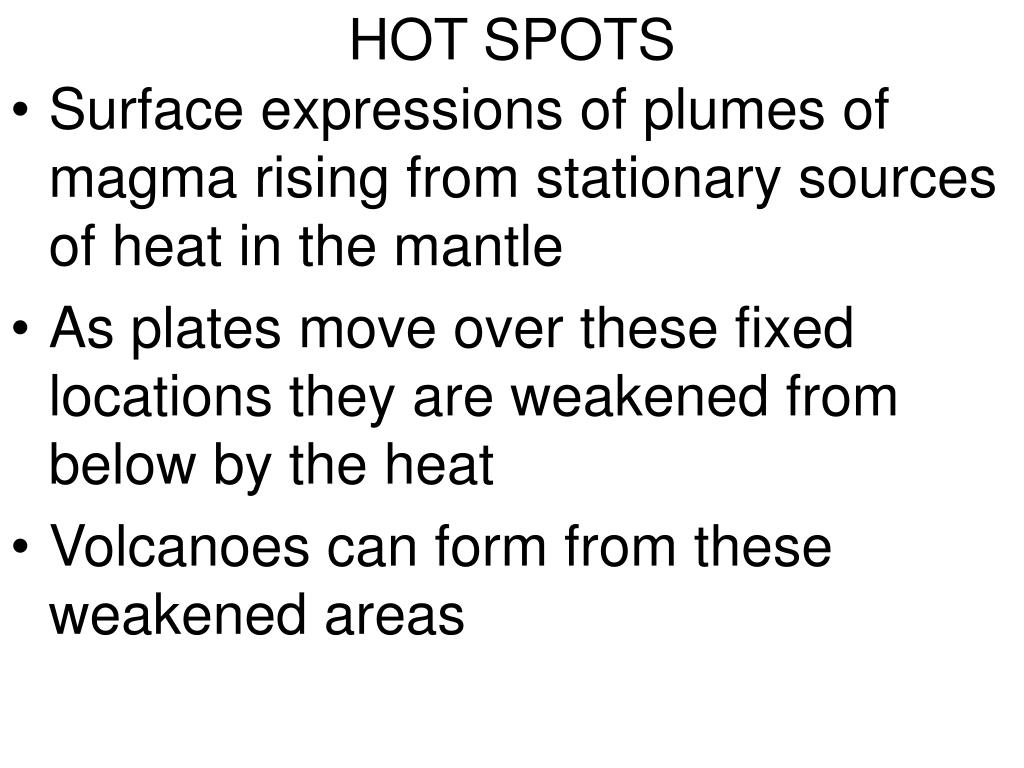

Hot spots l.jpg
HOT SPOTS associated with changes in the motion of the magnetic material of Earth’s outer core

  • Surface expressions of plumes of magma rising from stationary sources of heat in the mantle

  • As plates move over these fixed locations they are weakened from below by the heat

  • Volcanoes can form from these weakened areas


Slide38 l.jpg

After a few million years the volcano is carried away from the hot spot and a new volcano can form

Can result in a chain of volcanic islands

Observe an animation of volcanic islands forming over a hot spot.


Slide40 l.jpg

Hot spots can be anywhere on a plate the hot spot and a new volcano can form

No one knows what anchors them in place

New evidence suggests that they might move over time

Yellowstone National Park is believed to be over a hot spot beneath the westward-moving North American Plate

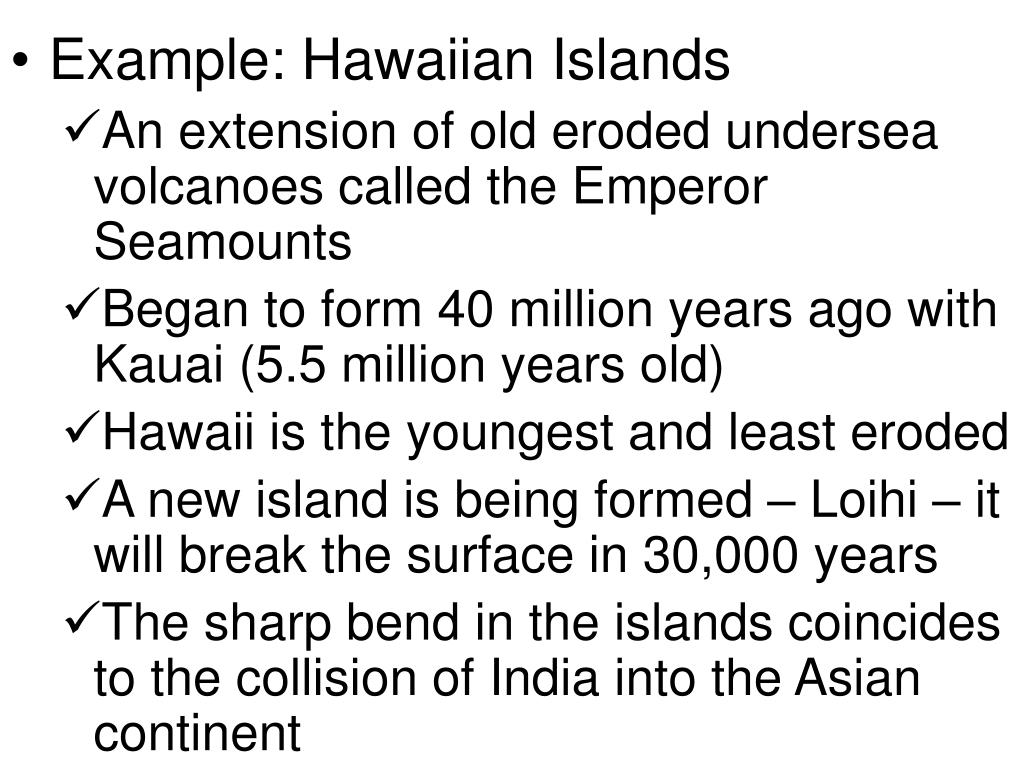

Slide41 l.jpg

  • Example: Hawaiian Islands the hot spot and a new volcano can form

    • An extension of old eroded undersea volcanoes called the Emperor Seamounts

    • Began to form 40 million years ago with Kauai (5.5 million years old)

    • Hawaii is the youngest and least eroded

    • A new island is being formed – Loihi – it will break the surface in 30,000 years

    • The sharp bend in the islands coincides to the collision of India into the Asian continent


Slide43 l.jpg

There are over 100 hot spots world-wide the hot spot and a new volcano can form


Atolls l.jpg
ATOLLS the hot spot and a new volcano can form

  • Ringed shaped islands of coral reefs centered over inactive volcanoes

  • Coral can only grow in shallow water

  • The remains of coral reefs associated with atolls are found in very deep water


Slide45 l.jpg

How does this occur? the hot spot and a new volcano can form

As a volcano moves from a spreading center it cools and its density increases

Sinking results due to isostatic equilibrium

If the sinking is gradual, the coral can continue to grow on top of the dead, sinking coral


Guyots l.jpg
GUYOTS the hot spot and a new volcano can form

  • Volcanic islands that sink as the island moves away from the spreading center

  • Their tops erode, becoming flat as the island sinks


Age and distribution of sediments l.jpg
AGE AND DISTRIBUTION OF SEDIMENTS the hot spot and a new volcano can form

  • If the ocean basins are as old as the rest of Earth

    • Sediments should be very thick

      • Sediments are 15 to 20 times thinner than age would suggest


Slide49 l.jpg

Spreading centers are almost free of sediment the hot spot and a new volcano can form

The oldest sediments are around 180 million years old
