Presentation Transcript
Hydrocephalus and neuro shunting l.jpg

Hydrocephalus and Neuro Shunting

Sales Training

April 2001

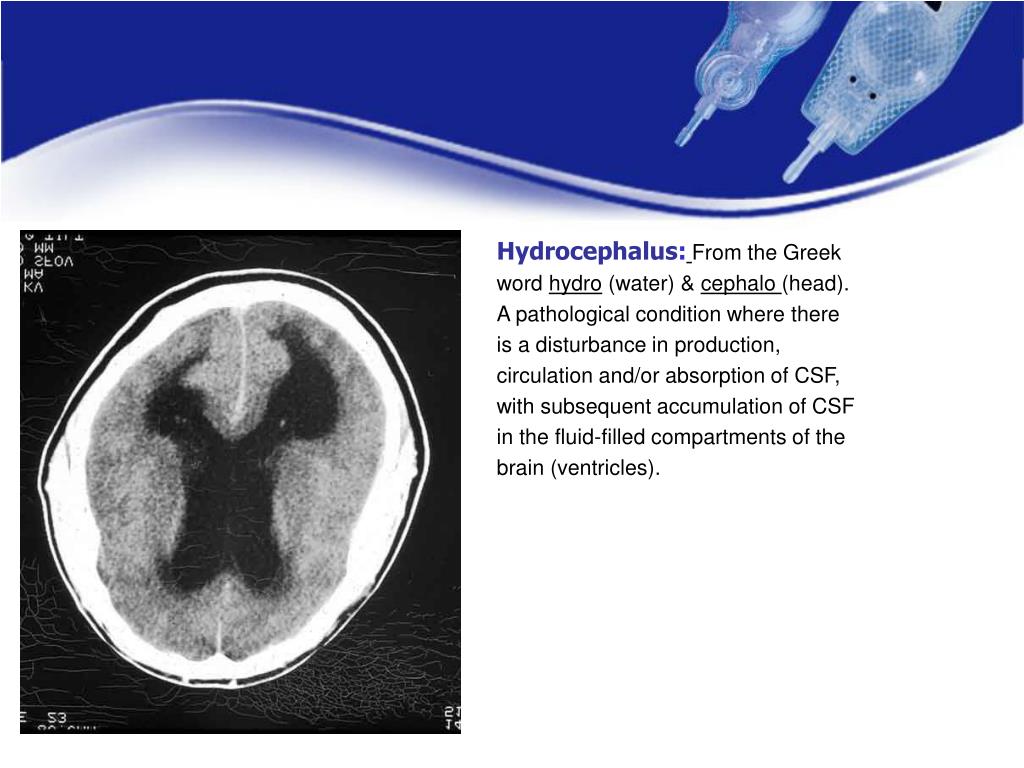

Slide2 l.jpg

  • Hydrocephalus:From the Greek

  • word hydro (water) & cephalo (head).

  • A pathological condition where there

  • is a disturbance in production,

  • circulation and/or absorption of CSF,

  • with subsequent accumulation of CSF

  • in the fluid-filled compartments of the

  • brain (ventricles).


About csf cerebrospinal fluid l.jpg
About CSF(Cerebrospinal Fluid)

  • Clear, colorless fluid

  • Bathes, nourishes & protects brain and spinal cord.

  • Average CSF production-20ml/hr adults and 8ml/hr children

  • 400 to 500cc produced daily contains 15 to 45mg/100ml protein,some glucose, salts, urea and WBC’s


Ventricular system l.jpg
Ventricular System

  • Fluid filled cavities deep in cerebrum w/ pressure of 120-180mmH2O

  • Four ventricles

    • 2 Lateral

    • Third

    • Fourth

  • Connected by

    • Foramen of Monro

    • Aqueduct of Sylvius


Slide6 l.jpg

Choroid Plexus

Very vascular

Found throughout but mostly in lateral

Responsible for ICP waveform/

follows arterial pulse


Brain layers csf absorption l.jpg
Brain Layers/CSF Absorption

A. - Arachnoid

A.G. - Arachnoid

Granulation

B. - Bone

C.A. - Cerebral Artery

C.V. - Cerebral Vein

D. - Dura Mater

F.C. - Falx Cerebri

P.M. - Pia Mater

S. - Skin

S.A.S. - Sub-Arachnoid

Space

S.D.S. - Sub-Dural Space

S.S.S. - Superior Sagittal

Sinus


Csf flow path l.jpg
CSF Flow-path

  • CSF flows in a caudal direction through the lateral, third and fourth ventricles

  • Exits through foramina of Luschka and Magendie into subarachnoid space around spinal cord and brain.

  • Absorption occurs through the arachnoid granulations into the venous system.


Types of hydrocephalus l.jpg

Communicating

Non-communicating or Obstructive

Normal Pressure Hydrocephalus

Congenital

Acquired

Types of Hydrocephalus


Slide10 l.jpg

CT Scan Showing severe

hydrocephalus

Normal CT Scan


Etiology of hydrocephalus l.jpg
Etiology of Hydrocephalus

  • Communicating

    • Overproduction/underabsorption of CSF

    • Choroid Plexus Papilloma-overproduces CSF

    • SAH

    • Infection

    • Neoplasms affecting the meninges

    • Trauma

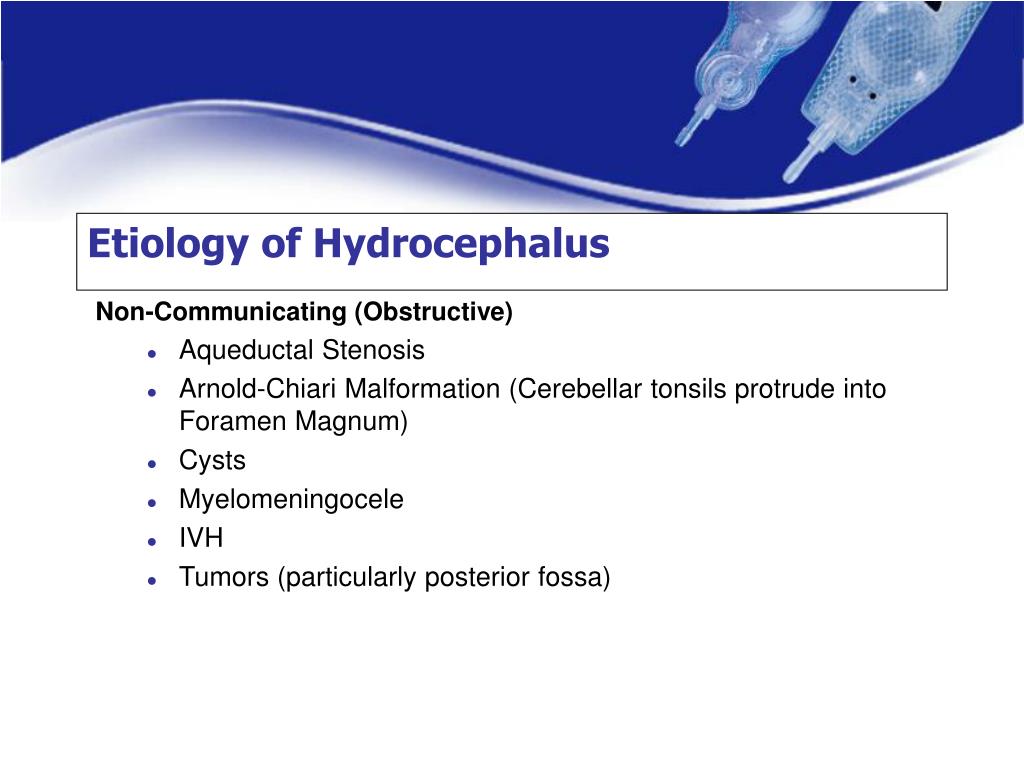

Etiology of hydrocephalus12 l.jpg
Etiology of Hydrocephalus

  • Non-Communicating (Obstructive)

    • Aqueductal Stenosis

    • Arnold-Chiari Malformation (Cerebellar tonsils protrude into Foramen Magnum)

    • Cysts

    • Myelomeningocele

    • IVH

    • Tumors (particularly posterior fossa)


Normal pressure hydrocephalus l.jpg
Normal Pressure Hydrocephalus

  • Usually present in elderly

  • Ventricular dilation despite normal CSF pressure

  • Triad of symptoms

  • 1) dementia

  • 2) gait disturbances (usually earliest)

  • 3) urinary incontinence


Signs symptoms associated with hydrocephalus l.jpg
Signs & Symptoms Associated with Hydrocephalus

  • Infants

    • Increased head size

    • Bulging Fontanels

    • Separation of Cranial Sutures

    • Prominent Scalp Veins

    • Persistent Vomiting

    • Lethargy or irritability

    • “Setting Sun” eyes

    • Seizures

    • Delayed Development


S s associated with hydrocephalus cont l.jpg
S/S Associated with Hydrocephalus, cont.

  • Toddlers

    • Increased head size

    • Persistent vomiting

    • Headache

    • Lethargy or irritability

    • “Setting Sun” eyes

    • Blurred Vision

    • Seizures

    • Delayed Development


Hydrocephalus l.jpg
Hydrocephalus

  • “SETTING SUN” EYES


S s associated with hydrocephalus cont18 l.jpg
S/S Associated with Hydrocephalus, cont.

  • Older Children & Adults

    • Persistent Vomiting

    • Headache**

    • Visual Problems

    • Lethargy

    • Behavior Changes

    • Difficulty with schoolwork

    • Seizures


Diagnosis l.jpg
Diagnosis

  • Clinical Evaluation

  • Ultrasound (Intrauterine & through Fontanels.

  • CT Scan

  • MRI


Treatment modalities l.jpg
Treatment Modalities

  • Surgical Procedures

    • Remove obstruction (Blood Clots, Tumors)

    • Endoscopic Third Ventriculostomy

    • Septal Fenestrations (Endoscopic)

    • Cyst Fenestrations (Endoscopic)

    • Shunt Insertion


Interventions for hydrocephalus l.jpg
Interventions for Hydrocephalus

  • If untreated:

  • *50-60% die of complications

  • If treated:

  • *40% normal intelligence

  • *70% live beyond infancy



Historical treatment of hydrocephalous l.jpg
Historical Treatment of Hydrocephalous

  • Hippocrates recognizes water accumulation in the brain.

  • 1545-Thomas Phaire-1st non-surgical treatment--Herbal plasters, head wraps

  • 18th Century--ventricular puncture--death from meningitis common

  • 1800’s-Variety of materials used to “wick” CSF from ventricles to subarachnoid space (i.e., linen threads, glass wool, rubber tube)

  • 1898-first lumboperitoneal shunt


Historical treatment of hydrocephalous con t l.jpg
Historical Treatment of Hydrocephalous, con’t

  • 1922-Dandy-third ventriculostomy through subfrontal

  • approach

  • 1923-Mixter-1st endoscopic 3rd Vent., choroid plexectomy

  • (L’Espinasse, Hildebrande, Dandy, Putnam and Scarff)

  • 1950’s-First effective CSF diversion with a one-way valve

  • using biocompatible synthetic materials.

    • John Holter-1st Silicone Valve

    • Robert Pudenz-Silicone distal slit valve

    • Peritoneum chosen as better absorptive site than the

      vascular system


Heyer schulte and shunt industry history l.jpg
Heyer Schulte and Shunt Industry History

  • 1953: Dr. Robert Pudenz and W.T. (Ted) Heyer team up on hydrocephalus research

  • 1955: Pudenz ventriculo-atrial shunt is developed

  • 1959: Rudy Schulte joins Heyer and Pudenz

  • 1959: Pudenz flushing valve is developed

  • 1960: Codman distributes Heyer-Schulte products

  • 1960: Holter valve is created

  • 1965: Cordis begins U.S. presence

  • 1965: Extra-Corporeal buys Holter

  • 1973: Codman dropped as Heyer-Schulte distributor


Heyer schulte and shunt industry history26 l.jpg
Heyer Schulte and Shunt Industry History

  • 1974: American Hospital Supply buys Heyer-Schulte

  • 1975: Codman introduces their own product line

  • 1977: Anasco, PR manufacturing facility is built

  • 1978: Codman buys Extra-Corporeal

  • 1983: AHS folds Heyer-Schulte into V. Mueller

  • 1984: Dr. Pudenz and Rudy Schulte found P-S Medical

  • 1986: Baxter-Travenol acquires AHS


Heyer schulte and shunt industry history27 l.jpg
Heyer Schulte and Shunt Industry History

  • The 90’s

    • NeuroCare Group acquires Heyer-Schulte

    • Radionics introduces full shunt line

    • Medtronic acquires P-S Medical

    • Phoenix Biomedical enters the market

    • Codman acquires Cordis

    • Elekta acquires Cordis

    • NMT acquires Cordis

    • Integra acquires Heyer-Schulte


What is a shunt l.jpg
What is a Shunt?

  • A shunt is a device that diverts CSF from the CNS (usually the lateral ventricle or the lumbar subarachnoid space) to an alternate body cavity (usually the peritoneum or the right atrium) where it is reabsorbed.


How shunts work l.jpg
How Shunts Work

  • Divert CSF from the CNS to another body cavity (R atrium, peritoneum) for absorption.

  • Mechanical device that regulates flow out of the ventricle.

  • One-way valve opens when the sum of the forces acting on it exceed some threshold. (the difference between the inlet or ventricular pressure and outlet or peritoneal pressure.


Shunt systems l.jpg
Shunt Systems

  • Ventriculo-peritoneal

  • Ventriculo-atrial

  • Lumbar-peritoneal


Shunt components l.jpg
Shunt Components

  • Primary Components

    • Proximal Catheter

    • Valve (Proximal or Distal)

    • Distal Catheter

  • Optional Components

    • Reservoir

    • Siphon Limiting Mechanism (ASD, SCD, GCD)

  • Accessories

    • Connectors

    • Guides

    • Introducers/Stylets

    • Catheter Passers


Shunt accessories l.jpg
SHUNT ACCESSORIES

  • Proximal catheter stylet (can use endoscope)

  • Stylets for unitized shunts

  • Shunt passers

  • Connectors and Right angle guides

  • Shunt tap kits

  • Manometers


Valve mechanisms l.jpg
Valve Mechanisms

  • Differential Pressure Valves

  • Flow regulating devices


Valve mechanisms42 l.jpg
Valve Mechanisms

  • Differential Pressure Valves

  • Valves open when difference between the ventricular pressure and the peritoneal pressure exceeds some threshold.

  • Pressure difference at which a valve opens is called the opening pressure.

  • Pressure difference at which a valve closes is called the closing pressure.


Valve types l.jpg
Valve Types

  • Burr Hole - shaped to fit the hole made in the skull.

  • The reservoir is an integral part e.g. Pudenz

  • Flat Bottom - rests flat against the skull distal to the

  • ventricular catheter e.g. LPV II, Novus

  • Cylindrical/In Line - appears “seamless” between the

  • ventricular and peritoneal catheters

  • e.g.. Ultra VS







Internal valve components l.jpg
Internal Valve Components

  • Slit

  • Ball and Spring

  • Miter

  • Diaphragm


Valve mechanisms52 l.jpg
Valve Mechanisms

Slit

Miter


Valve internal mechanisms l.jpg
Valve Internal Mechanisms

  • High spring rate valves- open slowly, close quickly (miter, slit)

  • Low spring rate valves- open quickly, close slowly (diaphragm, ball & spring, prone to siphon)


Valve mechanisms54 l.jpg
Valve Mechanisms

  • Slit valves - a slit in a curved rubber layer. The flow arriving from the concave side opens slit, size of opening relating to the upstream pressure

  • Can be proximal or distal

  • Disadvantage:

    • ”stickiness” of silicone rubber can affect opening

    • Precision?

    • Varies with age of valve?


Slit valves l.jpg
Slit Valves

  • Codman

    • Holter (proximal catheter/valve)

    • Denver (proximal catheter)

    • Accuflo (distal catheter)

    • Uni-shunt (distal catheter)

  • Radionics

    • Proximal slit valve

  • Phoenix

    • Holter-Hausner valve



Valve mechanisms58 l.jpg
Valve Mechanisms

  • Mitre valves - the leaves of the “duckbill” part in response to the pressure differential. Pressure characteristics of mitre valve are related to size,shape, thickness and length of leaves.

  • Disadvantage :

    • “stickiness” of silicone rubber can affect opening


Mitre valves l.jpg
Mitre Valves

  • Heyer-Schulte

    • Ultra-VS(cylindrical)

    • Mishler Dual Chamber (flat bottom)

    • Spetzler in-line Lumbar - Peritoneal valve (cylindrical)


Valve mechanisms61 l.jpg
Valve Mechanisms

  • Spring valves/Ball in cone - a metallic spring which applies force to a ball (usually ruby or sapphire) located in an orifice. Opening pressure is defined by spring stiffness

  • Disadvantage:

    • prone to obstruction from CSF debris or high protein content

    • subject to siphoning


Ball in cone valves l.jpg
Ball-in-Cone Valves

  • Codman Medos Hakim

    • Medos Programmable

  • NMT/Cordis

    • Atlas

    • Hakim

    • Orbis Sigma II

  • Sophysa

    • Sophy Programmable


Valve mechanisms64 l.jpg
Valve Mechanisms

  • Diaphragm valves - a round diaphragm rests on or under a valve seat. Pressure causes the diaphragm to be detracted from the seat allowing CSF to flow

  • Disadvantage:

    • prone to siphoning

    • in some designs flow is not laminar making it prone to obstruction


Diaphragm valves l.jpg
Diaphragm Valves

  • Heyer-Schulte

    • Pudenz (burr hole)

    • LPV II (flat bottom)

    • Novus (flat bottom)

  • PS Medical/Medtronic

    • Delta (Burr hole, flat bottom)

    • Button(flat bottom)

    • Contour (flat bottom)


Slide66 l.jpg

Diaphragm Valves

  • Radionics

    • Contour Flex

    • Equi-flow

    • Burr hole

  • Codman

    • Accu-flo valve


Valve mechanisms68 l.jpg
Valve Mechanisms

  • Flow regulating mechanisms

  • Maintains same flow rate at any differential pressure by increasing or lowering its resistance to pressure

  • May be achieved by a solid conical cylinder inserted inside a ring attached to a pressure sensitive membrane


Slide69 l.jpg

Valve Mechanisms

  • Inner diameter of ring is

  • greater than larger

  • outer diameter of

  • conical cylinder

  • By reducing surface

  • area, mechanism

  • restricts amount of fluid

  • that can go through

  • Outer cylinder moves

  • to compensate for

  • reduced surface area

  • to maintain flow rate.


Slide72 l.jpg

Valve Mechanisms

  • At very low pressures acts like a DP valve

  • At high pressures the ring moves beyond the central cylinder to give a “blow off” valve.


Treatment for siphoning l.jpg
Treatment for Siphoning

  • In a vertical position, negative pressure from hydrostatic column can cause overdrainage

  • Siphoning control achieved by adding siphon resistive devices to the shunt system.

  • Functions as a second valve in line that closes in response to peritoneal pressure


Shunt failures and complications l.jpg
Shunt Failures and Complications

  • Shunt failure is at a maximum in first few months after surgery (25-40% at one year follow-up). Then falls to 4-5%

  • The mean survival for a shunt is approx 5 years


Shunt failures and complications76 l.jpg
Shunt Failures and Complications

  • Shunt obstruction (about 50 - 60% of all failures)

  • Infection(between 5 - 10%)

  • Mechanical failure due to disconnection

  • Valve failure

  • Overdrainage

  • Patient/shunt mismatch


Shunt placement procedure l.jpg
Shunt Placement Procedure

  • Skin Incision

  • Placement of Burr Hole

  • Sbcutaneous dissection

  • Tunnel the peritoneal catheter

  • Open dura & place ventricular catheter

  • Connect valve, test & clean

  • Distal catheter insertion & skin closure


Shunt implantation approaches l.jpg
Shunt Implantation Approaches

Occipital Approach

Temporal Approach

Frontal Approach


Slide79 l.jpg

Metopic

Suture

Coronal

Suture

Anterior

Fontanelle

Sagittal

Suture

Posterior

Fontanelle

Lamboidal

Suture

Adult human skull seen from above

Skull of a newborn seen from above


Indications for use of a lumbar peritoneal shunt l.jpg
Indications For Use of a Lumbar-Peritoneal Shunt

  • Communicating Hydrocephalus - when ventricles are small and it would be difficult to cannulate with a ventricular catheter.

  • Normal Pressure Hydrocephalus - shunting without necessitating a cranial procedure.


Goals of shunt design development l.jpg
Goals of Shunt Design & Development

  • Restoration of “normal physiology” in the shunted individual

  • Maximize the potential quality of life for each patient

  • Expand the population of successfully treated patients





Integra neurosciences consistency by design l.jpg

Integra NeuroSciencesConsistency by Design


Slide87 l.jpg

FLOW PATH

DELTA VALVE


Slide92 l.jpg

LPV II Valve Performance

at High Flow Rates (45.8ml/hr)

LPV Valve Performance

at High Flow Rates (45.8ml/hr)


Slide93 l.jpg

LPV II Valve Performance

at Low Flow Rates (4.6ml/hr)

LPV Valve Performance

at Low Flow Rates (4.6ml/hr)


Competitive matrix l.jpg
Competitive Matrix

  • Medtronic P.S. Medical

  • Cordis

  • Codman

  • Radionics

  • Sophysa

  • Phoenix






Product line strengths l.jpg
Product line strengths

  • Consistency and predictability

  • Broad product line

  • Clnical support

  • History

  • Manufacturing expertise

  • Pricing flexibility


ad
