Presentation Transcript

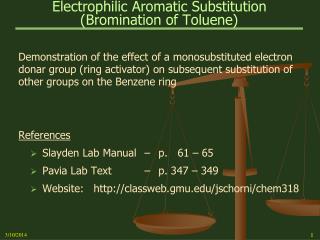

Electrophilic aromatic substitution bromination of toluene l.jpg
Electrophilic Aromatic Substitution(Bromination of Toluene)

Demonstration of the effect of a monosubstituted electron donar group (ring activator) on subsequent substitution of other groups on the Benzene ring

References

  • Slayden Lab Manual – p. 61 – 65

  • Pavia Lab Text – p. 347 – 349

  • Website: http://classweb.gmu.edu/jschorni/chem318


Electrophilic aromatic substitution bromination of toluene2 l.jpg
Electrophilic Aromatic Substitution(Bromination of Toluene)

  • Overview

    • Synthesis – Halogenation of a substituted Benzene ring (Toluene) with Br2 in the presence of FeBr3 (forms Br+ ions).

    • Determine the Theoretical Yield of the Bromotoluene mixture.

    • Determine the effect of the Methyl group on the number of Bromine substitutions on the ring and the orientation of the substituted Bromine atoms (Ortho, Para, Meta) relative to the Methyl group.

    • Obtain IR Spectra of Bromotoluene isomers using IR Spectrophotometer in “Absorbance” mode.

    • Use two methods (Triangulation Method and IR Spectrophotometer software) to compute the Mole Percents of the Bromotoluene isomers using the relationship between peak area and mole content of the reaction.


Electrophilic aromatic substitution bromination of toluene3 l.jpg
Electrophilic Aromatic Substitution(Bromination of Toluene)

  • Laboratory Report

    • Synthesis Experiment

      • Mass, Moles, Molar Ratio, Limiting Reagent, Theoretical Yield

    • Procedures

      • Title – Concise: Simple Distillation, Dry Sample, IR Spectrum, etc.

      • Materials & Equipment (2 Columns in list (bullet) form)

        Note: include all reagents & principal equipment used

      • Description:

        • Use list (bullet) form

        • Concise, but complete description

        • Use your own words – Don’t copy book!!


Electrophilic aromatic substitution bromination of toluene4 l.jpg
Electrophilic Aromatic Substitution(Bromination of Toluene)

  • Summary

    • Paragraph summarizing the experimental results, computed results, and the principal absorptions from IR spectra

  • Analysis / Conclusions

    • Discuss the isomeric makeup of the product relative to what you expected from theory.

    • No. of Isomers

    • Orientation of the Substituted groups

    • Molar Composition of the isomers

    • Compare Triangulation vs. IR Software area calculation


  • Electrophilic aromatic substitution bromination of toluene5 l.jpg
    Electrophilic Aromatic Substitution(Bromination of Toluene)

    • Background

      • Nucleophile - A Lewis Base with a pair of unshared electrons that seeks a positive part of an atom.

      • Electrophile - A Lewis Acid seeking an electron pair


    Electrophilic aromatic substitution bromination of toluene6 l.jpg
    Electrophilic Aromatic Substitution(Bromination of Toluene)

    • Background

      • Electrophilic Aromatic Substitution

        • Electrophiles (Electron deficient species, such as Br+ ions), attack the electron rich nucleophile (Benzene Pi bond) replacing one of the hydrogen atoms.

        • Benzene and substituted Benzenes - as Aromatic Nucleophiles - can undergo Electrophilic Substitution.

        • There are five (5) common Electrophilic Aromatic Substitutions used in organic chemistry synthesis.

          • Halogenation – X2

          • Nitration – HONO2/H2SO4

          • Sulfonation – SO3/H2SO4

          • Friedel-Crafts Alkylation – RCl/AlCl3

          • Friedel-Crafts Acylation – RC=OCl (acetyl chloride), AlCl3.


    Electrophilic aromatic substitution bromination of toluene7 l.jpg
    Electrophilic Aromatic Substitution(Bromination of Toluene)

    • Background (Con’t)

      • Today’s experiment involves Halogenation of a substituted benzene ring (Toluene) with Br2 in the presence of FeBr3, which produces the Br+ ions (Electrophilic reagent) that are substituted on the ring

      • Aromatic Hydrocarbons, e.g., Benzene and substituted benzenes, are referred to as Arenes - The symbol for an Arene is ArH

      • An Aryl group is derived from an Arene by removing one of the Hydrogen atoms - The symbol for an Aryl group is Ar-

      • Common Reactions of Arenes include Electrophilic Substitutions involving the Arene and an Electrophilic Reagent, i.e., an electron seeking species with a positive charge (E+)

      • Arenes are susceptible to Electrophilic attack because of the exposed  electrons


    Electrophilic aromatic substitution bromination of toluene8 l.jpg
    Electrophilic Aromatic Substitution(Bromination of Toluene)

    • Background (Con’t)

      • When substituted benzenes undergo Electrophilic attack, groups already on the ring affect both the rate of the reaction (reactivity) and the site of the attack (orientation).

      • If the initial substitution group (see 1st reaction) is an electron-releasing (donating) group relative to hydrogen – an activator, such as a Methyl (CH3) group - the 2nd substitution occurs faster than substitution on an unsubstituted aromatic ring. The 2nd substitution tends to favor the Ortho/Para (o/p) positions.

      • If the 1st substitution is an electron-withdrawing (accepting) group – a deactivator, such as the Nitronium Ion - the reaction occurs slower than substitution on an unsubstituted aromatic ring and favors meta substitution, i.e. (m) directing.


    Electrophilic aromatic substitution bromination of toluene9 l.jpg
    Electrophilic Aromatic Substitution(Bromination of Toluene)

    • Background (Con’t)

      • In today’s experiment you will be performing an Electrophilic Substitution on the Benzene ring of Toluene, i.e., Methyl Benzene.

      • The Methyl group is an electron donor (activator) of the Benzene ring.

      • Electron density from one of the carbon-hydrogen sigma bonds of the Methyl group flows to the vacant p orbital of the Carbocation (positively charged carbon atom of the Benzene ring) because the orbitals can overlap – this is called Hyperconjugation.

      • The electron density of the sp2-hybridized carbocation carbon on the Benzene ring becomes less dense; the hydrogens of the Methyl group assuming some of this dispersed positive charge.


    Electrophilic aromatic substitution bromination of toluene10 l.jpg
    Electrophilic Aromatic Substitution(Bromination of Toluene)

    • Background (Con’t)

      • This dispersal (delocalization) of the charge stabilizes the ring.

      • The resonance structures that maximize the positive charge on the carbocation carbon attached to the Methyl group are the Ortho/Para positions (see slide 14).

      • Thus, substituted Methyl/Alkyl groups favor additional substitution at the Ortho and Para positions relative to the Methyl group.

      • The relative reactivity of an activating group is a strong influence on the number of times a substitution will occur on the ring.

      • One of the objectives of today’s experiment is to determine the effect of the Methyl group on the number of Bromine substitutions and the orientation of the substituted Bromine atoms.


    Electrophilic aromatic substitution bromination of toluene11 l.jpg
    Electrophilic Aromatic Substitution(Bromination of Toluene)

    • Background (Con’t)

      • When Toluene (Methyl Benzene), an Aromatic Hydrocarbon, is mixed with Bromine in the presence of Lewis Acid Catalyst, it undergoes an Electrophilic Aromatic Substitution.

      • In this experiment the Catalyst is Ferric Bromide (FeBr3) produced by reaction of Bromine (Br2) with a “staple” as the source of iron.

      • Actually, the Ferric Bromide and some additional Bromine (Br2) form a complex that dissociates to produce the positive Br+ ions that act as the electrophilic agent seeking the exposed  electrons of the Benzene ring activated by the electron donor Methyl group.


    Electrophilic aromatic substitution bromination of toluene12 l.jpg
    Electrophilic Aromatic Substitution(Bromination of Toluene)

    • Background (Con’t)

      • The products of the reaction are the Ortho, Para, and Meta forms of Bromotoluene and HBr.

      • Substitution Positions on Benzene Ring:

        • If all sites on the Benzene ring are assumed to be equally reactive – they are not – the product mixture would produce a statistical 2:2:1 (40%, 40%, 20%) ratio of ortho, meta, and para isomers (there are two Ortho positions, 2 Meta positions, and 1 Para position).

        • Since the sites are not equally reactive, one of your tasks today is to determine the actual mole ratios in the product mixture.


    Electrophilic aromatic substitution bromination of toluene13 l.jpg
    Electrophilic Aromatic Substitution(Bromination of Toluene)

    • Background (Con’t)

      • You will do this by using the IR Spectrophotometer in a new way

      • Each of the 3 isomers of Bromotoluene in the product mixture produces a unique absorption; and the relative peak areas for these absorptions are proportional to the mole ratios in the mixture

      • You will measure the areas by Triangulation as you did in the Gas Chromatography experiments last semester

      • You can also have the FT-IR instrument measure the areas


    Electrophilic substitution directing effects on aromatic ring l.jpg
    Electrophilic Substitution Directing Effectson Aromatic Ring

    Activators (Donate, Release Electrons to ring)

    • Available pair of unbonded electrons to donate to ring.

    • Protons on ring are more shielded

    • Tendency for decreased Chemical Shift

  • Deactivators (Withdraw, Accept Electrons)

    • No unbonded electron pairs

    • Less Shielding of Protons on the ring

    • Tendency for increase Chemical Shift

  • Methyl & Alkyl groups are activating because of the stabilizing effect of sp2 hybridization (hyperconjugation) of an unbonded electron in the Methyl radical.

    Halogens are o,p directing because the electron donating resonance effect is more dominant than the withdrawal inductive (Dipole) effect of these electro-negative elements.


    Electrophilic aromatic substitution bromination of toluene15 l.jpg
    Electrophilic Aromatic Substitution(Bromination of Toluene)

    • The Reactions

      • The Electrophiles attack the  system to form a “Nonaromatic Carbocation” known as an Arenium ion.

    • An electron releasing Electrophile, an Activator such as the Methyl group, stabilizes the ring resulting in a faster predominate Ortho/Para substitution reaction.

    • An electron withdrawing Electrophile, a Deactivator, such as the Nitronium ion, destabilizes the ring, promoting a slower less predominate Meta substitution reaction.


    Electrophilic aromatic substitution bromination of toluene16 l.jpg
    Electrophilic Aromatic Substitution(Bromination of Toluene)

    • The Reactions (Con’t)

      • Bromine Cations

        • In today’s experiment, Bromine (Br2) in the presence of Fe (from an ordinary “staple”) will produce positive Bromine ions (Br+). The Bromine reacts with the Iron to form the Lewis Acid (FeBr3), which in turn reacts with excess Br2 to form a polarized complex that dissociates to form positive Bromine ion, Br+ and FeBr4-.

        • The Positive Br+ ion acts as the positively charged Electrophilic reagent (seeking electrons) which attacks the exposed electrons of the bond of the benzene ring.


    Electrophilic aromatic substitution bromination of toluene17 l.jpg
    Electrophilic Aromatic Substitution(Bromination of Toluene)

    • The Reactions (Con’t)

      • Substitution of Bromine


    Electrophilic aromatic substitution bromination of toluene18 l.jpg
    Electrophilic Aromatic Substitution(Bromination of Toluene)

    Electrophilic attack on a

    Benzene ring containing

    an Electron donating

    group (Methyl group)

    Substitution of Electrophile

    at the Ortho/Para positions

    is favored


    Electrophilic aromatic substitution bromination of toluene19 l.jpg
    Electrophilic Aromatic Substitution(Bromination of Toluene)

    • Procedure

      • This experiment will be done in teams of two

      • Obtain a sample vial with cap containing a pre-treated “staple” from the hood, i.e., the non-iron coating has been removed

      • Put a small tape label on the outside with your name(s) and section number

      • The instructor will use a pre-calibrated “autopipet” to deliver 115 l (0.115 mL) of Toluene (Mol Wgt – 92.139; Den – 0.867 g/mL)

      • Cap the vial again

      • Calculate the Mass of Toluene from the Volume and Density

      • From the Mass and Mol Wgt compute moles of Toluene

      • In the hood, the instructor will use an “autopipet” to add 65 l (0.065 mL) of Bromine (Br2) (Mol Wgt – 159.81; Den – 3.119 g/mL) to the vial


    Electrophilic aromatic substitution bromination of toluene20 l.jpg
    Electrophilic Aromatic Substitution(Bromination of Toluene)

    • Procedure (Con’t)

      • Cap the vial loosely to allow the vapors to escape and set the vial in the hood to continue the reaction. Record any observations.

      • Use the Volume and Density of Bromine to compute the Mass of Bromine used.

      • From the Mass and Mol Wgt of Bromine calculate Moles of Bromine.

        Note: The reaction involves Toluene (Mol Wgt - 92.139) and Br2 (Mol Wgt - 159.81) to form Bromotoluene (171.035) and HBr. You need to set up the stoichiometric equation and determine the appropriate molar ratios involved. Do you use mol wgt of Br2 (159.81) or Br (79.90) to compute moles of bromine used in the reaction?


    Electrophilic aromatic substitution bromination of toluene21 l.jpg
    Electrophilic Aromatic Substitution(Bromination of Toluene)

    • Procedure (Con’t)

      • Determine “Limiting Reagent” and compute “Theoretical Yield”

      • Observe reaction for 10 minutes; then insert a “dry” piece ofLitmus paper into the reaction vapor in the upper portion of the vial – Do Not put litmus into the solution

      • Record observation – Does the Litmus paper change color; why?

      • Allow vial to sit in the hood for 45 minutes or until the deep reddish-brown Bromine color has faded to yellow

      • Record color change observations


    Electrophilic aromatic substitution bromination of toluene22 l.jpg
    Electrophilic Aromatic Substitution(Bromination of Toluene)

    • FT-IR Absorbance Mode (Setup will be done by Instructor)

      • Press “T/A” to change the ordinate of the spectrum to “Absorbance” mode.

      • Change “Scan Range”

        • Press “Setup”

        • Select “Scan” using 1st Soft Key from left

        • Select “Range” using 3rd Soft Key from left

        • Enter “high frequency” value using the numeric keypad (Suggest 850 cm-1 to start)

        • Press “Enter”

        • Enter “Low frequency” value using the numeric keypad (Suggest 650 cm-1 to start)

        • Press ”Enter”

        • Press “Execute” Soft Key – Last Soft Key on right


    Electrophilic aromatic substitution bromination of toluene23 l.jpg
    Electrophilic Aromatic Substitution(Bromination of Toluene)

    • FT-IR Absorbance Mode

      • Change “Absorbance Range”

        • Press “Setup”

        • Select “View” using 3rd Soft Key from left

        • Select “Rescale” using 4th Soft Key from left

        • Enter “Low Absorbance” value using the numeric keypad. Suggest 0.5 to start

        • Press “Enter”

        • Enter “High Absorbance” value using the numeric keypad Suggest 1.0 to start

        • Press”Enter”

        • Press “Execute” Soft Key – Last Soft Key on right.

        • Range values may have to be changed depending on actual peak ranges in spectrum


    Electrophilic aromatic substitution bromination of toluene24 l.jpg
    Electrophilic Aromatic Substitution(Bromination of Toluene)

    • IR Spectroscopy

      • Place a drop of the reaction mixture between two IR salt plates and obtain an IR spectrum in “Absorbance Mode” in the region between 900 – 600 cm-1. The instrument will be preset for this spectrum determination.

      • Press Scan; “X”; 4; Execute; Plot (wait until execution is complete)

      • Label the appropriate absorption peaks with the Bromotoluene isomer name.

        Bromotoluene Reference Peaks

        p-Bromotoluene m-Bromotoulene o-Bromotoluene Toluene

        801 cm-1 770 cm-1 747 cm-1 726 cm-1

        Note: The Toluene peak should be very small (missing!!)

        The m-Bromotoluene peak should be small


    Electrophilic aromatic substitution bromination of toluene25 l.jpg
    Electrophilic Aromatic Substitution(Bromination of Toluene)

    • Compute Peak Areas by Triangulation.

      • The areas under the IR spectra reference peaks are proportional to the mole content in the reaction mixture.

      • The molar percentage composition of a mixture can be approximated by comparing the relative areas of the peaks in the spectra.

      • Define the “Baseline” by drawing a best-fit (eye-balled) straight line along the bottom of the spectra plot, similar to the way you did it in gas chromatography.

      • The area of the peak is determined by multiplying the height of the peak (in mm) above the baseline by the width of the peak (in mm) at half the height.

      • Add areas to get the total area.

      • Divide each area by total area to get mole fraction.

      • Multiply the mole fraction by 100 to get the mole percent.


    Electrophilic aromatic substitution bromination of toluene26 l.jpg
    Electrophilic Aromatic Substitution(Bromination of Toluene)

    • Peak Area by theTriangulation Method

      Peak Area = h * w½

      Where h = Peak Height

      w½ = width of peak at ½ the Peak Height

      Total Peak Area(TA) = A + B

      Mole Fraction(MF) = A/TA, B/TA

      Mole Percent = MF x 100


    Electrophilic aromatic substitution bromination of toluene27 l.jpg
    Electrophilic Aromatic Substitution(Bromination of Toluene)

    • Measure Peak Area using FT-IR software

      • Press “T/A” to change the ordinate of the spectrum to “Absorbance” mode

      • Press “Area” (Shift 7)

      • Press “X” region key, i.e. select the buffer region for your spectrum

      • Press “vcursor (Shift ←). The “vertical cursor” appears

      • Move the vertical cursor to a point representing the upper limit (left side) of the frequency range of the peak you want to calculate

      • Type the wave number of the vertical cursor in the “From” field, then press “Enter”


    Electrophilic aromatic substitution bromination of toluene28 l.jpg
    Electrophilic Aromatic Substitution(Bromination of Toluene)

    • Move the vertical cursor to the lower frequency limit (right side) of the range of a peak you want to calculate

    • Type the wave number of the vertical cursor in the “To” field, then press “Enter”

      Note: The Baseline range determined below is inclusive of the three peaks you are calculating; use the same baselinerange for all three determinations

    • Move the vertical cursor to a point corresponding to a frequency slightly higher than the upper frequency limit of the peak with the highest frequency range. This first “Baseline Point” is the upper frequency (left side) of the Baseline range

      • Type the wave number of the vertical cursor in the “Basefrom” field, then press “Enter”


    Electrophilic aromatic substitution bromination of toluene29 l.jpg
    Electrophilic Aromatic Substitution(Bromination of Toluene)

    • Peak Area by FTR Software

      • Move the vertical cursor to the second “Baseline Point” at a frequency slightly lower than the lower frequency limit of the peak with the lowest frequency range

      • This second “Baseline Point” is the lower frequency (right side) of the Baseline range

    • Type the wave number of the vertical cursor in the “Baseto” field

      • Press “Execute” to calculate the area. The calculated result appears on the command line

      • Record the result in your notebook

      • Repeat steps 4 to 9 for the other peaks


    ad
