CARGOLOG

DATA LOGGING SYSTEM FOR TRANSPORT QUALITY ASSURANCE


Cargolog transport data logging system l.jpg
CARGOLOGTransport data logging system

?

  • What happens to your product during transport?

  • Cargolog lets you know!!!!


Cargolog transport data logging system3 l.jpg
CARGOLOGTransport data logging system

  • Complete system for transport & handling

  • Ideal for all products

  • Independent sampling can be carried out for long periods

  • Shows events in text form, minute by minute, in the Windows analysis software


Cargolog transport data logging system4 l.jpg
CARGOLOGTransport data logging system

Useful for

  • Product development

  • Packaging design changes

  • Transport & handling

  • Quality routines such as ISO 9000


Slide5 l.jpg

CARGOLOGTransport data logging system

The Cargolog system consists of

  • A registration unit with built-in sensors

  • An optical communication unit –Interface

  • Installation base for the registration unit.

  • Windowssoftware


Cargolog transport data logging system6 l.jpg
CARGOLOGTransport data logging system

  • Compact registration unit

  • Low power consumption – long operating time

  • Low weight

  • Fully electronic – no moving parts

  • Optical communication with a PC

Registration unit


Slide7 l.jpg

CARGOLOGTransport data logging system

Registration unit

  • Measures Acceleration X Y Z, Temperature, Humidity and Tilt in the same unit

  • Stores the information in a ‘protected’ memory

  • Exceeded limit values are displayed immediately

  • Facilitates inspection upon goods receipt

  • Provides support in the event of insurance claims


Slide8 l.jpg

CARGOLOGTransport data logging system

Sampling ranges

  • Acceleration X Y Z, ±100G / ±25G / ±10G ±2,5G

  • Acceleration duration > trigger level in ms

  • Acceleration frequency range 2–30Hz (300 Hz)

  • Temperature –40–+80 C° ± 0.5C (–40–+176°F ±0.9F)

  • Relative humidity (RH) 10–90% ± 3%

  • Tilt in excess of 90° (45 °) (FAT90V1)

  • Angle 0-90° in two direktions ± 5°


Slide9 l.jpg

CARGOLOGTransport data logging system

Sampling results

  • Show events in text, minute by minute, in the Windows analysis software

  • An aid in problematic situations

  • Analysis determines the best means of transport for the product

  • Supports quality routines, such as ISO 9000

  • Logistical analysis


Slide10 l.jpg

CARGOLOGTransport data logging system

Calibration:

  • Each Cargolog unit is calibrated according to the reference unit that was tested and calibrated by the Swedish National Testing and Research Institute, SP


Slide11 l.jpg

CARGOLOGTransport data logging system

EMC compatibility

  • The registration unit has been tested and approved according to the following standards:

  • Emission: EN 50 081-1 Home, Office, Light industry

  • Radiated emissions: EN 55 022 class B

  • Immunity: EN 50 082-2 Industry

  • Electrostatic discharge: EN 61000-4-2

  • Radiated electromagnetic field: ENV 50 140, ENV 50 204


Slide12 l.jpg

CARGOLOGTransport data logging system

PC software

  • Windows software – easy to learn and use

  • English interface makes international contacts easier

Guaranteed harmless!!!!


Slide13 l.jpg

CARGOLOGTransport data logging system

PC software

  • Start sampling

  • Read sampling from the registration unit

  • Analyse sampling results

  • Display in graph form

  • Print sampling results


Slide14 l.jpg

CARGOLOGTransport data logging system

Select the desired values with a click of the mouse


Slide15 l.jpg

CARGOLOGTransport data logging system

The Cargolog system

  • Shows customers your quality ambition

  • Helps prevent damage

  • Facilitates claims in the event of damage

  • Supports quality routines, such as ISO 9000

  • Logistical analysis


Slide16 l.jpg

CARGOLOGTransportation data log system

Cargolog users

  • ABB

  • Electrolux

  • Ericsson Radio Systems

  • FMV

  • Gambro

  • Göteborgs Kex

  • Marabou

  • Pharmacia Diagnostics

  • Pharmacia Upjohn

  • Micronic Lasersystem

  • SAAB Automobile

  • Sandvik

  • Stora Feldmuhle

  • Stora Terminal

  • SJ

  • Volvo


Cargolog17 l.jpg

CARGOLOG

DATA LOGGING SYSTEM FOR TRANSPORT QUALITY ASSURANCE


Slide18 l.jpg

CARGOLOGTransport data logging system

New

  • New program version – 5.0

  • More versions of the registration units

  • New sampling range for acceleration ±2,5G

  • GPS positioning integrated in the registration unit

  • Reduced power consumption – about 15% lower in standby mode


Slide19 l.jpg

New

in

version 5.0

CARGOLOGTransport data logging system

  • Works with Windows 2000/ME, XP

  • Improved print-out functions

  • Function for excluding acceleration values that have less than a specified duration (adjustable)

  • Comments can be added to the graph to explain a certain sampling value or time

  • Horizontal support lines can be added to the graph to aid in evaluation

  • Graphs can be scaled automatically in relation to the level of detail in the sampling


Cargolog transport data logging system20 l.jpg
CARGOLOGTransport data logging system

GPS can be set to register position at a certain time interval, or when pre-set limits are exceeded


Cargolog transportdataloggersystem l.jpg
CARGOLOGTransportdataloggersystem

The GPS-antenna can be customized for installation inside or outside. Length up to 5 meter. Fastening by use of magnet.


Cargolog transport data logging system22 l.jpg
CARGOLOGTransport data logging system


Cargolog transport data logging system23 l.jpg
CARGOLOGTransport data logging system

The GPS-data will appear in the Scorevalues window, and by means of mouse button click the position will be shown on your map.


Cargolog transport data logging system24 l.jpg
CARGOLOGTransport data logging system


Cargolog transport data logging system25 l.jpg
CARGOLOGTransport data logging system

  • Sampling example with…


Cargolog transport data logging system26 l.jpg
CARGOLOGTransport data logging system

  • …confirmed results…


Slide27 l.jpg

Monitor the transport and sampling results on the graph. Click on the position coordinates and display the geographical position of the goods on a map


Cargolog transport data logging system28 l.jpg
CARGOLOG Click on the position coordinates and display the geographical position of the goods on a mapTransport data logging system

Click to zoom…


Cargolog transport data logging system29 l.jpg
CARGOLOG Click on the position coordinates and display the geographical position of the goods on a mapTransport data logging system


Cargolog transport data logging system30 l.jpg
CARGOLOG Click on the position coordinates and display the geographical position of the goods on a mapTransport data logging system


Cargolog transport data logging system31 l.jpg
CARGOLOG Click on the position coordinates and display the geographical position of the goods on a mapTransport data logging system


Cargolog transport data logging system32 l.jpg
CARGOLOG Click on the position coordinates and display the geographical position of the goods on a mapTransport data logging system


Cargolog transport data logging system33 l.jpg
CARGOLOG Click on the position coordinates and display the geographical position of the goods on a mapTransport data logging system


Cargolog transportdataloggersystem34 l.jpg
CARGOLOG Click on the position coordinates and display the geographical position of the goods on a mapTransportdataloggersystem


Slide35 l.jpg

Ò Click on the position coordinates and display the geographical position of the goods on a map

CARGOLOG

CARGOLOG

New version

Transport data logging system

Internet server

GPS

positioning

Warning to

GSM/SMS

Automaticallystarted upon shipping – automatically read on arrival


Cargolog transport data logging system36 l.jpg
CARGOLOG Click on the position coordinates and display the geographical position of the goods on a mapTransport data logging system

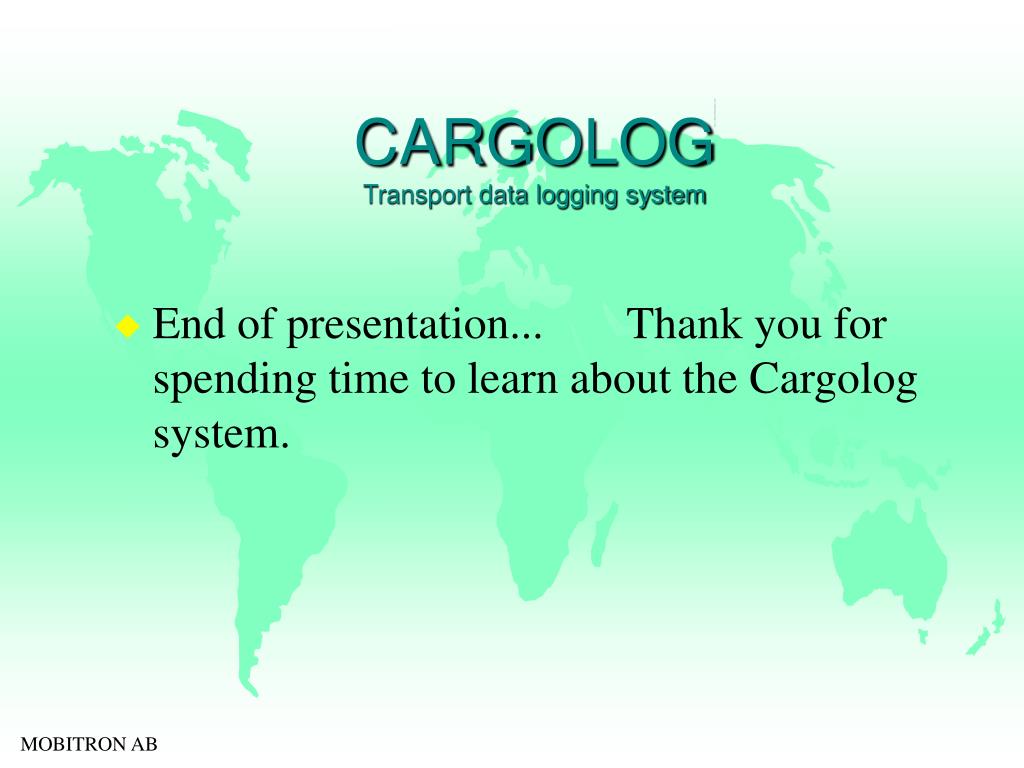

  • End of presentation... Thank you for spending time to learn about the Cargolog system.
