Motivations for upgrading the LHC injectors. Evolution of the CERN accelerator complex (1/3): - Proposed combinations. Proton flux / Beam power. Linac4. Linac2. 50 MeV. 160 MeV. PSB. SPL’ RCPSB. SPL. 1.4 GeV. ~ 5 GeV. PS. 26 GeV. PS2 (PS2+).

erica
Download Presentation

Motivations for upgrading the LHC injectors

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Motivations for upgrading the LHC injectors

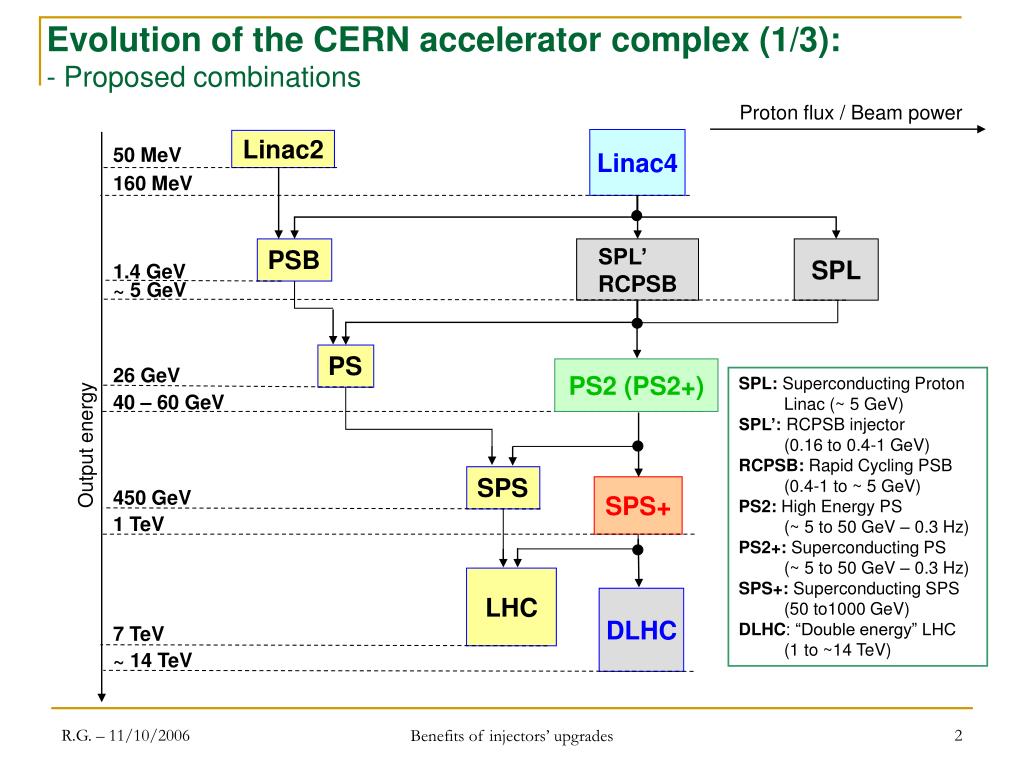

  2. Evolution of the CERN accelerator complex (1/3):- Proposed combinations Proton flux / Beam power Linac4 Linac2 50 MeV 160 MeV PSB SPL’ RCPSB SPL 1.4 GeV ~ 5 GeV PS 26 GeV PS2 (PS2+) SPL: Superconducting Proton Linac (~ 5 GeV) SPL’: RCPSB injector (0.16 to 0.4-1 GeV) RCPSB: Rapid Cycling PSB (0.4-1 to ~ 5 GeV) PS2: High Energy PS (~ 5 to 50 GeV – 0.3 Hz) PS2+:Superconducting PS (~ 5 to 50 GeV – 0.3 Hz) SPS+: Superconducting SPS (50 to1000 GeV) DLHC: “Double energy” LHC (1 to ~14 TeV) 40 – 60 GeV Output energy SPS SPS+ 450 GeV 1 TeV LHC DLHC 7 TeV ~ 14 TeV Benefits of injectors’ upgrades

  3. Scenarios for the proton accelerator complex (2/3):- Stages of implementation Benefits of injectors’ upgrades

  4. Scenarios for the proton accelerator complex (3/3):- Expected performance improvement Benefits of injectors’ upgrades
